In Stock 165mm Diameter DTH Button Mining Drill Bits for DHD360 Shank Hammer
- Category: >>>
- Supplier: Sichuan Bashifu Group Co. LtdSichuan Ltd
Share on (1601248404755):
Product Overview
Description
Hot Sale DHD340 115mm Button Hard Rock Drill DTH Bits for Water Well Drilling Rig
Product Overview
Details Images
Bit Face Shape Selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-around application bit face specifically for medium hard and homogeneous rock formations.
Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce theload and wear on the gauge buttons, but poor hole deviation control.
4. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures.Good penetration rates an resistance to steel wash.
Carbide Button Shape Selection:
1. Semi-Ballistic Buttons
2. Ballistic Button
3. Spherical Button
4. Two-step Button
Our Advantages:
We have advanced production equipment & talented researchers & technicians & rich experiences in R & D and production.
We using the best quality raw materials.
We adopting advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-around application bit face specifically for medium hard and homogeneous rock formations.
Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce theload and wear on the gauge buttons, but poor hole deviation control.
4. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures.Good penetration rates an resistance to steel wash.
Carbide Button Shape Selection:
1. Semi-Ballistic Buttons
2. Ballistic Button
3. Spherical Button
4. Two-step Button
Our Advantages:
We have advanced production equipment & talented researchers & technicians & rich experiences in R & D and production.
We using the best quality raw materials.
We adopting advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
Mission 40
QL340
DHD340
Bit Dia.(mm) | Qty.× Button Dia.(mm) | Ho,Air Holes | Weight (kg) | Product Code | |||
Outer | Front | ||||||
DTH bits for 3.5” hamner | 90 | 6×14 | 4×13 | 2 | 4.9 | 110104 | |
95 | 6×14 | 4×13 | 2 | 5.2 | 204050 | ||
100 | 6×14 | 5×13 | 2 | 5.8 | 110144 | ||
105 | 6×14 | 5×13 | 2 | 6.2 | 110194 | ||
DTH bits for 4” hammers | 105 | 7*14 | 6*13 | 2 | 8 | 120784 | |
110 | 8*14 | 6*14 | 2 | 8.5 | 120154 | ||
115 | 7*16 | 6+14 | 2 | 8.8 | 123774 | ||
125 | 8*14 | 7*13 | 2 | 9.5 | 123134 | ||
130 | 8*14 | 7*13 | 2 | 10 | 120704 | ||
DTH bits for 5" hammers | 130 | 7*16 | 7*14 | 2 | 10 | 131444 | |
140 | 7*18 | 7*14 | 2 | 15.5 | 132494 | ||
145 | 8*16 | 8*14 | 2 | 15.7 | 132664 | ||
150 | 8*16 | 8*14 | 2 | 15.8 | 130234 | ||

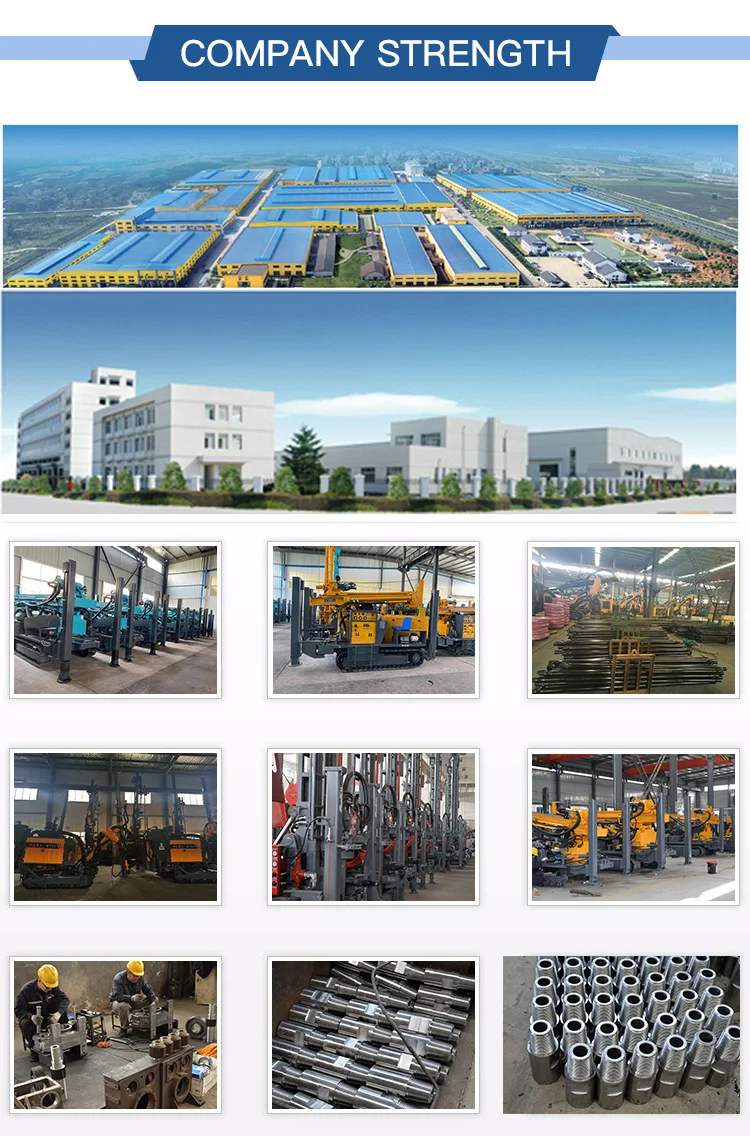

Company Profile
Sichuan Bashifu Group Co., Ltd. has been committed to the professional production of water well drilling rigs and down-the-hole drilling rigs, as well as the sales and maintenance of drilling tools and air compressors for more than 20 years. We have accumulated rich experience in professional maintenance technology and thoughtful and meticulous after-sales service. A large amount of usage data has been accumulated through extensive contact with users.
The company independently developed a new generation of water well drilling rigs and won a number of national patents. This series of products has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economy and durability, and low failure rate. Once launched, it has been recognized by the market and is widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
The company independently developed a new generation of water well drilling rigs and won a number of national patents. This series of products has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economy and durability, and low failure rate. Once launched, it has been recognized by the market and is widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
Application
Product packaging
FAQ
1.What can you buy from us? DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary
drill rig ,Top Hammer drill rig，underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig，environmental drilling rig，screw air compressor, piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
drill rig ,Top Hammer drill rig，underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig，environmental drilling rig，screw air compressor, piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc. 3. How is the shipment? How long dose it take? A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping
out.
out.
