high precision Countertop Measuring Laser Scanner ELECNC 360 5 Axis Bridge Saw scanning device
- Category: >>>
- Supplier: Blue Elephant CNC Machinery Co. LtdBlue Ltd
Share on (1601248600774):
Product Overview
Description
Product Description

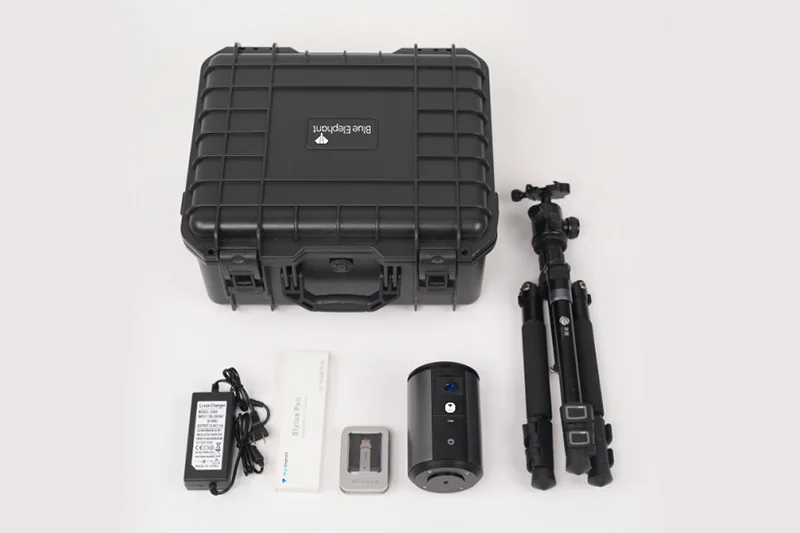

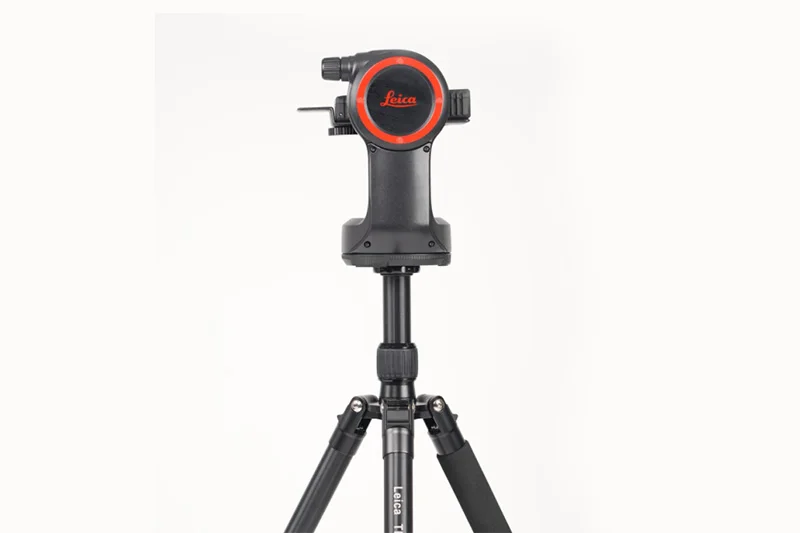

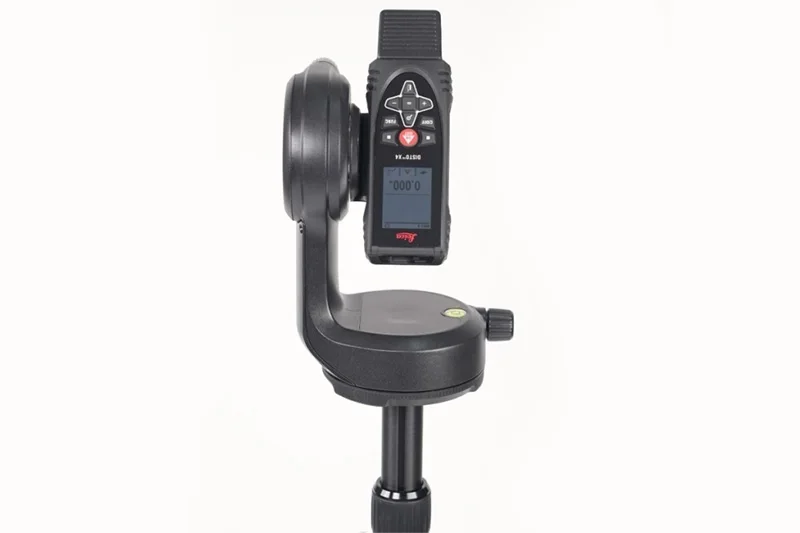

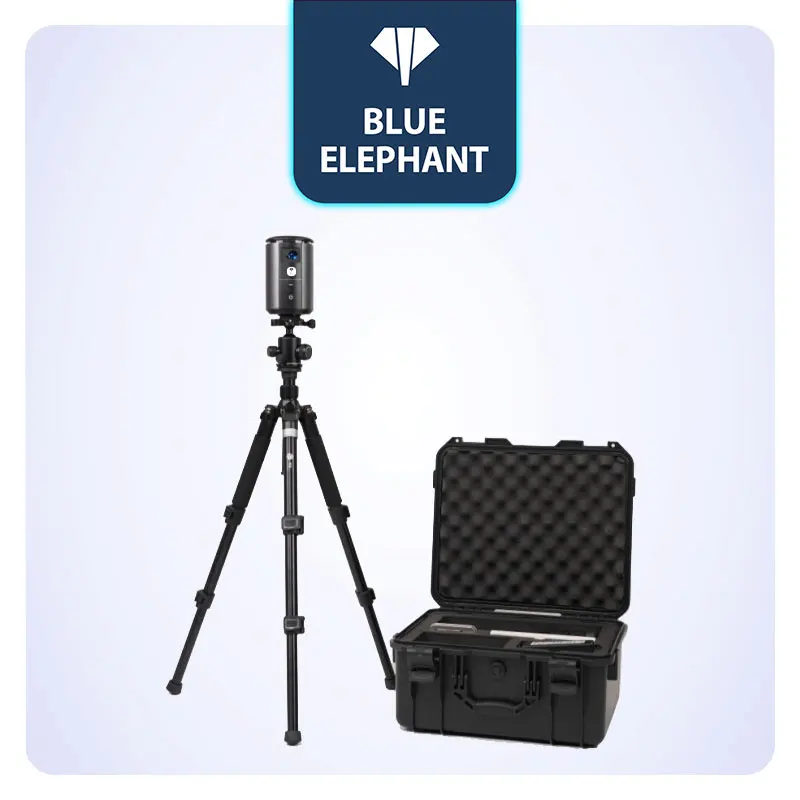

high-precision Countertop Measuring Laser Scanner ELECNC-360 5 Axis Bridge Saw scanning device
The countertop measuring laser scanner is a high-precision scanning device. lt use with 4 axis and 5 axis CNC bridge saw.Connected to CAD software, it can complete on-site measurement, dismantling, drawing, and typesetting. And the built;in software has functions of mall transmission, integration and drawing editing, so the remote operation become possible.
Features
2. Compared with manual measurement, the countertop digjital templating equipment greatly improves the measurement accuracyand efficiency.

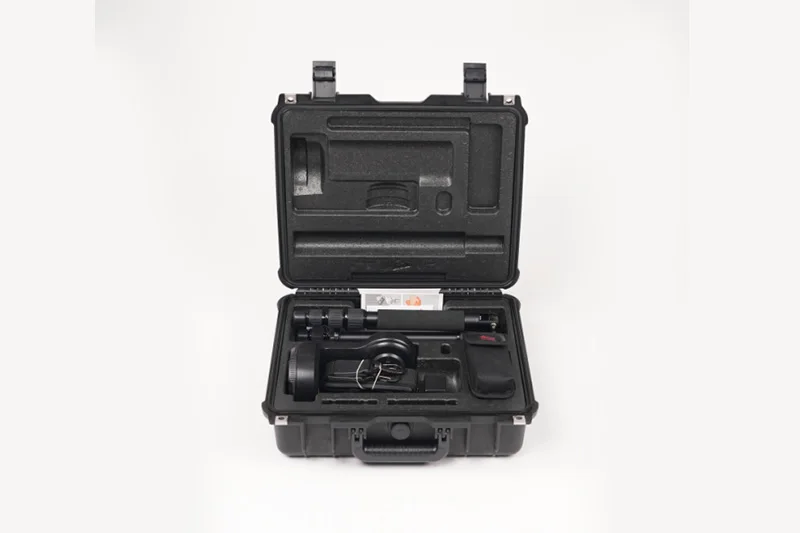

3. The weigh of such a countertop laser templator is only about 1.5kg. And it can be freely disassembled and installed. so it is easy tomove and operate.
4. The countertop measuring laser scanner can realize smart bill splitting and maximize material savings
3. The weigh of such a countertop laser templator is only about 1.5kg. And it can be freely disassembled and installed. so it is easy tomove and operate.
4. The countertop measuring laser scanner can realize smart bill splitting and maximize material savings
5. Use the supporting scanning software, no need to draw CAD drawings on the computer, saving manual drawing time and cost.
6. lts measurement distance can reach up to 5 meters, while the measuring range up to 360°. The angle error and distance error areso small that can be iqnored.
Specification
Model | ELECNC-360 Blue Elephant Countertop Measuring Scanner |
Tripod weight | 126kg |
Machine size | 90*150mm |
Machine weight | 0.94kg |
Software system | Android 7.0 or above (HarmonyOs included) |
Registration method | Binding registration code |
Docking equipment | 4 axis & 5 axis bridge cutting/ machining center/ strip breaking machine/ water Knife |
Software interface design | Landscape screen (7-inch tablet or mobile phone) |
Protection grade | IP54 |
Battery | 12V,3000MAH |
