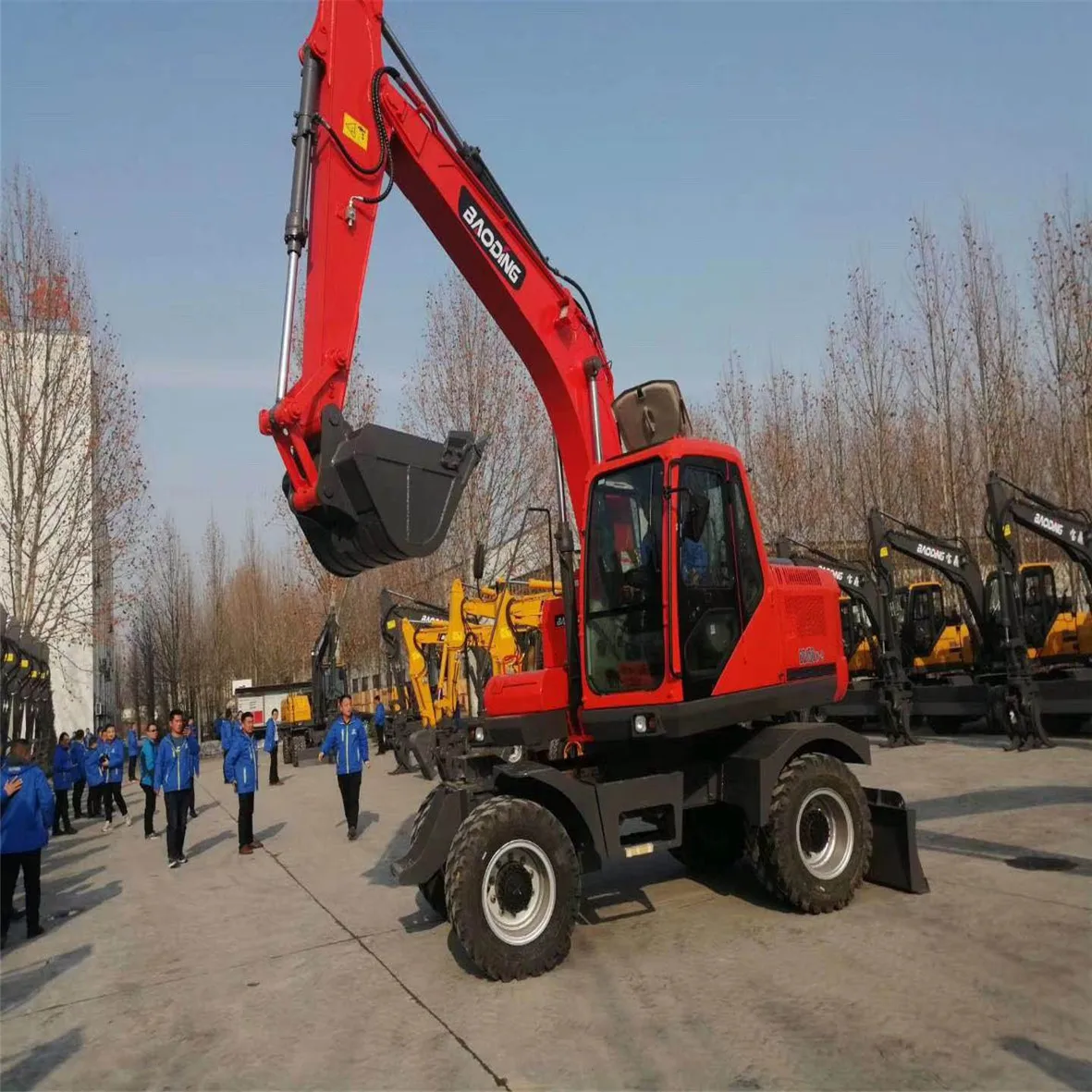

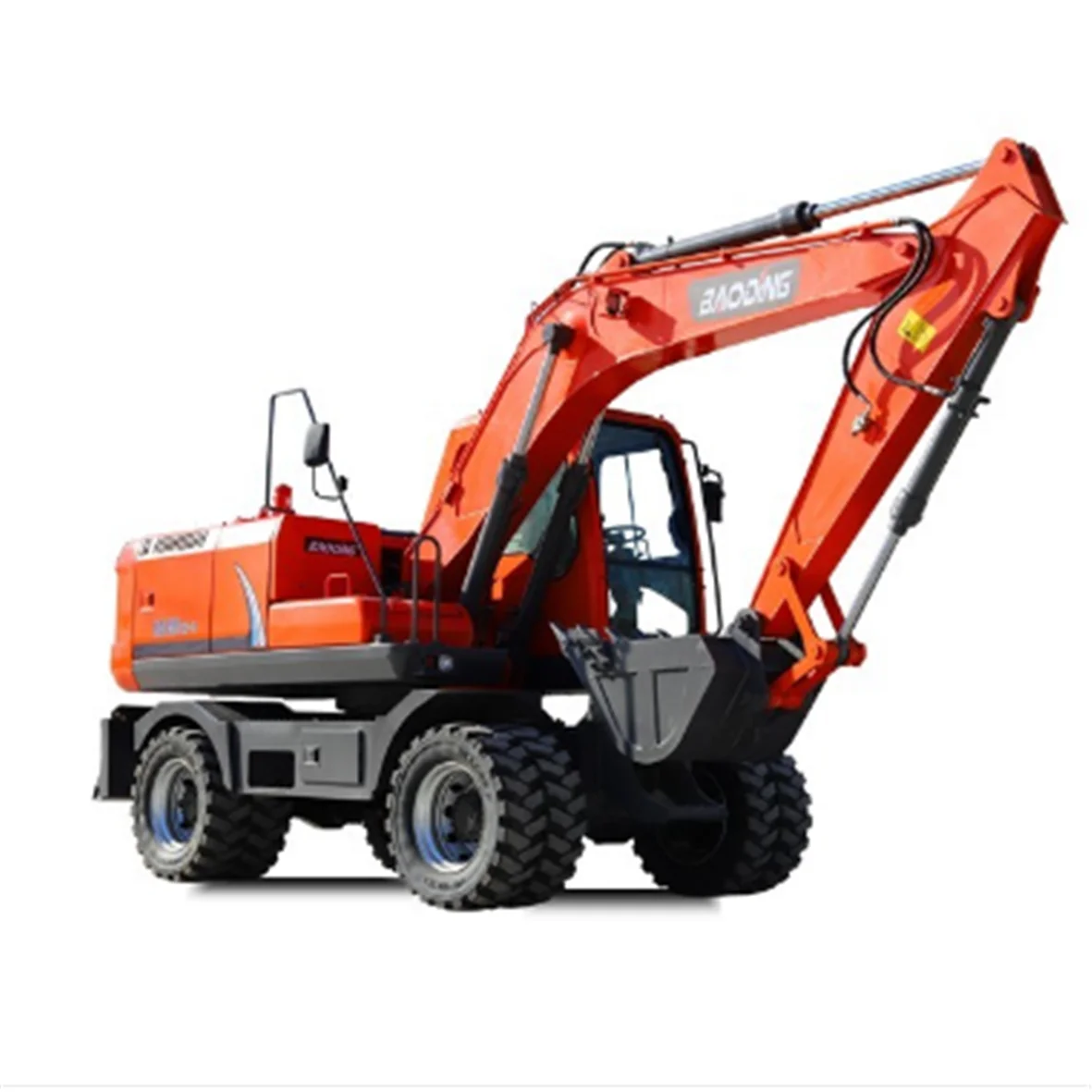

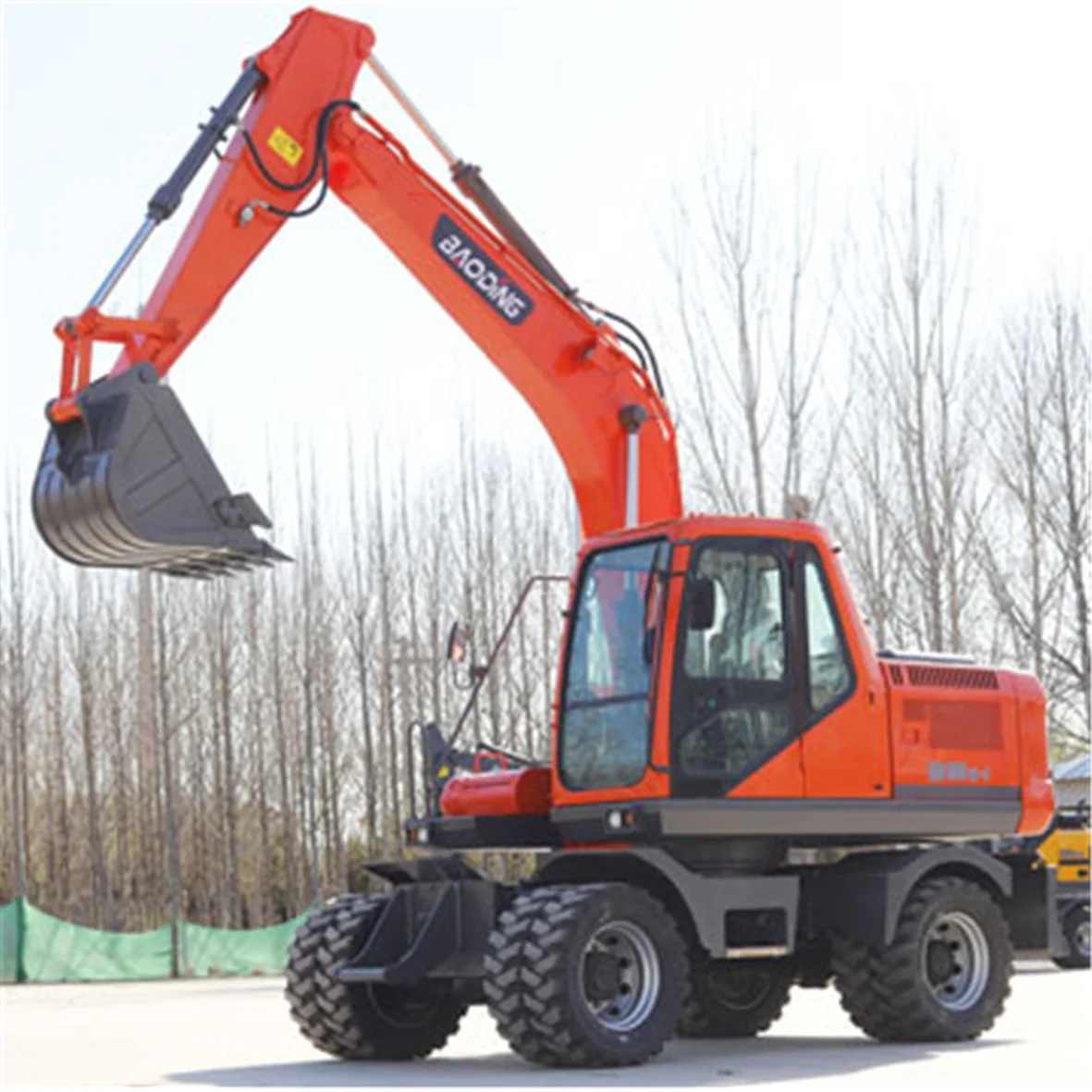

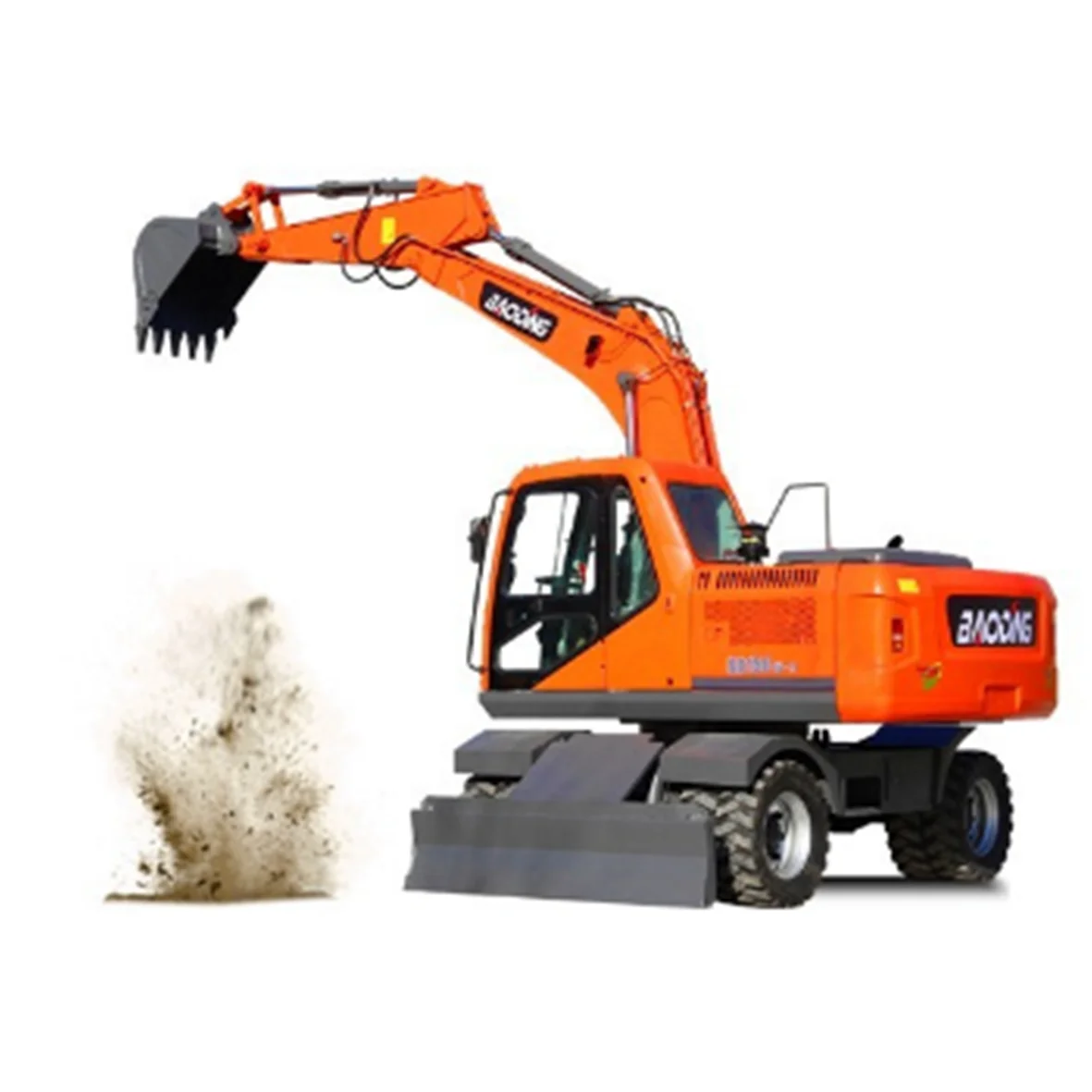

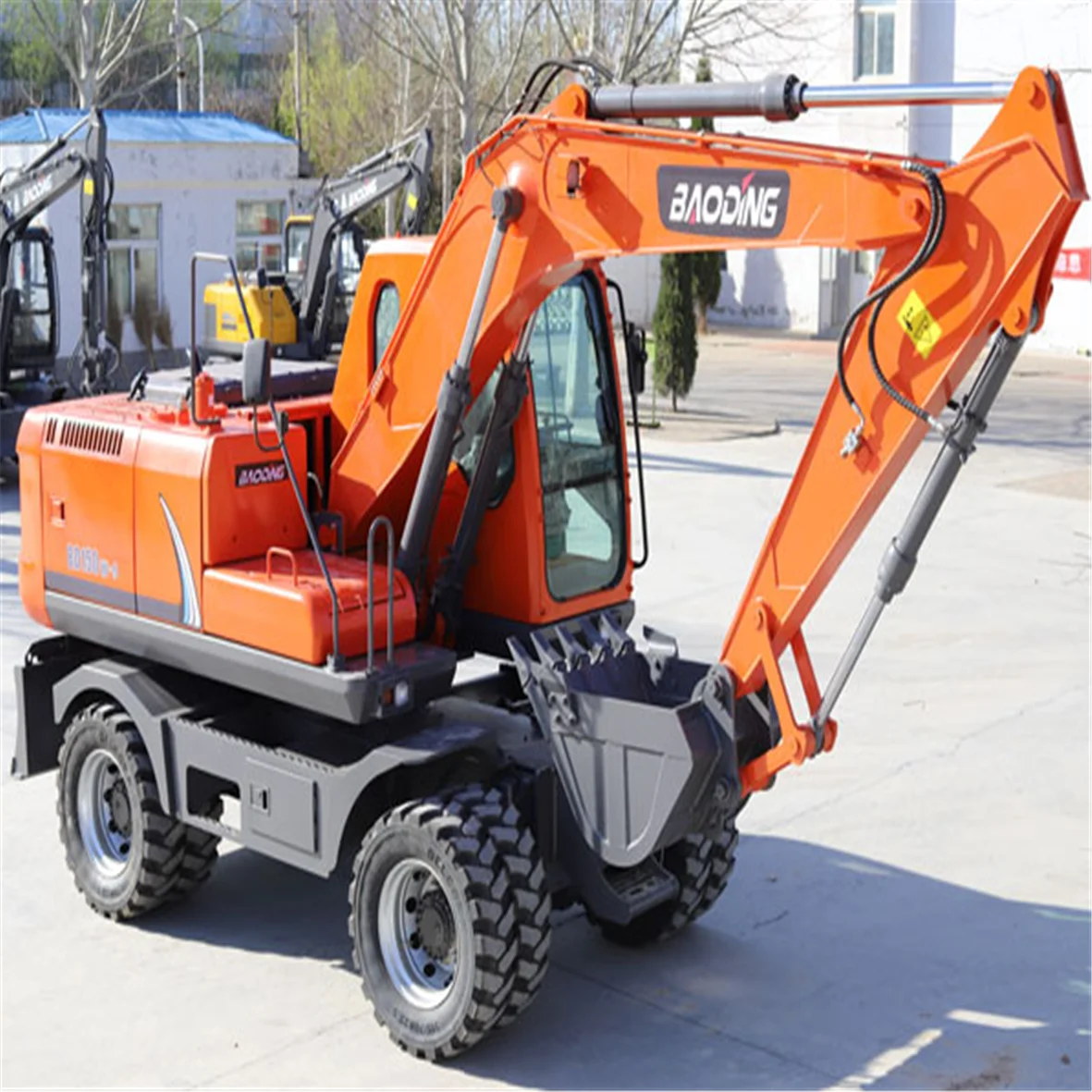

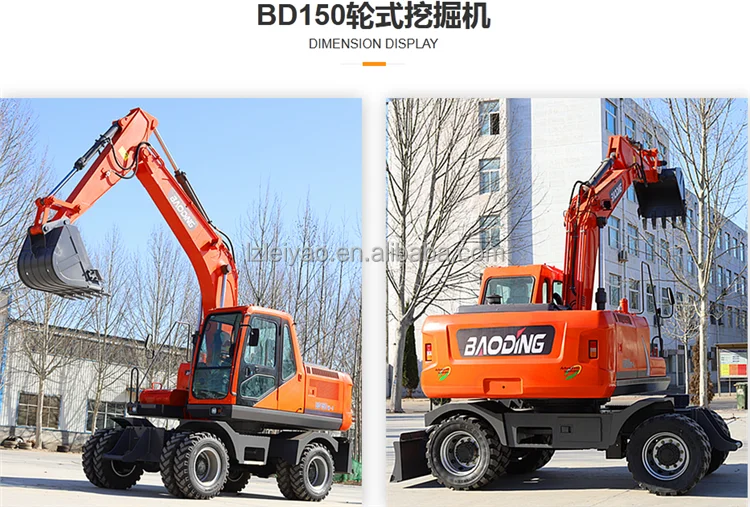

BD150W China famous scrap excavator 15 ton big excavator on wheel mounted scrap grapple
- Category: >>>
- Supplier: Liuzhou Leiyao Trading Co. Ltd.
Share on (1601249100727):
Product Overview
Description
Specification
Max digging height | 8032mm | Max.dumping height | 5672mm |
Max digging depth | 4623mm | Max vertical digging depth | 3894mm |
Max digging radius | 7539mm | Surface digging radius | 7317mm |
Mini turning radius of the front end | 2588mm | Mini turning radius of the rear end | 2200mm |
Engine | Cummins engine (six cylinder) | Power | 119kw/2200rpm |
Torque | 600Nm/1400-1700rpm | Flow | 2-160L/min |
Bucket capacity | 0.7m3 | Movable arm | 4300mm |
Bucket arm | 2100mm | Bucket digging force | 94.1KN |
Bucket bar digging force | 68.6KN | Mini turning radius | 6500mm |
Rotating speed | 14rpm | Climbing ability | 30° |
Braking distance | 7000mm | Setting pressure | Into 12 out 6 (31.4Mpa) |
low grade walking pressure | 10Mpa | High grade walking pressure | 26Mpa |
Low grade walking speed | 10km/hr | High grade walking speed | 31km/hr |
Swing angle of front axel | 6° | Weight clearance | 1250mm |
Minimum ground clearance | 362mm | Wheel base | 1902mm |
Shaft base | 2779mm | Tyre number | 8 |
Tyre type | 900-20 | Fuel tank | 245L |
Hydraulic oil tank | 260L | Operation weight | 14500kgs |
Cabin height | 3130mm | Overall size | 7250*2495*3125mm |
Product Overviews
Material handling machine scrap metal handling excavator equipment for scrap

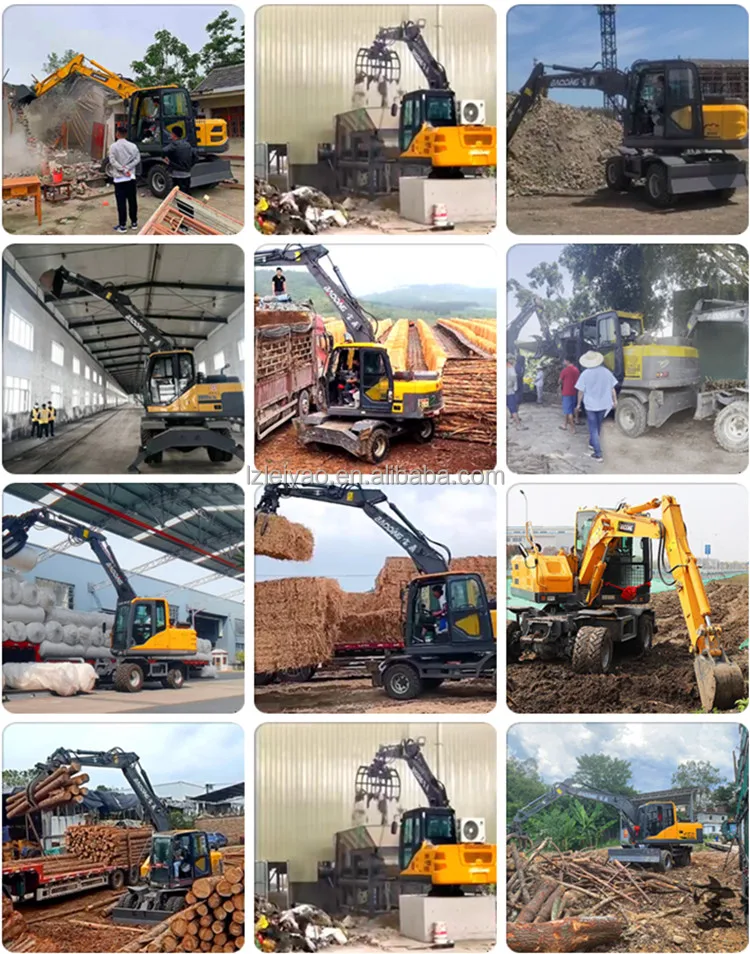

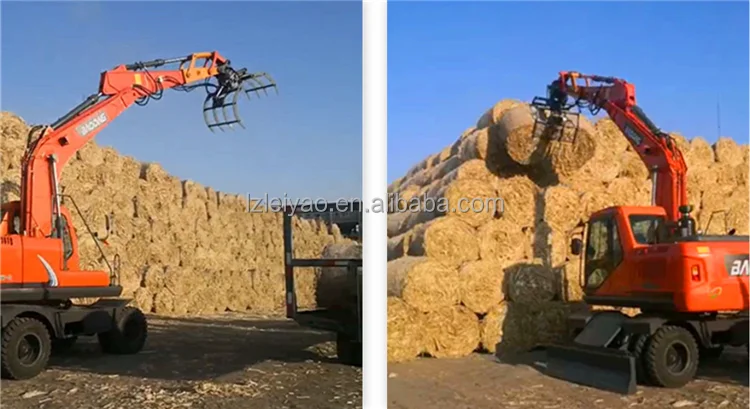

Working Pictures

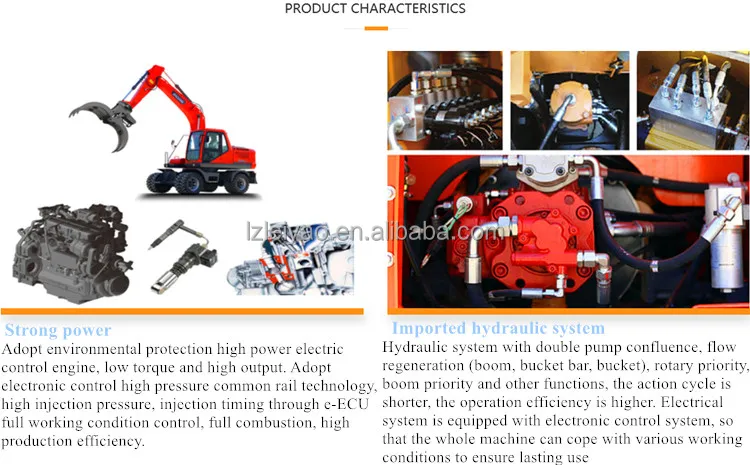

BAODING scrap metal handling equipment BD150W-9G can use for agriculture and engineering project,such as earthmoving,drilling,rock breaking,sugarcane/wood/manure waste loading,scrap iron/straw graspping etc.A multifutional machine to save cost and create biggest profits for users
