China Stone Router CNC 4 Axis 5 Axis CNC Bridge Saw Granite Saw Cutting Machine Marble Ceramic Tile Tombstone Cutting Machine
- Category: >>>
- Supplier: Shandong Blue Elephant Cnc Machinery Co. Ltd.
Share on (1601249101484):
Product Overview
Description
Products Description

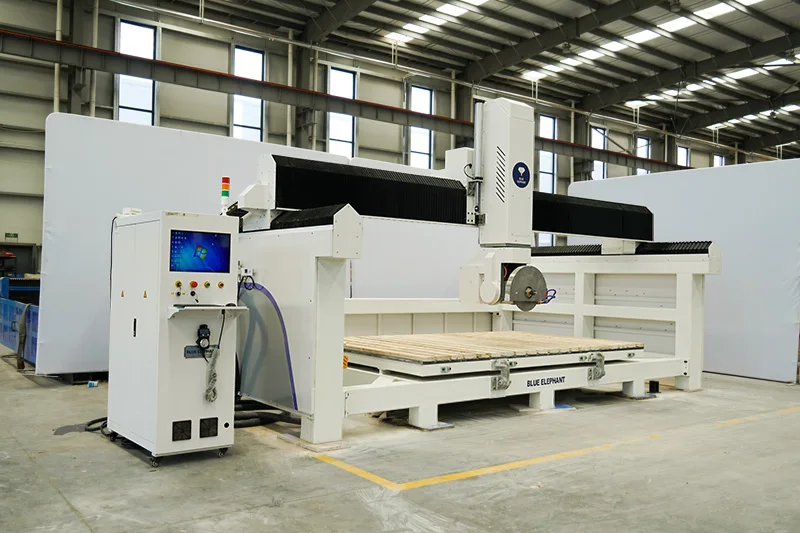

China Stone Router CNC 4 Axis 5 Axis CNC Bridge Saw Granite Saw Cutting Machine Marble Ceramic Tile Tombstone Cutting Machine

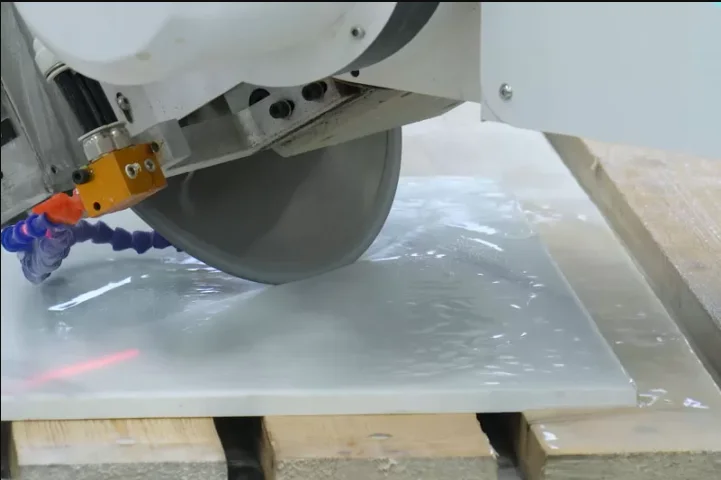

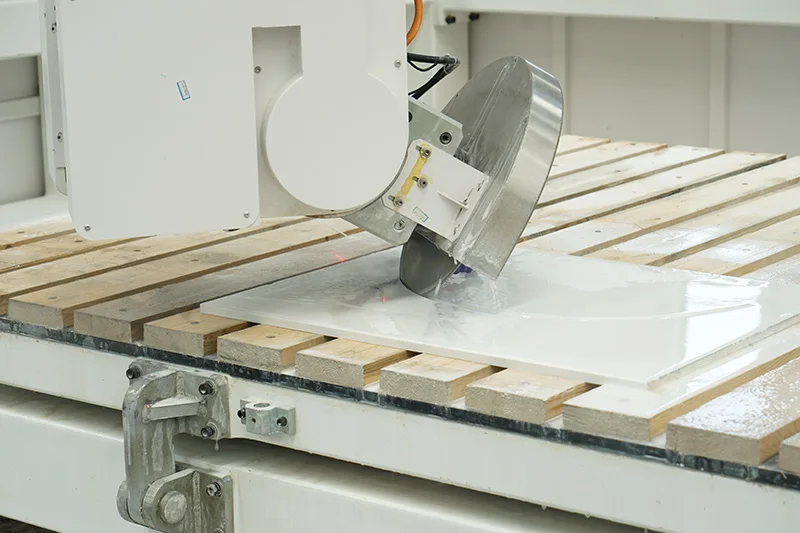

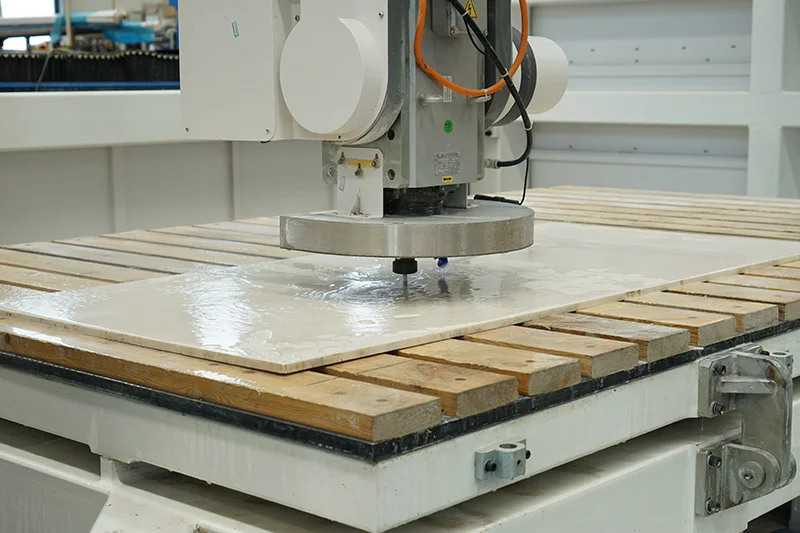

This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5 axis bridge saw is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields. It is the ideal machine for cutting stone slabs with different shapes and sizes.

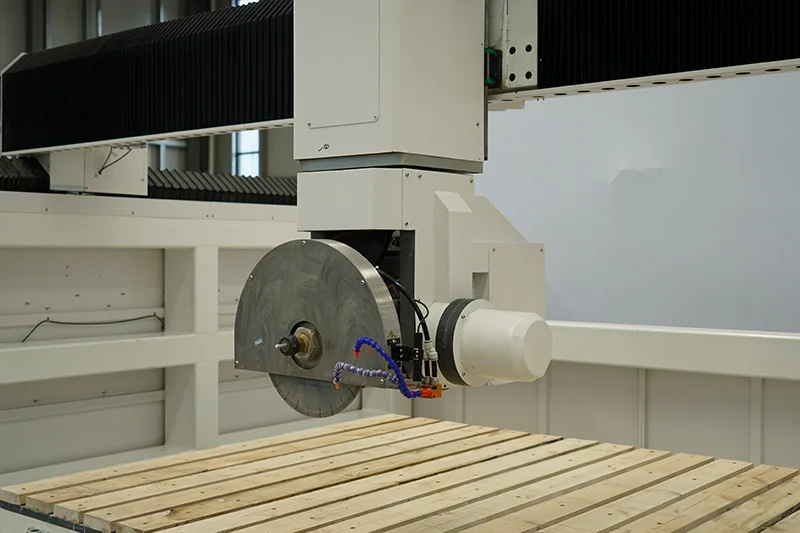

1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation.
2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
5. It is capable of cutting lengths of up to 2800mm, widths of 1200mm and thicknesses of 100mm.
6. The table automatically tilts up to 80 degrees. And the spindle is automatically rotated 90° or 360°by hydraulic pressure.
Product Paramenters
Working travel | X, Y, and Z 3200*2000*400mm C axis ±360° A axis 0-90° |
Moving speed | Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min |
Servo motor | Xand Y 1300W absolute servo motor Zaxis 1300W absolute servo motor with brake A and C 1000W absolute servo motor |
Guide rail | X, Y, and Z: # 30 |
Rack | X、Y 2MT-WIN |
Worktable | Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG |
Saw | Dimension 450mm Max. cutting thickness 100mm |
Reducer | X/Y: Japan SHIMPO |
Saw motor | 11KW motor, rated: 3000r/min |
Inverter | 15KW BRICH |
Control system | Blue Elephant customized system (built-in CAM software) |
Low-voltage electronics | French SCHNEIDER |
Working air pressure | 0.7-0.8Mpa |
Voltage | 380V/3P/50HZ |
Electronic Components
Using the standard components with CE certification, such as Germany Schneider company.
Guide Rail
Taiwan guide rail which ensure high weigh capacity, high precision, and stable performance.
Motor and Driver
Japan YASKAWA Servo motors & drivers from Japan, which ensurs the machine's stronger strength and high accuracy.
Spindle
5.5 kw mechanical main spindle, which is durable and has a strong power.
SYNTEC Control System
This machine adopts Taiwan SYNTEC control system.
With an open PLC program, customers can plan according to processing needs.
With an open PLC program, customers can plan according to processing needs.
Tool Magazine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Recommend Products
Sample & Application
Company Information
Exhibition
Customer Photos
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
