Advanced Hydraulic Excavator Wheeled HW140 Small Excavator Tyres 14ton Digger Earthmoving Machine for Sale
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601249146462):
Product Overview
Description
Products Description

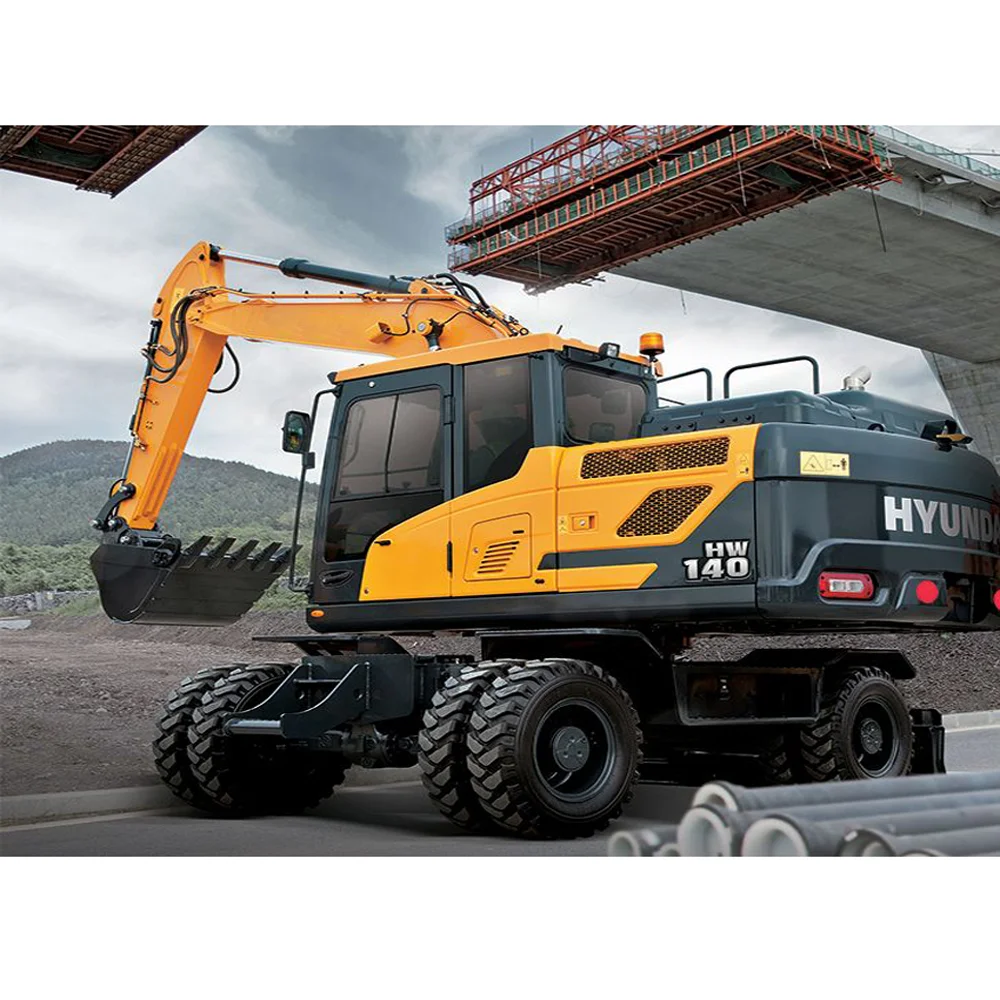

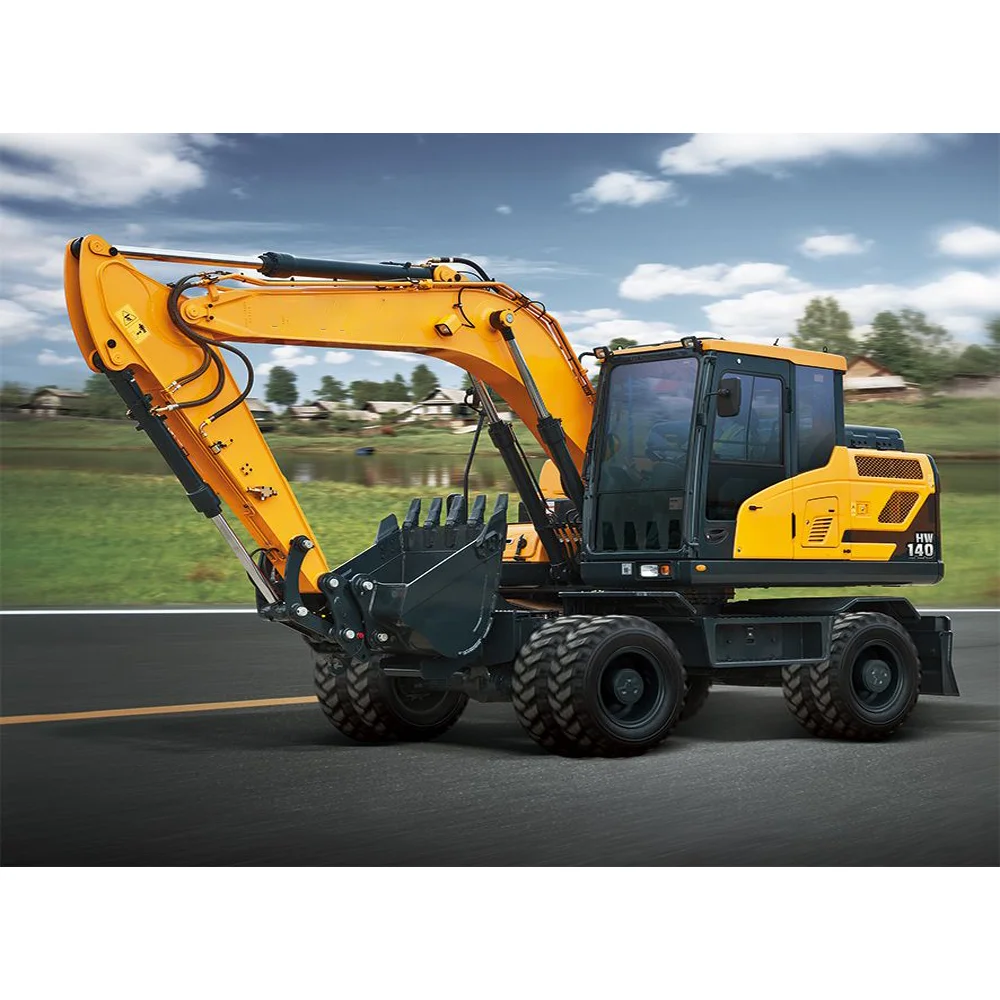

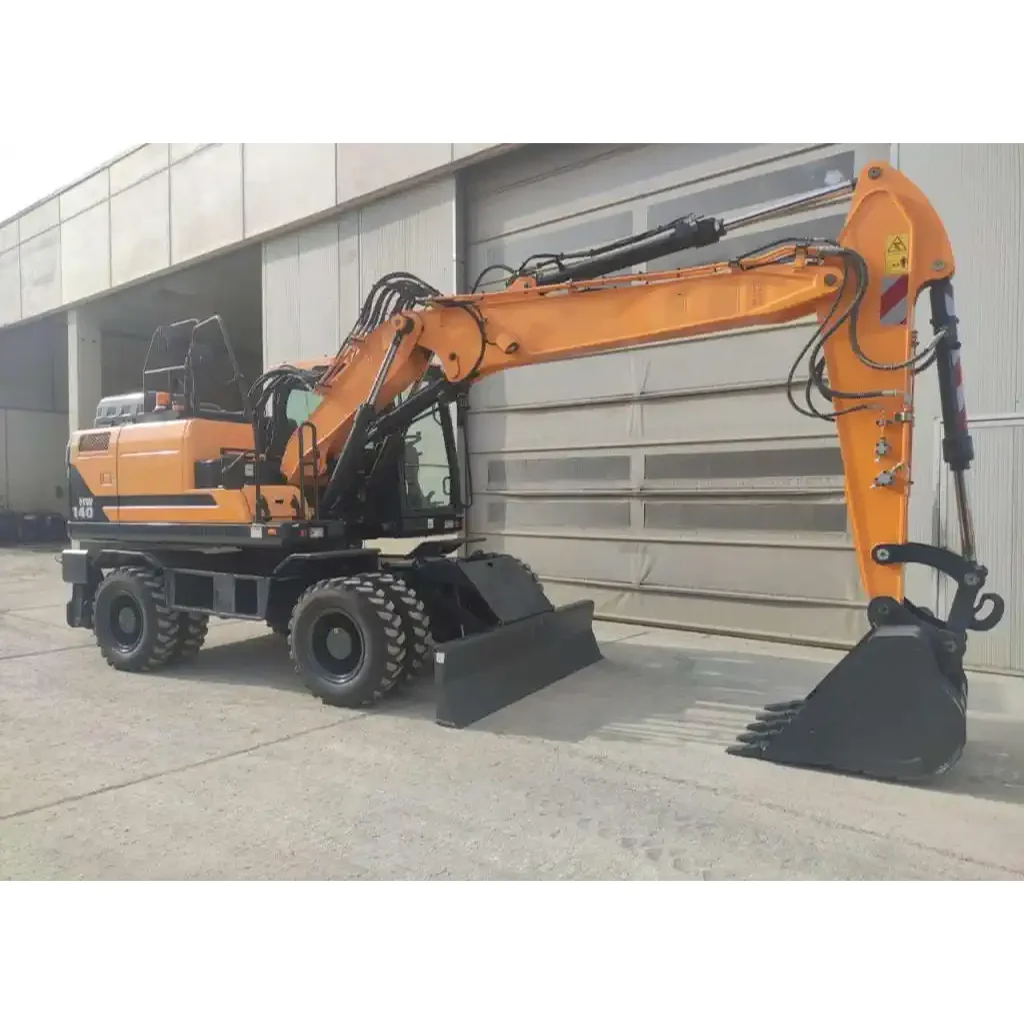

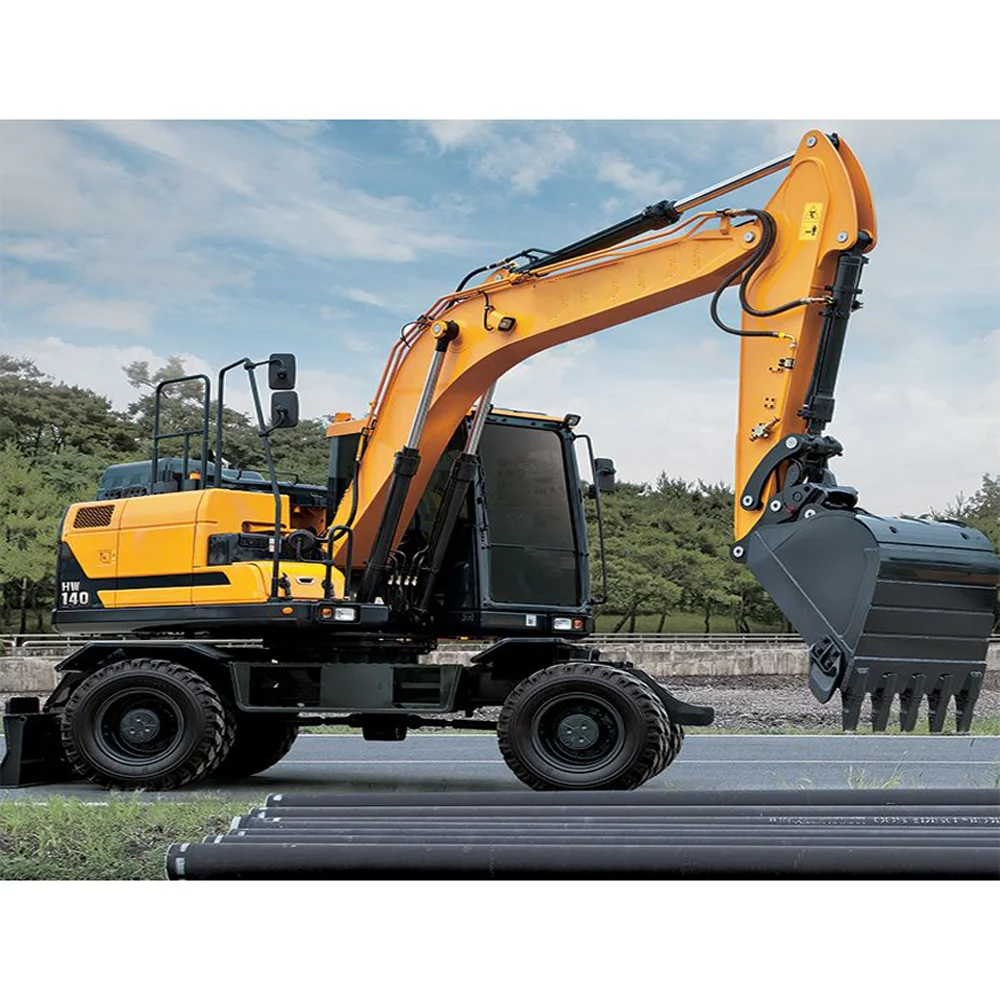

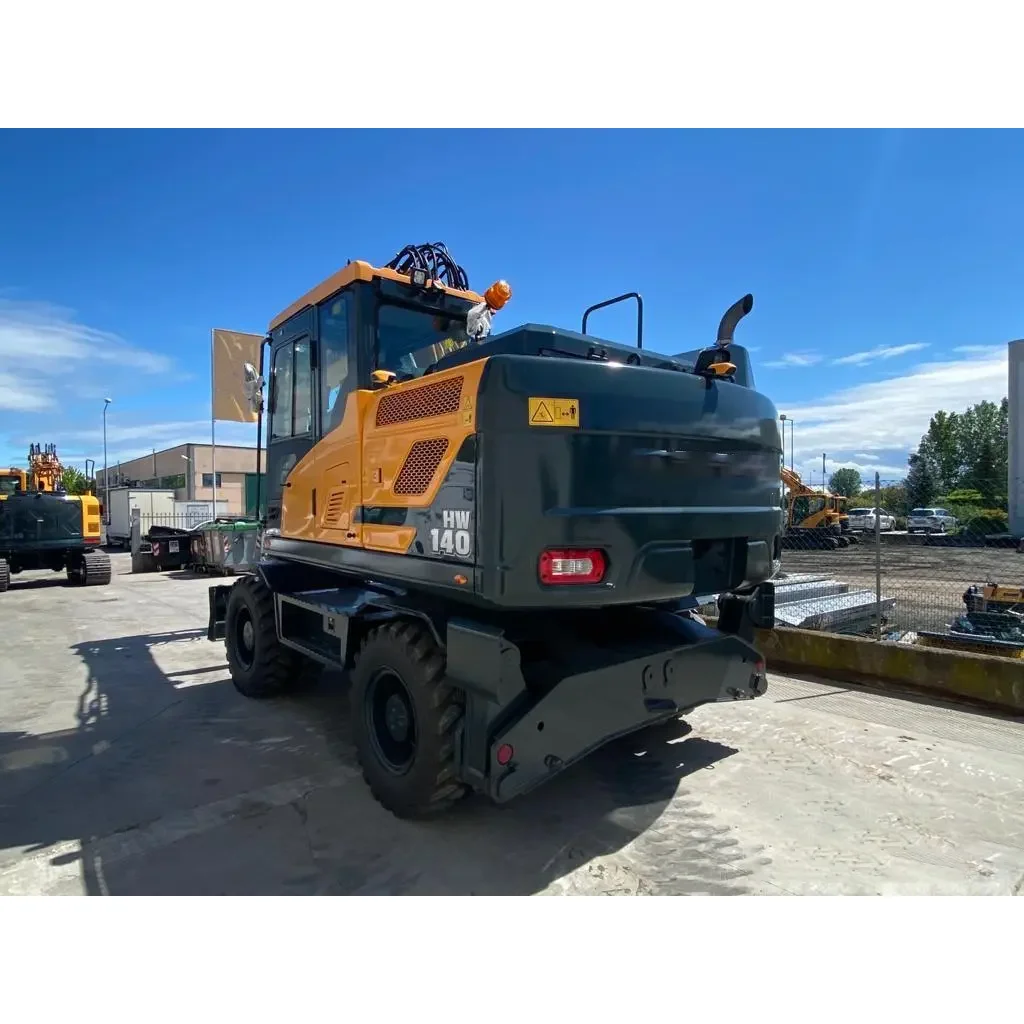

ORIGINAL HYUNDAI 14TON WHEEL EXCAVATOR HW140 for Sale
The Hyundai wheeled excavator product line includes three HW series models and one 9A series compact model to give you an edge in a wide range of on-road and off-road applications. These Tier 4-Final-compliant wheeled excavators deliver improved performance, increased fuel efficiency, superior travel speeds on the road, an enhanced cab and added safety features.
PROVEN PERFORMERS
Get an Edge in Performance and Fuel Efficiency Hyundai wheeled excavators are known for fast cycle times, impressive hydraulic power and precision control. Adding to that success formula, the Hyundai HW series features eco-friendly, high-performance engines that meet the Tier 4 Final emission requirements. Others promise performance; Hyundai delivers.
Electronic Viscous Fan Clutch The electronic fan clutch reduces noise, and minimizes fuel consumption during operation by precisely controlling RPM depending on the hydraulic oil and coolant temperature. During cold applications the fan slows to allow hydraulic oil to warm up to optimal operating temperature.
New Variable Power Control The HW series features variable power control with three power modes to ensure the highest performance in any operating environment.
• P (power) mode: Maximizes speed and power for heavy work.
• S (standard) mode: Optimizes performance and fuel efficiency for general work.
• E (economy) mode: Improves control and efficiency for light work.
RELIABLE PRODUCTIVITY
Rugged for Today, Durable for Years At Hyundai, reliable productivity is no empty promise. Performance on the HW series wheeled excavators is proven. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. Starting with our strict, demanding prototype testing procedures, Hyundai tests new designs in harsh environments with actual operators for 10,000 hours prior to bringing a new model to market. No matter how tough the working environment is, you can always rely on the Hyundai HW series.
High-grade, High-pressure Hoses The HW series uses high-grade, high-pressure hoses with increased heat- and pressure-resistance for improved durability.
Convenient Cab Air Filter Access Lockable door located on the outside of the cab for easy exchange of the cab air filter.
COMFORT AND CONTROL
Improved Instrument Panel for Easier Monitoring The HW series is designed with the operator in mind. A key feature of the new operator’s cab in each HX series excavator is the convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency. The highly advanced infotainment system, a product of Hyundai’s comprehensive information technology capabilities, enables both productivity and comfort while working.
Products Description
Model | Unit | HW140 | ||||
Operating weight | kg | 13380 | ||||
Bucket capacity | m3 | 0.58 | ||||
Engine | Model | CUMMINSS QSB6.7 | ||||
Output power | kW/ r/min | 111/2150 | ||||
torque/speed | N.m | 620/1500 | ||||
Displacement | L | 6.7 | ||||
Main performance | Travel speed(H/L) | km/h | 24.2/6.2 | |||
Gradeability | % | 35 | ||||
Rotating speed | r/min | 11.6 | ||||
Ground pressure | kPa | / | ||||
Bucket digging force | kN | 87.3 | ||||
Arm crowd force | kN | 76.5 | ||||
Appearance size | Boom Length | mm | 4600 | |||
Tyre size | mm | 280 | ||||
Overall Length | mm | 7760 | ||||
Overall Width | mm | 2500 | ||||
Overall Height | mm | 3140 | ||||
Counterweight clearance | mm | 1270 | ||||
Minimum ground clearance | mm | 340 | ||||
Wheel Base | mm | 2600 | ||||
Min. tail swing radius | mm | 2620 | ||||
