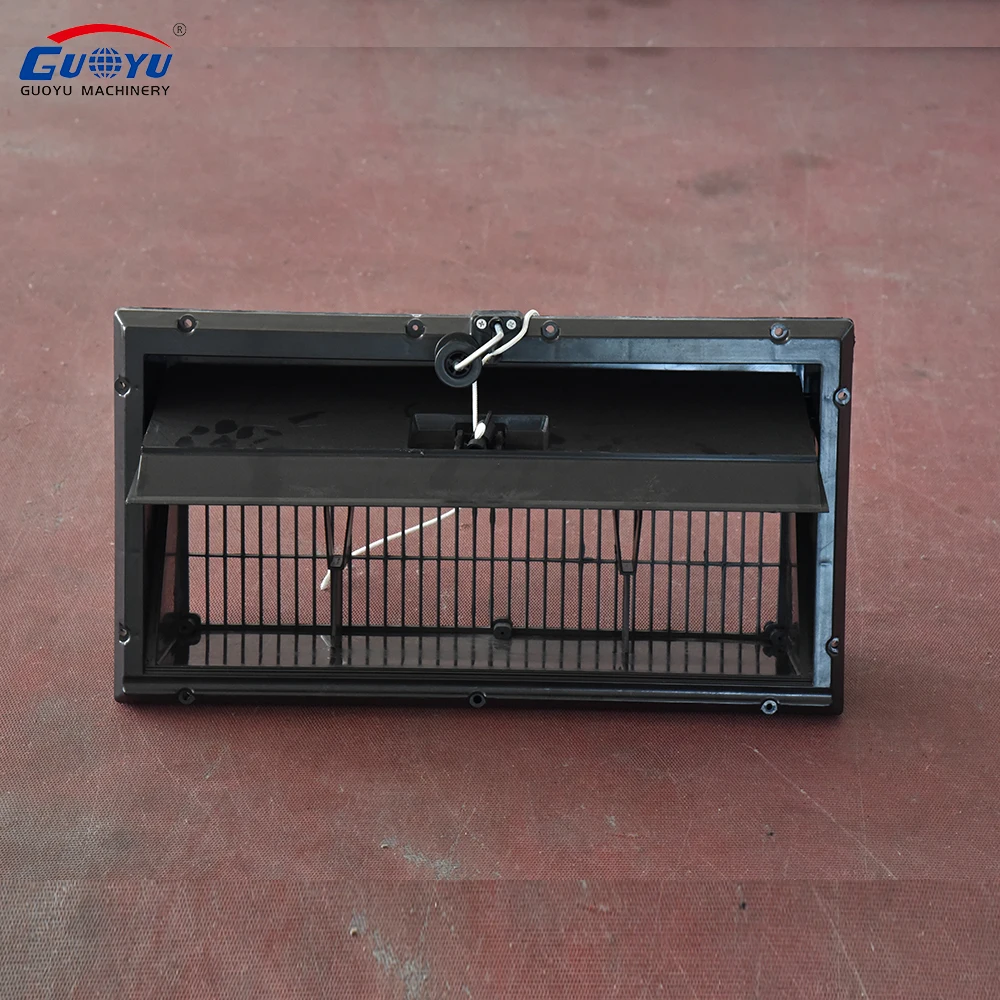

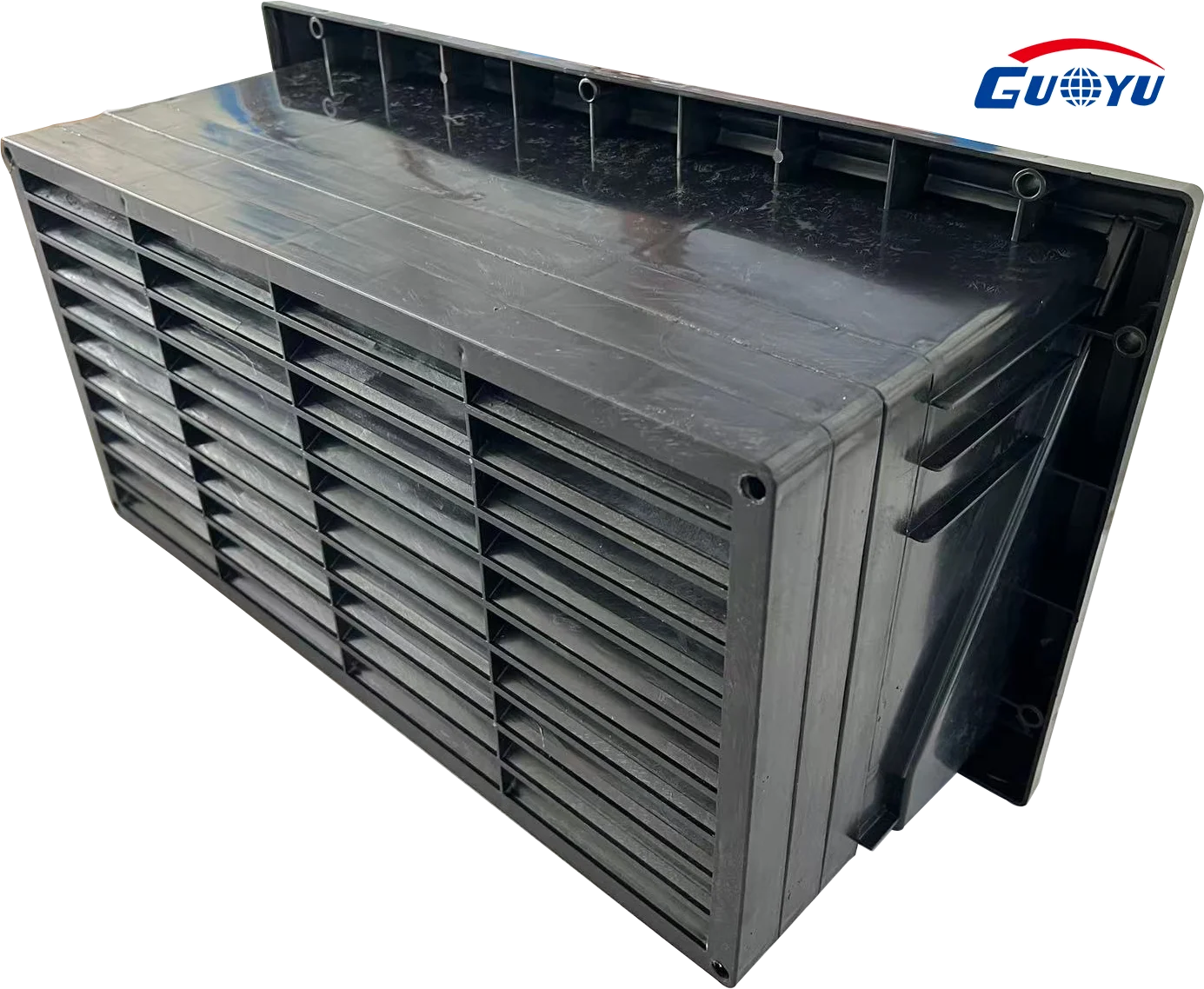

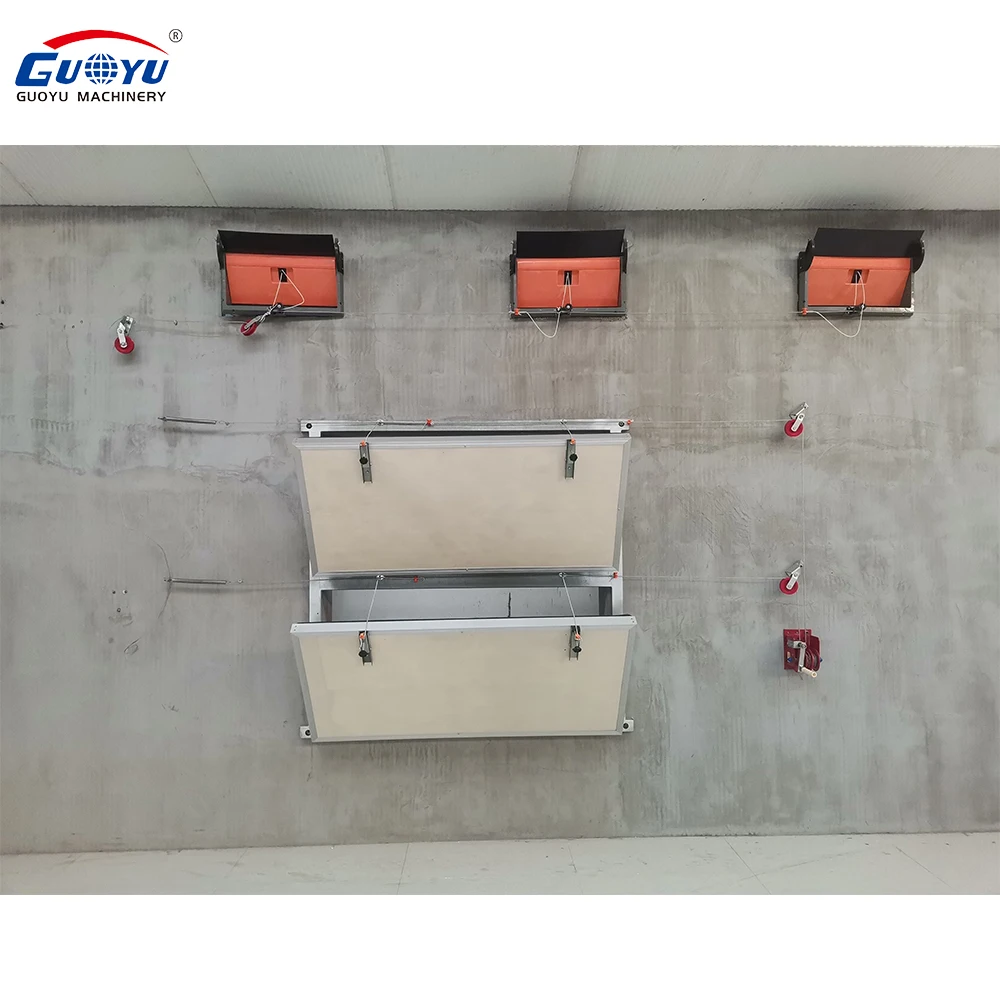

Poultry breeding ventilation window pig shed Air inlet

Share on (1601249342345):


Price:$15.00

Quantity:


Product Overview

Description



Product Description






◎ Good quality ABS engineering materials injection molding,high density,more solid.
◎ Plastic material contains the anti-ultraviolet raw material,making it longevity.
◎ Sealed tight,open and flexible,with external bird nets.
◎ Double stainless steel spring to ensure the side window seal well and more durable.

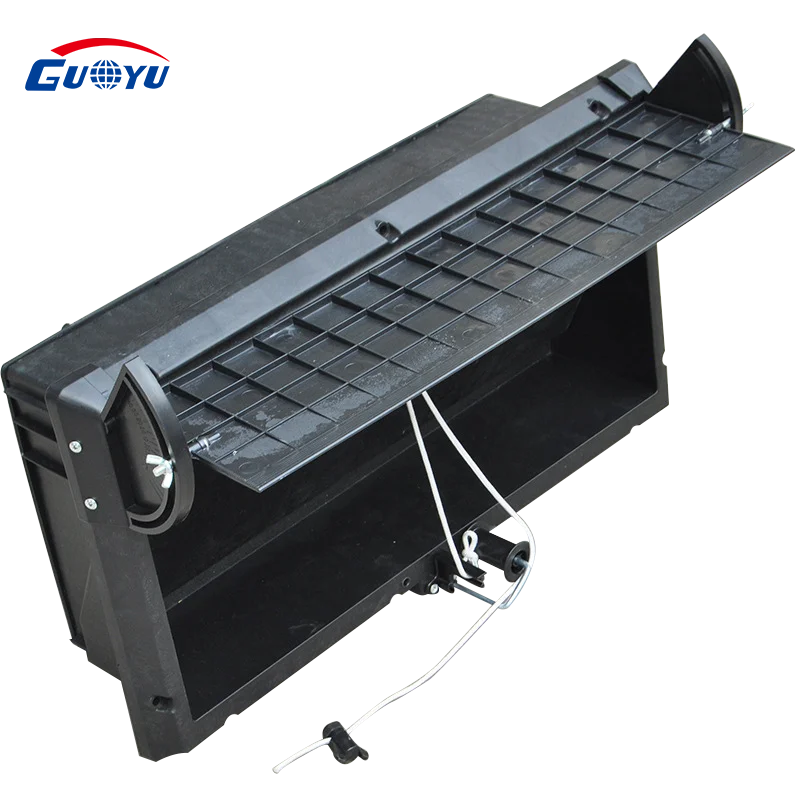

◎ Double pulley guide damper design,effectively reduce the resistance and enhance the service life of the rope.


Details

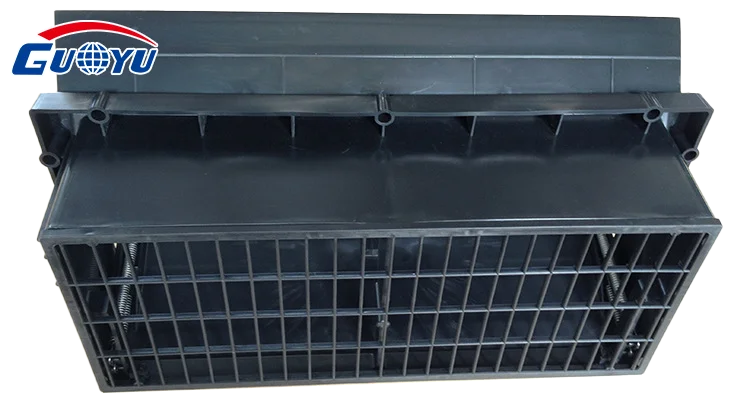

High quality plastic
Carefully selected high-quality ABS engineering plastics and a certain amount of anti-aging agent are injected, with strong anti-aging performance and longer service life






Close tightly

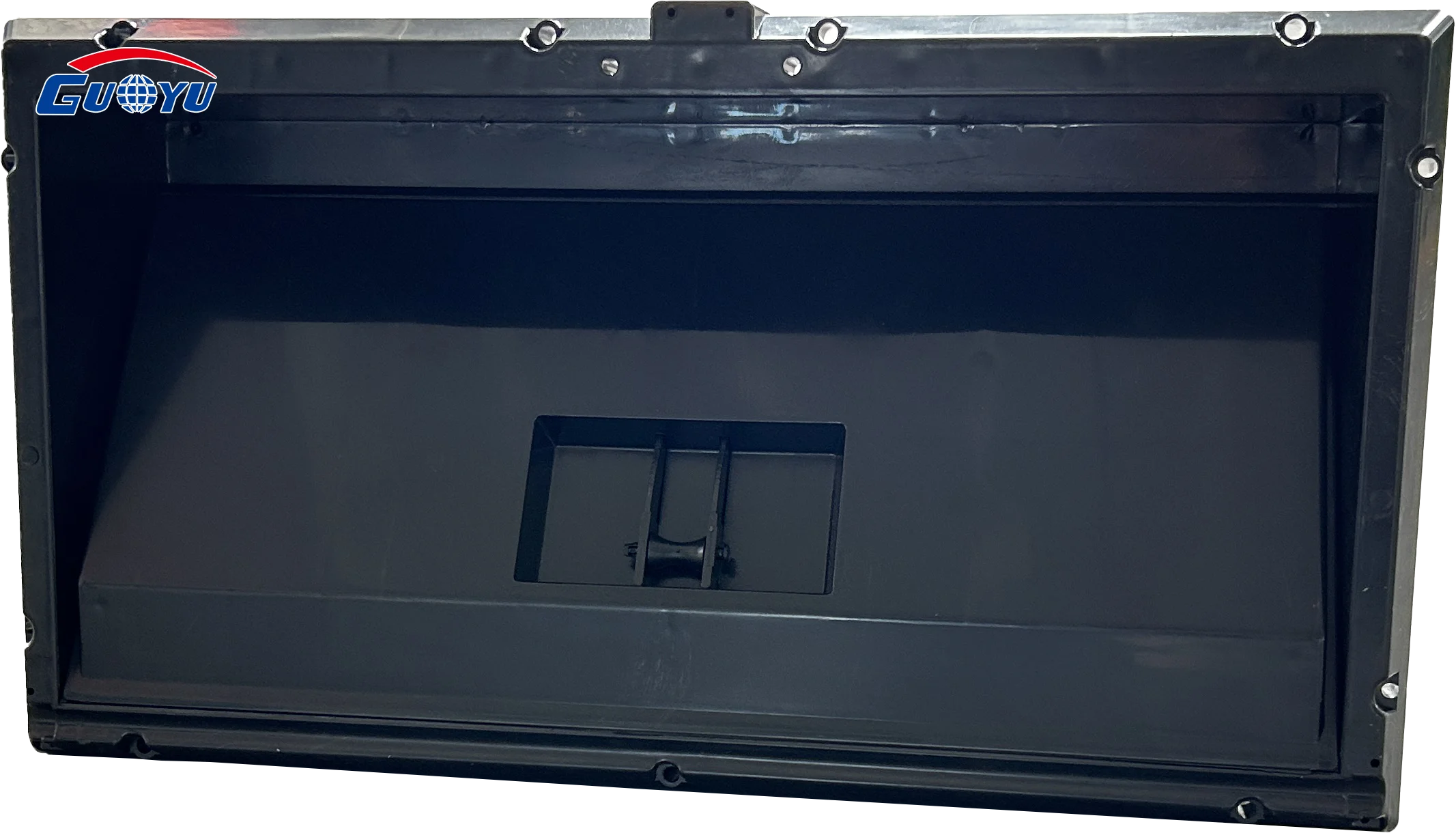

The upper edge of the window and the top of the window are specially designed to make the small window more airtight when closed.




Flexible and convenient

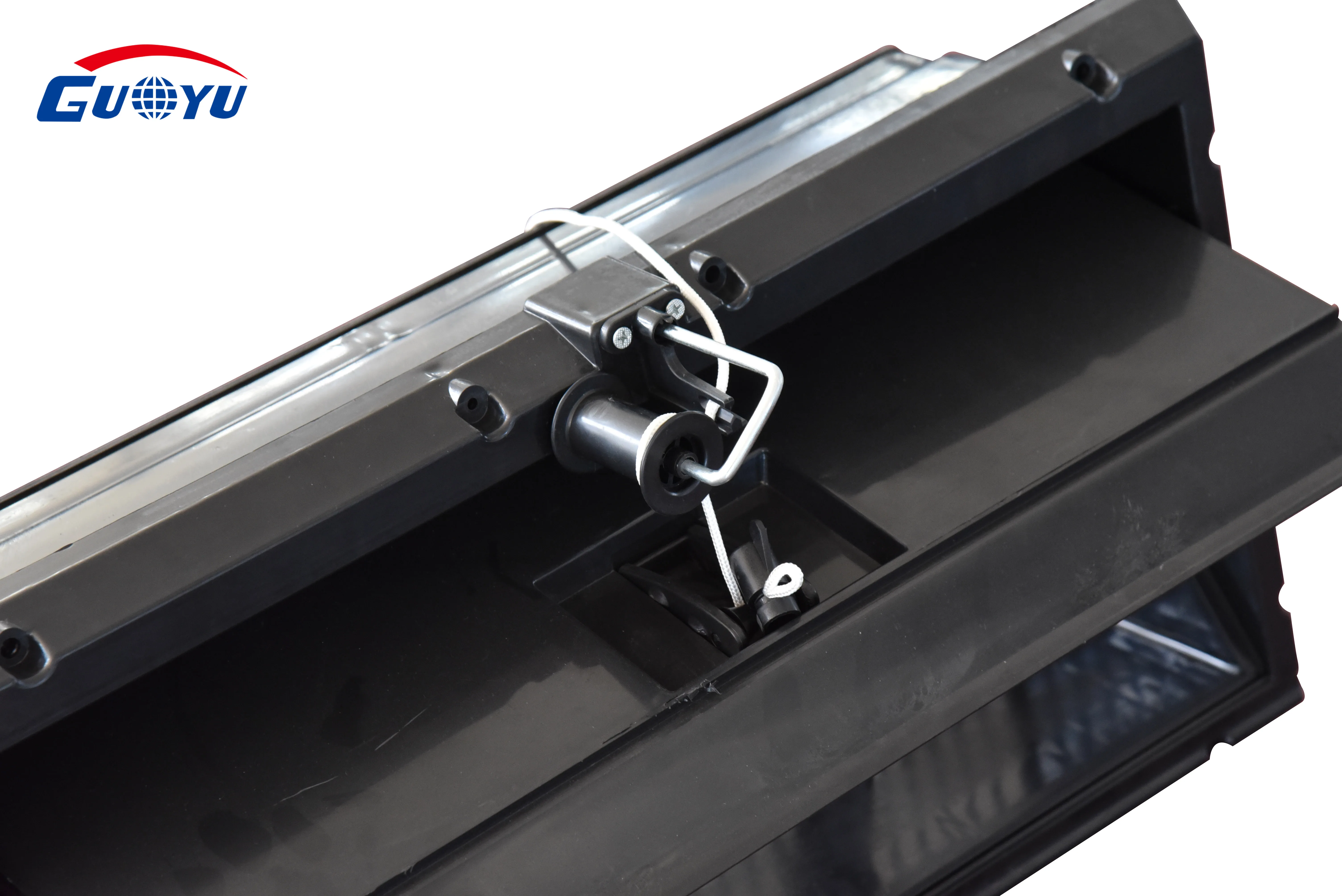

The return spring and pulley bracket are made of stainless steel, which has a longer service life; the pulley device is equipped with a specially designed pulley with a pull rod, and the wire rope or connecting rod can be placed in the wheel to make the small window more flexible to open and more convenient to install.

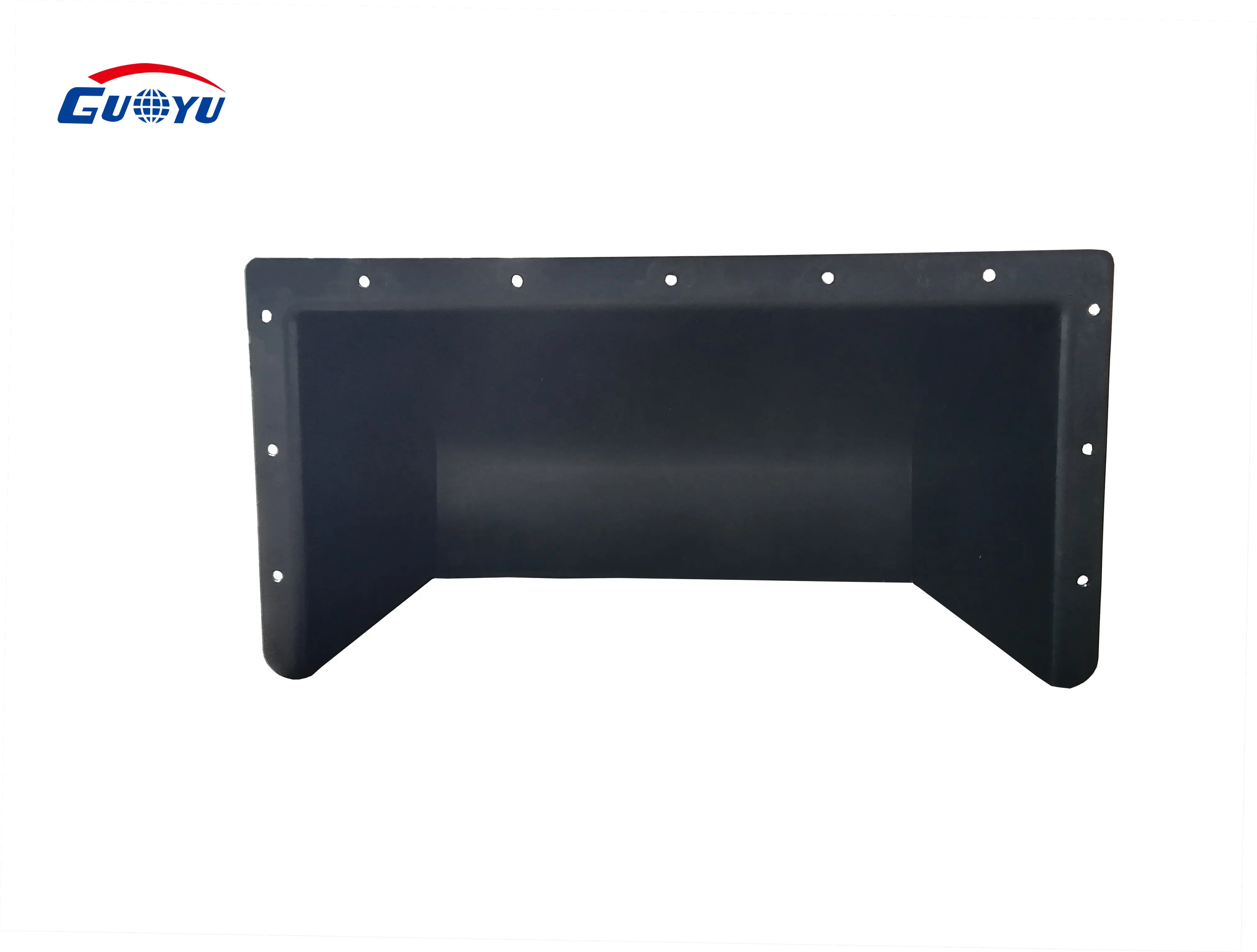

Can be equipped
with sunshade
A special sunshade can be added, which is connected by screws, making installation easy and cost-saving





Can be equipped with
guide plate
A guide plate can be added, and the guide plate can automatically adjust the angle according to the size of the window opening

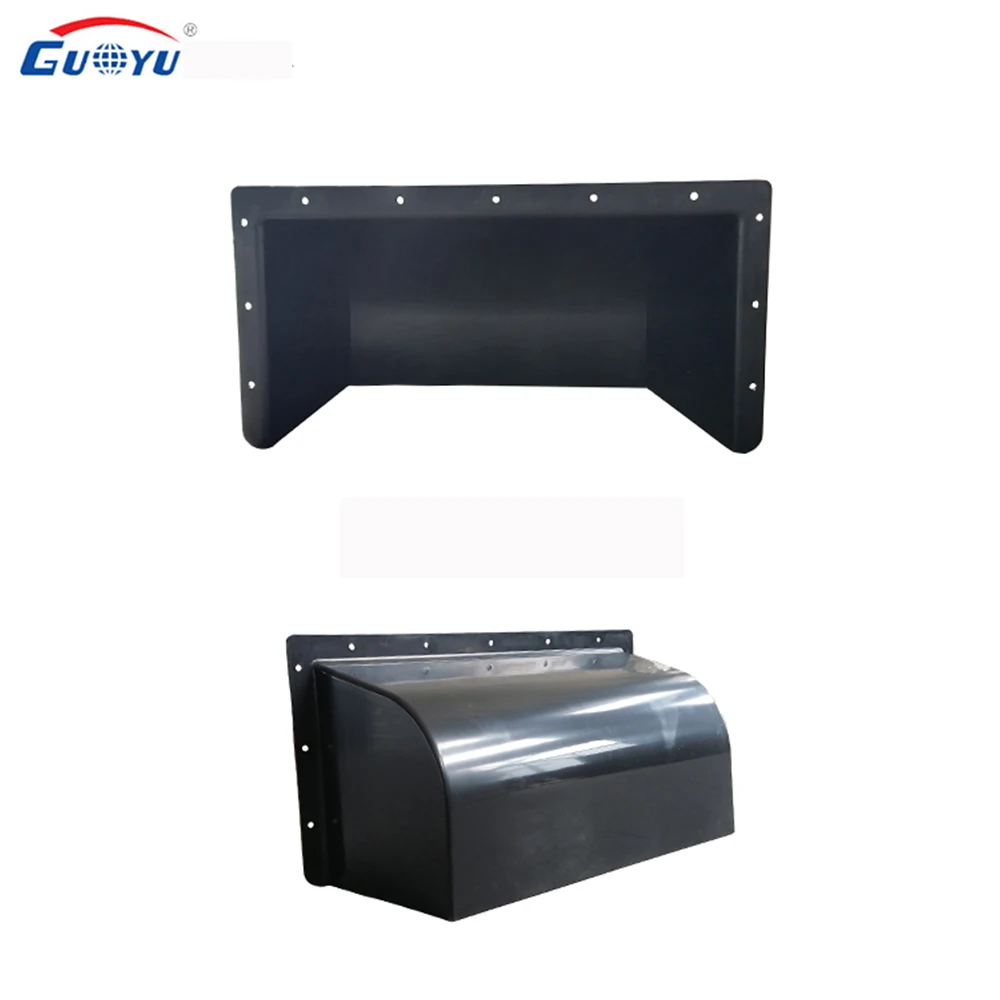

Rain cover can be added
A special rain shield can be added to prevent rainwater from flowing back into the ventilation window, and also reduce the light entering the poultry house through the ventilation window.

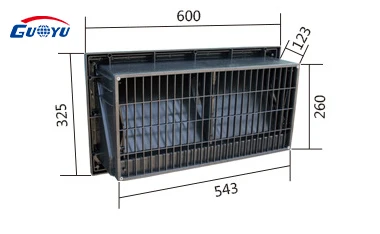

Dimension




model
Width
high
thickness
GY-600
600
320
160
Customizable
Customizable
Customizable
Customizable


Installation matters

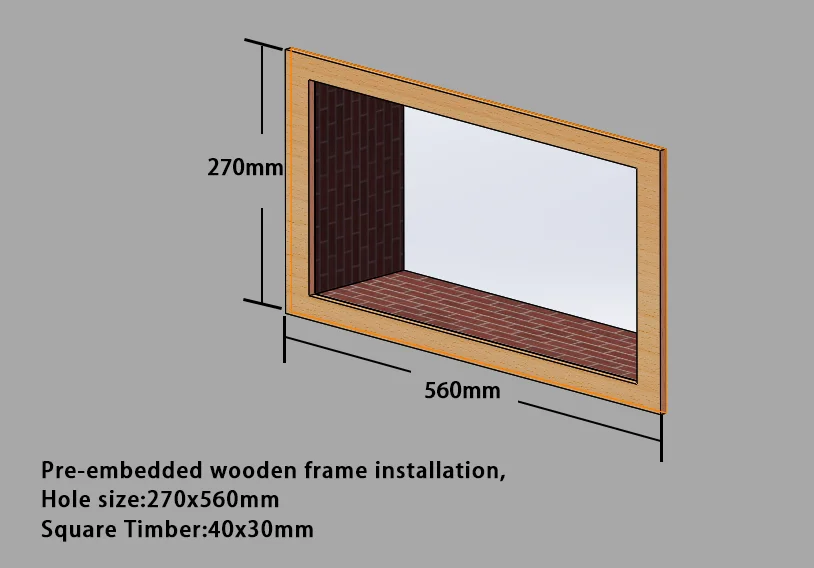

The wall on the side where the small window is installed must be kept in the same plane; the 15CM around the small window must be a solid wall (expansion bolts can be installed), and hollow bricks cannot be used. To prevent rainwater from flowing back, the inner side of the lower edge of the small window opening is higher than the outer side. The pre-embedded wooden frame is flush with the inner wall of the chicken house. The reserved size of the opening is 270X560MM

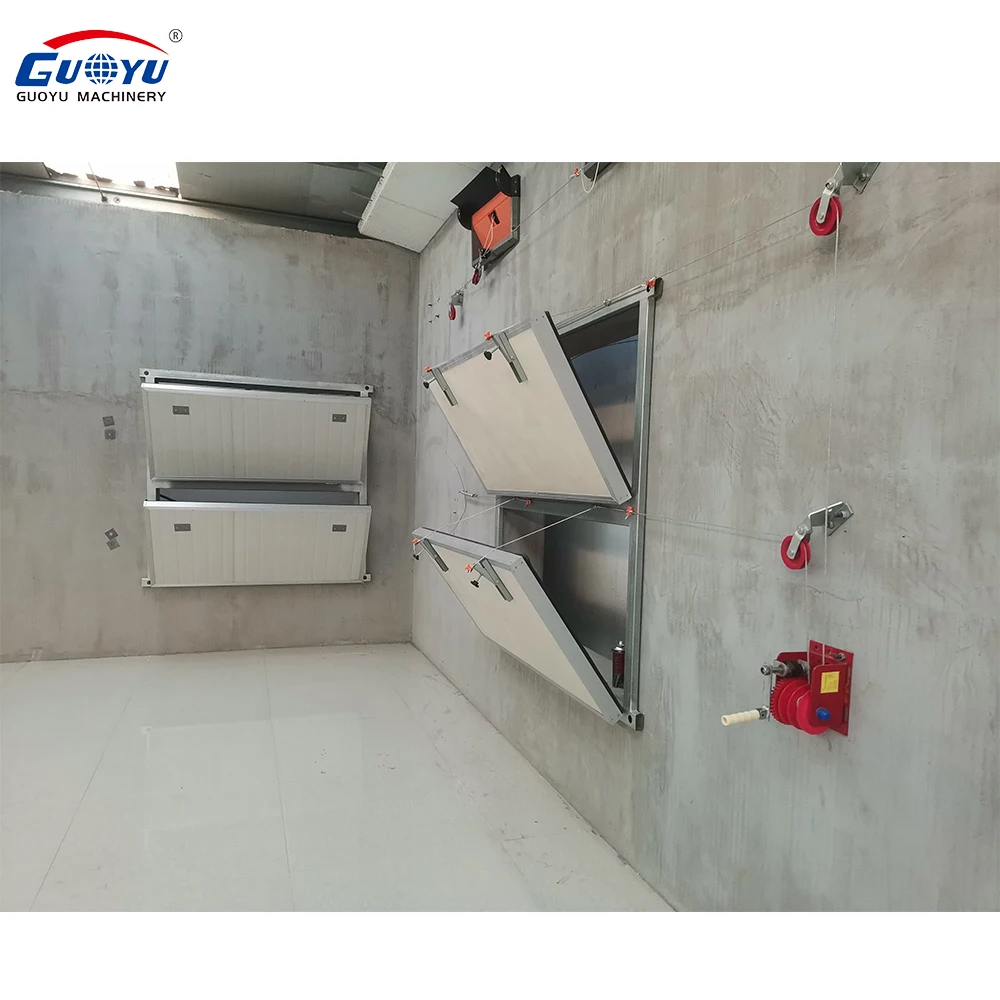

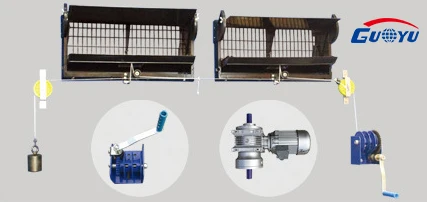

Optional manual lift or electric lift

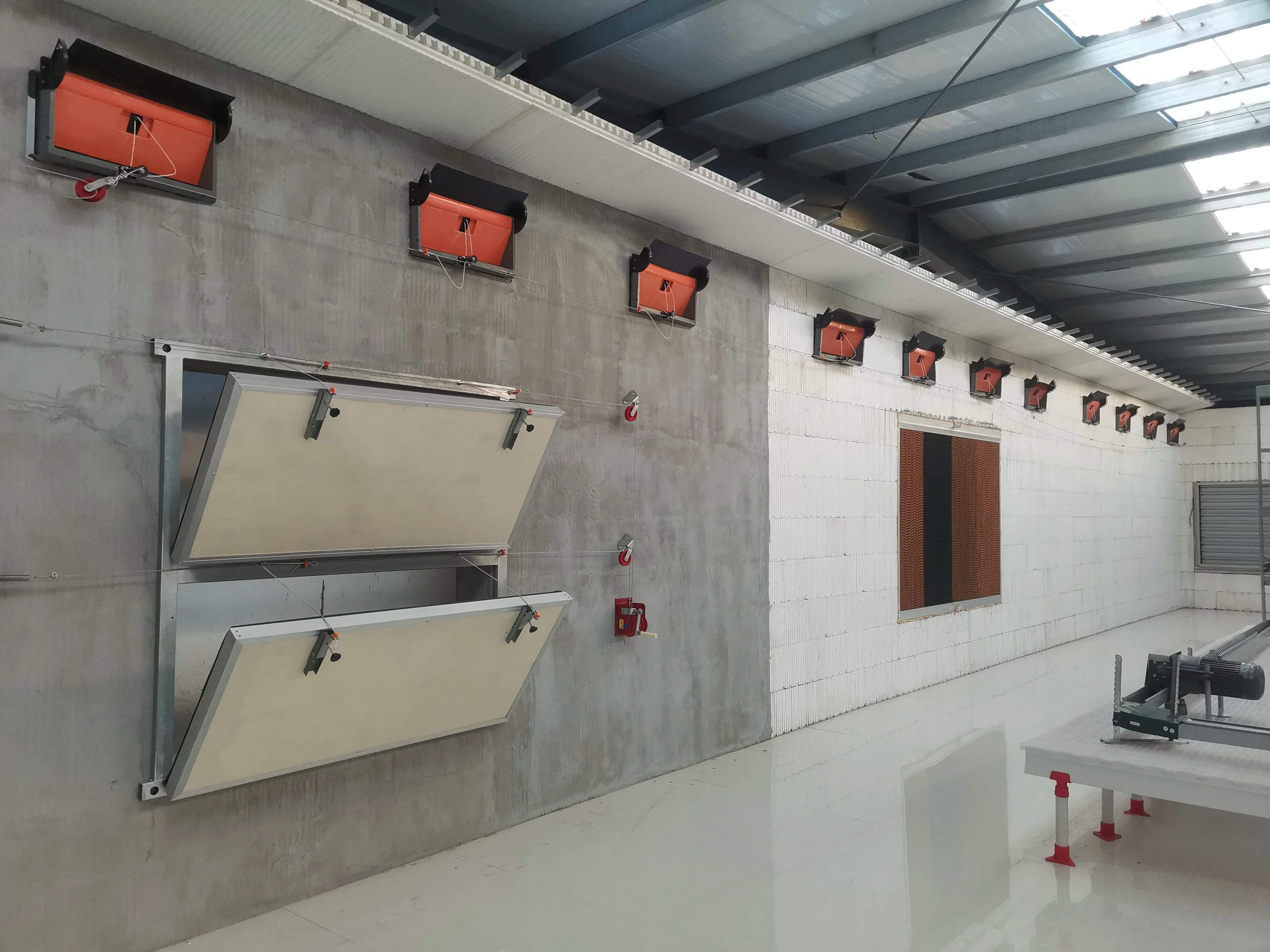

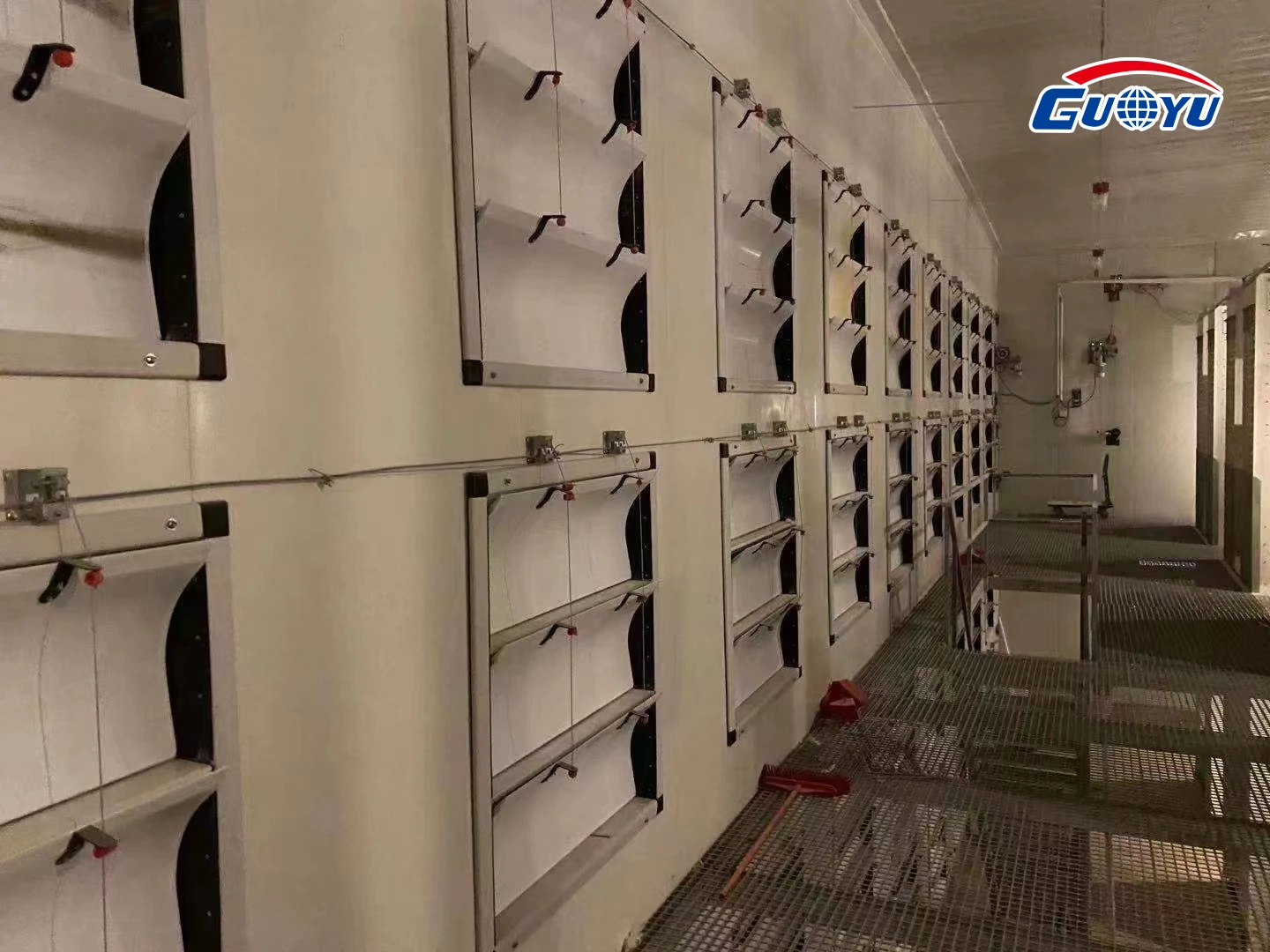

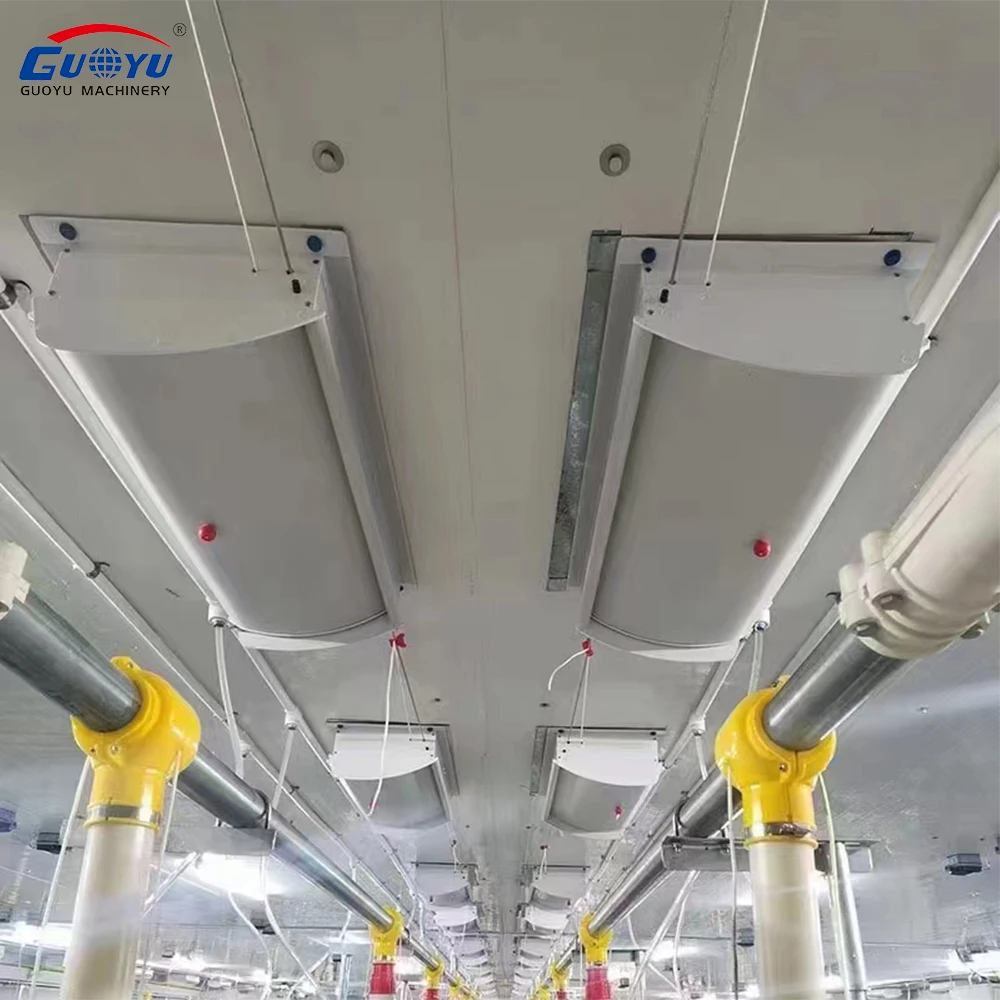

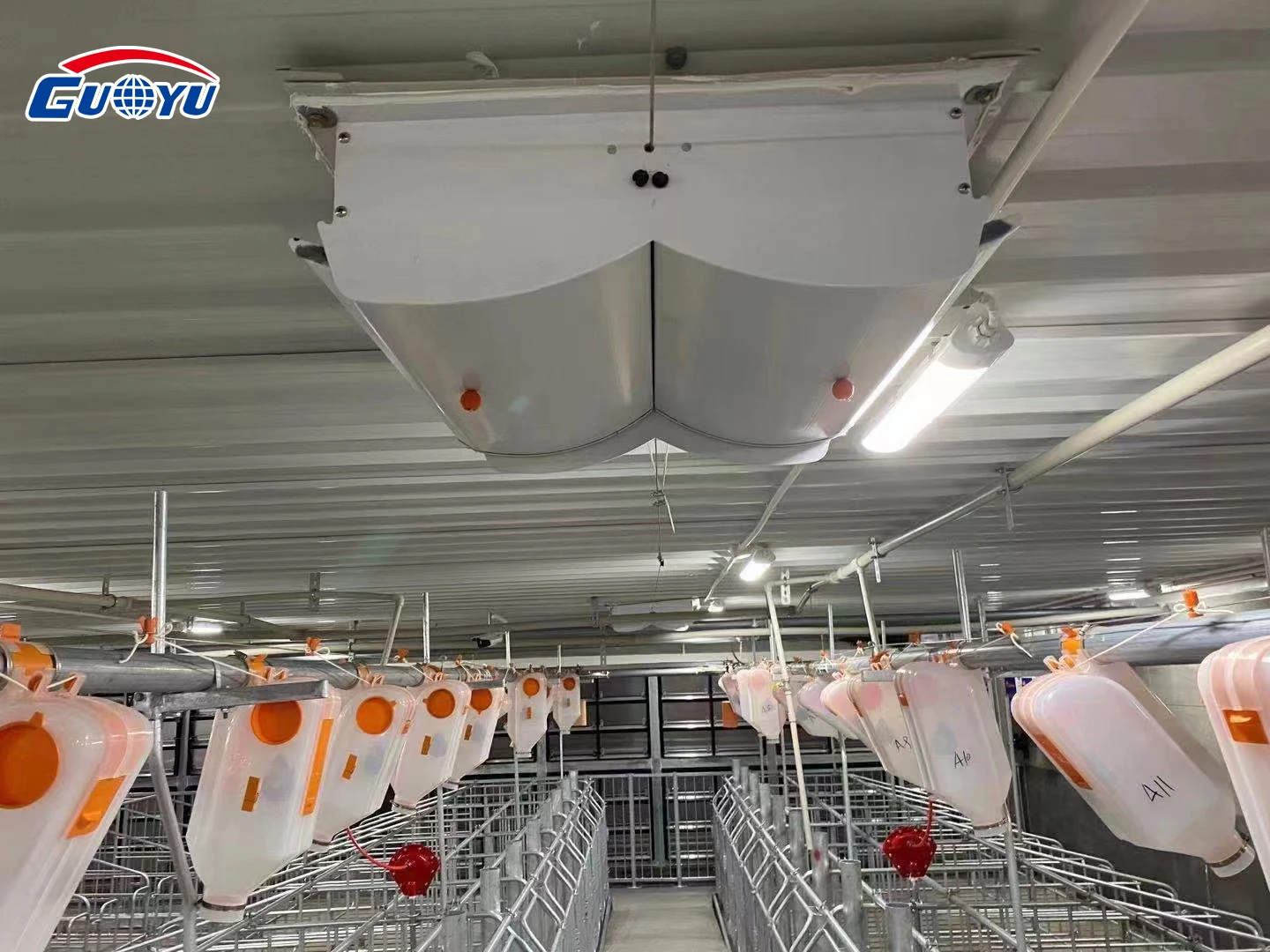

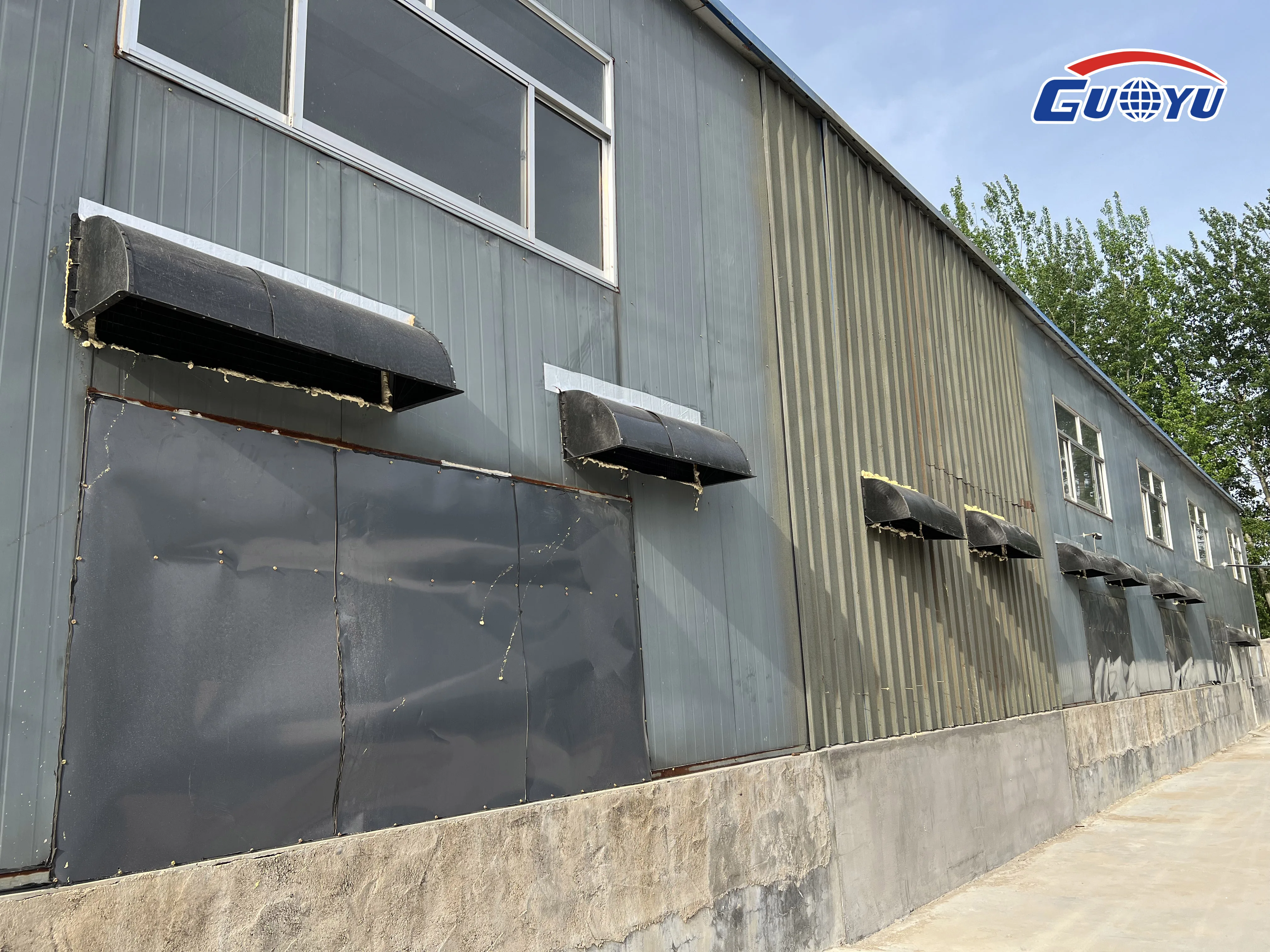

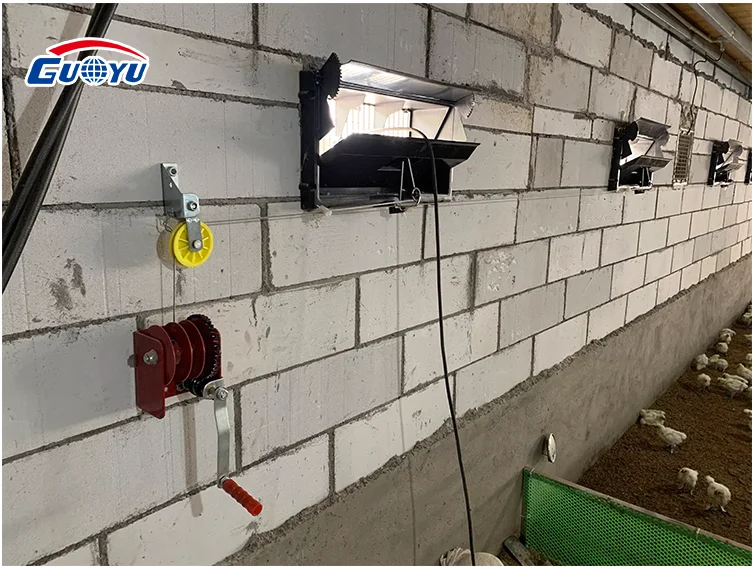

Application installation display
