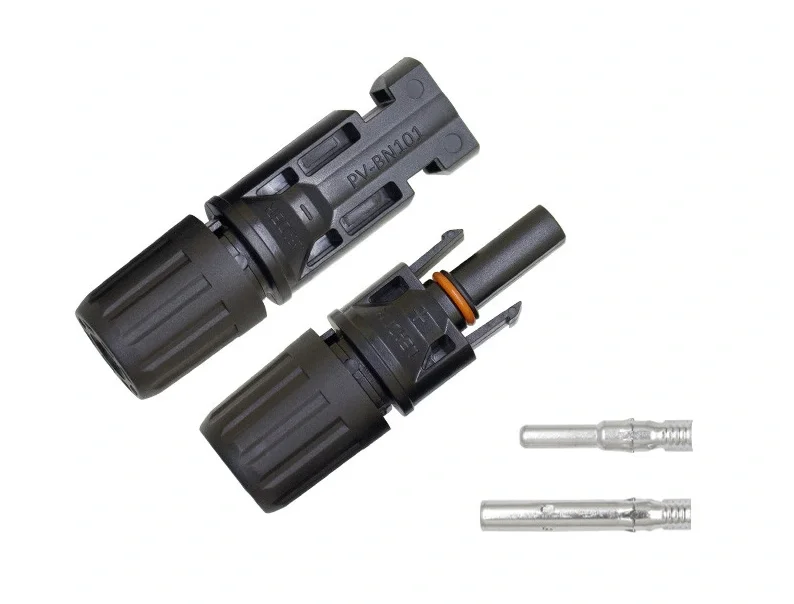

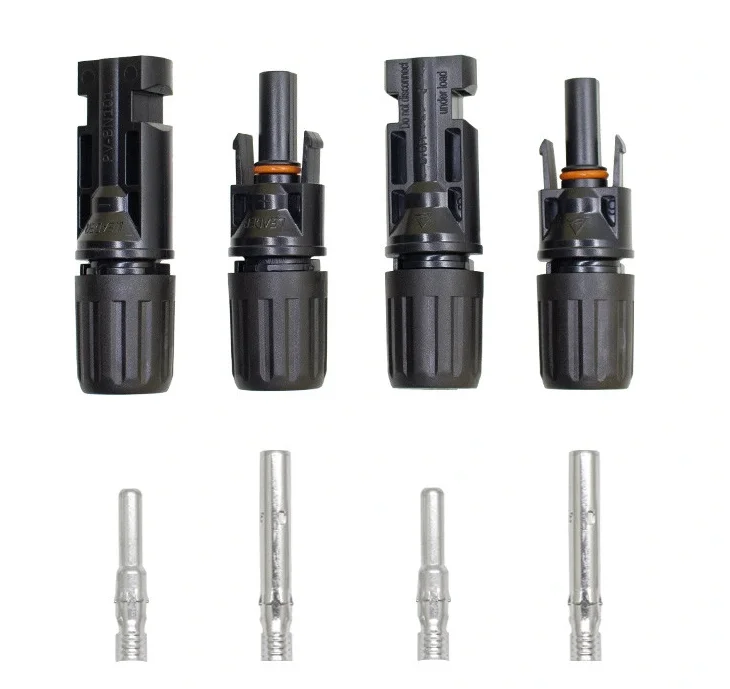

Mc4 Connector Male and Female, Mc4 Solar Panel Connector 30A 1000V for PV Cable 2.5/4/6mm Solar Panel Connect
- Category: >>>
- Supplier: Guangdong Tunto Green Power Technology Co. Limited
Share on (1601249480077):
Product Overview
Description
Multi Contact 4 Solar Panel Wire Connectors 1000V Solar Connector
IP67 Waterproof for PV Solar System
PRODUCT DESCRIPTION:
- Compatible with MC4 cable solar connector PV-KBT4/KST4.
- 15 Years of production experience in solar connectors

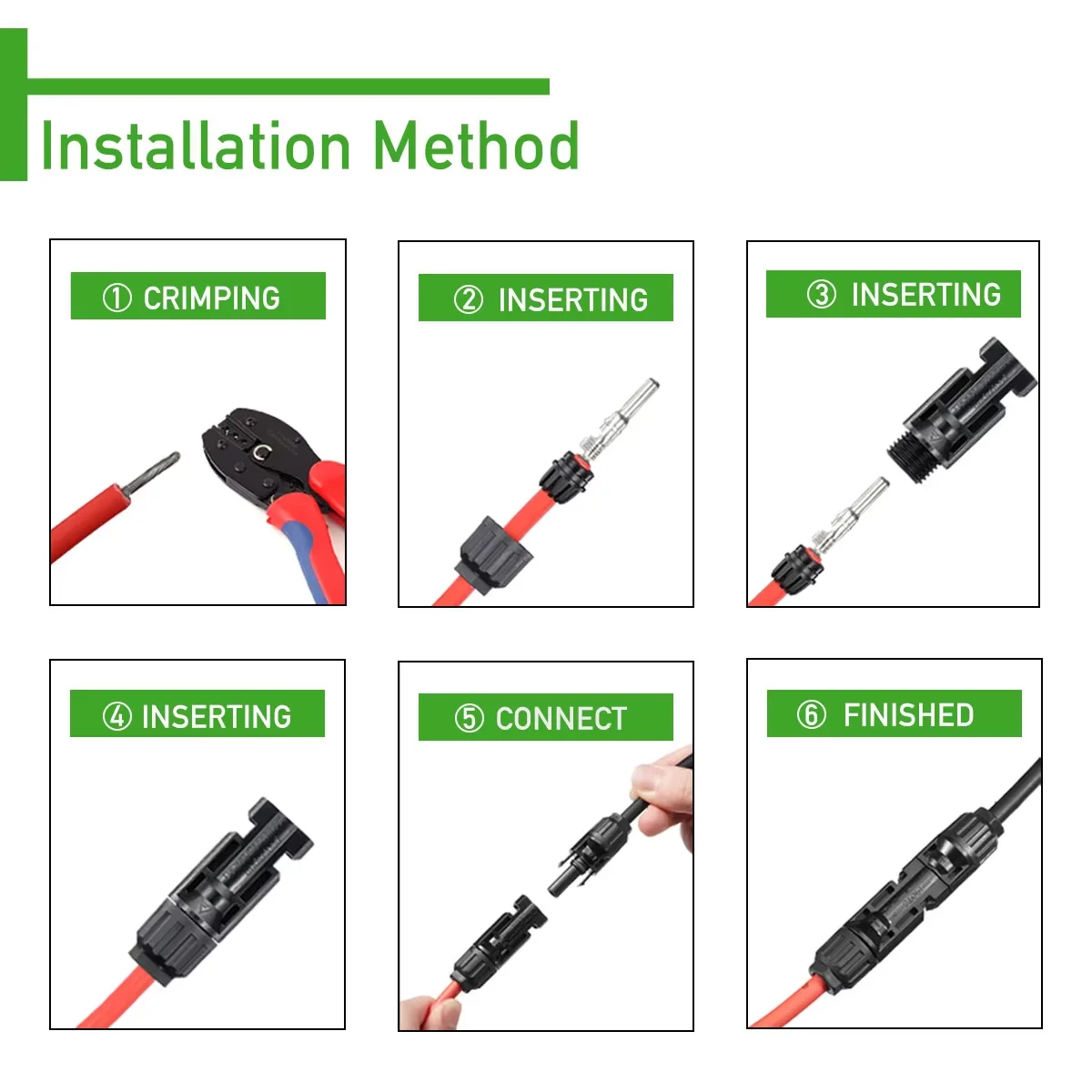

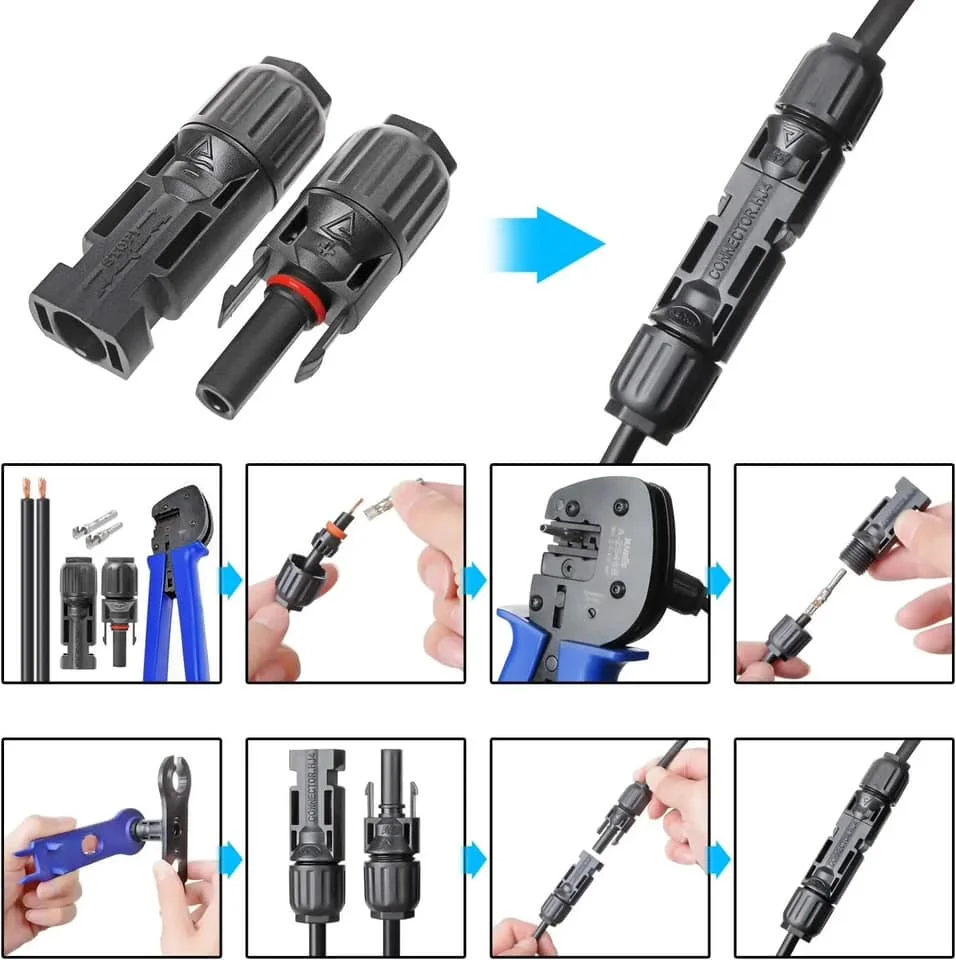

- Quick and easy to install
- Protection class IP68 Suitable for outdoor harsh environments
- Stable connection & Reducing maintenance cost

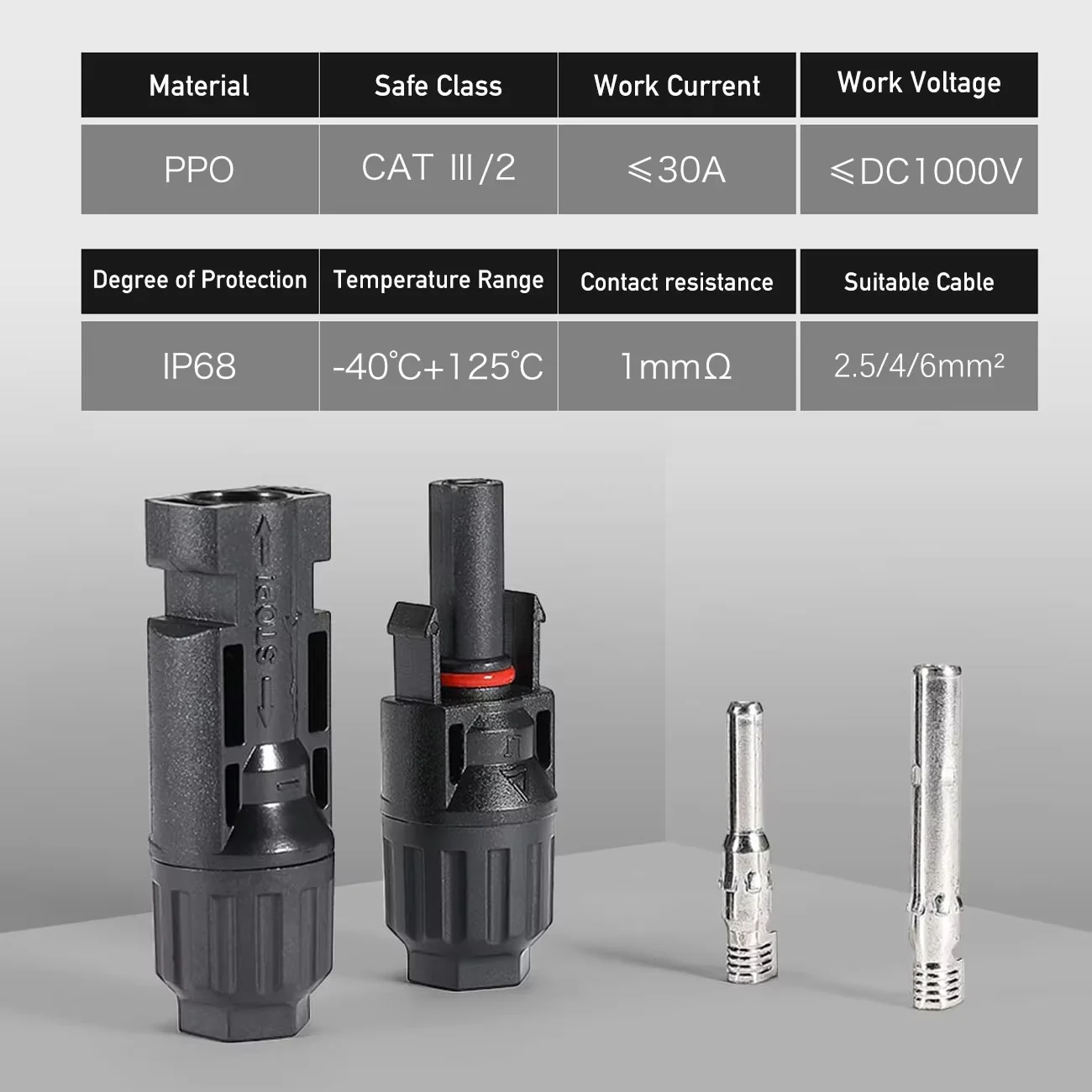

| Model Number | t2gMC4 |
| Rated current | 30A(2.5-6mm2),45A(2.5-6mm2) |
| Rated voltage | 1000VDC/1500VDC |
| Overvoltage Type/Pollution Degree | 6000V(50Hz,1min) |
| Contact Resistance Of Plug Connector | CAT III/2 |
| Contact Resistance Of Plug Connector | 1mΩ |
| Contact Material | Copper,Tin-plated |

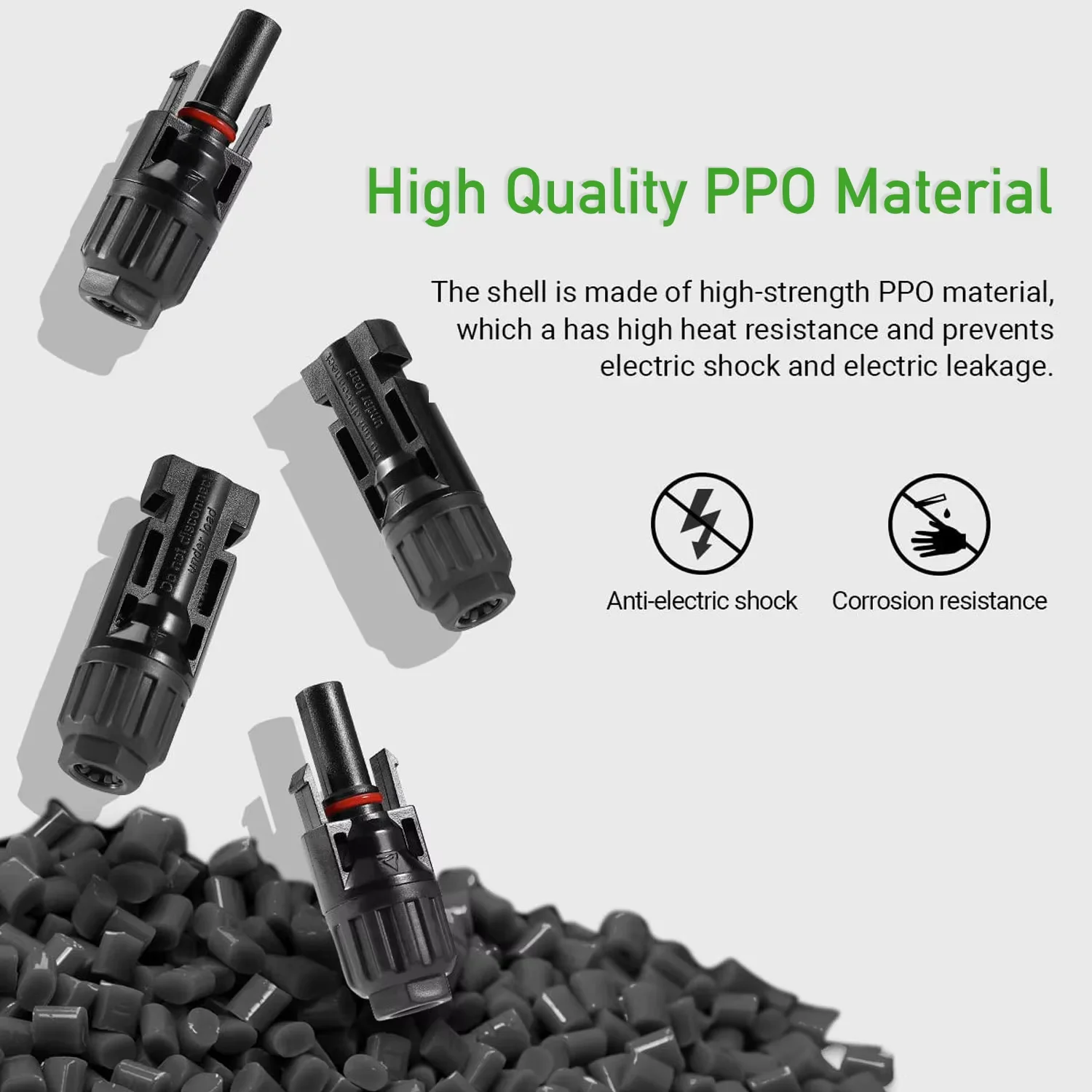

| Insulation Material | PPO |
| Degree Of Protection | IP2X/IP67 |
| Flame Class | UL94-VO |
| Safety Class | II |

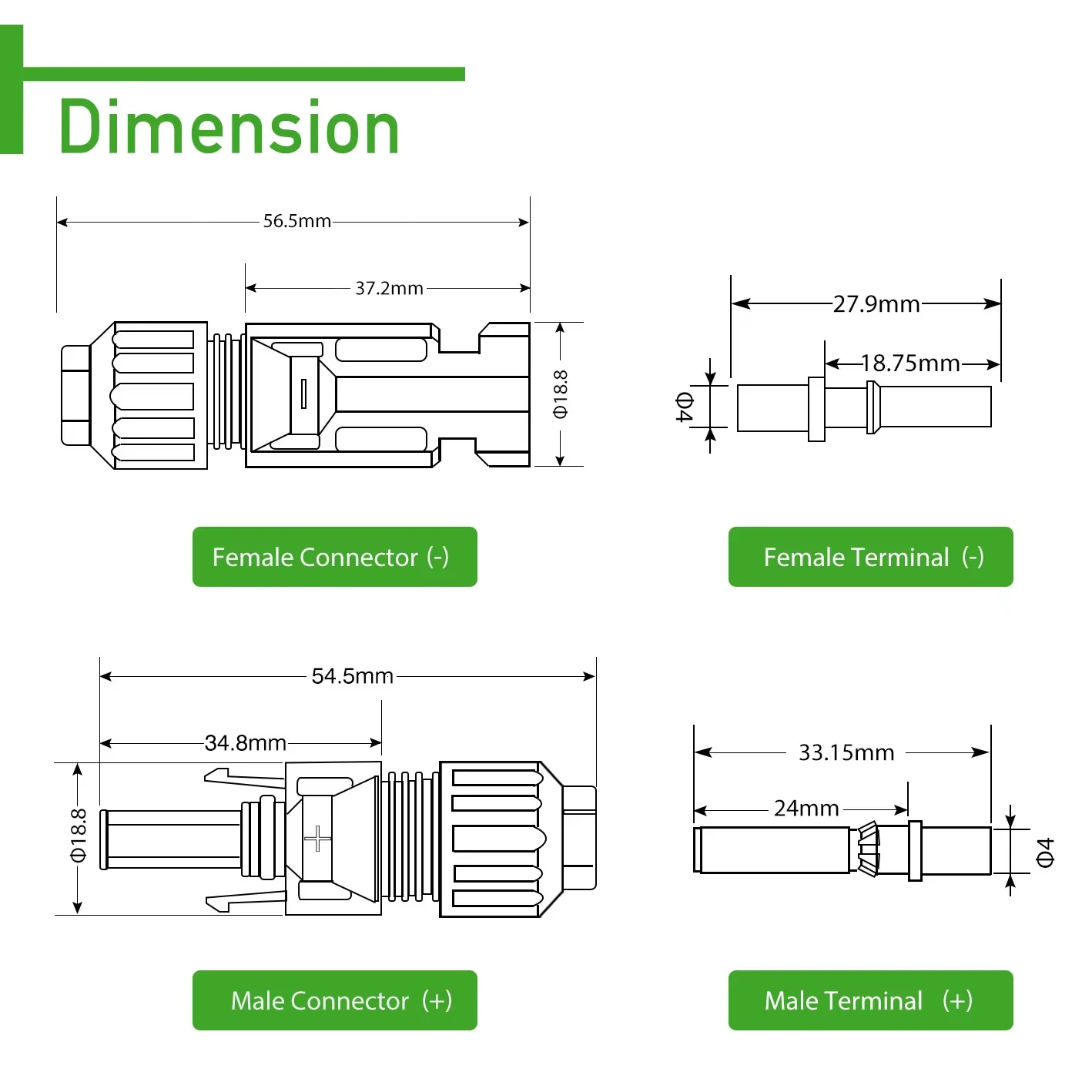

| Suitable Cable | OD4.5-8.5(2.5-6.0mm2) |
| Insertion Force/Withdrawal Force | ≤50N/≥50N |
| Connectiong System | Crimp connection |
| Temperature Range | -40ºC~+125ºC |
