Jinan Leeder Stone Cnc Router Cutting Cnc Bead Making Machine Stone/ Soap Stone Carving Cnc Router Machinery
- Category: >>>
- Supplier: Jinan Leeder CNC Technology Co. Ltd.
Share on (1601250155073):
Product Overview
Description
Products Description
Feature
# Heavy duty type machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
# The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
# High-performance driven motor to ensure that the machines high speed and accuracy. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
# Easy to use Mach3 / NC Studio / DSP controller works with all industry standard CAD/CAM software.
# The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
# High-performance driven motor to ensure that the machines high speed and accuracy. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
# Easy to use Mach3 / NC Studio / DSP controller works with all industry standard CAD/CAM software.
Manufacturing Technique
ITEM | DESCRIPTION |
Working area | 1300*2500mm |
Transmission | X/Y rack and pinion, Z ball screw |
Spindle power | 5.5KW |
Spindle speed | 0-24000r/min |
Travelling speed | 30m/min |
Working speed | ≤15m/min |
Working Delicacy | ±0.05mm |
Repositioning Accuracy | ±0.02mm |
Driving Motor | Stepper / Servo brand |
Control System | DSP |
Voltage | AC380/220v |
Table | T-slot aluminum with water tank |
Software | Artcam/UCANCAM/Type3,other CAD/CAM |

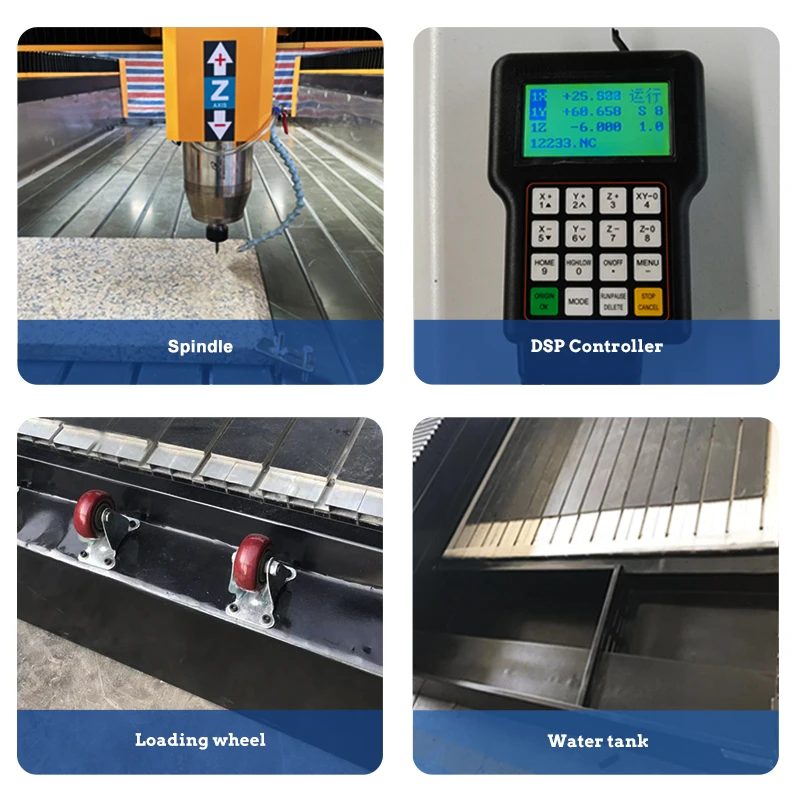

Details Images
Working Sample
Wood, acrylic, steel, stone, granite, marble, etc.
# Professional, reliable and versatile machine for engraving, drilling, lettering, cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass.
# Professional, reliable and versatile machine for engraving, drilling, lettering, cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass.

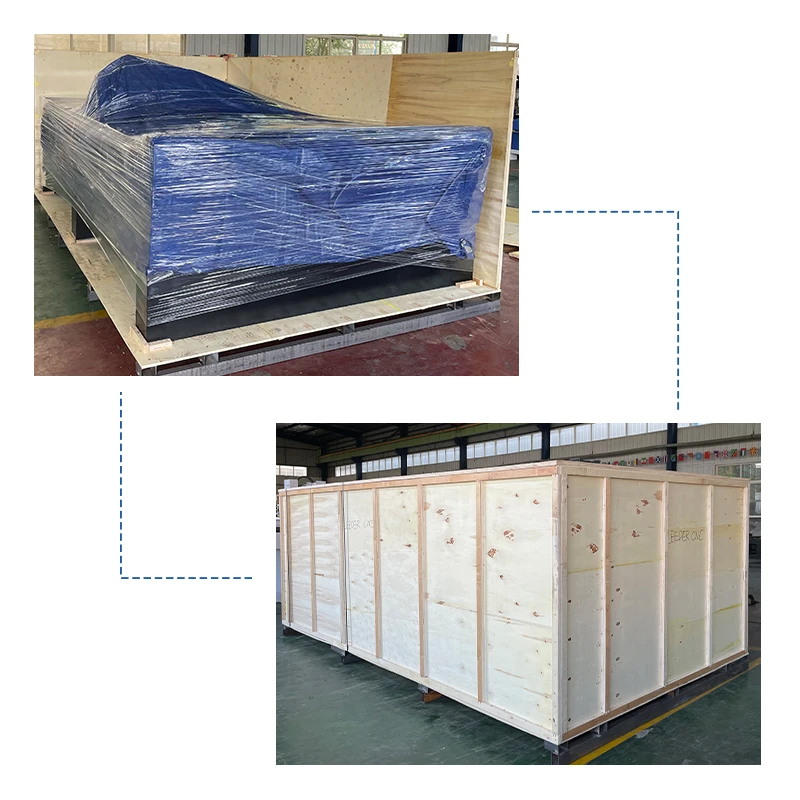

Shipping&Delivery
