High operating efficiency 38M Pump Truck 21 Tons Concrete Pump HB58K within Concrete Machinery
- Category: >>>
- Supplier: Tewrex Industrial Machinery (Suzhou) Co. Ltd.Tewrex Ltd.
Share on (1601251007502):
Product Overview
Description
Product Description
Advantages:.
1.Intelligent lubrication system control technology Intelligent program control provides accurate lubrication scheme for pumping system; It provides lubricating point blockage monitoring , which can realize real-time fault warning and avoid secondary loss.
2.Transfer case's gear collision protection technology
Intelligent program control, rotary speed monitoring and dual-stroke logical protection ensure switchover at zero rotary speed and mechanics in proper place, thoroughly evading gear collision damage of transfer case.
3.Efficient pumping system of rock valve
Based on laser guide, coaxial assembly makes piston head’s moving track more precise, with smaller resistance and higher efficiency.
1.Intelligent lubrication system control technology Intelligent program control provides accurate lubrication scheme for pumping system; It provides lubricating point blockage monitoring , which can realize real-time fault warning and avoid secondary loss.
2.Transfer case's gear collision protection technology
Intelligent program control, rotary speed monitoring and dual-stroke logical protection ensure switchover at zero rotary speed and mechanics in proper place, thoroughly evading gear collision damage of transfer case.
3.Efficient pumping system of rock valve
Based on laser guide, coaxial assembly makes piston head’s moving track more precise, with smaller resistance and higher efficiency.
Contact us: Monica Yin
Category | Item | Unit | HB58K |
Overall | Outline dimension | mm | 14300×2530×4000 |
Overall weight | kg | 44000 | |
Brand | / | Benz | |
Chassis | model | / | Act.ros4141E5 |
Wheelbase | mm | 2300+4000+1350 | |
Max.power | kW | 300 | |
Engine | Emission | / | China V |
Theoretical | m³/h | 170 | |
Pumping system | Concrete pumping pressure | Mpa | 8 |
Theoretical pumping times | Times/min | 21~23 | |
Delivery cylinder diameter × stroke | mm | φ260×2200 | |
Placing boom | Reach height | m | 57.5 |
Reach depth | m | 40.5 | |
Slewing radius | m | 52.5 | |
Slewing angle | ° | ±270 | |
Others | Transfer tuble | / | Rock valve/S valve |

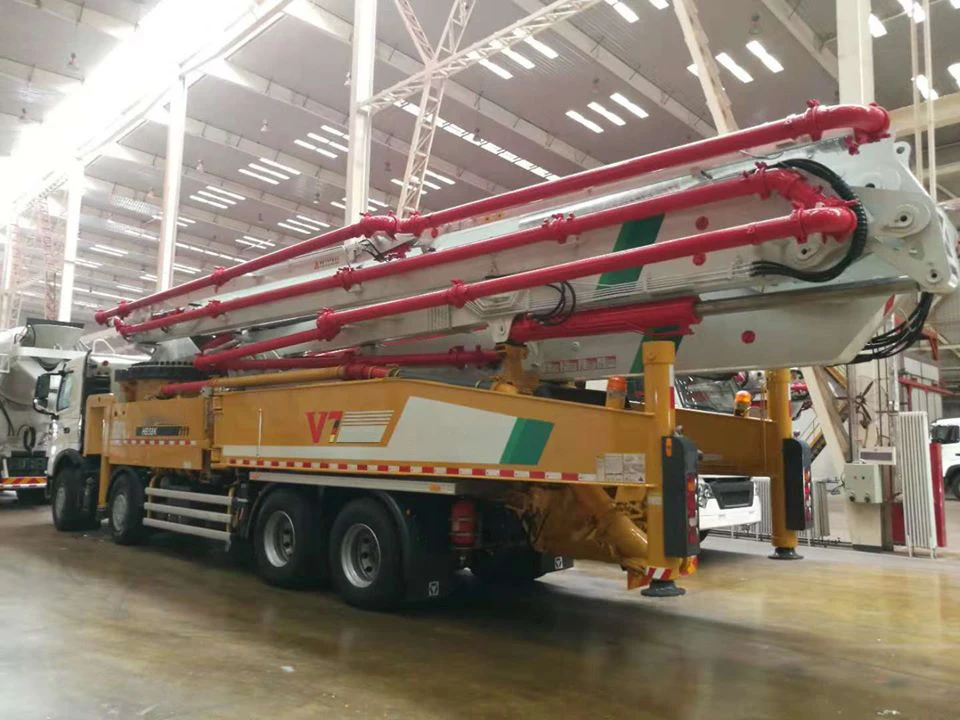

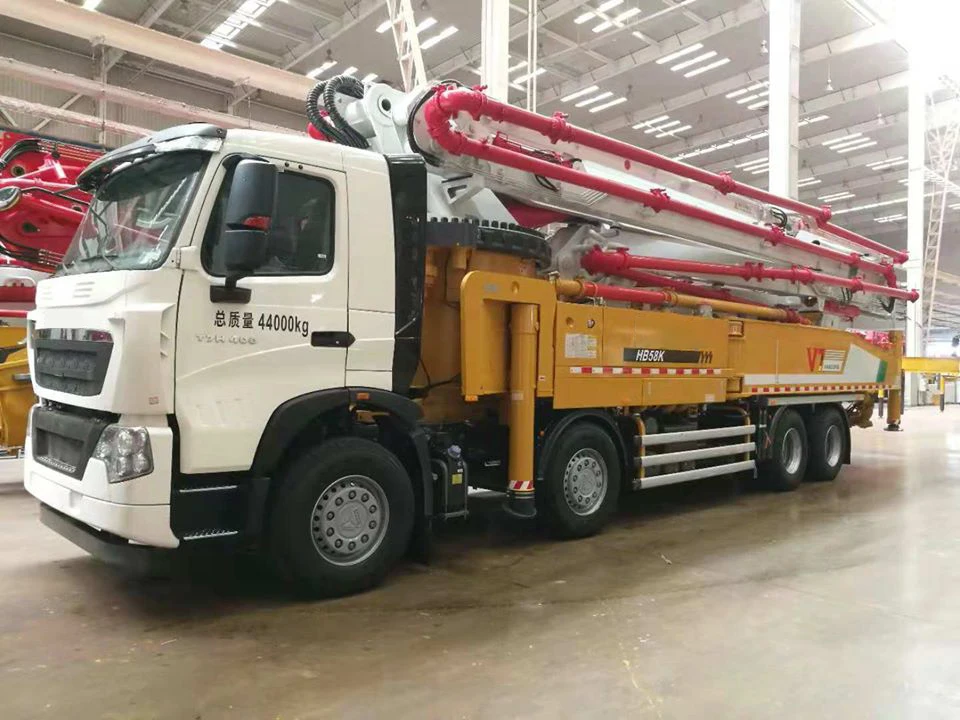

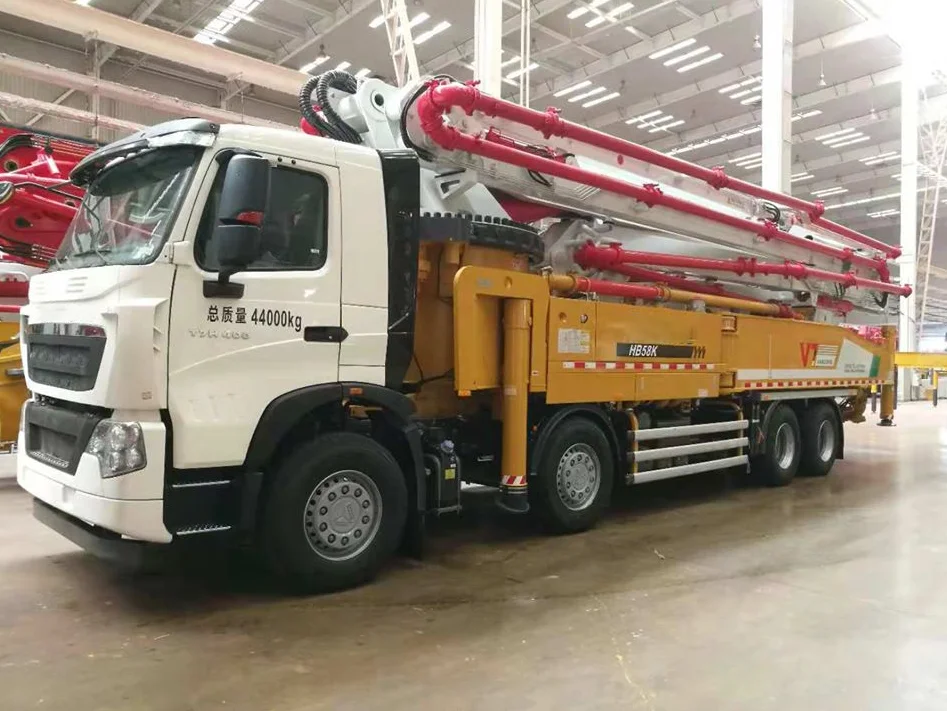

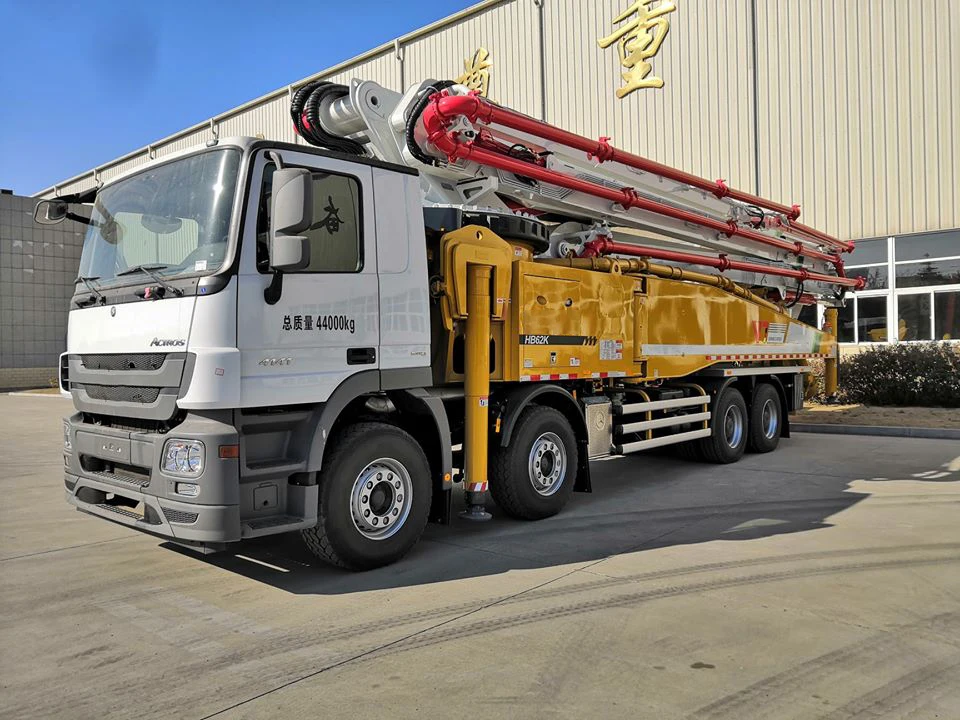

Details Images
