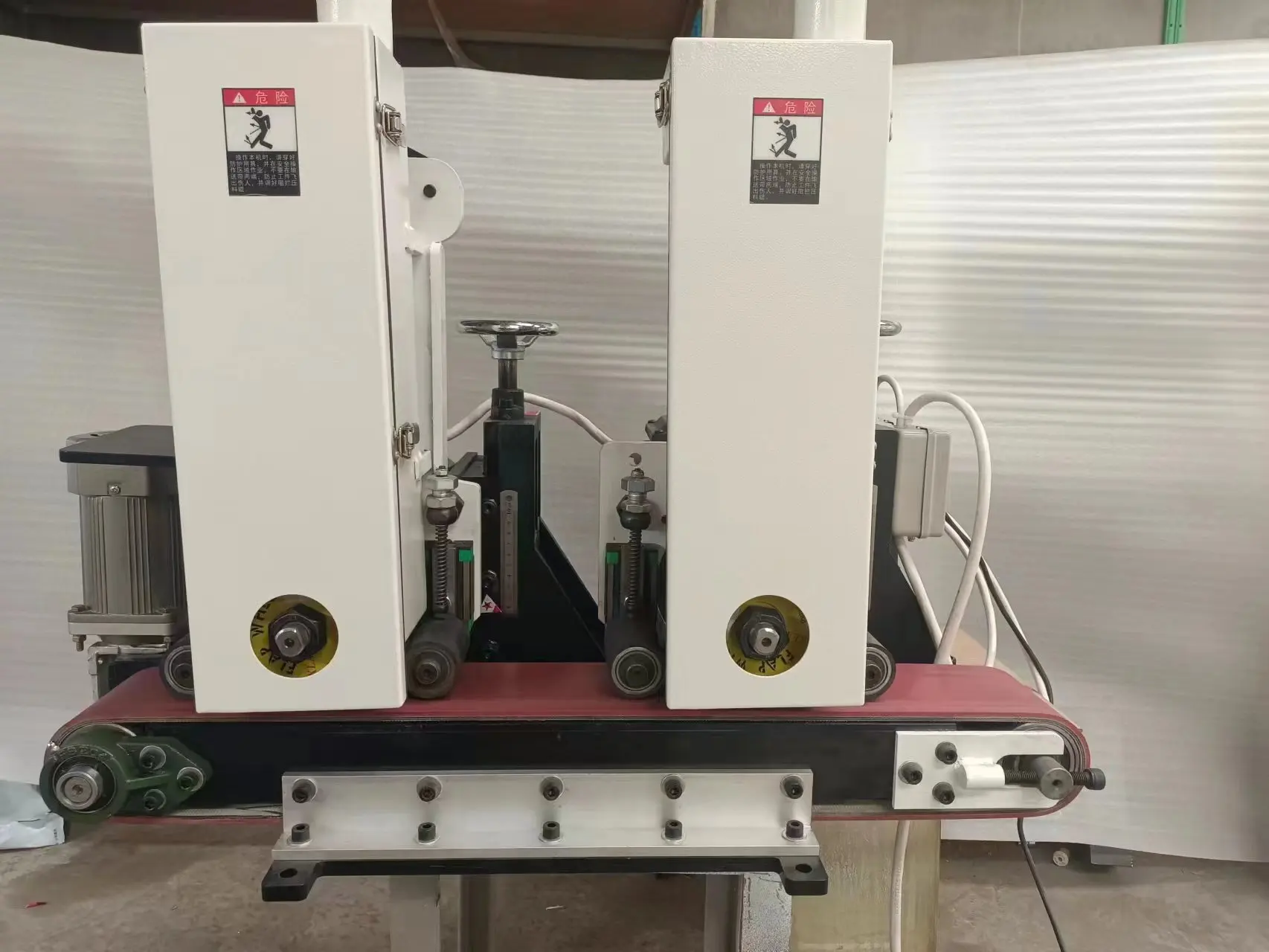

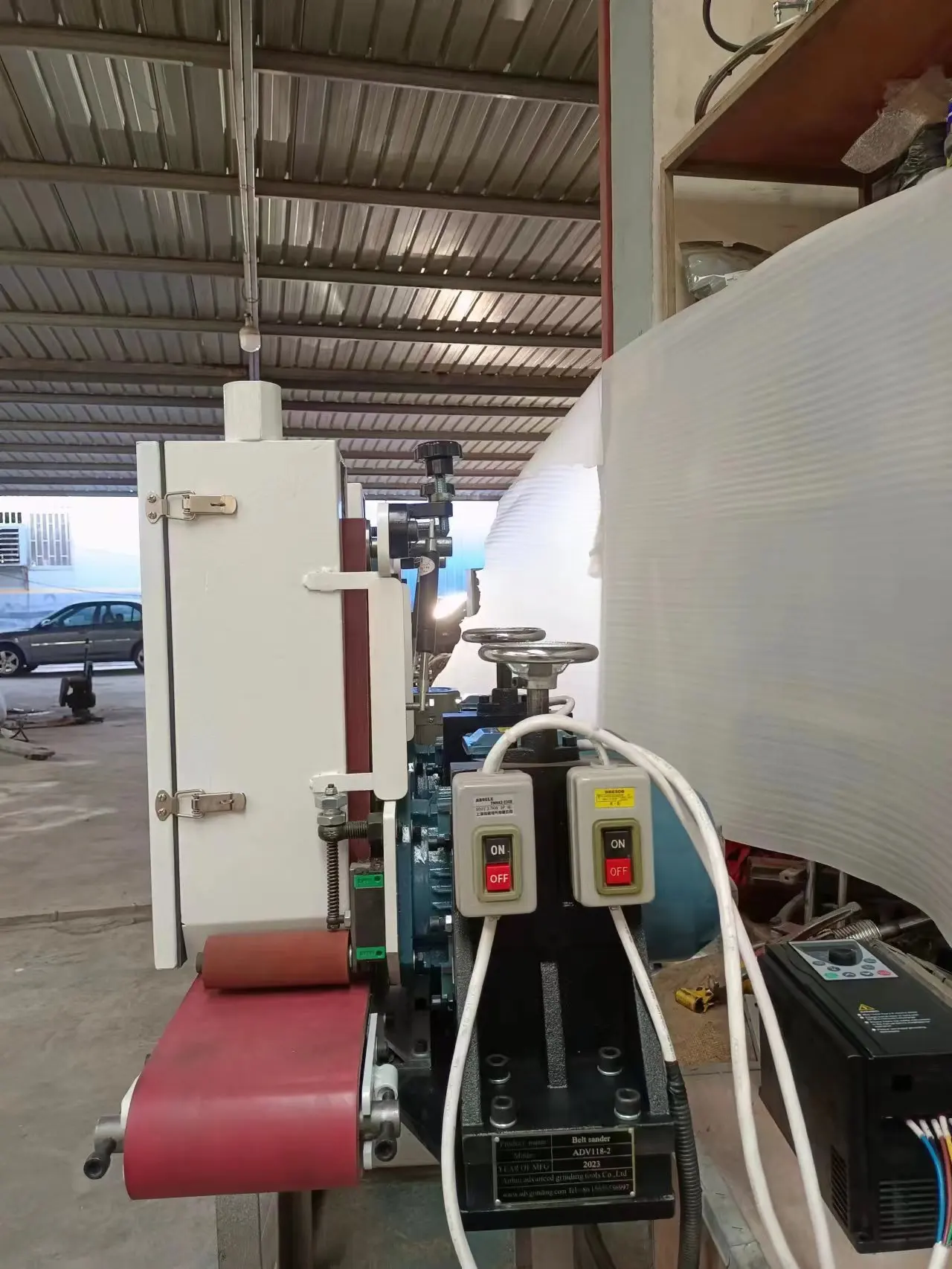

Steel plate sheet polishing machines to polish metal bar surface polisher machine

Share on (1601251836780):


Price:$780.00-850.00

Quantity:


Product Overview

Description



Tips:ADV 118-1/2 small metal flat sheet polishing brushing machine




Machine Parameters


No
Item
Specification
1
Model
ADV 118-1
2
Product name
ADV 118-1 flat sheet polishing brushing machine
3
Main motor
2.2 kw
4
conveyor motor
0.13 kw
5
conveyor width
100 mm
6
conveyor speed
15 m/min
7
Main motor speed
2800 r/min
8
Belt size
920*100 mm
9
machine size
900*580*680 mm
10
Machine weight
100 kg


Product description


ADV 118-1 single grinding head machine

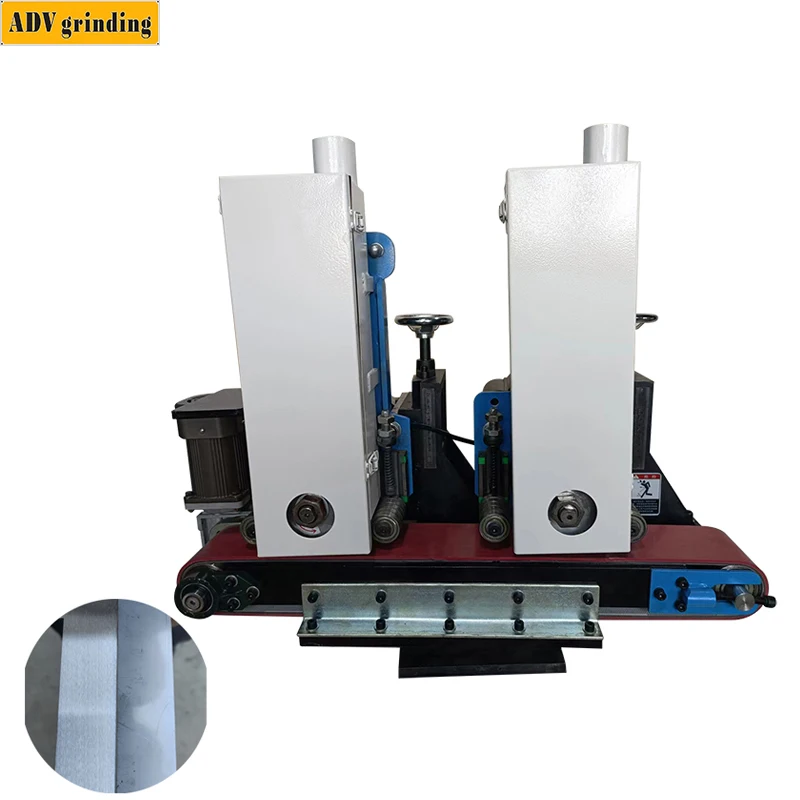

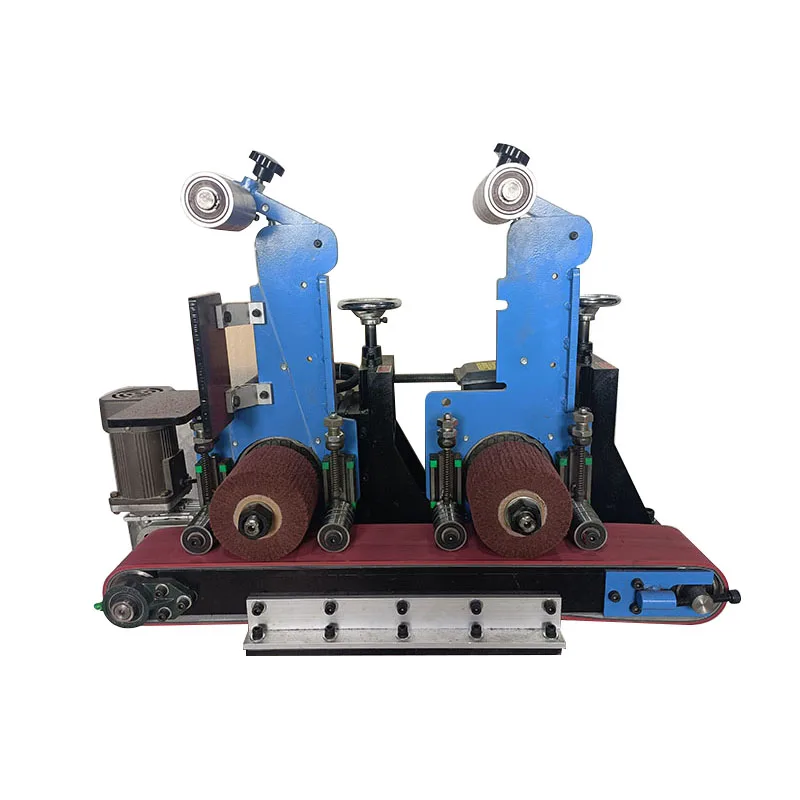

ADV 118-2 double grinding head machine




Conveyor belt
High temperature resistant conveyor belt, durable


Press wheel
The use of high-elastic pressing wheel allows the workpiece to pass in an orderly manner without damaging the surface of the workpiece


Lifting wheel
Lift up and down to the height that needs to be sanded by hand wheel




Consumables used: sand belt, flap wheel.


Scotch brite wheel
For 100mm width:Φ120mm(OD)*100mm(W)*Φ25mm(ID) For 150mm width:Φ120mm(OD)*150mm(W)*Φ25mm(ID) The scotch brite wheel can finish the hairline effect
Sand belt
For 100mm width:920(L)*100mm(W)
For 150mm width:920(L)*150mm(W)
The sand belt can deburring, finish NO.4 effect

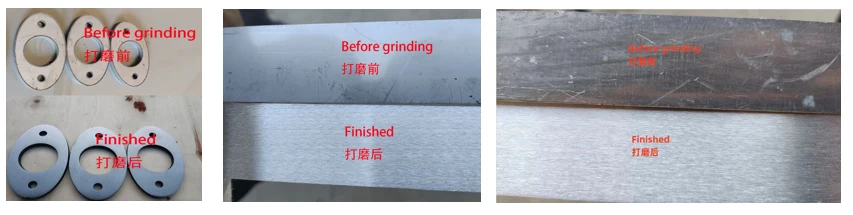

Application industry and sample




Application of the ADV 118 series
For small flat metal plate material (aluminum, copper, stainless steel, etc.) deburred ,brushed and polished.


Why Choose Us

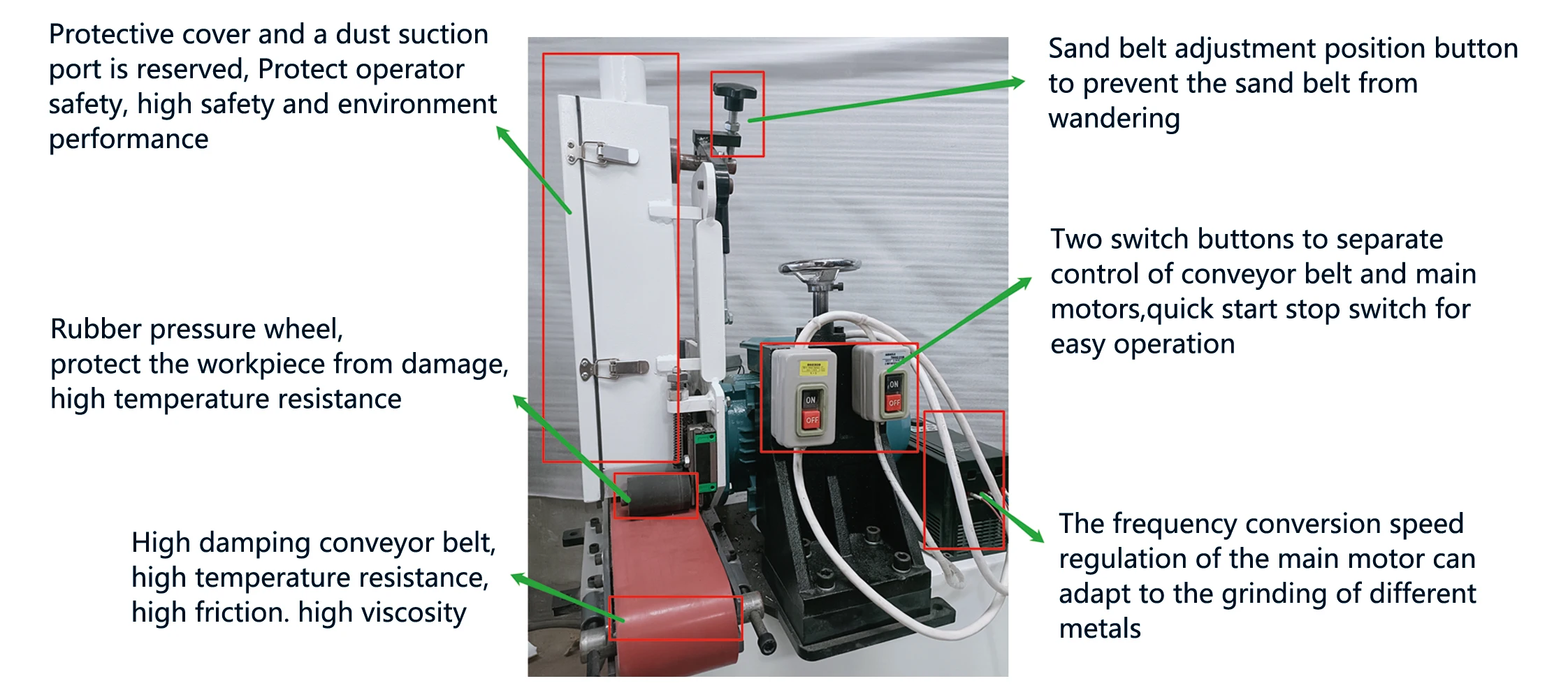

The advantages of the machine:

1.The scotch brite wheel and sand belt can be used together
2.Protective cover and a dust section port is reserved,protect operator safety,high safety and environmental performance.
3.Rubber pressure wheel, protect workpiece from damage, high temperature resistance.
4.The high damping conveyor belt is resistant to high temperature, high friction and high viscosity to achieve better grinding effect.
5.Two switch buttons to separate control of of conveyor belt and main motors,quick start stop switch for easy operation and more safety.
6.The height of the grinding table is adjustable and can be used for workpieces of different thicknesses.

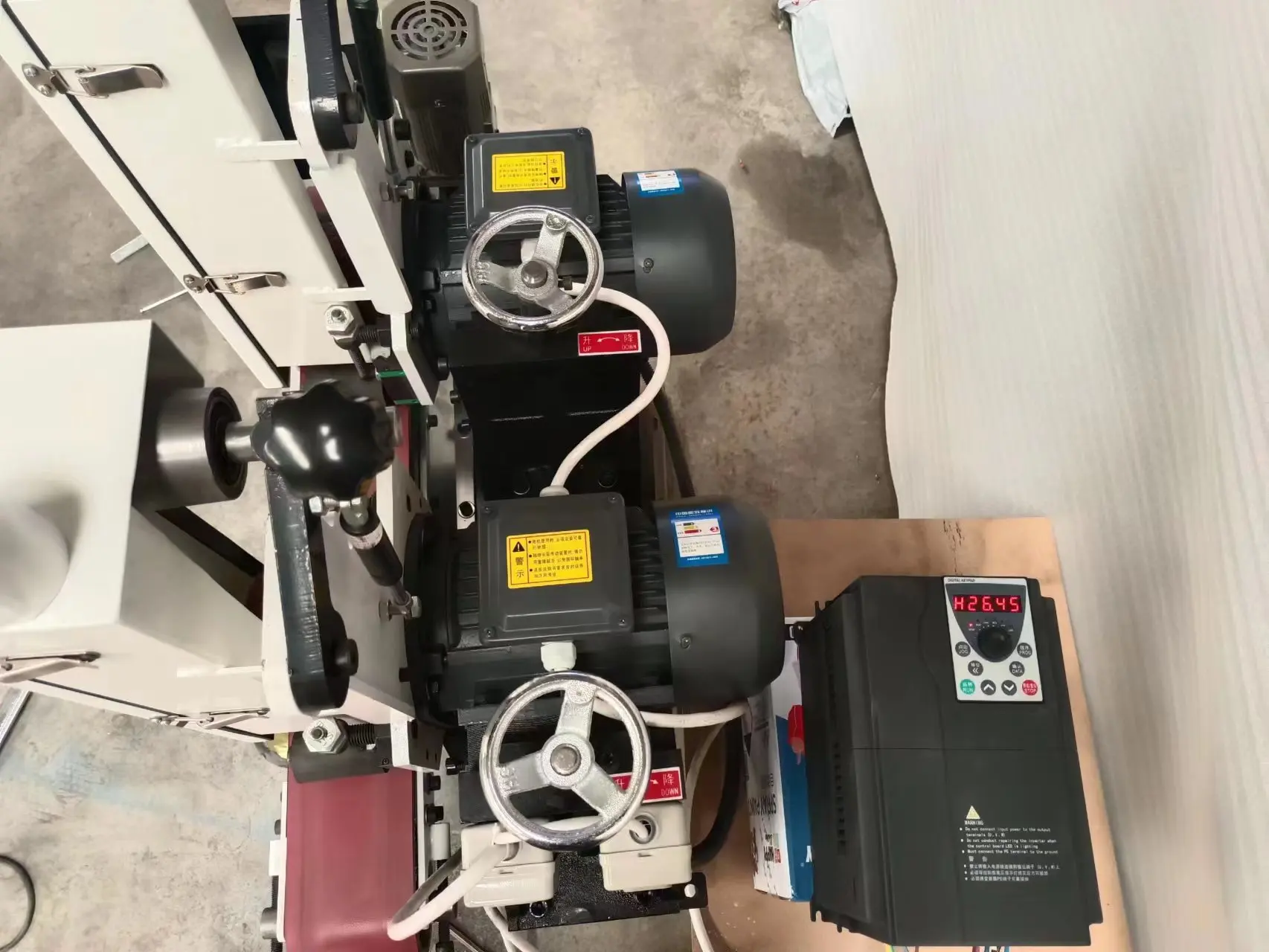

7.The machine is equipped with a frequency converter, which can be adjusted according to the thickness and size of the workpiece to control the grinding speed.
8.We promise to deliver the goods within 7 days and have delivery guarantee.






Company Profile


* About Anhui Advanced Grinding Tools Co., Ltd.
It is established in 2002, owns more than 400 square meters of researching and office space, more than 20000 square meters factory. All machines , passed the European Union CE authentication.


Anhui Advanced Grinding Tools Company has been adhering to the concept of excellent quality and reasonable price. We are committed to optimize the supply chain, strictly control the quality, supervise the production and debugging process of machines, and ensure the delivery of high-quality products to customers. In addition, we have experienced sales and service personnel to provide customers with high-quality pre-sale, after-sales and technical support services. The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.






Customer feedback




Exhibition






FAQ


Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?
A: Please tell us your product information and polishing process, then we can recommend the suitable machine to you.

Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.

Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
