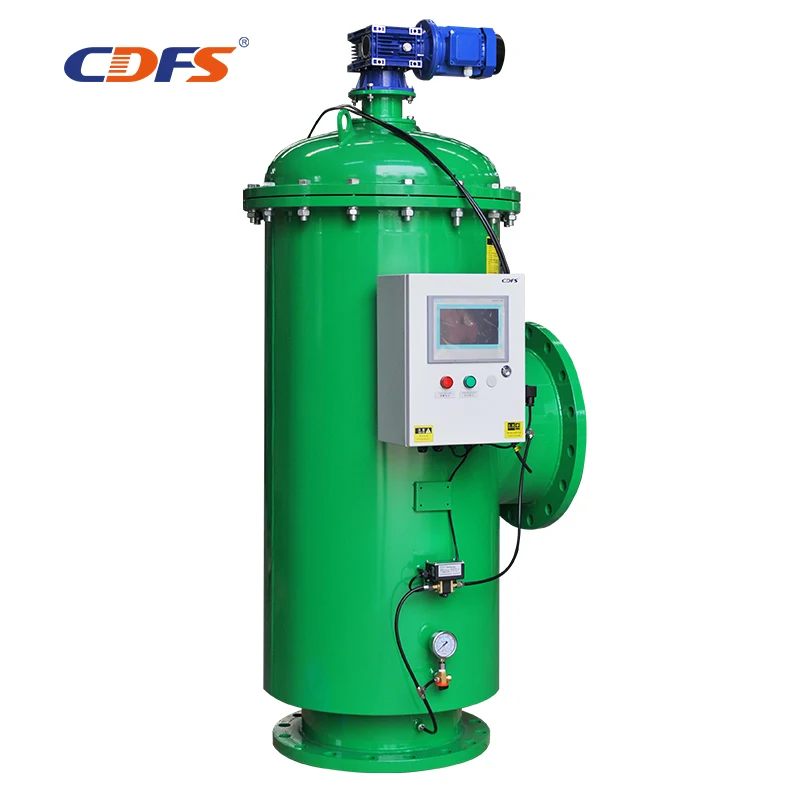

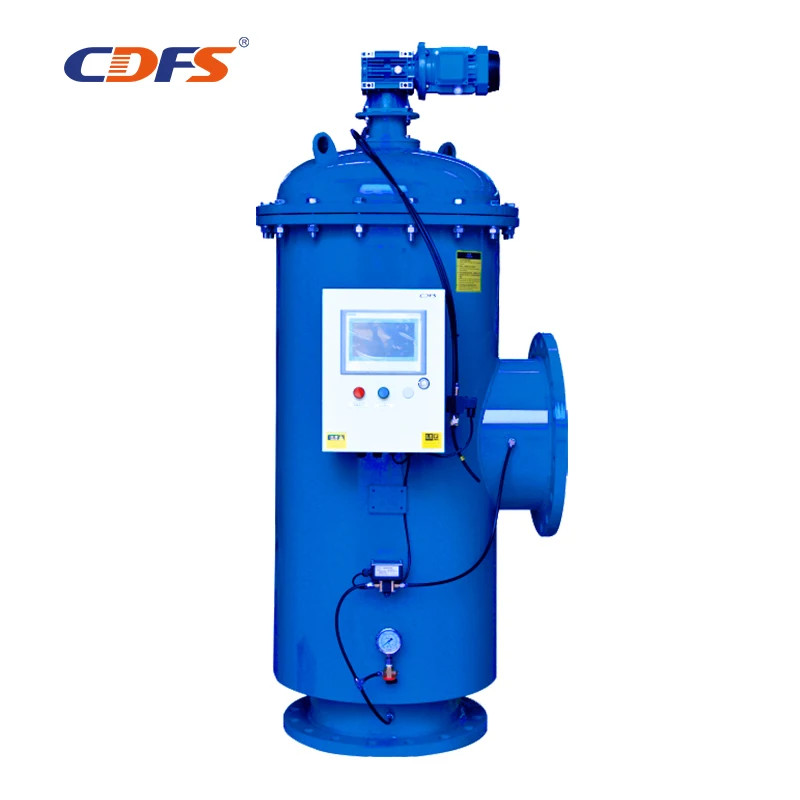

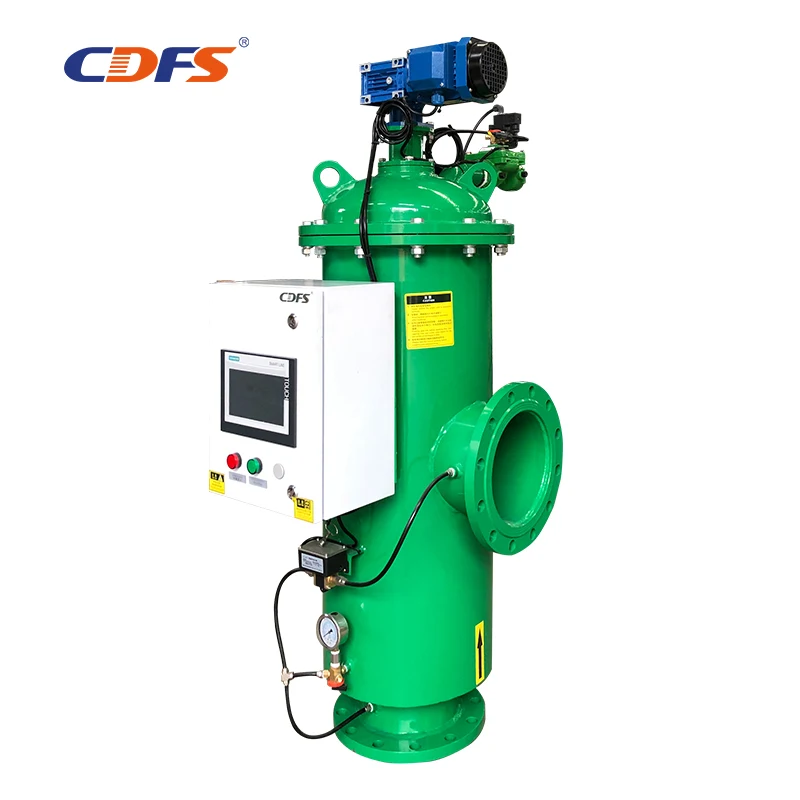

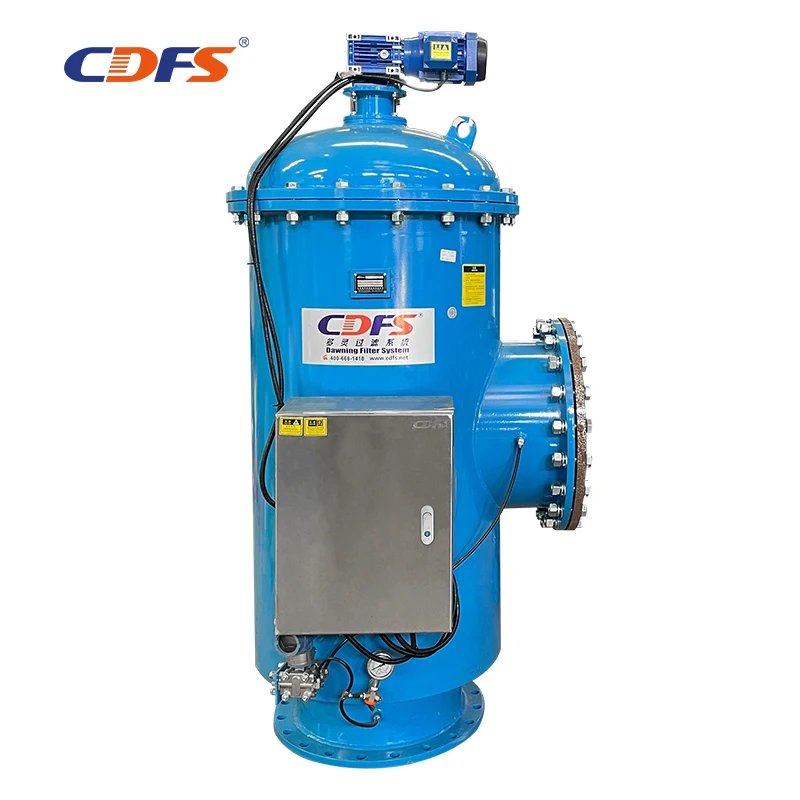

Customized Design Irrigation 100 Micron Automatic Self Cleaning Screen Back Washer Filter

Share on (1601253683160):


Price:$1,150.00 - $1,360.00

Quantity:


Product Overview

Description

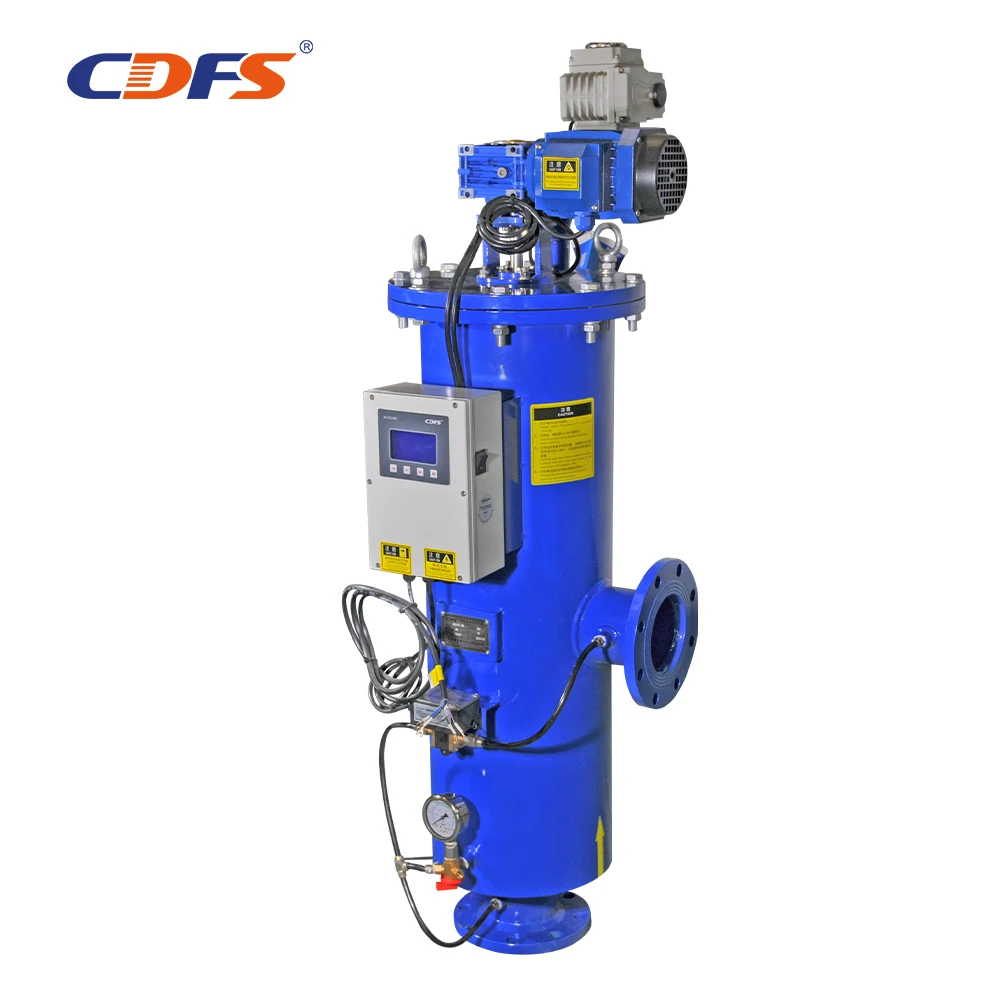

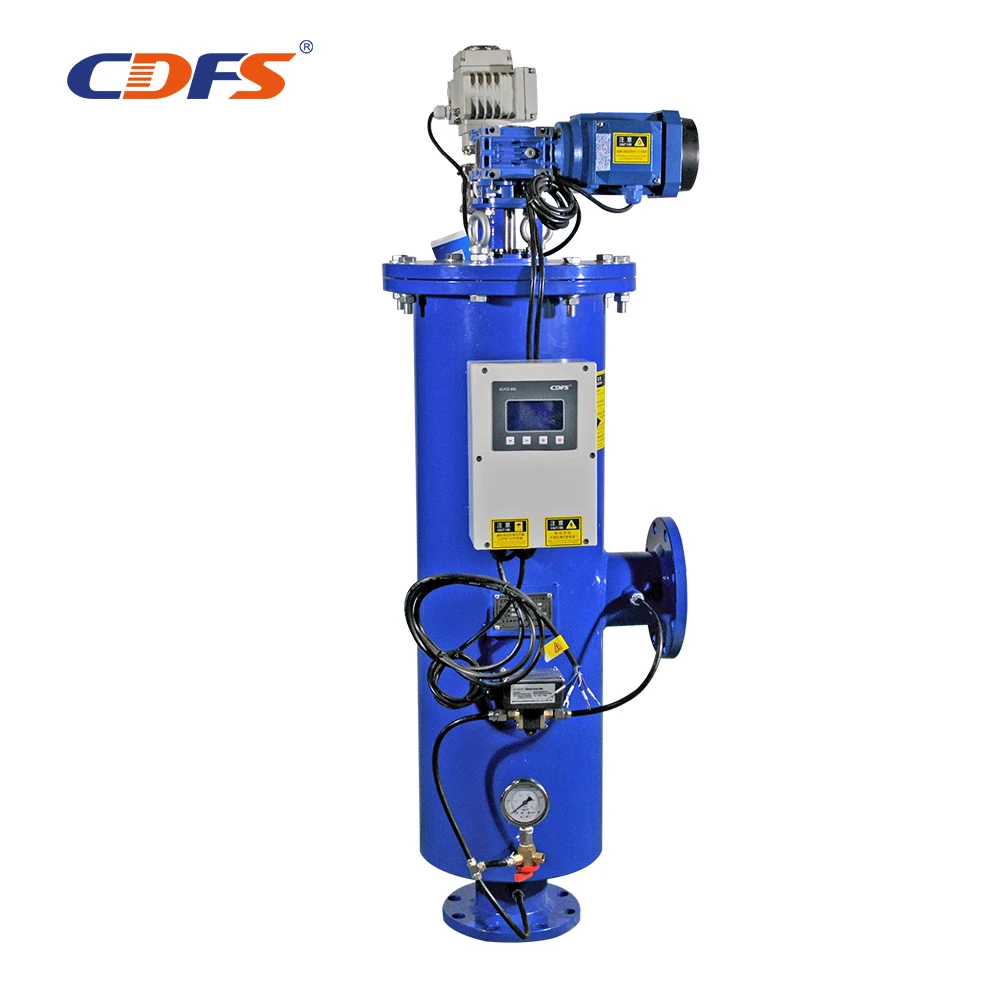

Brush Type Automatic Self Cleaning Filter











Products Description

Products Description




Brief Introduction






Use a stainless steel screen mesh to remove the silt, sand and scale dirt from the water. Water containing few organics could also be filtered.

The available flow rate is from 10m3/h to 2000m3/h.
















































Model


DLD-FL-50


Water in/out


2 inch


Flow


19m3/h


Filtration


100/130/200 microns


Working pressure


2-10 bar


Type


Automatic

















How It Work



The water flows through the screen and the particles are retained on the inside of the screen of the filter element.



The filtered water then flows out through the outlet. Self-cleaning mode can be started by pressing, timing or manual three ways, following the principle of pressure difference.



Filters continue to supply filtered water even during the flushing cycle.

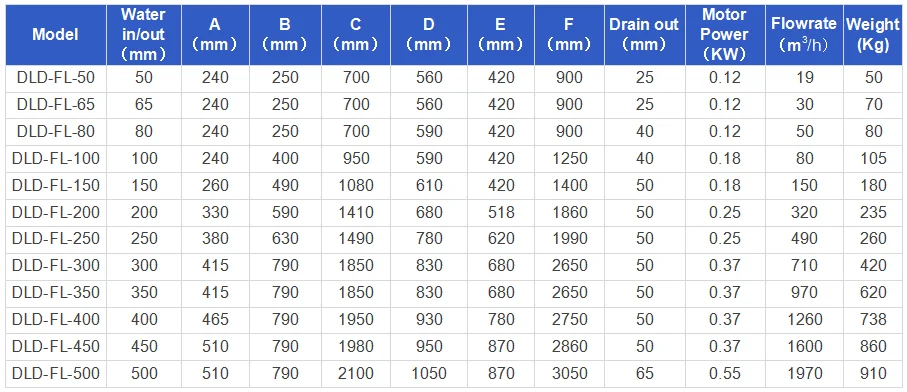

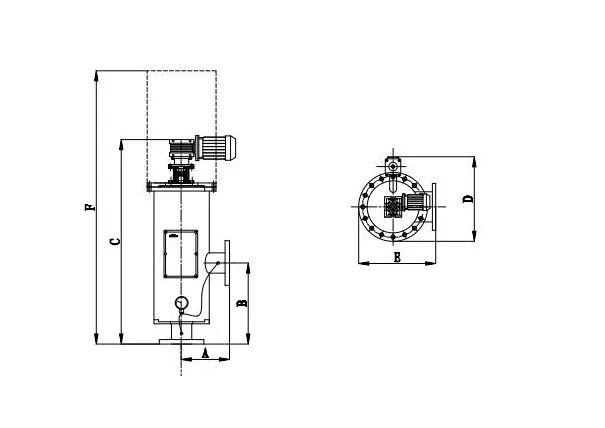

The model selecting of self cleaning filter

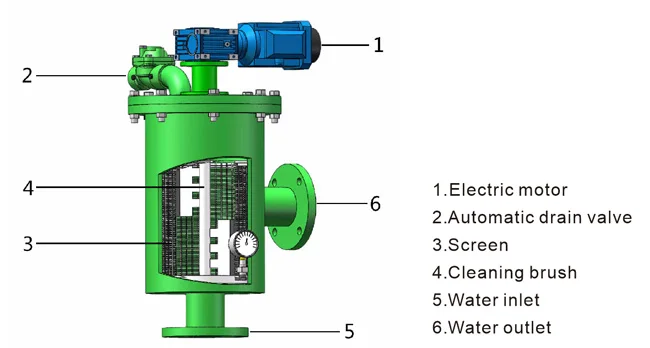

The components of automatic disc filter (We provide free spares within warranty )

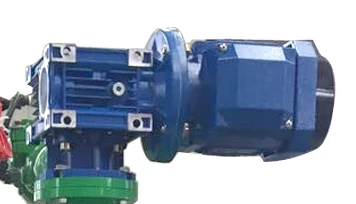

Electric motor








Wedge screen

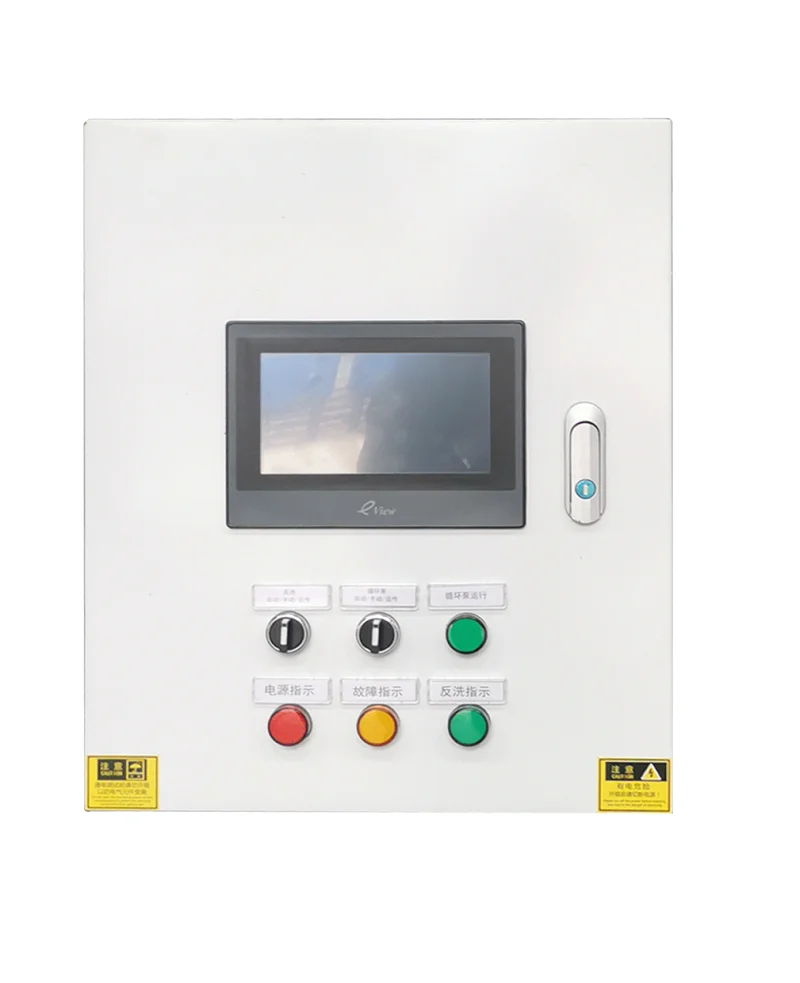

Automatic controller

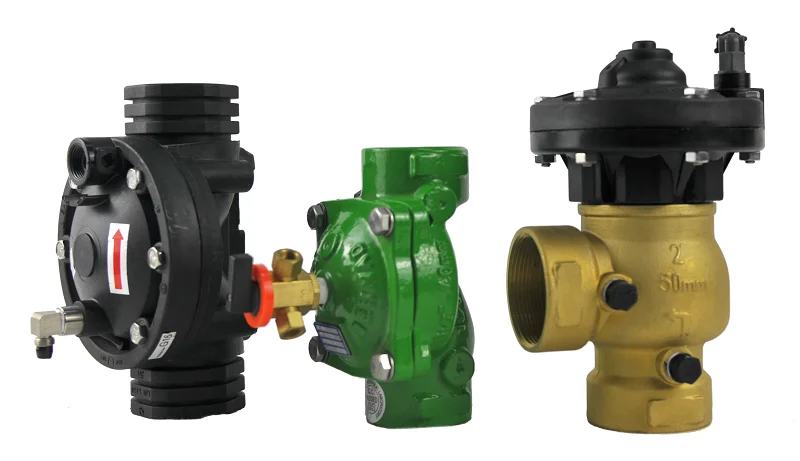

Auto drain valve

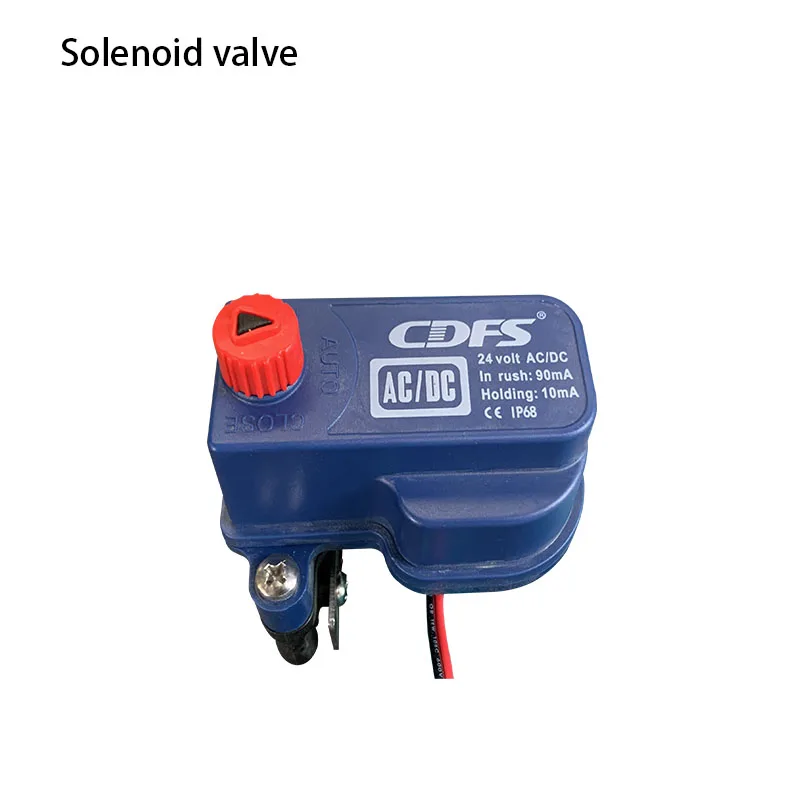

Solenoid valve

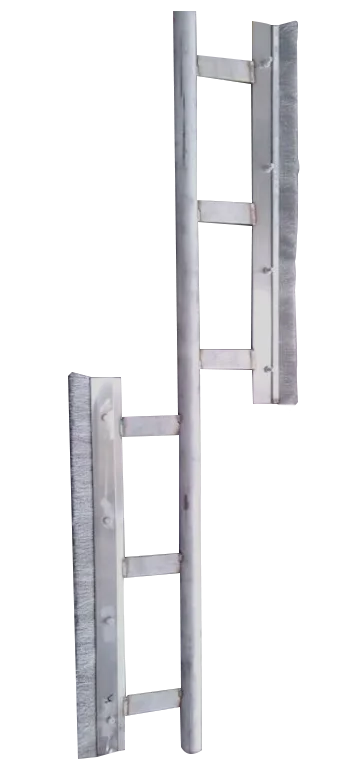

Brush set











Features





1. Filtration precision: irrigation filtration 130 microns, industrial filtration 20-4000 microns
2. Material: Housing carbon steel and screen SS304
3. Control:220V/ 380V/400/
4. Space: Small with large flow rate
5. Backwash: Automatic and the water supply won't stop when back flushing
6. Water consumption: Less than 1% of filtering water, pressure loss don't over 0.02 MPA
7. Customized service: Pressure, material and power if there are specialized requirements, welcome to contact us









Product packaging

Product packaging

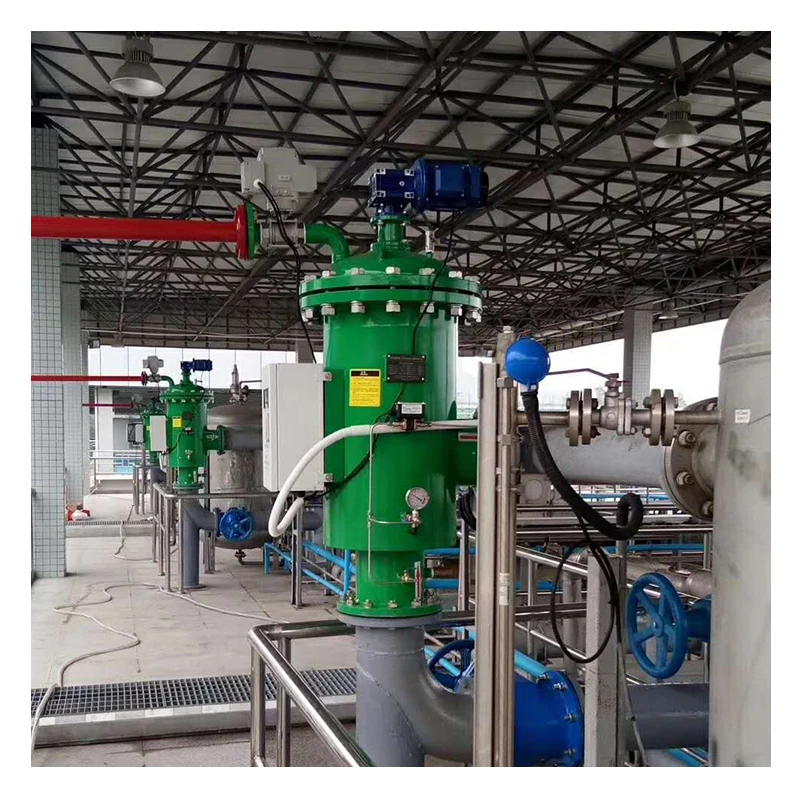

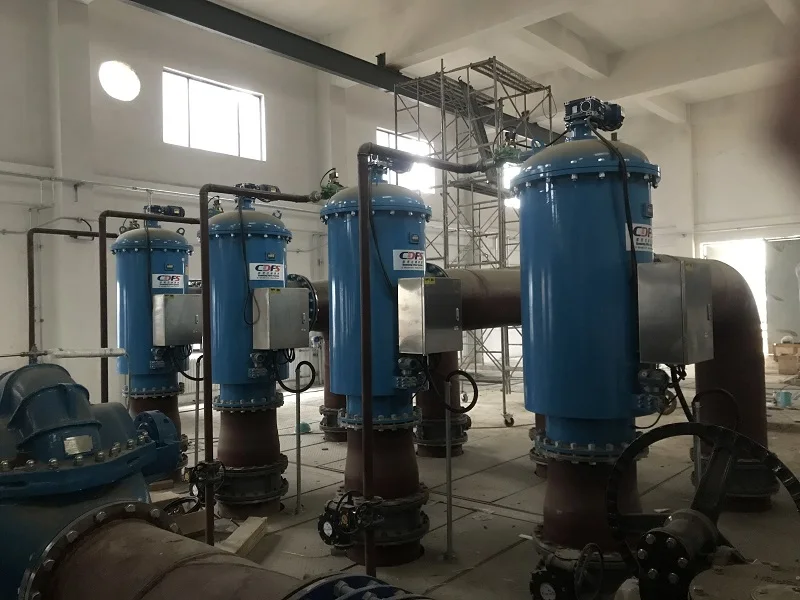

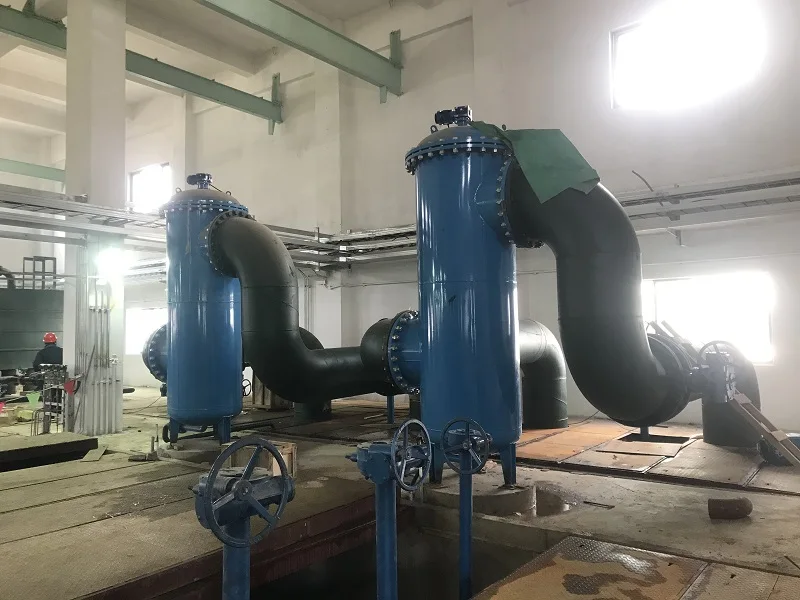

Site Installation

Site Installation






Self Cleaning Filter For Water Treatment













































Related Products

Related Products






Company Profile

Company Profile







About CDFS














20+ water filters manufacturing experience
120+ water treatment solutions

40000+ squares factory area











100% products quality rate
50+ exported countries

80000+ annual for water treatment equipments





































Our Exhibition


































Certifications

Certifications















FAQ

FAQ






Q: Where is your factory?
A:Changsha city, Hunan province, China?


Q: How about the delivery time?
A: Usually 7 days for standard model.

Q:Does the filter operated automatically?
A:Yes. Automatic backwash by differential pressure/ time.

Q:Can you accept OEM?
A:Yes. We could do OEM and put your logo.

Q: Do you have a certification?
A: Yes. We have ISO / CE certificate and certificate of patent

Q: Can we choose the color of filter housing?
A: Yes. Blue/green/red or others.

Q:How is the installation of filter?
A: Shipping in skid. Just connect the flanges of water in/out and drain out.
