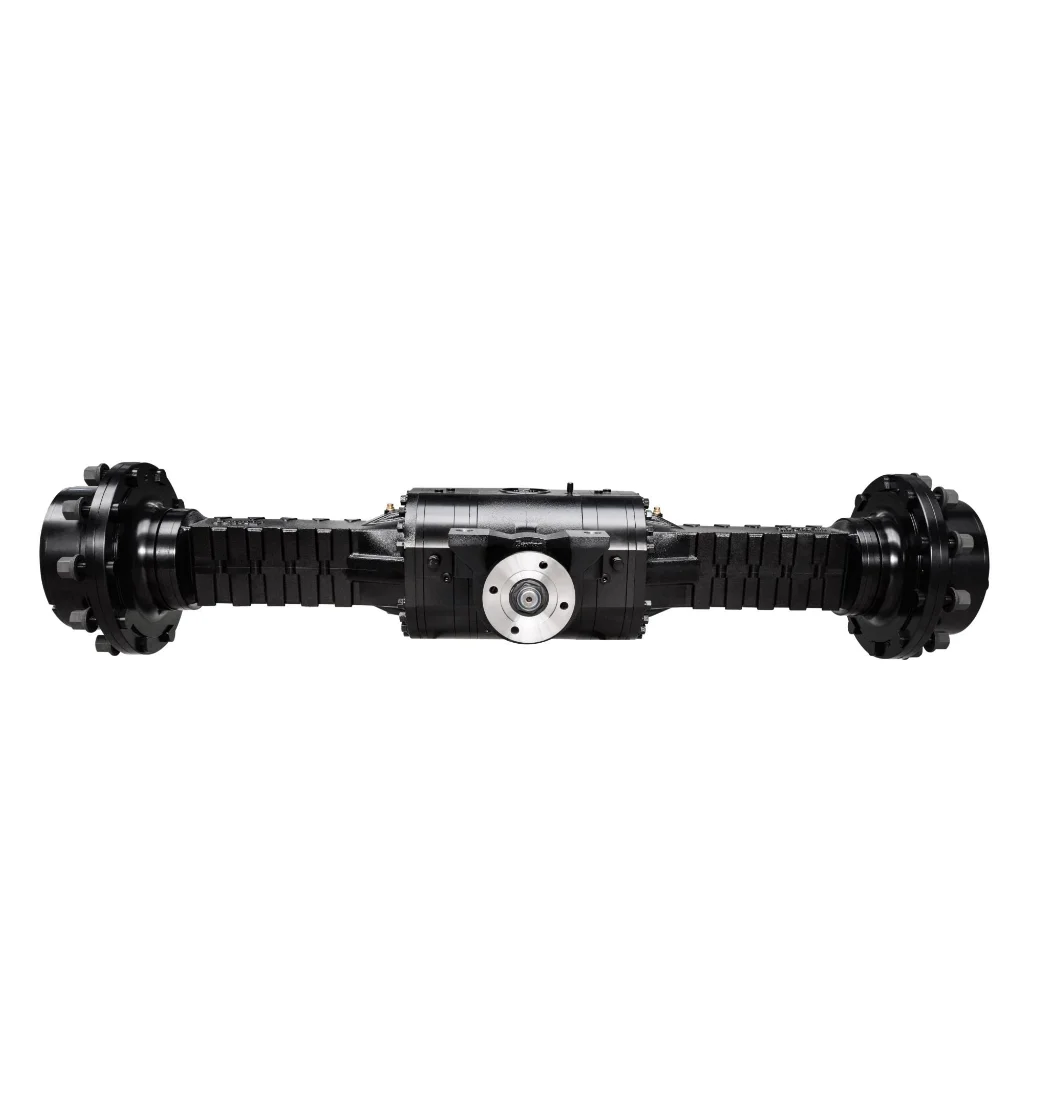

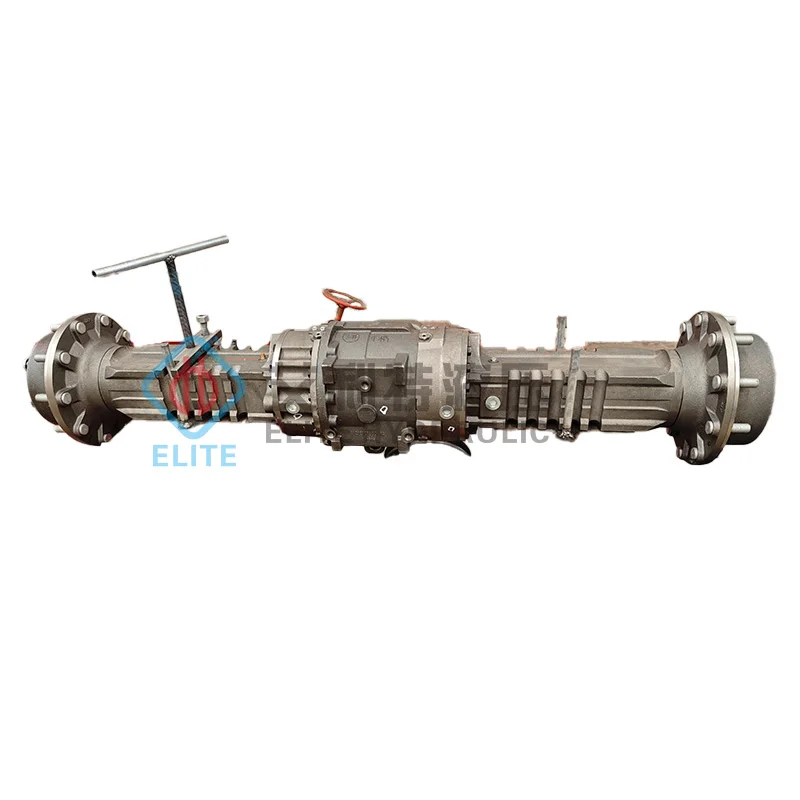

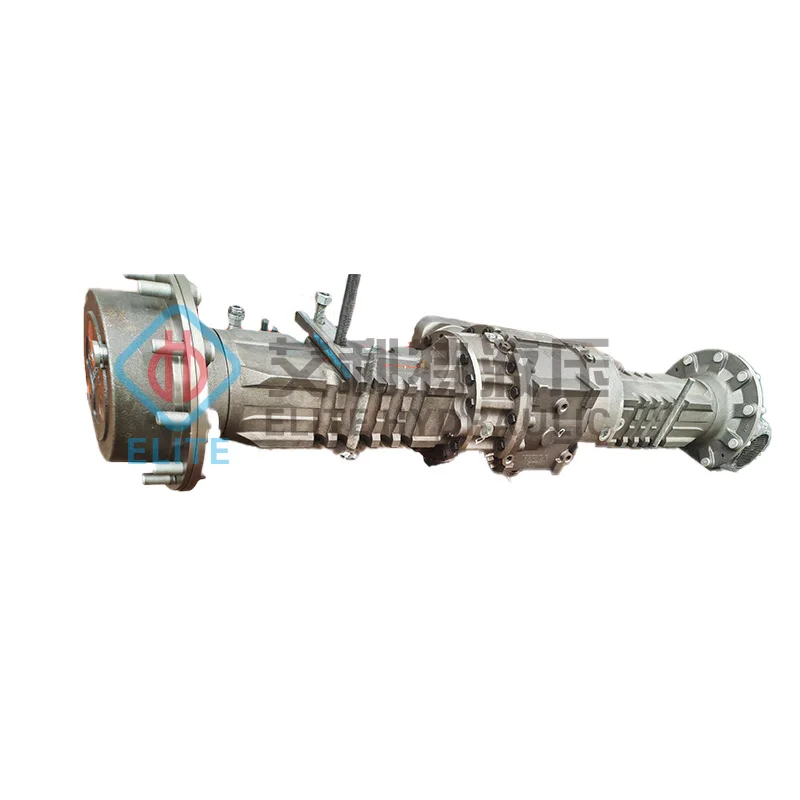

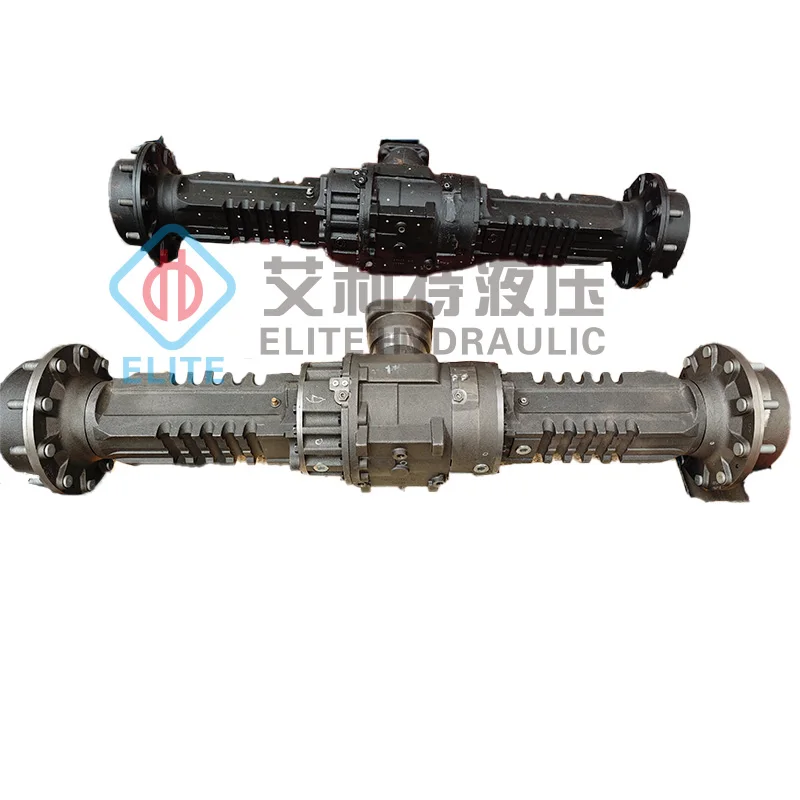

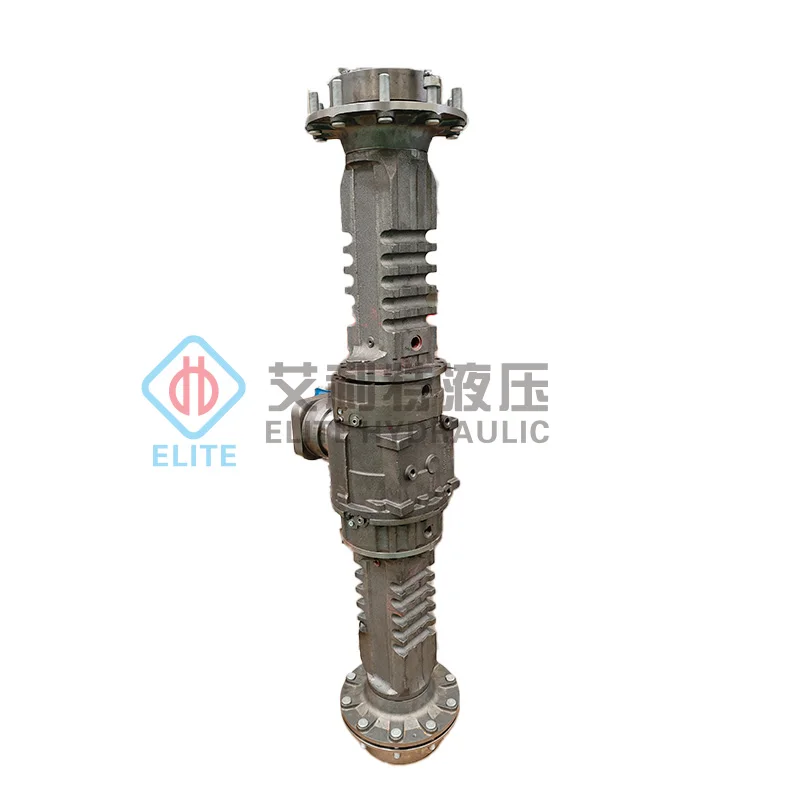

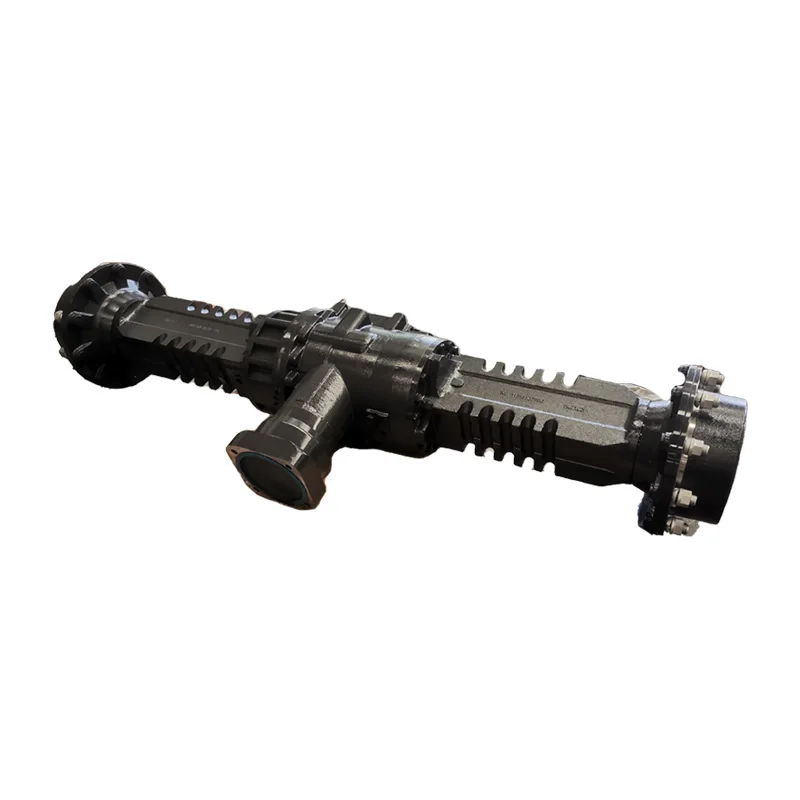

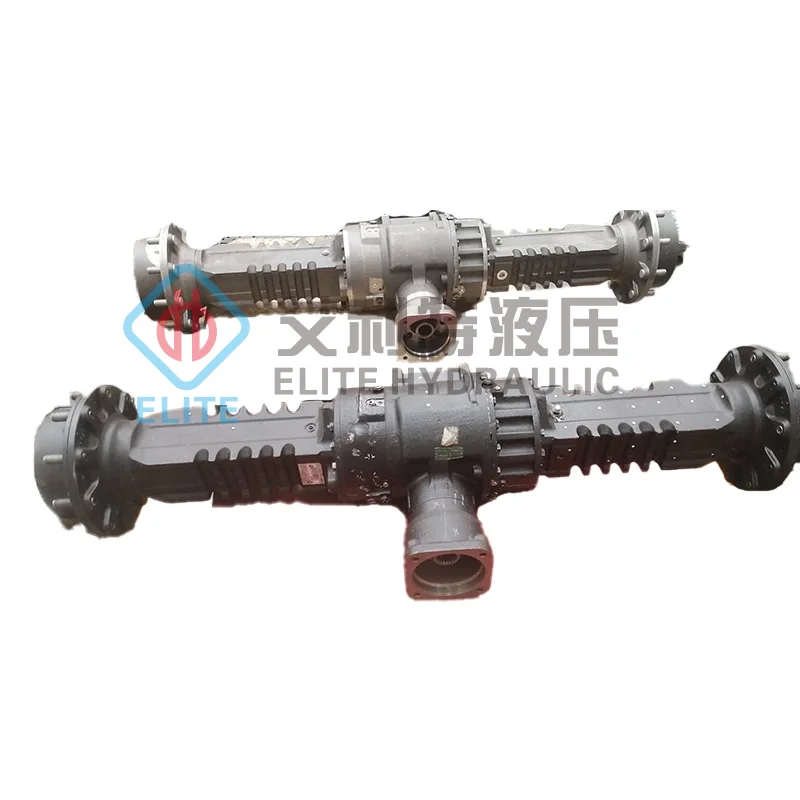

Planetary Non Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment
Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment
Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment
Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment
Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment
Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment
Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment

Planetary Non Steering Axle with High Performance Replacing of Dana Spicer 111 for underground mining equipment

Share on (1601254547896):


Price:$3,000.00

Quantity:


Product Overview

Description



Products Description


Designed for Underground Mining Equipment




Product Details


1. With super gear load capacity and super bridge load capacity, the technology is leading in China and has completely replaced
the imported drive axle;
2. The rear axle has a built-in maintenance-free wet multi-disc brake and an external caliper disc parking brake, which provides
stable braking, safety and reliability;
3. The rear axle is equipped with a forced differential lock, which enhances the vehicle's passing performance;
4. It is suitable for Telehandler , excavators and loaders and other special vehicles.


Details Images




Technical Parameters




Model
HFR20/HFS20
HFR24/HFS24
HFR34/HFS34
HFR45
HFR60/HFS60
Max.output Torque(Nm)
14000/20000Nm
24000Nm
34000Nm
45000Nm
60000Nm
Total Ratios
9,038;9.681;11,935;13.645;14.115/
14.31/17.45/20.67
14.31/17.45/20.67
47.42
17.45/20.67/22
12.804;13.716;16.908;19.332;19.998
Bevel set Ratios
2.134/2.286/2.818/3.22213.333
2.385/2.908/3.445
2.385/2.908/3.445
6.857
2.90873.445/3.667
Planetary Reduction Ratios
4.235/6
1:6
1:6
6.9
1:6
Load Capaity(KN),Dynamic
55KN
80KN
120KN
100KN
150KN
Load Capaity(KN),Static
110KN
200KN
300KN
250KN
375KN

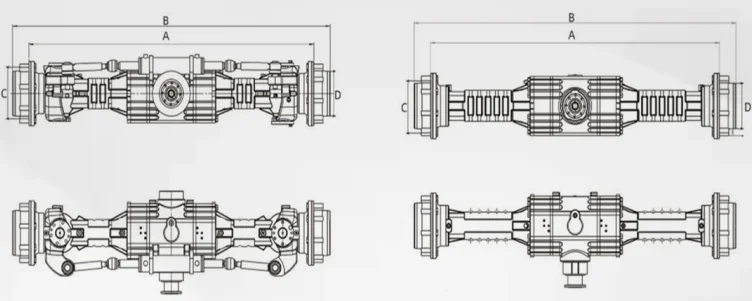

Installation Dimensions（mm）
A-Flange to Flange
1530/1660
1530/1660
1530/1660
1654
660/1790/2310
B-Total Length of Axles
1730/1850
1720/1850
1720/1850
1859
1924/2054/2574
C-Wheel Pilot Diameter
φ205/φ275
φ275/φ335
φ275/φ335
φ335
φ335
D-Wheel Bolt Circle Diameter
φ160/φ220.8
φ222.3/φ280.8
φ222.3/φ280.8
φ280
φ280.8

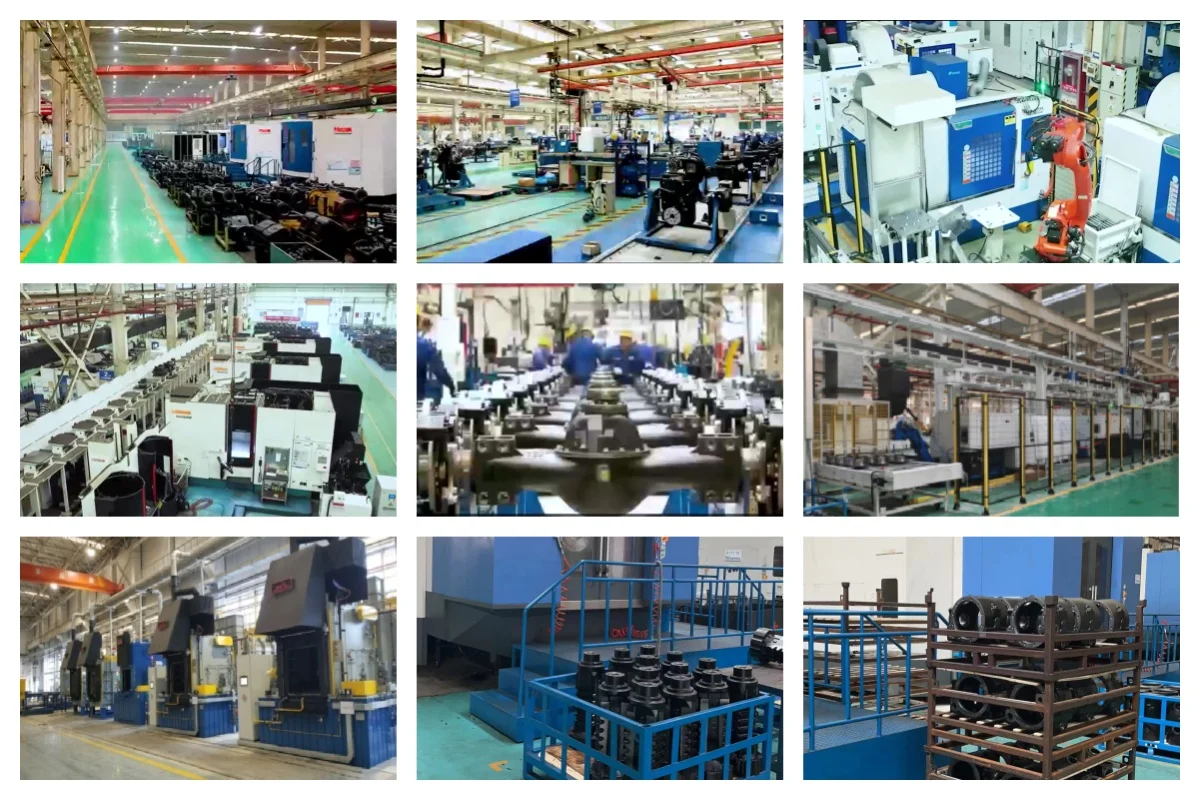

Manufacturing processes

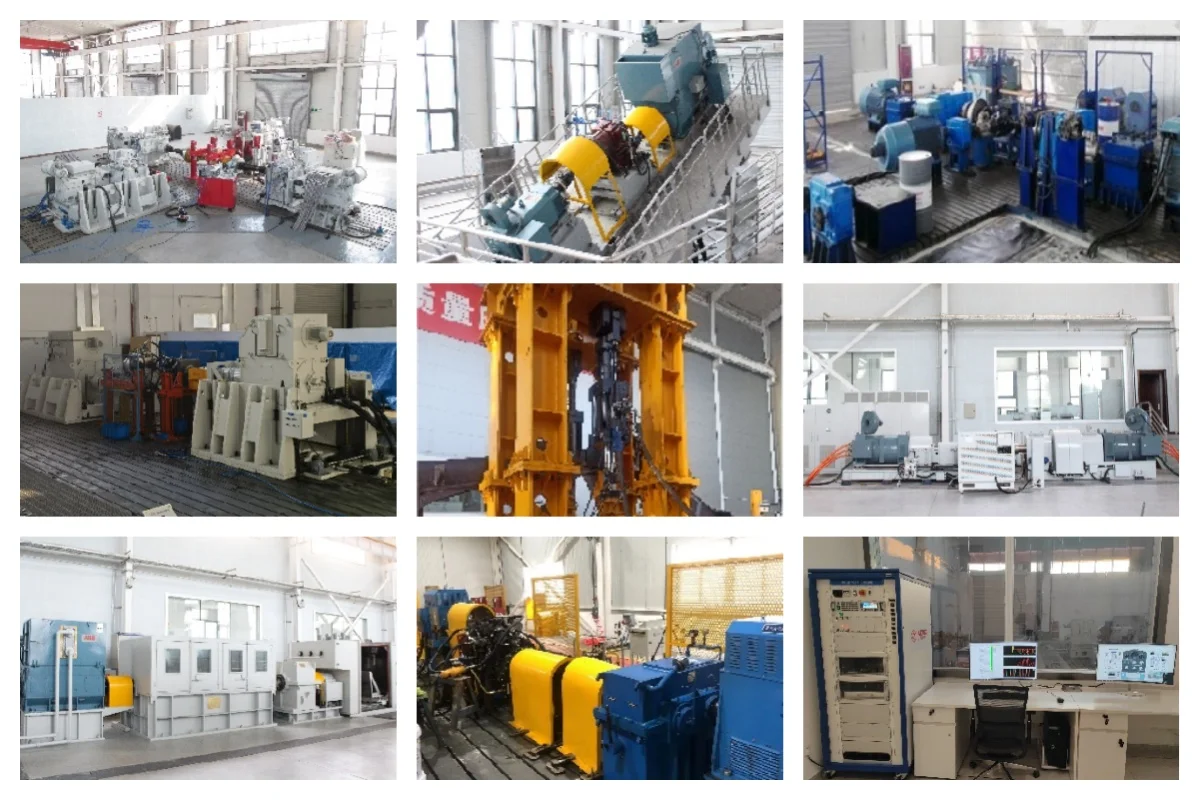

Test




Application


Application
1.12-16T soil compactors
2.Coal mine vehicles, mining vehicles, handling vehicles, tunnel construction vehicles, suitable for personnel carriers, material carriers, aerial work vehicles, rock drilling platforms, wheel excavators, telescopic forklifts, etc

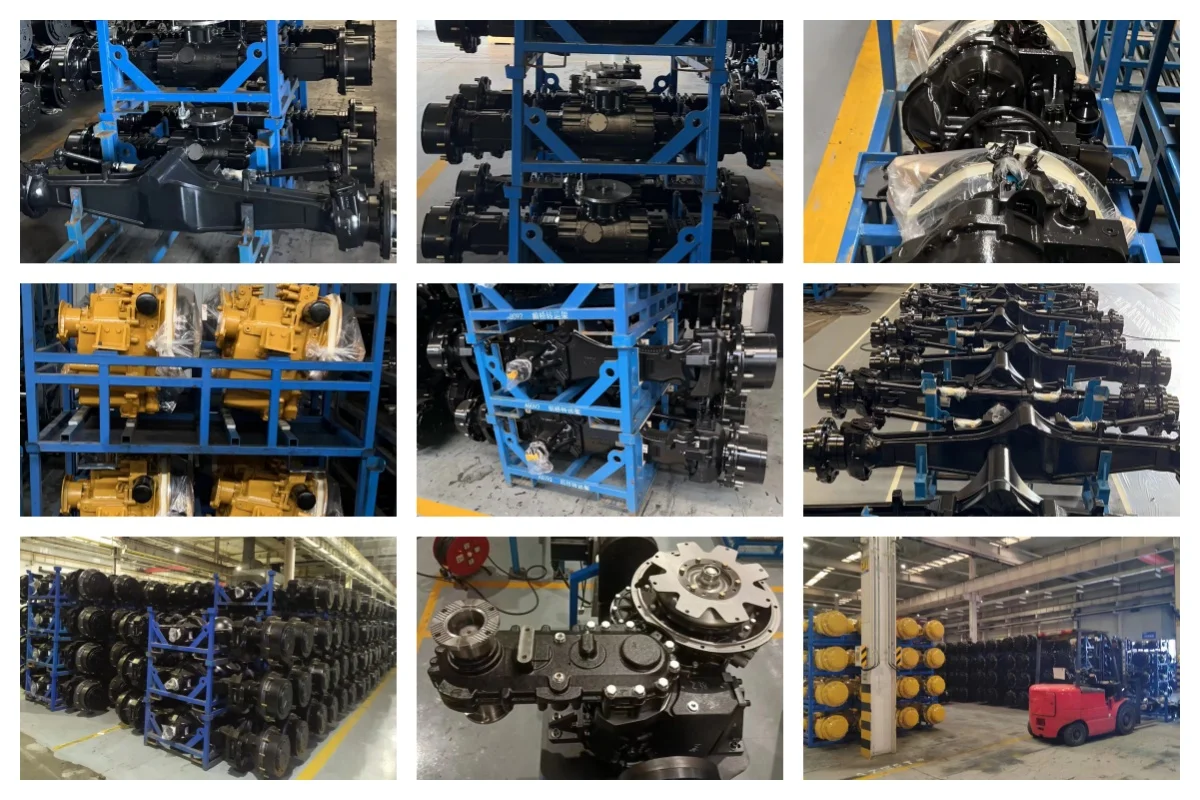

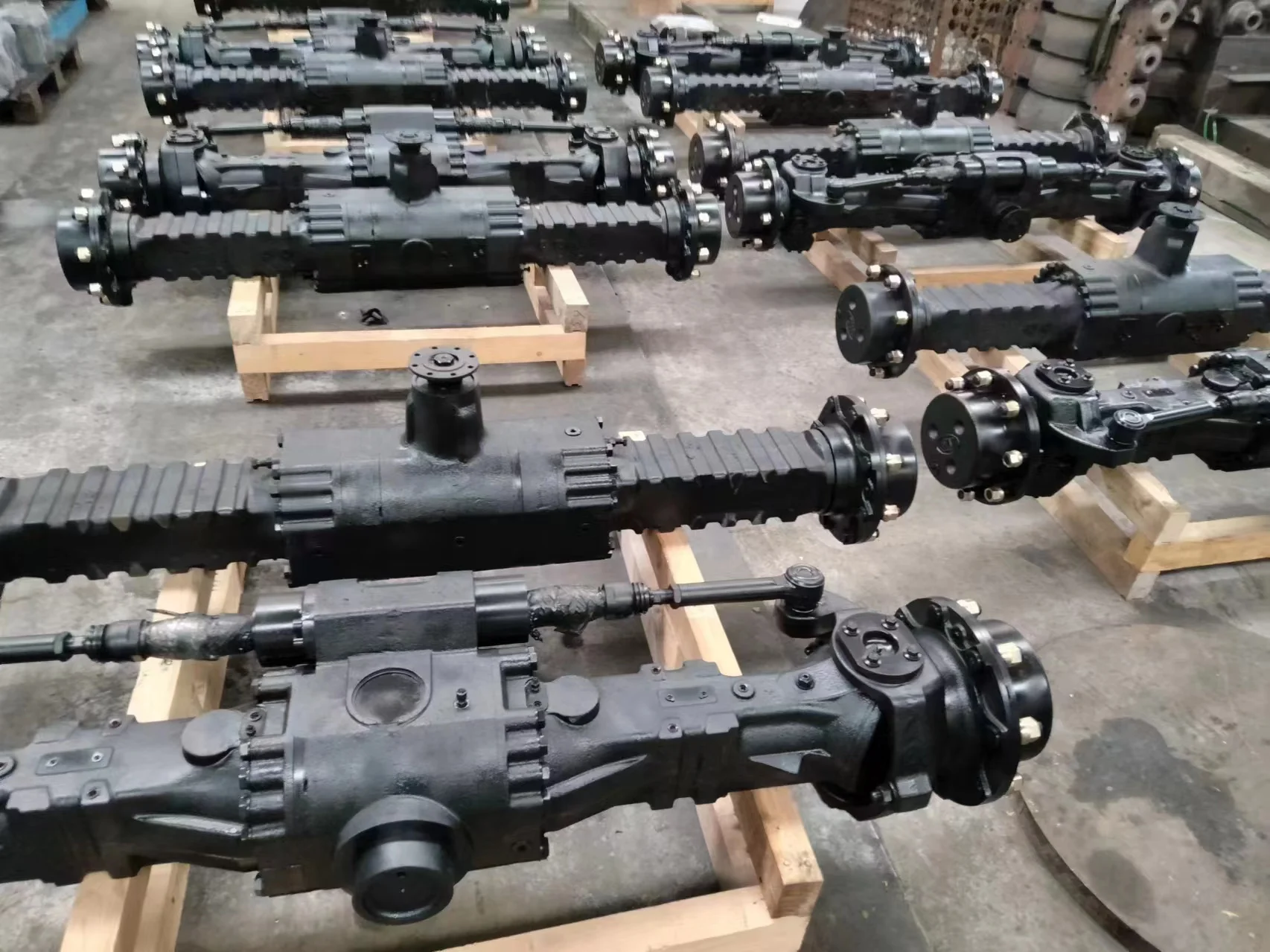

Production





Elite, committed to building a world-class drivetrain brand, strives to become a well-known manufacturer of planetary gearboxes,transfer cases and axles. With more than 20 years of experience in transmission design and manufacturing, Elite will provide you with customized gearboxes, transfer cases and axle solutions for any specific application.
