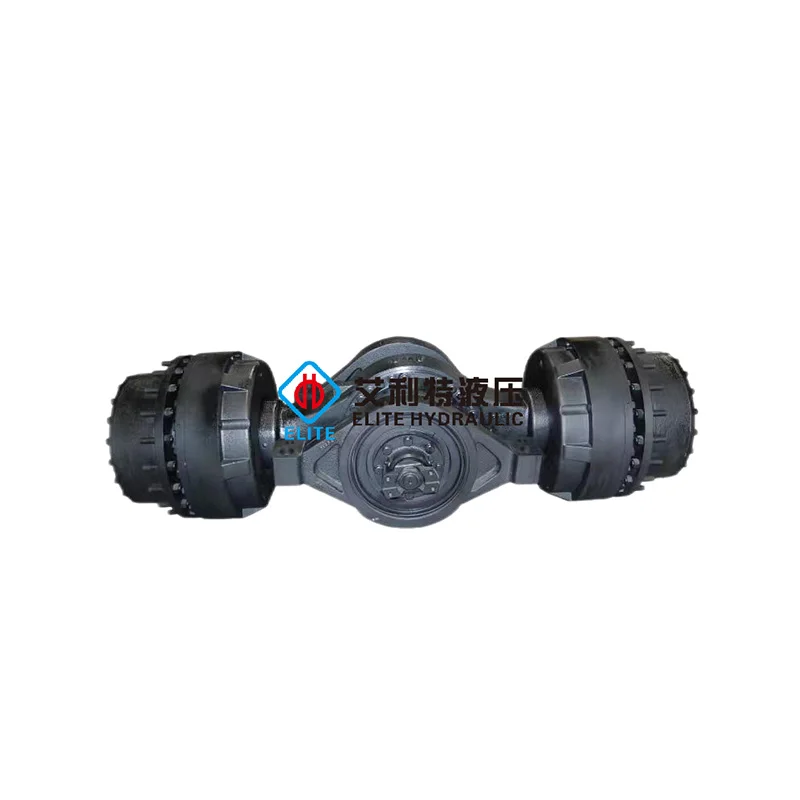

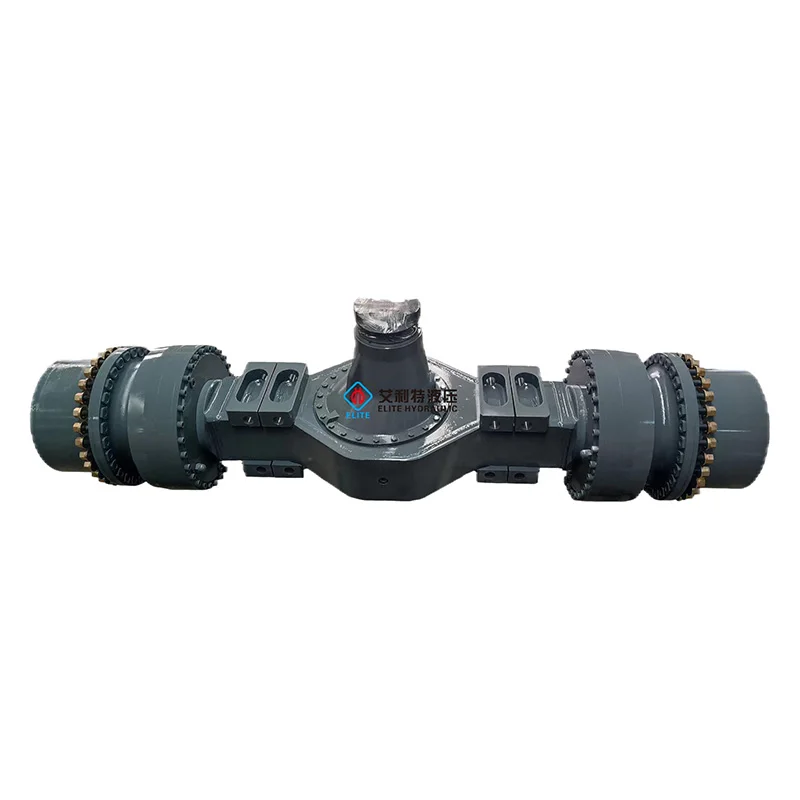

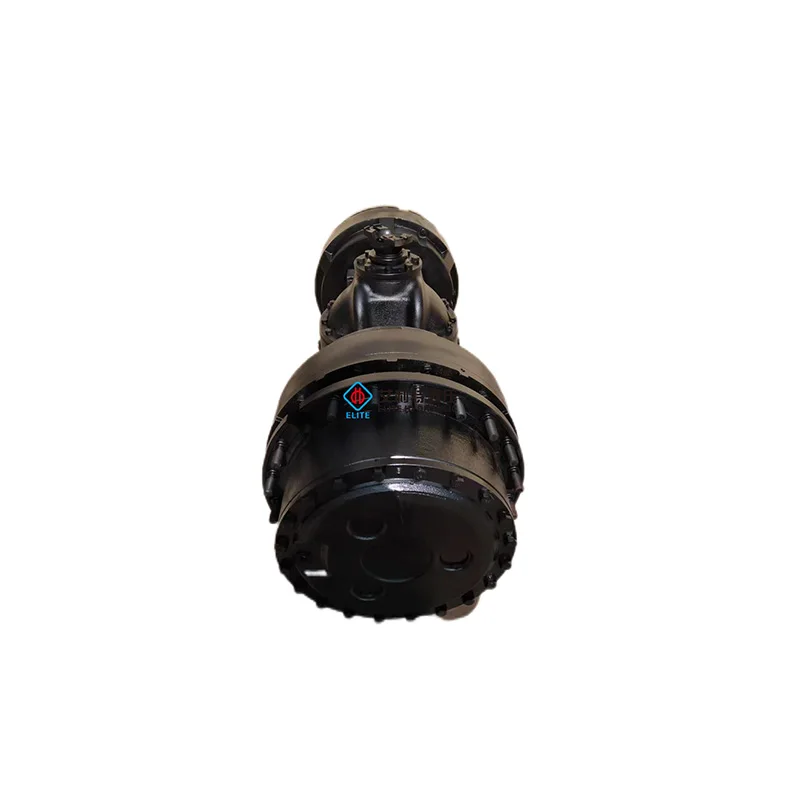

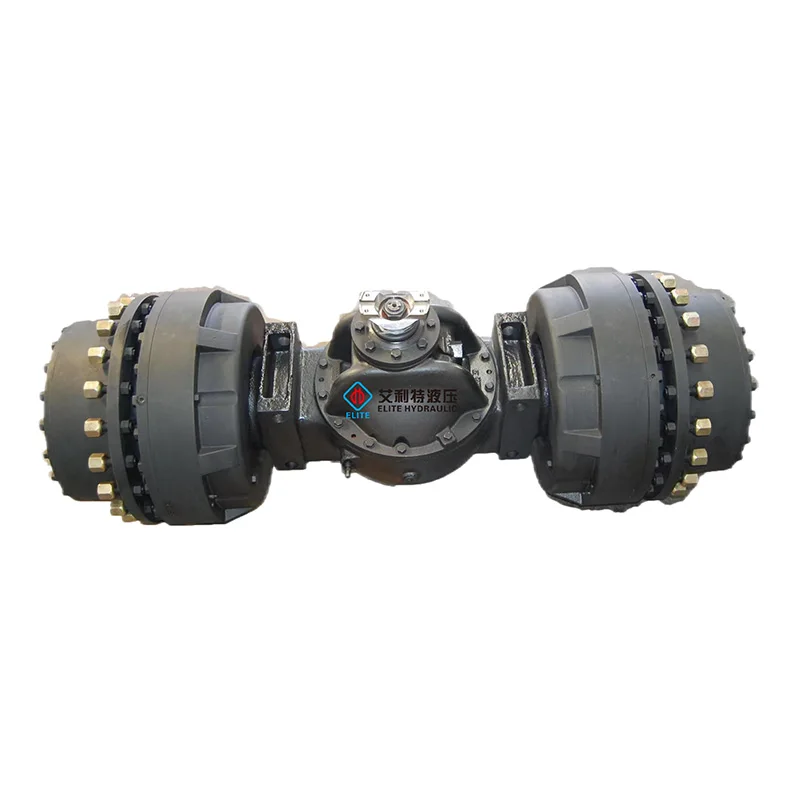

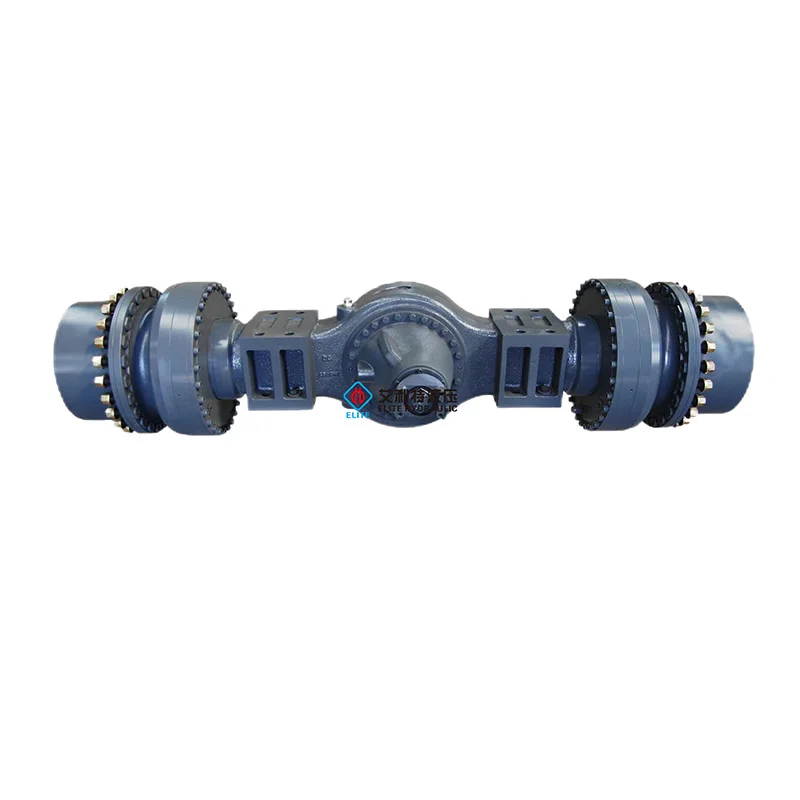

Kessler D106 Drive Planetary Axles for Stacker and Underground loader
- Category: >>>
- Supplier: Qingdao Elite Hydraulic Co. Ltd.
Share on (1601254874747):
Product Overview
Description
Products Description
Designed for Underground loaders，Underground mining truck and other Underground Mining Equipment
Product Details
1. With super gear load capacity and super bridge load capacity, the technology is leading in China and has completely replaced the imported drive axle;
2. The rear axle has a built-in maintenance-free wet multi-disc brake and an external caliper disc parking brake, which provides stable braking, safety and reliability;
3. The rear axle is equipped with a forced differential lock, which enhances the vehicle's passing performance;
4. It is suitable for underground loaders，underground mining truck and other Underground Mining Equipment.
2. The rear axle has a built-in maintenance-free wet multi-disc brake and an external caliper disc parking brake, which provides stable braking, safety and reliability;
3. The rear axle is equipped with a forced differential lock, which enhances the vehicle's passing performance;
4. It is suitable for underground loaders，underground mining truck and other Underground Mining Equipment.
Details Images

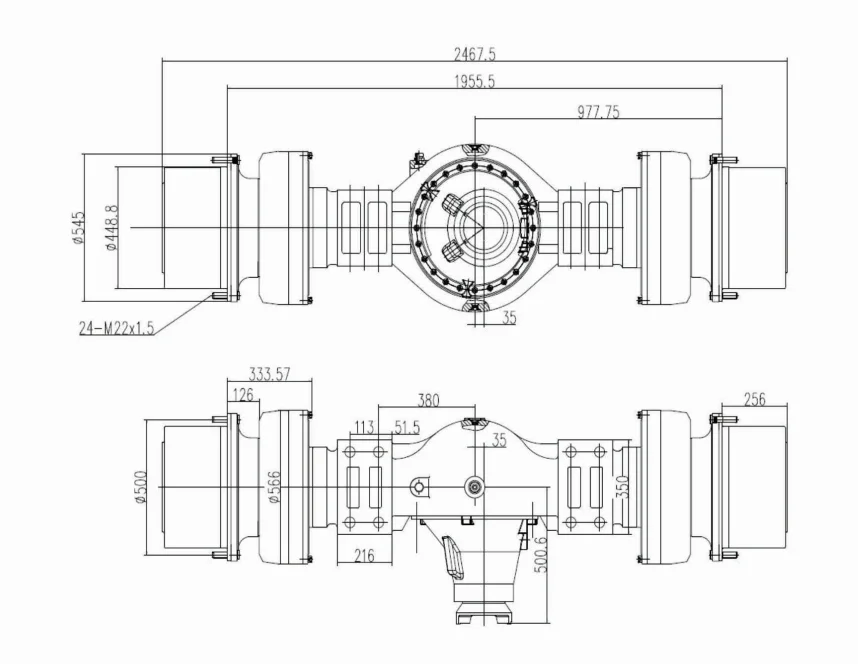

Technical Parameters
Parameter | Unit | Value |
Braking torque (new friction plate) | N.m | 40900-56200 |
Braking torque (maximum wear of friction plates) | N.m | 35400-48700 |
Brake spring compression force | N | 240000 |
Brake-releasing pressure | Mpa | 11-18 |
Maximum cooling pressure | Mpa | 0.07 |
Main ratios | I | 2.43:1 |
Planetary Reduction Ratios | I | 12.43:1 |
Total speed ratio | I | 30.2:1 |
Maximum static load | N | 1200000 |
Maximum dynamic load(V=25km/h) | N | 38000 |
Manufacturing processes
Test
Application
Application
.Coal mine vehicles, mining vehicles, handling vehicles, tunnel construction vehicles, suitable for personnel carriers, material carriers, aerial work vehicles, rock drilling platforms, wheel excavators, telescopic forklifts, etc
.Coal mine vehicles, mining vehicles, handling vehicles, tunnel construction vehicles, suitable for personnel carriers, material carriers, aerial work vehicles, rock drilling platforms, wheel excavators, telescopic forklifts, etc

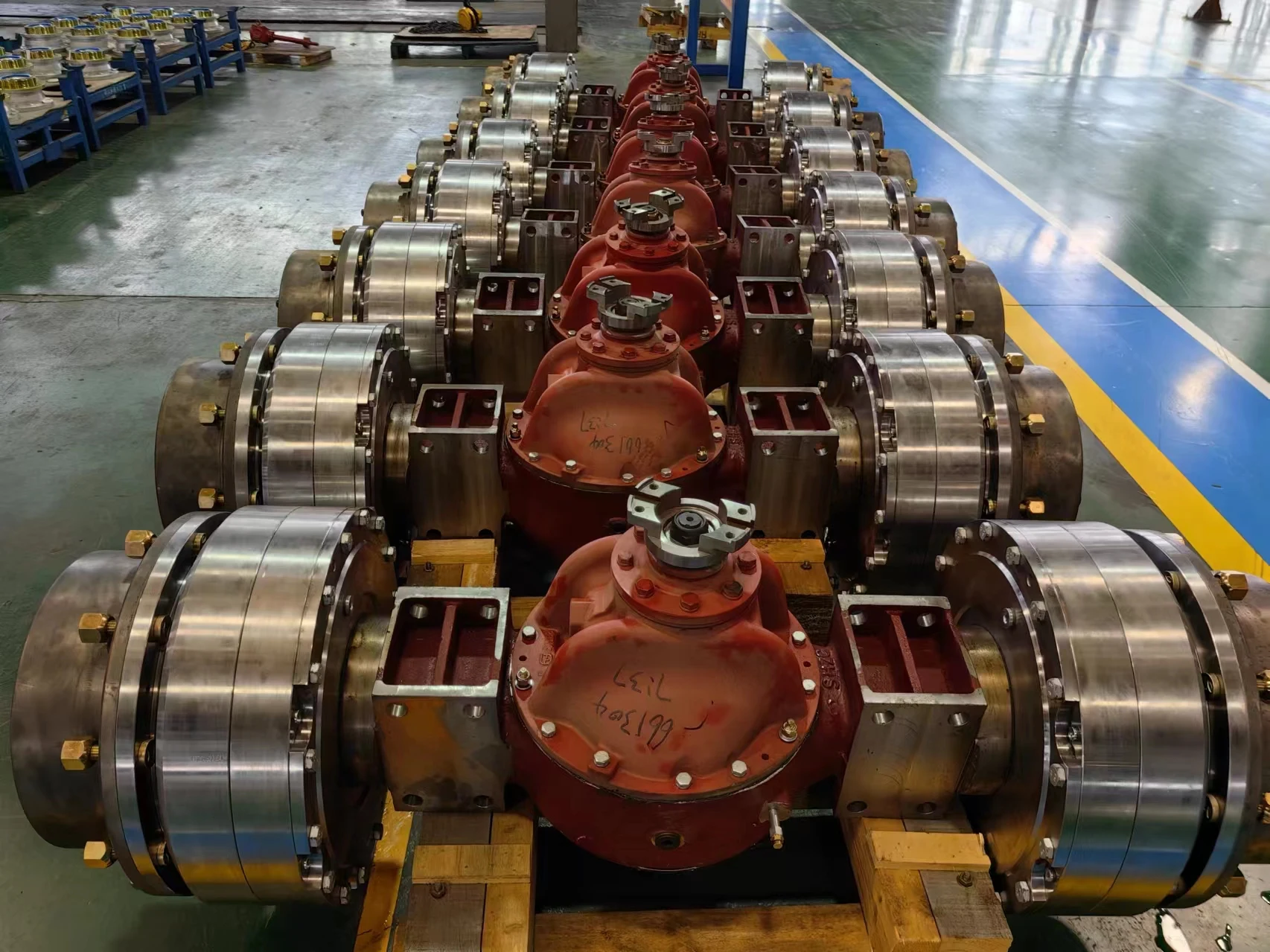

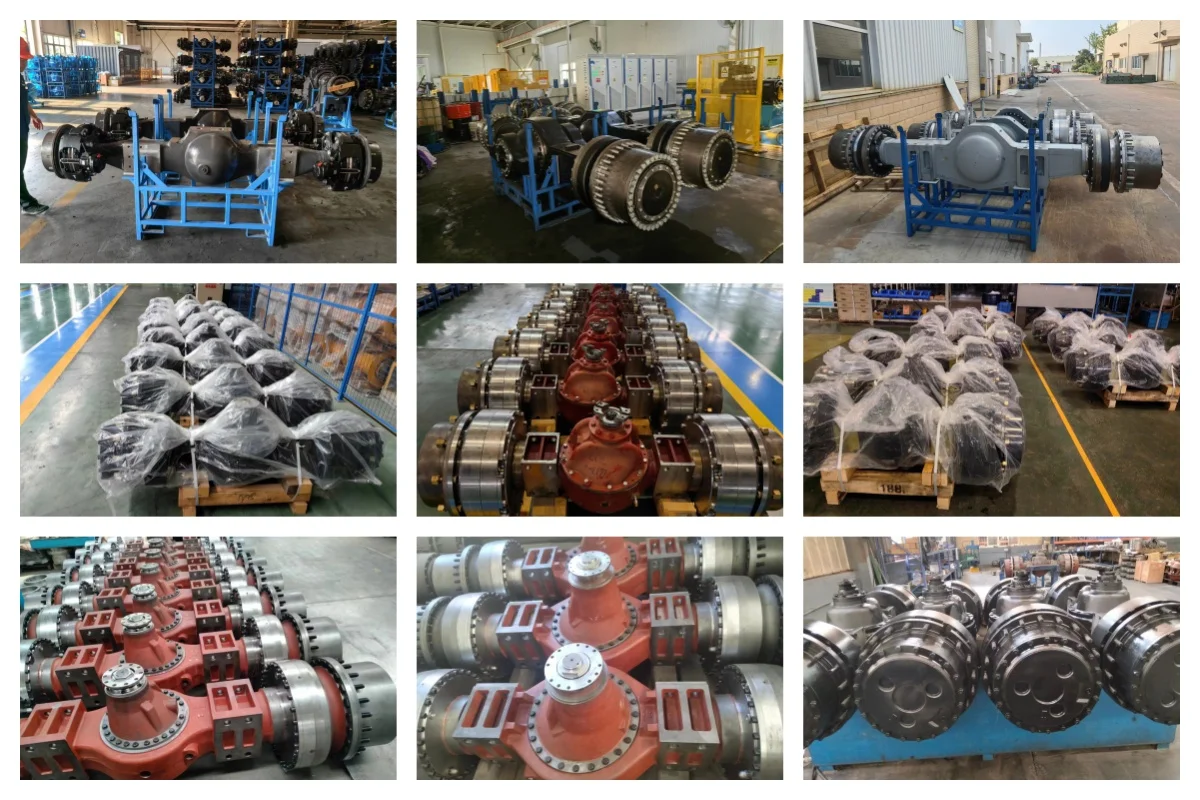

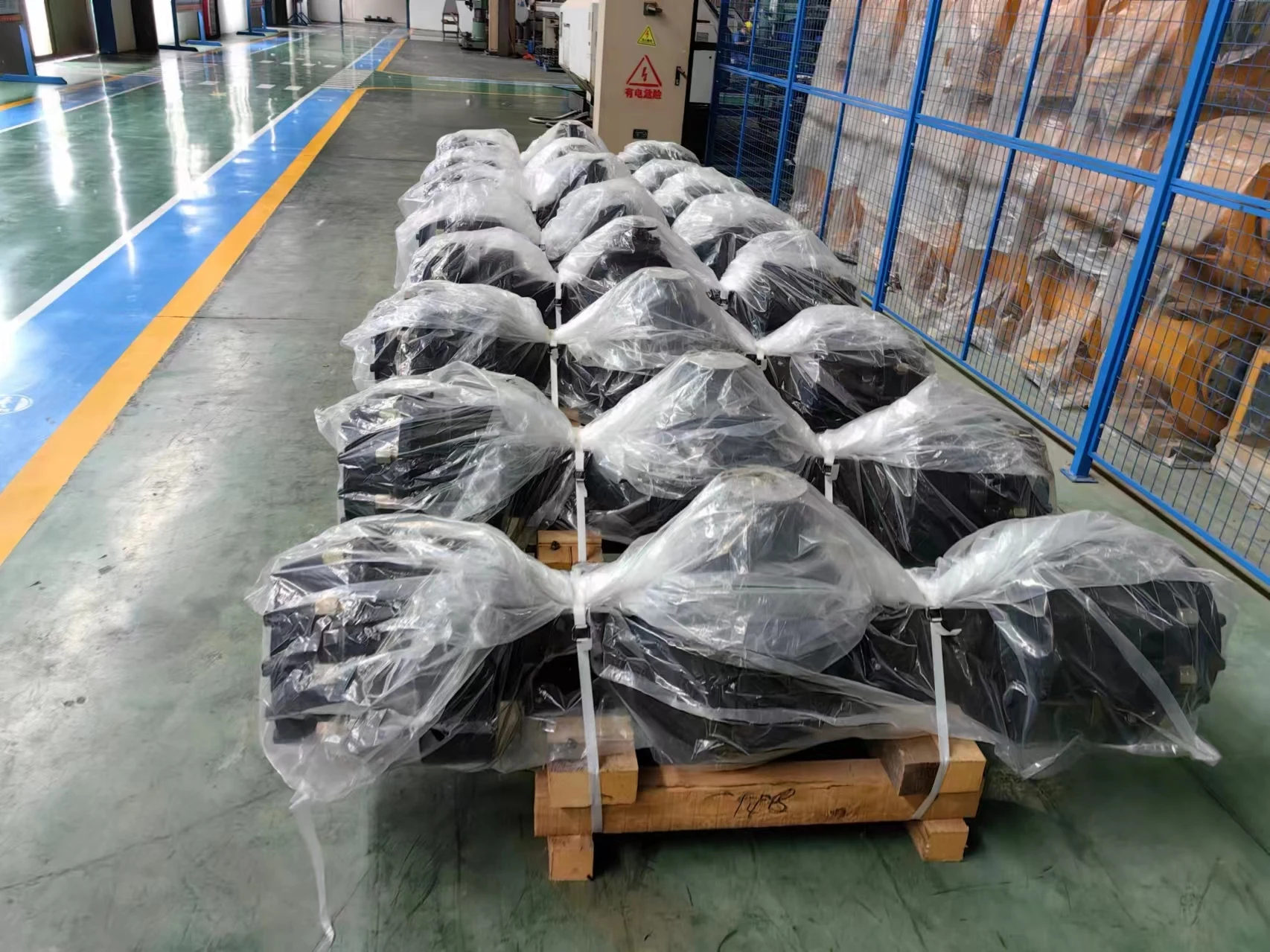

Production
Elite, committed to building a world-class drivetrain brand, strives to become a well-known manufacturer of planetary gearboxes,transfer cases and axles. With more than 20 years of experience in transmission design and manufacturing, Elite will provide you with customized gearboxes, transfer cases and axle solutions for any specific application.
