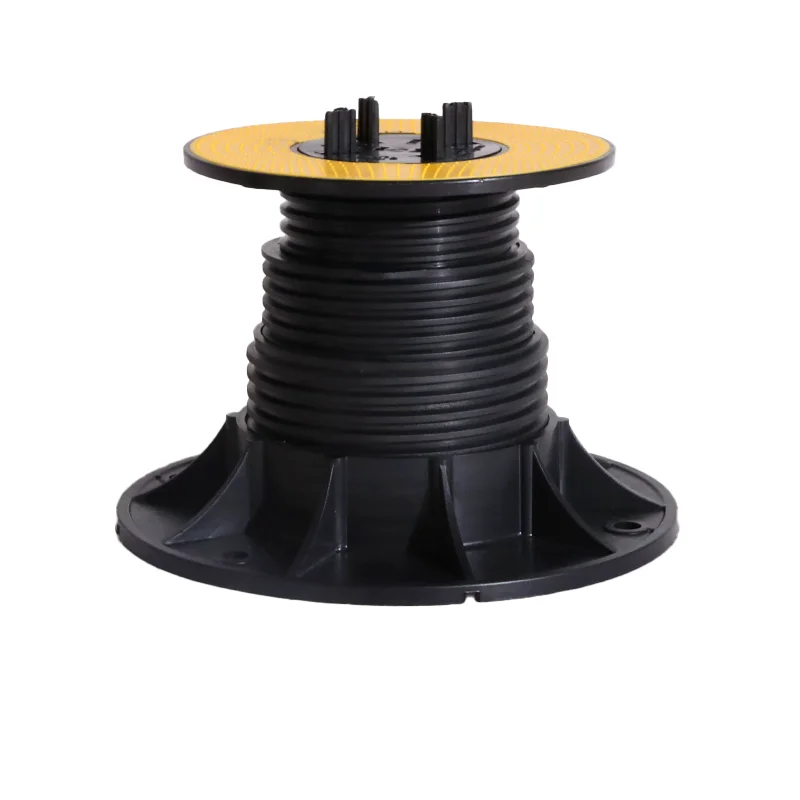

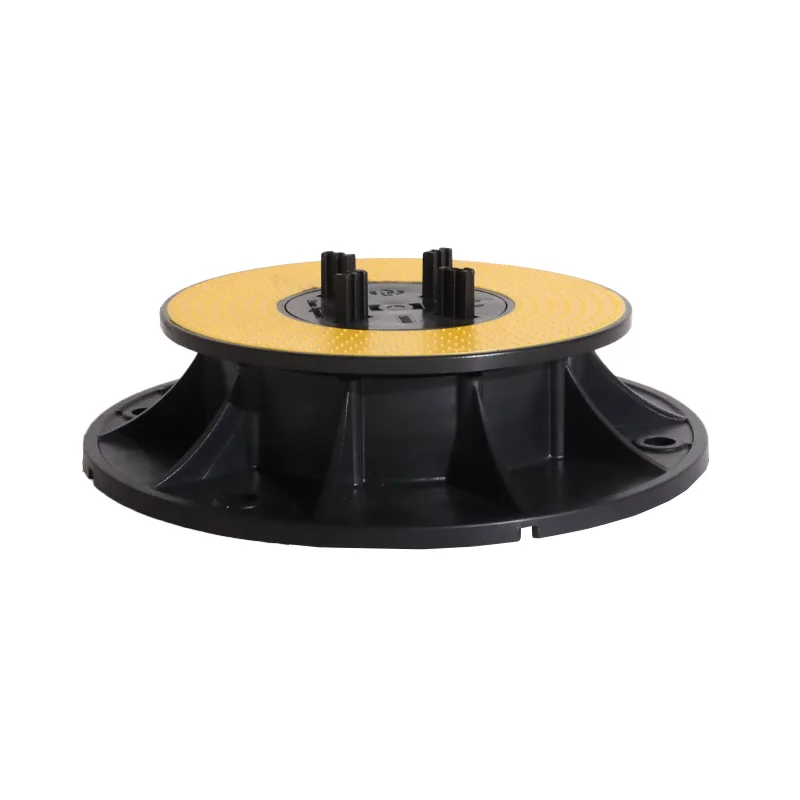

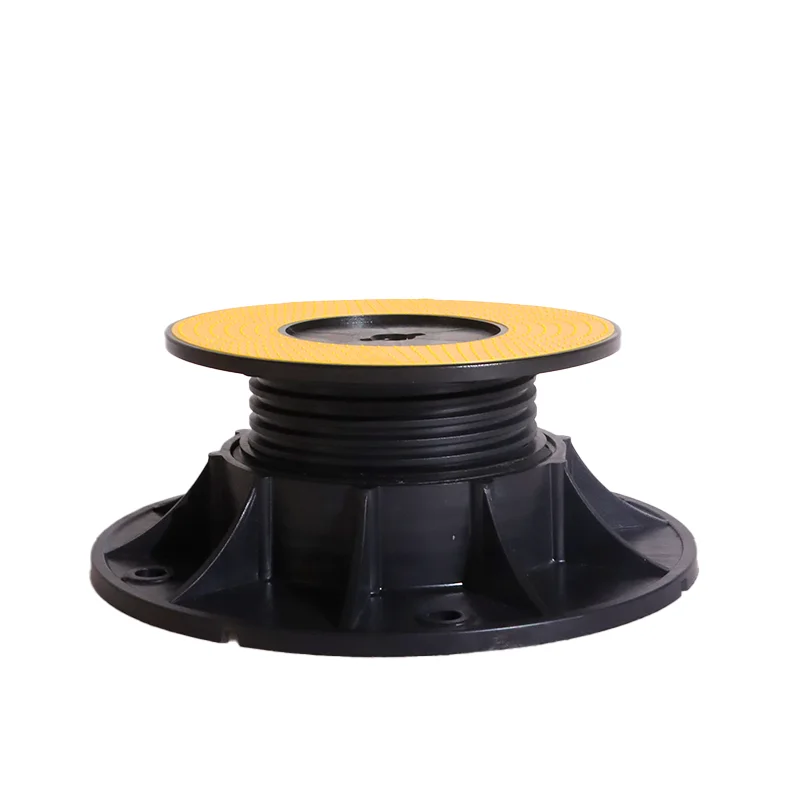

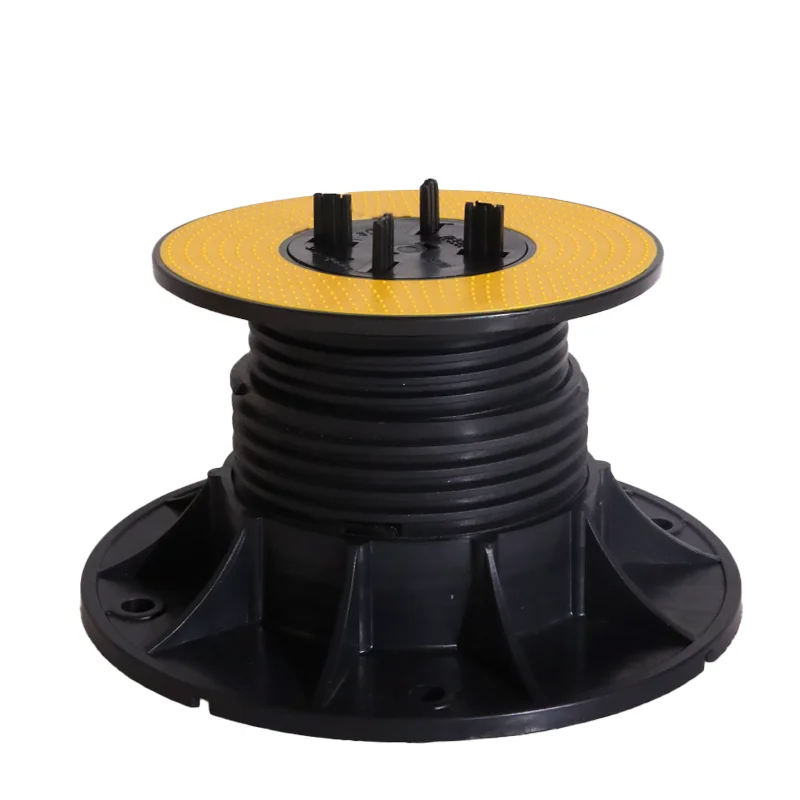

outdoor paver plastic floor adjustable pedestals
- Category: >>>
- Supplier: Jiangxi Taurus Technology Co. Ltd.
Share on (1601255187980):
Product Overview
Description
Services we can provide you
· Customization (e.g. products, packaging)
· Technical support (pictures, videos, designs, etc.)
· Free samples
· A variety of transportation methods are available
· Market protection
· Adequate inventory
· Fast delivery
· Flexible payment methods

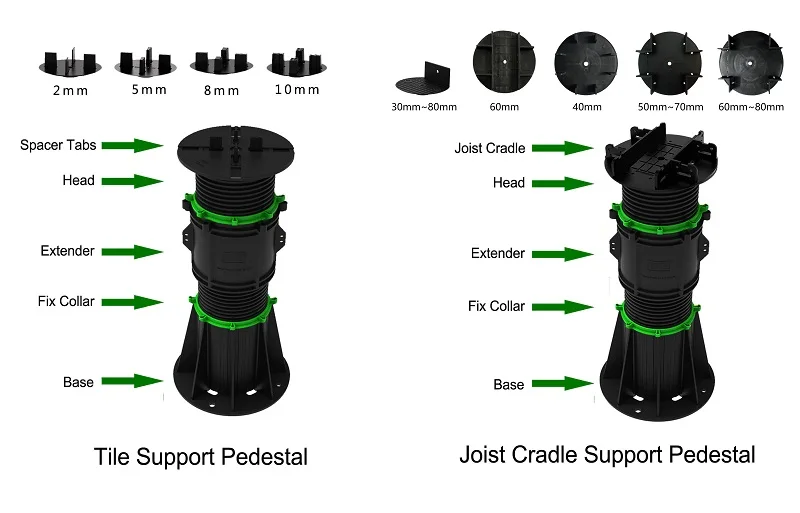

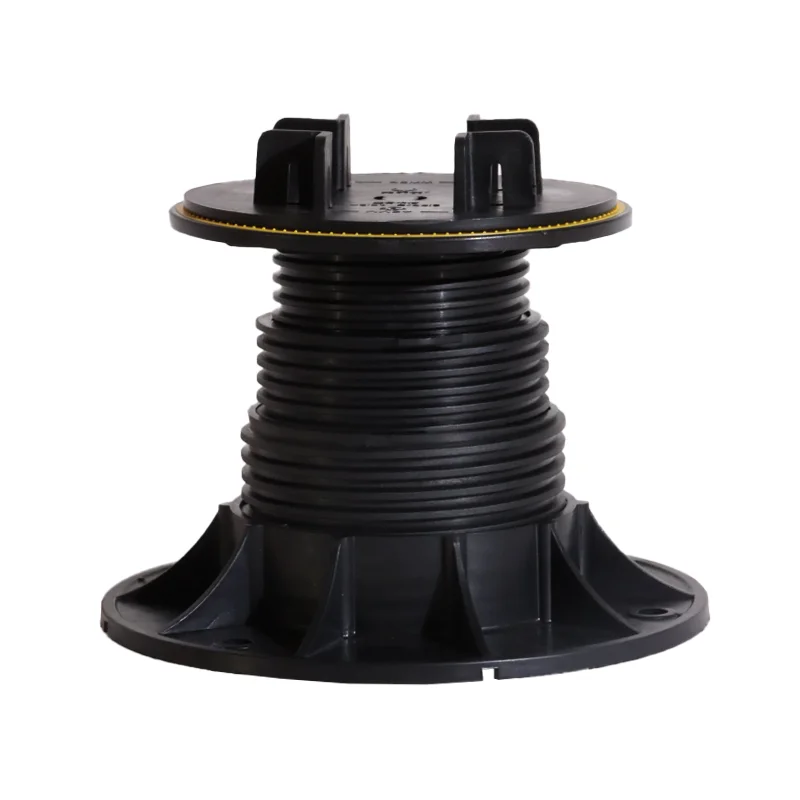

Type of Pedestals
For each series we have different height ranges to choose from.
Please contact us for accurate pricing and additional product availability.

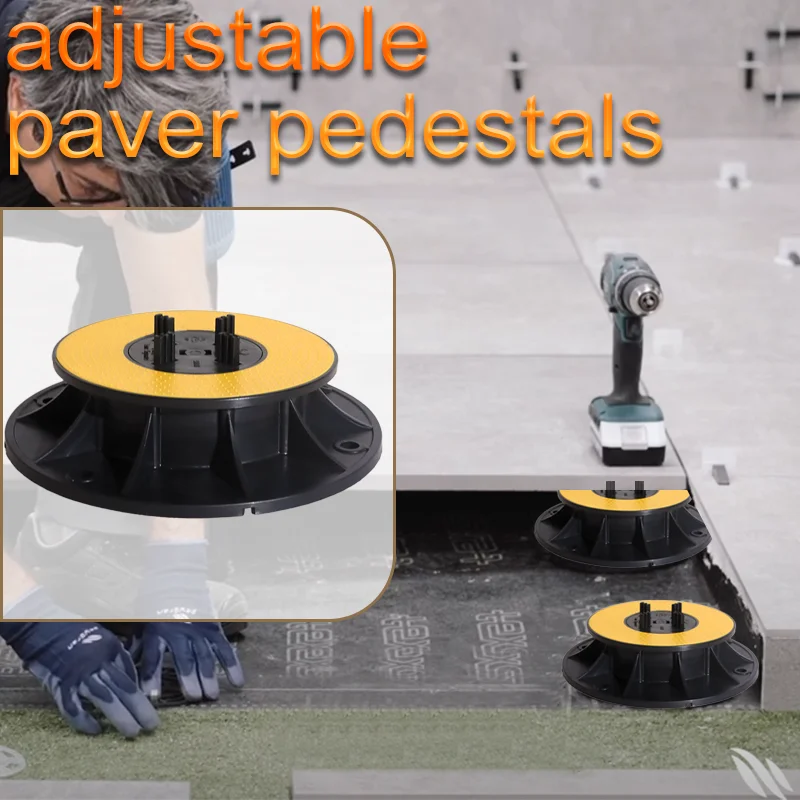

Product Installation
1. Clean the ground and lay out the pedestals according to your design.
2. Pedestals can be fixed to the ground with glue, concrete or expansion-screw.
3. Lay down the joists/tiles, adjust the pedestals until all the joists/tiles on an even level.
2. Pedestals can be fixed to the ground with glue, concrete or expansion-screw.
3. Lay down the joists/tiles, adjust the pedestals until all the joists/tiles on an even level.
Paving Pedestal QTY Calculation | ||
Tile Size | Pcs/Sqm | |
600mm x 600mm | 3 pcs | |
500mm x 500mm | 4 pcs | |
400mm x 400mm | 6.3pcs | |
Decking Pedestal QTY Calculation | ||
Spacing | Pcs/Sqm | |
300mm * 300mm | 11 | |
400mm * 400mm | 6 | |
450mm * 450mm | 5 | |
500mm * 500mm | 4 | |
We recommend adding 10% to the total quantity purchased.

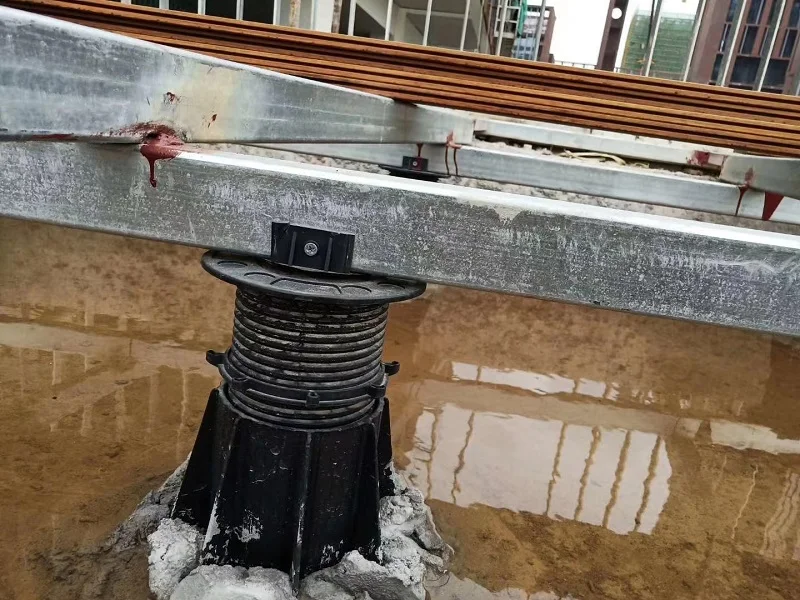

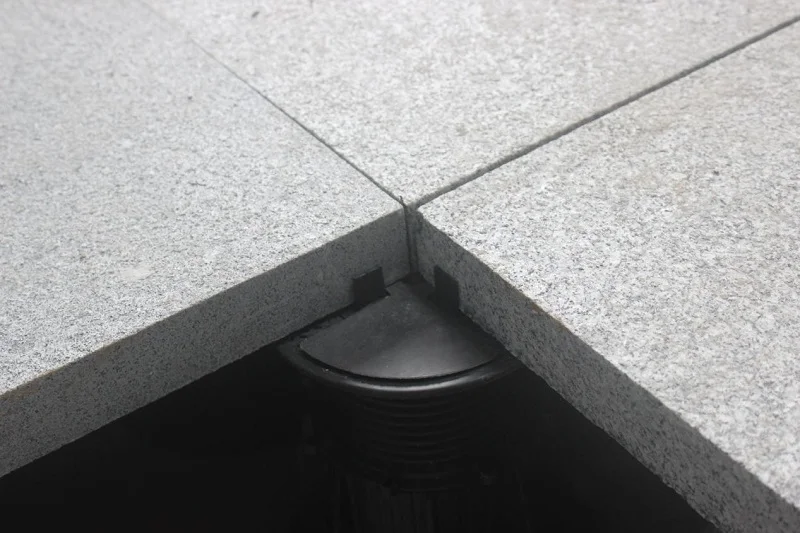

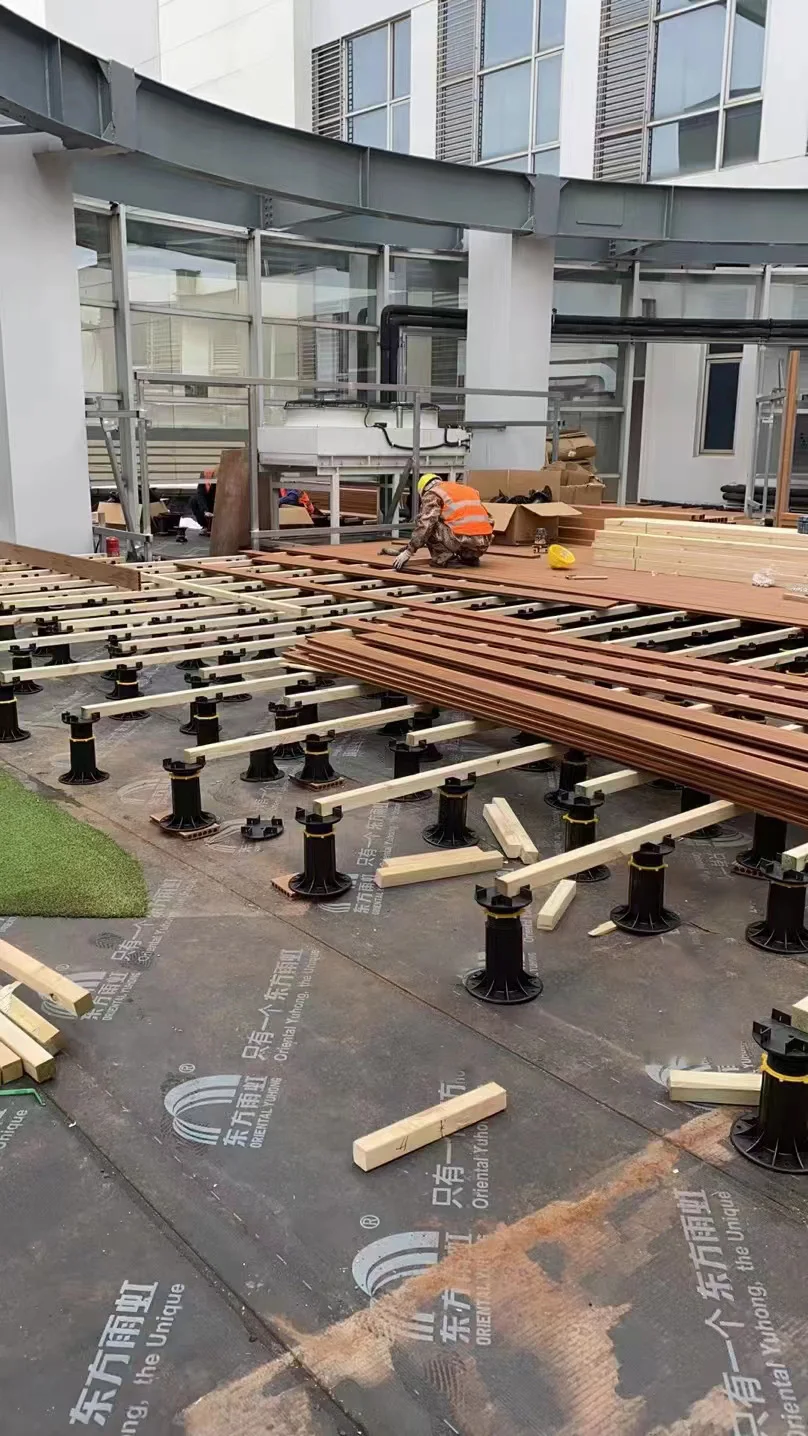

Project Cases
The use of adjustable plastic pedestals allows for elevated installation of marble, garden stones, wood-plastic flooring,
anti-corrosion wood flooring, and wooden flooring. This method is beneficial for the installation and maintenance of lighting and construction pipelines, as well as the convenient upkeep of landscape waterscapes and facilities. Below are some project case study images for your reference.
anti-corrosion wood flooring, and wooden flooring. This method is beneficial for the installation and maintenance of lighting and construction pipelines, as well as the convenient upkeep of landscape waterscapes and facilities. Below are some project case study images for your reference.
Optional Pedestal Accessories
Spacer Tabs
There are several thickness options available: 2, 3, 4, 5, 8, and 10mm. The “lugs” height is 15mm.
Shim
Made from rubber, with a thickness of 1.5-2mm, it is primarily used for slip resistance
Fixed Collar
The height employed to secure the support ensures the stability of the support.
Slope Corrector
Placed at the bottom of the pedestal, suitable for adjusting 0%-5% sloped ground.
Rubber Pad
Placed at the bottom of the pedestal, it is used for anti-slip, shock absorption and sound insulation
TA-T Brace Kit
used when the support height is greater than 60cm, it can provide additional stability support.
Vertical Closure Clips
Used on pedestal top and bottom, it is used to secure and close the stone preventing the stone from moving or separating
Perimeter Spacer
Placed at the bottom of the pedestal, it is used for anti-slip, shock absorption and sound insulation
Joist Cradle
The optional sizes are 30-100mm (general joist slot),40mm,60mm, 50-70mm,60-80mm.
Factory Display
More than 15,000 square meters of factory area
More than 60 production machines
Large-scale inventory, and professional load-bearing testing equipment
As a leading manufacturer in the industry, we regularly participate in crucial trade shows within our field. Some of these include the Shanghai Landscape and Garden Exhibition, the Xiamen Stone Fair, as well as international exhibitions such as the Japan Building Materials Expo, the Italian Stone Show, and the London Building Materials Exhibition.
