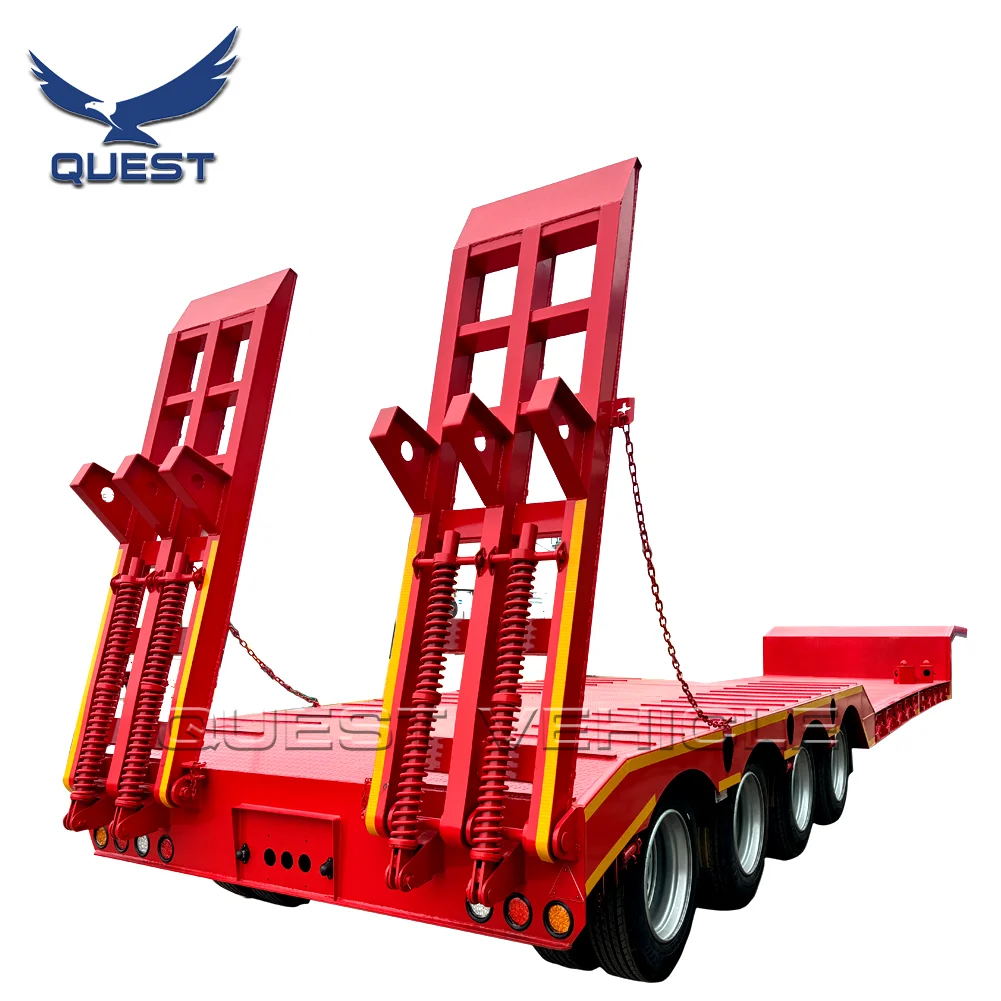

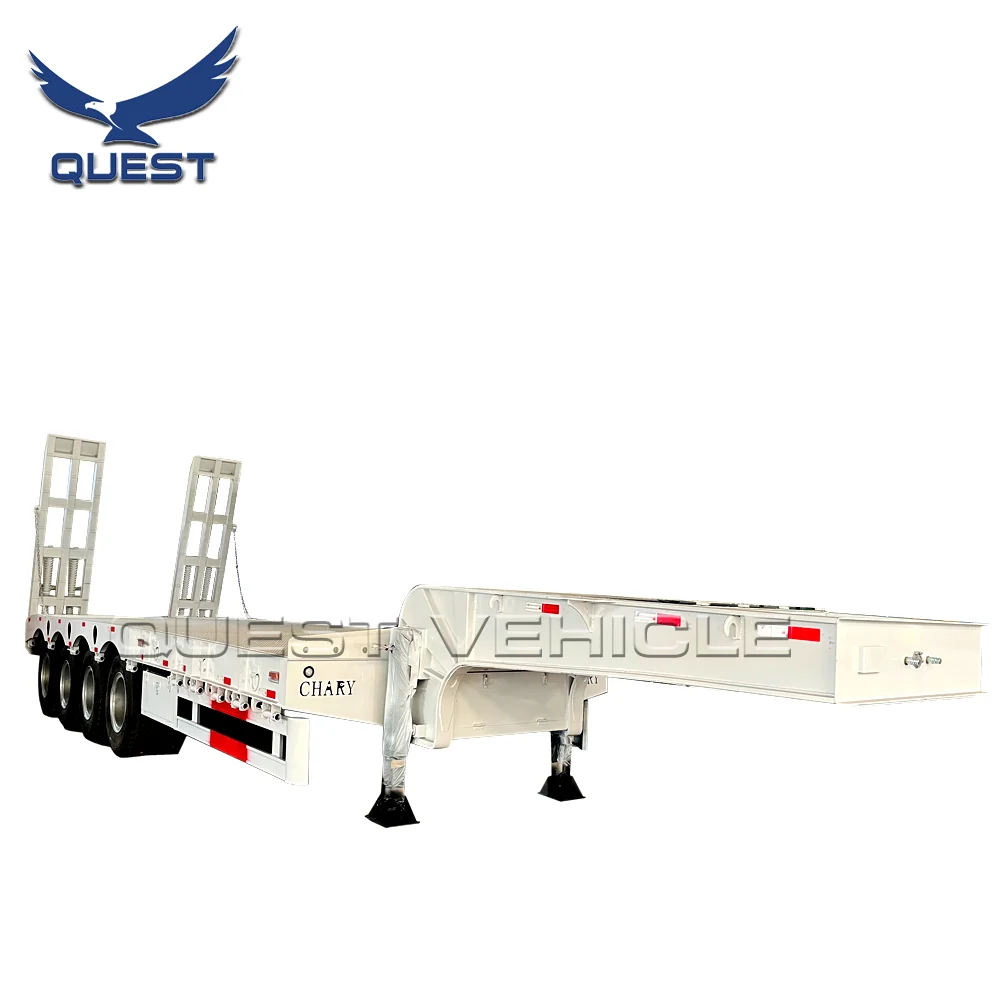

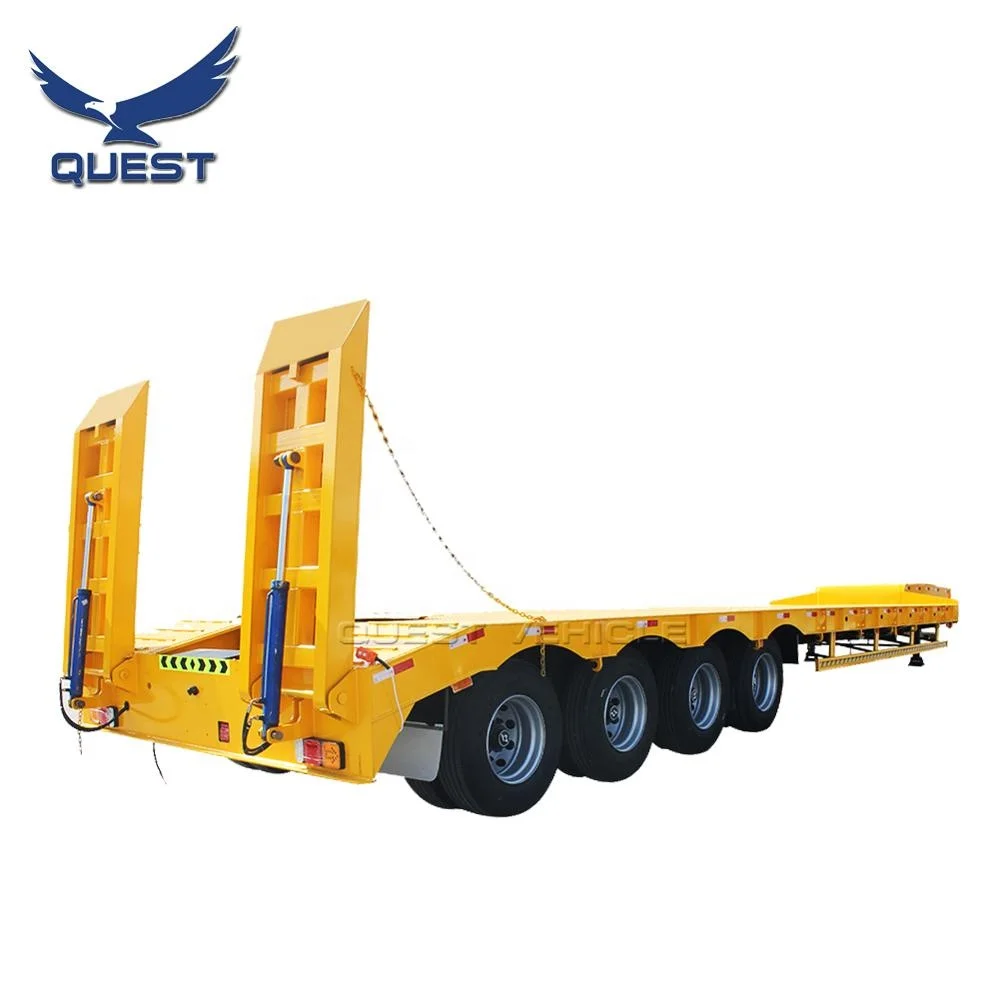

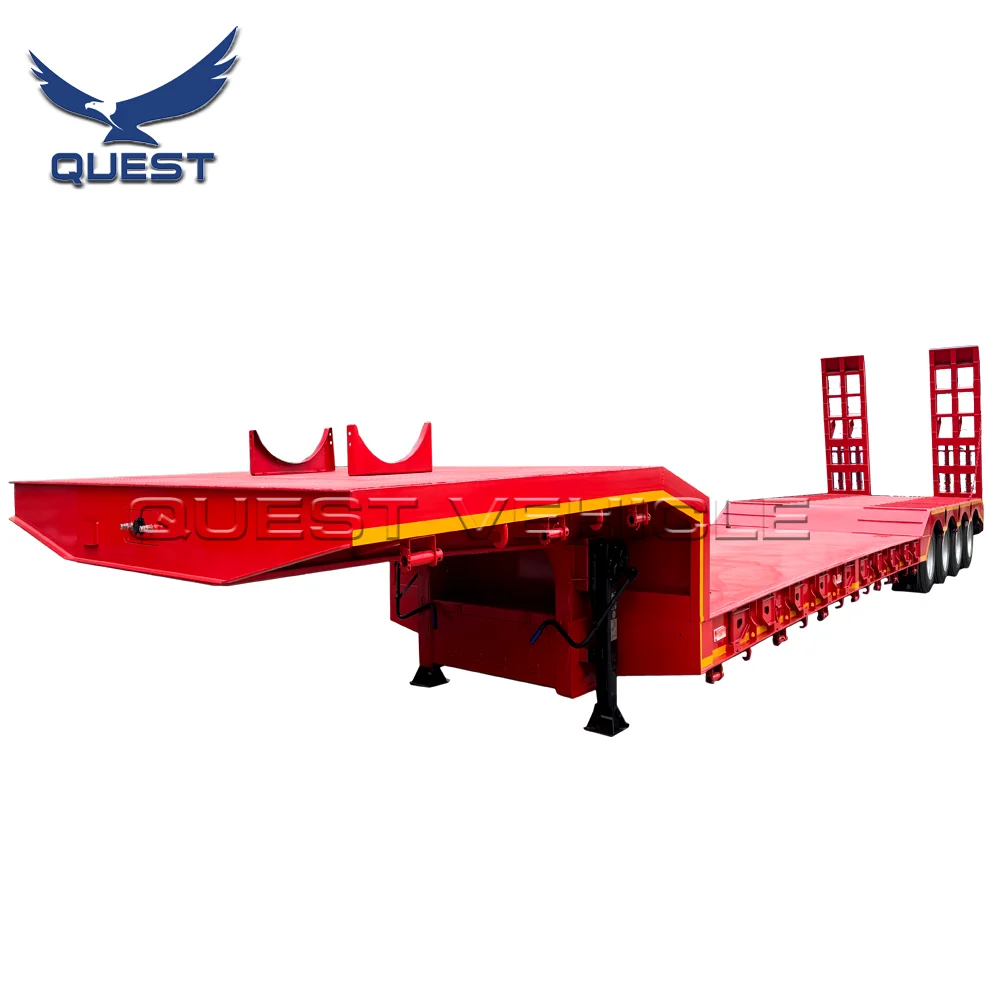

High Quality 4 Axles 70 80 Tons Low Bed Truck Semi Trailer Heavy Machine Truck Trailers
- Category: >>>
- Supplier: Qingdao Quest Vehicle Equipment Co. Ltd.
Share on (1601256149439):
Product Overview
Description
Product Overview
LOWBED SEMI TRAILER
Lowbed semi trailer mainly transport heavy vehicles, mechanical equipment and non-rotating cargo. Examples include tractors, loaders, excavators, bulldozers and special vehicles. Used in all walks of life, with stability, safety, strong cargo capacity, transportation is very convenient. We have many types of lowbed semi trailer with a load capacity of 30 to 200 tons, which can also be customized according to customers.Advantages of lowbed semi trailer：
1>Strong trailer frame was made from Q345B/Q550/Q690/HG60,The advantages of Q550/Q690/HG60 are high strength, strong bearingcapacity and 2-3 times of other materials.
2>It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its
chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
3>Heavy duty type suspension:Mechanical, airbag, and rigid suspension to meet your transportation demand.
4>Strong low bed trailer ramp,leaf spring type,folding hydraulic type optional.
5>Two pieces spare tire carriers, water tank, fuel tank, etc, are optional accessories which build modern transportation.
Product Specifications
Items | Low bed semi trailer QUEST9403TDP | Low bed semi trailer QUEST9406TDP | |
Loading Capacity | 40-60 tons | 60-100 tons | |
Axle | 3 pieces, 13T FUWA/BPW axle | 4 pieces, 13T FUWA/BPW axle | |
Tyre | 12 pieces, 10.00R20 | 16 pieces, 11.00R20 | |
Dimensions(LxWxH) | 13000 to 16000mm x 3000 x 1750mm | ||
Tare weight | 10 tons to 12 tons | ||
Axle spacing | 1310mm | ||
Rims | 8.5-20, 9.0-20 | ||
Suspension System | Leaf spring suspension / air suspension | ||
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | ||
Main Beam | Height 500mm Q345 | ||
Chassis | upper 20mm, lower 20mm. Mid web 12mm | ||
Rear Loading Ramps | 2 nos, 720 mm width, spring loaded & manually operated with safety chain | ||
Kingpin | 2’ or 3.5’ interchangeable | ||
Landing Gear | 28 Tons , Two speed manual operation | ||
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | ||
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | ||
Tool Box | One tool box with a set of standard trailer tools | ||
Spare Tyre Carrier | One piece or two pieces | ||
Product Details

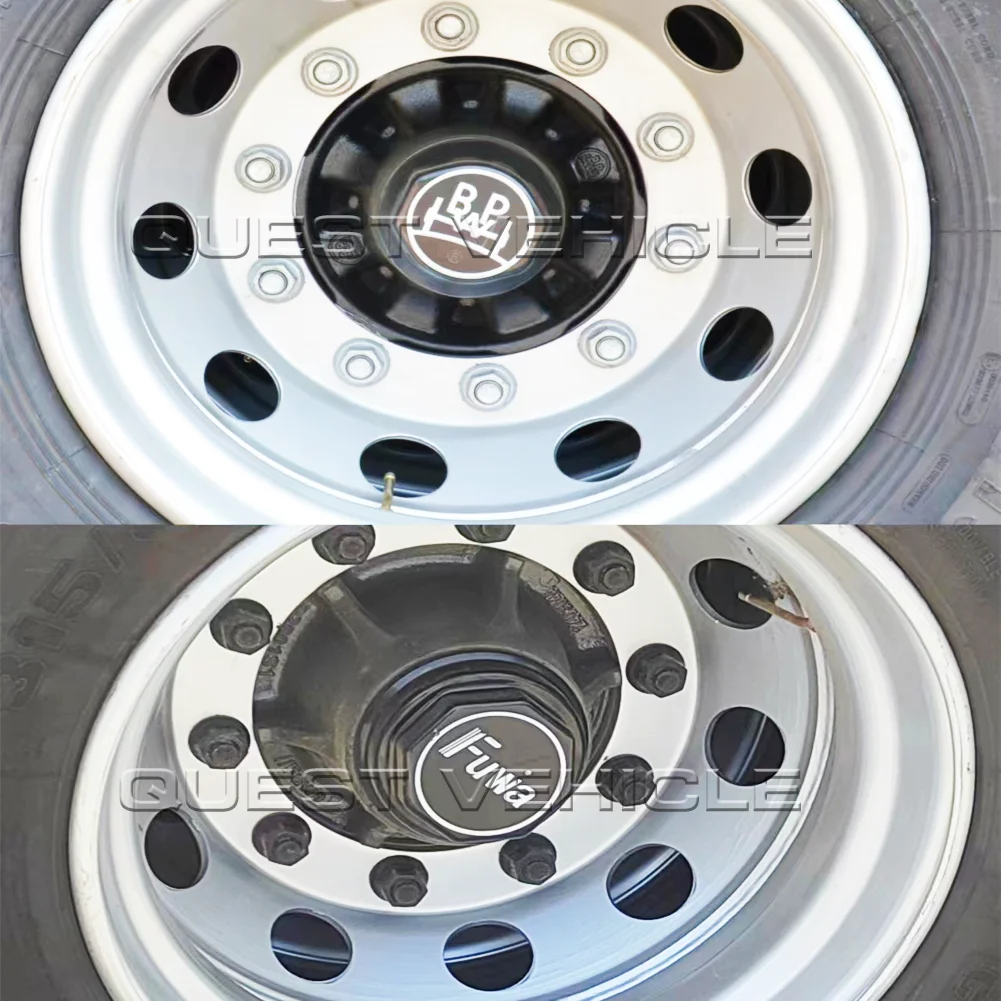

AXLE
Can choose FUWA/BPW/QUEST/other axle.Integrated advanced low-Alloy axle beam,,whole axle beam no welding.Strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400000 kilometers.

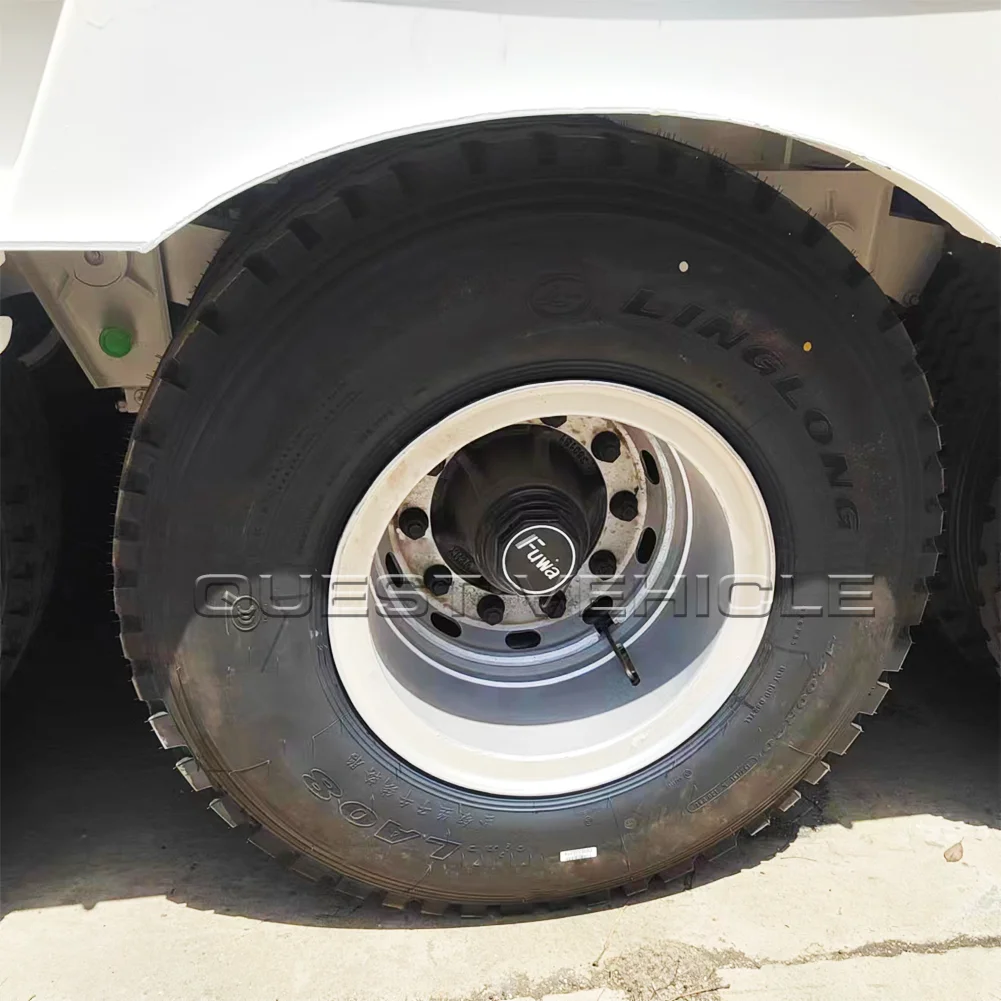

TYRE
Can choose TRIANGLE,LINGLONG,MINCHELIN and other famous brand.Better performance in wear resistance.

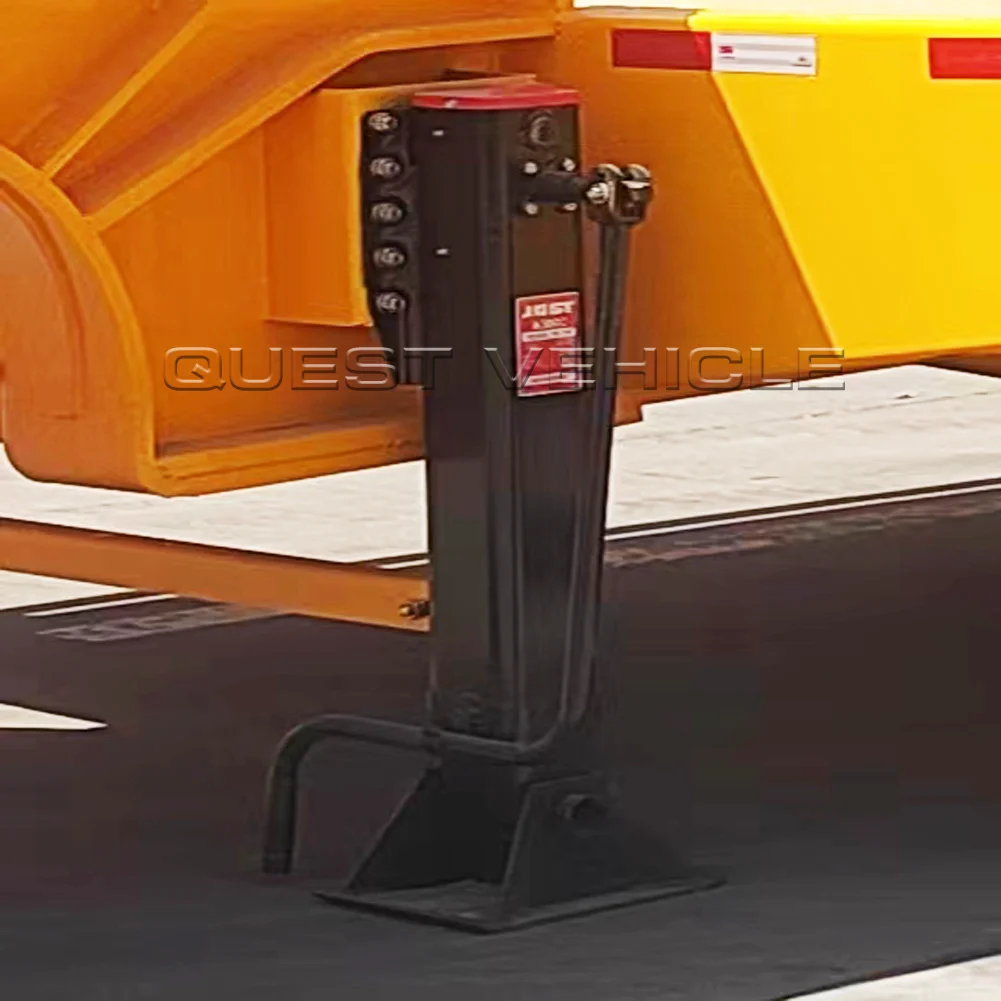

Optional JOST and other brand landing gear.Landing gear warranty come with above 5 years long.Gear box with low temperature premium chassis lube rated for service from -30℃～-100℃.

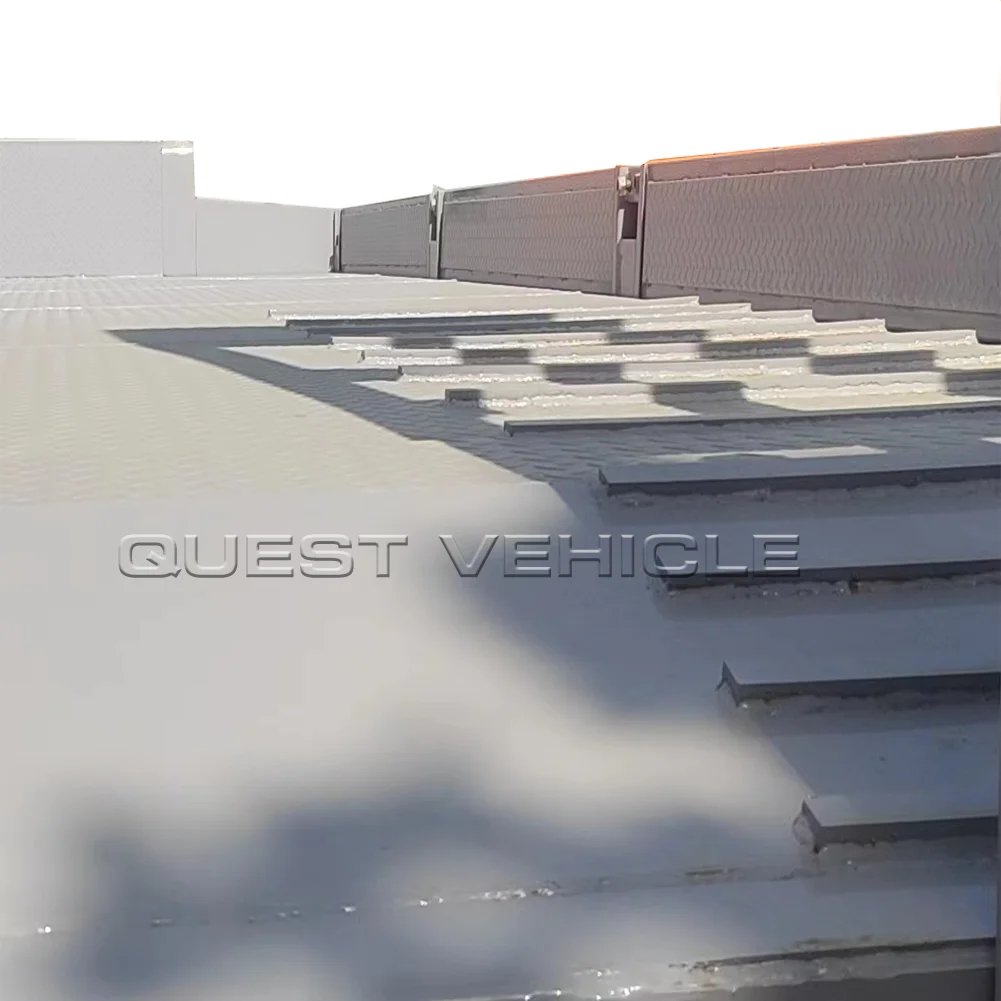

The patterned platform prevents the goods from sliding and rolling. Side panels can also be added.

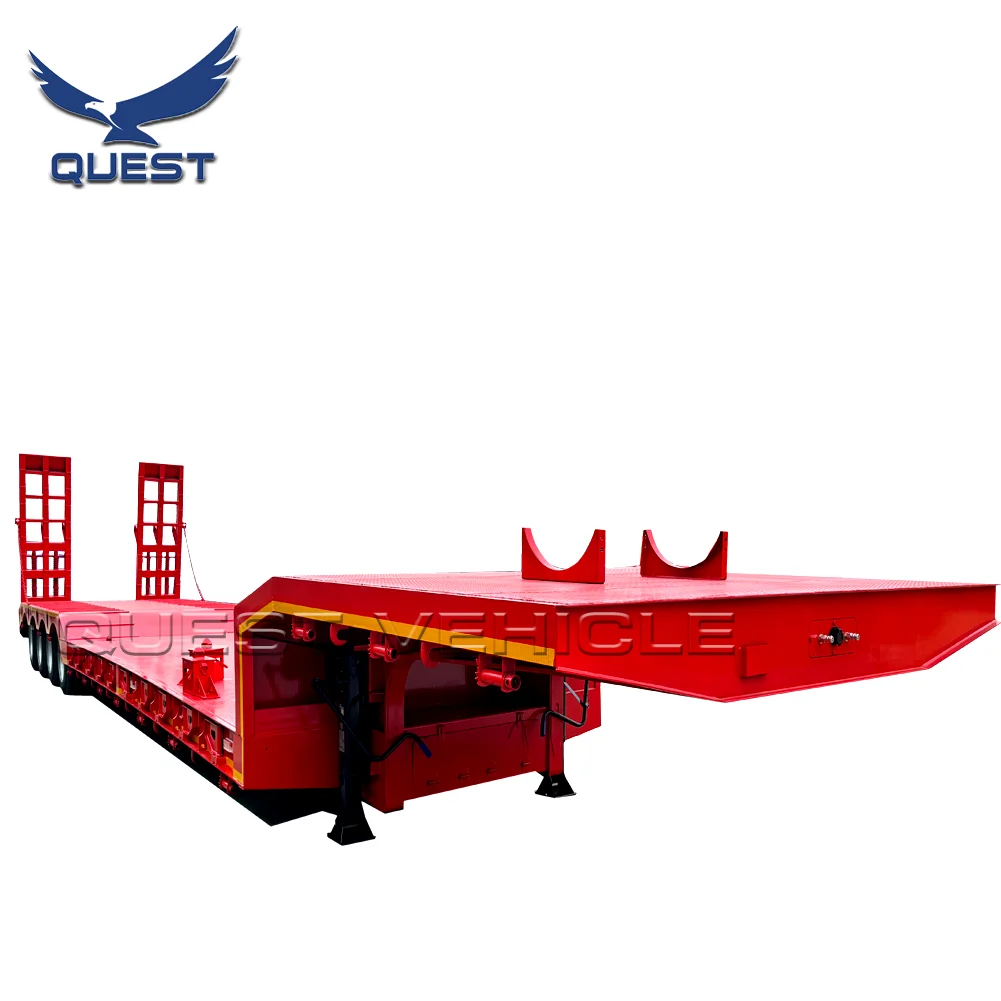

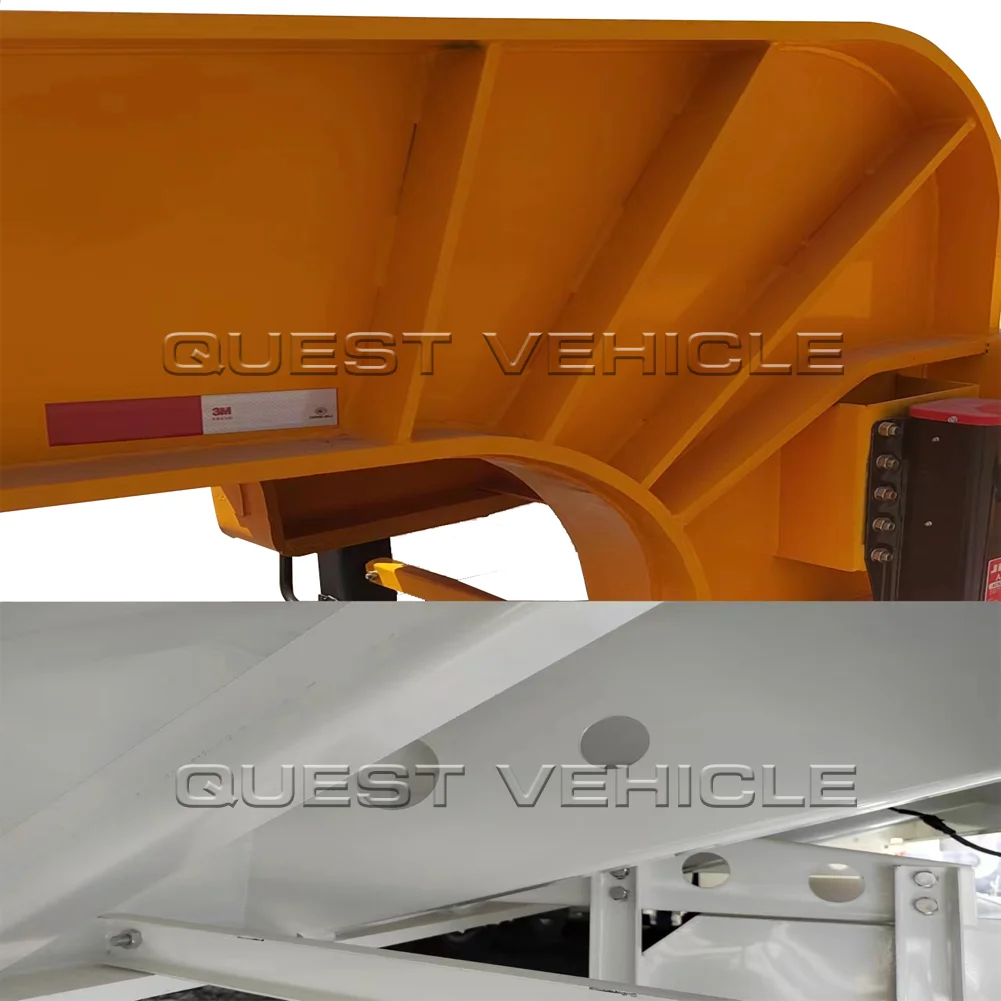

GOOSENECK AND BEAM
Gooseneck stiffeners increase the payload capacity of the low bed trailer.Beam welding technology makes the structure more reliable.

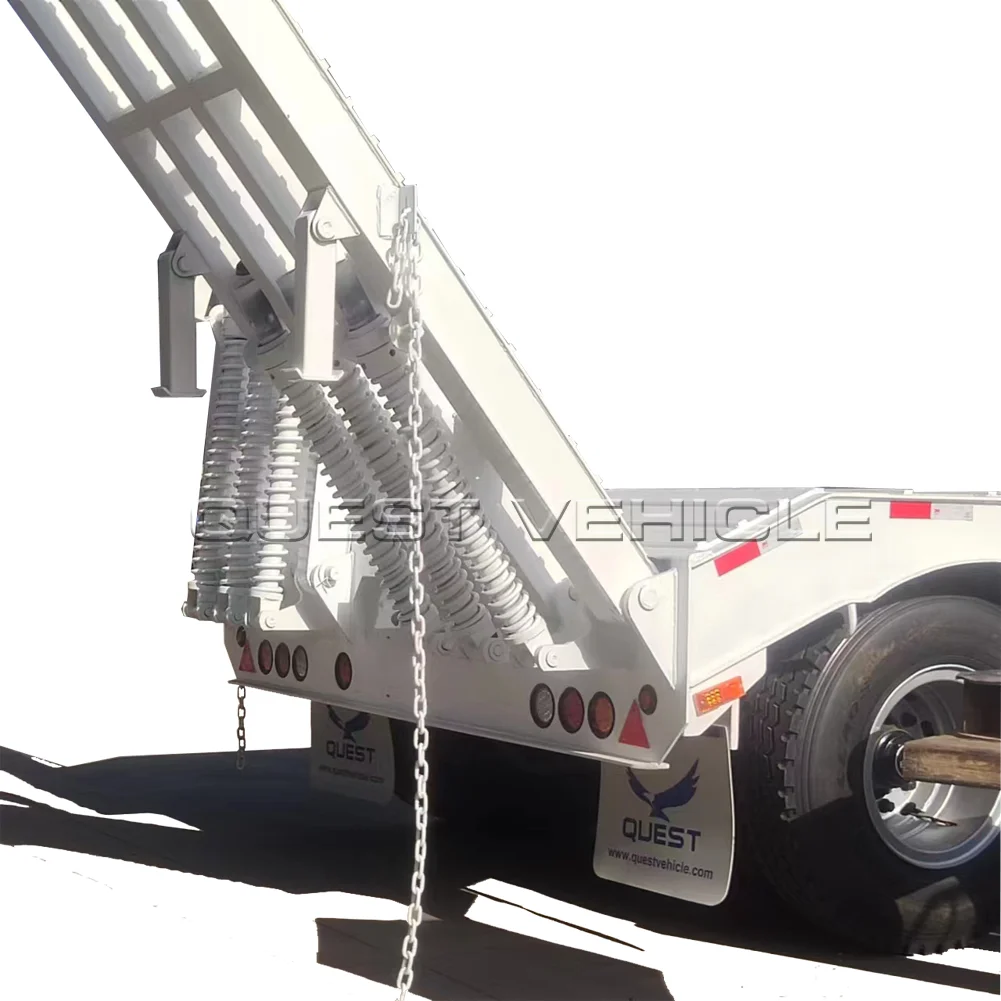

RAMP
Choose from hydraulic ladder, spring ladder and other types of ladder.And with a non-slip chain to prevent the ladder from slipping.Packaging&Shipping
PORT: | Tianjin/Shanghai/Qingdao |
Package Type: | N/M, spraying wax . 1.Usually shipping semi trailer need RoRo Vessel and Bulk Vessel. 2.Some semi trailers are transported in 40hHQ,45HQ container. |
