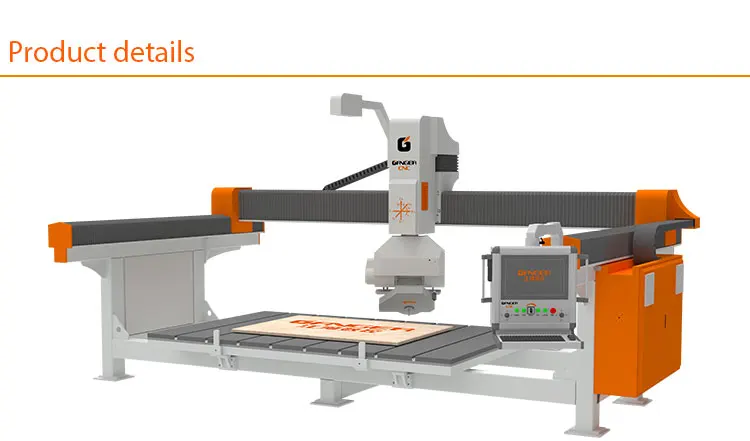

Multifunctional easy operation granite marble quartz artificial stone bridge saw 5 axis cnc cutting machine with milling cutter
- Category: >>>
- Supplier: Jinan Ganger Cnc Technology Co. Ltd.Jinan Ltd.
Share on (1601256429835):
Product Overview
Description
Multifunctional easy operation granite marble quartz artificial stone bridge saw 5 axis cnc cutting machine with milling cutter
Applicable Industry & Material:
Applicable industry: sintered stone application industry, fabricated building materials in-dustry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other m-aterials.Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Machine Features:
1. XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degree automatic rotation.

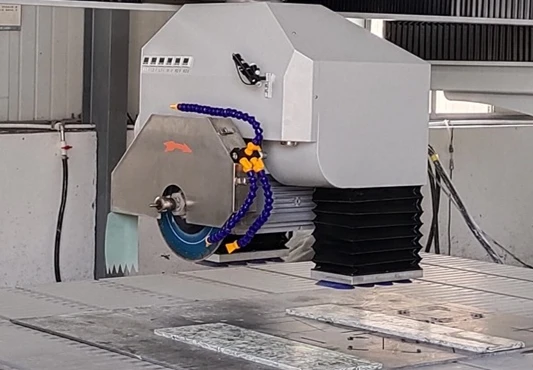

2.Vertical and horizontal cutting, multi-angle diagonal cutting.
3.Four sides miter (any angle between 0°-90°).

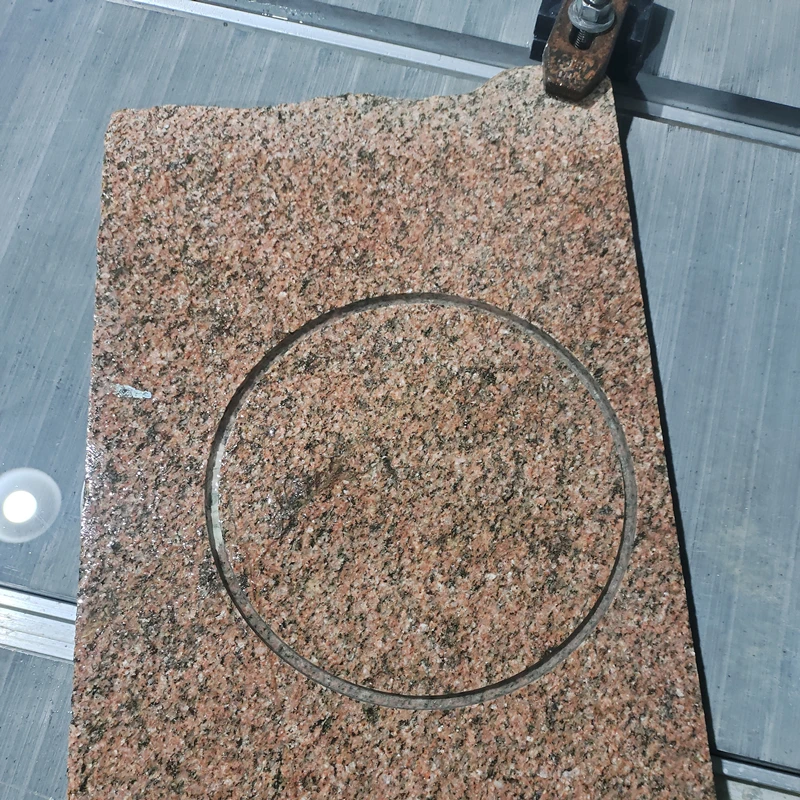

4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.

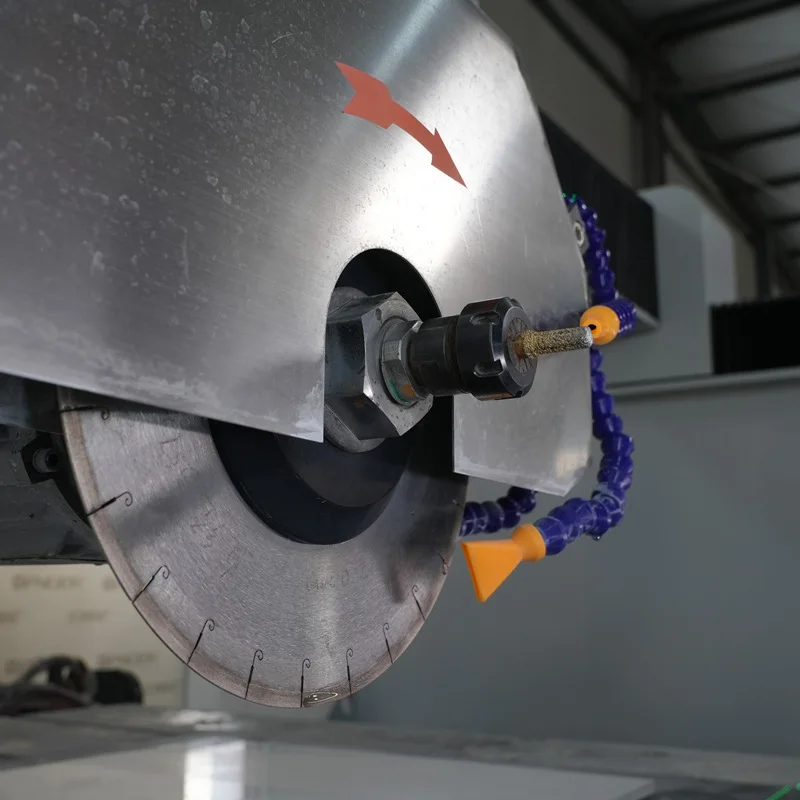

5.Cutter bits, Contouring, Suction moving.
6.Table tilts 85 degree to load slabs easily.
3.Four sides miter (any angle between 0°-90°).
4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.
5.Cutter bits, Contouring, Suction moving.
6.Table tilts 85 degree to load slabs easily.

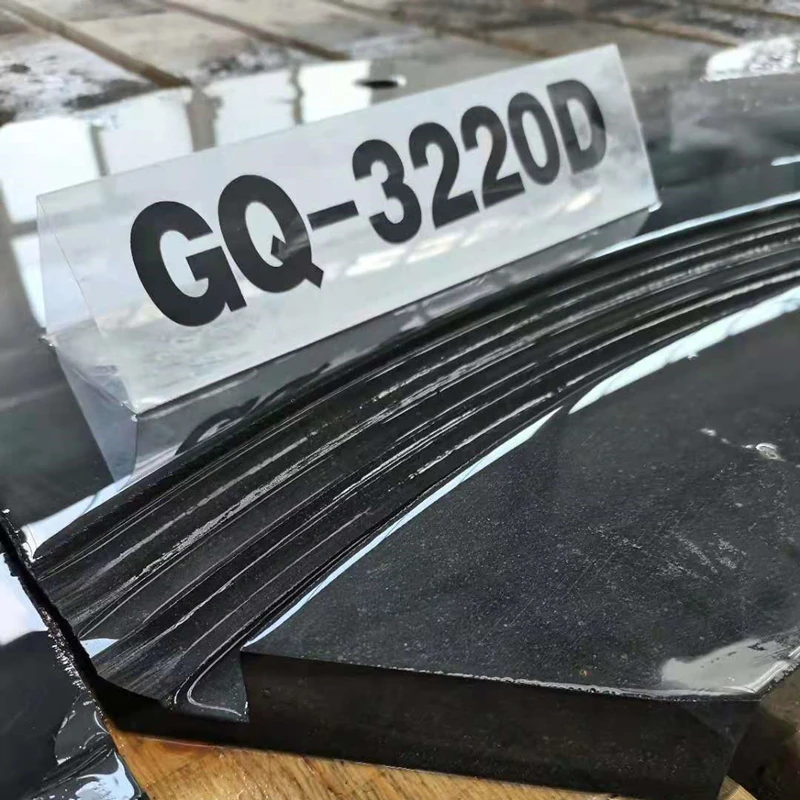

Model | GQ-3220DS | ||||||
X/Y/Z Axis working size | 3200*2000*500mm | ||||||
Diameter of blade | 350mm | ||||||
Working table size | 3200x2000mm | ||||||
Blade Motor power | 15KW | ||||||
Total power | 29KW | ||||||
Rotation speed of blade | 3000/6000rpm | ||||||
A axis rotation angle | 0°-90° | ||||||
C axis rotation angle | 0°-360° | ||||||
Table Tilting angle | 85° | ||||||
Control system | GANGER | ||||||
Camera | YES | ||||||
Gross weight | 4500KGS | ||||||
