Long life easy to install polymer chip expander
- Category: >>>
- Supplier: Jinan Changtong Machinery Equipment Co. Ltd.Jinan Ltd.
Share on (1601256566688):
Product Overview
Description
Products Description
Certifications
CT-SXS3100A aggregate spreader for sale is used for spreading chips after asphalt prime coating or tack coating in high level road construction jobs.It can be also used for building of country road with lower traffic flow.

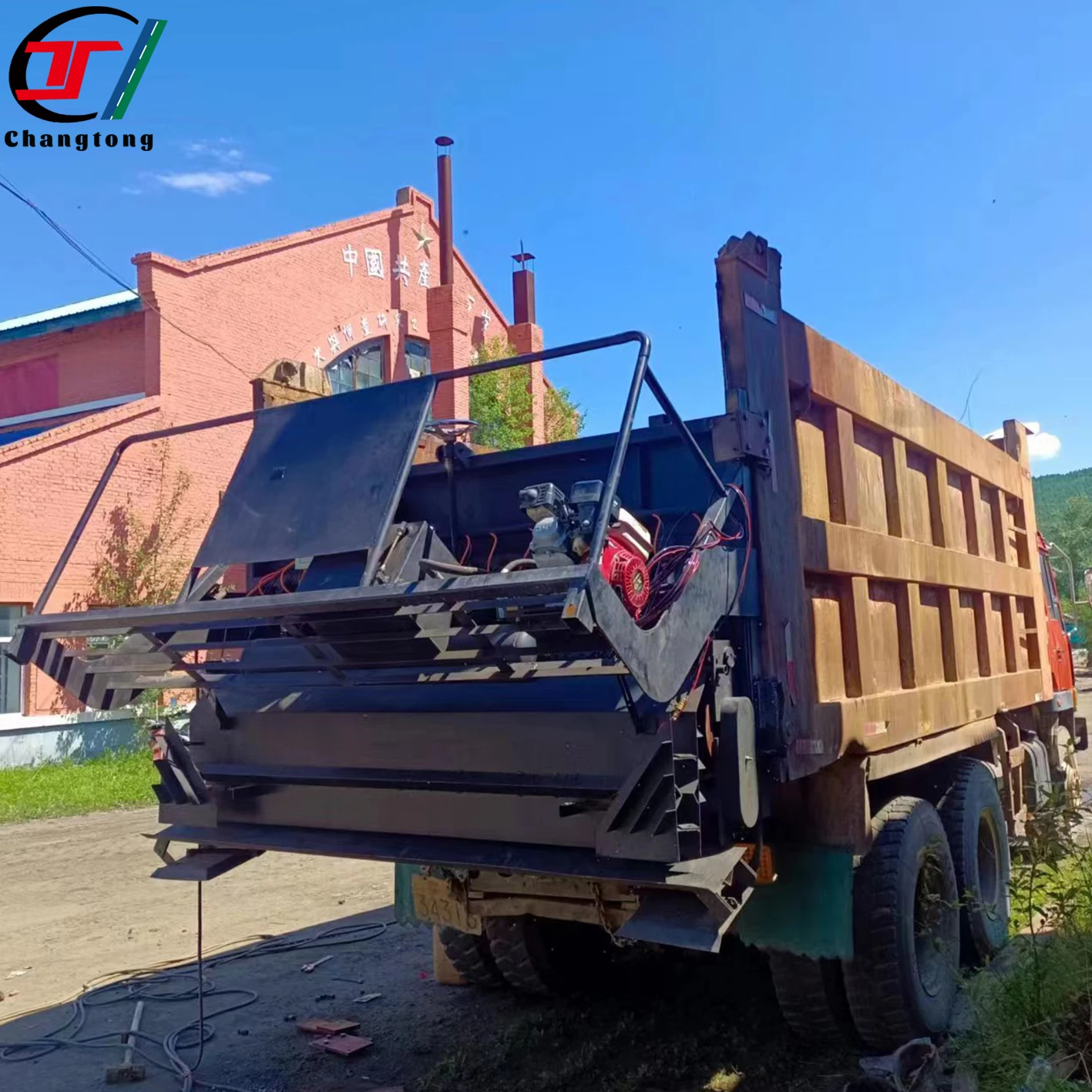

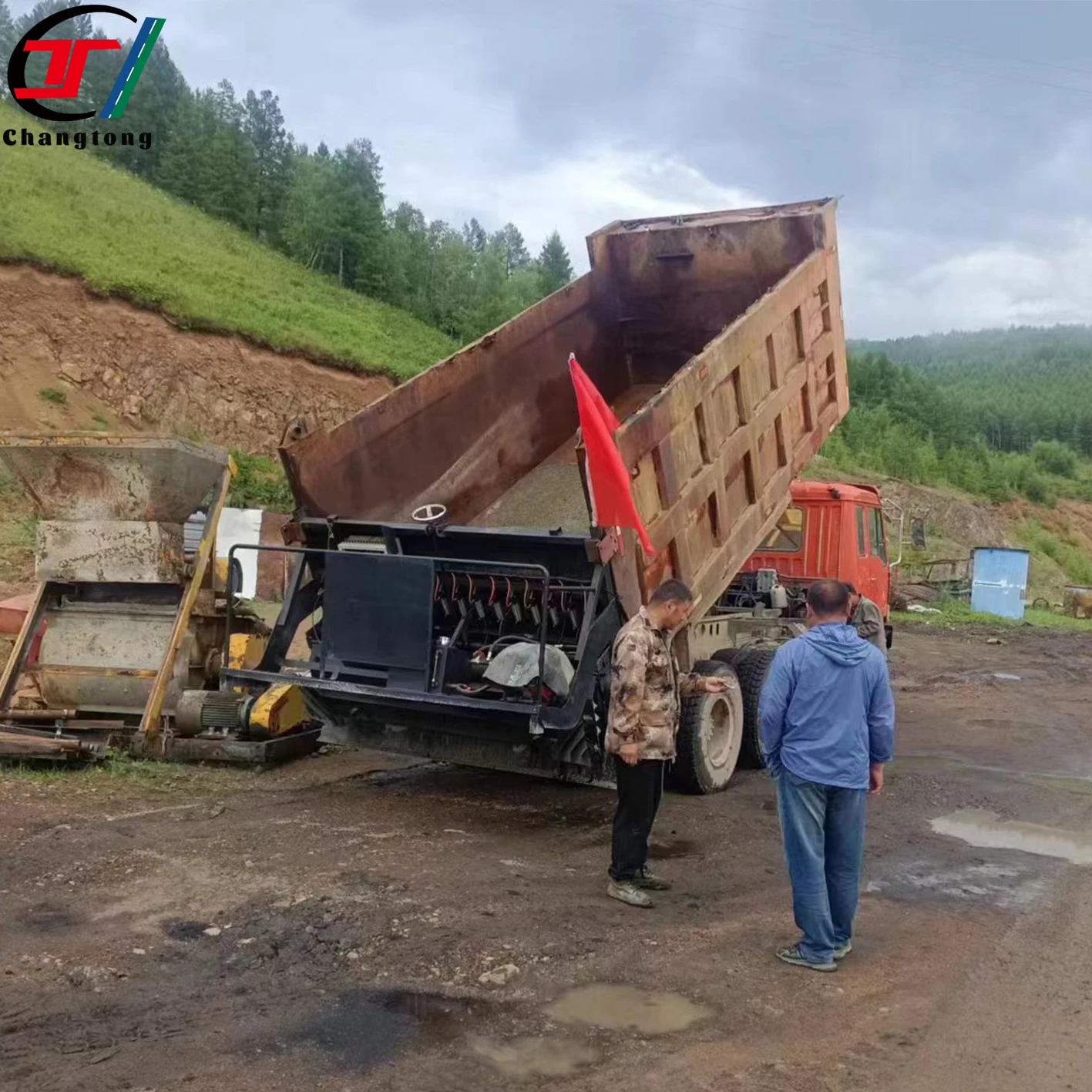

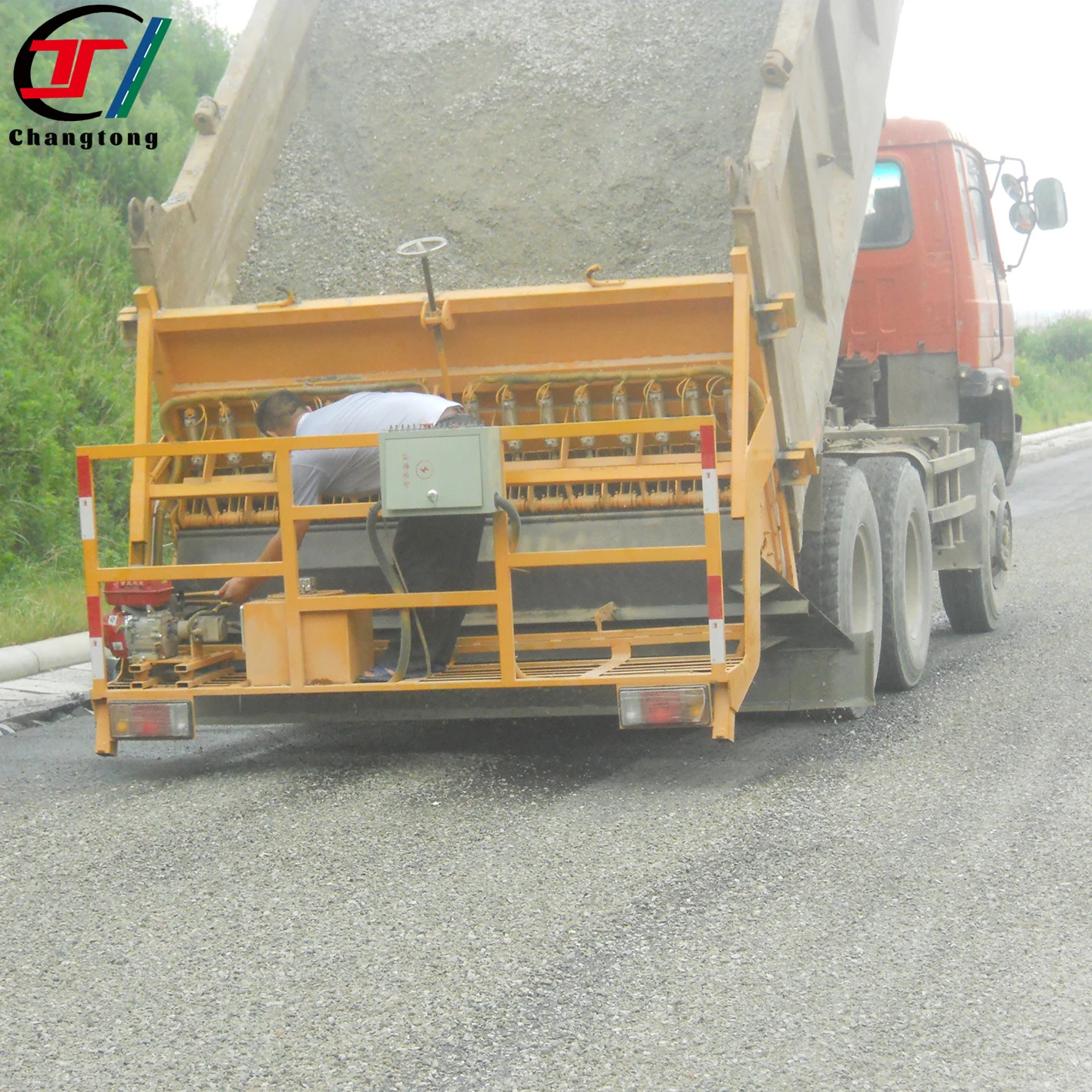

CT-SXS3100A aggregate spreader for sale is designed to be hanged at the rear of the dump truck, and the dump-bucket
lift up at 35°~45° to work. The spreading rate can be controlled by adjust of gate opening and motor speed. The spreading position and width can be managed by opening the specified chip gates with pneumatic control. All functions of the chip spreader are controlled remotely from the truck cab.Chippings are spread at precise pre-programmed rates of spread, avoiding waste and loose surplus chippings.
Features:
1.0pening and closing of the gates are controlled by electro/pneumatic cylinders. Each gate is controlled
by a switch on the remote-control panel.The chip distribution bar speed is controlled to give a precise
chip spread rate.
by a switch on the remote-control panel.The chip distribution bar speed is controlled to give a precise
chip spread rate.
2. Adjustable spread width: each chip gate can be opened independently，spread width is 3,100mm.
3. Remote control: all functions are operated by remotecontrol and the control panel is mounted in the cab of the truck.
4. Widely allowed aggregate size, which can meet majority aggregate spreading requirements.
5.Bolt connection, easy assemble and disassemble, wildly appropriate for various dump trucks, no need Modify
6. Optional cameras are fitted to the unit giving the driver a view of the area being chipped and the chips load remaining.
5.Bolt connection, easy assemble and disassemble, wildly appropriate for various dump trucks, no need Modify
6. Optional cameras are fitted to the unit giving the driver a view of the area being chipped and the chips load remaining.
Model | HDSS1631J |
Max. Spreading width | 3100mm |
Feed gate quantity | 16 |
Aggregate size | 3-30mm |
Spreading amount | 0.5-50m3/km2 |
Width | 2500mm |
Lower suspension | 570mm |
Rear suspension | 1500mm |
Weight | 1000kg |
Dimension | 1900×2500×2100 (L×W×H) |

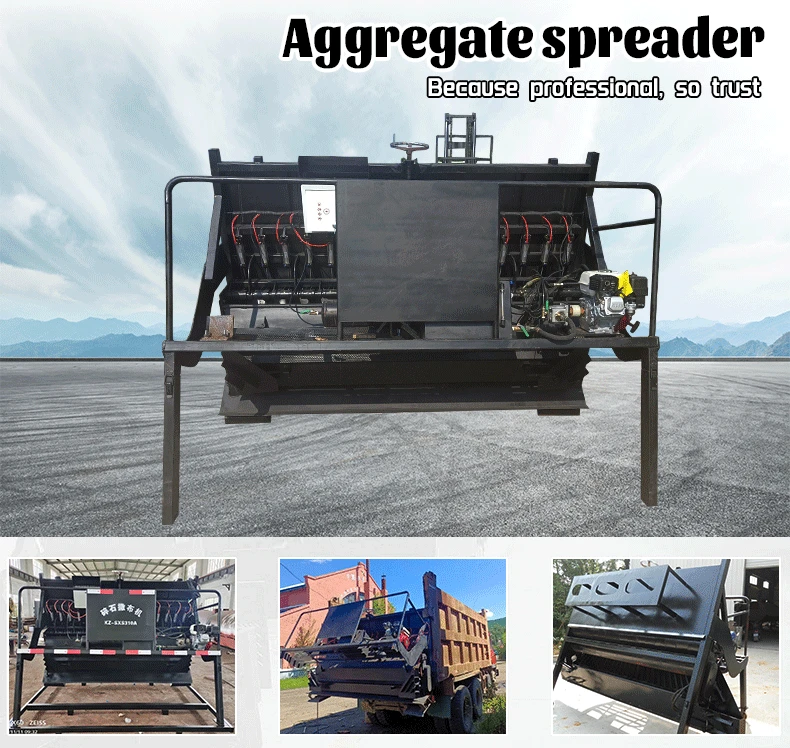

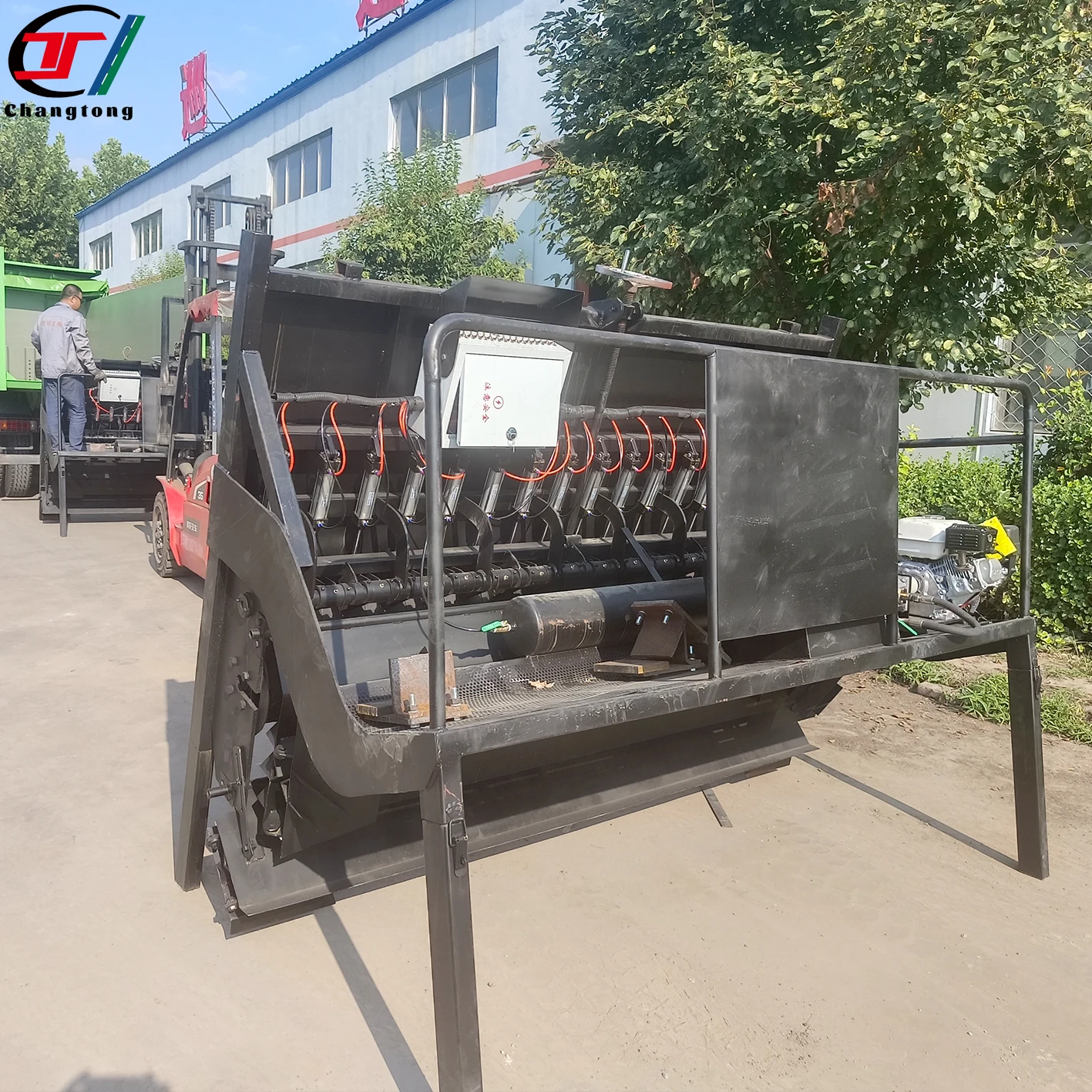

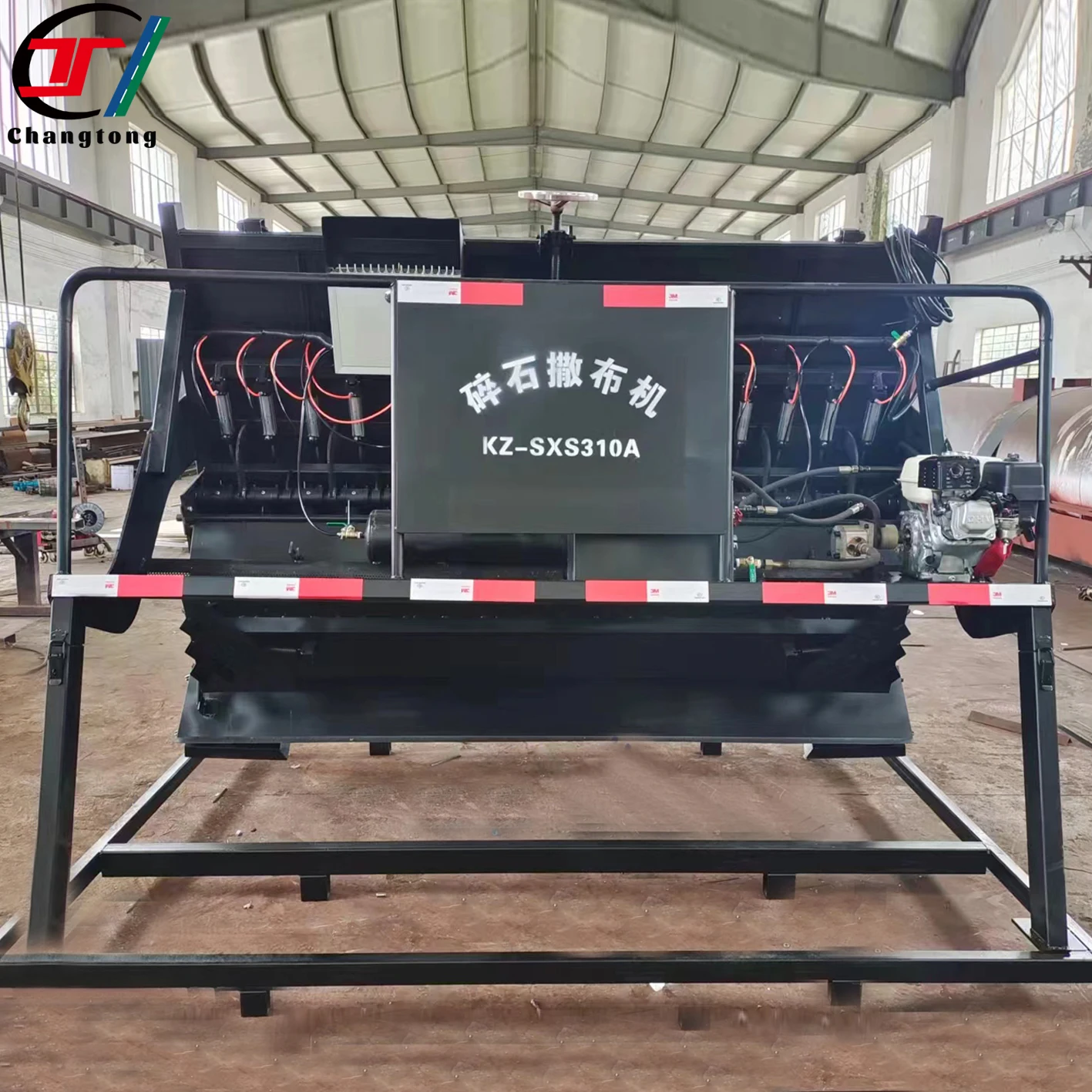

Details Images
Company Profile

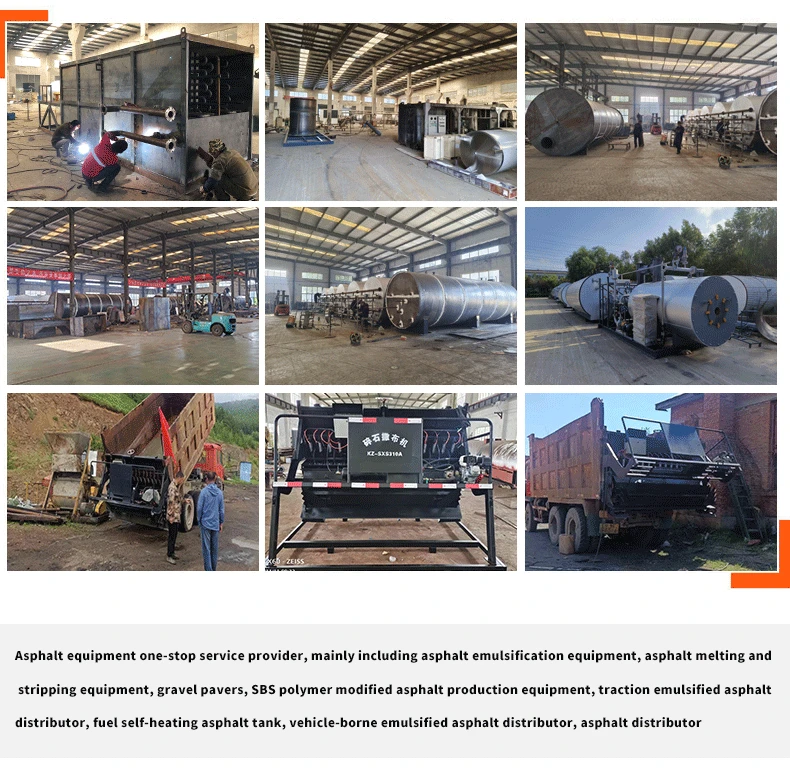

Factory Display
Our Advantages
1. Any inquiry will be replied within 24 hours.
2. Factory visit is welcomed and airport pick up service.
3. We can do the designs according to the customers' requirement.
4. We can offer you the high quality & reasonable price,and we have trade assurance.
5. 12 months super long time guarantee period.
2. Factory visit is welcomed and airport pick up service.
3. We can do the designs according to the customers' requirement.
4. We can offer you the high quality & reasonable price,and we have trade assurance.
5. 12 months super long time guarantee period.
FAQ
Q1. Are you a manufacturer?
Yes, we have been in Road Machinery manufacturing and marketiing for over 20 years.
Yes, we have been in Road Machinery manufacturing and marketiing for over 20 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.
Q3. Is it available to print our own brand on the chip spreader?
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.
Q4. How can I get the price of your chip spreader?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. What is your after-sale service?
12 month warranty.
Provision with relevant technical support.
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. What is your after-sale service?
12 month warranty.
Provision with relevant technical support.
