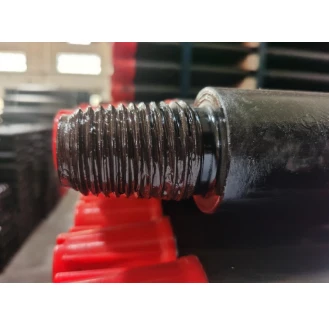

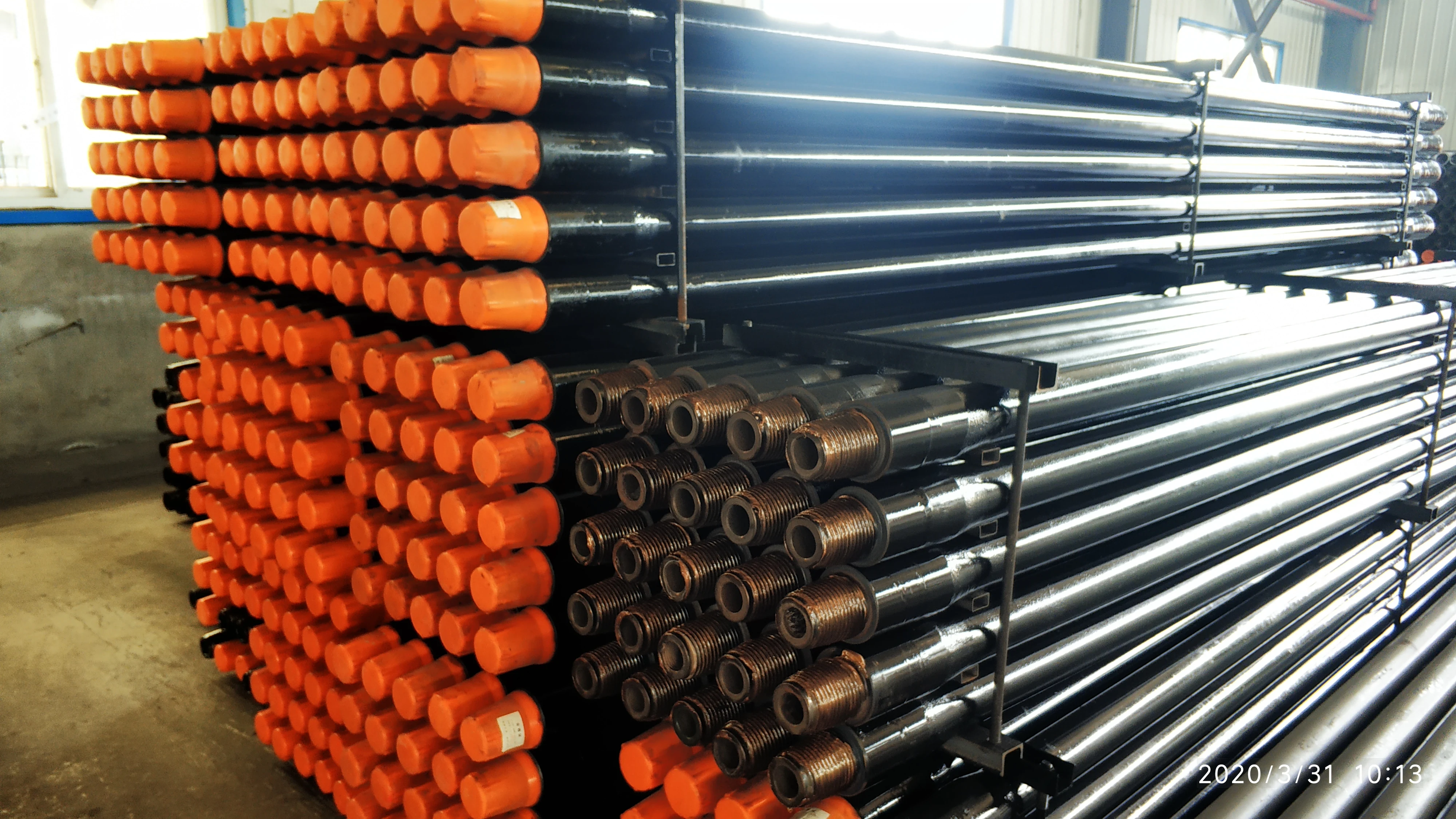

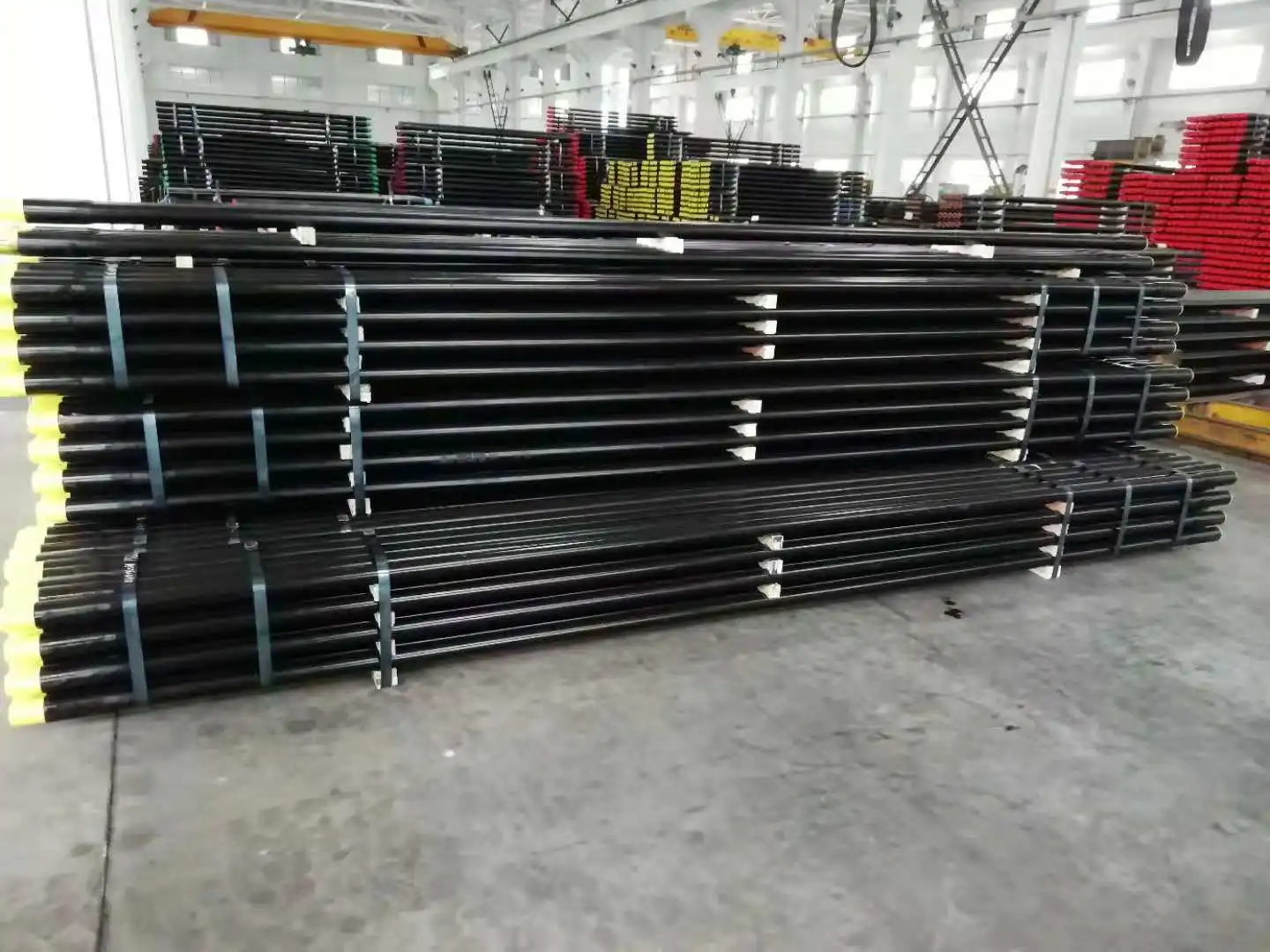

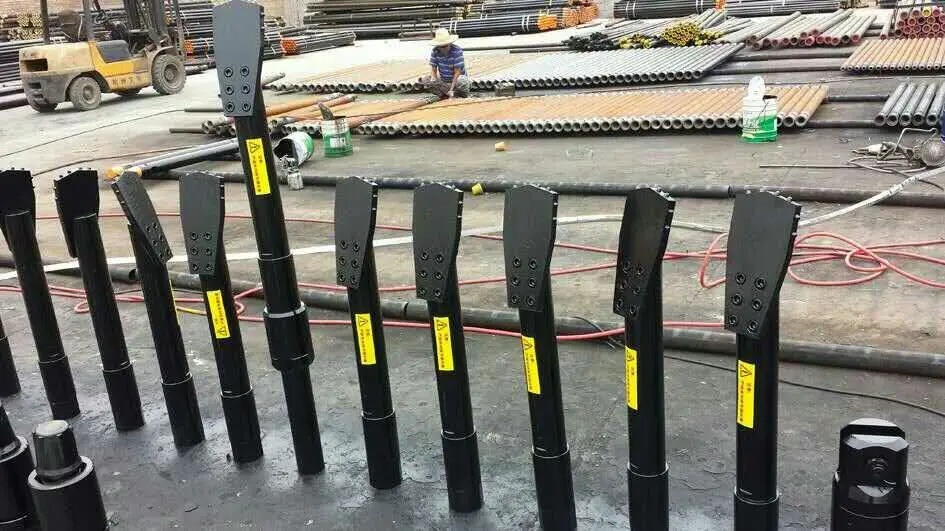

Horizontal Directional Drilling Machine Pipe HDD Drill Rod For Chinese Brand HDD Machines 60x3000mm
- Category: >>>
- Supplier: Xuzhou C-Star Import&export Co. Ltd.
Share on (1601257575691):
Product Overview
Description
Products Description
SPECIFICATION OF DRILL PIPE FOR CHINESE HDD MACHINES | ||||||||||||||||||
Product code | Thread type | Rod body OD (mm) | Tool joint OD (mm) | Wall thickness (mm) | Pin connection length (mm) | working length (mm) | Grade | HDD Drill Rod torsional strength (N.M) | Angle (°) | |||||||||
50 (2") (Froged) | DH50 | 50 | 57 | 6.5 | 60 | 2000 | S135 | 4230 | 3.5 | |||||||||
50 (2") (Froged) | DH50 | 50 | 57 | 6.5 | 60 | 2500 | S135 | 4230 | 4.3 | |||||||||
60x3000-DH-Ⅰ (Froged) | DH60-1 | 60.3 | 68 | 7.5 | 70 | 3000 | S135 | 8780 | 7.7 | |||||||||
60×3000-DH-Ⅱ(Froged) | DH60-2 | 60.3 | 71 | 7.5 | 70 | 3000 | S135 | 10745 | 7.7 | |||||||||
73x3000-ZT(Froged) | ZT23 | 73 | 81 | 8 | 76.2 | 3000 | S135 | 15560 | 6.4 | |||||||||
73x3000-DDW(Froged) | NC23 | 73 | 79 | 8 | 79 | 3000 | S135 | 14570 | 6.4 | |||||||||
73x3000-DH26(Froged) | DH26 | 73 | 87 | 8 | 83 | 3000 | S135 | 19200 | 6.4 | |||||||||
73x3000-DH23(Froged) | DH23 | 73 | 81 | 8 | 85 | 3000 | S135 | 15730 | 6.4 | |||||||||
83x3000-WM80(Froged) | WM80 | 83 | 92 | 9 | 88.9 | 3000 | S135 | 22095 | 5.6 | |||||||||
83x4500-WM80 (Froged) | WM80 | 83 | 92 | 9 | 88.9 | 4500 | S135 | 22095 | 8.4 | |||||||||
89x3000(Froged) | DH31 | 88.9 | 103.5 | 8.38 | 88.9 | 3000 | S135 | 27715 | 5.2 | |||||||||
89x4500 (Froged) | DH31 | 88.9 | 105 | 9.35 | 88.9 | 3000 | S135 | 33815 | 5.2 | |||||||||
89x4500-DH31 (Friction welding) | NC31 | 88.9 | 104.8 | 9.35 | 98 | 4500 | S135 | 31905 | 7.9 | |||||||||
101.6-6000-NC38 (Friction welding) | NC38 | 101.6 | 127 | 8.8 | 110 | 6000 | S135 | 54325 | 9.2 | |||||||||
101.6x6000-NC40(Friction welding) | NC40 | 101.6 | 139.7 | 8.38 | 114.3 | 6000 | S135 | 49165 | 9.2 | |||||||||
114.3x6000-NC38(Friction welding) | NC38 | 114.3 | 127 | 8.56 | 110 | 6000 | S135 | 54130 | 8.2 | |||||||||
114.3-6000-NC40(Friction welding) | NC40 | 114.3 | 139.7 | 8.56 | 126.3 | 6000 | S135 | 69695 | 8.2 | |||||||||
114.3x6000-NC46(Friction welding) | NC46 | 114.3 | 158.8 | 8.56 | 126.3 | 6000 | S135 | 95360 | 8.2 | |||||||||
127x6000-NC50(Friction welding) | NC50 | 127 | 168.28 | 9.19 | 126.3 | 6000 | S135 | 122815 | 7.3 | |||||||||
127x9600-NC50(Friction welding) | NC50 | 127 | 168.28 | 9.19 | 126.3 | 9600 | S135 | 122815 | 11.7 | |||||||||
139.7x9600-9.19(Friction welding) | 5 1/2FH | 139.7 | 190.5 | 9.19 | 139 | 9600 | S135 | 95060 | 10.7 | |||||||||
139.7x9600 (Friction welding) | 5 1/2FH | 139.7 | 190.5 | 10.54 | 139 | 9600 | S135 | 168170 | 10.7 | |||||||||
168.3x9600 (Friction welding) | 6 5/8FH | 168.3 | 215.9 | 10.54 | 127 | 9600 | S135 | 146780 | 8.9 | |||||||||
168.3x9600-9.19(Friction welding) | 6 5/8FH | 168.3 | 215.9 | 9.19 | 127 | 9600 | S135 | 146780 | 8.9 | |||||||||
193.7x9600 (Friction welding) | 6 5/8FH | 193.7 | 215 | 9.19 | 127 | 9600 | S135 | 146790 | 7.7 | |||||||||
193.7x9600-7 5/8FH (Friction welding) | 7 5/8FH | 193.7 | 215 | 9.19 | 127 | 9600 | S135 | 177850 | 7.7 | |||||||||
193.7x9600-6 5/8IF(Friction welding) | 6 5/8IF | 193.7 | 230 | 9.19 | 127 | 9600 | S135 | 169865 | 7.7 | |||||||||
Company Profile
Xuzhou C-Star Import & Export Co., Ltd.
Xuzhou C-Star Import & Export Co., Ltd. specialises in the export business of construction machinery and accessories.Our Foreign Trade Division members have above 10 years of experience in the export of construction machinery, and can efficiently and professionally solve the problems in the construction and export of equipments.
We commit to providing customer with high quality machinery and all accessories and we devote improving ourselves to help all our customers to solve more problems that they may encounter during construction projects.
Our company adheres to the management policy of “creat and win-win”, and seeks for mutual benefit. After years of industry experience accumulation, our company is mainly engaged in the design, manufacture and sale of trenchless machinery (mainly including pipe jacking machine and TBM machine and its supporting accessories, all kinds of HDD rods and drilling tools), rotary drilling rig drilling tools development and design (kelly bar and drill tools as well as supporting), also pile drivers machines. We endeavour to provide one-stop, low-cost, high-efficient equipments and supporting services for all our customers. All production links are strictly controlled, we have professional quality control equipment as well as professional personnel to strictly control each production link, to ensure that all products are guaranteed to leave the factory with good quality control, timely delivery and considerate service, which is worthy of trust and test!Our products have been exported to Southeast Asia, South Asia, the Middle East, Africa and other countries and regions, and harvested unanimous praise!
Looking forward to the future,we always adhering to the "Excellent quality, innovation and improvement" business philosophy, adhere to the "create, win-win" spirit of enterprise, with first-class service, first-class products, a comprehensive build the company's core competitiveness, to provide the most valuable industry services, is committed to become the best supply company.
We commit to providing customer with high quality machinery and all accessories and we devote improving ourselves to help all our customers to solve more problems that they may encounter during construction projects.
Our company adheres to the management policy of “creat and win-win”, and seeks for mutual benefit. After years of industry experience accumulation, our company is mainly engaged in the design, manufacture and sale of trenchless machinery (mainly including pipe jacking machine and TBM machine and its supporting accessories, all kinds of HDD rods and drilling tools), rotary drilling rig drilling tools development and design (kelly bar and drill tools as well as supporting), also pile drivers machines. We endeavour to provide one-stop, low-cost, high-efficient equipments and supporting services for all our customers. All production links are strictly controlled, we have professional quality control equipment as well as professional personnel to strictly control each production link, to ensure that all products are guaranteed to leave the factory with good quality control, timely delivery and considerate service, which is worthy of trust and test!Our products have been exported to Southeast Asia, South Asia, the Middle East, Africa and other countries and regions, and harvested unanimous praise!
Looking forward to the future,we always adhering to the "Excellent quality, innovation and improvement" business philosophy, adhere to the "create, win-win" spirit of enterprise, with first-class service, first-class products, a comprehensive build the company's core competitiveness, to provide the most valuable industry services, is committed to become the best supply company.
Certifications

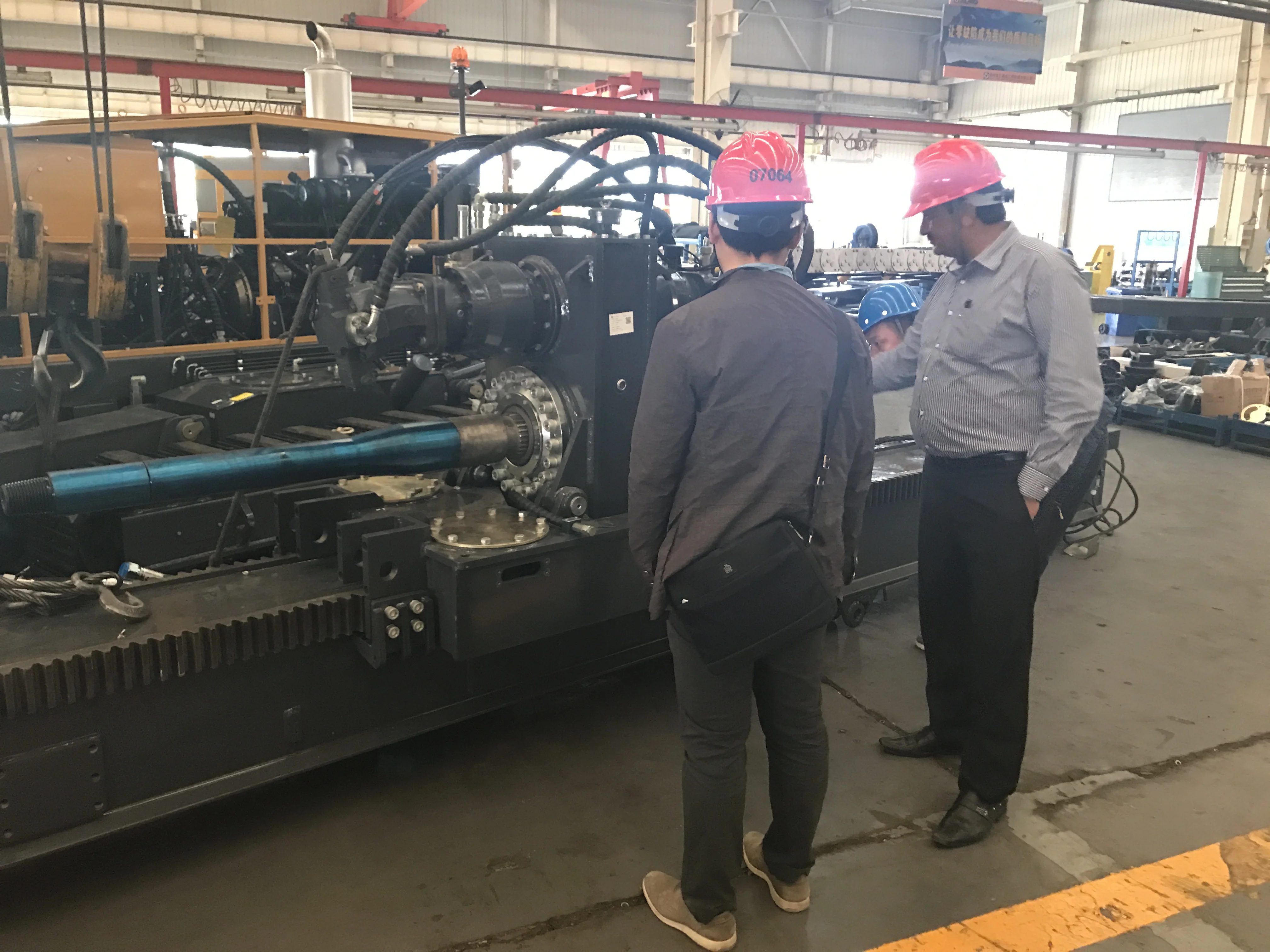

Exhibition

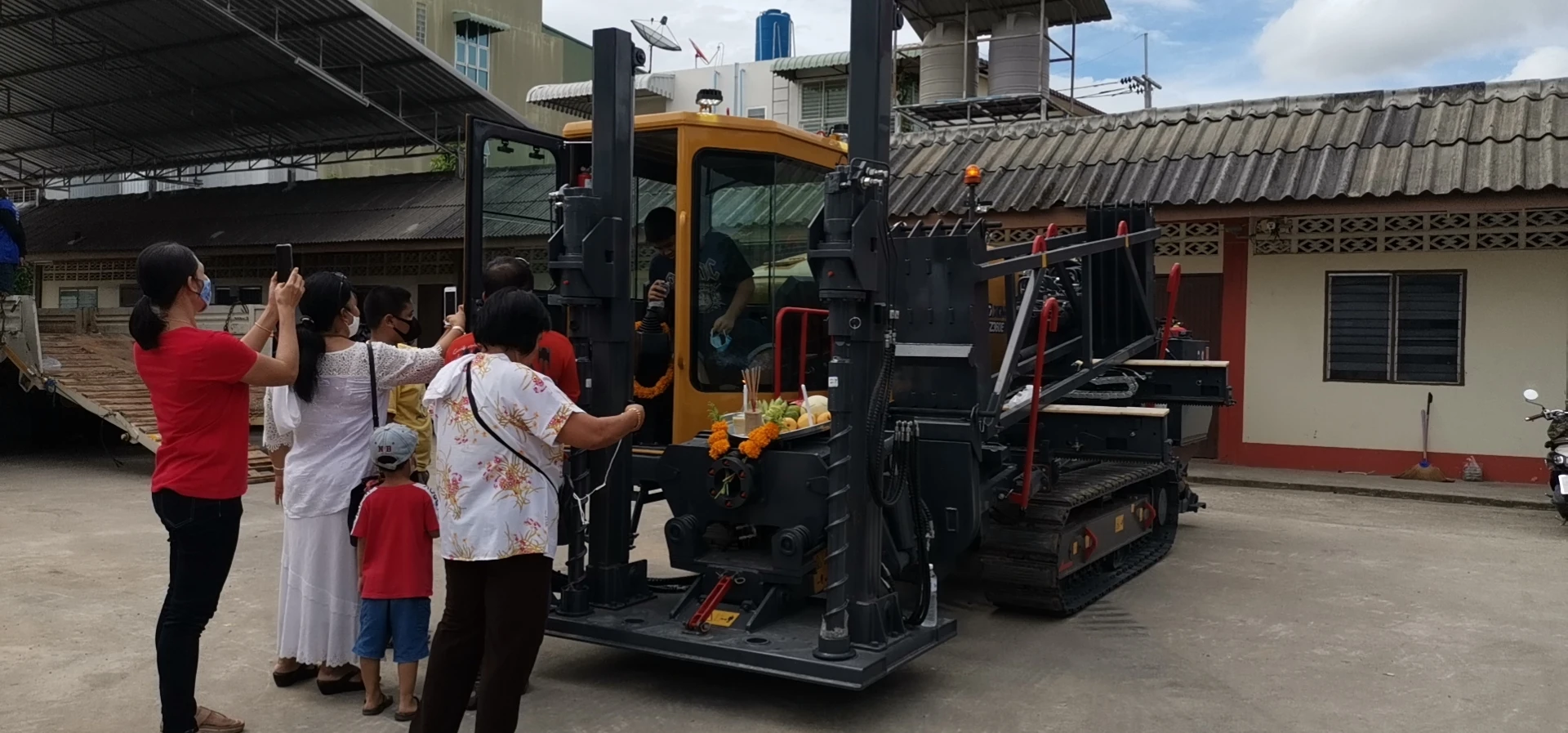

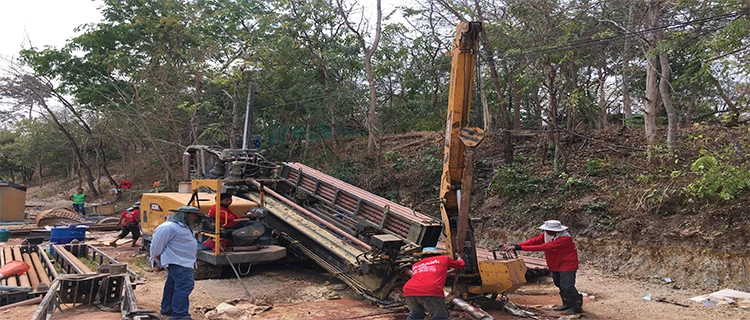

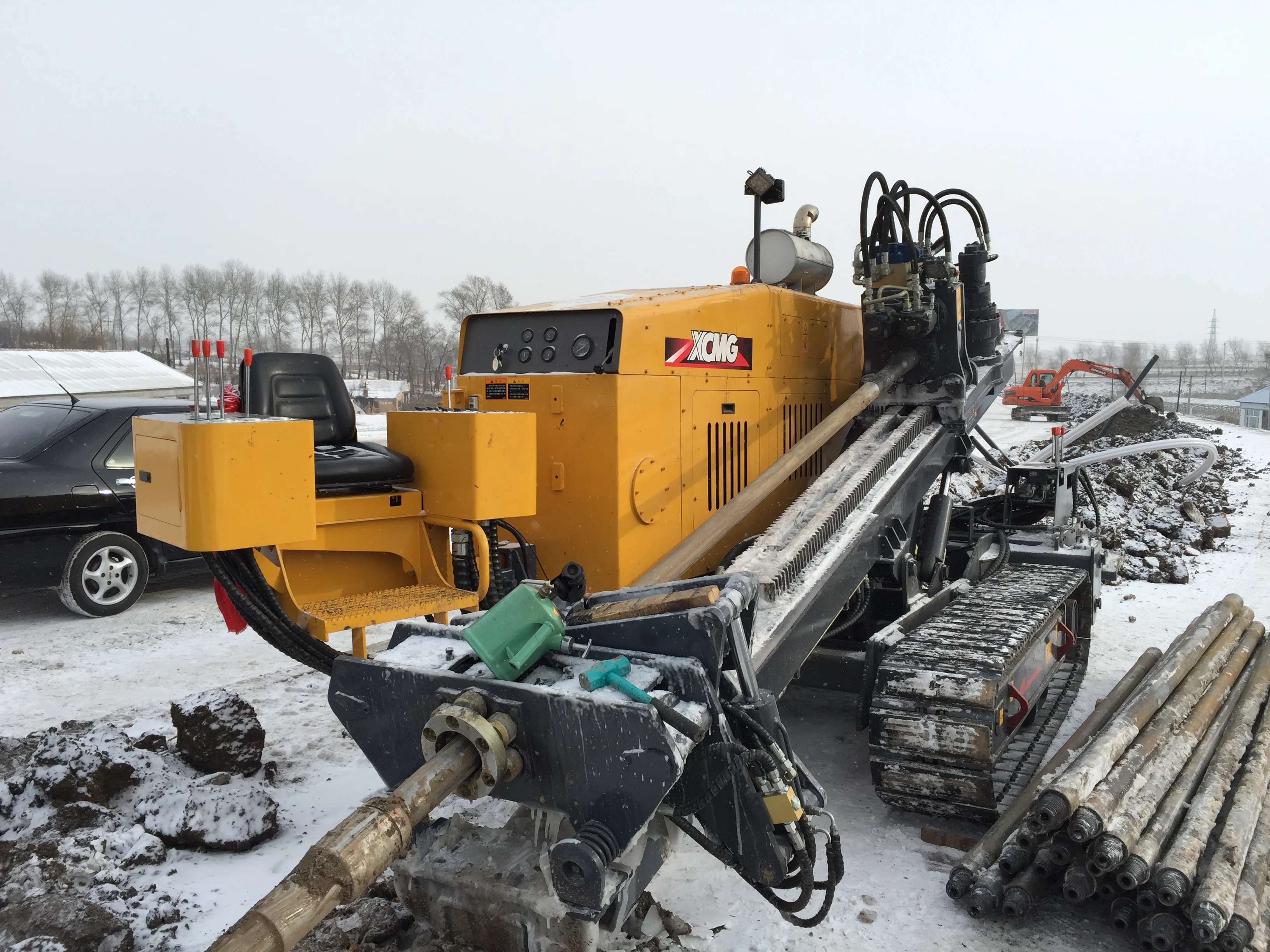

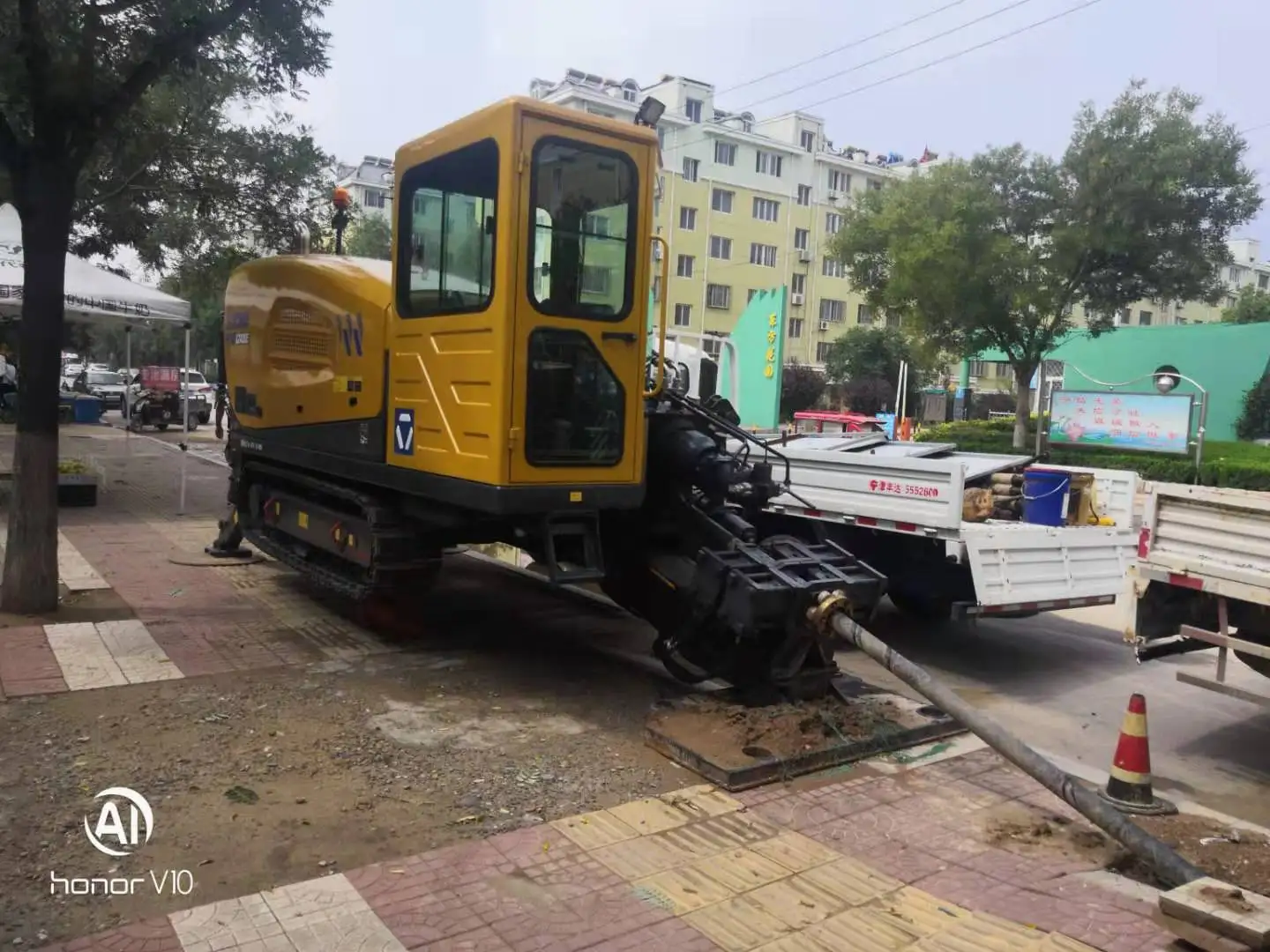

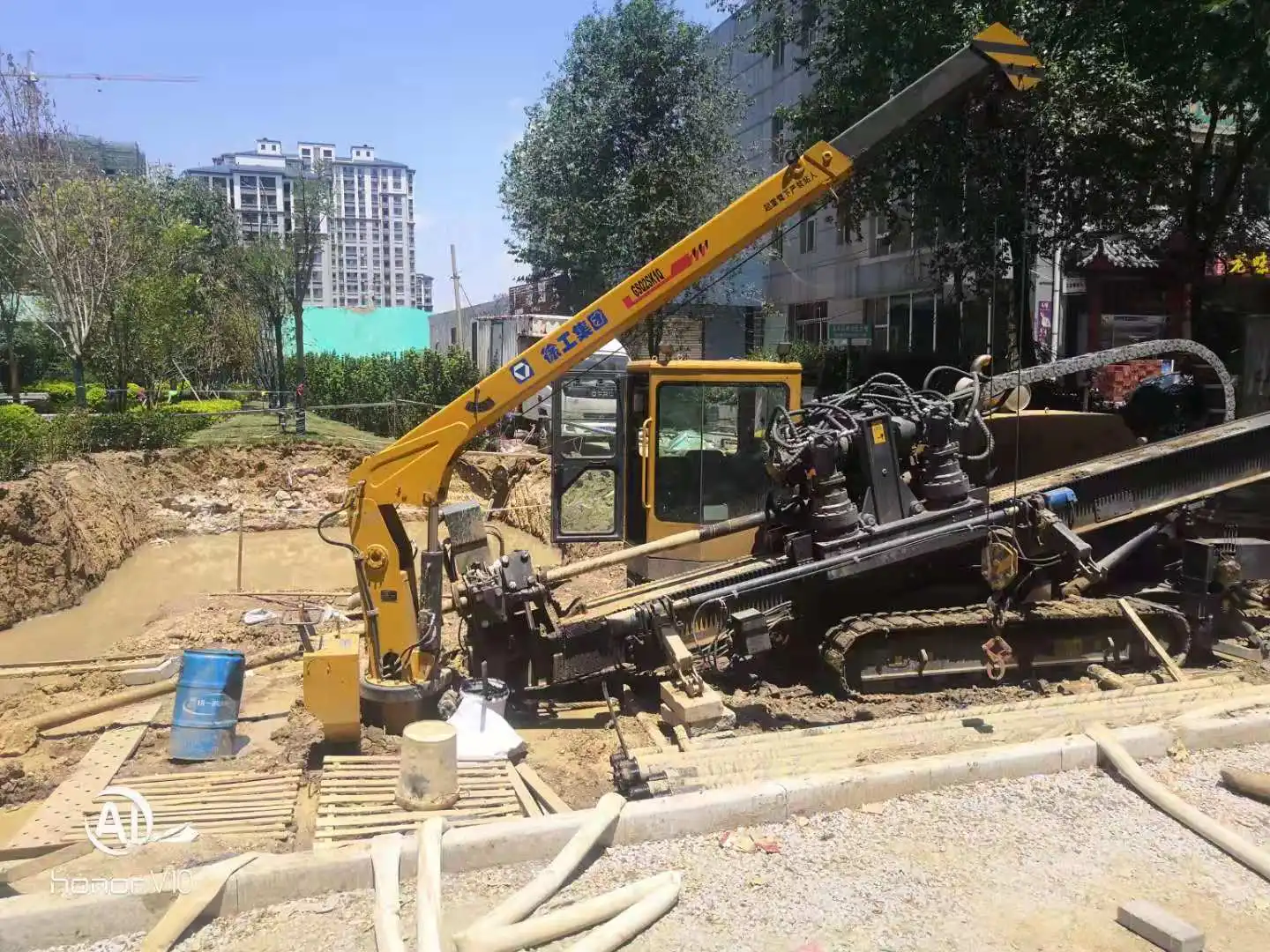

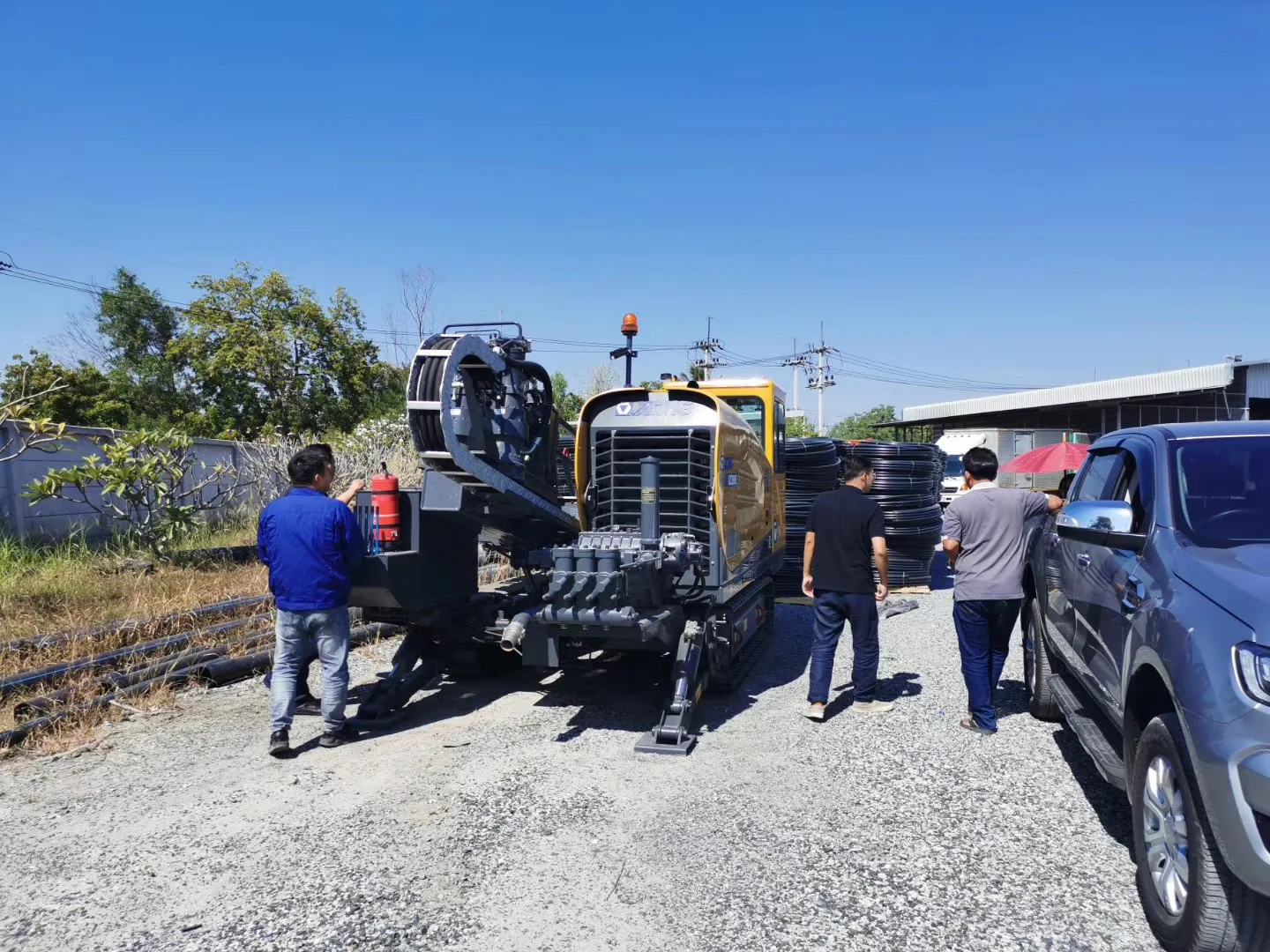

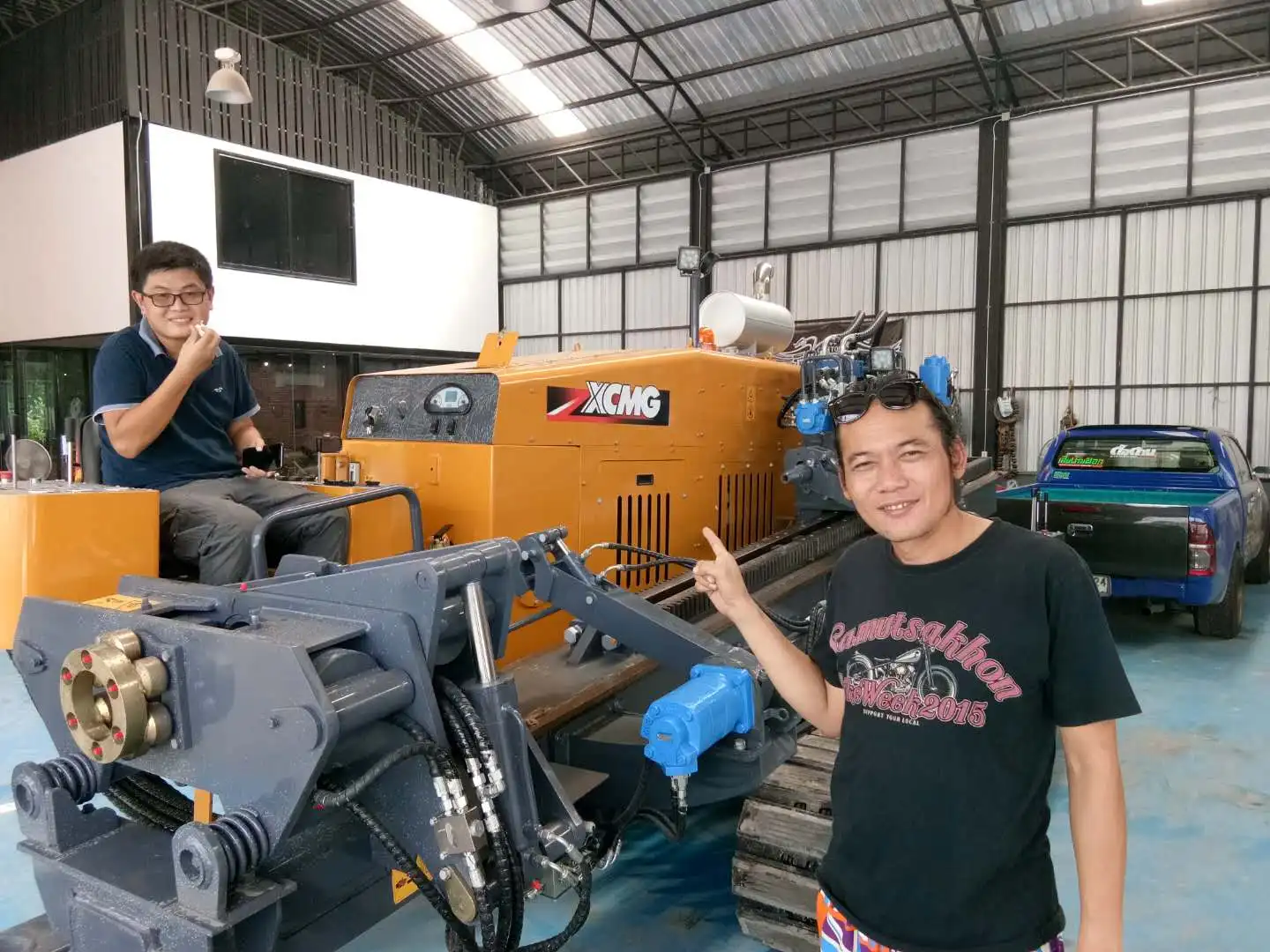

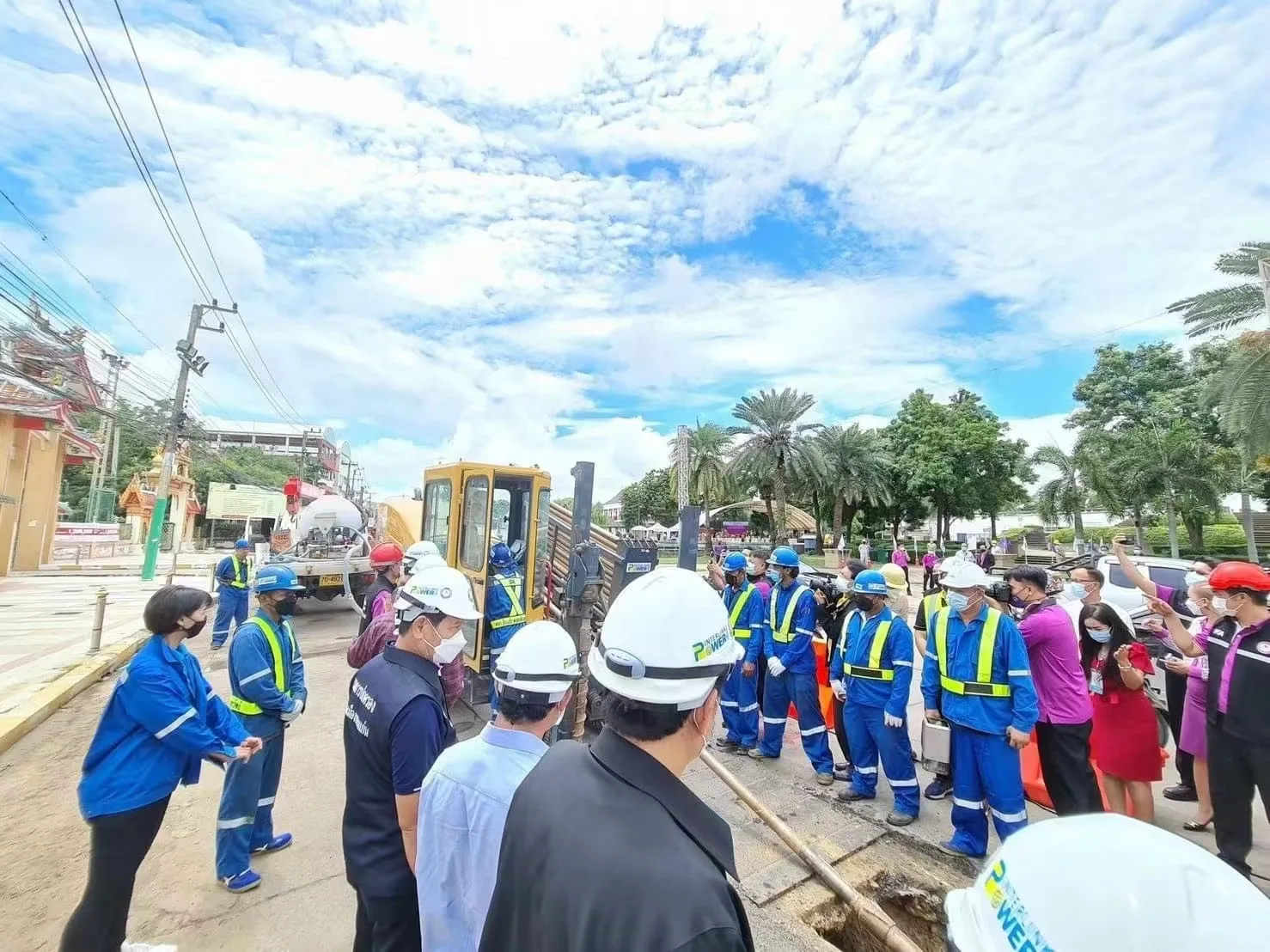

Customer Photos

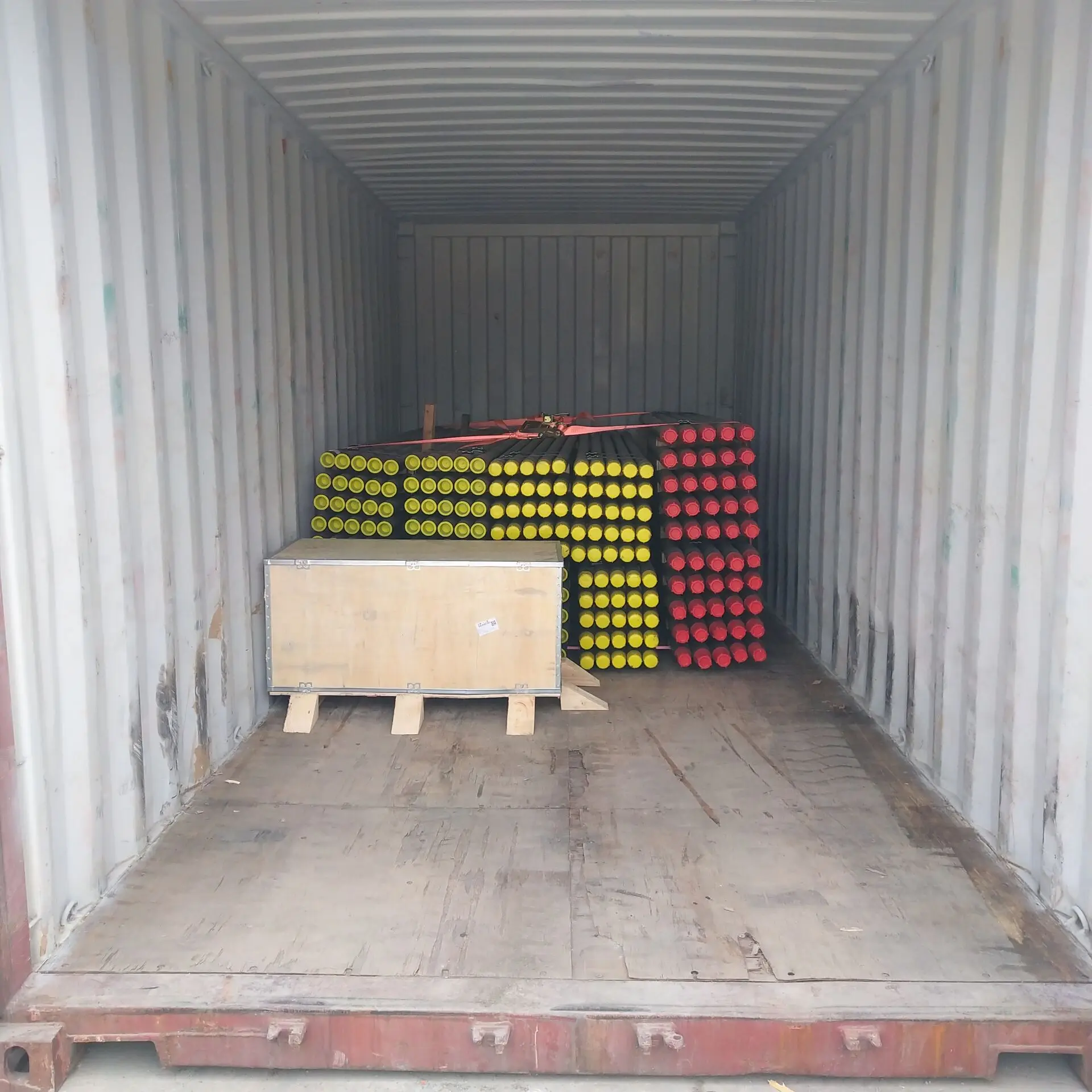

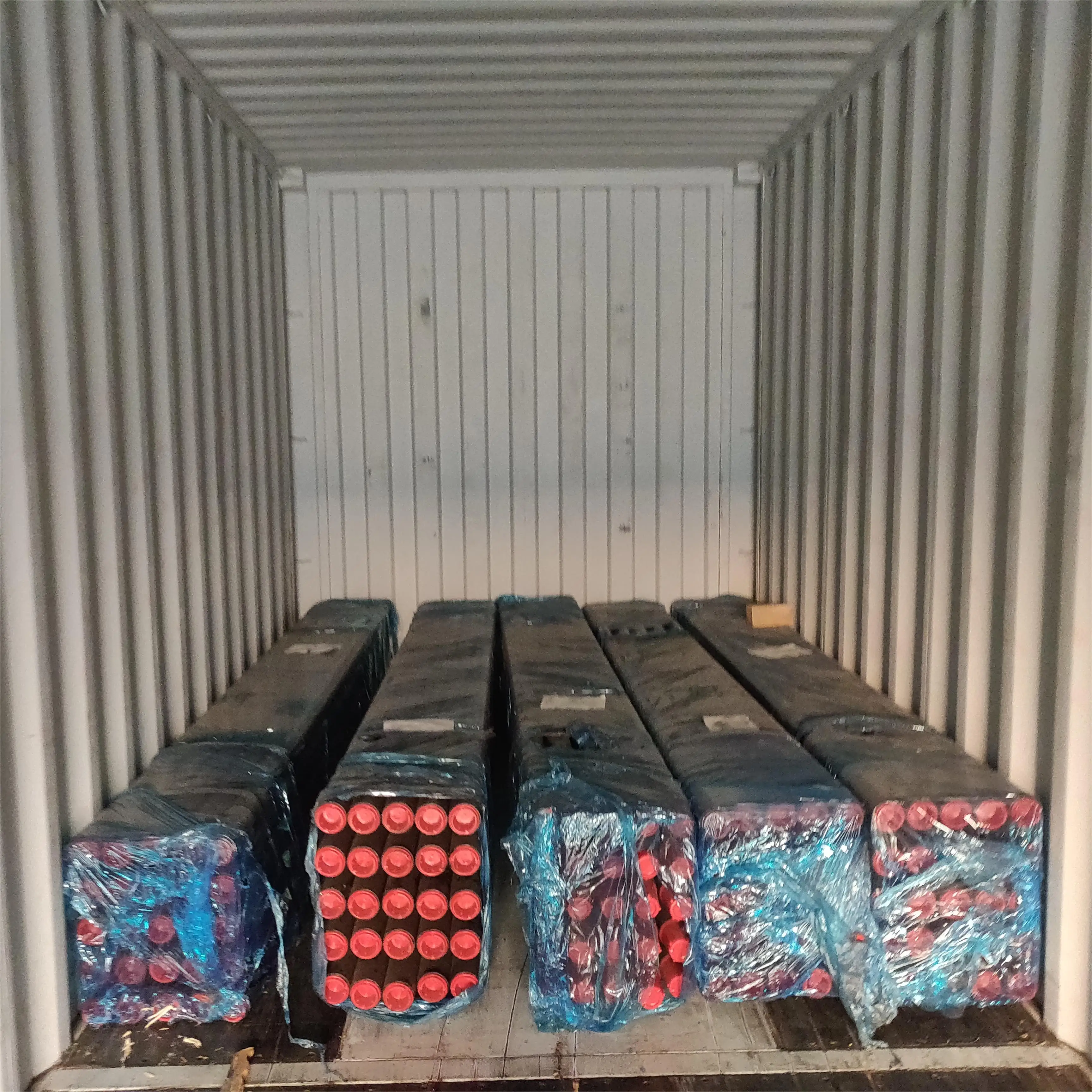

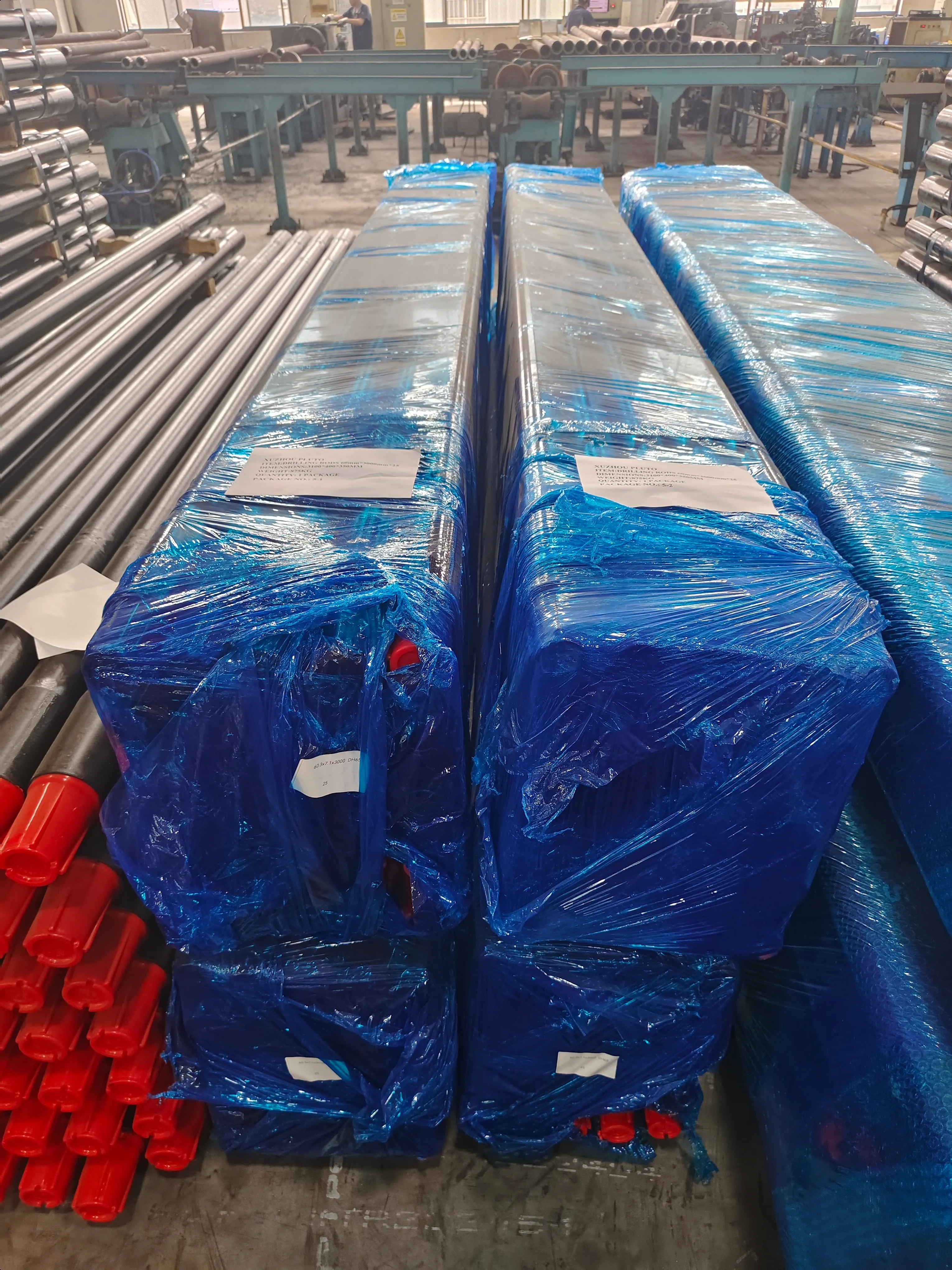

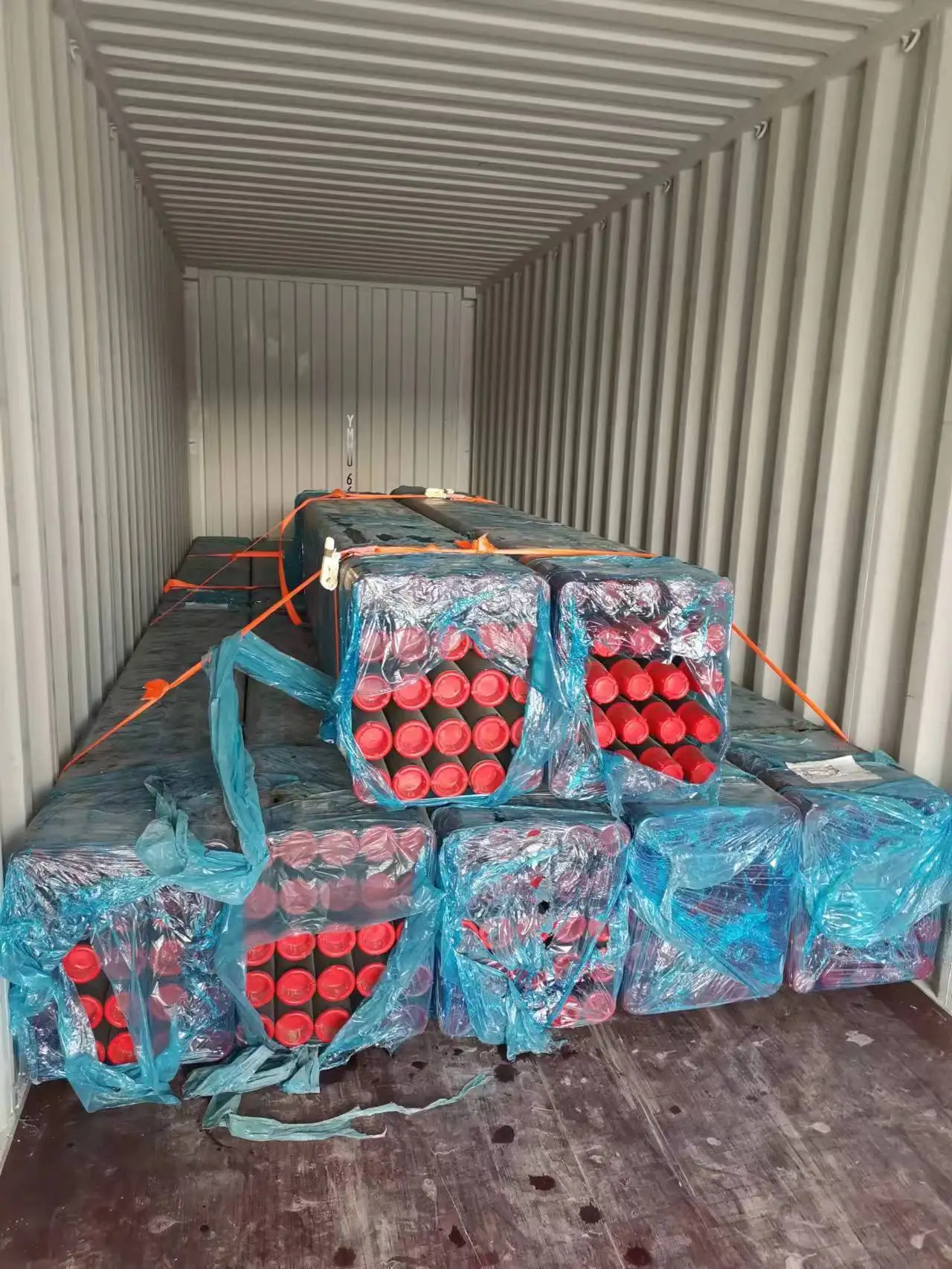

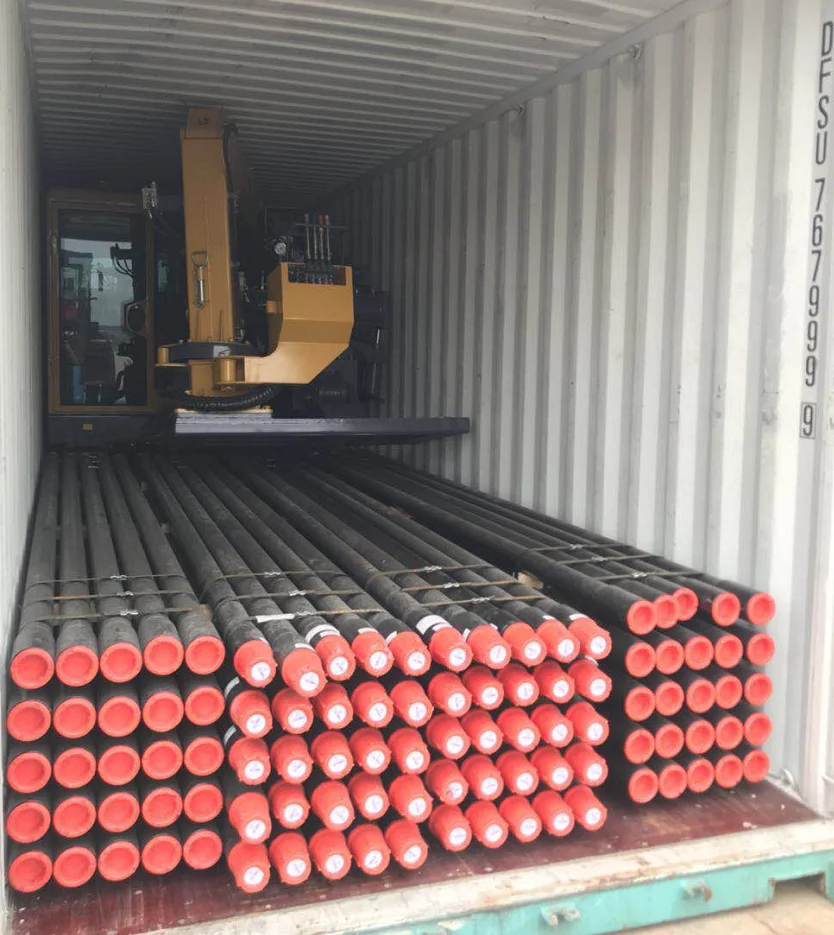

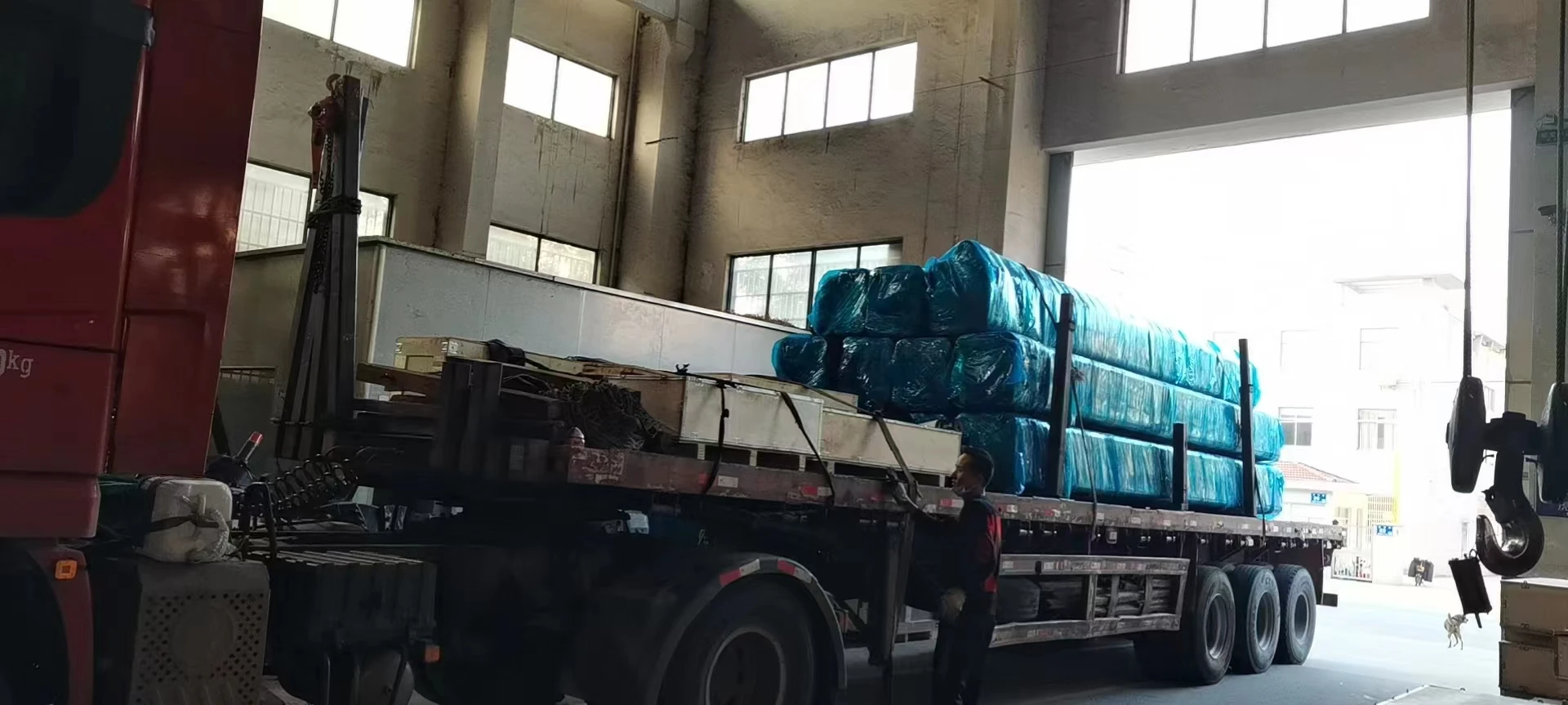

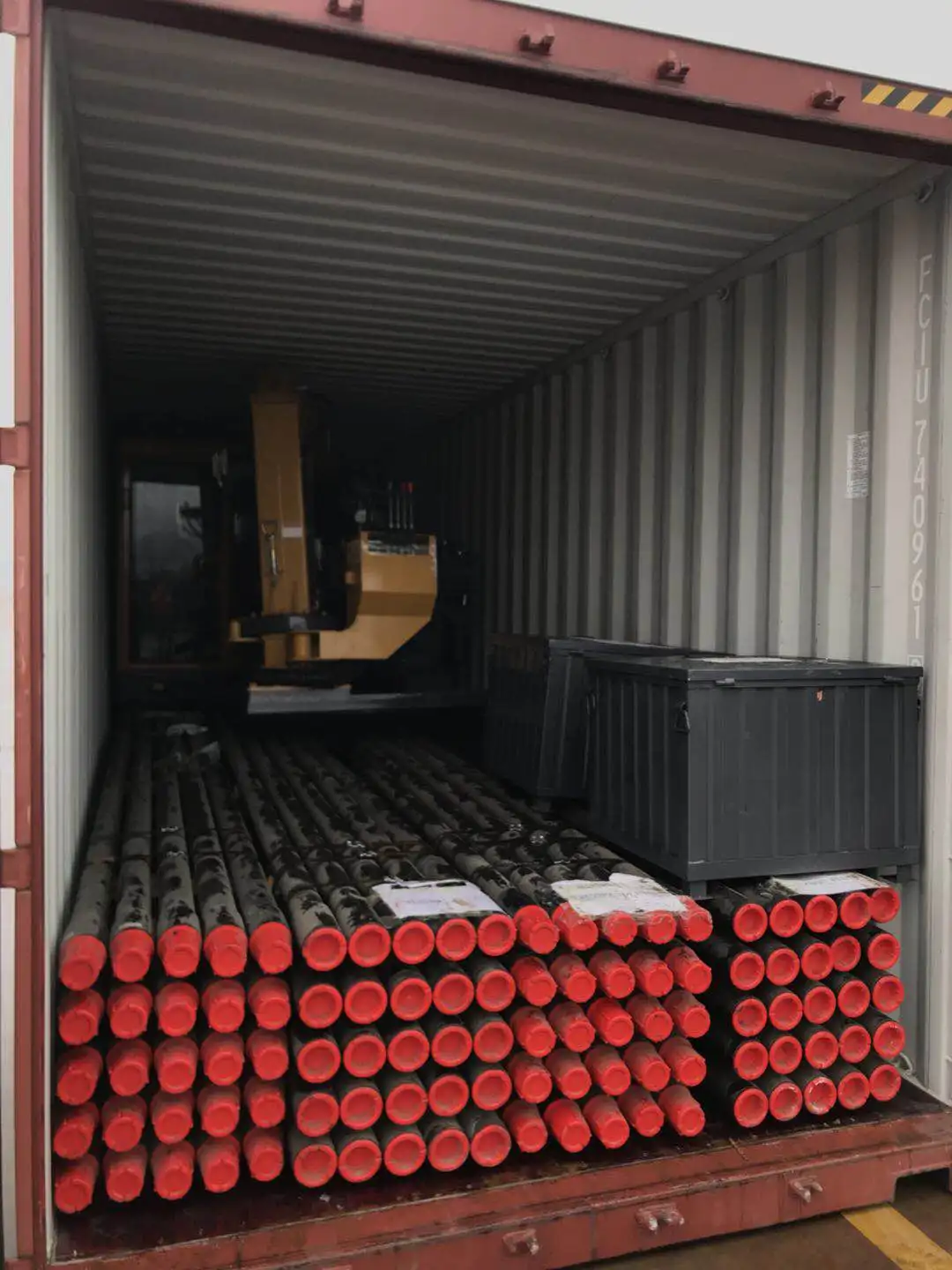

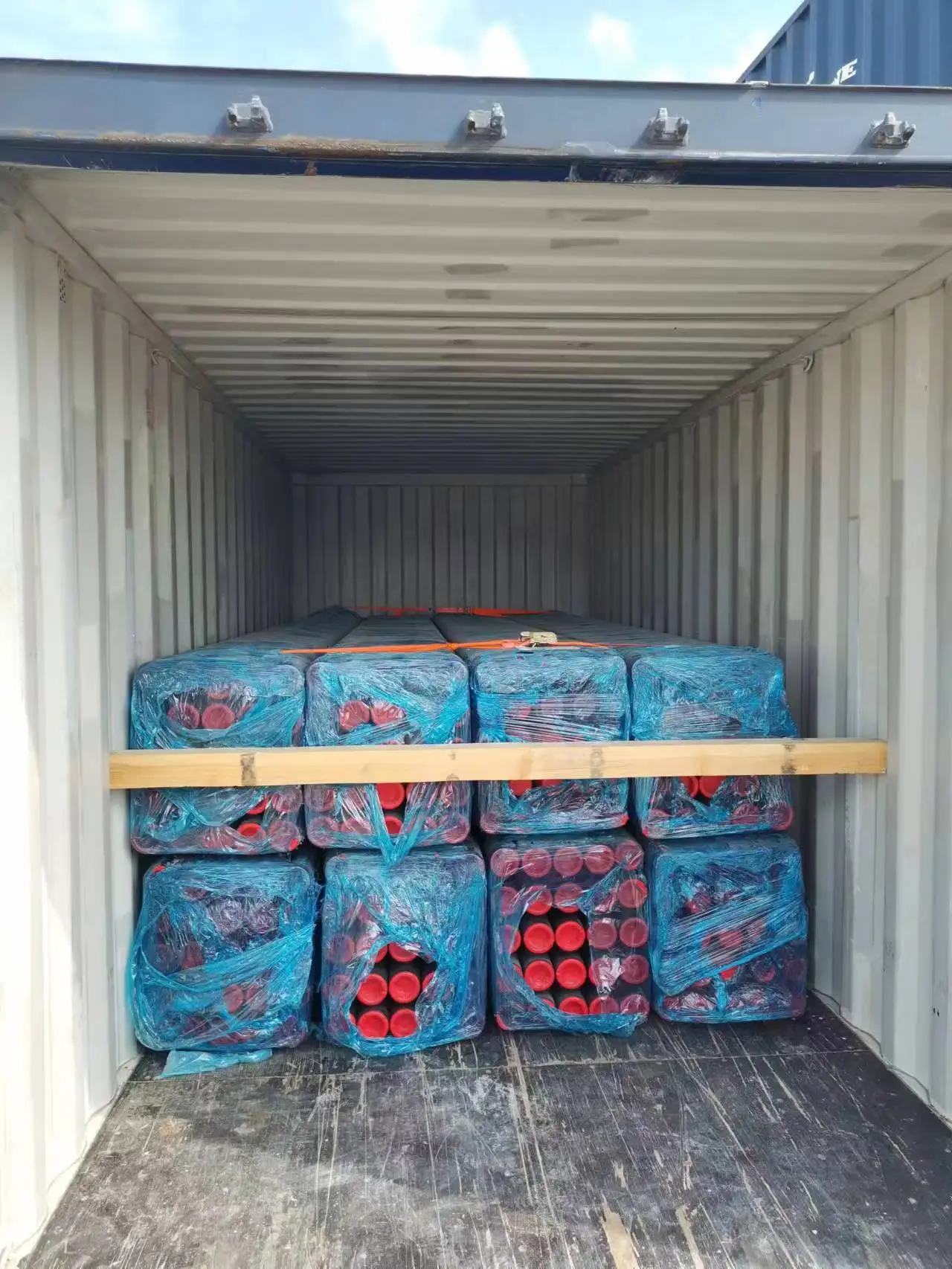

Product packaging
FAQ
1.What kind of HDD drill rods can we provide?
Ans.: We provide customized services for all HDD drill rods,like XCMG,VERMEER, DITCHWITCH, CASE etc.
Pls provide us with details of drill rods, such as HDD machine brand, the length and outer diameter of drill rods.
2.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the drill rods more durable, and our drill rods with competitive price,no matter you are dealers or end user,you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide 12 months warranty time.
4.How about the delivery time ?
Ans: Usually it will take 5 to 7days after receiving your deposit.
About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
5.What payment terms do we accept?
Ans.: 100% TT in advance is very appreciated.
We accept 30% T/T in advance,and 70% balance payment should be paid before delivery;
or 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
Please Contact Us for More Information.
Ans.: We provide customized services for all HDD drill rods,like XCMG,VERMEER, DITCHWITCH, CASE etc.
Pls provide us with details of drill rods, such as HDD machine brand, the length and outer diameter of drill rods.
2.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the drill rods more durable, and our drill rods with competitive price,no matter you are dealers or end user,you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide 12 months warranty time.
4.How about the delivery time ?
Ans: Usually it will take 5 to 7days after receiving your deposit.
About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
5.What payment terms do we accept?
Ans.: 100% TT in advance is very appreciated.
We accept 30% T/T in advance,and 70% balance payment should be paid before delivery;
or 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
Please Contact Us for More Information.
