roject | content | Remarks | ||

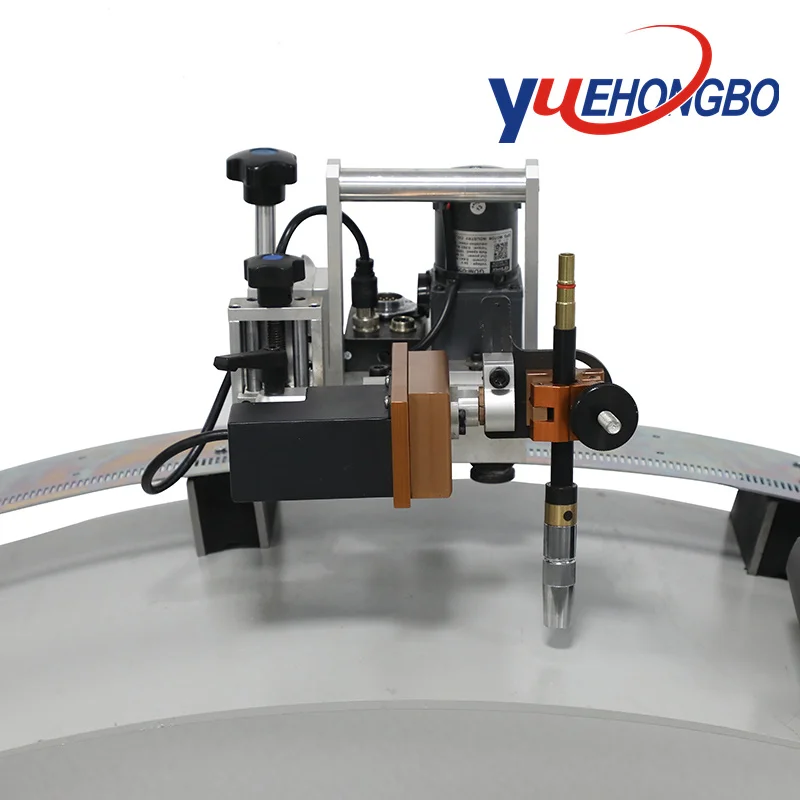

Small car | source | AC 220V, 50/60Hz | Optional: 24V lithium battery power supply | |
External dimensions | 400 x 330 x 320 | L*W*H | ||
weight | 14.6Kg | |||
Driving method | Gear driven | |||
Walking speed | 0-1040mm/min | Digital display | ||
Welding gun adjustment range | Up and down | ± 20mm | ||
around | ± 20mm | |||
Operation angle | 360 ° | |||
Perform angle | ± 90 ° | |||
track | Installation form | Magnetic detachable type | ||
External dimensions | 1800 x 110 x 1.8 | Length * width * height MM | ||
material quality | Elastic steel strip | 1.8 meters * 2 | ||
Track weight | 31Kg | Including magnets | ||
swing parameter | swing speed | 0-1520mm/min | ||
Swing amplitude | ± 20mm | |||
Left and right dwell time | 0-2s | |||
Center position | ± 5mm |
