1200*600*6mm Underfloor Insulation XPS Tile Backer Board
US $1.00-$30.00
50mm thick polystyrene sheets XPS foam extruded xps polystyrene insulation board roofing material
- Category: >>>
- Supplier: Shandong Blosam New Material Co. Ltd.
Share on (1601258335080):
Product Overview
Description
Products Description
Product Description

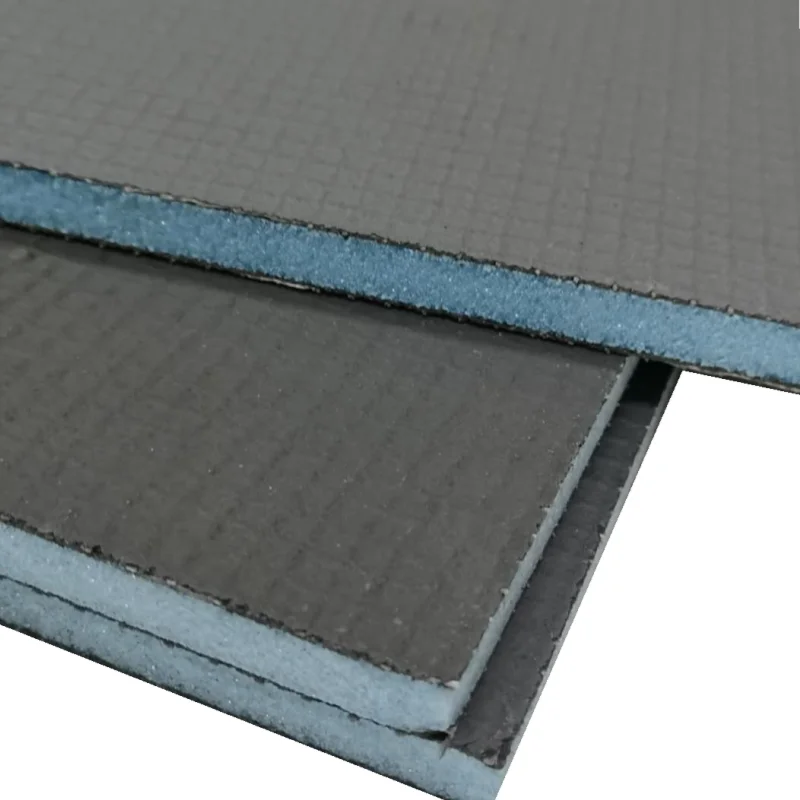

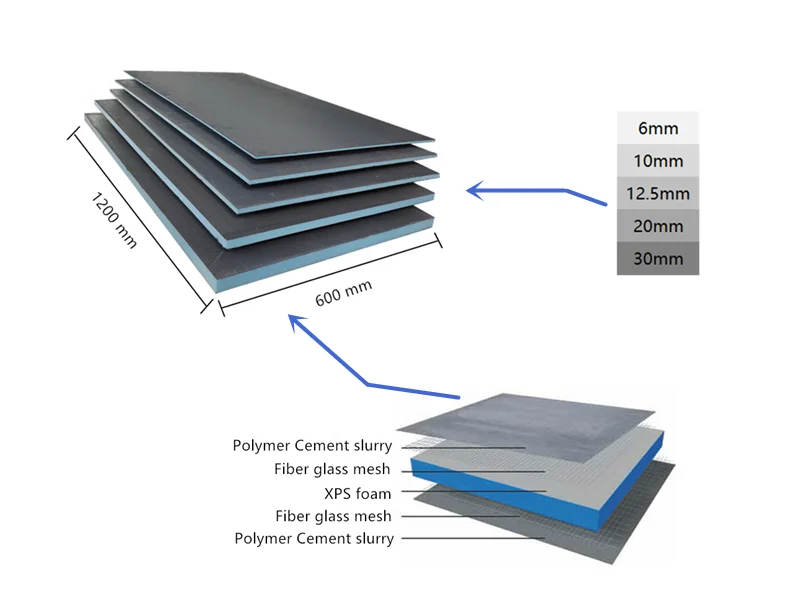

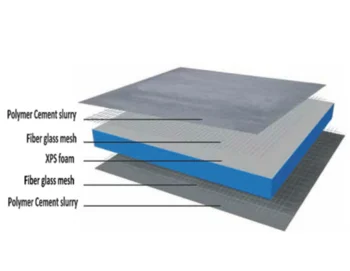

Blosam Tile Backer Board consists of a blue core made from extruded polystyrene rigid foam. The rigid foam is reinforced with
glass fibre (with alkali-resistant finish) on both sides and coated with a polymer-modified cement. This core is 100% waterproof
and remains fully functional even after possible damage.
Blosam Tile Backer Board is suitable for a wide range of applications, thanks to it's special properties.
Blosam Tile Backer Board is primarily used as a carrying element for laying tiles, slabs and natural stone floor coverings using
the thin-bed method. It can also be used as an adhesive surface for applying plaster, tile adhesive and other materials.
Blosam Tile Backer Board offers excellent moisture protection, effective heat insulation, and can be used in countless ways as a
design element in any tiling installation.
Blosam Tile Backer Board is approved for interior use in rooms at a normal temperature. Contact Blosam on the application method
for special applications (swimming pools, cold stores, external areas etc.). Blosam Tile Backer Boards are approved for use on
floors in rooms with an ordinary residential load. Wheeled loads with high concentrated loads are not permitted.
Blosam Tile Backer Board is also available in two different versions – Blosam Construct Building Board has pre-cut grooves either
lengthwise or width-wise in the board to allow you to create curved walls and other interior features.

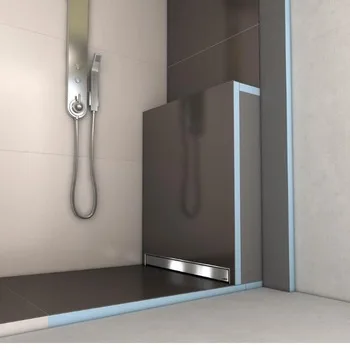

The Blosam Vapor Building Board is specifically designed for use in areas with constant high humidity, such as swimming pools,
steam rooms, spas, wellness suites, etc. It differs from the standard Blosam Tile Backer Board by using a special cement coating
on both sides of the boards and a vapour barrier on one side.
Blosam Tile Backer Board can be fitted on almost any surface, and is waterproof, heat-insulating, versatile, lightweight,
dimension ally stable and quick to process.
glass fibre (with alkali-resistant finish) on both sides and coated with a polymer-modified cement. This core is 100% waterproof
and remains fully functional even after possible damage.
Blosam Tile Backer Board is suitable for a wide range of applications, thanks to it's special properties.
Blosam Tile Backer Board is primarily used as a carrying element for laying tiles, slabs and natural stone floor coverings using
the thin-bed method. It can also be used as an adhesive surface for applying plaster, tile adhesive and other materials.
Blosam Tile Backer Board offers excellent moisture protection, effective heat insulation, and can be used in countless ways as a
design element in any tiling installation.
Blosam Tile Backer Board is approved for interior use in rooms at a normal temperature. Contact Blosam on the application method
for special applications (swimming pools, cold stores, external areas etc.). Blosam Tile Backer Boards are approved for use on
floors in rooms with an ordinary residential load. Wheeled loads with high concentrated loads are not permitted.
Blosam Tile Backer Board is also available in two different versions – Blosam Construct Building Board has pre-cut grooves either
lengthwise or width-wise in the board to allow you to create curved walls and other interior features.
The Blosam Vapor Building Board is specifically designed for use in areas with constant high humidity, such as swimming pools,
steam rooms, spas, wellness suites, etc. It differs from the standard Blosam Tile Backer Board by using a special cement coating
on both sides of the boards and a vapour barrier on one side.
Blosam Tile Backer Board can be fitted on almost any surface, and is waterproof, heat-insulating, versatile, lightweight,
dimension ally stable and quick to process.
Feature
1. 100% waterproof, made of HCFC-FREE XPS foam
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
Product Paramenters
Products Sizes (can be customized) | ||||||
Thickness(mm) | Width&Length(mm) | Weight(kg/㎡) | Packing | |||
6 | 600*1200 | 2.7 | 10pcs/ctn | |||
10 | 600*1200/2500 | 2.9 | 10pcs/ctn | |||
12 | 600*1200/2500 | 3 | 10pcs/ctn | |||
20 | 600*1200/2500 | 3.2 | 10pcs/ctn | |||
30 | 600*1200/2500 | 3.4 | 10pcs/ctn | |||
40 | 600*1200/2500 | 4.3 | 8pcs/ctn | |||
50 | 600*1200/2500 | 4.3 | 6pcs/ctn | |||
80 | 600*1200/2500 | 5.7 | 5pcs/ctn | |||
Technical Data | Extruded Polystyrene XPS fireproof insulation Board for Floor |
Property | Ratings |
Density | 36kg/m3 |
Thermal Conductivity | 《0.035 w/ (m＊k) |
Compressive strength (10% deflection) | Minimum of 0.25 N/mm2 |
Flextural strength | 2.05N |
Water absorbtion(2-day immersion) | 《1% |
Water absorbtion(Capillary) | Zero |
Coefficient of liner expansion | |
Water vapor diffusion resistivity (∪) | 110-225u |
Water vapour permeability | 0.028ng/pa.m.s |
EU Controlled substances content |

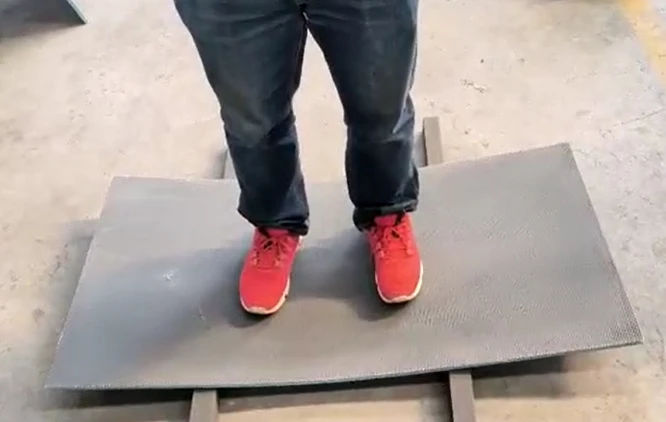

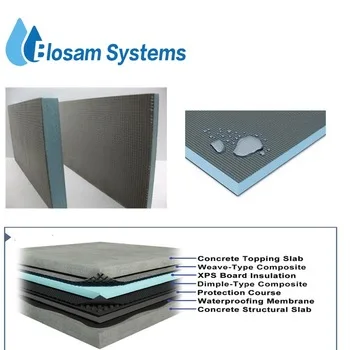

Detailed Image

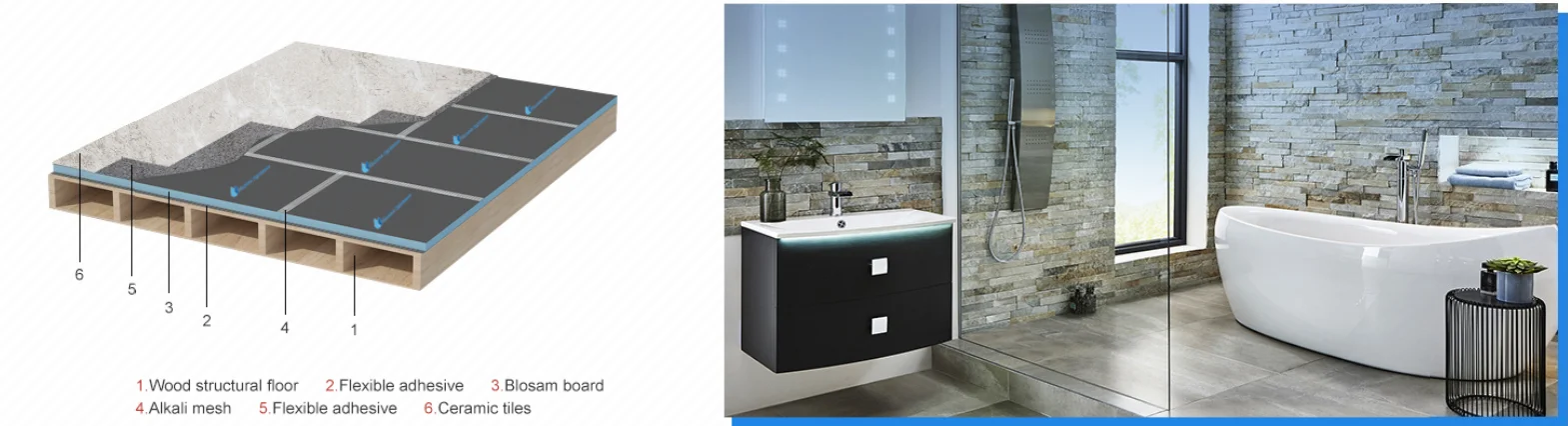

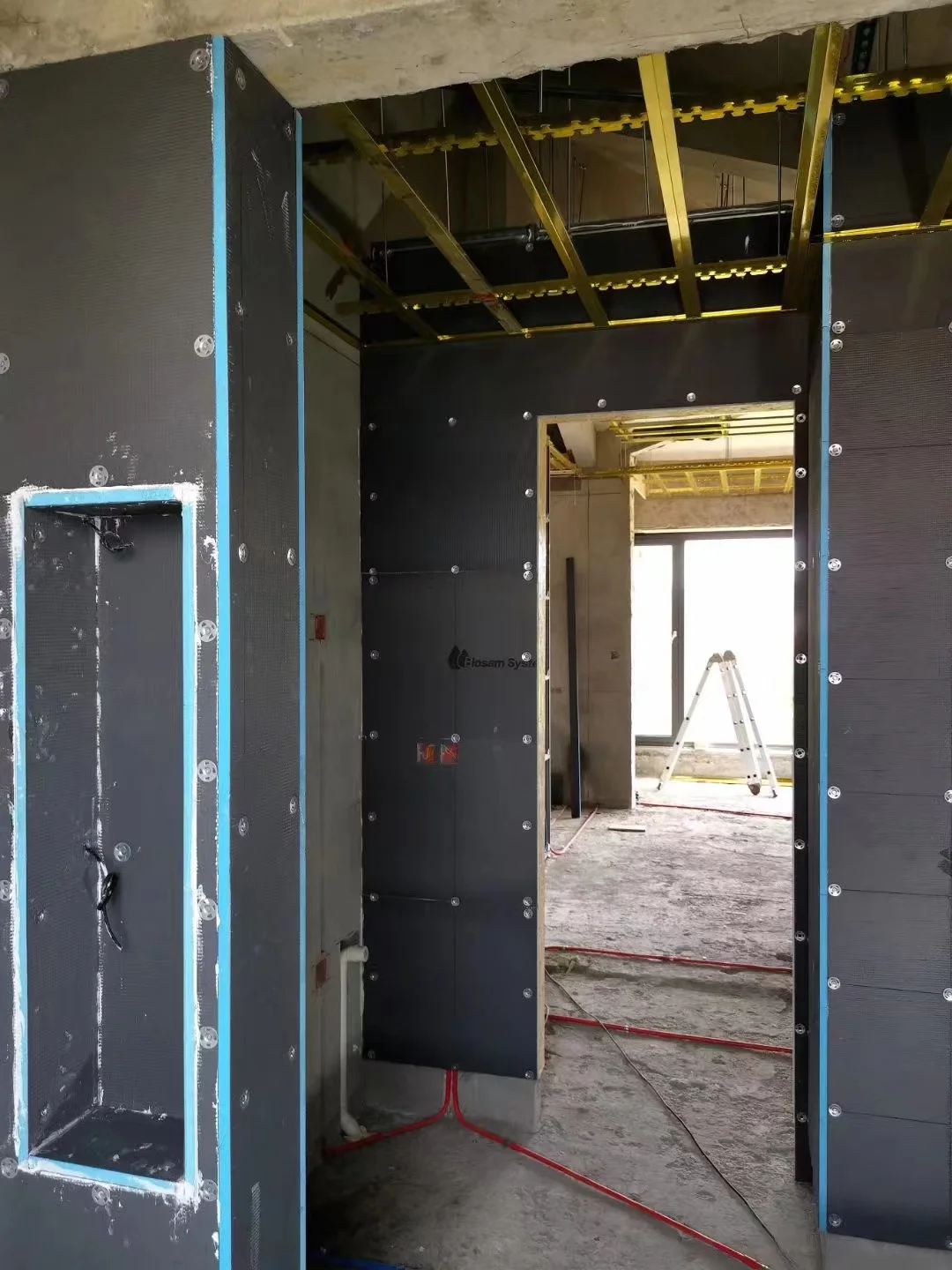

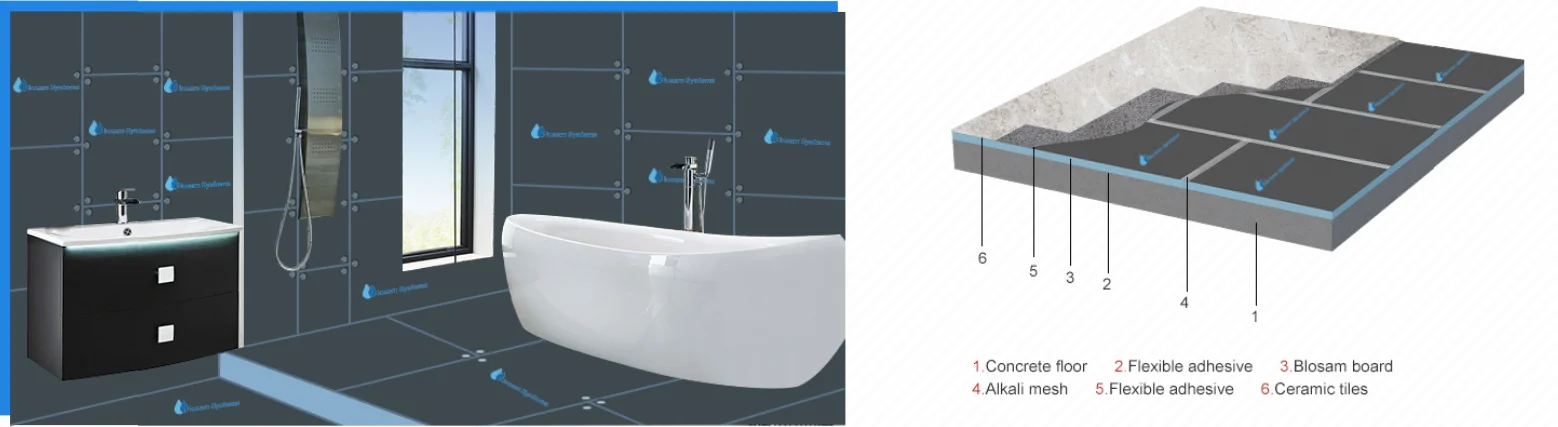

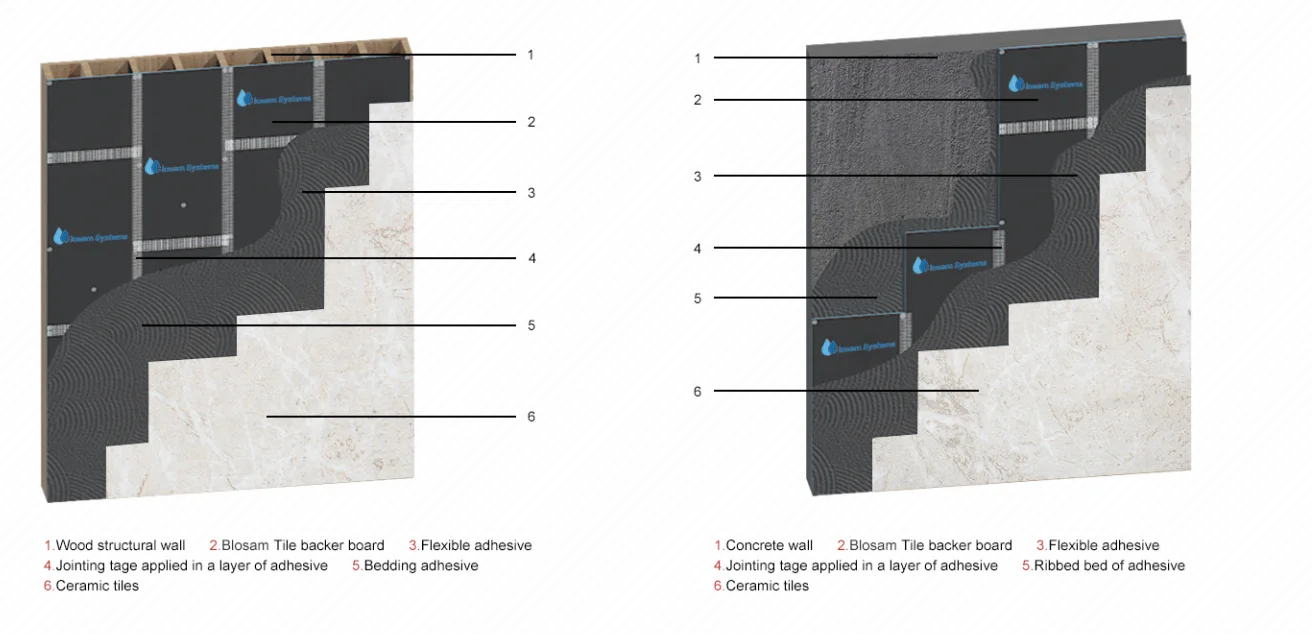

Product installation

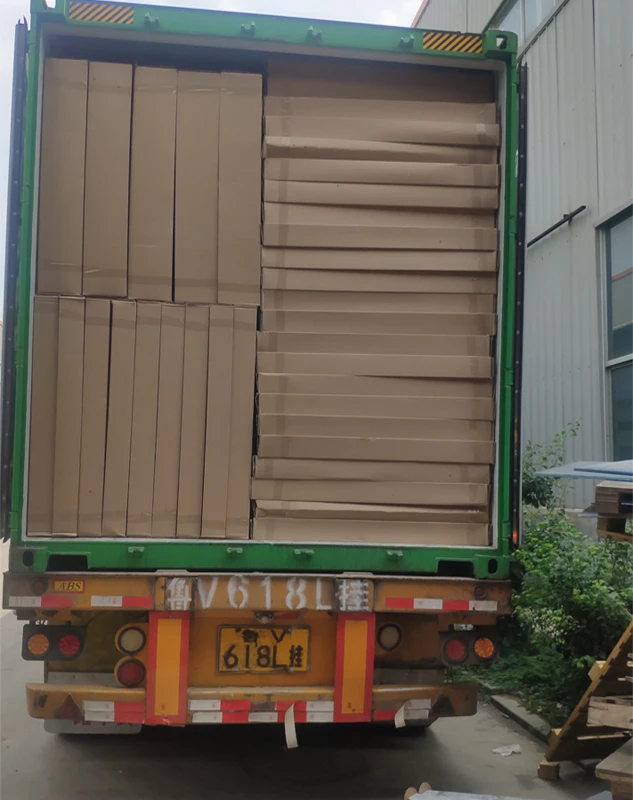

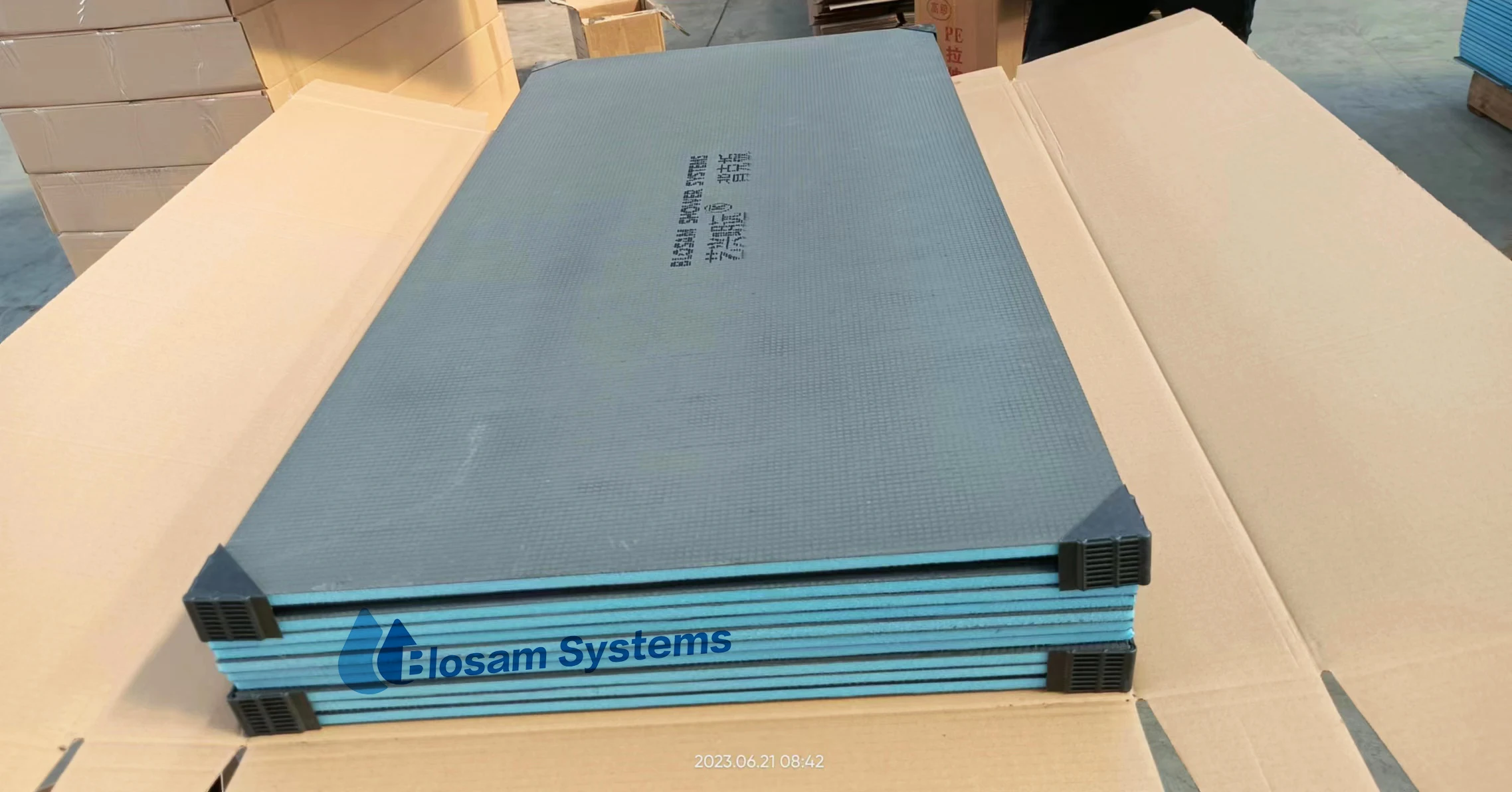

Product packaging

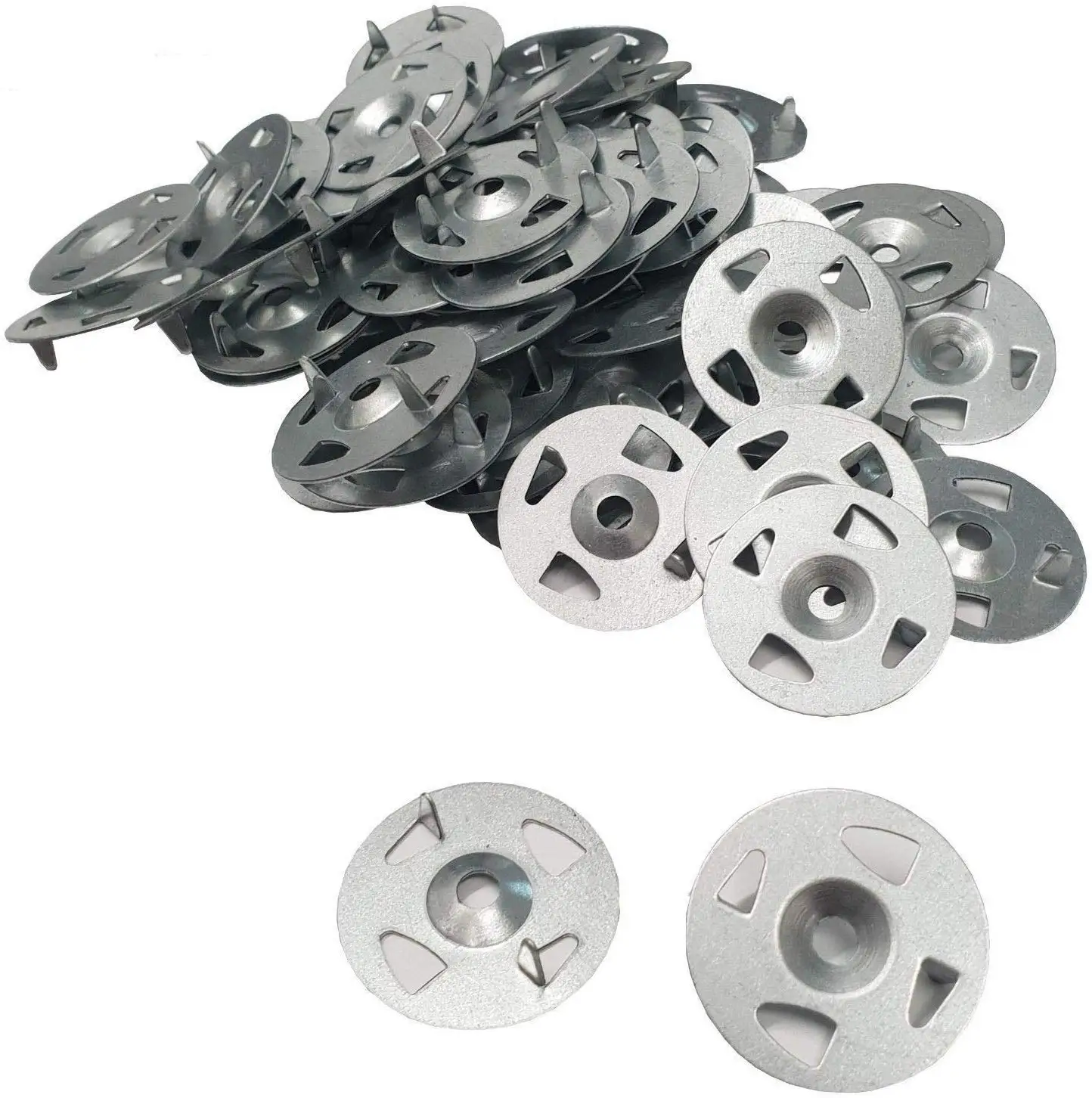

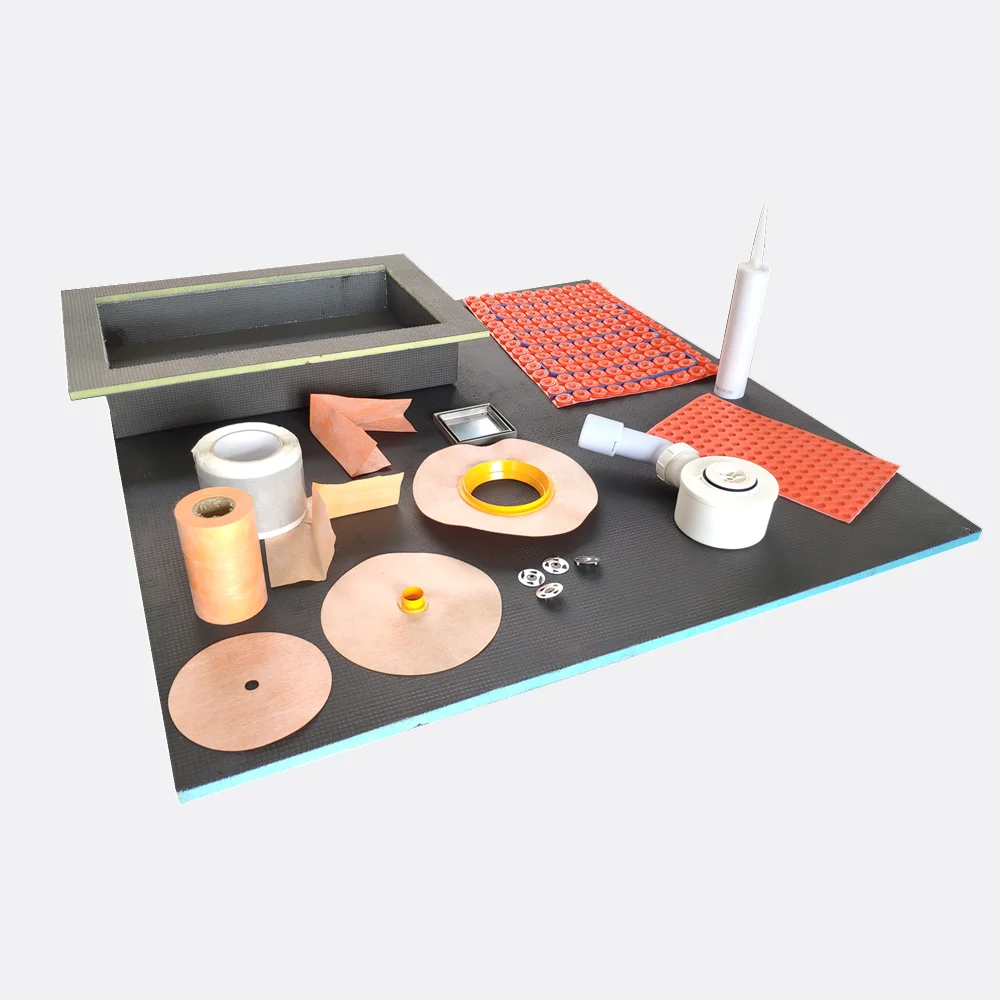

Accessories
Related Products
FAQ
Underfloor Heating Insulation Cement Coated Tile Backer Board 6mm
1. Could you develop some certain product with tile backer board and shower tray for us?
Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us.
2. Do you have any product certification for your tile backer board and shower tray ?
Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and
IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together.
3. How is your production time ?
Answer: Normally it take 15-25 days and it vary according to the product quantity.
4. How many countries and areas have your product shipped?
Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden,
Republic of Lithuania etc.
5. Do you provide OEM/ODM service?
Answer: Yes, we could produce the product with private labeled.
ATTENTION
Fixing

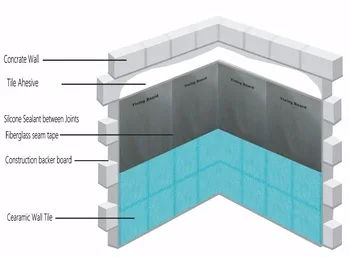

Choose a way to fix our boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid
concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel
frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
1. Could you develop some certain product with tile backer board and shower tray for us?
Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us.
2. Do you have any product certification for your tile backer board and shower tray ?
Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and
IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together.
3. How is your production time ?
Answer: Normally it take 15-25 days and it vary according to the product quantity.
4. How many countries and areas have your product shipped?
Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden,
Republic of Lithuania etc.
5. Do you provide OEM/ODM service?
Answer: Yes, we could produce the product with private labeled.
ATTENTION
Fixing
Choose a way to fix our boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid
concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel
frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
We do OEM as well. Welcome to make an enquiry and we will give you quick response in 12 hours!
