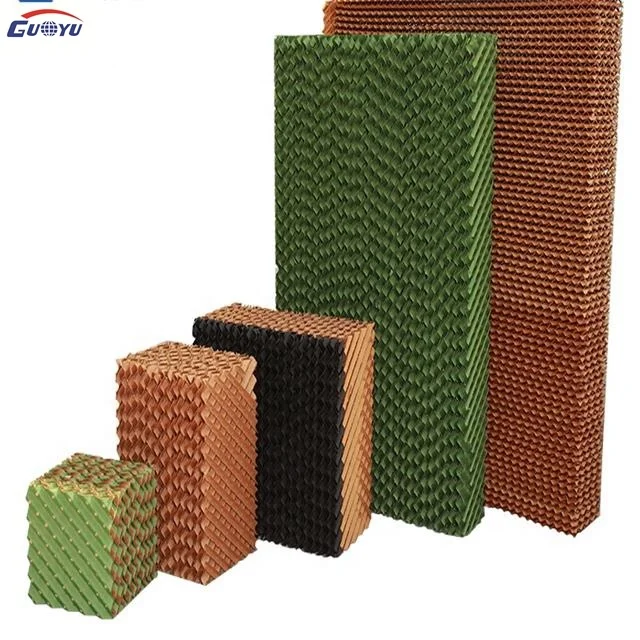

Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems
Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems
Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems
Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems
Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems
Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems
Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems

Raw material paper cooling pad wet curtain evaporative cooling pad and fan greenhouse cooling systems

Share on (1601258446700):


Price:$80.00

Quantity:


Product Overview

Description



PRODUCT SPECIFICATIONS





GUOYU Evaporative cooling pad s mainly used for ventilation and cooling in chicken farms, pig farms, greenhouses, factories, etc.


Parameters




Cooling Pad Parameter

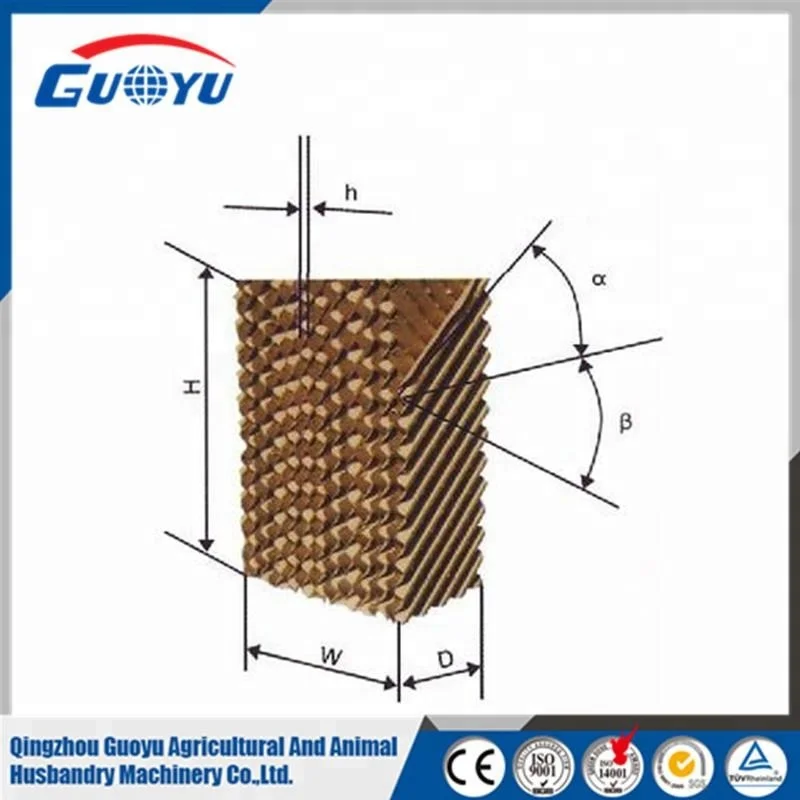

H: high    W: width    D: depth    h: wave heihgt     α°: wave angle      β°: wave angle
Model
7090
5090
7060
H(mm)
1500/1800/2000
1500/1800/2000
1500/1800/2000
W(mm)
600
600
600
D(mm)
100/150
100/150
100/150
h(mm)
7
5
7
α°
45
45
15
 β°
45
45
45

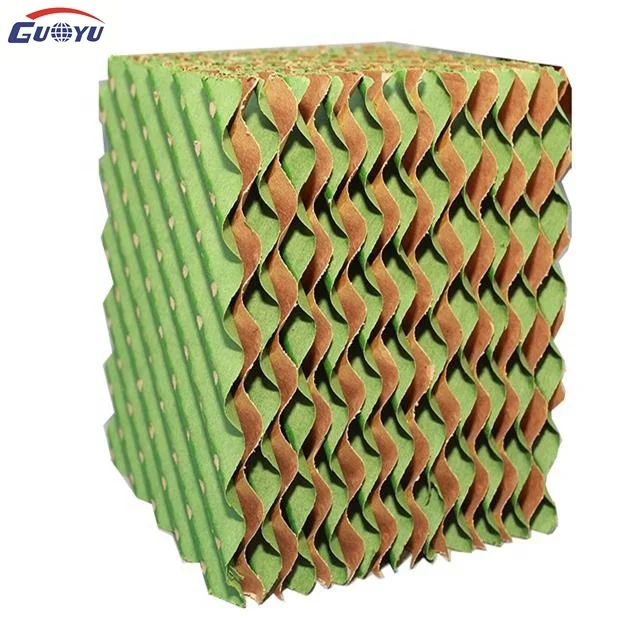

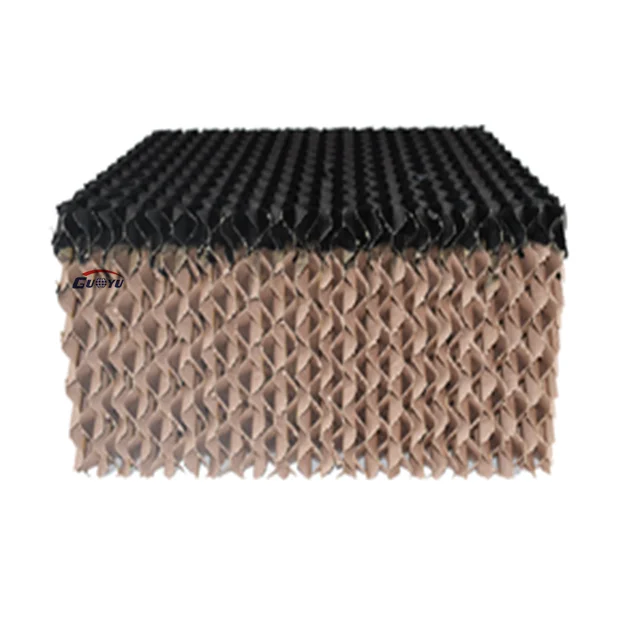

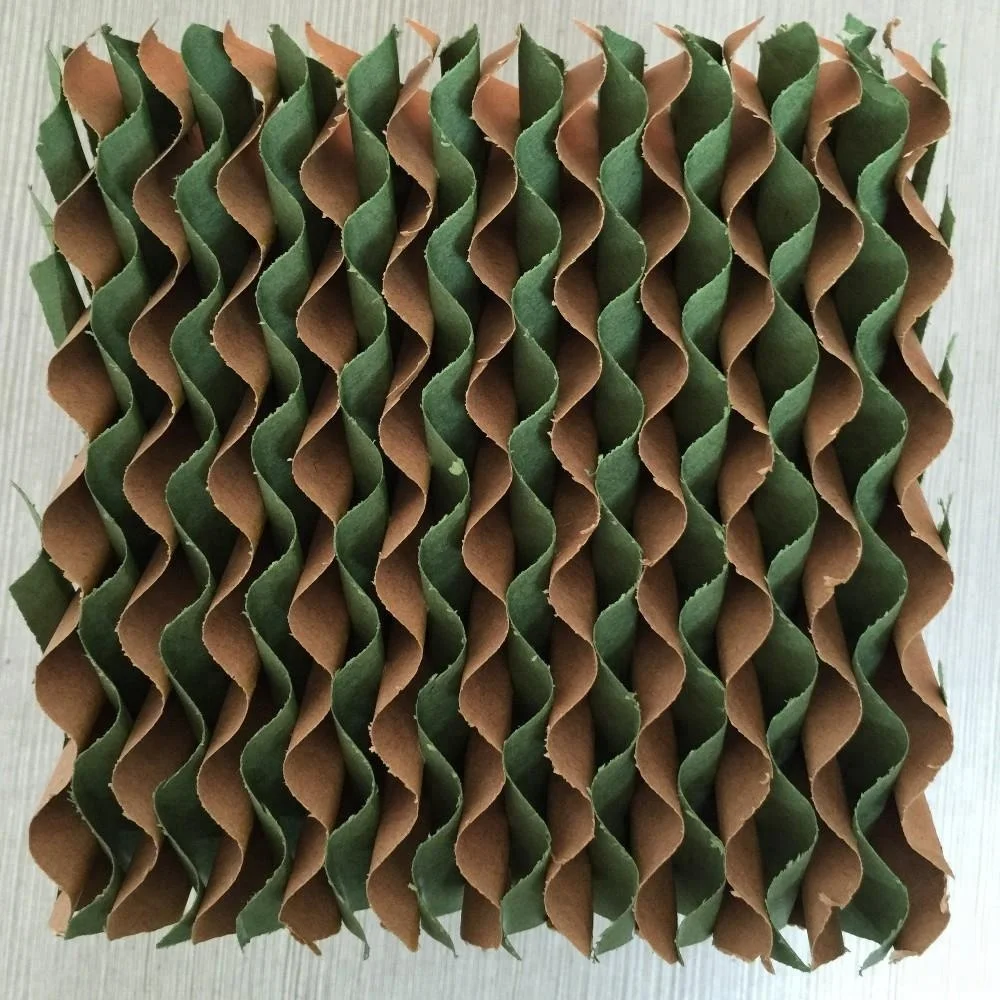

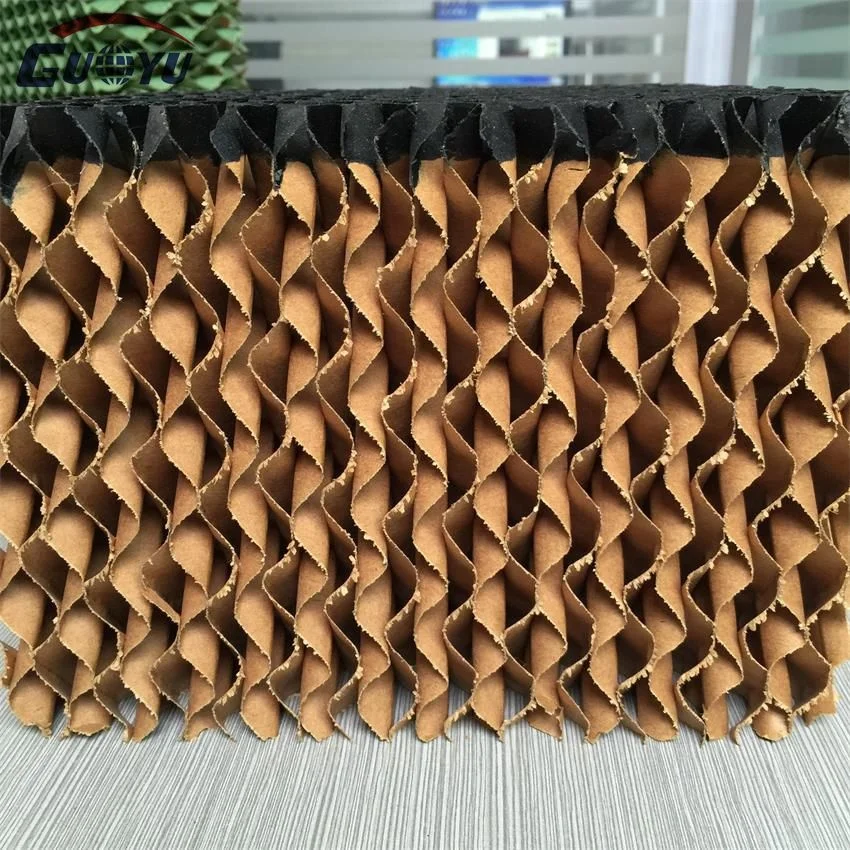

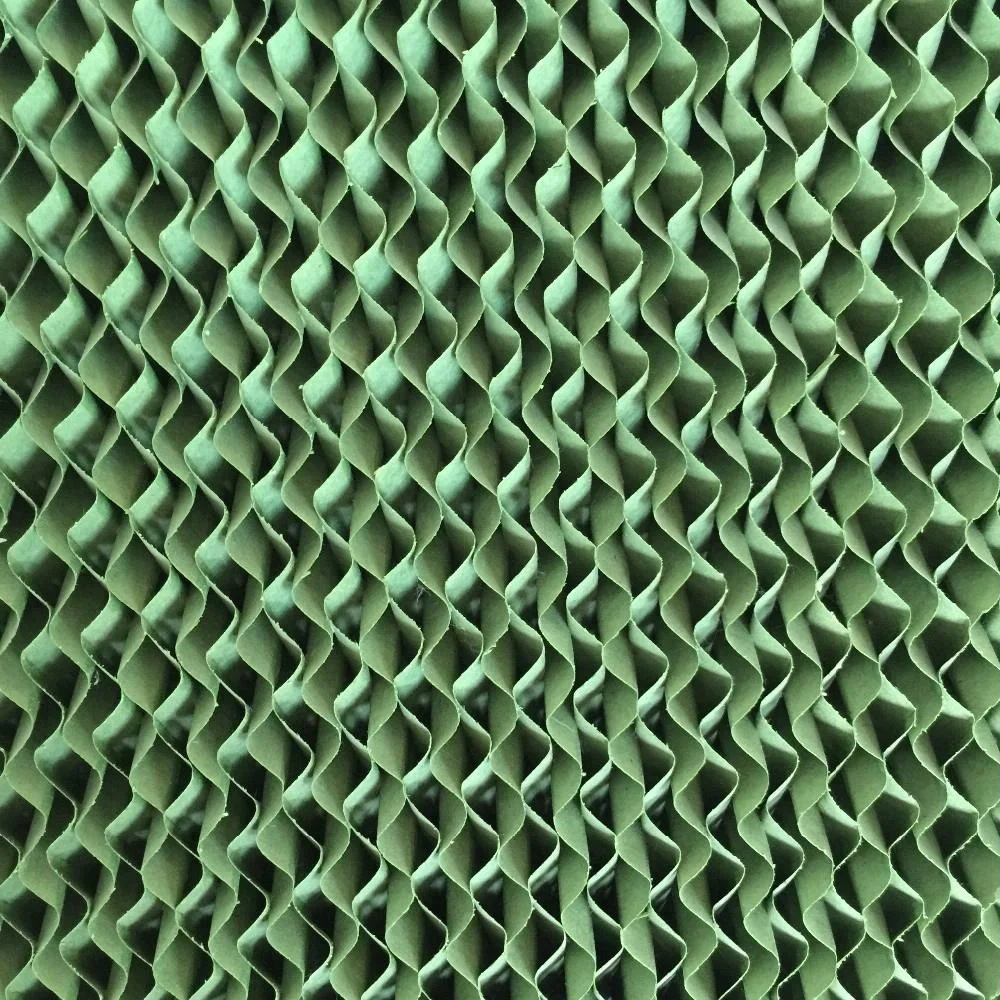

Wet curtain with new materials and space crosslinking technology, high water absorption, high water resistance, mildew resistance,corrosion resistance, long service life



Strictly in accordance with production standards, 600mm width of wet curtain paper quantity of about 85; The raw materials are
imported Kraft paper, 100G/m2, tensile strength 70N, thickness 0.18-0.20 mm, water absorption height 45mm/10min, water content 5%-8% , wet strength 18N




The product contains Surfactant, so the natural absorption and diffusion speed is fast, and the efficiency lasts for a long time.A drop of water can be diffused in 4-5 seconds, and the natural absorption height is 60-70mm5 minutes, 200mm1.5 hours




The product does not contain chemicals such as phenol, which make the skin allergic. It is non-toxic, safe, energy-saving,environment-friendly and economic


Details

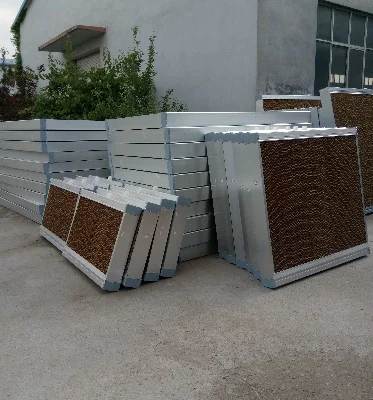

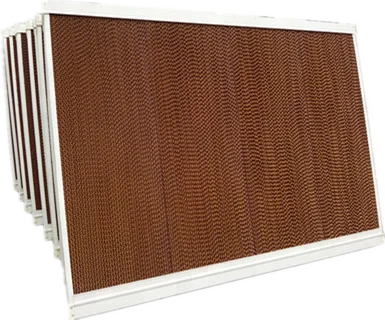

Stainless Steel Frame
Stainless steel frame reliable and strong, with good structural strength and stability, to ensure the stability and durability of wet curtain. Strong corrosion resistance and long service life.
Aluminum Alloy Frame
Aluminum alloy frame wet curtain beautiful and practical, high strength, good weather resistance. After the frame is installed,the water distribution is even, the structure is compact, and there is no leakage.


Galvanized Frame
Galvanized iron frame corrosion resistance, not easy to rust, thus significantly increase its durability, but also reduce the need for corrosion and maintenance work.

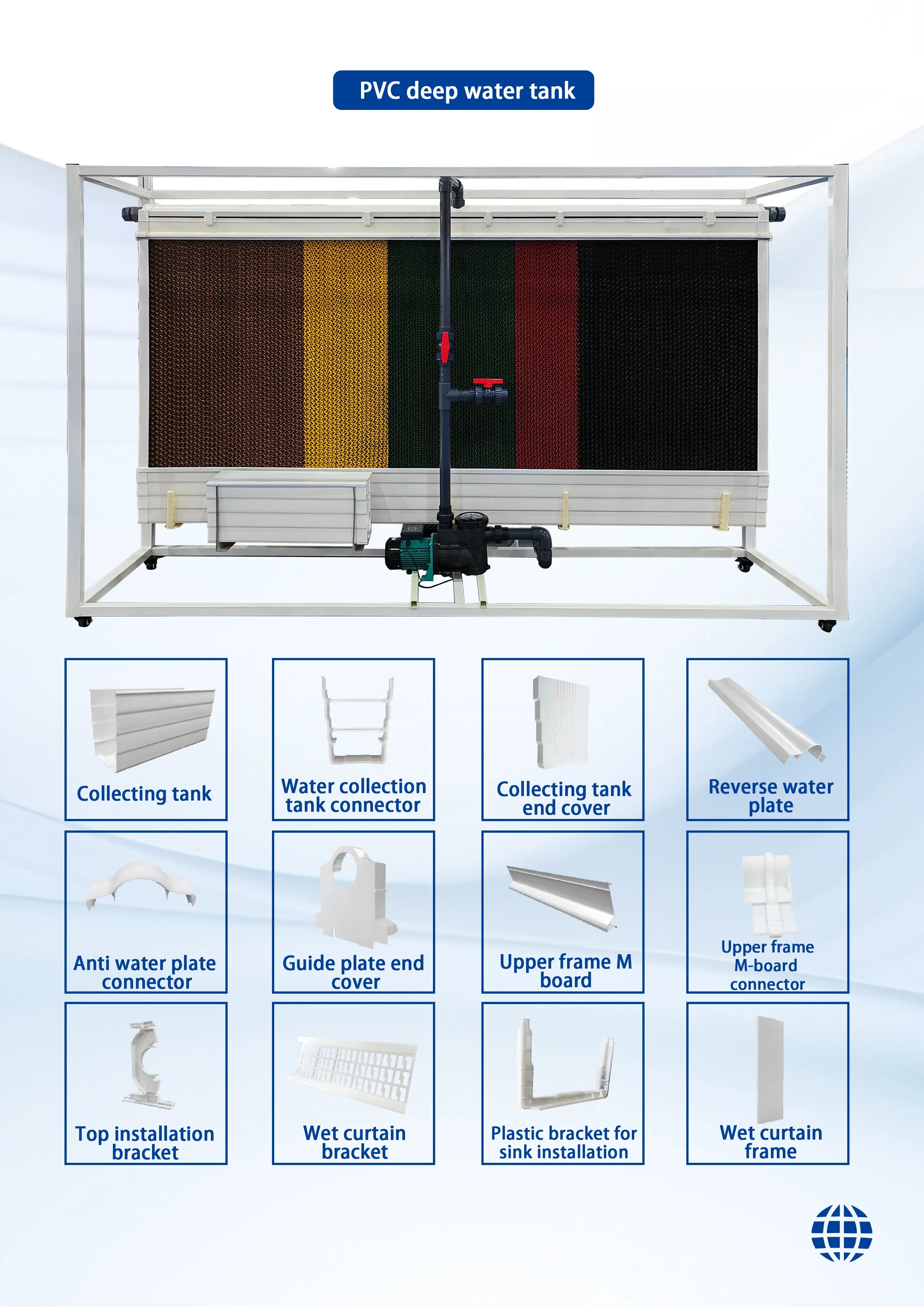

Mounting Bracket
Plastic steel frame with good stability and weatherability, smooth surface, not easy to absorb dust clean and easy maintenance, “Can save the user's time and energy”.

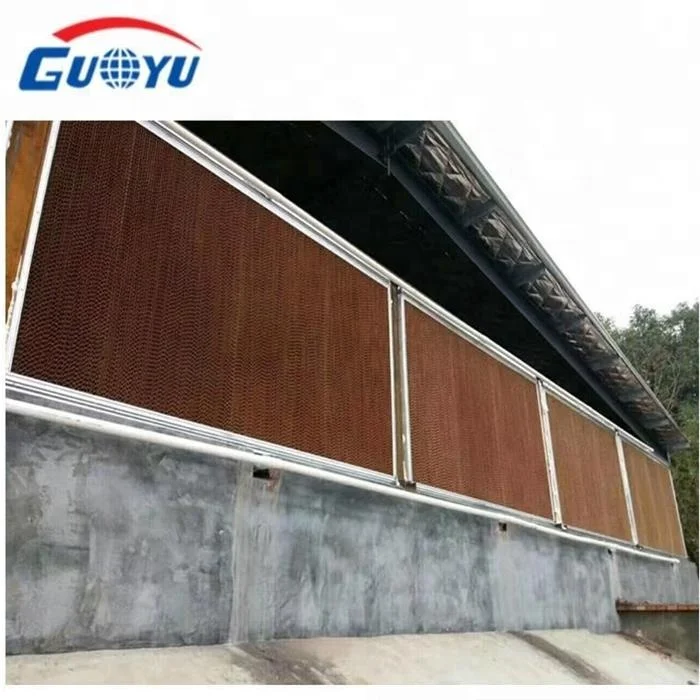

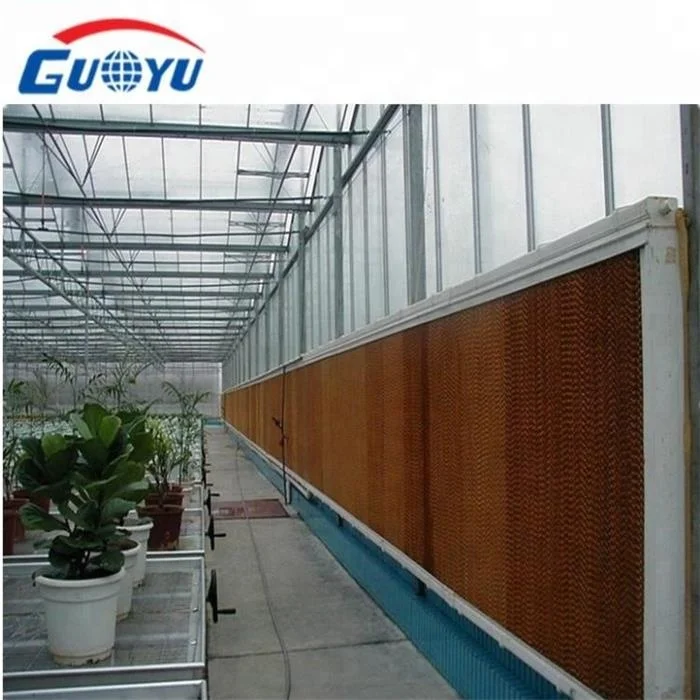

Installation Site

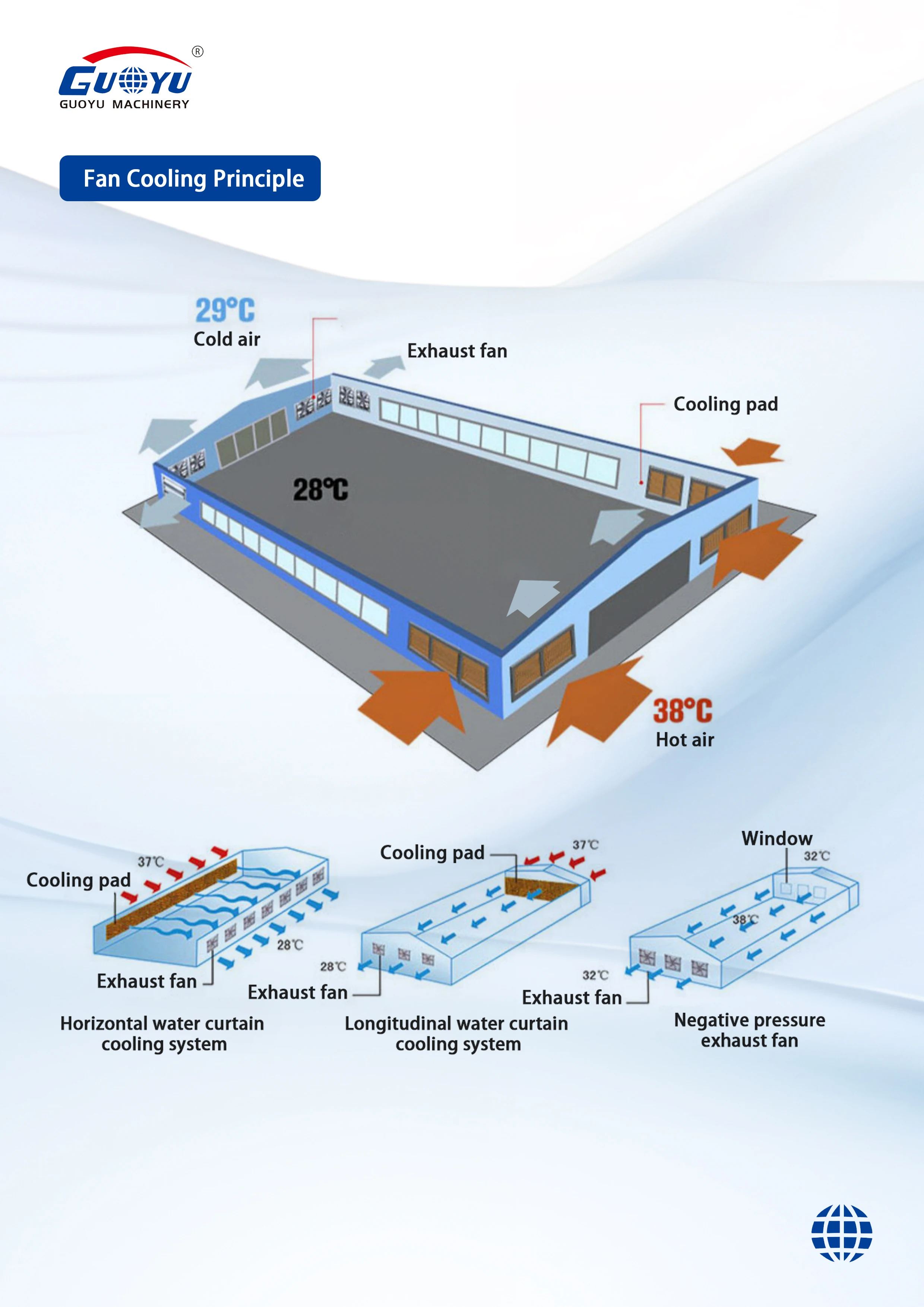

Installation Diagram




Pay attention


Pay attention to wet curtains
As the temperature rises, layer farming gradually into the water curtain cooling phase, but the beginning of the recommended transitional use of water curtain, to avoid a sudden cold cold situation, for example, in the hot summer high temperature and humidity. If we use water curtain in high temperature and high humidity. Must pay attention, if this time if the continuous use of water curtain. It's easy for the chickens to get too cold, and the humidity in the coop rises quickly. This high humidity gives the chickens a stronger sense of body temperature. Second, it will occupy a lot of room with oxygen, and it will cause the chicken coop to suffocate. This suffocating will cause the chicken to die from lack of oxygen, so the water curtain is most suitable for intermittent use. Then, according to the temperature, humidity, water Curtain opening is also different, when the relative humidity is & LT; 60% high temperature and low humidity weather, if the maximum temperature of the day is below 35 ° C, the use of air cooling; if it is greater than or equal to 35 ° C, the need for wet curtain cooling, start-up temperature 32 ° C, relative humidity ≥70% high temperature and high humidity weather, if the maximum temperature of the day is less than 32 ° C, use air cooling cooling; if it is greater than or equal to 32 ° C, need wet curtain cooling, start-up temperature is 30 ° C, 80% relative humidity extreme high temperature high humidity weather, if the maximum temperature of the day below 29 ° C, use air cooling cooling; if greater than or equal to 29 ° C, need wet curtain cooling, starting temperature of 28 ° C, at the same time can be combined with anti-heat drugs to improve the ability to adapt to environmental heat stress and reduce the body temperature on the body damage, I wish you a safe and efficient summer breeding.


Packing&Delievery
