Building Works Customization Mini Concrete Pump Diesel Small Portable Concrete Conveying Pumps Price of Concrete Pumps
Product Overview
Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydro power engineering, geological hazards slope treatment works.
PRODUCT SPECIFICATIONS
Max. theoretical capacity(m3/h) | 40 |
Max.pumping pressure(mpa) | 10 |
Max.pumping distance vertical/horizontal(m) | 100/500 |
Engine type | diesel engine |
Main power(Kw) | 11 |
Concrete cylinder diameter * stroke(mm) | 180*1000 |
Hopper capacity(m3) | 0.4 |
Max.aggregate diameter(mm) | 30 |
Outlet diameter(mm) | 150 |
Pumping pipe diameter(mm) | 125 |
Mix capacity per time(m3) | 0.5 |
Dimension(length*width*height)(mm) | 4370*2200*2970 |
Total weight(Kg) | 5600kg |

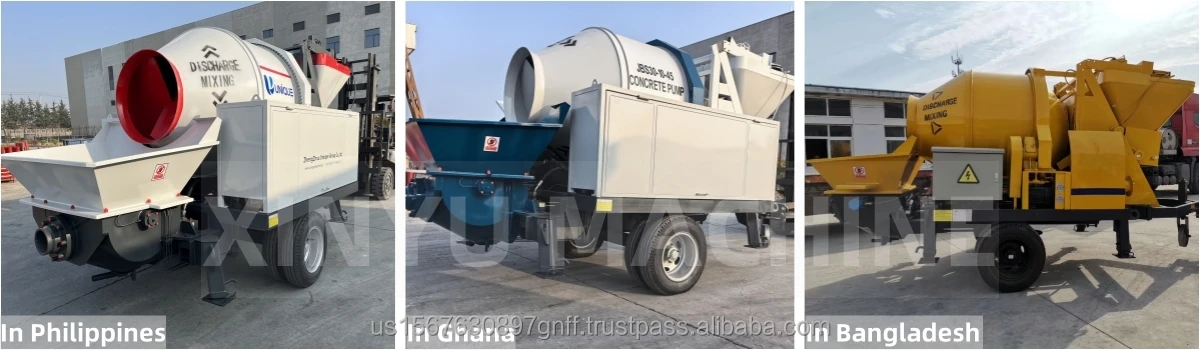

Successful Project
Grommy Factory
Application Fields
Loading
FAQ
Q1: What is your accept payment method?
A1: Trade Assurance, T/T, L/C, Credit card, Pay pal, etc.
Q2: How long about the delivery time?
A2: Within 7 days after received deposit.
Q3: How long is your warranty terms?
A3: Our Warranty terms is 1 years guarantee.
Q4: Is the self-loading concrete mixers suitable for mountain roads?
A4: It depends on the slope of the mountain, the Max. grade ability 30%.
Q5: How to clean self loading concrete mixer?
A5: It can be equipped with a high-pressure washing pump,the tank needs to be cleaned each day before get off work. You can also add two buckets of small stones to mix for 3-5 minutes to make sure the mixing tank clearly.
Q6: How to install the self loading concrete mixer?
A6: We provide the installation videos and drawings. And Engineers will provide service online or site to ensure the installation work goers well.
Q2: How long about the delivery time?
A2: Within 7 days after received deposit.
Q3: How long is your warranty terms?
A3: Our Warranty terms is 1 years guarantee.
Q4: Is the self-loading concrete mixers suitable for mountain roads?
A4: It depends on the slope of the mountain, the Max. grade ability 30%.
Q5: How to clean self loading concrete mixer?
A5: It can be equipped with a high-pressure washing pump,the tank needs to be cleaned each day before get off work. You can also add two buckets of small stones to mix for 3-5 minutes to make sure the mixing tank clearly.
Q6: How to install the self loading concrete mixer?
A6: We provide the installation videos and drawings. And Engineers will provide service online or site to ensure the installation work goers well.
