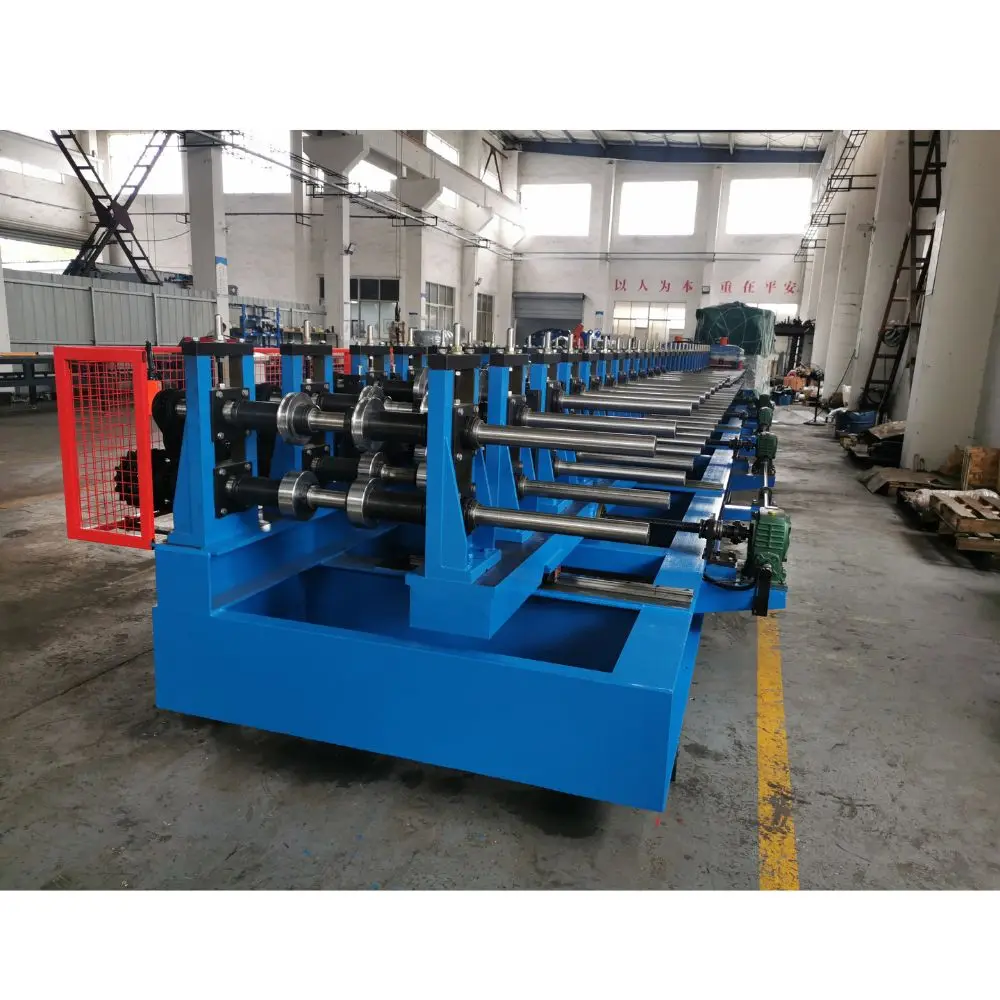

Australia Popular Multiple Sizes 100 600mm Width Adjustable Perforated Electric C Channel Cable Tray Roll Forming Machine
- Category: >>>
- Supplier: Sussman Modular House (wuxi) Co. Ltd.
Share on (1601259833487):
Product Overview
Description
Product Description

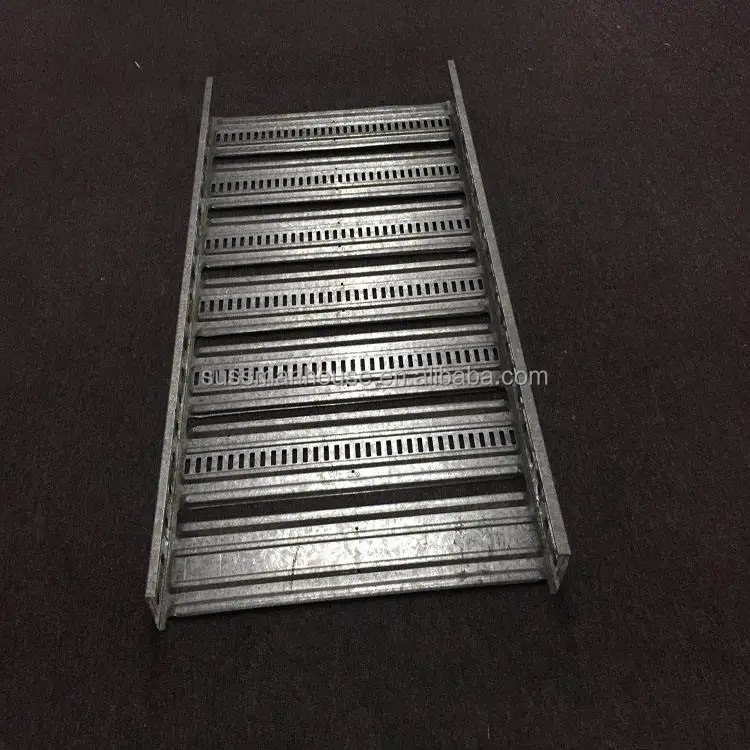

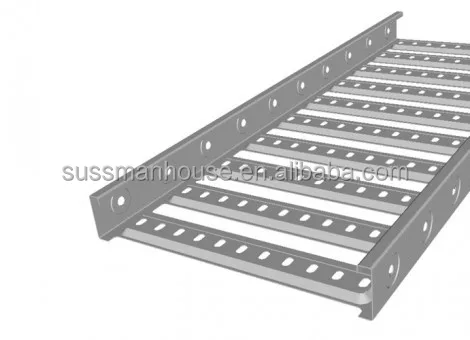

Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.
In Electrical Industries, we are able to manufacture more machines like strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc.
In Electrical Industries, we are able to manufacture more machines like strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc.
Technical Data:
1. Suitable Plate Material: Galvabond, black steel
Profile width: 100-600mm adjustable by PLC
Height: 50mm, adjust the profile height by spacer
Thickness:0.7-1.2mm
2. Working Speed: 2-3meters / min
3. Forming Steps: about 20 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 80mm), thermal refining
6. Drivensystem: Chain Driven 1.5 inches 20A double chain with longer shafts
7. Main Power with reducer: 18.5KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. The whole machine is controlled by industry computer-PLC Delta.
Machine List:
Profile width: 100-600mm adjustable by PLC
Height: 50mm, adjust the profile height by spacer
Thickness:0.7-1.2mm
2. Working Speed: 2-3meters / min
3. Forming Steps: about 20 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 80mm), thermal refining
6. Drivensystem: Chain Driven 1.5 inches 20A double chain with longer shafts
7. Main Power with reducer: 18.5KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. The whole machine is controlled by industry computer-PLC Delta.
Machine List:
S.N | Equipment name | Quantity |
1 | 5T hydraulic un-coiler | 1 set |
2 | Leveling device | 1 set |
3 | Servo feeding device | 1 unit |
4 | Hydraulic punching device | 1 unit |
5 | Punching moulds | 3 sets |
6 | Pre-cutting device | 1 unit |
7 | Main roll forming machine | 1 set |
8 | Hydraulic station | 1 set |
9 | Control system ( including control box) | 1 set |
10 | Out tables | 2 units |
11 | Spare parts | 1 package |
12 | Safety cover | 1 set |
Profile Drawing:
Type | W(mm) | H(mm) | L(mm) |
XKH-100 | 100 | 50 | 3000-6000 |
XKH-150 | 150 | 50 | 3000-6000 |
XKH-200 | 200 | 50 | 3000-6000 |
XKH-250 | 250 | 50 | 3000-6000 |
XKH-300 | 300 | 50 | 3000-6000 |
XKH-450 | 450 | 50 | 3000-6000 |
XKH-600 | 600 | 50 | 3000-6000 |
Product Display

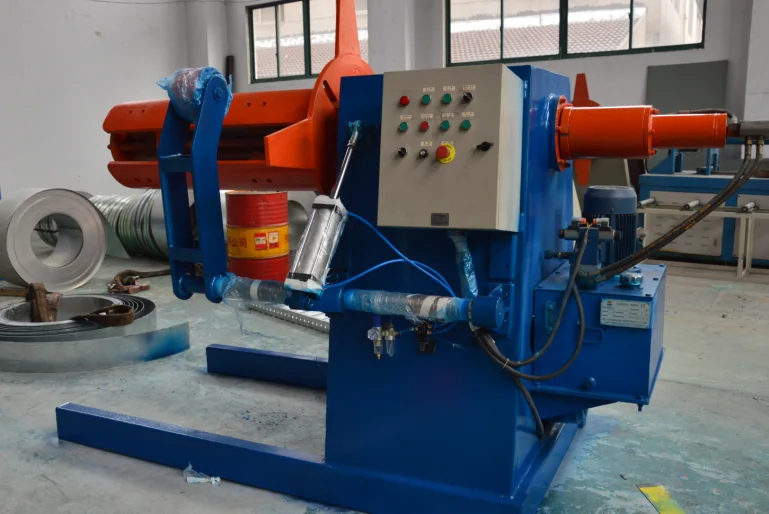

5 Tons Hydraulic Decoiler
Diameter: 460-520mm expansion.
Expansion: hydraulic
Capacity: 5000kgs per mandrel
Expansion: hydraulic
Capacity: 5000kgs per mandrel

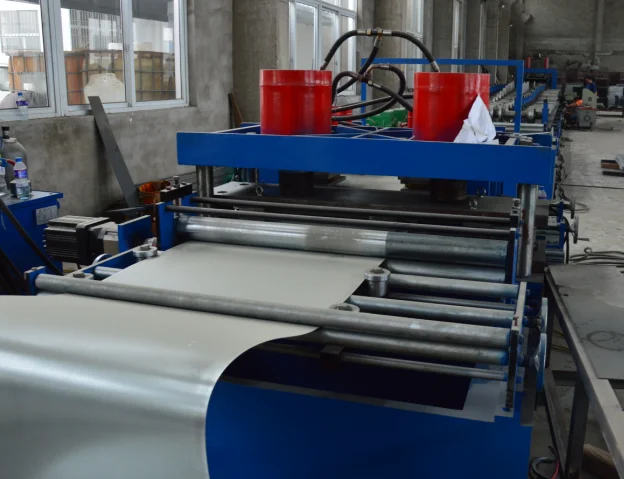

Press Machine or Hydraulic Punching Device
Hydraulic pump power: 22kw

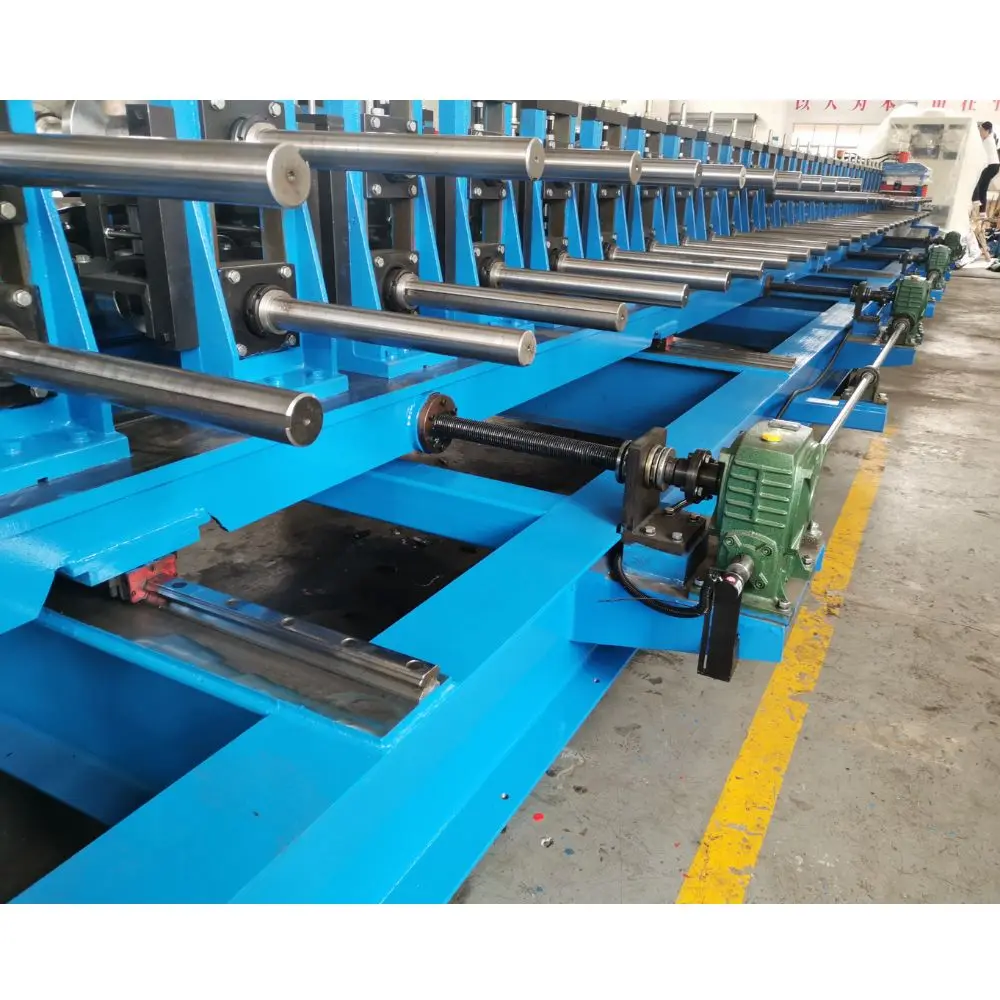

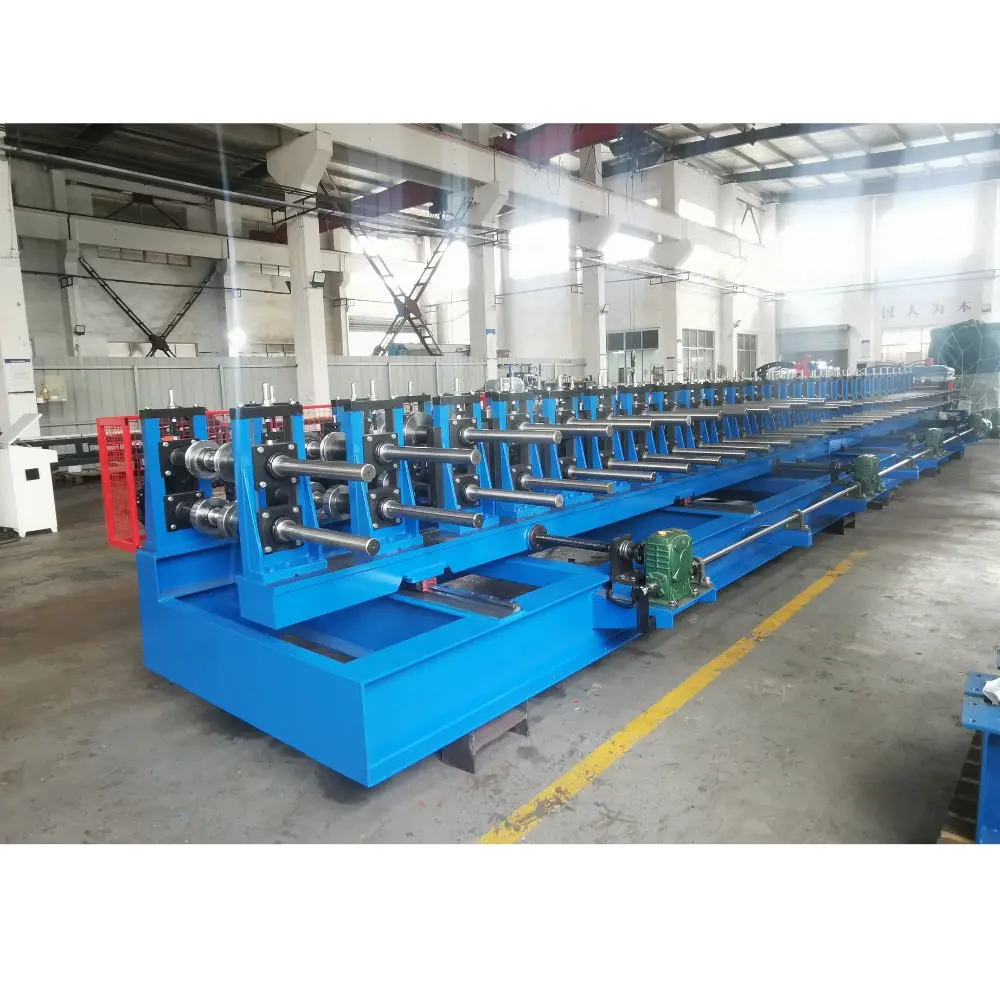

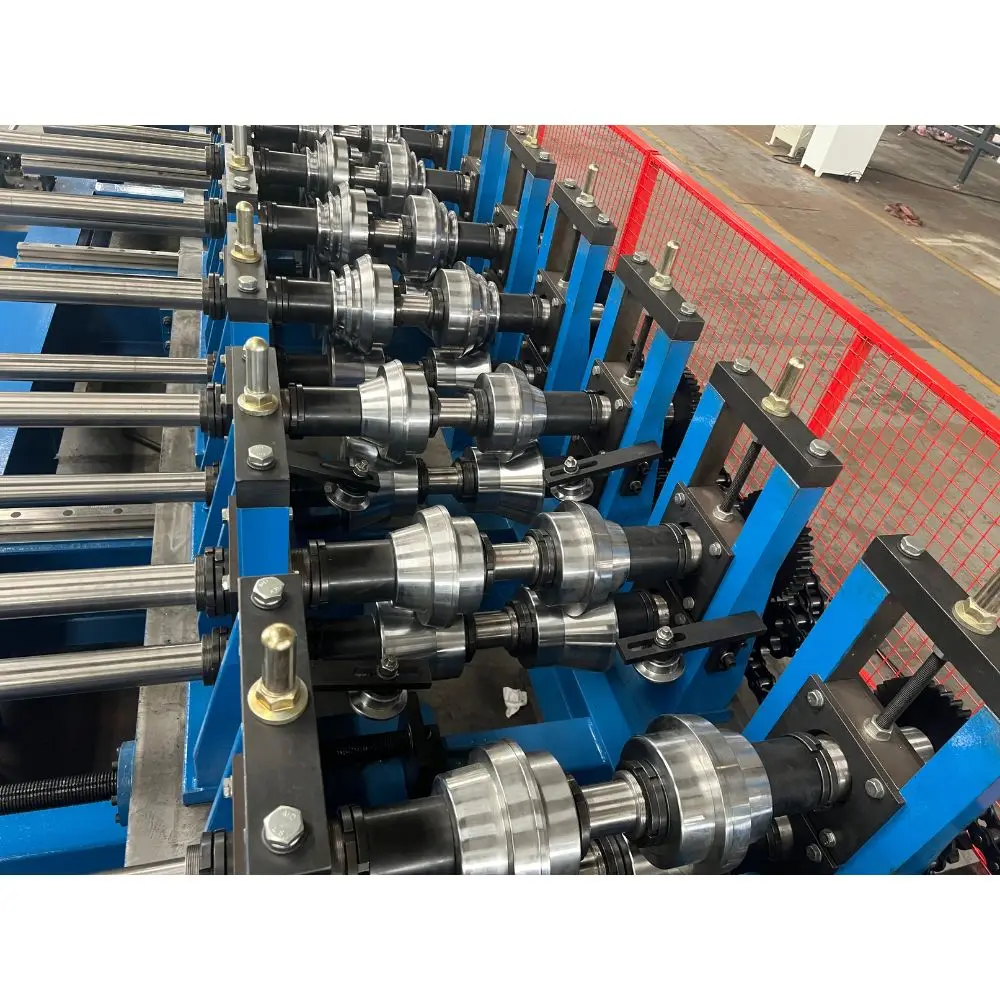

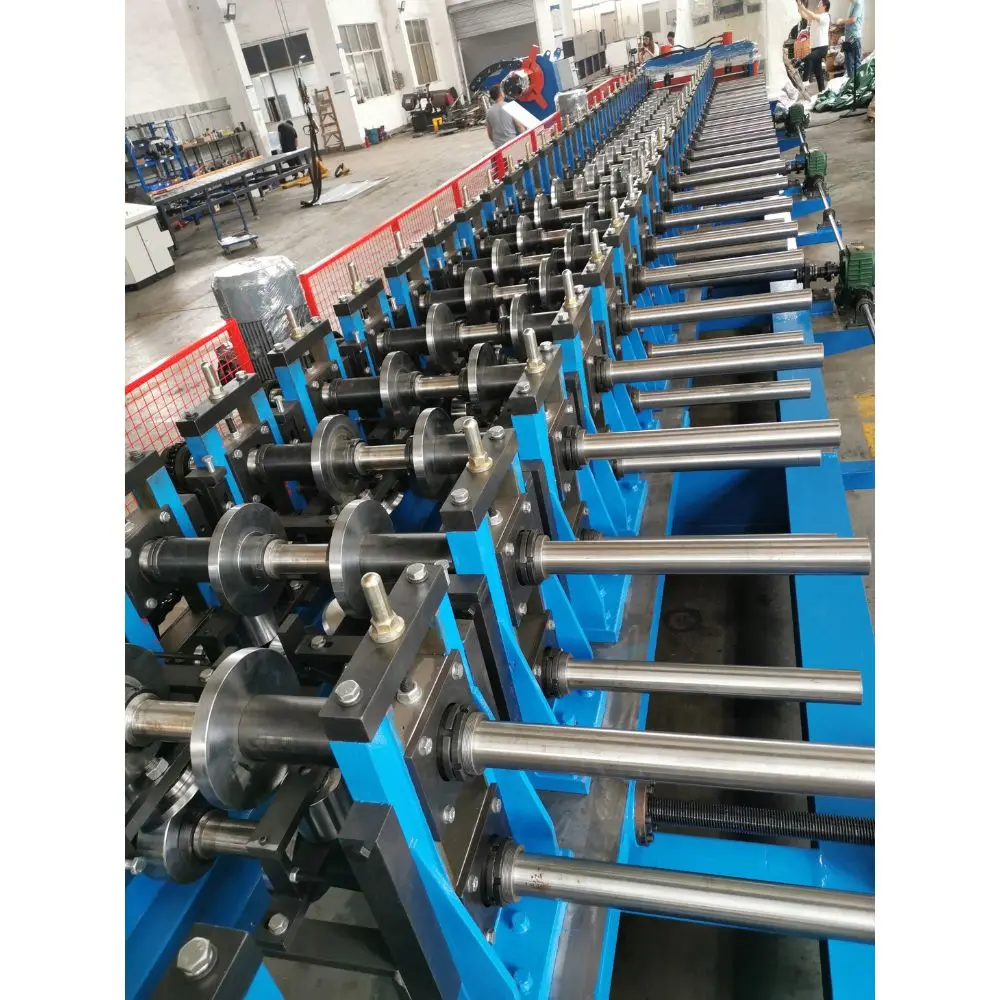

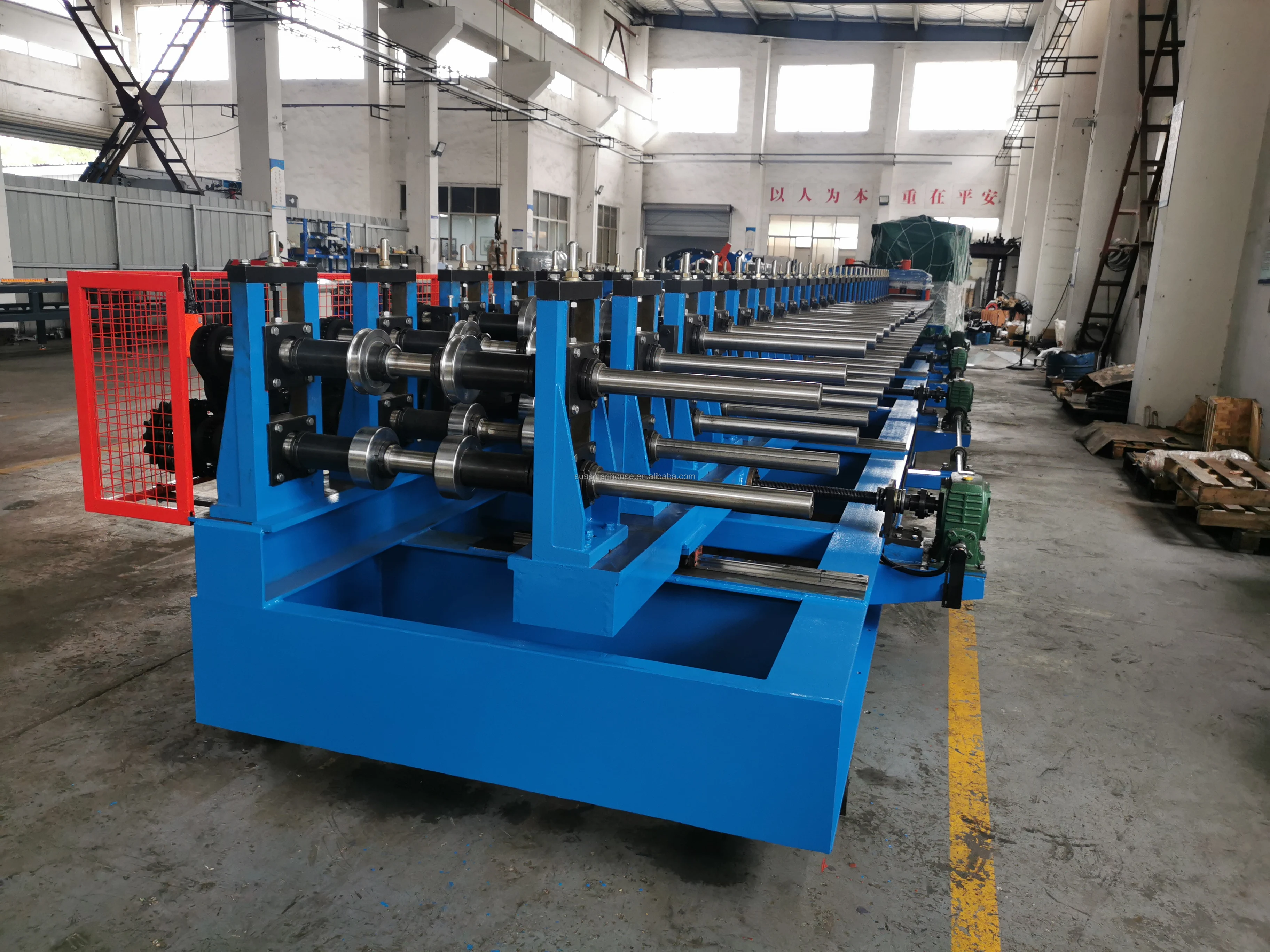

Roll Forming Part
with Pre-Cutting, Sizes automatically adjustable

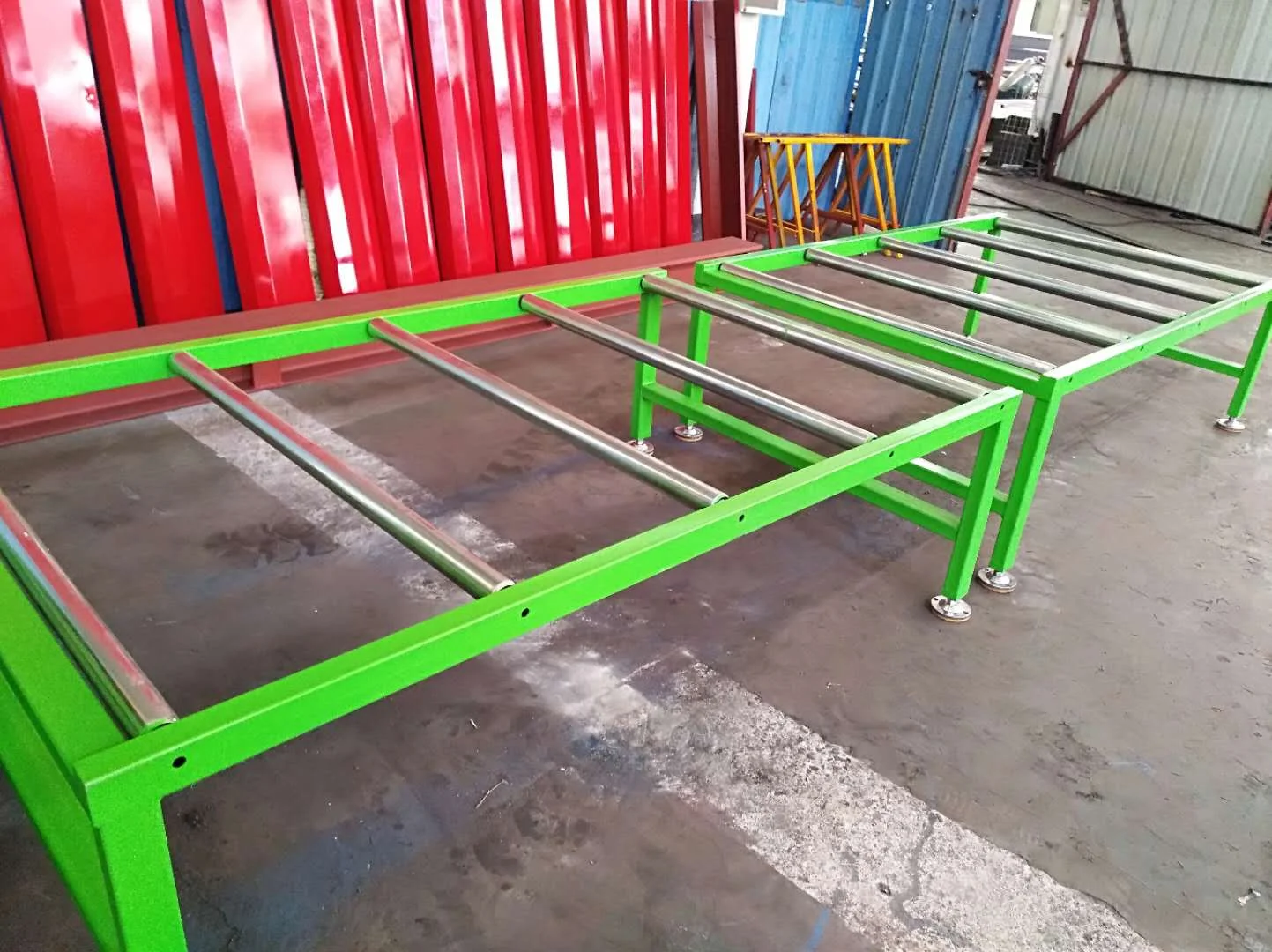

Output table
1. Length : 6 meters
2. Quantity: 1unit
2. Quantity: 1unit

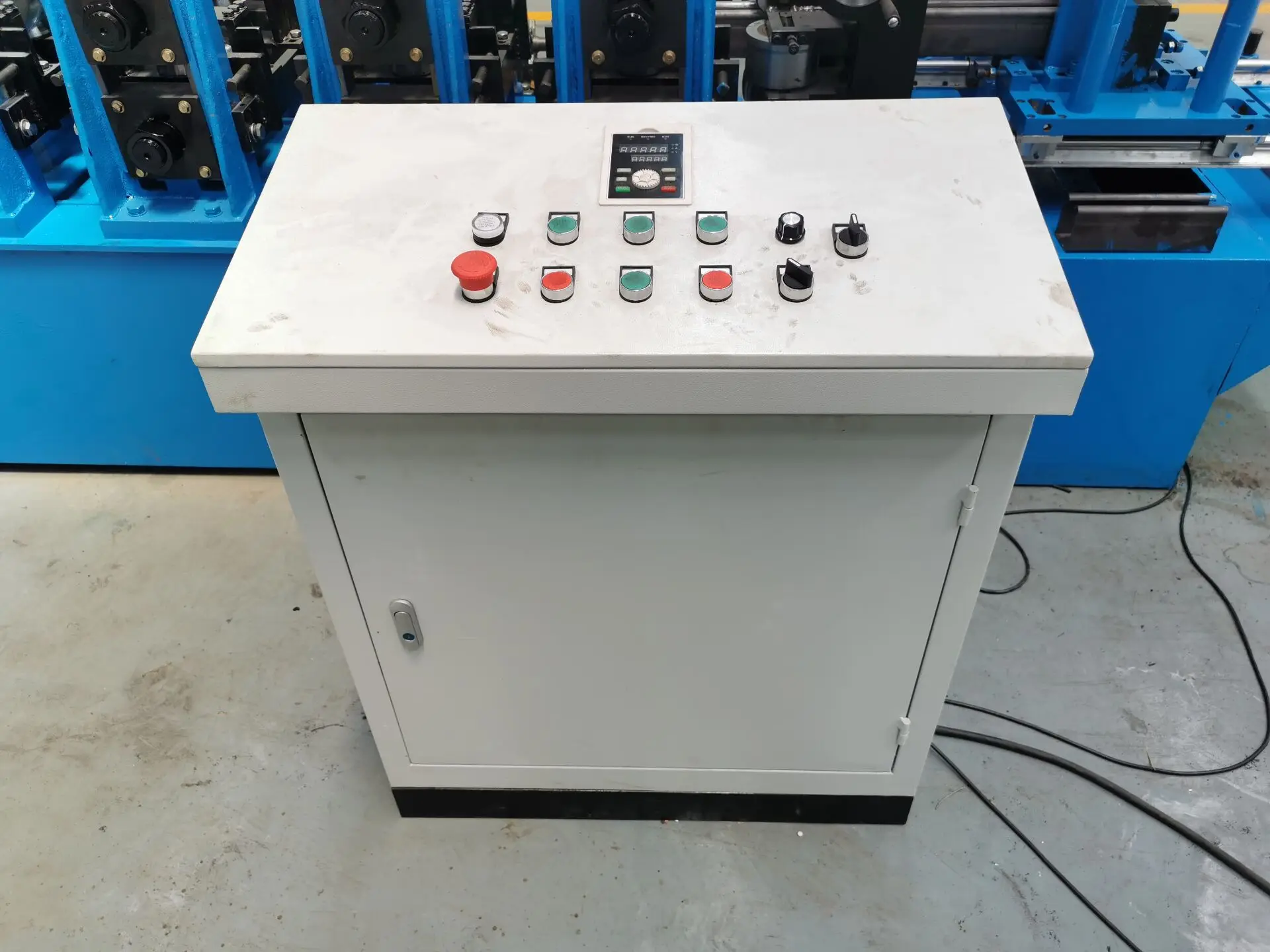

Control Box
(1) Power supplier: 380 V, 50 Hz, 3Phase
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC Panasonic,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) The language in the touch screen: English and Chinese
(8) Unit of length: millimeter (switched on the control panel)
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC Panasonic,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) The language in the touch screen: English and Chinese
(8) Unit of length: millimeter (switched on the control panel)

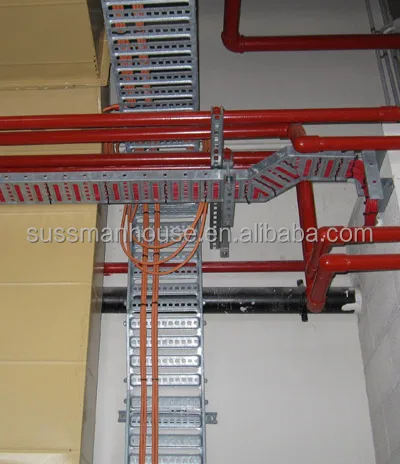

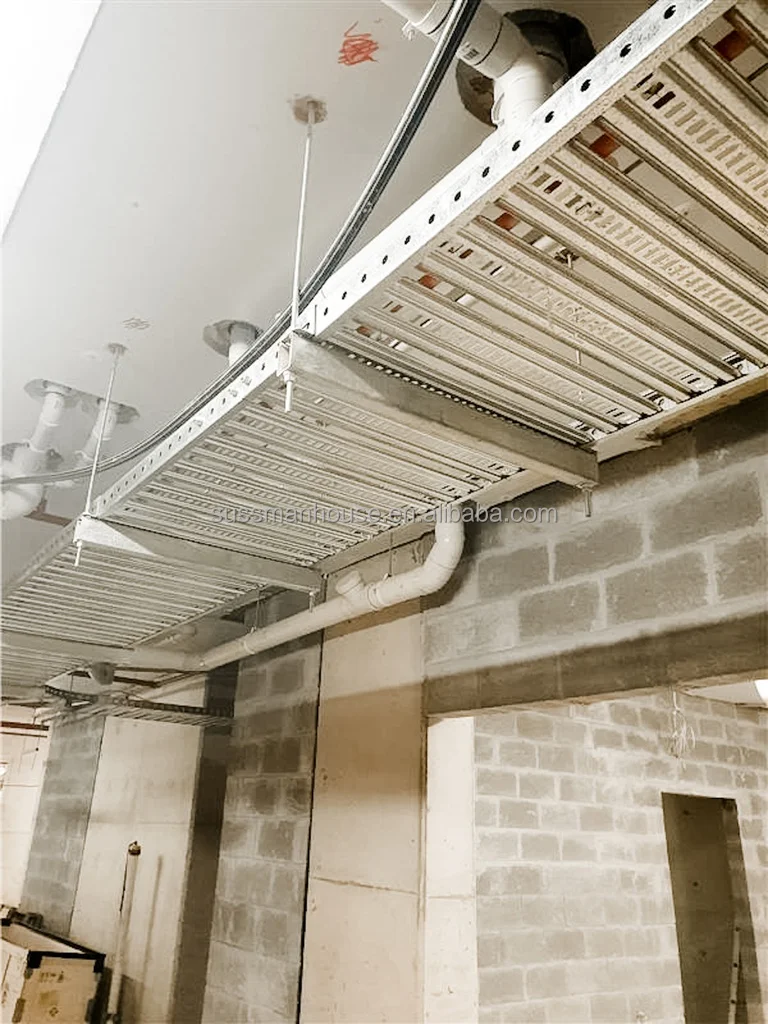

Application
