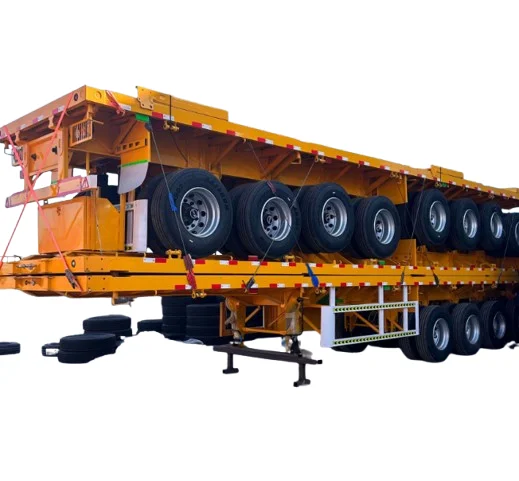

30ft 40ft 15m flat frame tandem interconnect 4x4 car truck trailer for sale 53 foot hyperlink flatbed trailer
- Category: >>>
- Supplier: Shandong Jinma Auto Co. Ltd.
Share on (1601260054479):
Product Overview
Description
Product Description

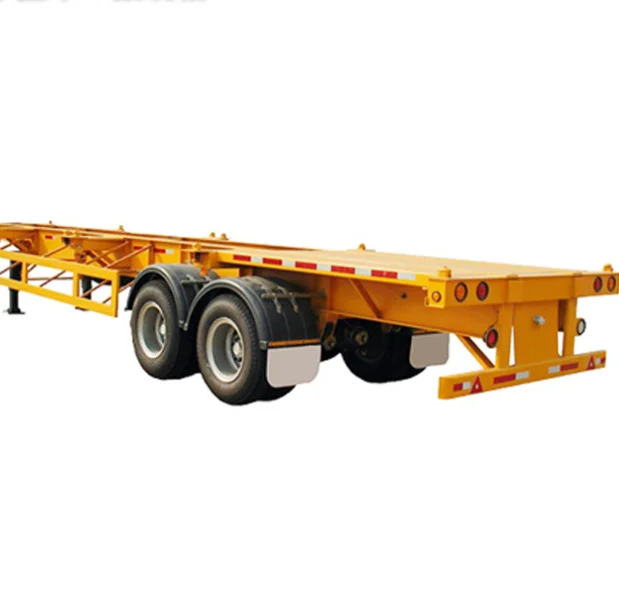

20FT/40FT/45FT Container Chassis Flatbed Semi Trailer
Flatbed Semi-trailer is specially used for the transportation of various containers, and it can also use its platform to transport ordinary bulk cargo. It has sufficient strength and is mainly used in transportation systems such as ships, ports, routes, highways, transfer stations, bridges, tunnels and other transportation systems. The 40ft Flatbed Container Trailer can carry 40ft and two 20ft containers. Flatbed trailer capacities range from 20 to 80 tons and are available in 2, 3 and 4 axles. Customers can change the number of locks according to your own needs.
| 40Ton Flatbed Trailer 20/40/45ft Container Flatbed Semi-trailer Chassis | |||
| Product name | 20 FT Flatbed Semi-trailer | 40 FT Flatbed Semi-trailer | 45 FT Flatbed Semi-trailer |
| Product Size | 7050*2550*1560mm | 12500* 2550*1560mm | 13900*2600*1600mm |
| Axle | 2 /3 Axles*13TonFUWA/BPw/other | 2 /3 Axles*13TonFUWA/BPW/other | 2 /3 Axles*13Ton FUWA/BPW/other |
| Application | 1*20 ft Container or cargo Loading Loading | 1*40ft/2*20 ft Container/Cargo Loading | 1*40ft/1*4512*20 ftContainer/Cargo Loading |
| Capacity | 30-60 Tons | 30-90 Tons | 30-100 Tons |
| Main Beam Material | Q345/T700 | Q345/T700 | Q345/T700 |
| Upper Plate Thickness | 13mm | 18mm | 18mm |
| Middle Plate Thickness | 8mm | 12mm | 12mm |
| Lower Plate Thickness | 15mm | 17mm | 17mm |
| Height | 50mm | ||
| Platform Thickness | 3mm thick patterned steel plate | ||
| Leaf Spring | 80mm*15mm*10/80mm*15mm*10 | ||
| Kin Pin | 50#(2")/90#(3.5")JOST/Other Brand | ||
| Landing Gear | 28 Tons Two Speed,JosT/Other Brand | ||
| Suspension System | Mechanical or Air Suspension | ||
| Tire | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | ||
| Rim | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | ||
| Painting | Electrophoresis paint | ||

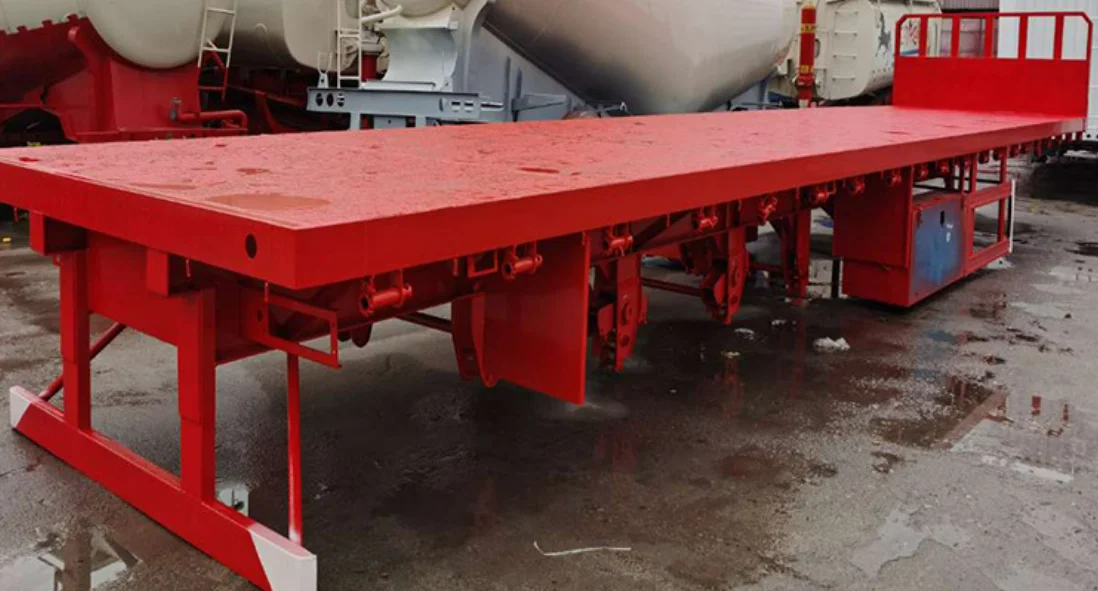

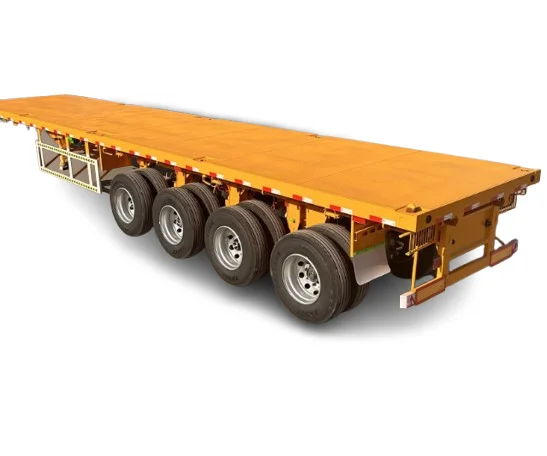

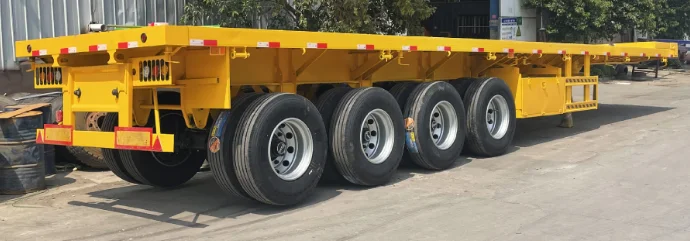

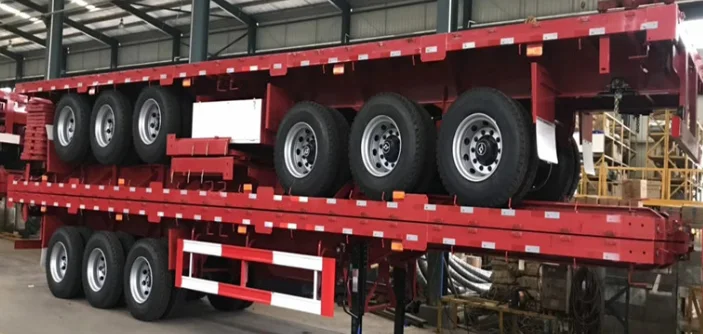

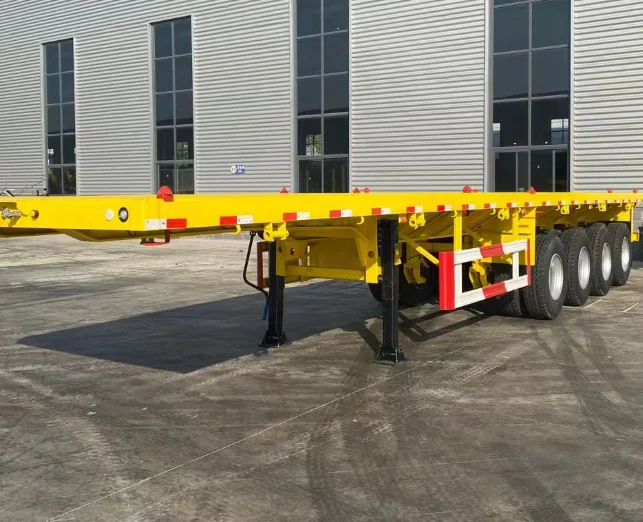

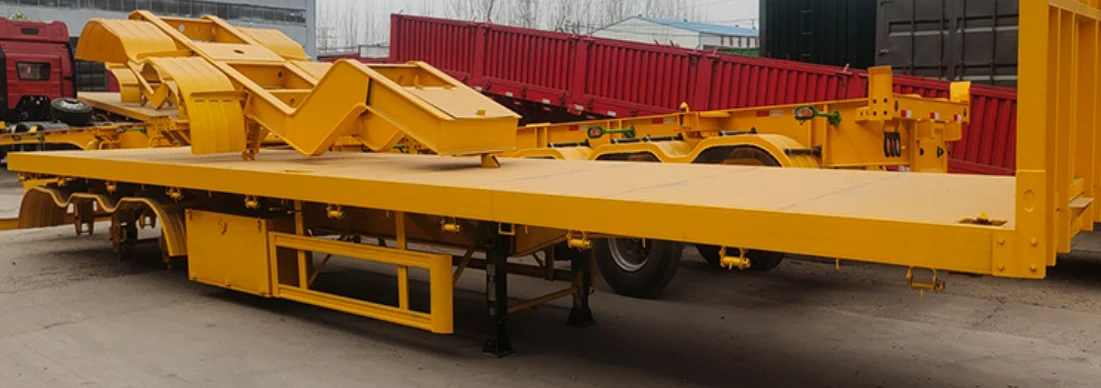

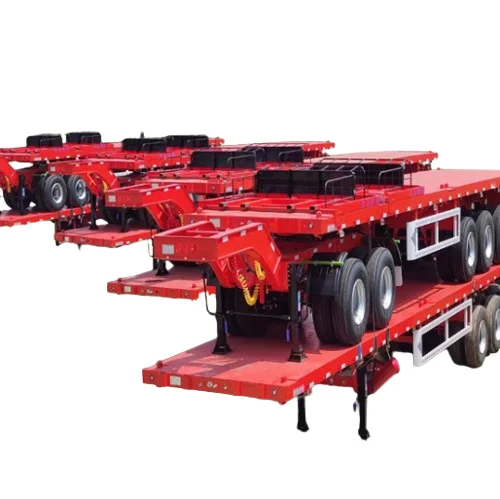

Product Display
1.The Flatbed Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
2.The girder adopts submerged arc welding, the whole vehicle shot blasting and derusting, and the bottom plate is 3mm thick pattern.
3.This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements.
4.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
5.We adopt world famous brand of parts, like Fuwa axle, BPW axles, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
6.Our Trailer factory can also support other customized flatbed semi-trailers, superlink flatbed semi-trailers, and lumber flatbed semi-trailers.

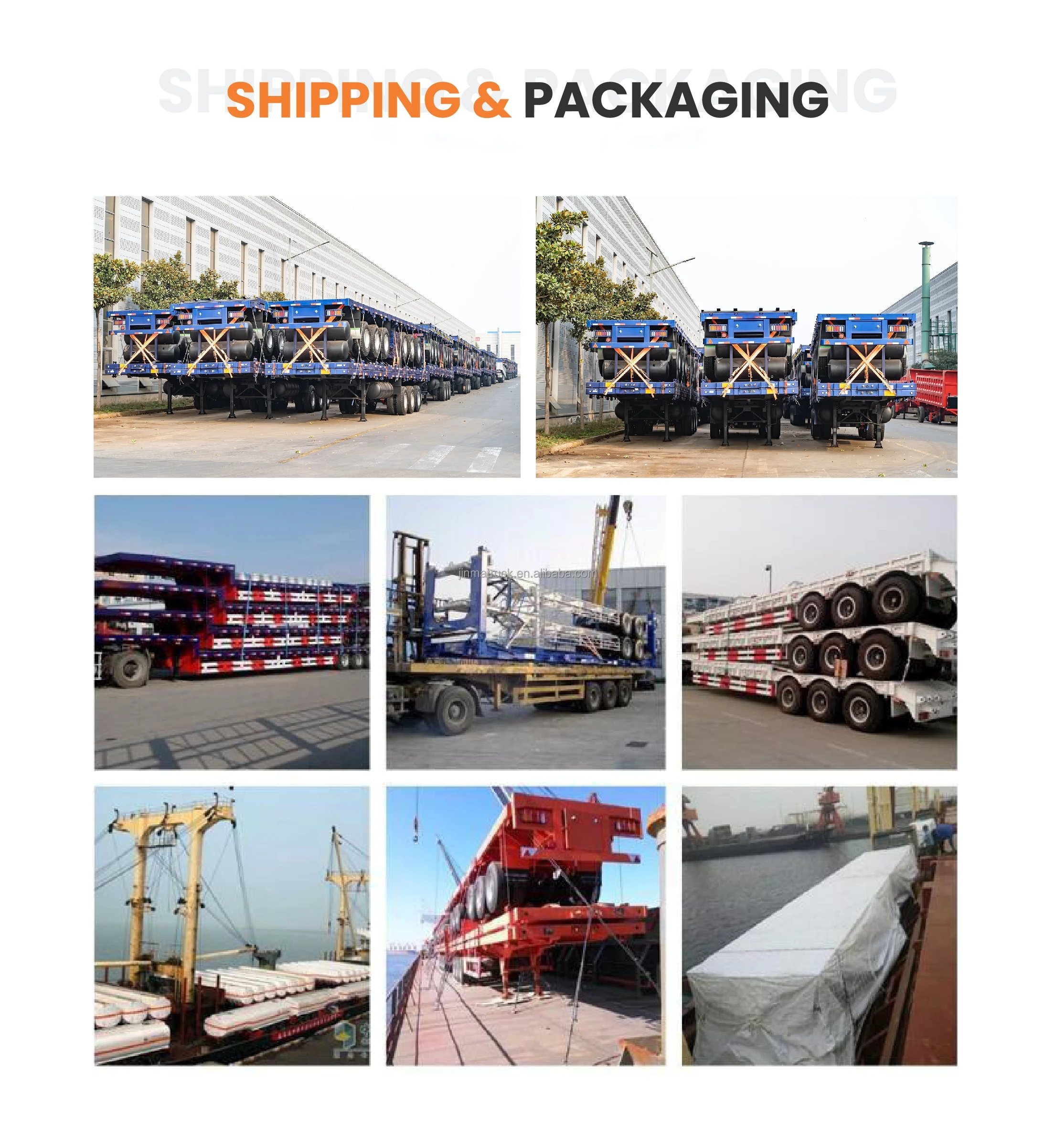

Packaging & Shipping
Our Services
Integrity management is our concept, we will put our customers in the first place, try our best to meet your requirements, to provide you with the most intimate service and after-sales service.
Company Information

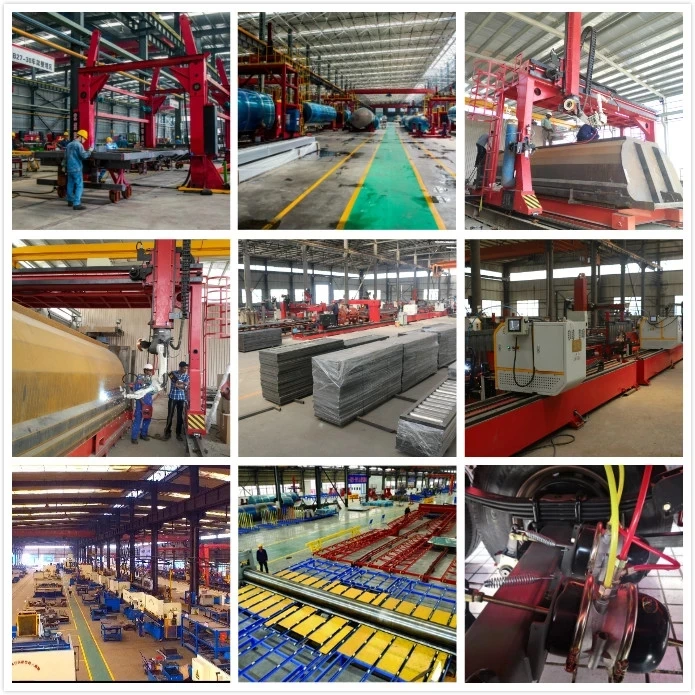

Shandong Jinma Automobile Co., Ltd. specializes in the production of various trailers, such as container trailers, construction equipment transport trailers, tractors, trailer spare parts, etc., with advanced automation equipment and excellent quality control. With our good quality and reputation, we have obtained government-authorized ISO, CCC, CE and B & V certificates. We are a professional manufacturer, since its inception, providing meticulous service to the majority of buyers, our products sell in South Asia, Middle East, Africa and South America.
FAQ
1, Does your company has your own factory?
Yes, we have a factory ourself.
2,Which countries do you export to?
Asia: India, Thailand, Burma,Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middleeast:Saudi Arabia, Iran, Uae. Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine.Belarus, Bulgaria, etc.Africa:South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana,Algeria, Senegal,Tunisia, etc.
3,Whether you could make our brand on your products?
Yes. We can print your logo on both the products and the packages if you can meet our moq.
2,Which countries do you export to?
Asia: India, Thailand, Burma,Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middleeast:Saudi Arabia, Iran, Uae. Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine.Belarus, Bulgaria, etc.Africa:South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana,Algeria, Senegal,Tunisia, etc.
3,Whether you could make our brand on your products?
Yes. We can print your logo on both the products and the packages if you can meet our moq.
