2 in 1 High Resolution Integrated Rigid and Flexible Endoscopic System Integrated Medical Imaging Solution
- Category: >>>
- Supplier: Xuzhou Hengjia Electronic Technology Co. Ltd.Xuzhou Ltd.
Share on (1601260056798):
Product Overview
Description
Our Advantages

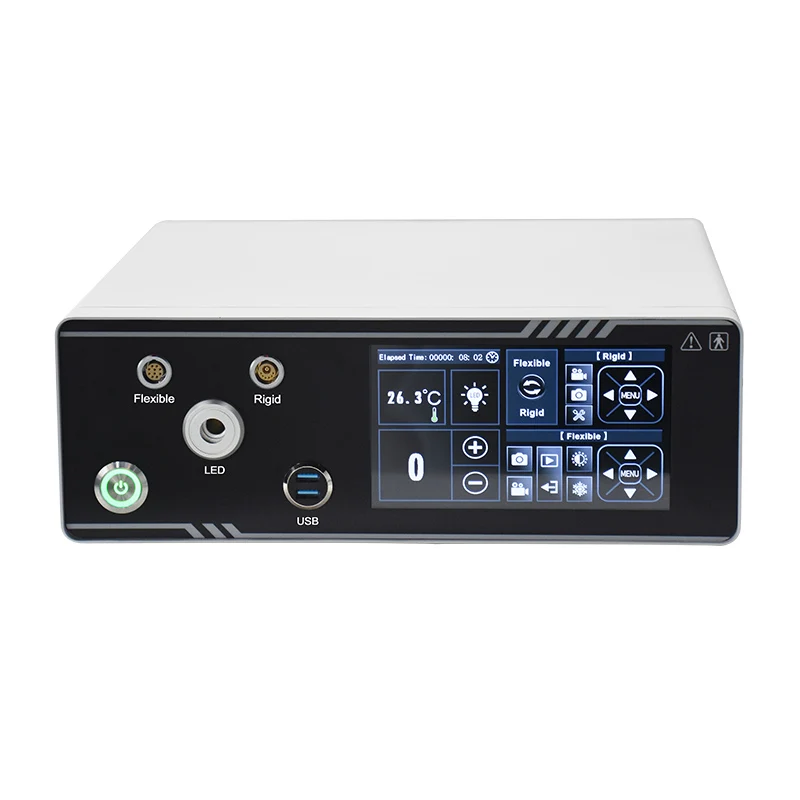

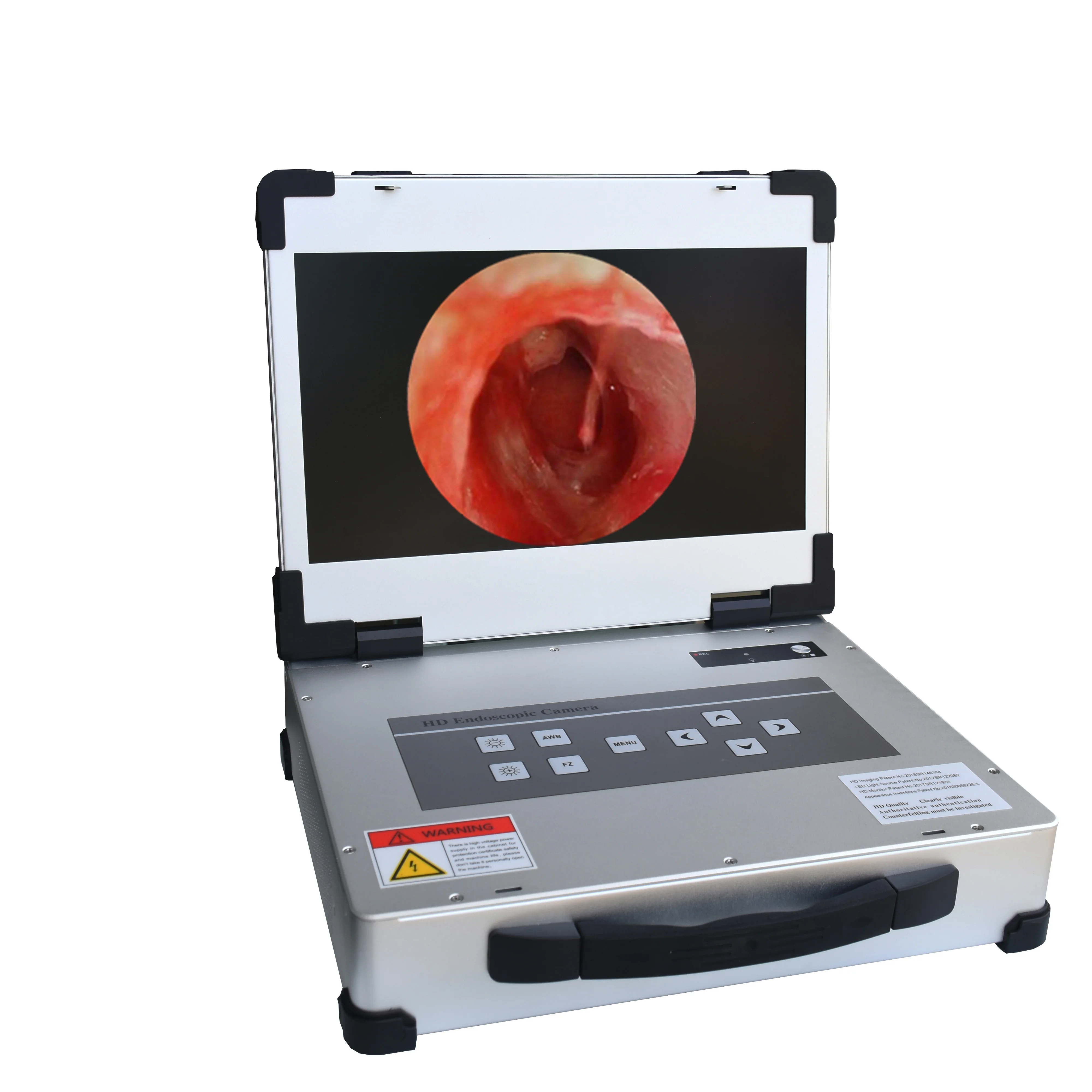

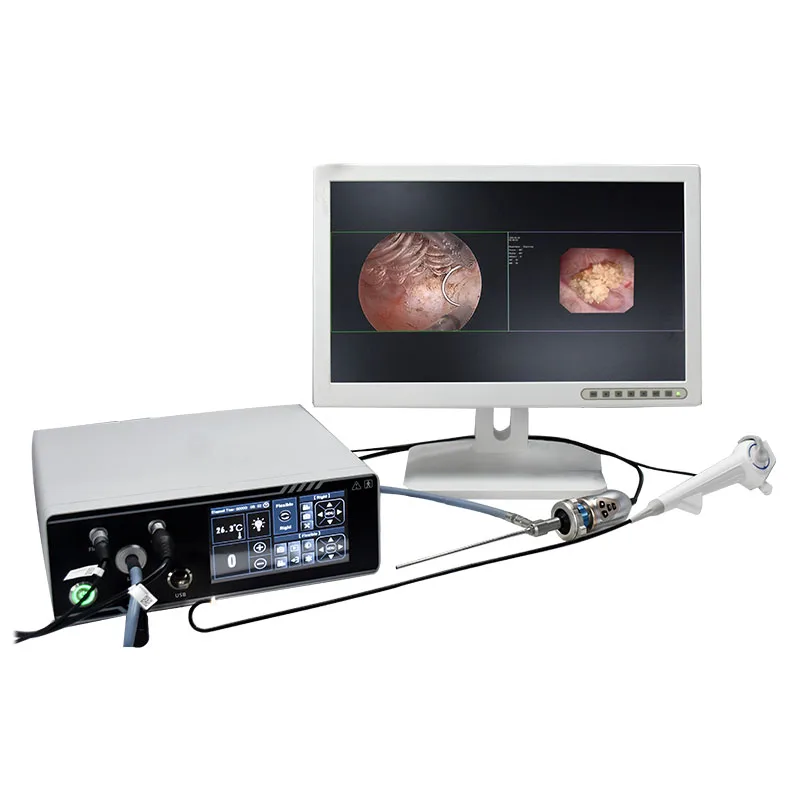

The flexible and rigid integrated endoscopic camera system adopts 1/1.8” CMOS image sensor with 260W pixel output, which can realize one-button switching between flexible and rigid endoscope modes, and supports simultaneous imaging of both rigid endoscope and electronic endoscope, which makes the department adaptability more abundant and diversified. flexible endoscopes is for viewing internal organs, while rigid endoscopes are basically used for viewing organs along the vertical axis. The combination of rigid and flexible endoscopes utilizes the advantages of each and further expands the application of minimally invasive techniques.
Product Description

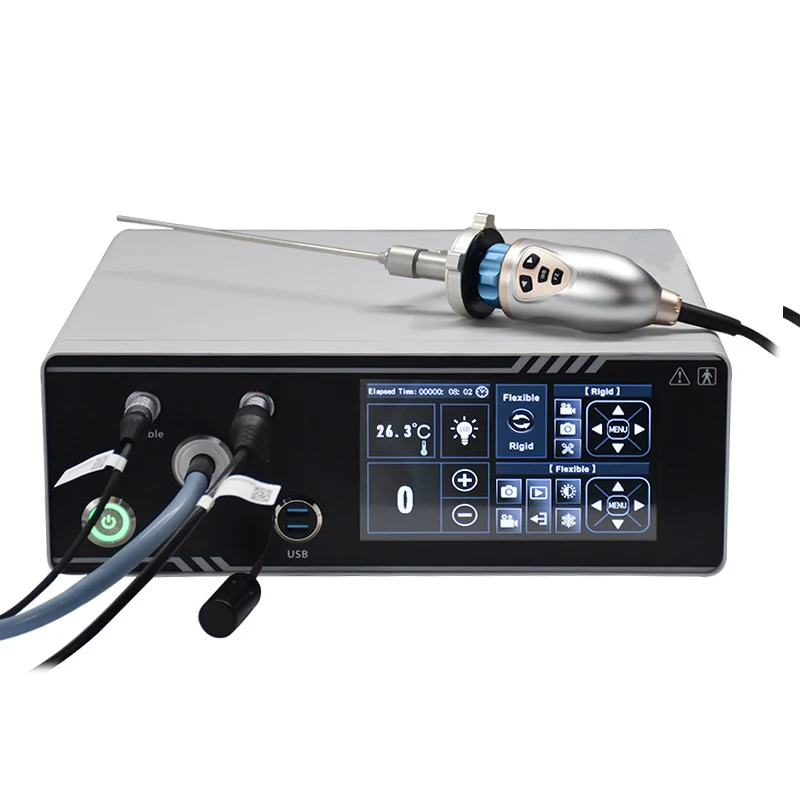

Rigid endoscope
Camera:2,600,000 pixels 1/1.8"CMOS
Resolution:Resolution
Definition:1200 Lines
Minimal illumination:0.3Lux
Video output: 3G-SDI,DVI,SDI,BNC,USB
power:85~264VAC
Shutter speed:1/60~1/60000(NTSC),1/50~50000(PAL)
Camera cable: 2.8/Specials lengths customized
LED Lamp power:100W
Long life ≥50000Hours

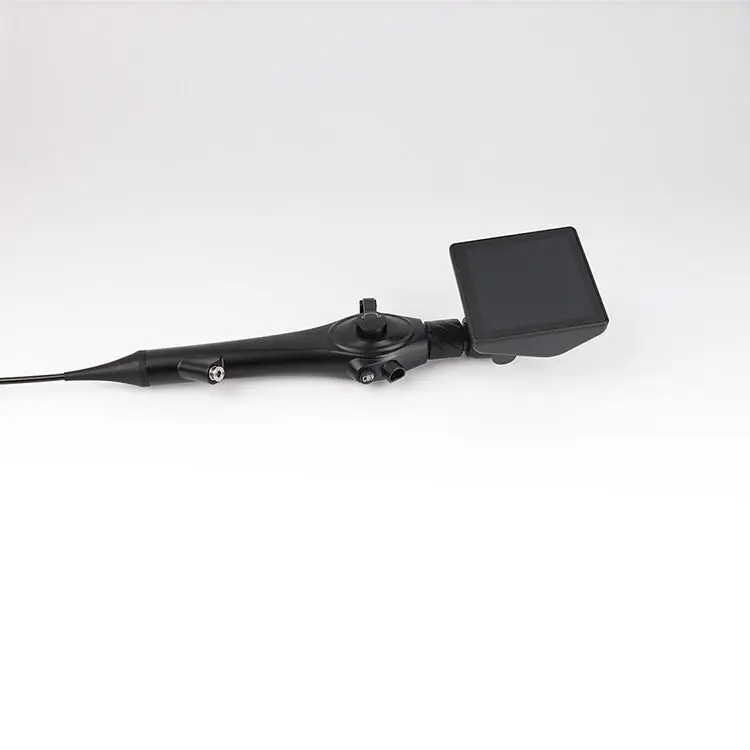

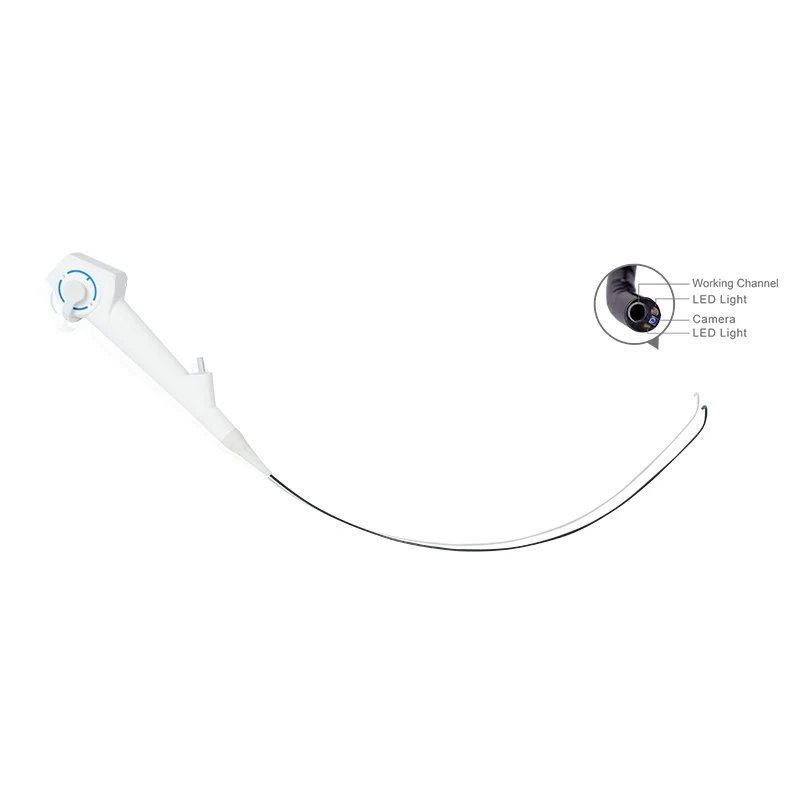

Flexible endoscope
Size:680mm*3.8mm*2.2mm
Pixel:HD320,000
Field angle:110°
Depth of field:2-50mm

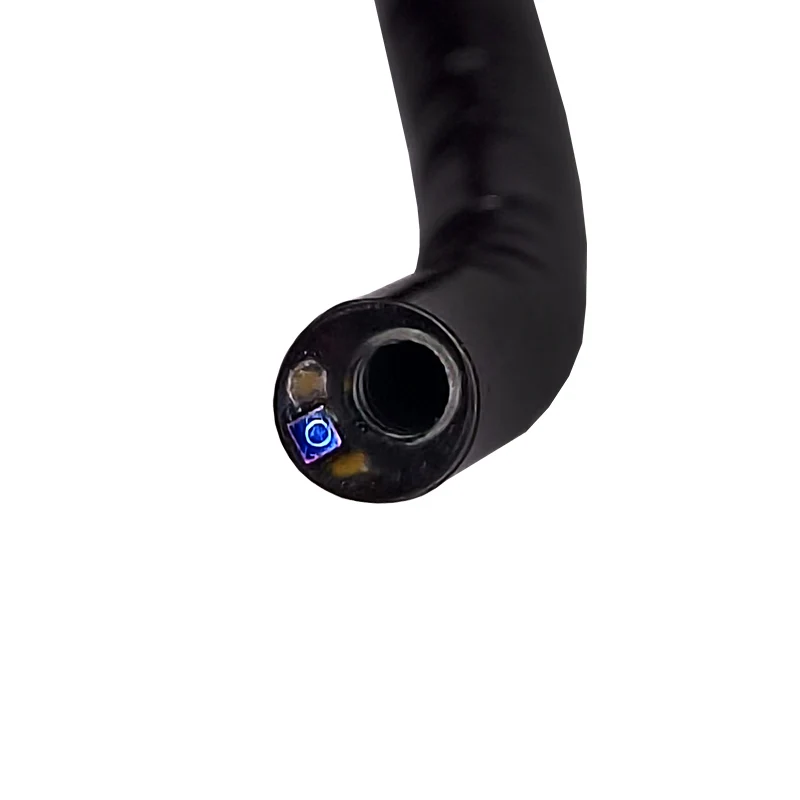

Apex:3.9mm
Insert tube outer diameter：3.8mm
Inside diameter ofworking passage：2.2mm
Angle of bend Turn up ≥275°Turn down275°
Effective working length：680mm

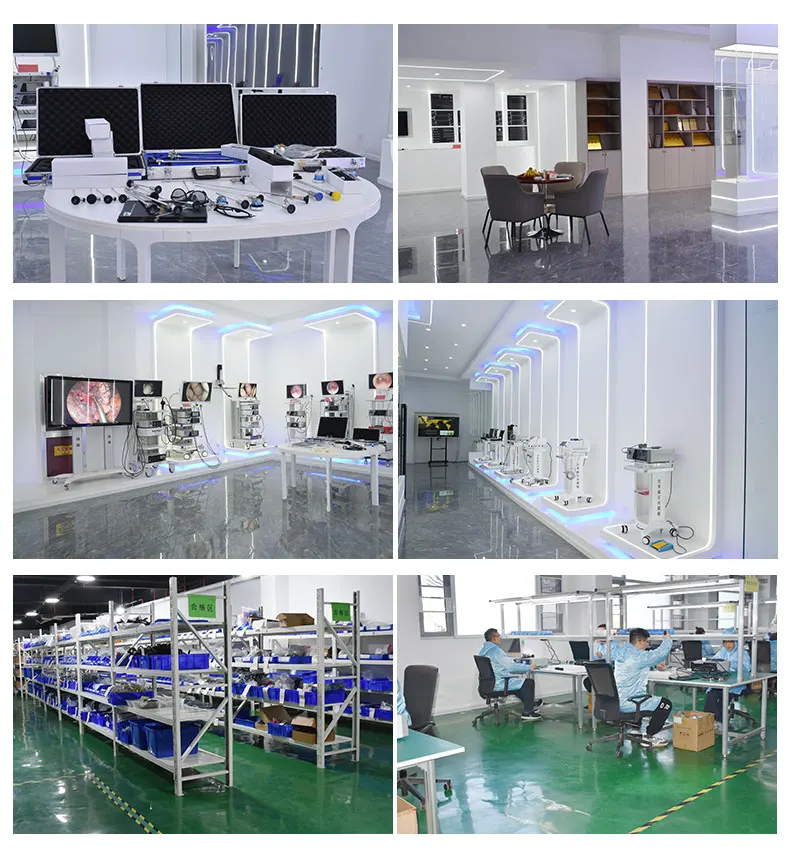

Company Profile
Xuzhou Hengjia Electronic Technology Co., Ltd
Xuzhou Hengjia Electronic Technology Co., Ltd. is a comprehensive joint-stock company engaged in the production,
management,development and sales of medical devices. With the enterprise spirit of "honesty, development, innovation and development", the company strives hard to govern and start an undertaking; with high-performance, high-tech and high-quality products, it pays close attention to the modern clinical application and the needs of patients at all times.Main Products: GEIWRE Endoscope Image Processing System, High Definition Endoscope Series Camera (High Definition 1080P, Full Definition 1200P, SuperDefinition,Highde finition 1400P,),LED cold light source, high-definition medical monitor, pneumoperitoneum machine, flushing pump,perfusion pump, power system, bonedrill,otorhinolaryngoscope,hysteroscopy, laparoscopy,choledochoscope,cystoscope,prostateresectionmirror,ureteroscope,percutaneousnephroscope,nasopharyngeal laryngoscope, intervertebral foramen mirror and laparoscopic simulator products.We always insist:One Goal- Customer Satisfaction One pursuit- product quality excellence.Company philosophy: focus on integration and innovati Perseverance, good philosophy, human health, and common development.
management,development and sales of medical devices. With the enterprise spirit of "honesty, development, innovation and development", the company strives hard to govern and start an undertaking; with high-performance, high-tech and high-quality products, it pays close attention to the modern clinical application and the needs of patients at all times.Main Products: GEIWRE Endoscope Image Processing System, High Definition Endoscope Series Camera (High Definition 1080P, Full Definition 1200P, SuperDefinition,Highde finition 1400P,),LED cold light source, high-definition medical monitor, pneumoperitoneum machine, flushing pump,perfusion pump, power system, bonedrill,otorhinolaryngoscope,hysteroscopy, laparoscopy,choledochoscope,cystoscope,prostateresectionmirror,ureteroscope,percutaneousnephroscope,nasopharyngeal laryngoscope, intervertebral foramen mirror and laparoscopic simulator products.We always insist:One Goal- Customer Satisfaction One pursuit- product quality excellence.Company philosophy: focus on integration and innovati Perseverance, good philosophy, human health, and common development.
Exhibition

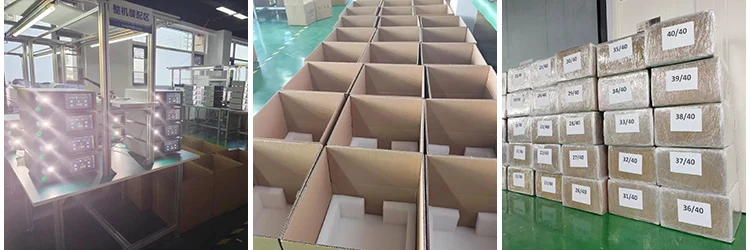

Product packaging
Packaging Details
wooden or carton package
Port
shanghai Lead time：
wooden or carton package
Port
shanghai Lead time：
Quantity(Units) | 1 - 5 | >5 |
Est. Time(days) | 7 | To be negotiated |
Transportation
FAQ
1. Payment term: T/T, WEST UNION, L/C etc.
2. Shipping method: According to customer requirements
3. Delivery: within 3-5days after receipt of the payment
2. Shipping method: According to customer requirements
3. Delivery: within 3-5days after receipt of the payment
