bulk cargo carrier van type semi trailer 40ft 45ft curtain side truck trailers for Russia market
- Category: >>>
- Supplier: Liangshan Leao Machinery Co. Ltd.
Share on (1601260543530):
Product Overview
Description
ALEEAO Side curtain semi trailer
Liangshan LEAO Machinery factory has nearly 17 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high quality products and competitive prices. Please contact me if necessary.
Liangshan LEAO Machinery factory has nearly 17 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high quality products and competitive prices. Please contact me if necessary.
Specification
ALEEAO Side curtain semi trailer

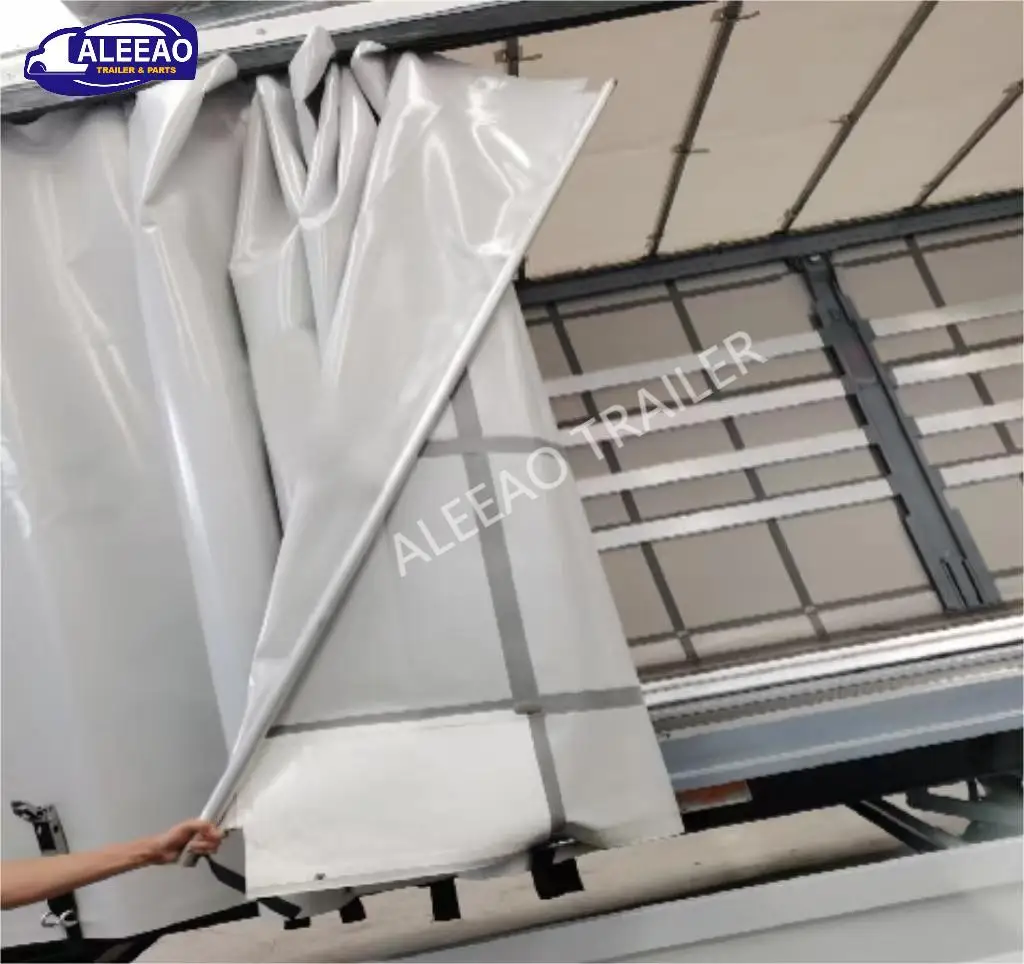

This curtain side of van trailer can be controlled and moved up, which makes it easier to load and unload cargo. Curtain side trailer combines the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the trailer, and van-style swinging rear doors, a curtain side totally encloses the load for weatherproof protection and security. Curtain side trailers are widely used for the hauling of the goods from expensive automobiles to raw lumber, to delicate manufacturing components.
This curtain side of van trailer can be controlled and moved up, which makes it easier to load and unload cargo. Curtain side trailer combines the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the trailer, and van-style swinging rear doors, a curtain side totally encloses the load for weatherproof protection and security. Curtain side trailers are widely used for the hauling of the goods from expensive automobiles to raw lumber, to delicate manufacturing components.
PRODUCT INFORMATIONS | ||
Tare Weight | About 8.3-10T | |
Dimension | 13000mm*2490mm*2860mm (Outer side) 12800*2300*1800mm (work space) | |
Loading Capacity (T) | ≤ 60 T | |
Axle | 13 T/16T, FUWA /BPW /GV Brand | |
Rim | 9.00-22.5 9.75-22.5, 8.25-20 | |
Tire | 12.00R22.5/ 315 80R22.5 12.00R20 | |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) | |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 | |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type | |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) | |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel | |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ) | |
Side Wall | 600mm-1800mm ,the open door can be chosen freely | |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; One piece of 45L air tanks (special for exporting market) | |
ABS | Optional | |
Valve | WABCO valve | |
Light | LED light ( special for exporting market ) | |
Voltage | 24V | |
Receptacle | 7 ways (7 wire harness) | |
Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container | |
Bottom Platform | 3mm-5mm thickness (According to the weight you load ) | |
Product Display
1.Speedy load and unload.
Once the curtains are pulled back, the trailer can be accessed from both sides as well as the rear door by multiple forklifts simultaneously. Drivers are in and out and back on the road quickly.
Once the curtains are pulled back, the trailer can be accessed from both sides as well as the rear door by multiple forklifts simultaneously. Drivers are in and out and back on the road quickly.
2.Simplified partial deliveries.
The limitations of “first on/last off” loading are a thing of the past. Independent access to
all parts of a load at any point along a route means multiple drop loads are easily doable from a single trailer.
all parts of a load at any point along a route means multiple drop loads are easily doable from a single trailer.
3.No tarp required.
While federal regulations require cargo inside curtainsides to be tied down, most loads can be quickly and conveniently secured with straps. Drivers devote time to driving, not struggling with a tarp, and experience a safer work environment as well.
4.Cost-effective
With the relatively low price of the cover, the cover can reduce the production cost and strengthen the competitiveness of the market. It can be rainproof, dustproof, heat-proof, safe and environmentally friendly.
Details Images
Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO has 15 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
