IP66 Large Delivery Robot Chassis Kit Payload Tracked Crawler Robot tank Chassis TINS 17E
- Category: >>>
- Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601260876709):
Product Overview
Description
Tins-17E

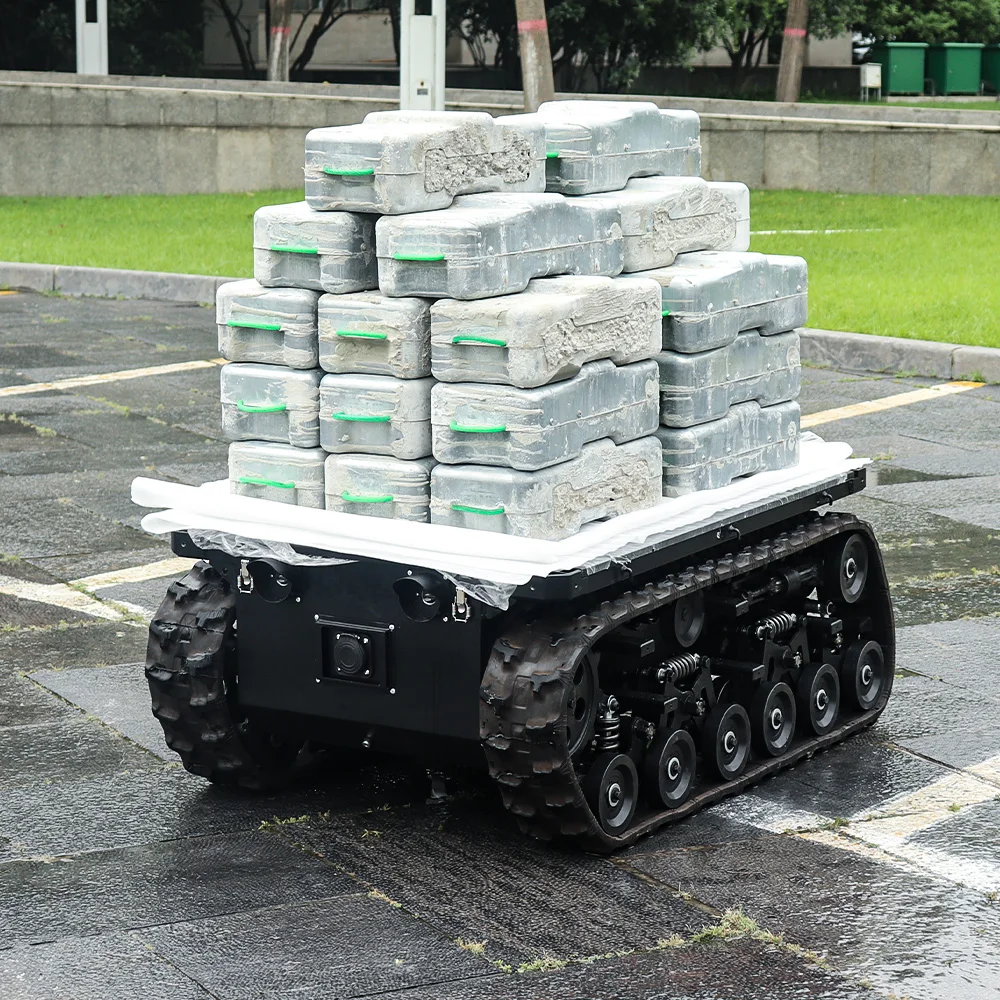

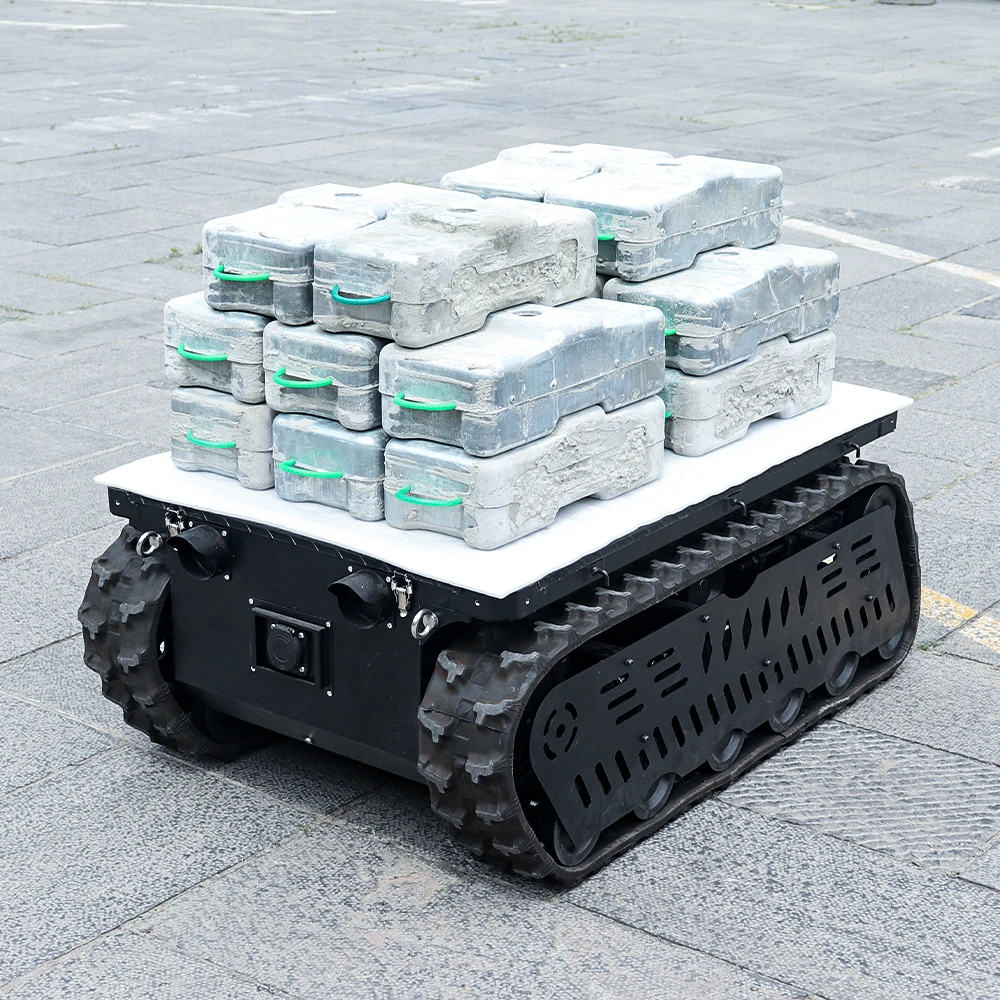

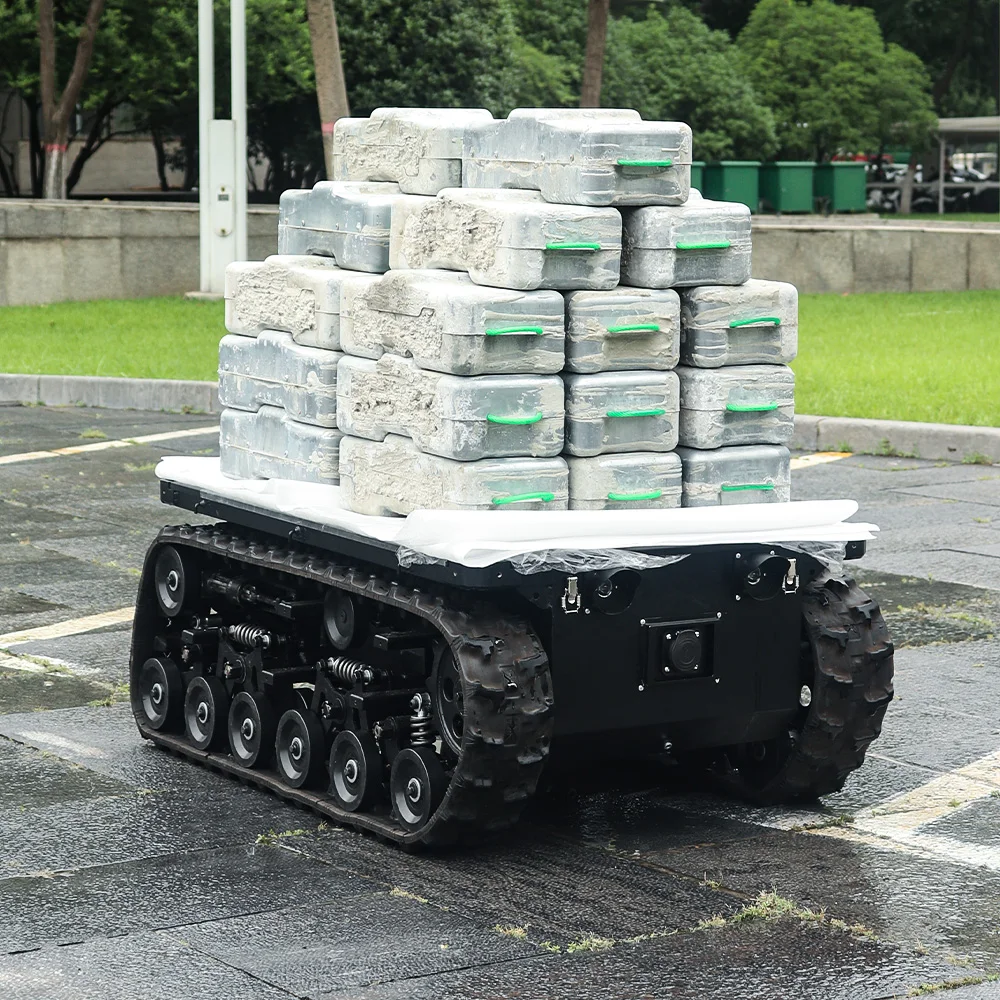

With 500kg-1200kg payload, TinS-17E is mainly used for cargo handling.
Parameters | ||||||
Dimension: | 2000*1300*760mm | Inner battery space: | 900*760*500mm | |||
Self Weight: | 450kg (exclude battery) | Speed: | 2.5-12km/h (<60km/h high speed can be customized) | |||
Driving wheel diameter: | 260mm | Designed Load: | 500-1200kg | |||
Track Width: | 230mm | Gear Ratio: | 1:2.5-1:60 | |||
Motor: | (3KW-11KW)*2 | Climbing Ability: | ≤30°(can climb stairs) | |||
Rated Motor Speed: | 1500-3000r/min | Maximum Span: | 1520mm | |||
Ground clearance: | 200mm | Obstacle crossing ability: | 380mm | |||
Shock absorption system: | Matilda with Christie | Waterproof: | IP65 | |||
Features：
1. Structural performance:
* The overall track structure of the chassis is designed in a parallelogram shape, with high ground clearance, strong crossing ability, long track grounding area, excellent stair climbing ability, and strong outdoor off-road ability. Both the front and rear tracks can wrap the vehicle body, which is more conducive to protecting the vehicle from damage and allowing it to walk on various terrains.
* Large flat plate on top, can be equipped with guardrails and used as a transportation vehicle.
2. Protection level: IP65.
3. Communication protocol: 485 communication, CAN protocol.
4. Working mode: DC brushless Hall motor or servo motor drive+encoder, closed-loop control system, precise control. Precise control of steering angle, speed, and stroke. It can rotate in place or spiral as needed.
5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection.

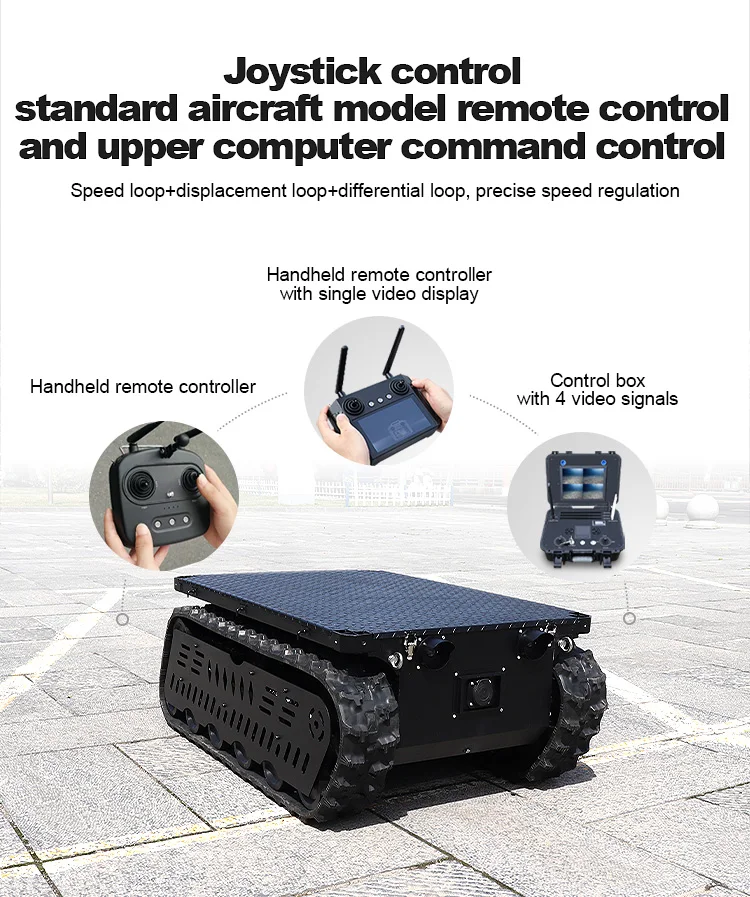

6. Control methods: joystick control, standard aircraft model remote control, and upper computer command control. Speed loop+displacement loop+differential loop, precise speed regulation.
7. Rubber tracks: good ground adhesion, long track grounding area.
8. Tensioning wheel: adjustable to ensure normal tensioning and operation of the track.
9. Widely applied in fields such as safety protection monitoring, robotic arm carriers, lifting platforms, transportation vehicle, etc.
10. Lithium iron phosphate battery: It has the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self discharge rate, and no memory effect.
11. Shock absorption system: Matilda suspension combined with Christie shock absorption, providing excellent shock absorption system.
12. Switching control of high and low beams allows for night driving operations.
13. Support customization and secondary development.
* The overall track structure of the chassis is designed in a parallelogram shape, with high ground clearance, strong crossing ability, long track grounding area, excellent stair climbing ability, and strong outdoor off-road ability. Both the front and rear tracks can wrap the vehicle body, which is more conducive to protecting the vehicle from damage and allowing it to walk on various terrains.
* Large flat plate on top, can be equipped with guardrails and used as a transportation vehicle.
2. Protection level: IP65.
3. Communication protocol: 485 communication, CAN protocol.
4. Working mode: DC brushless Hall motor or servo motor drive+encoder, closed-loop control system, precise control. Precise control of steering angle, speed, and stroke. It can rotate in place or spiral as needed.
5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection.
6. Control methods: joystick control, standard aircraft model remote control, and upper computer command control. Speed loop+displacement loop+differential loop, precise speed regulation.
7. Rubber tracks: good ground adhesion, long track grounding area.
8. Tensioning wheel: adjustable to ensure normal tensioning and operation of the track.
9. Widely applied in fields such as safety protection monitoring, robotic arm carriers, lifting platforms, transportation vehicle, etc.
10. Lithium iron phosphate battery: It has the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self discharge rate, and no memory effect.
11. Shock absorption system: Matilda suspension combined with Christie shock absorption, providing excellent shock absorption system.
12. Switching control of high and low beams allows for night driving operations.
13. Support customization and secondary development.
Packing and Shipping
Within 3-5 working days
Services | ||
1 year warranty for main parts | During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight. | |
Spare Parts | most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients. | |
Operation and Maintenance | we will offer you detailed operation manual, ensuring you can use it perfectly. | |
Online support | Video technical support | |
Online Service | your question will be answer within 24 hours during working days, 48 hours during holiday. | |
