Market Leader W11 30 * 2000 Nc Three Roller Marine Engineering Large Sheet Rolling Machine
- Category: >>>
- Supplier: Absolute Cnc Machine Co. Ltd.
Share on (1601262597451):
Product Overview
Description
Products Description

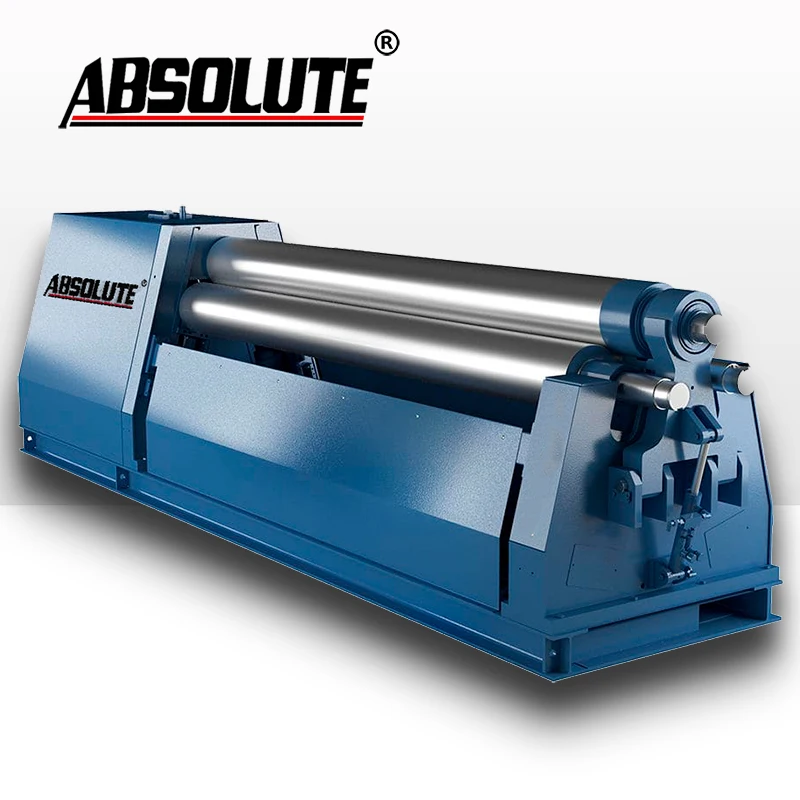

Overview:
The mechanical three-roller symmetrical plate rolling machine is a three-roller symmetrical structure. The upper roller is driven by a bevel gear to move vertically at the most symmetrical position of the two lower rollers. The final gear of the main reducer drives the two lower roller gears to mesh and rotate, providing torque for the rolled plate. The flat plastic metal plate passes through the three working rollers (two lower rollers and one upper roller) of the plate rolling machine. Under the pressure of the upper roller and the rotation of the lower roller, the metal plate undergoes multiple continuous bendings, produces permanent plastic deformation, and is rolled into the required cylinder, cone or part thereof. The disadvantage of the mechanical three-roller plate rolling machine is that the end of the plate needs to be pre-bent with the help of other equipment.
Performance and characteristics:
The structure of the machine is a three-roller symmetrical type. The upper roller is vertically lifted and lowered at the most symmetrical position of the two rollers, which is obtained by the screw nut worm drive. The two lower rollers rotate and mesh with the lower roller gear through the output gear of the reducer to provide torque for the rolled plate. The disadvantage of this machine tool is that it needs to use other equipment to achieve end pre-bending.
Performance and characteristics:
The structure of the machine is a three-roller symmetrical type. The upper roller is vertically lifted and lowered at the most symmetrical position of the two rollers, which is obtained by the screw nut worm drive. The two lower rollers rotate and mesh with the lower roller gear through the output gear of the reducer to provide torque for the rolled plate. The disadvantage of this machine tool is that it needs to use other equipment to achieve end pre-bending.

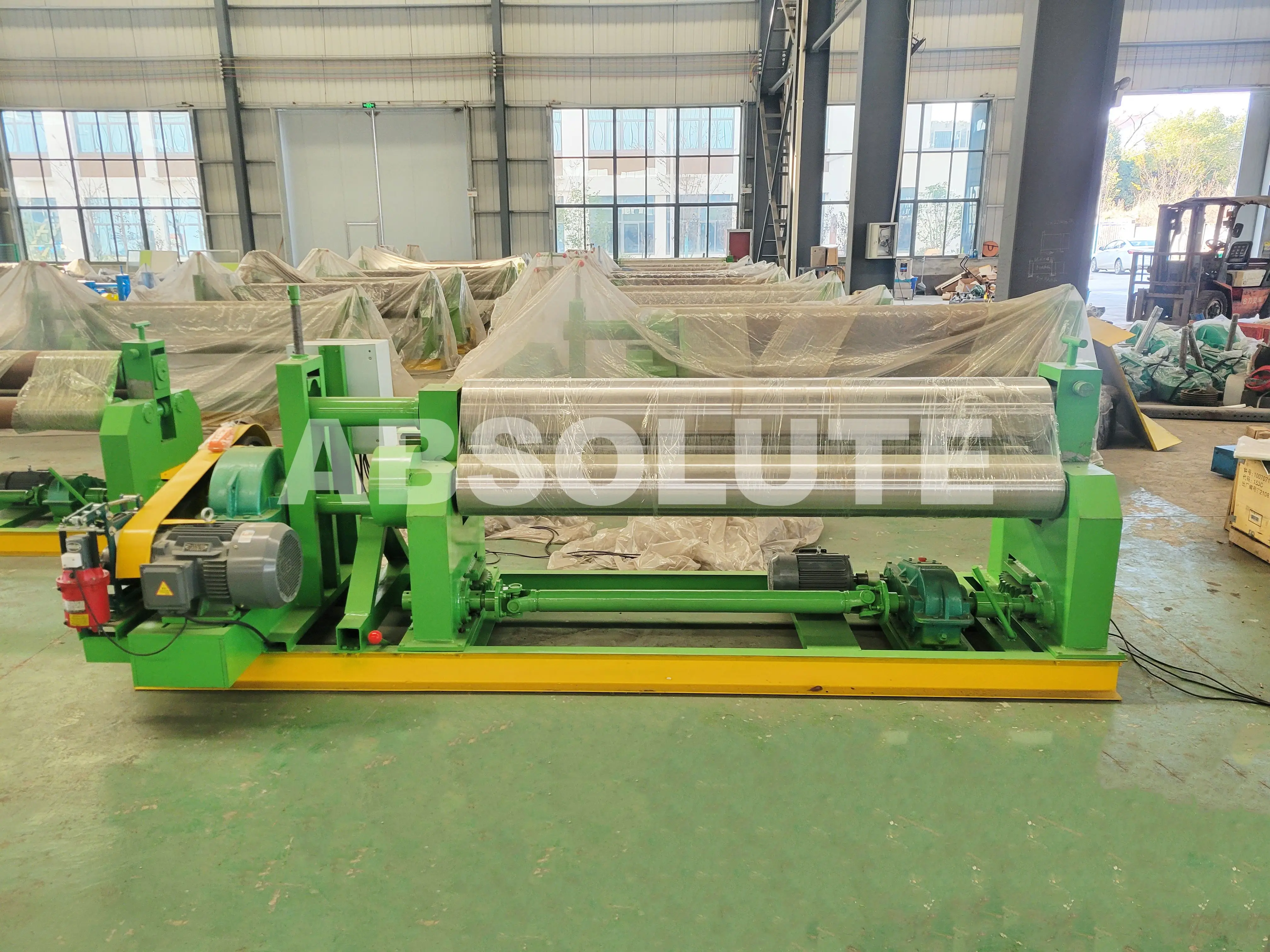

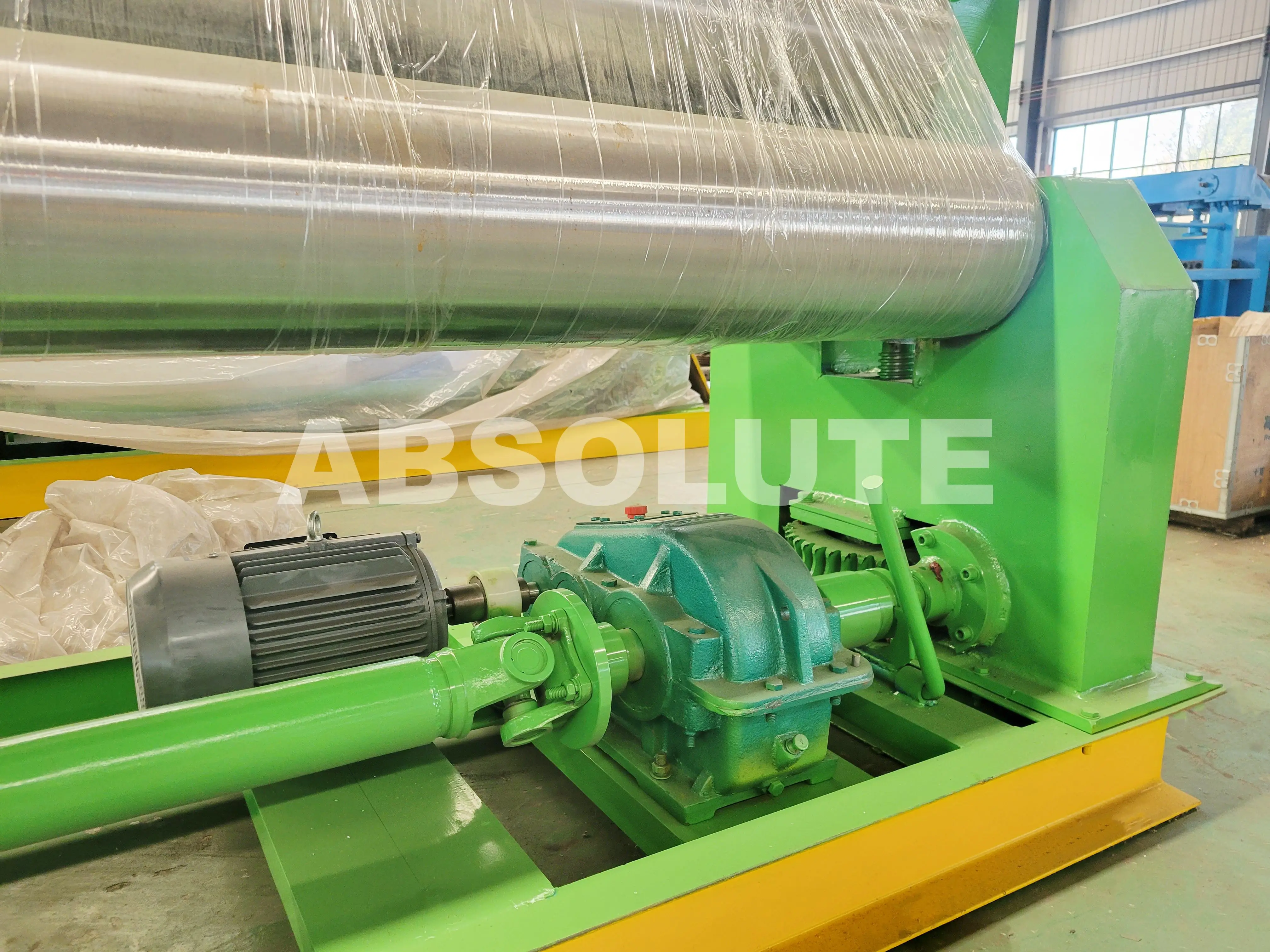

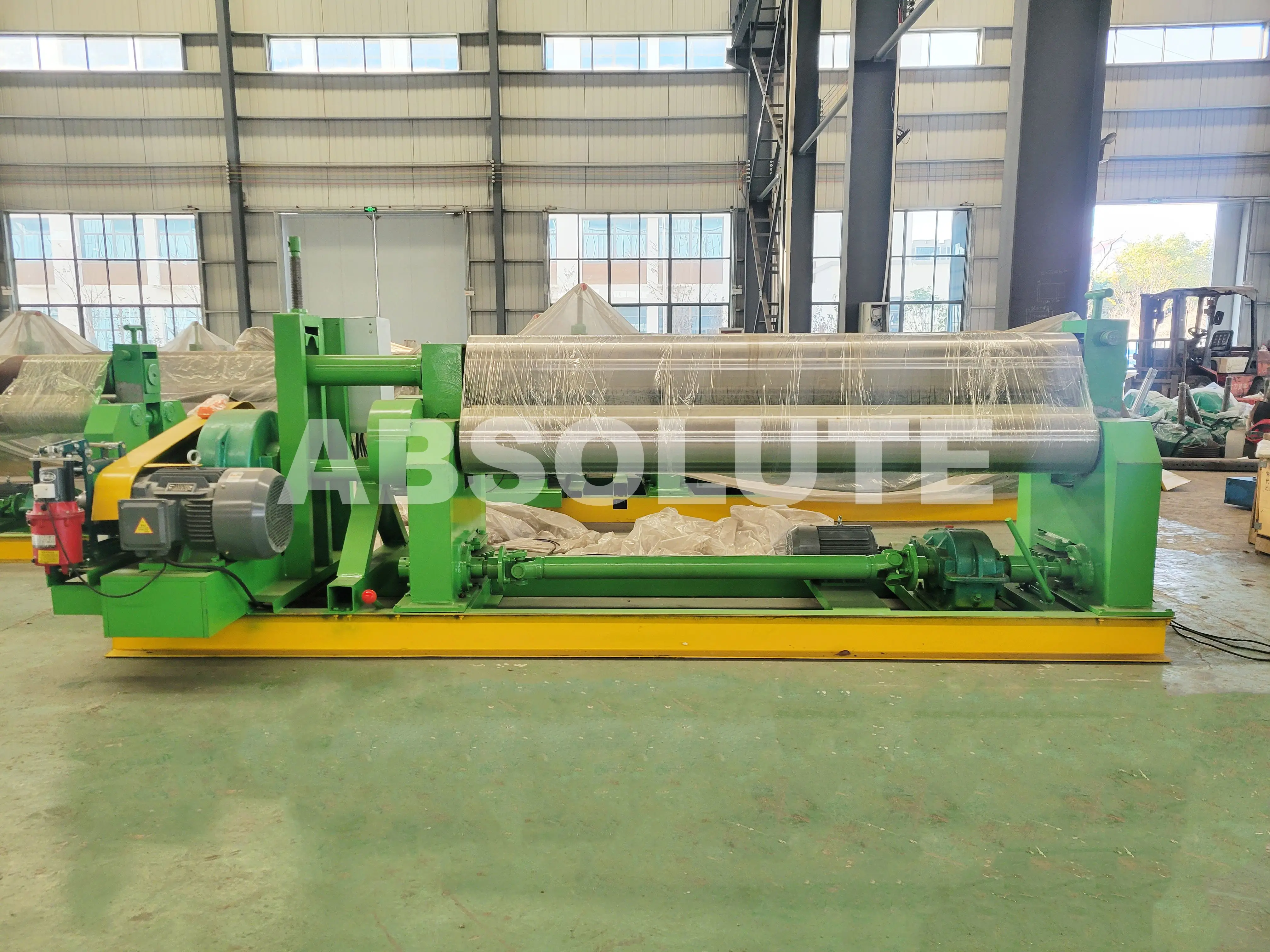

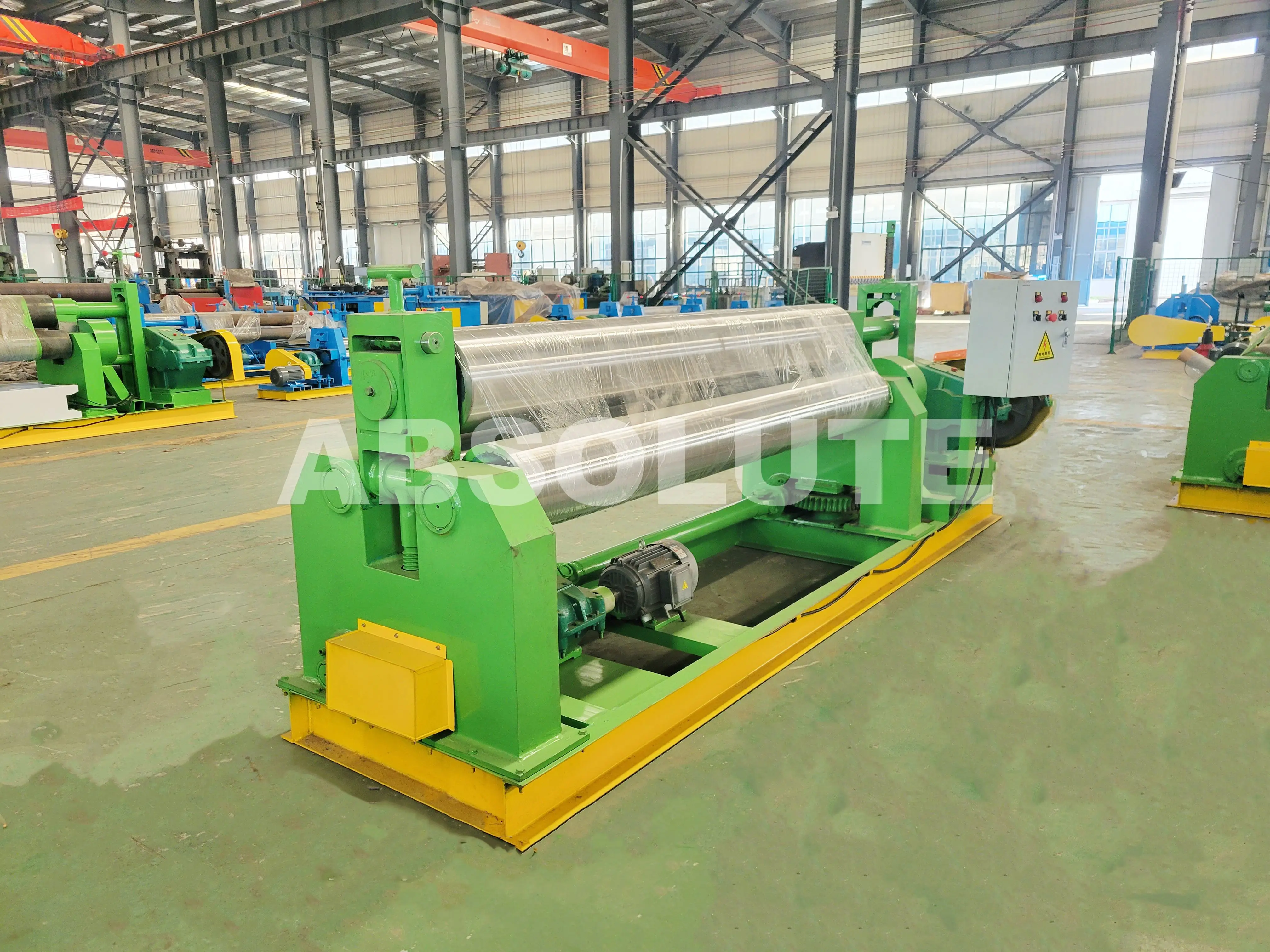

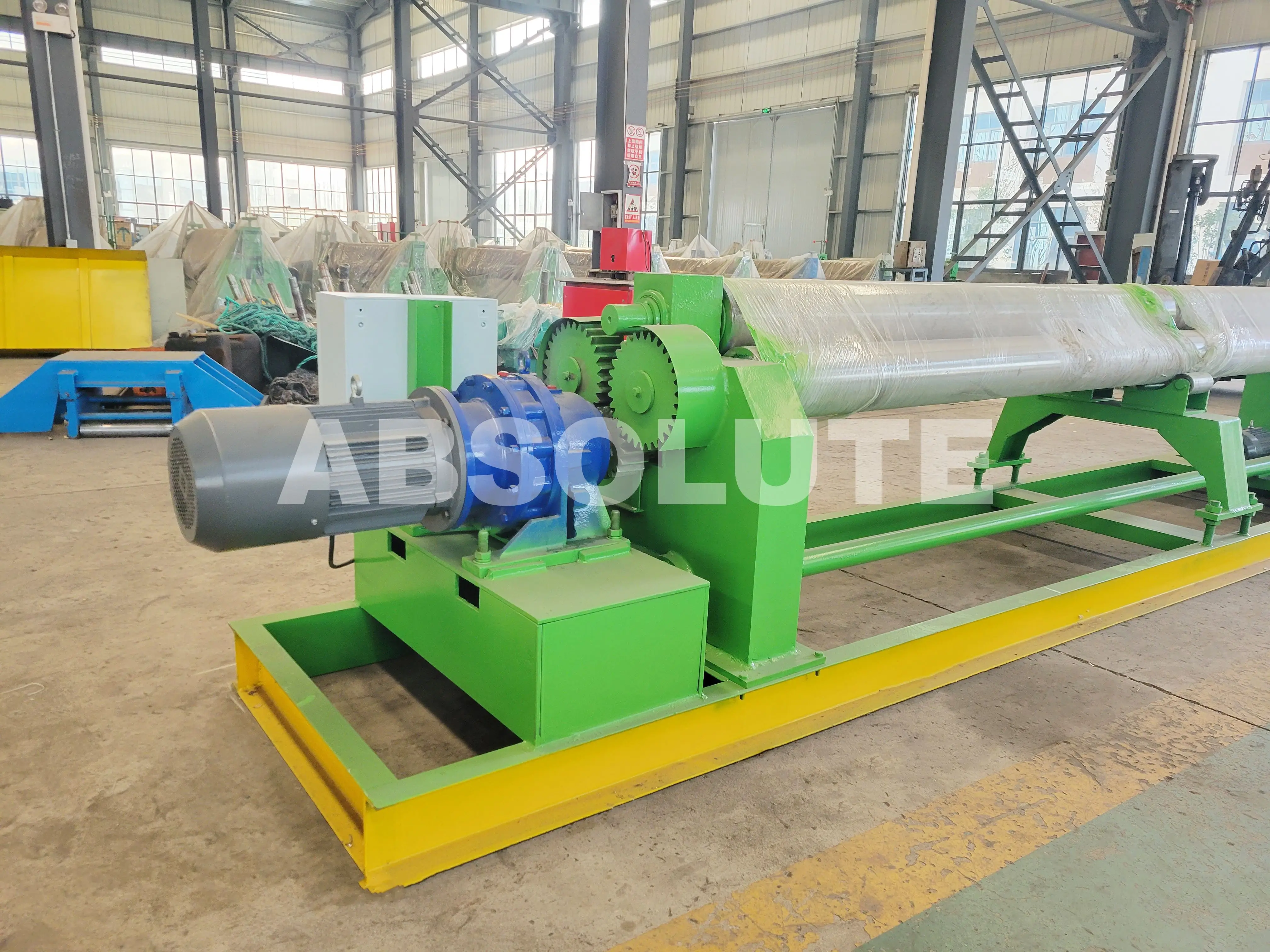

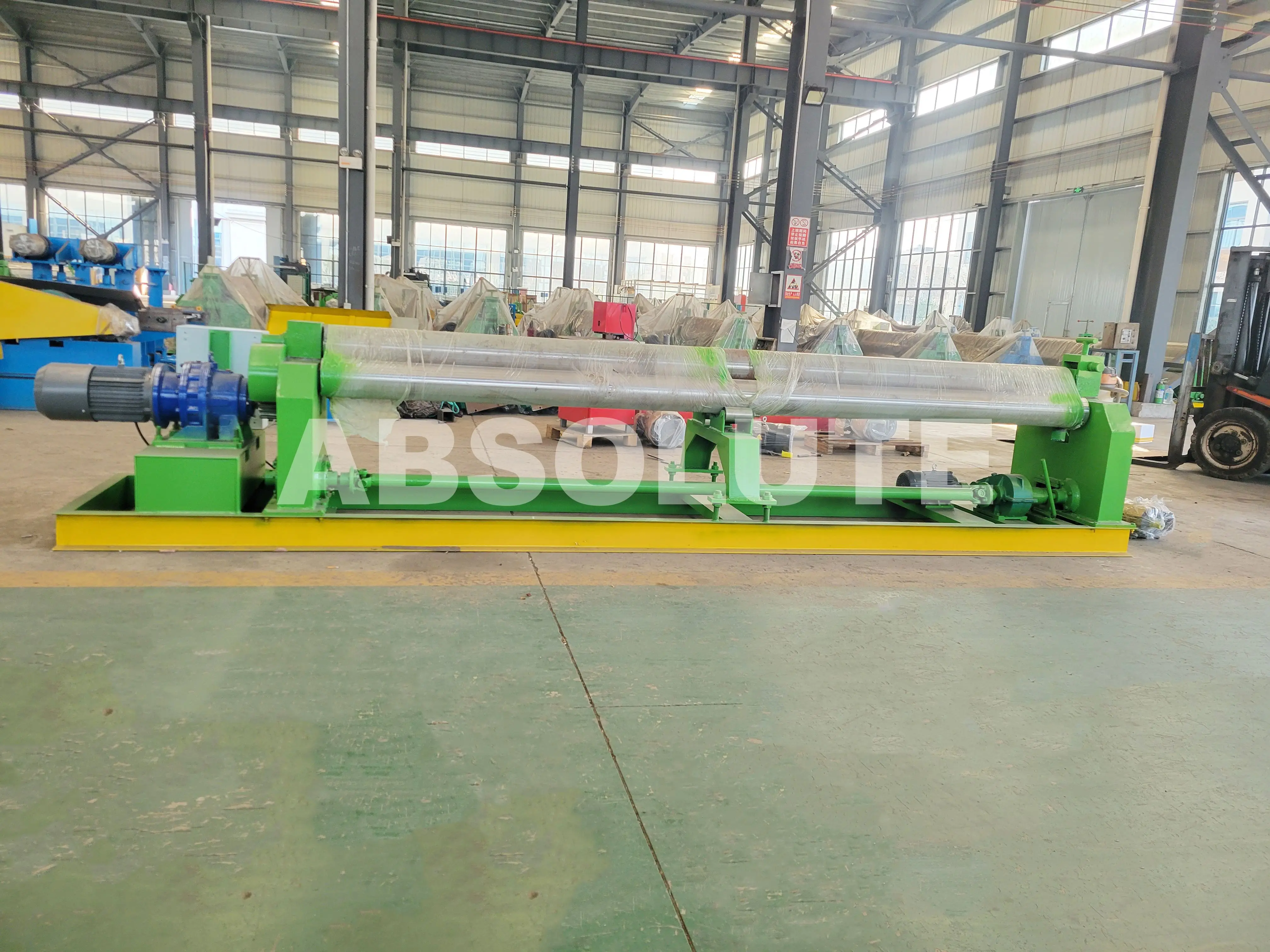

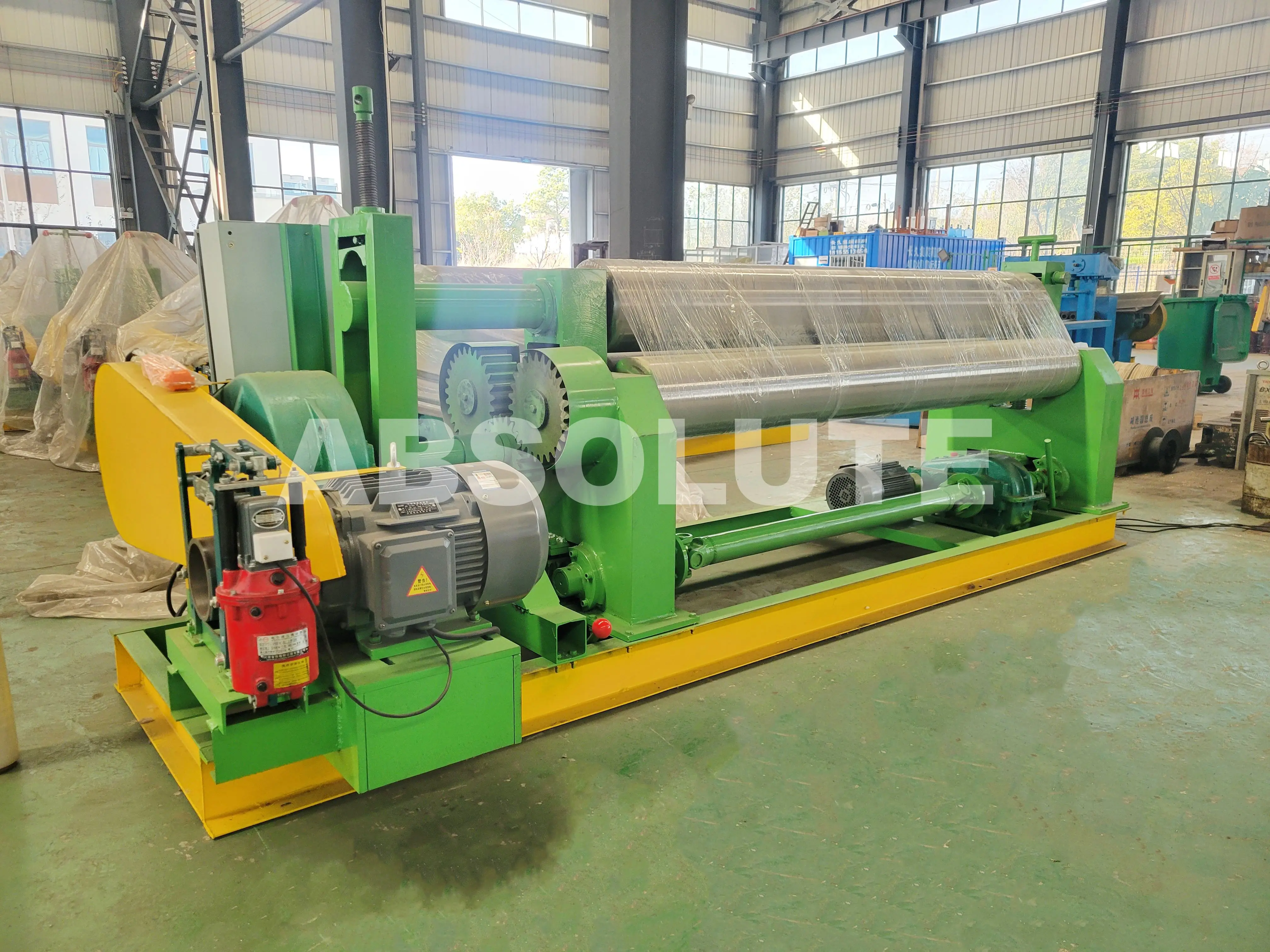

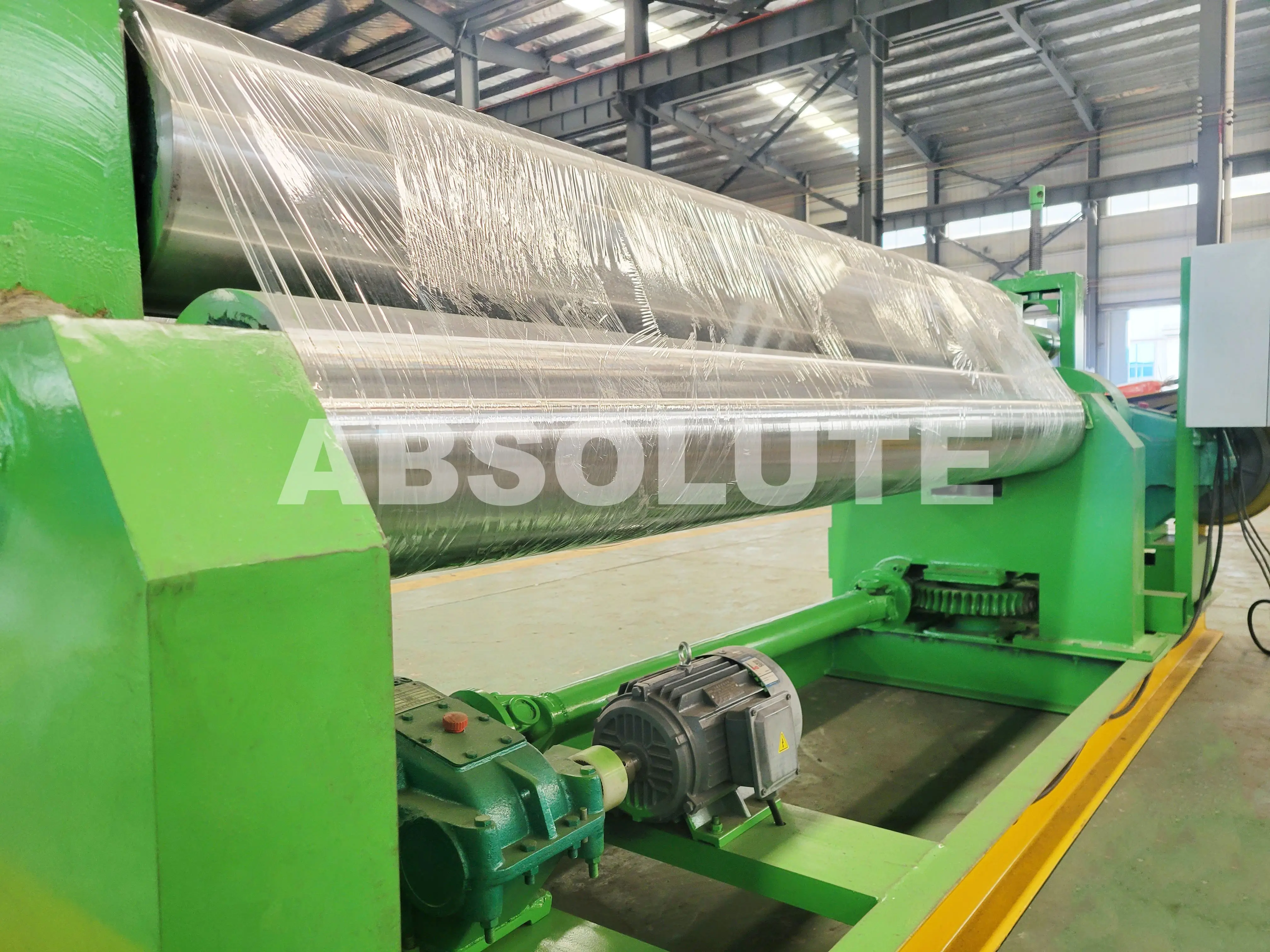

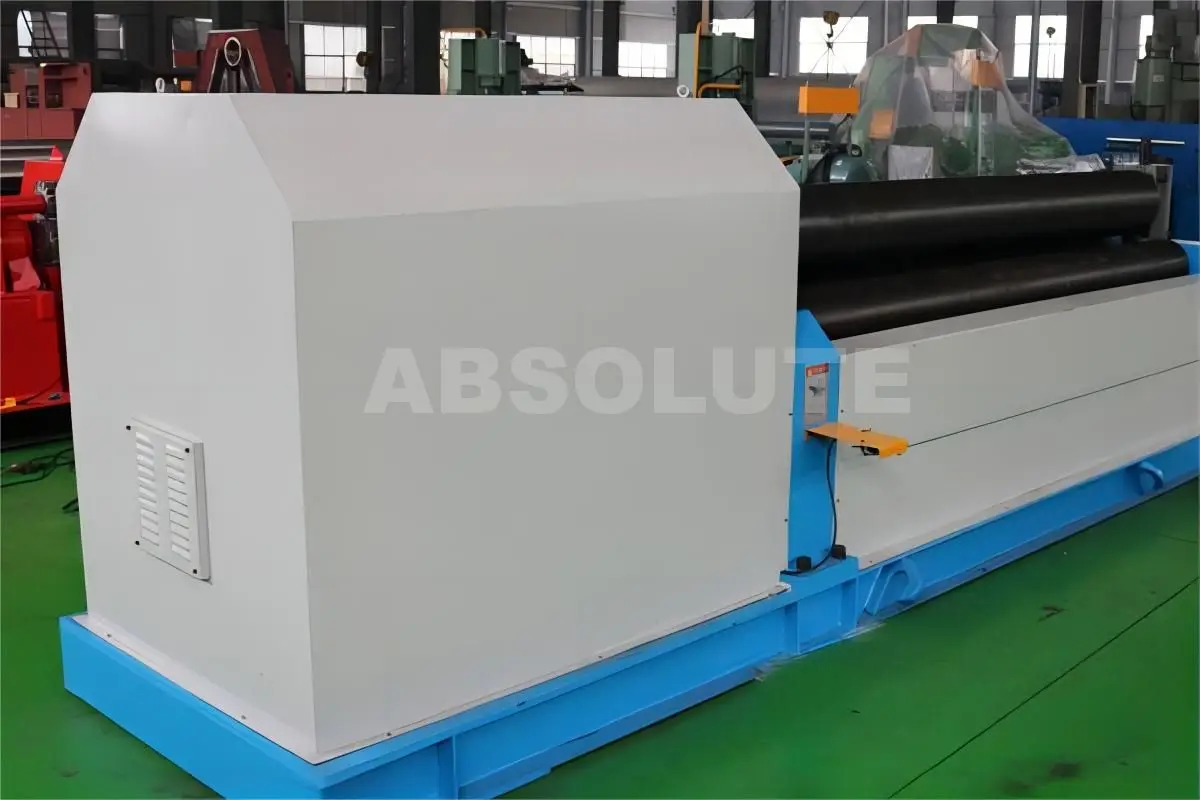

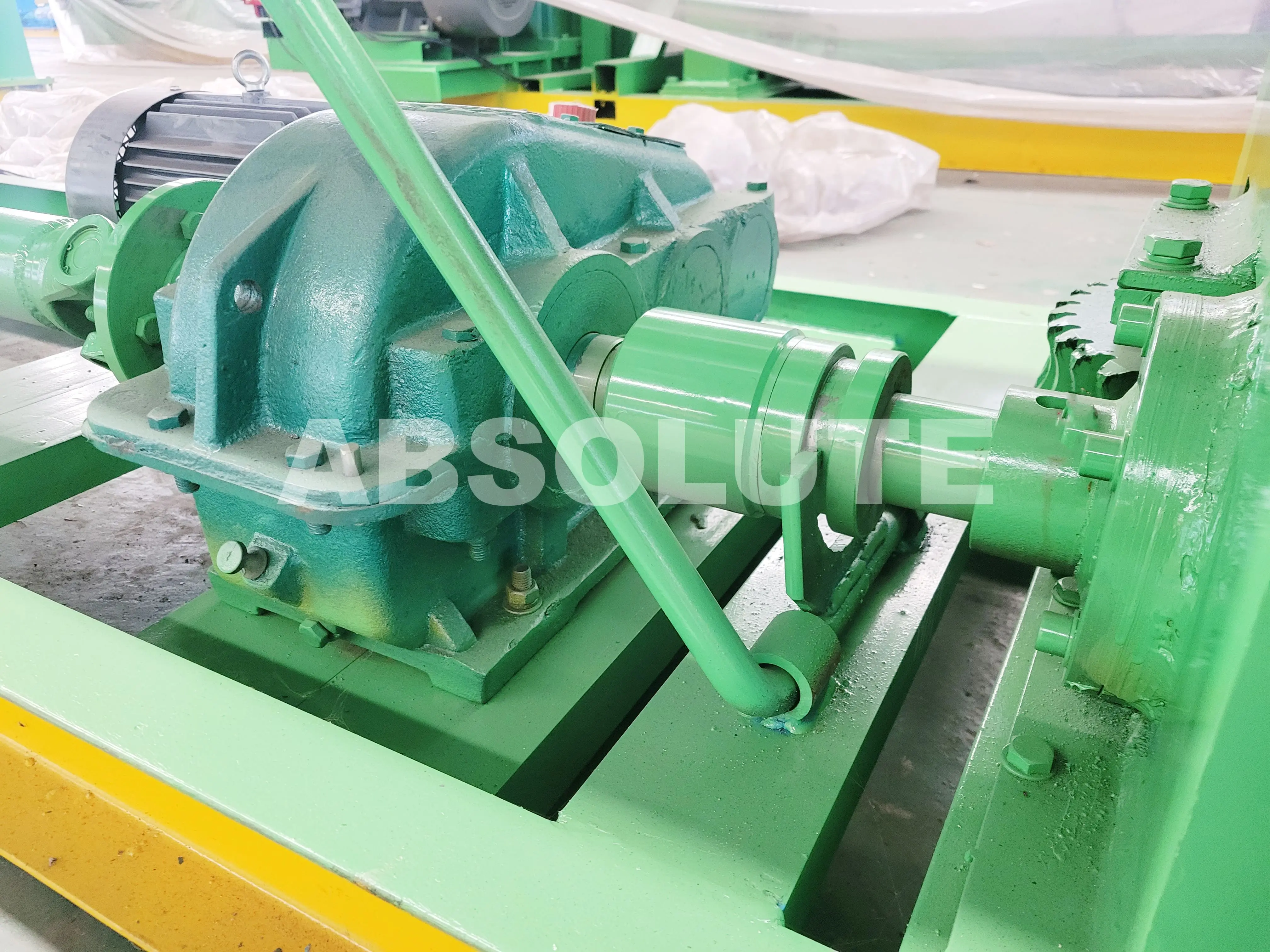

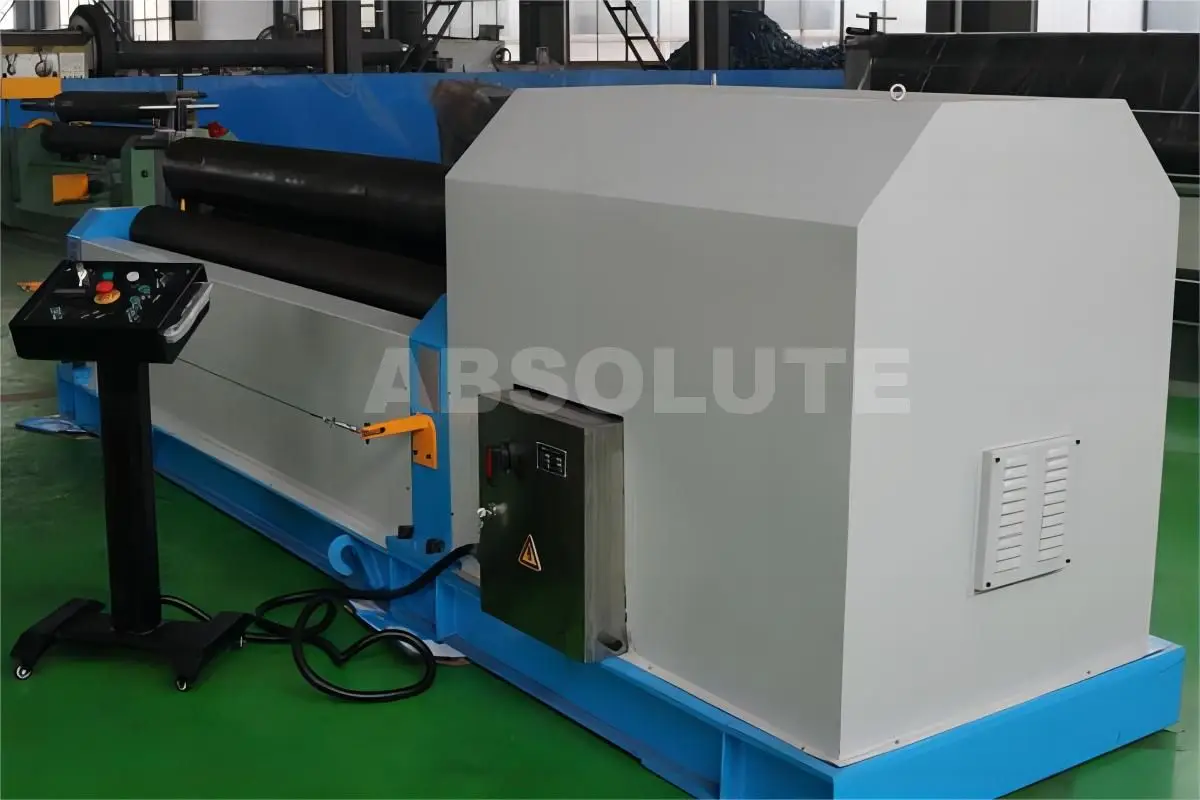

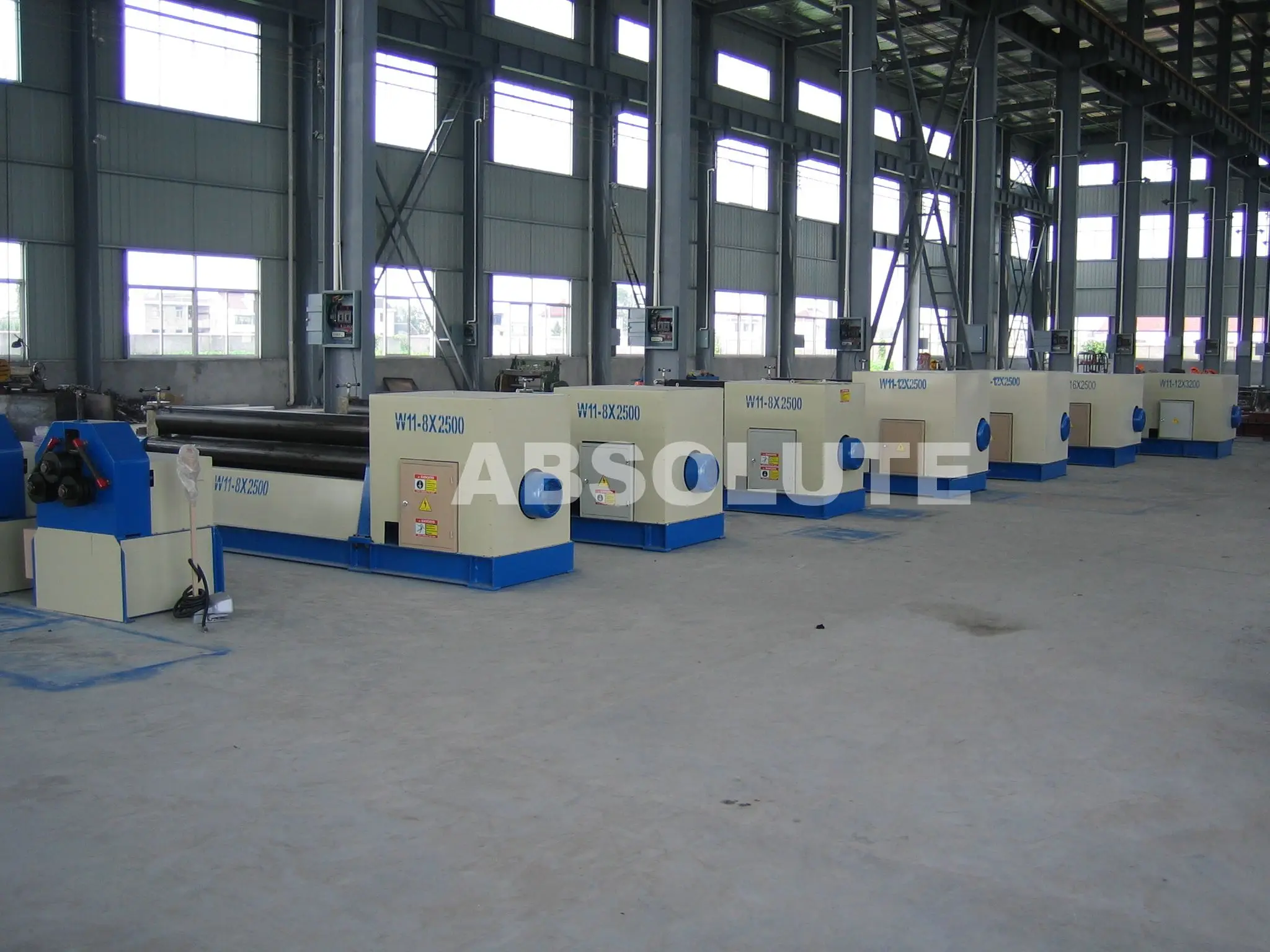

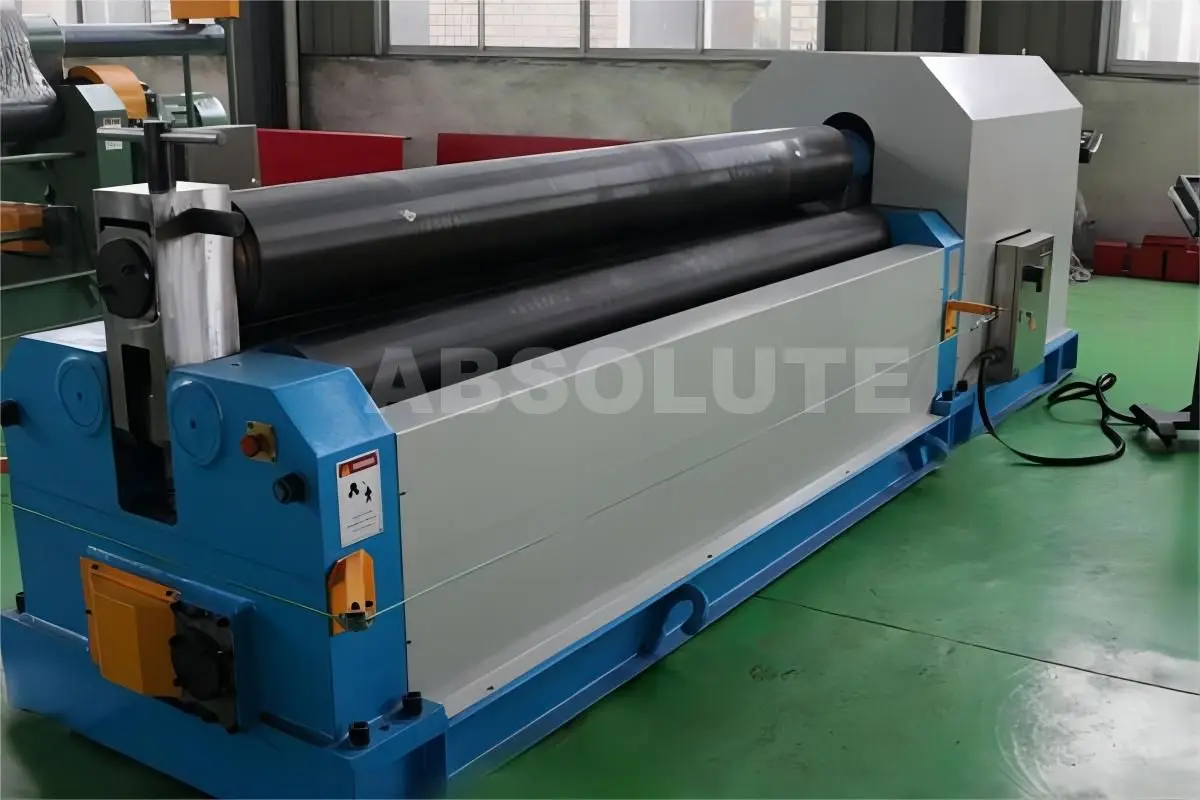

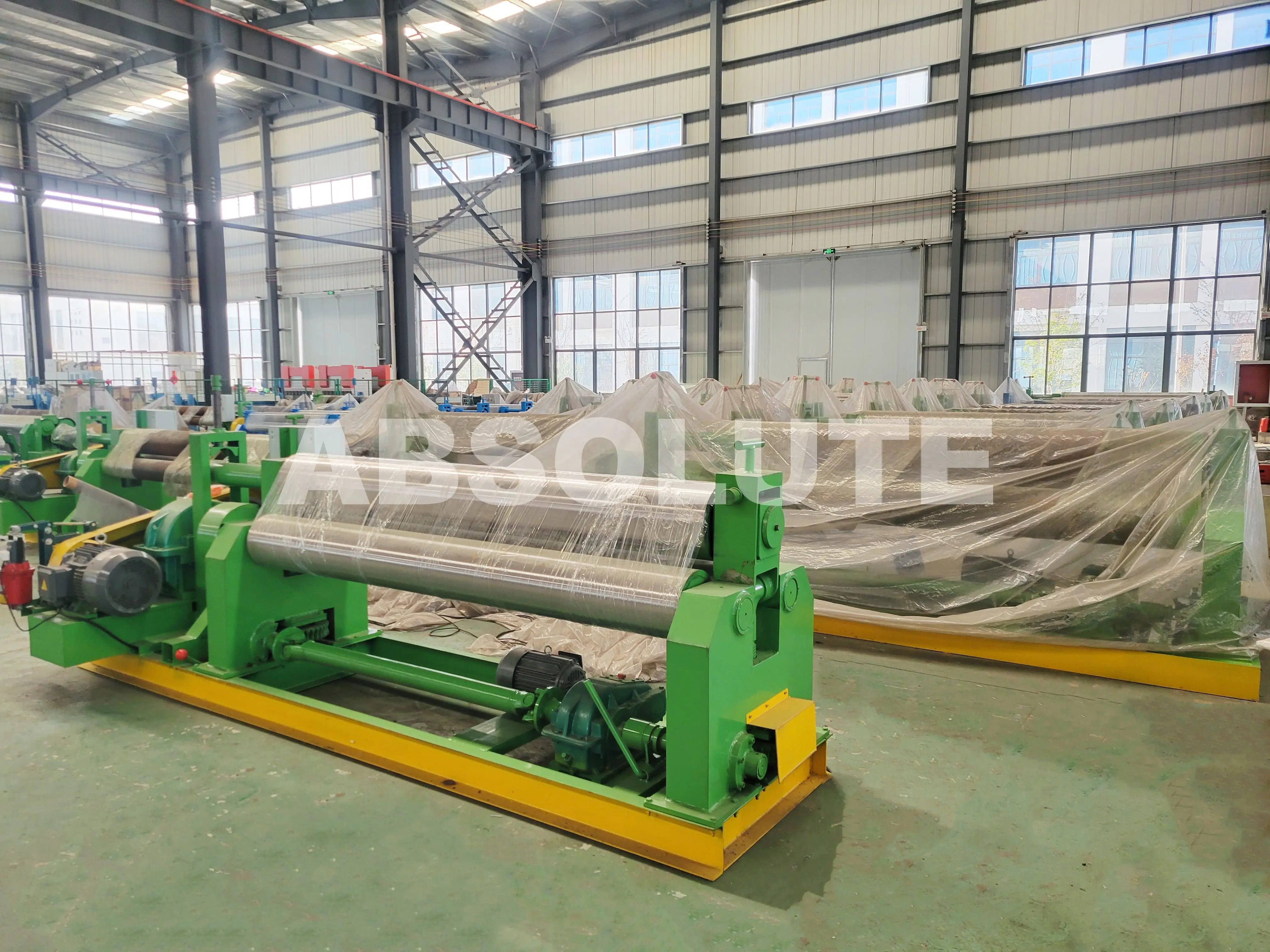

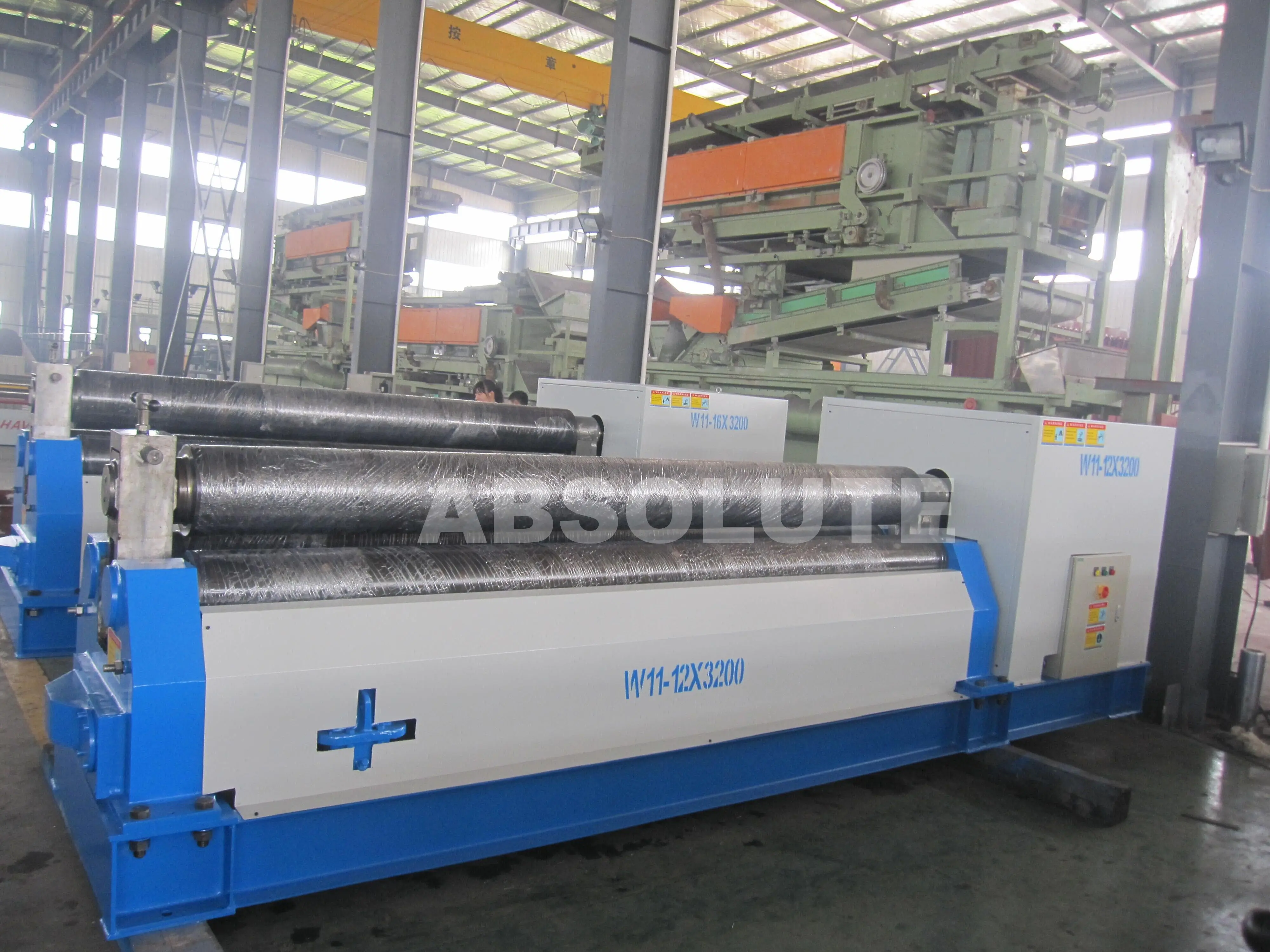

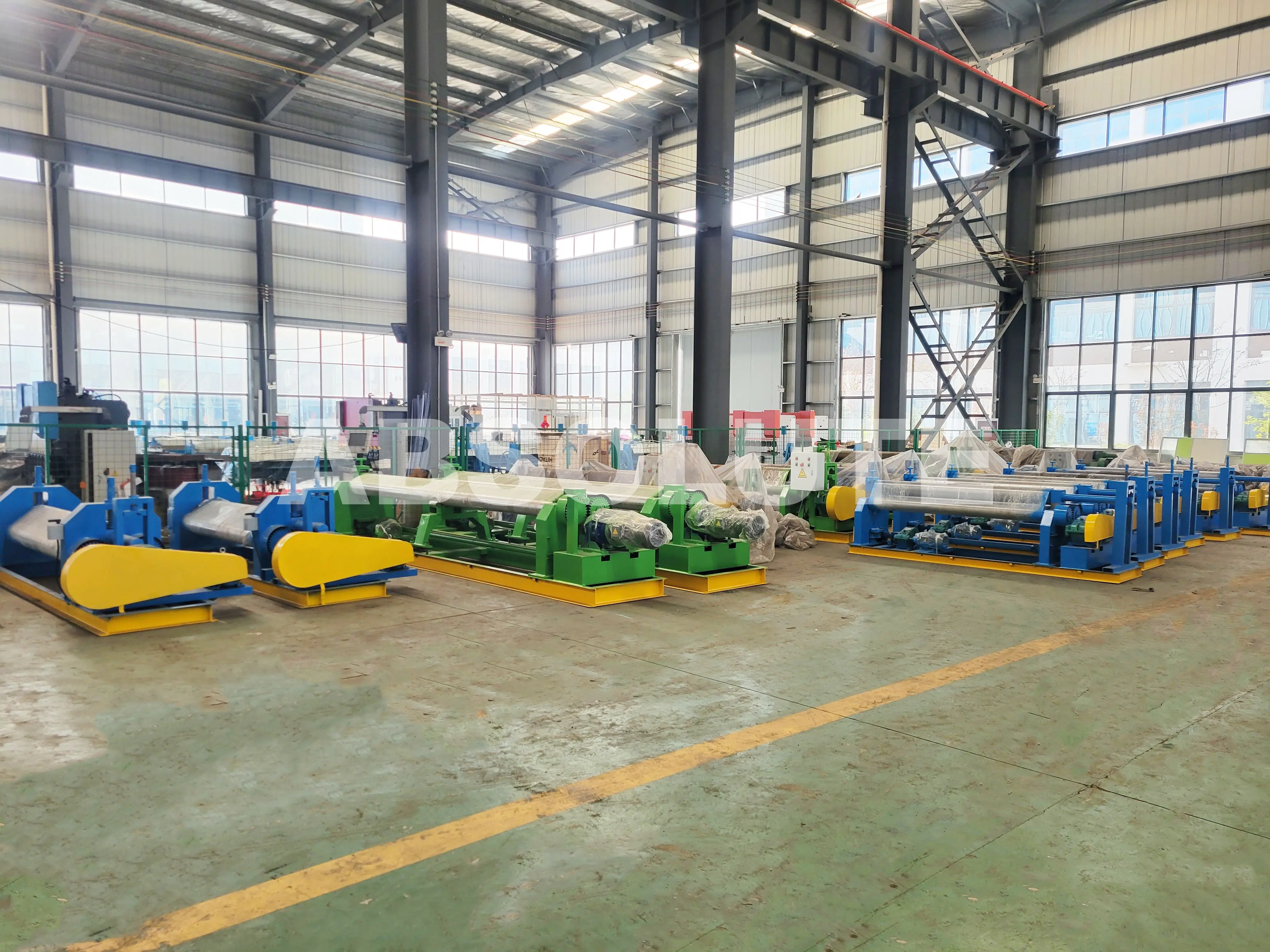

Physical picture
Technical Specifications
Model | Max. thickness (mm) | Max. width (mm) | speed (m/min) | Workpiece Min.Dia. (mm) | Top roller Dia. (mm) | Top roller Dia. (mm) | Dis. of bottom rollers (mm) | Motor(kw) |
W11-6*2000 | 6 | 2000 | 4 | 380 | 170 | 170 | 220 | 5.5 |
W11-6*2500 | 6 | 2500 | 4 | 500 | 190 | 170 | 250 | 5.5 |
W11-6*3200 | 6 | 3200 | 4 | 500 | 240 | 180 | 280 | 11 |
W11-8*2000 | 8 | 2000 | 4 | 450 | 180 | 170 | 220 | 5.5 |
W11-8*2500 | 8 | 2500 | 4 | 500 | 240 | 180 | 280 | 7.5 |
W11-10*2000 | 10 | 2000 | 4 | 500 | 230 | 170 | 280 | 7.5 |
W11-13*1500 | 13 | 1500 | 4 | 500 | 200 | 170 | 280 | 7.5 |
W11-12*2000 | 12 | 2000 | 4 | 500 | 240 | 180 | 280 | 7.5 |
W11-12*2500 | 12 | 2500 | 4 | 750 | 260 | 220 | 320 | 11 |
W11-12*3200 | 12 | 3000 | 4 | 650 | 280 | 240 | 359 | 11 |
W11-16*1500 | 16 | 1500 | 5 | 500 | 240 | 180 | 280 | 11 |
W11-16*2000 | 16 | 2000 | 5 | 750 | 260 | 220 | 320 | 11 |
W11-16*2500 | 16 | 2500 | 5 | 750 | 280 | 240 | 359 | 11 |
W11-16*3200 | 16 | 3200 | 5 | 900 | 340 | 280 | 440 | 15 |
W11-20*2000 | 20 | 2000 | 5 | 750 | 280 | 240 | 359 | 11 |
W11-20*2500 | 20 | 2500 | 5 | 850 | 330 | 270 | 440 | 18.5 |
W11-20*3000 | 20 | 3000 | 5 | 850 | 370 | 280 | 480 | 18.5 |
W11-25*2000 | 25 | 2000 | 5 | 850 | 330 | 270 | 440 | 18.5 |
W11-25*2500 | 25 | 2500 | 4.5 | 900 | 370 | 280 | 480 | 22 |
W11-25*3000 | 25 | 3000 | 4 | 1200 | 400 | 310 | 550 | 22 |
W11-30*2000 | 30 | 2000 | 4 | 1200 | 370 | 280 | 480 | 22 |
W11-30*2500 | 30 | 2500 | 4 | 1200 | 410 | 360 | 480 | 30 |
W11-30*3000 | 30 | 3000 | 4 | 1200 | 430 | 320 | 600 | 37 |
