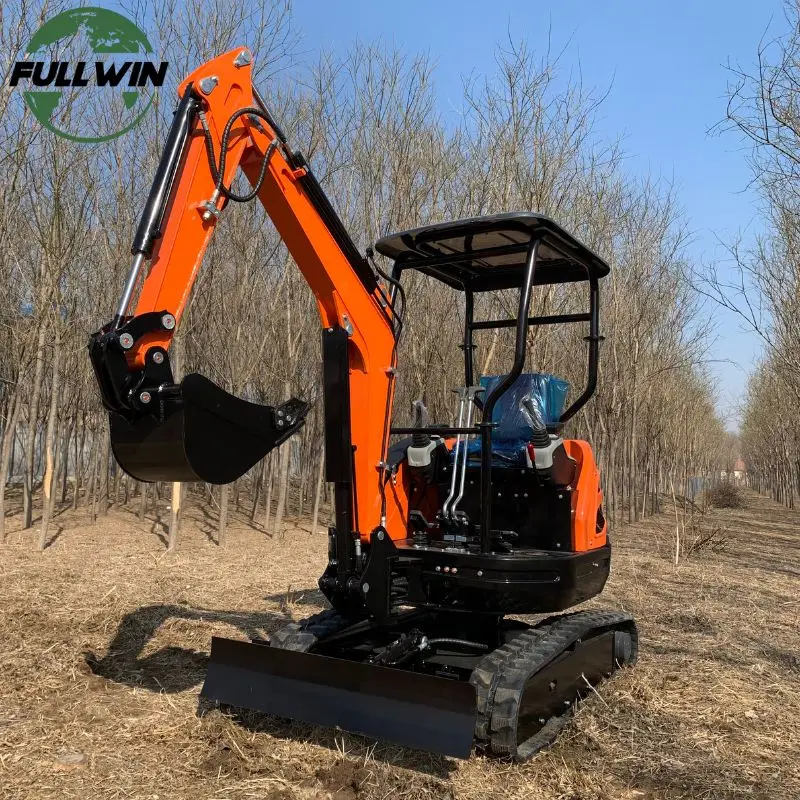

3.5Ton Mini Excavator Small Digger With Free Shipping Best Chinese Quality
- Category: >>>
- Supplier: Qingdao Fullwin Machinery Co. Ltd.
Share on (1601264677474):
Product Overview
Description
Products Description

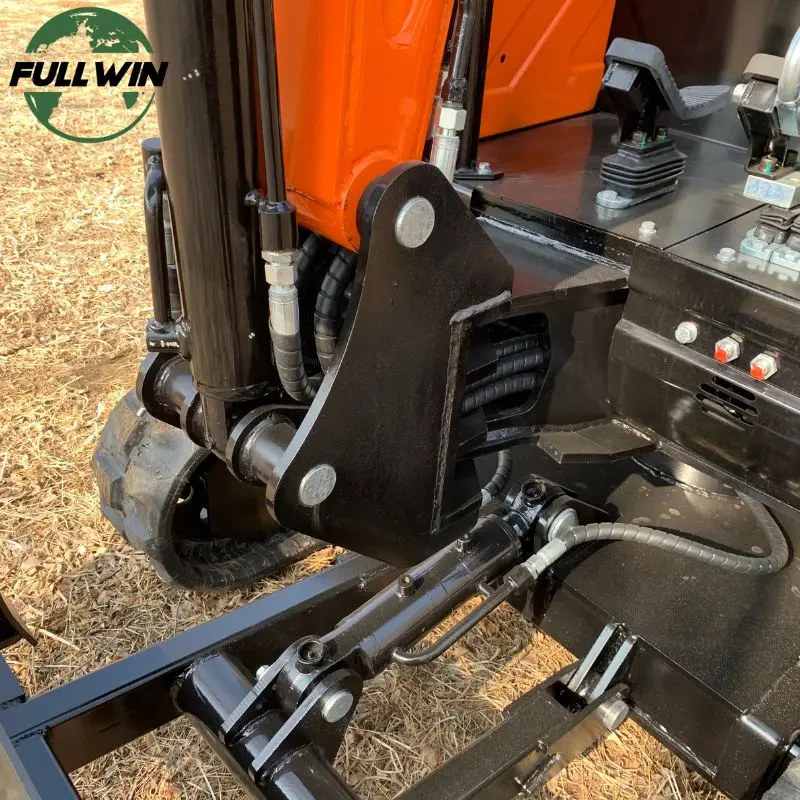

Swing Arm Design
The front of the body is equipped with an arm side movement device.which eliminates the need for frequent body movements and makes operation more convenient.

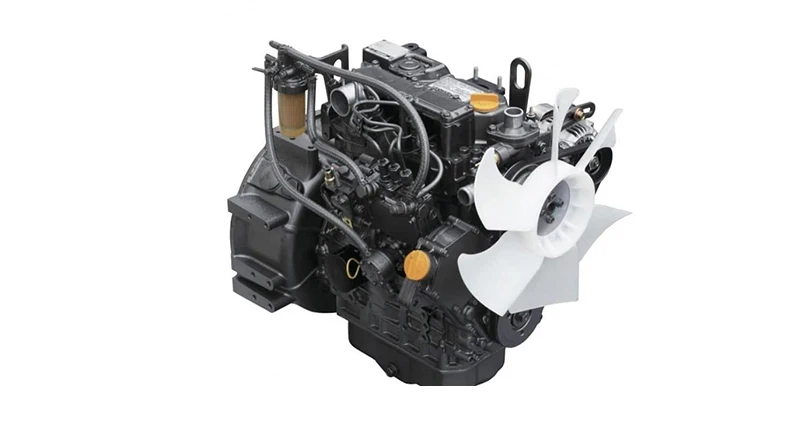

EPA/Euro 5 Certified Engine
Kubota or Yanmar engines are available based on your needs, both delivering robust power, featuring three cylinders that meet Euro V and EPA emission regulations
Body design
The compact tailless model excavator is fuel-efficient and designed for flexible operation in small spaces. it offers excellent maneuverability and versatility making it an ideal choice for projects in confined areas.

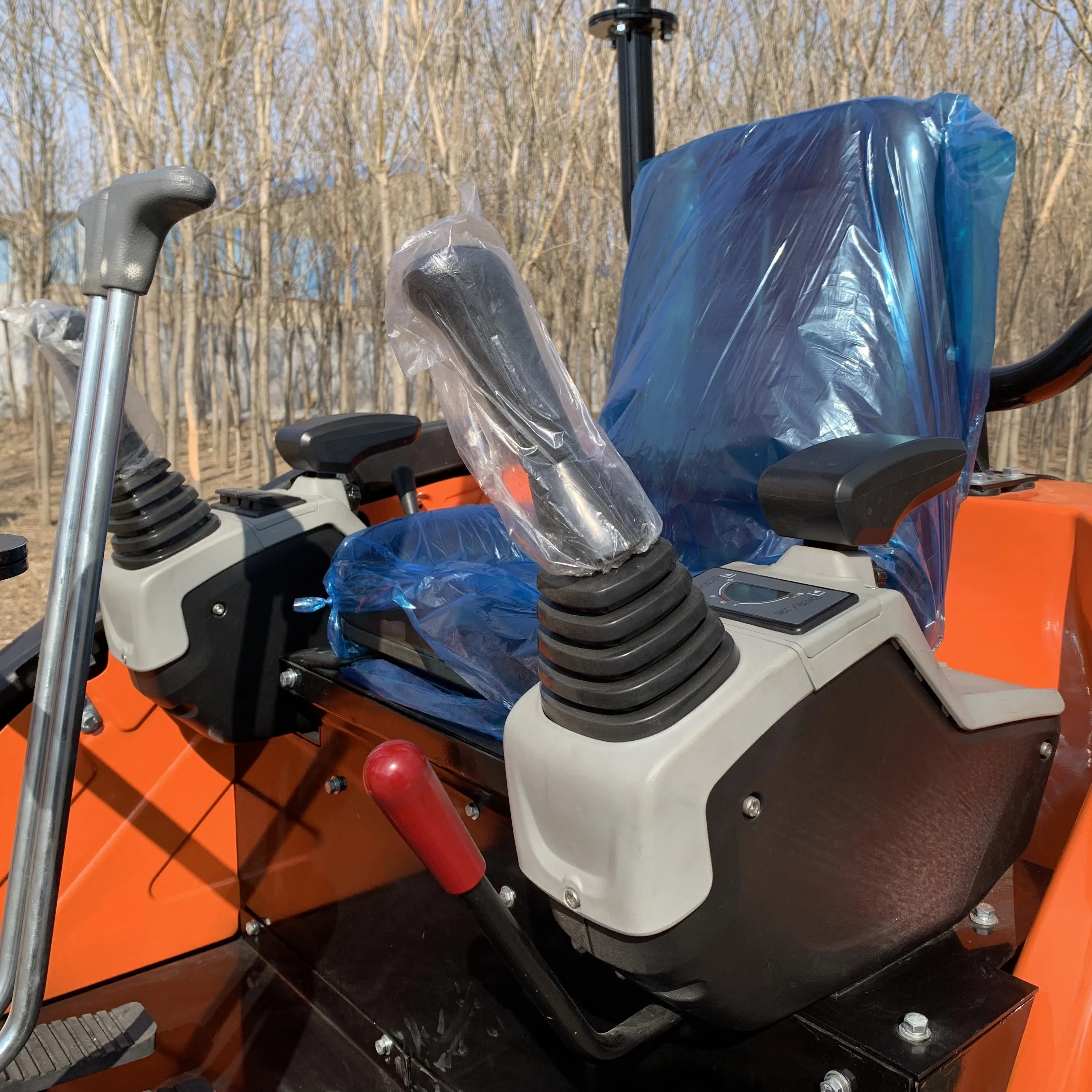

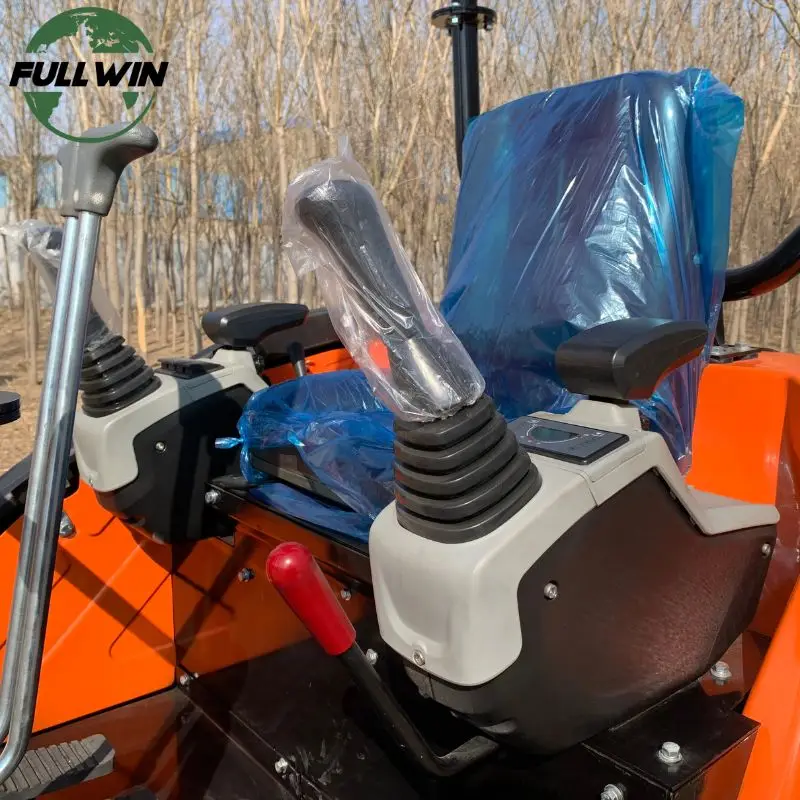

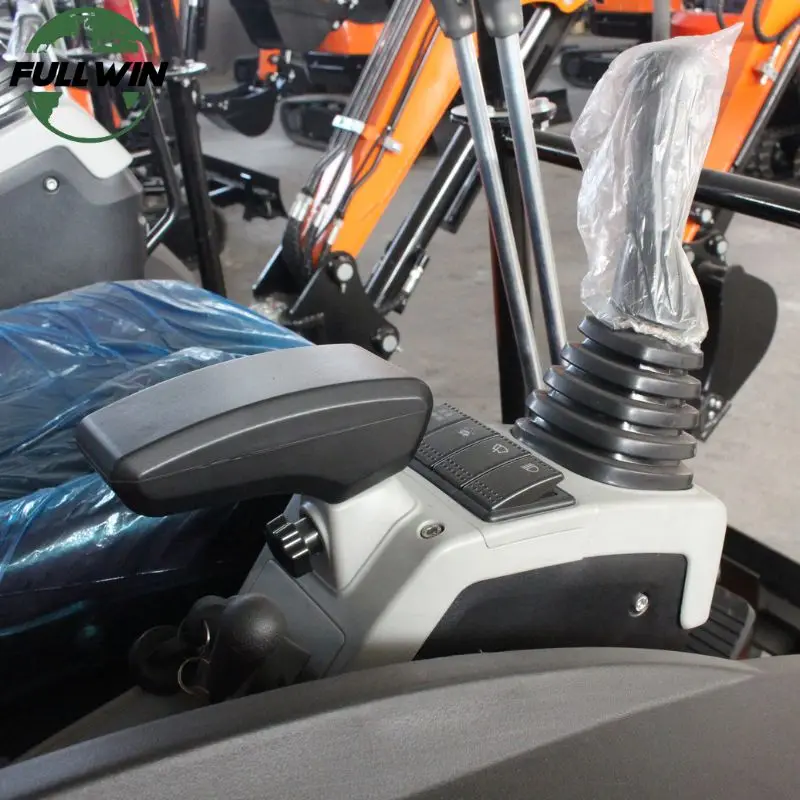

Hydraulic Pilot Control
The hydraulic pilot system offers enhanced flexibility and convenience, ensuring stable and reliable performance for demanding tasks. it provides efficient, economical,and dependable capabilities
Undercarriage Retraction
A telescopic chassis design is offered to cater to your requirements, enhancing flexibility and adaptability across different work environments
Product Paramenters
FW35T | ||||
Performance | ||||
Diesel Engine | Yanmar 380F | |||
No. of Cylinders | 3 | |||
Rated Power | 15.2KW/21HP@2500RPM | |||
Emission Standard | EPA&Euro5 | |||
Operating Weight | 3500KG | |||
System Pressure | 20MPa | |||
Flow of Main Pump | 28ml/r | |||
Standard Bucket Capacity | 0.07cbm | |||
Standard Bucket Width | 450mm | |||
Gradeability | 35° | |||
Max. Bucket Digging Force | 12KN | |||
Operation Range | ||||
Max. Digging Height | 3830mm | |||
Max. Dumping Height | 2770mm | |||
Max. Digging Depth | 2300mm | |||
Max. Digging Radius | 4300mm | |||
Max. Digging Level Distance | 3020mm | |||
Max. Lifting Height of Bulldozer Blade | 170mm | |||
Max. Cutting Depth of Bulldozer Blade | 140mm | |||
Min. Radius of Gyration | 1970mm | |||
Dimensions | ||||
Machine Length | 3850mm | |||
Machine Width | 1320mm | |||
Chassis Width | 1300mm | |||
Machine Height | 2430mm | |||
Swing Arm Deflection Angle (Right) | 52° | |||
Overall Length | 3329 mm | |||
Overall Width | 990 mm | |||
Overall Height | 2267 mm | |||
Dozer Board Height | 210 mm | |||
Track Plate Width | 200 mm | |||
Track Gauge | 790 mm (1100 mm) | |||
Track Grounding Length | 1190 mm | |||
Min Ground Clearance | 153 mm | |||
Tail Swing Radius | 655 mm | |||
Track gauge（mm） | 790（1100） | |||
Track grounding length（mm） | 1190 | |||
Minimum ground clearance（mm） | 153 | |||
Tail swing radius（mm） | 655 | |||

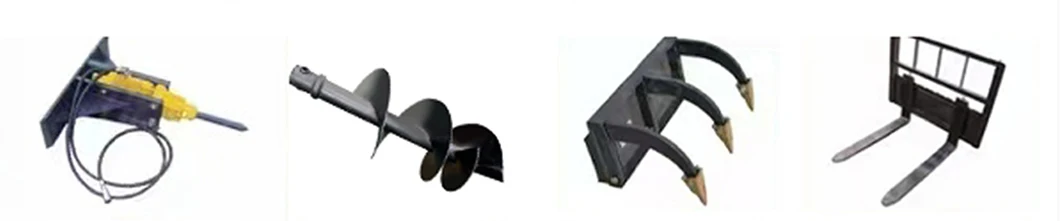

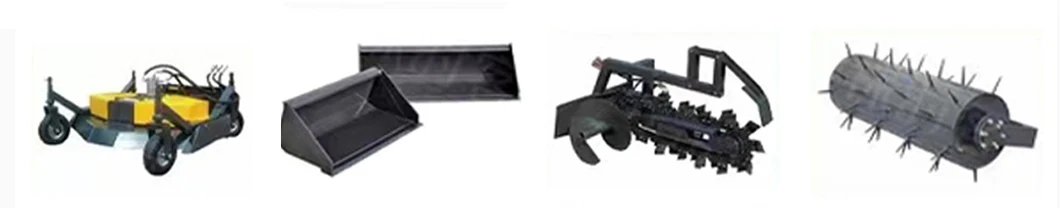

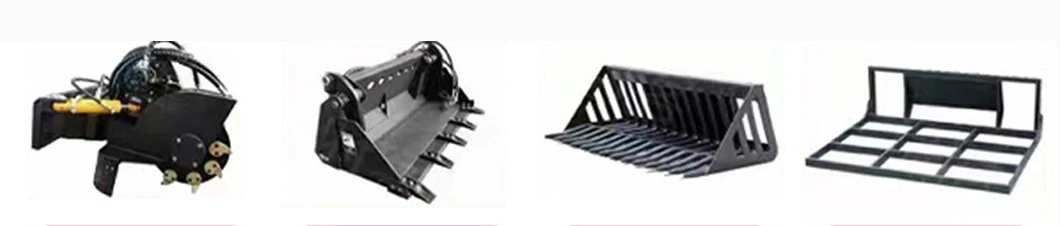

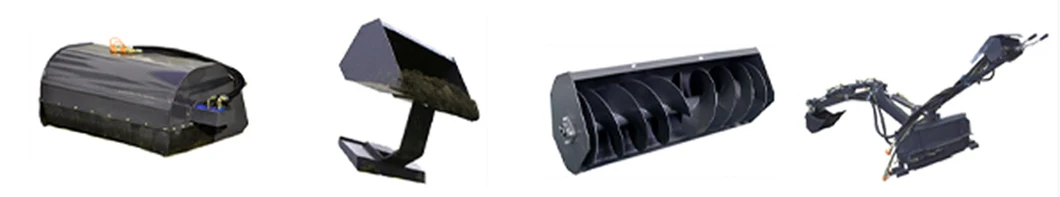

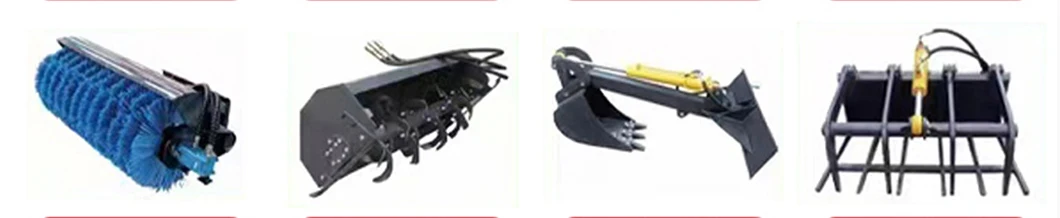

Available Accessories
Stump Crusher 4 in 1 Bucket Rock Bucket Leveller
Closed Cleaner High Tipping Bucket Filler Digger
Hammer Auger Ripper Fork
Cleaner Rotary Plow Straight Dig Wood Grabber
Lawn Mower Bucket Straight Dig Lawn Scarifier
Company Profile
Certifications
Recommend Products
Our Advantages
FAQ
FAQ:
Q1.Are you a manufacturer?
A: Yes, we are a factory with more than 10 years of manufacturing experience.
Q2.What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Well, show you the photos of the products and packages before paying the balance.
Q3.What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4.How about your delivery time?
A: Generally, it will take 7-10 working days after receiving your advance
payment. The specific delivery time depends on the items and the quantity of your order.
Q5.What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7.How do you make our business a long-term and good relationship?
A: 1. We keep good quality and competitive prices to ensure our customer's benefits;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
Q1.Are you a manufacturer?
A: Yes, we are a factory with more than 10 years of manufacturing experience.
Q2.What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Well, show you the photos of the products and packages before paying the balance.
Q3.What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4.How about your delivery time?
A: Generally, it will take 7-10 working days after receiving your advance
payment. The specific delivery time depends on the items and the quantity of your order.
Q5.What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7.How do you make our business a long-term and good relationship?
A: 1. We keep good quality and competitive prices to ensure our customer's benefits;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
