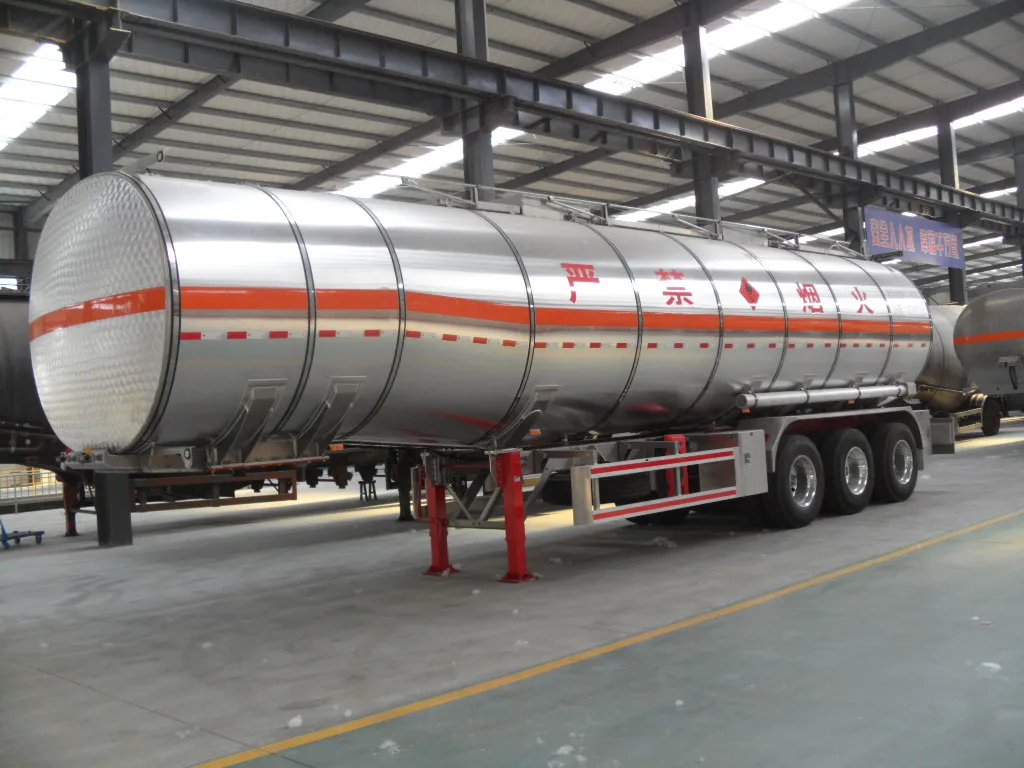

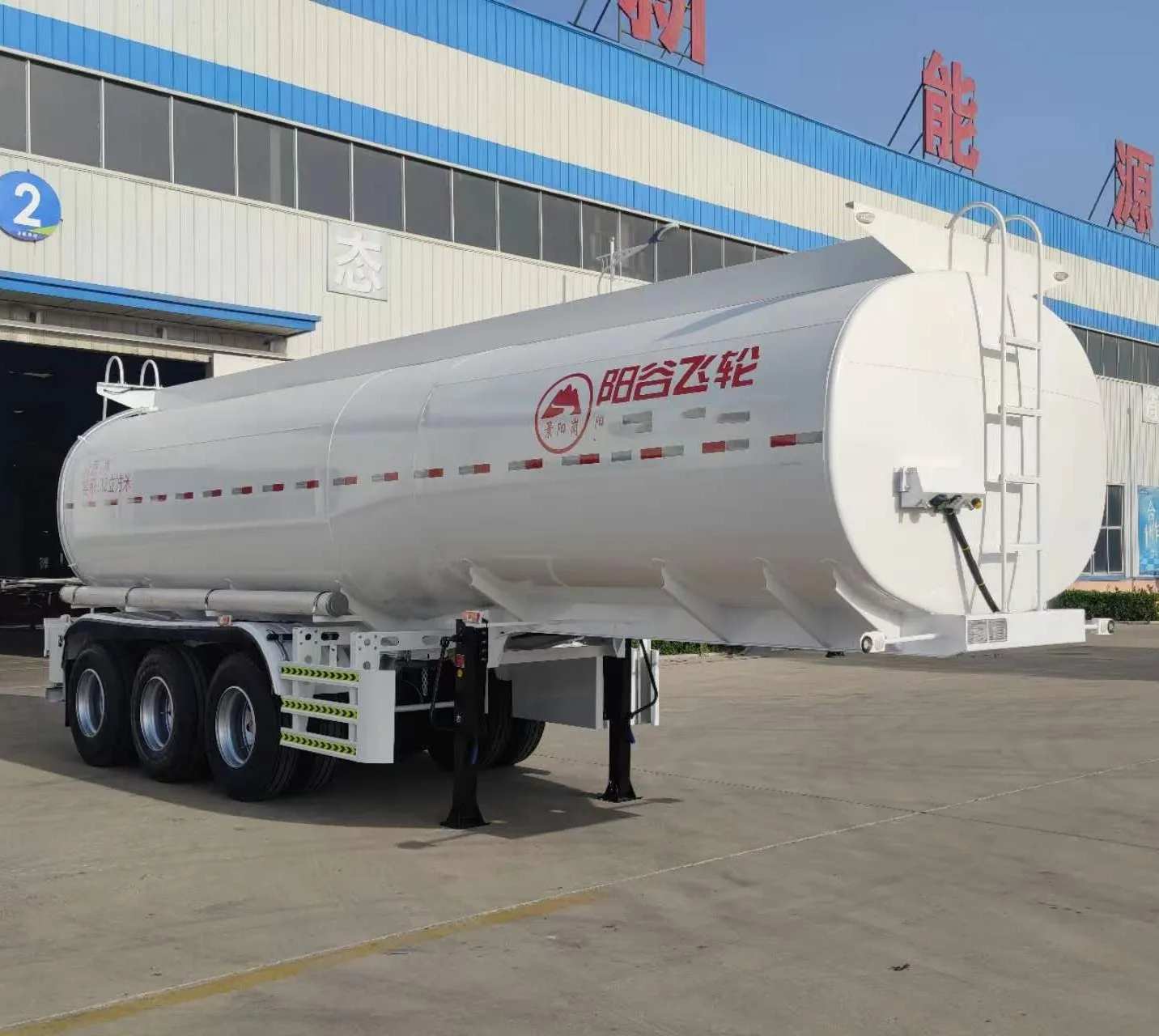

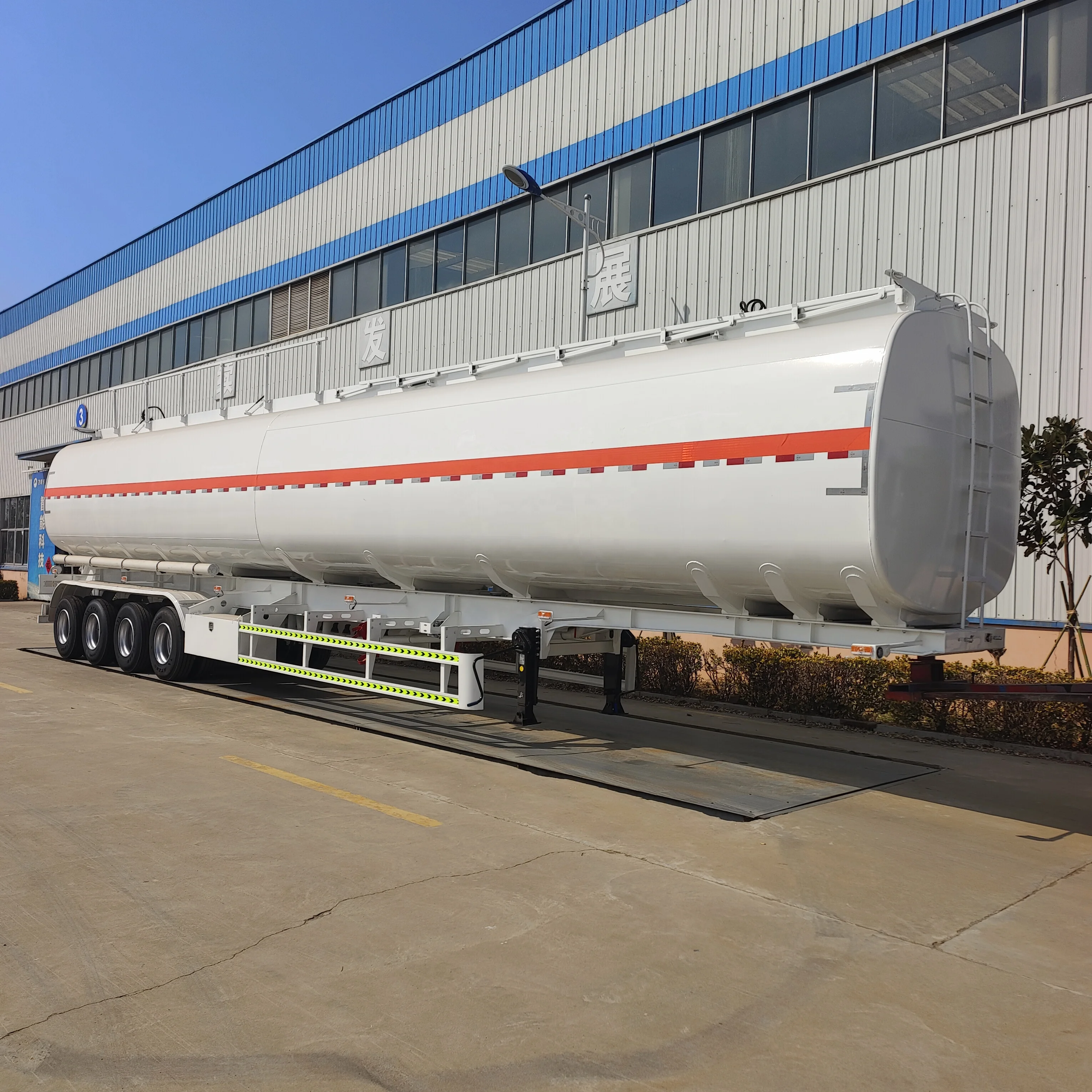

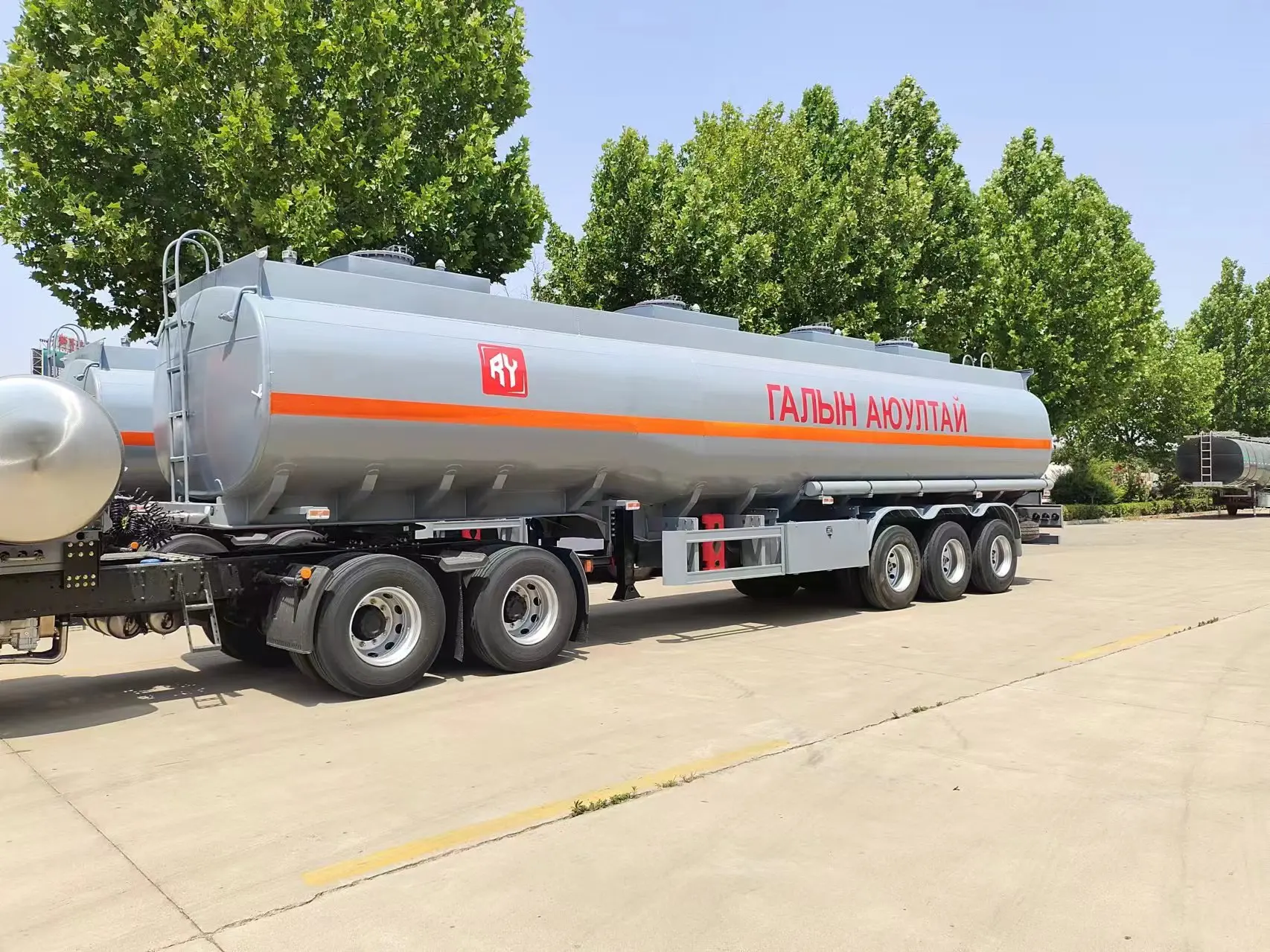

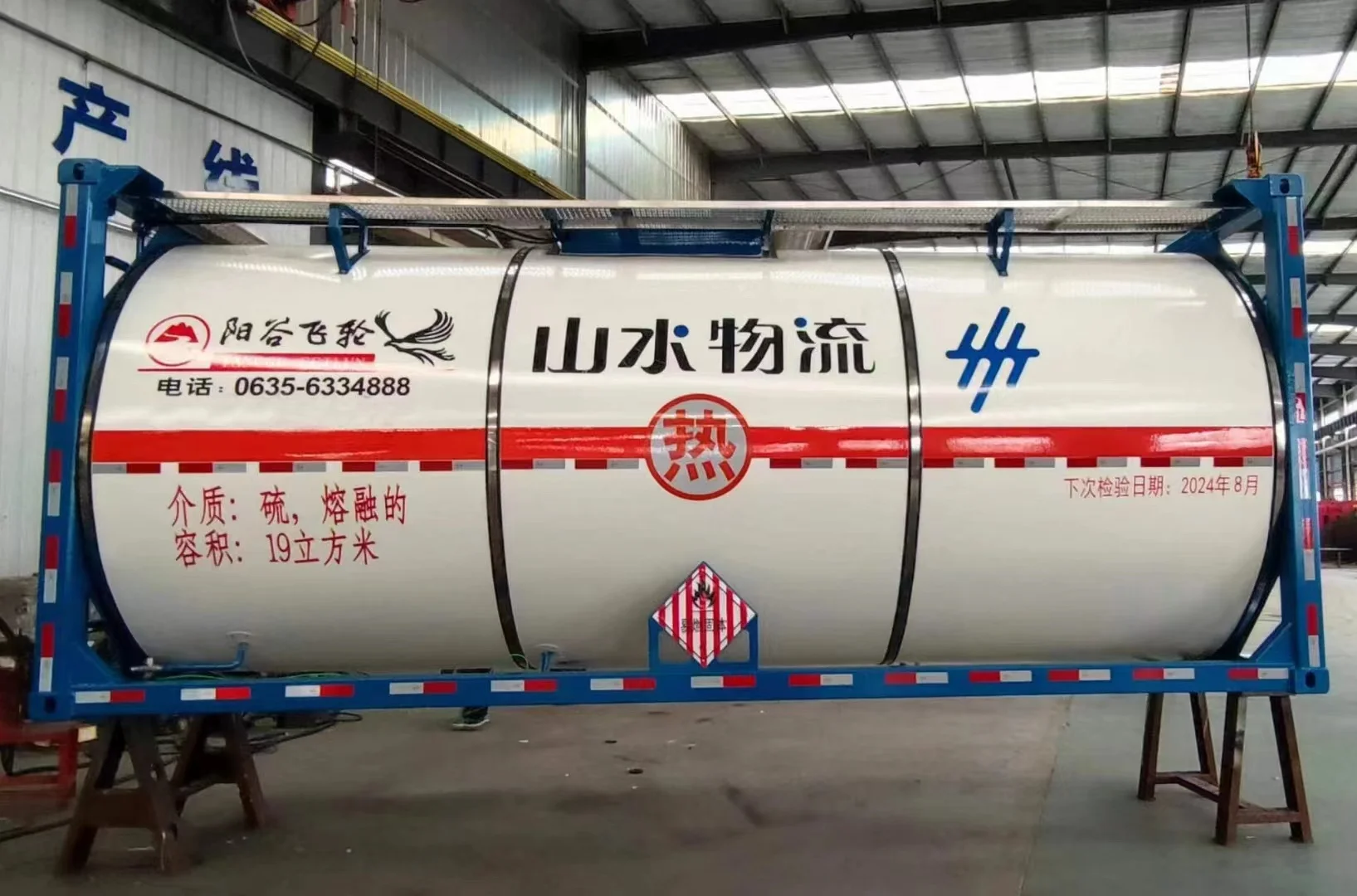

Specializing in the manufacture of various models/various materials export liquid tanker trailer, the price is favorable
- Category: >>>
- Supplier: Shandong Yanggu Flywheel Trailer Manufacturing Co. Ltd.
Share on (1601266545636):
Product Overview
Description

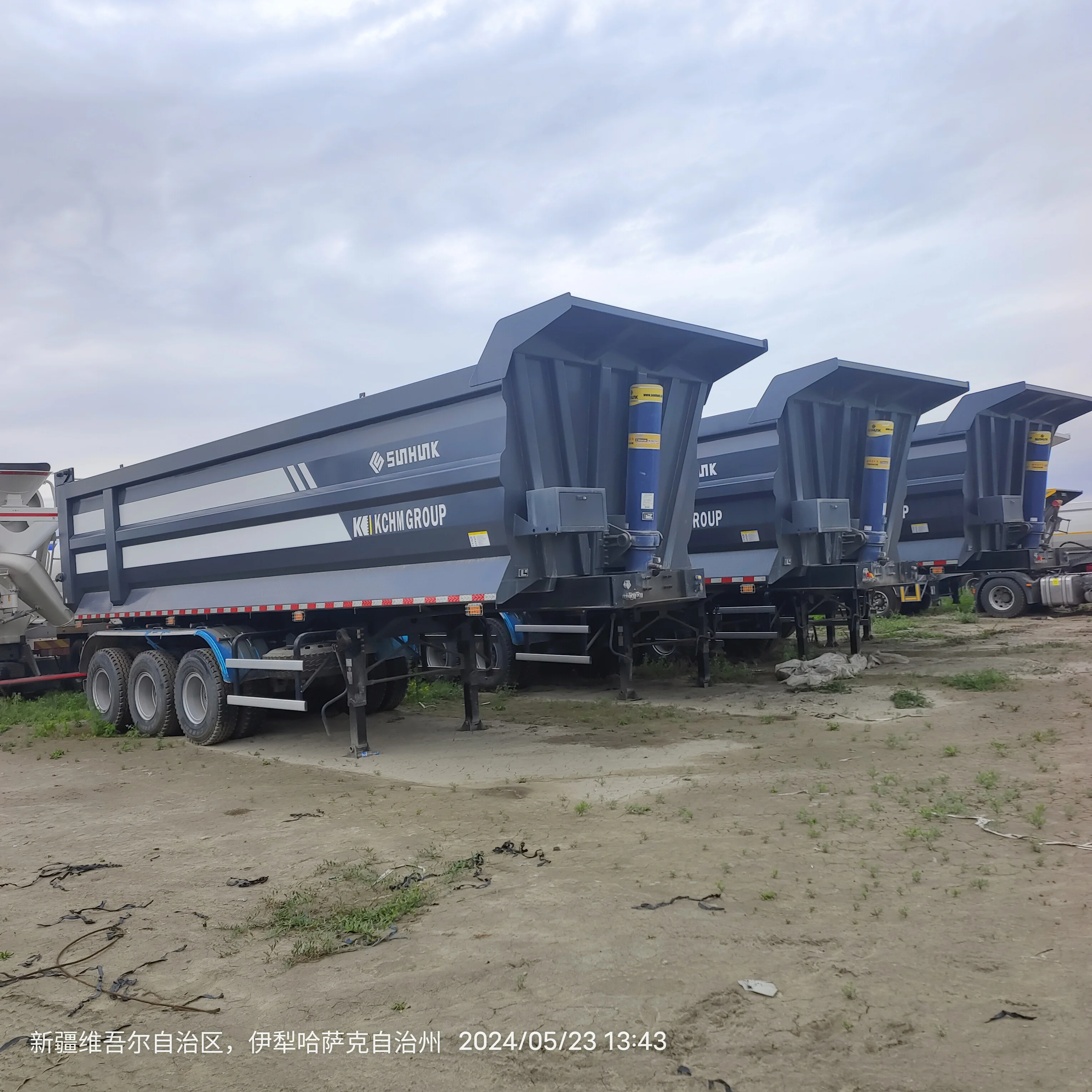

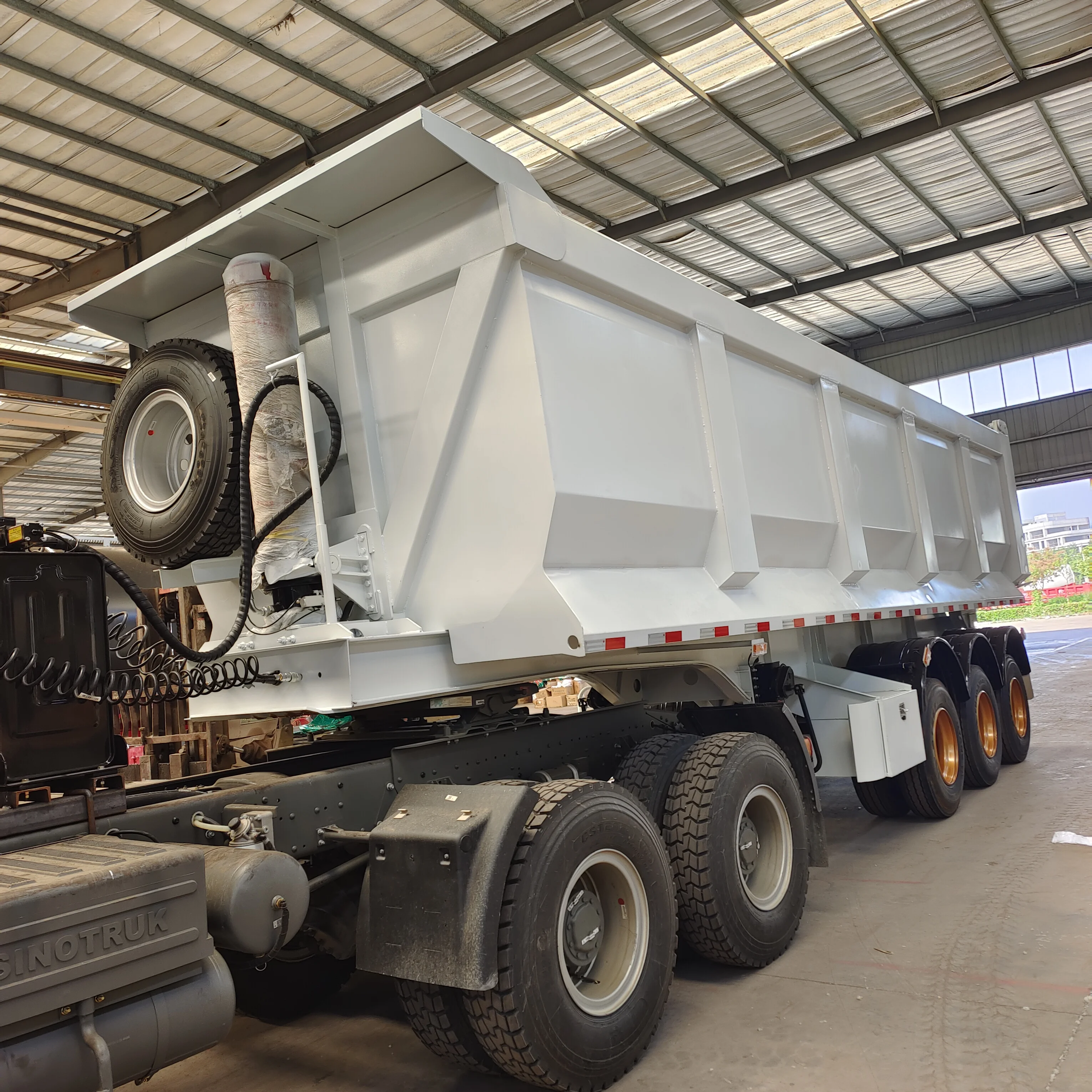

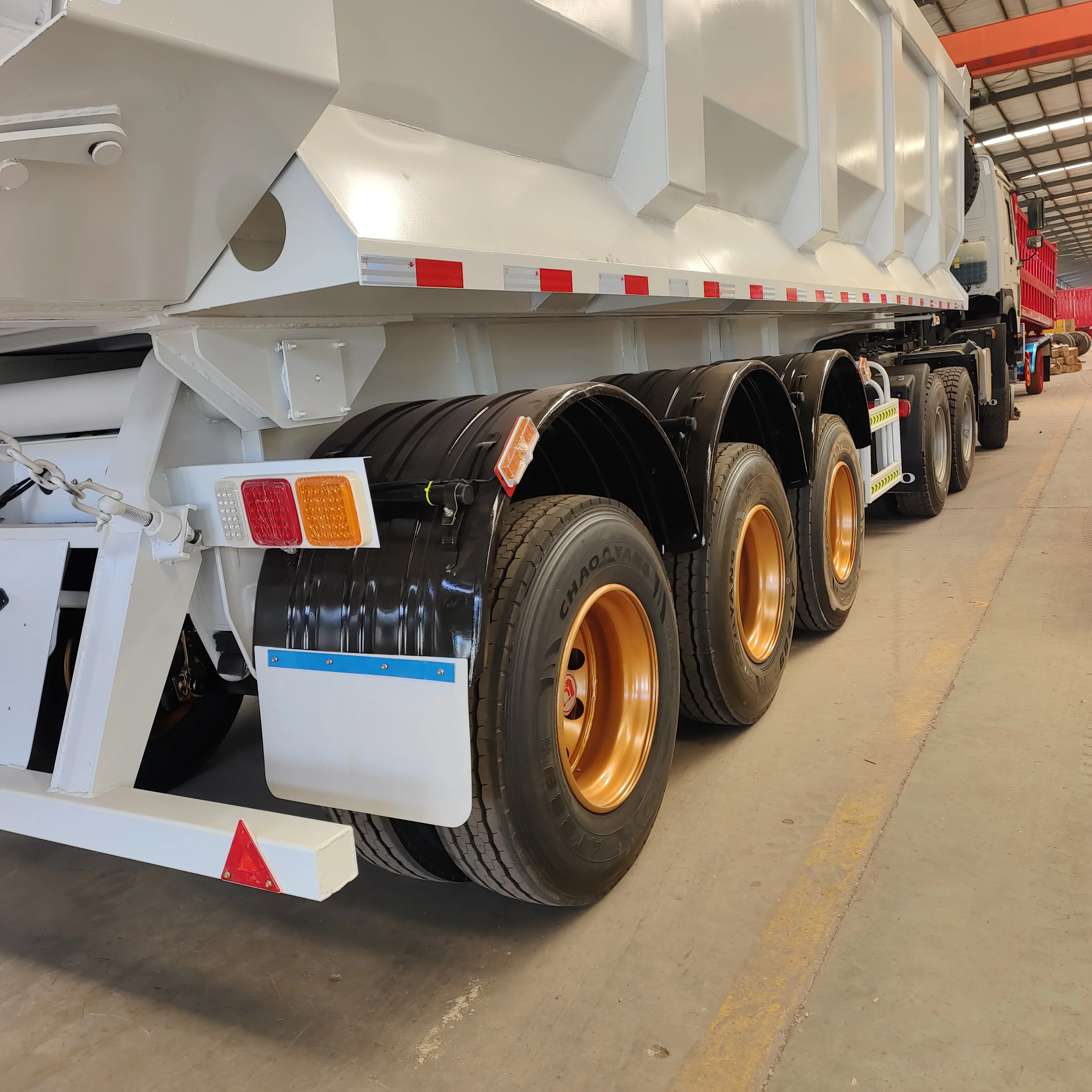

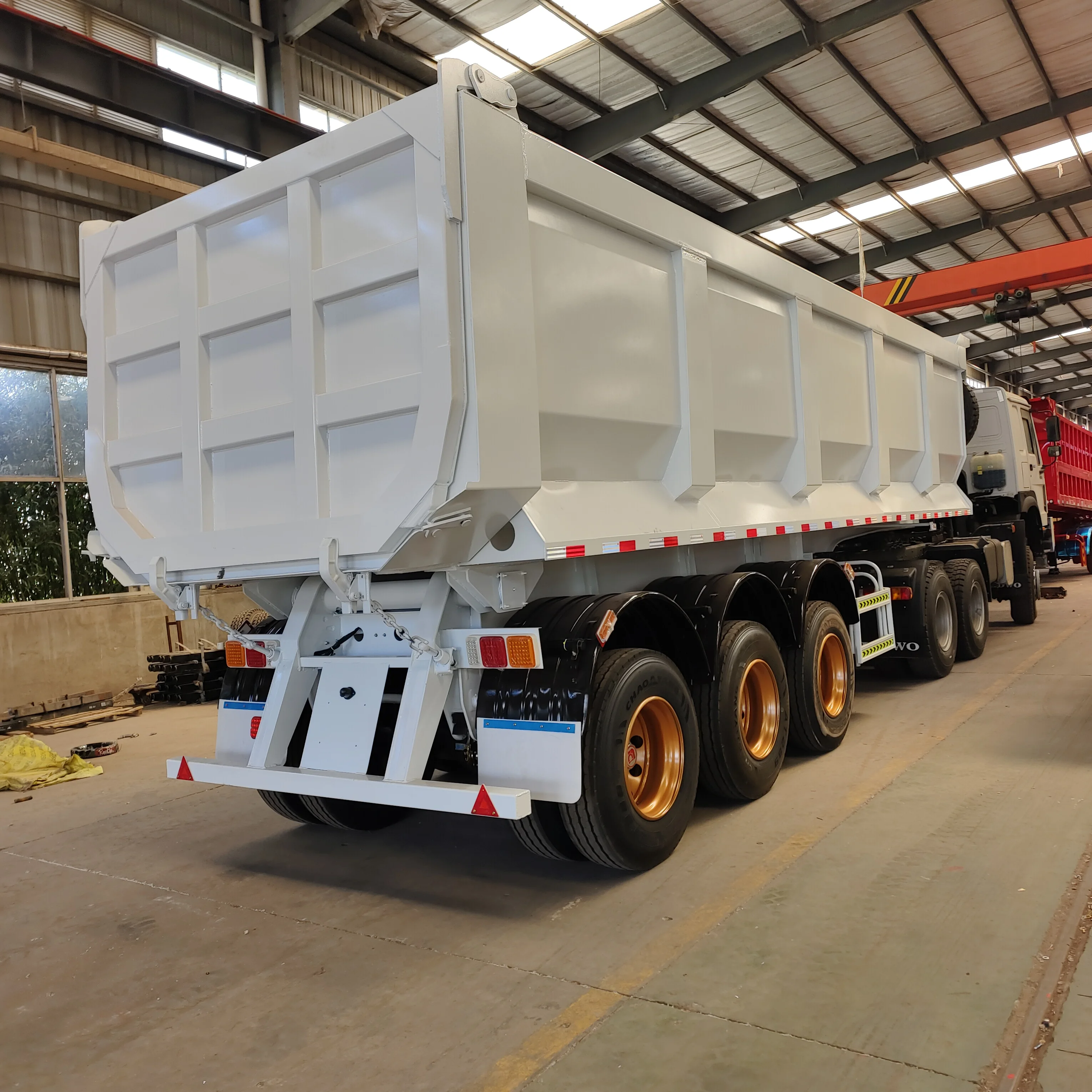

Hot sale front lifting rear dump U-shape semi trailers
Shandong Yanggu Flywheel Trailer Manufacturing Co., Ltd.has more than 20 years of production experience in the trailer industry. We have rich experience in all kind of trailers, such as low bed trailers, rear dump trailers, containers,fence trailers and some special semi trailers, we also have our own R&D team, so welcome OEM AND ODM.
Shandong Yanggu Flywheel Trailer Manufacturing Co., Ltd.has more than 20 years of production experience in the trailer industry. We have rich experience in all kind of trailers, such as low bed trailers, rear dump trailers, containers,fence trailers and some special semi trailers, we also have our own R&D team, so welcome OEM AND ODM.
Any interests,just contact us.
Specification
1.The Dump Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
2.The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
3.Using advanced manufacturing technology, submerged arc automatic welding is used for longitudinal beams. 42 strong reinforcing ribs are designed to ensure the safety and carrying capacity of the trailer.
4.The whole frame of the dump trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is
electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
5.We adopt world famous brand of parts, like JOST, WABCO braking valve etc. And the main part is Hydraulic support system. It is stable and long service life, we choose HYVA brand.
Rear Dump Tipper Semi Trailer | ||||||||
Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading | |||||||
Model | 2 axles tipper trailer | 3 axles tipper trailer | 4 axles tipper trailer | 5 - 6 axles tipper trailer | ||||
Bucket capacity | 25 cubic meters | 30/35/40 cubic meters | 40 cubic meters | 45 cubic meters | ||||
Dimension （mm） | 8500*2500*3500 | 10000x2550x3800 | 10500*2550*3900 | 11500*2550*3950 | ||||
Rim and tires | 12.00R22.5 tires 9.0-22.5 rims | 12.00R22.5 tires 9.0-22.5 rims | 315/80R22.5 tires 9.0-22.5 rims | 12.00R20 tires 9.0-20 | ||||

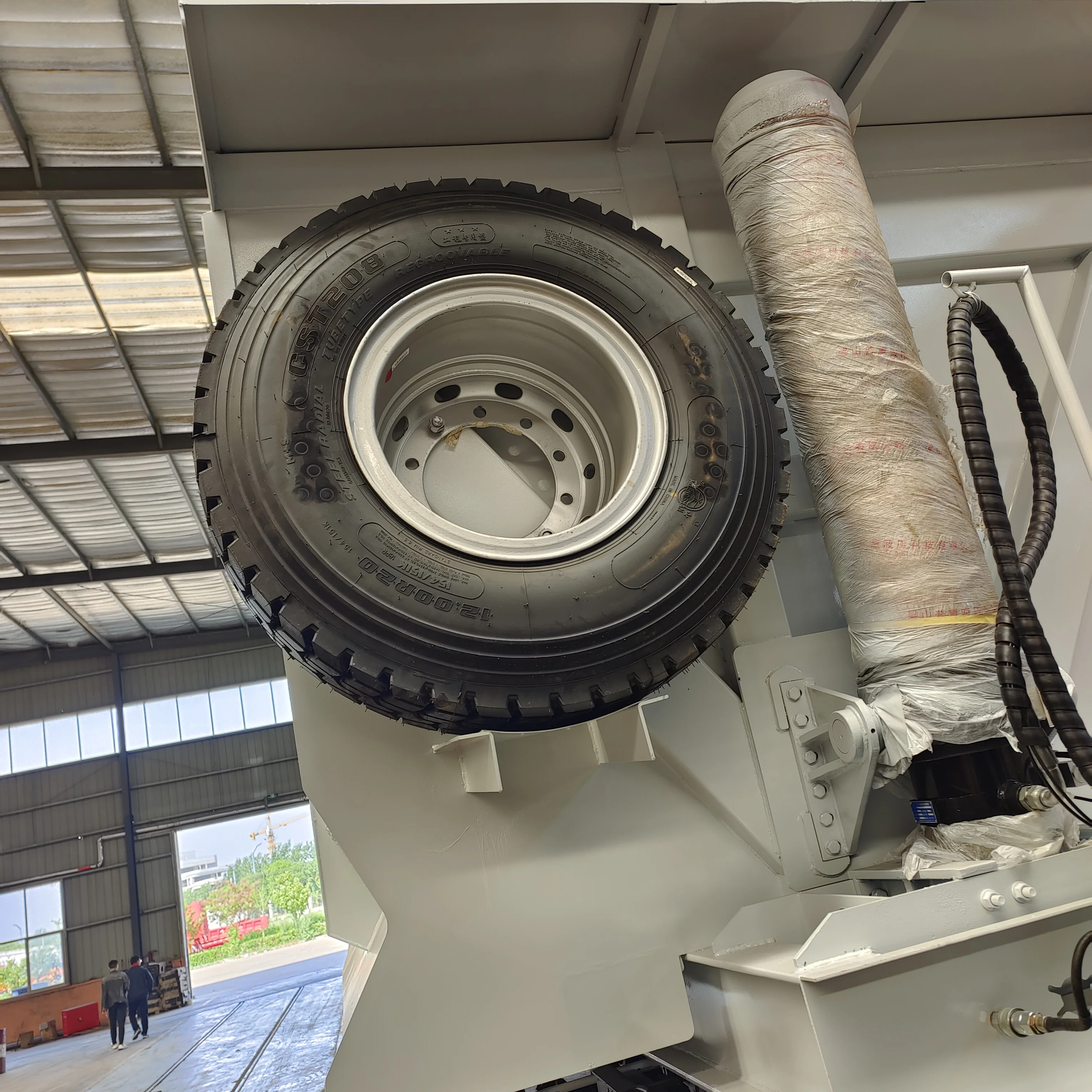

Lifting system | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=202 mm | HYVA brand FE/FC type cylinders Diameter=214 mm | ||||
Tipping box | T700 / Hardox | |||||||
Main Beams | T700 / Q345B double plate | |||||||
Height:500mm | ||||||||
Upper Plate: 14mm | ||||||||
Middle Plate: 8mm | ||||||||
Lower Plate: 16mm | ||||||||
Axle | 13T/16T FUWA / BPW | |||||||
King Pin | JOST brand 2.0'' / 3.5'' bolt type king pin | |||||||
Landing Gear | 28T double speed JOST / TAIHUA brand | |||||||
Suspension | Heavy duty mechanical suspension / Air bag / Bogies | |||||||
Pneumatic Braking System | RE 6 relay valve T30/30 air brake chamber | |||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) | |||||||
Light | LED light,24V,7ways(7 wire harness) | |||||||
Tool Box | steel/aluminum One piece,1m*0.5m*0.5m(Size can be choose freely) | |||||||
Painting | 1 coat of anticorrosive prime, 2coats of final paint | |||||||
Any parts fitted could according to clients request, contact us to get more. | ||||||||
Advanced Axle Performance LEAO/BPW/FUWA
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000 kilometers.
maintenance-free could reach 3 Year/400,000 kilometers.
Brake System
From the point of view of safety, the vehicle with the air brake system needs both the service brake and the parking brake, so it
must be equipped with a double-chamber air chamber.
must be equipped with a double-chamber air chamber.
Landing Device
LEAO/JOST Landing Gear.Self R&D Steel Landing Gear Warranty come with above 5 Years long.Gear Box with low
temperature premlum chassis lube rated for service from -30°C~120°C.
LEAO/JOST Landing Gear.Self R&D Steel Landing Gear Warranty come with above 5 Years long.Gear Box with low
temperature premlum chassis lube rated for service from -30°C~120°C.
Tire
LEAO/ Double-Coin/ LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice.Better Performance in wear
resistance.
LEAO/ Double-Coin/ LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice.Better Performance in wear
resistance.
1. who are we?
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
