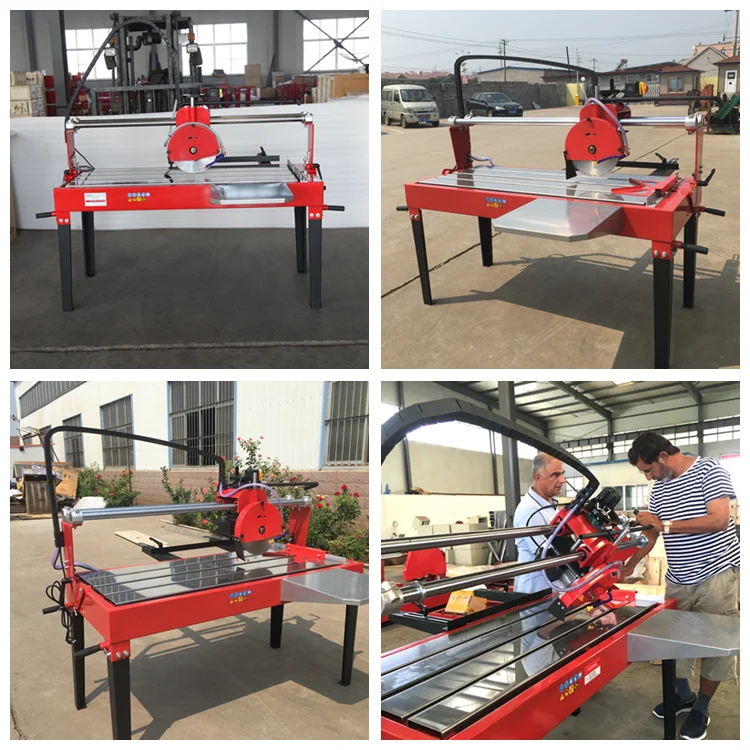

H1200 High Capacity Granite Stone Cutting Machine Large Ceramic Tile Cutter with Tilting 45° Bevel Cut Building Site Installer
- Category: >>>
- Supplier: Laizhou Oriental Machinery Co. Ltd.
Share on (1601267430010):
Product Overview
Description
Product Description

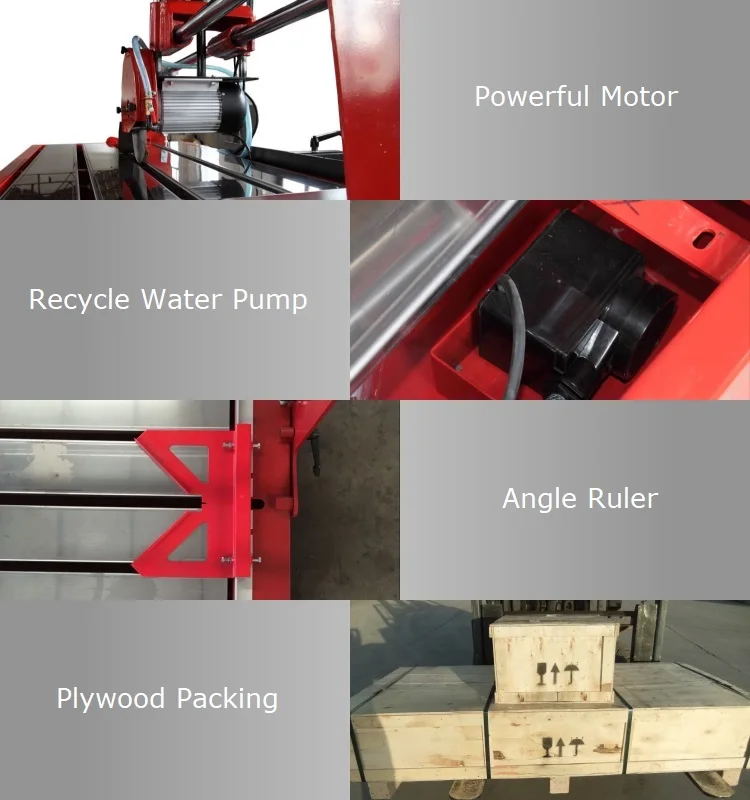

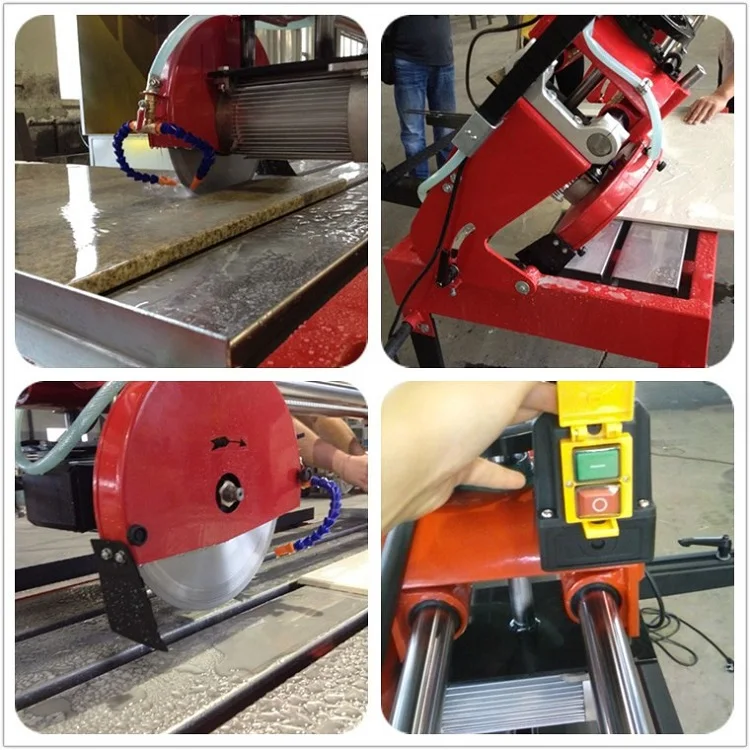

1.Powerful 2.2kw motor
2.An electric water pump inside for water recycle.

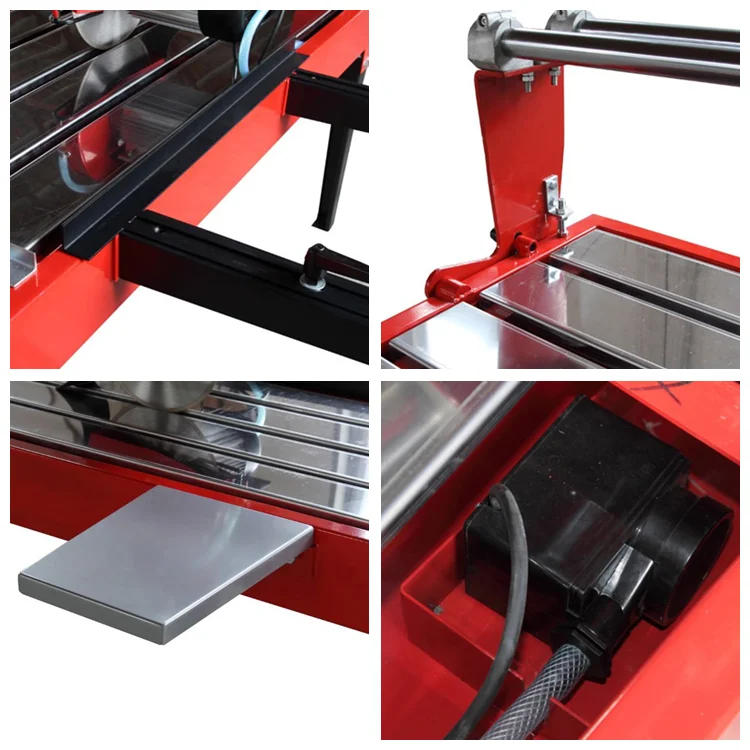

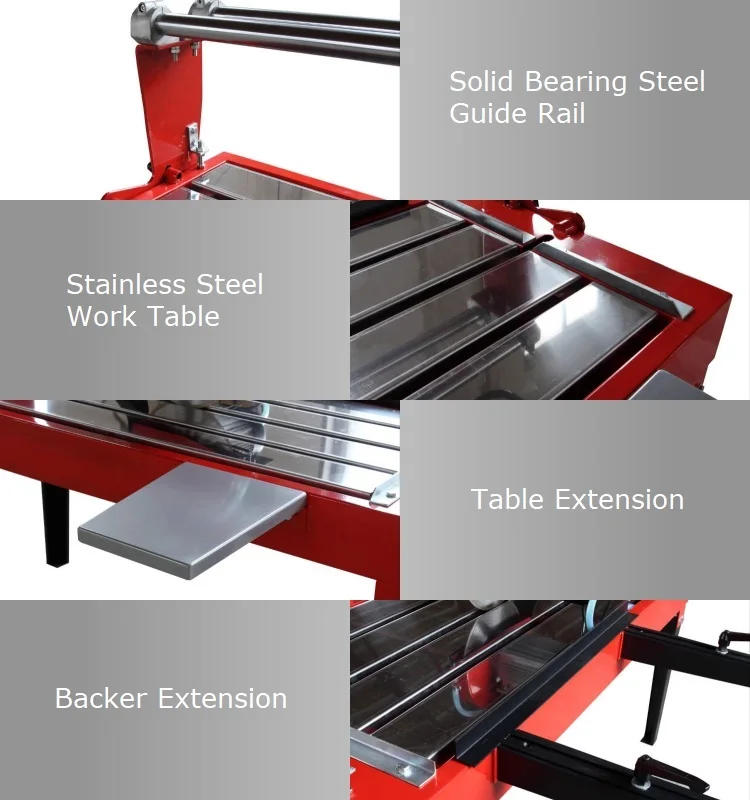

3.Cutting table extents for large material on both sides.
4.Detachable four-piece table surface on the water tray is designed for easy cleaning and easy access to the water pump.

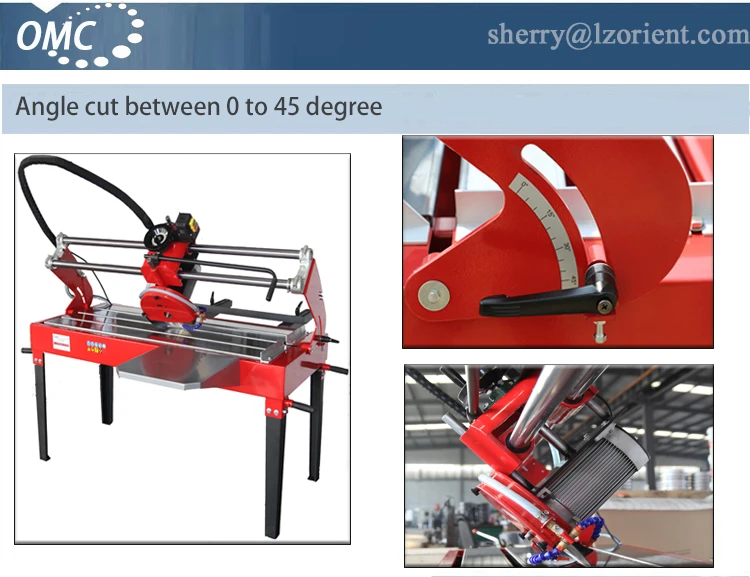

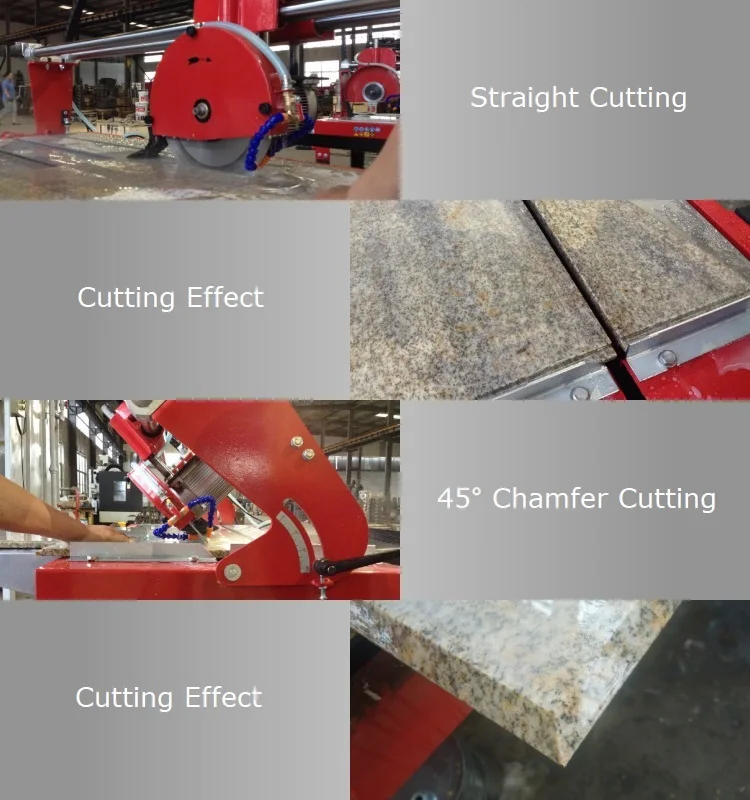

5.Allow bevel cutting to 45 degree.
6.Steel construction with perfect painting can resist wear and corrosion.
2.An electric water pump inside for water recycle.
3.Cutting table extents for large material on both sides.
4.Detachable four-piece table surface on the water tray is designed for easy cleaning and easy access to the water pump.
5.Allow bevel cutting to 45 degree.
6.Steel construction with perfect painting can resist wear and corrosion.
Specification
Model | OSC-H800M | OSC-H800L | OSC-H1200M | OSC-H1200L |
Power(KW) | 2.2kw/3hp | 2.2kw/3hp | 2.2kw/3hp | 2.2kw/3hp |
Blade size(mm) | 250-300 | 250-400 | 250-300 | 250-400 |
Bore size(mm) | 25.4/50 | 25.4/50 | 25.4/50 | 25.4/50 |
R.P.M of blade | 2800-3400 | 2800-3400 | 2800-3400 | 2800-3400 |
Cutting length(mm) | 800 | 800 | 1200 | 1200 |
Cutting depth(mm) | 70 | 125 | 70 | 125 |
Bevel cut | 45 | 45 | 45 | 45 |
Weight(KG) | 130/160 | 135/165 | 150/180 | 155/185 |
Packing size(mm) | 1330*810*360 540*480*300 | 1330*810*360 540*480*300 | 1730*810*360 540*480*300 | 1730*810*360 540*480*300 |
