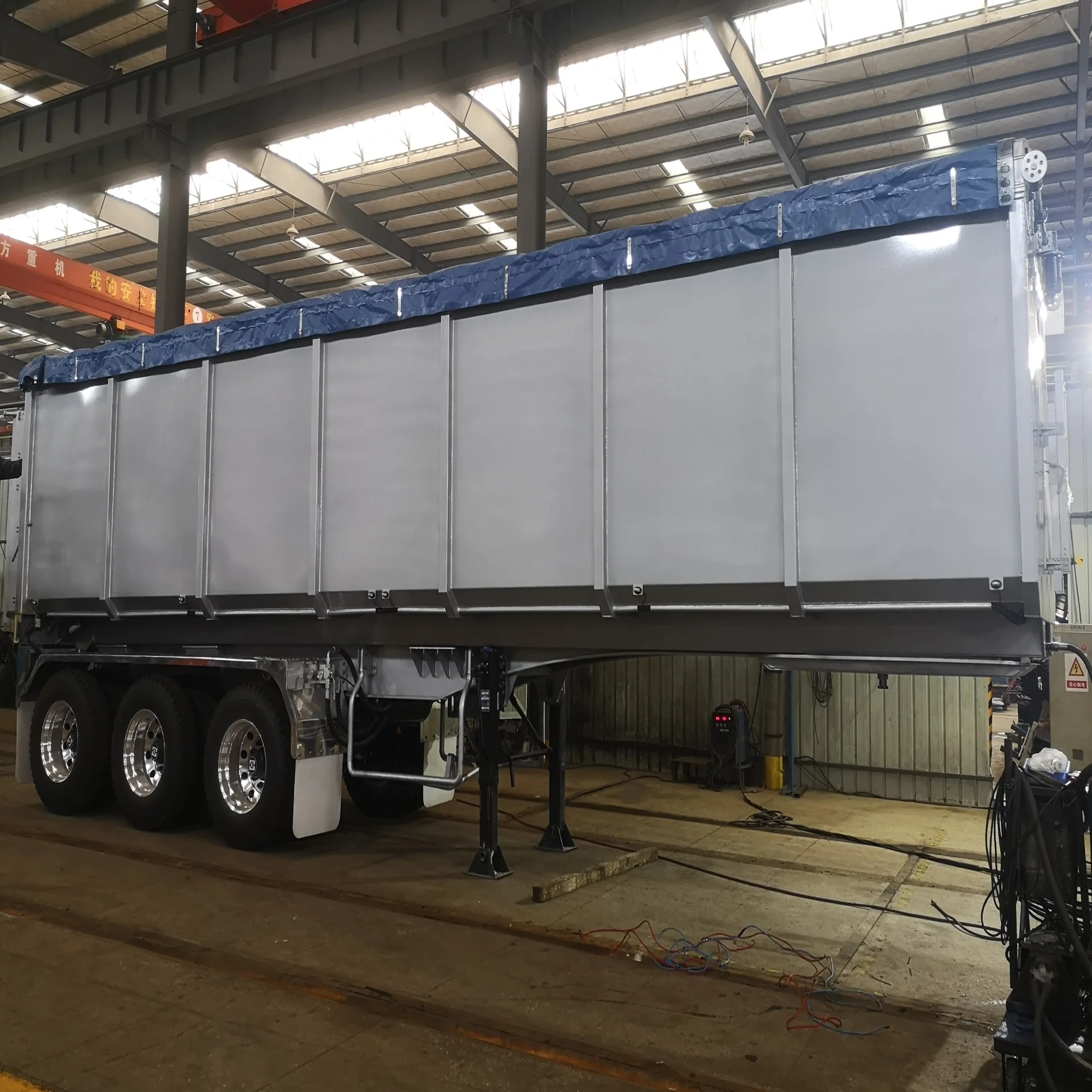

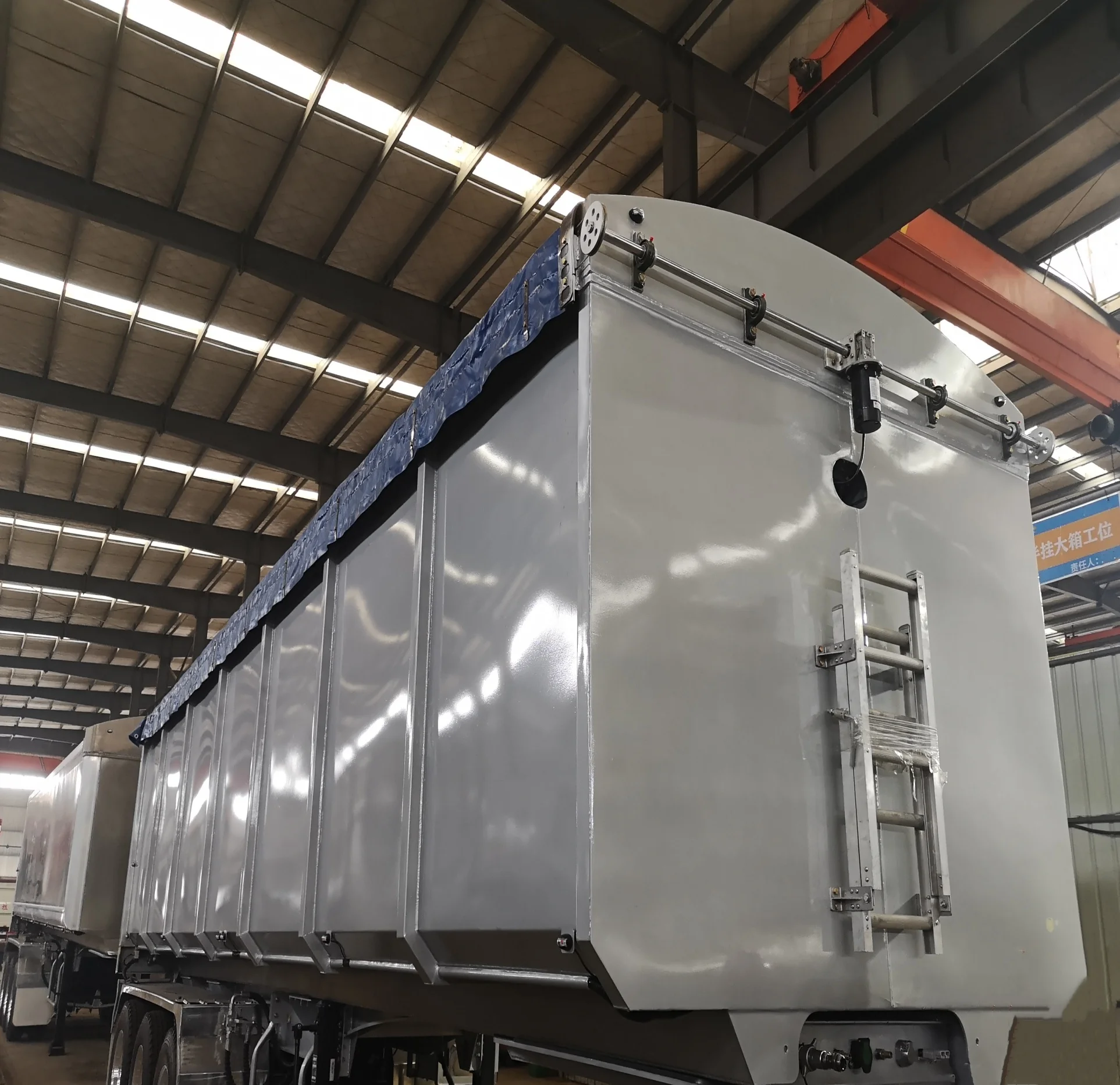

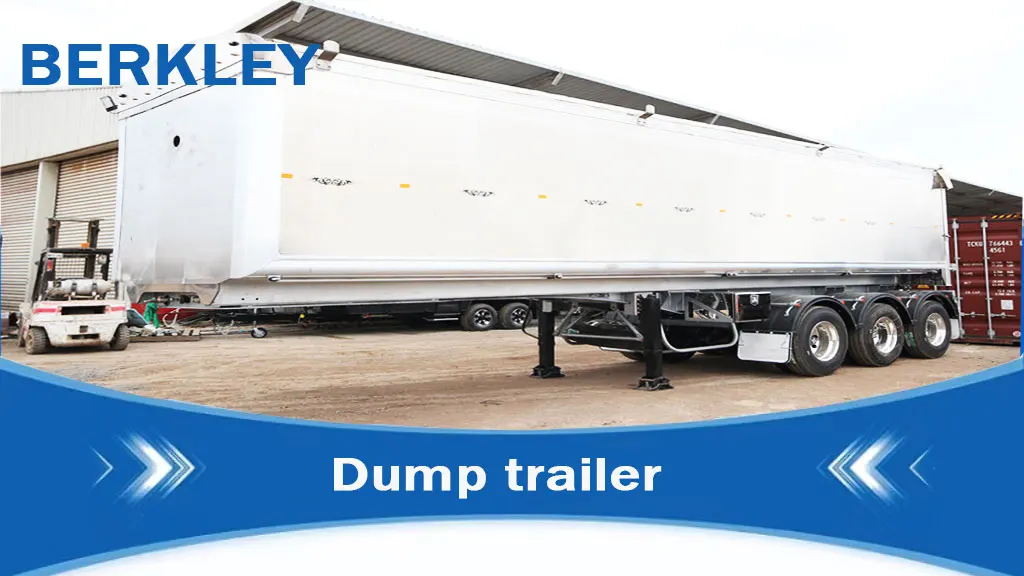

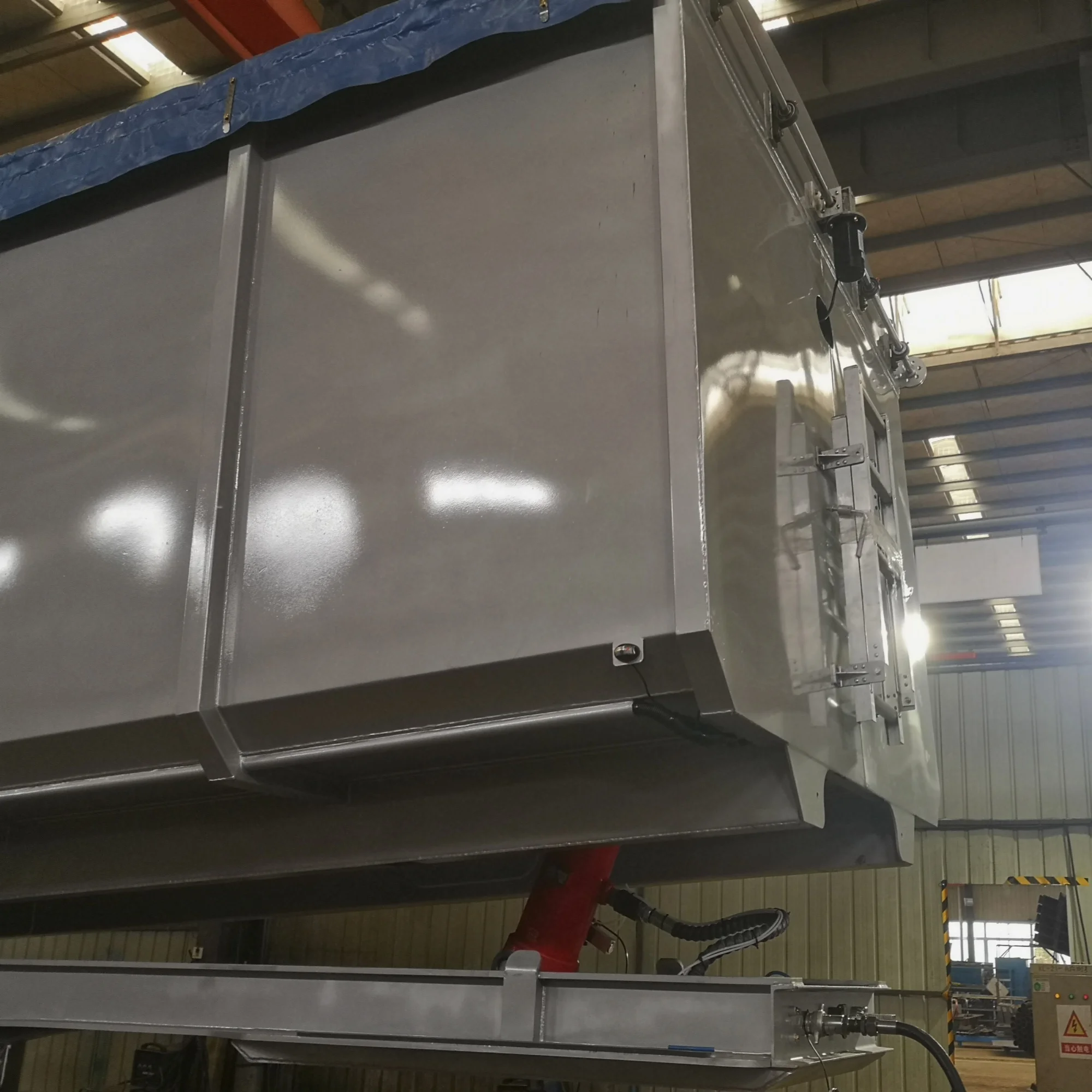

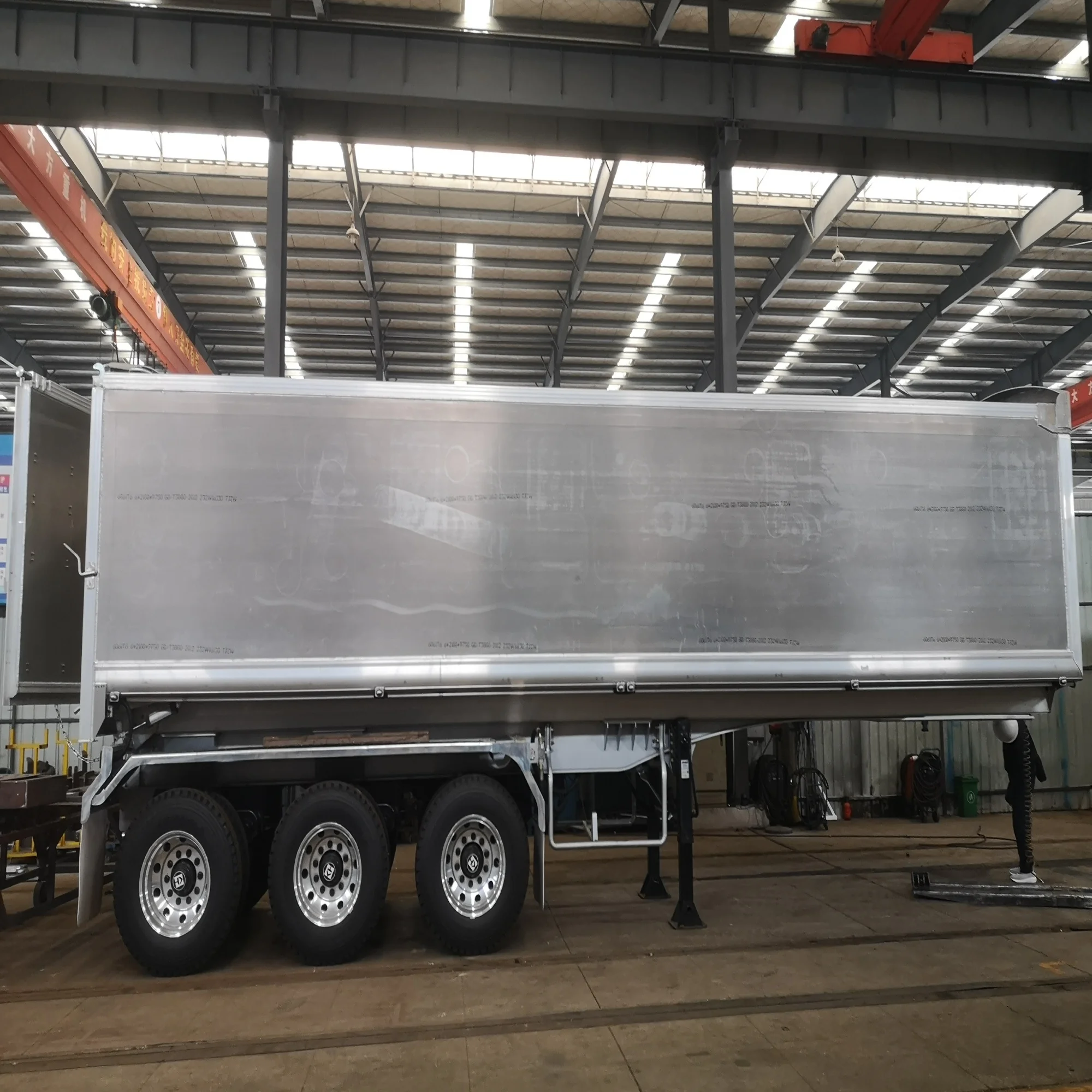

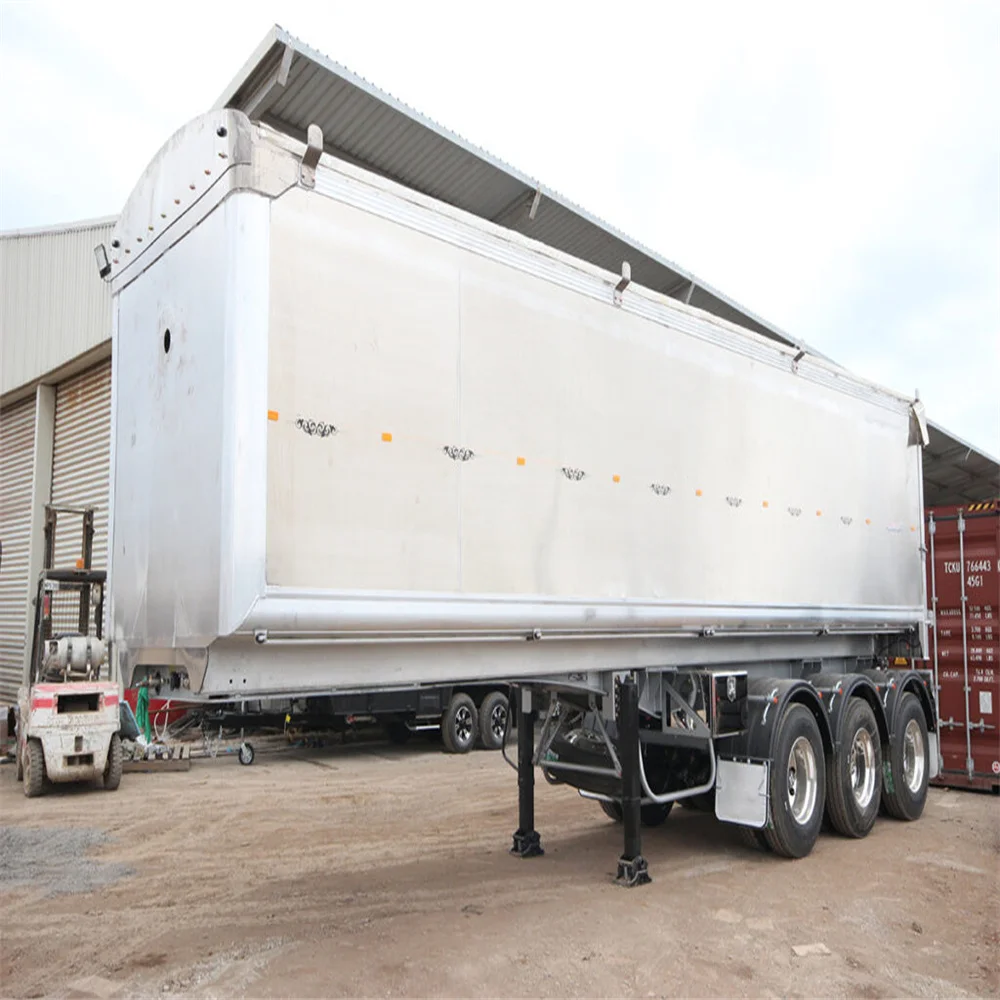

BERKLEY Hydraulic Lift Dumper Trailer End Grain Tipping Truck Trailer Rear Dump Tipper Semi Trailer With Electric roll over tarp
- Category: >>>
- Supplier: Guangzhou Berkley Motor Technology Co. Ltd.
Share on (1601267522185):
Product Overview
Description
Rear Dumping/Side Dumping Semi Trailer | ||
Brand: | BERKLEY | |
Application: | Wheat/Cereals/Crops Loading | |
Dump Style: | rear dumping/side dumping | |
Axle: | 2/3/4* 13/16T FUWA/BPW/BERKLEY | |
Cylinder: | model choice is according to the length of cargo box | |

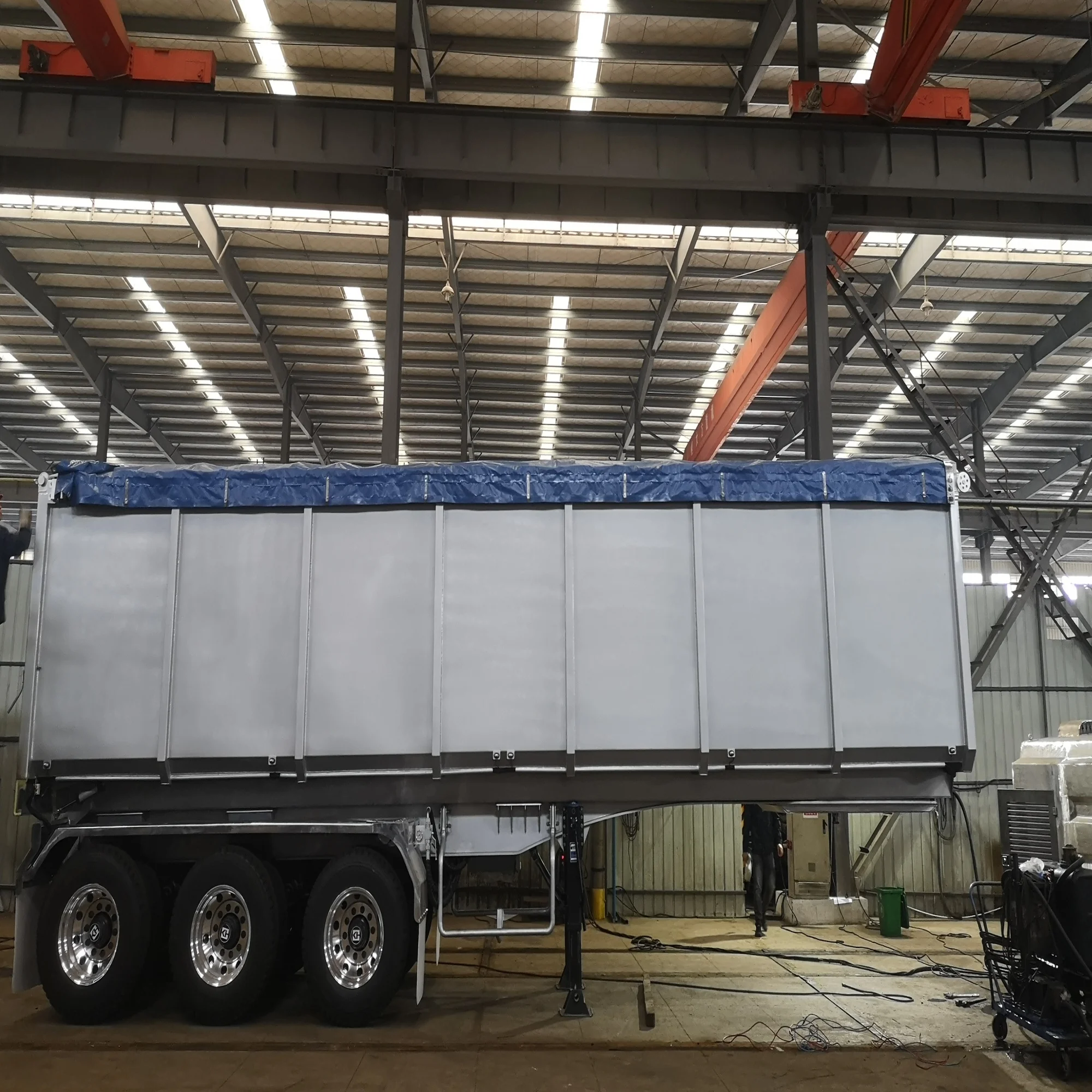

GENERAL | A standard unit will feature all the necessities such as: JOST landing legs, 24m3 capacity, electric roll-over PVC tarp, road-train setup, twin-spare cradle, toolboxes, LED Lights, 2 or 3 position king pin, Grain chute. Double welded I-Beam chassis construction allows for a tough and rigid frame 4mm walls, 6mm floor & doors (constructed from high tensile steel).Also available heavy duty 6mm walls, 8mm floor& doors Bin tilting angle of up to 50 degrees | |
GENERAL | Length Overall Length 34 FT (10,500mm) | |
Width Exterior: 2500mm | ||
Height Deck Height: 3000mm | ||
Capacity (ATM) ATM: 45 Tonnes | ||
Capacity (GTM) ATM: 25 Tonnes | ||
Tare Weight 8.5 Tonnes | ||
BODY CONSTRUCTION | Side Walls walls 4mm, floor and door 6mm. | |
Flooring and Door 8mm thick high tensile grade cold pressed sheet steel | ||
Skid-Plate 12mm Thick Skid-Plate, with two position bolt-on king pin boss-plates fitted as standard. | ||

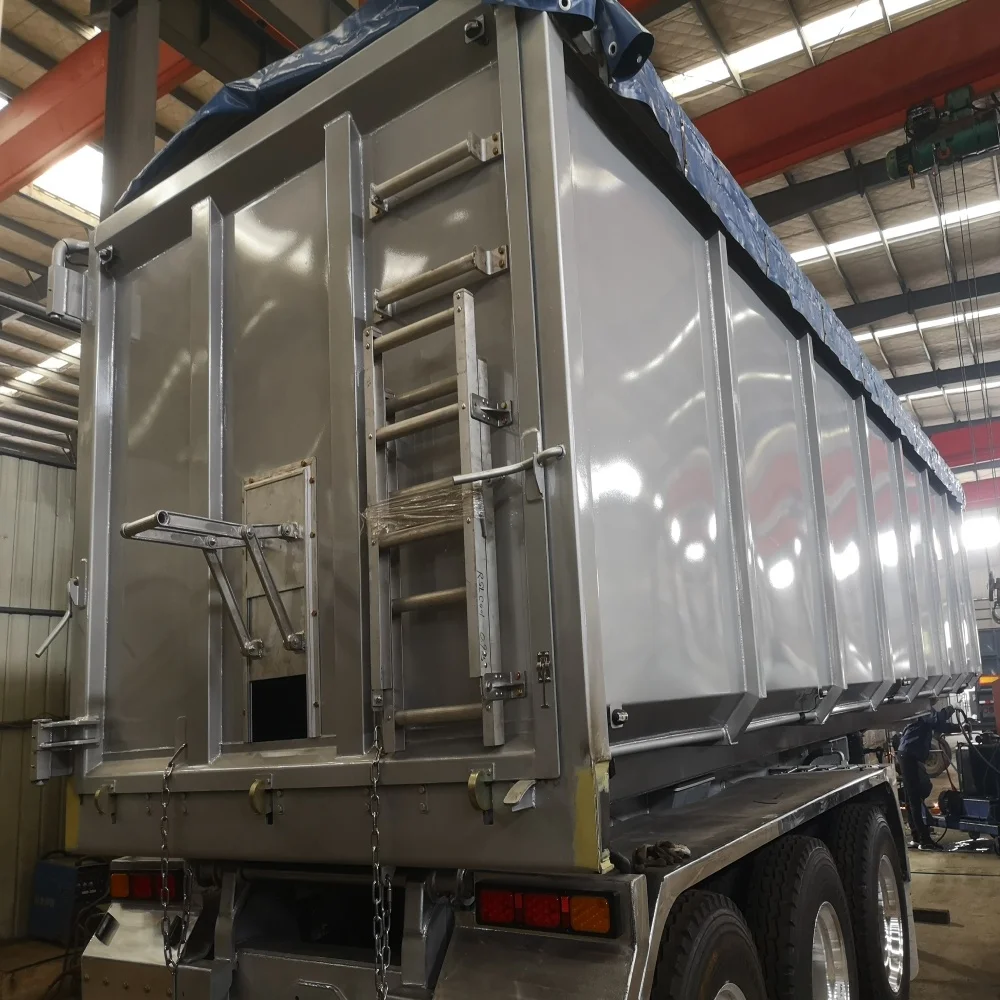

Rear Tail-Gate Standard ADR construction: Industrial C-250 channel – with multiple supports welded. Standrad rear bumper bar installed . Includes two “Dozer Push Brackets” at very rear to assist recovery. | ||
UNDERFRAME | Chassis Beams I-Beam Construction: 20mm thick Flange plates (350mPa), 6mm Webbing plate (450mPa) – Half the chassis webbing is double plated for heavy duty construction. | |
Landing GearJOST A400 Landing Gear (JOST E100 Also used). | ||
King-Pin JOST 50mm or 90mm available. | ||
Suspension: | Mechanical/Air suspension | |
Tool Box: | steel/aluminum Hyva Hydraulic cylinder 3 axle hardox rear dump tipper or dumper semi trailer for sale | |
Pictures and configuration information are for reference only.The final product can be made according to specific requirements. | ||
Above Information are BERKLEY Standard Spec.If customer want to change Spec.Please Let us know. Want to know more details,please contact us directly. | ||
High Precision CNC Plasma Cutting Machine
Powder Coating
Portal tank longitudinal seam automatic welding
2500 ton CNC bending machine

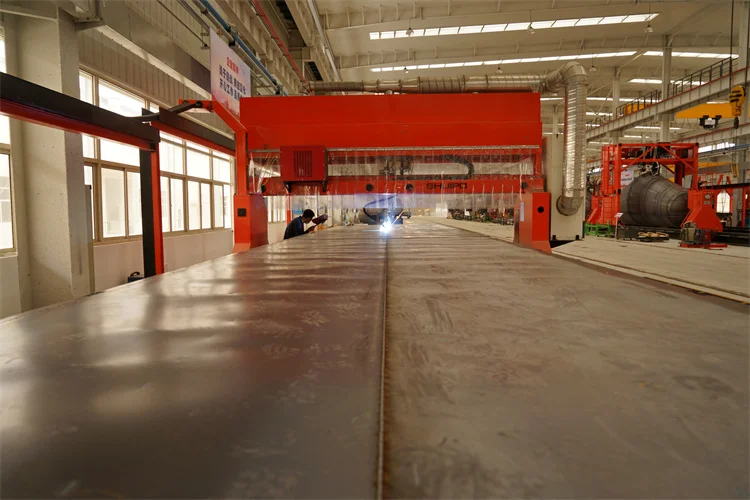

Super large plate width single-sided welding double-sided forming and imposition welding machine
Q1. Are you a factory or trading company?
Q2. Could you accept special design and specification?
Q3. Are you looking for an agent?
Q4. Do you have stock?
Q5. How to control quality?
We are a comprehensive factory integrating product design, scientific research and development, production and sales. So we know what you're looking for. Welcome to our factory and production line at any time.
Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM, etc.
Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. Do you have stock?
Yes we have a few stock in our warehouse for your urgent order, but the main design already finished, the only we can change are some of the spare parts such like tires, axles, stickers, painting etc.
Q5. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
