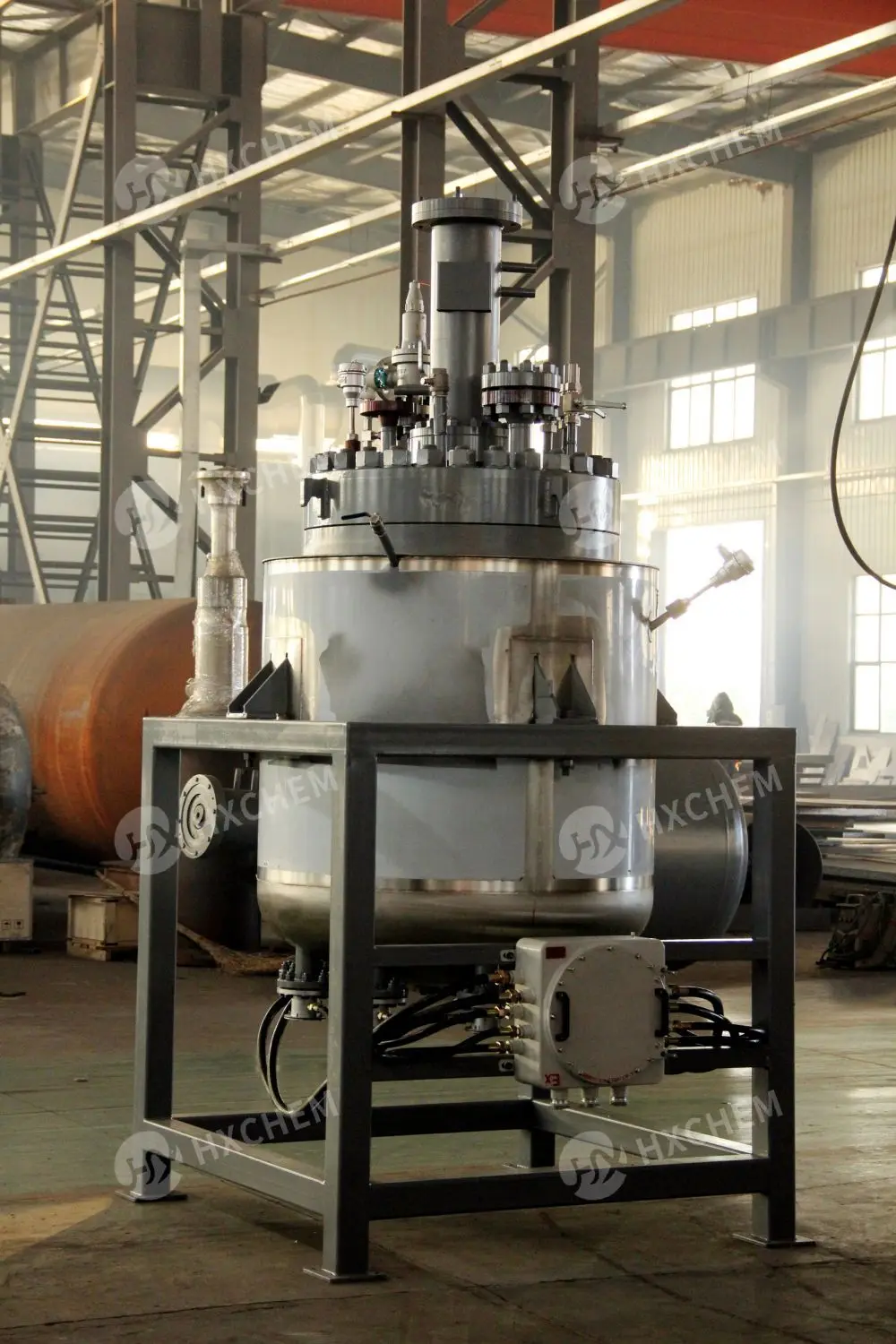

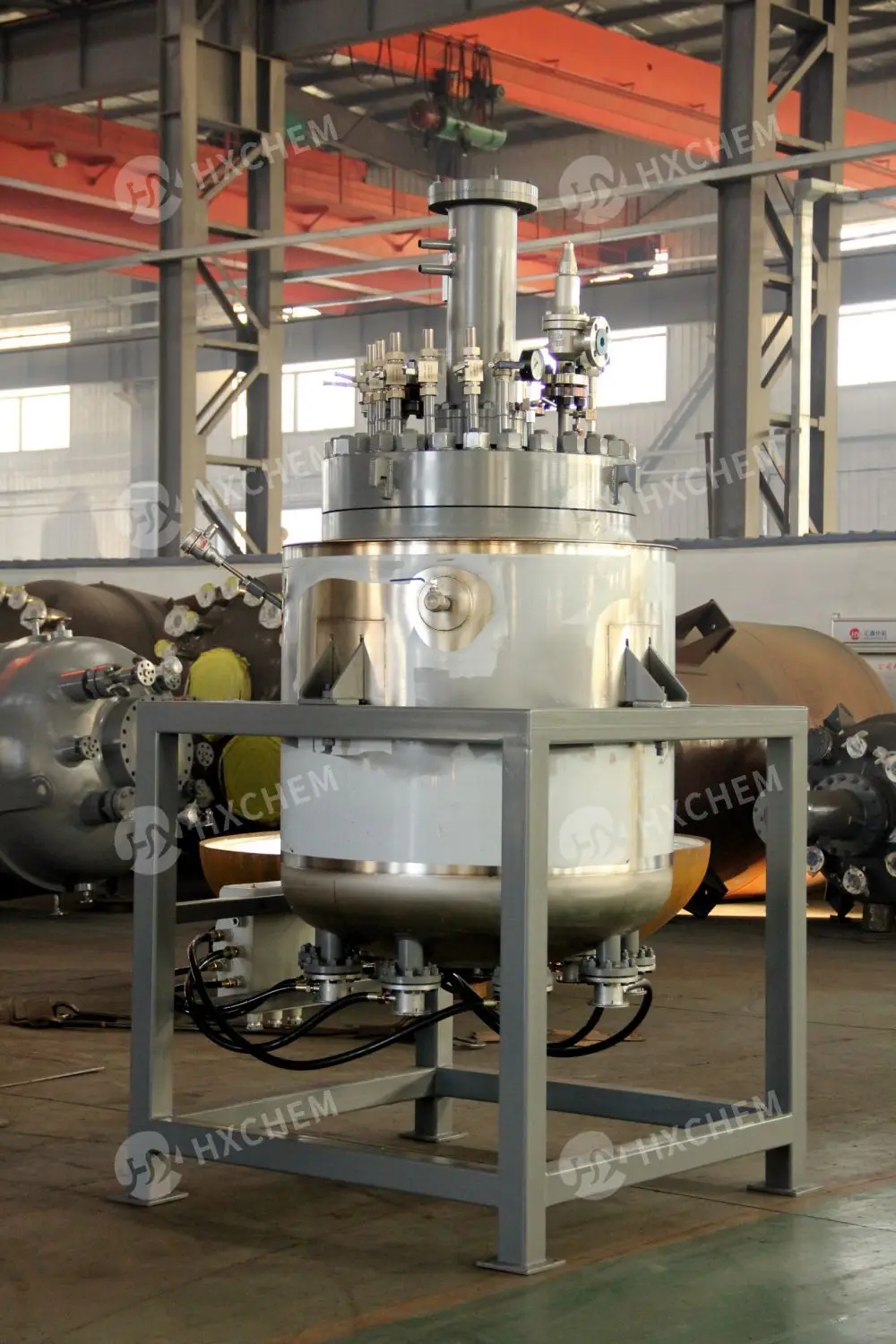

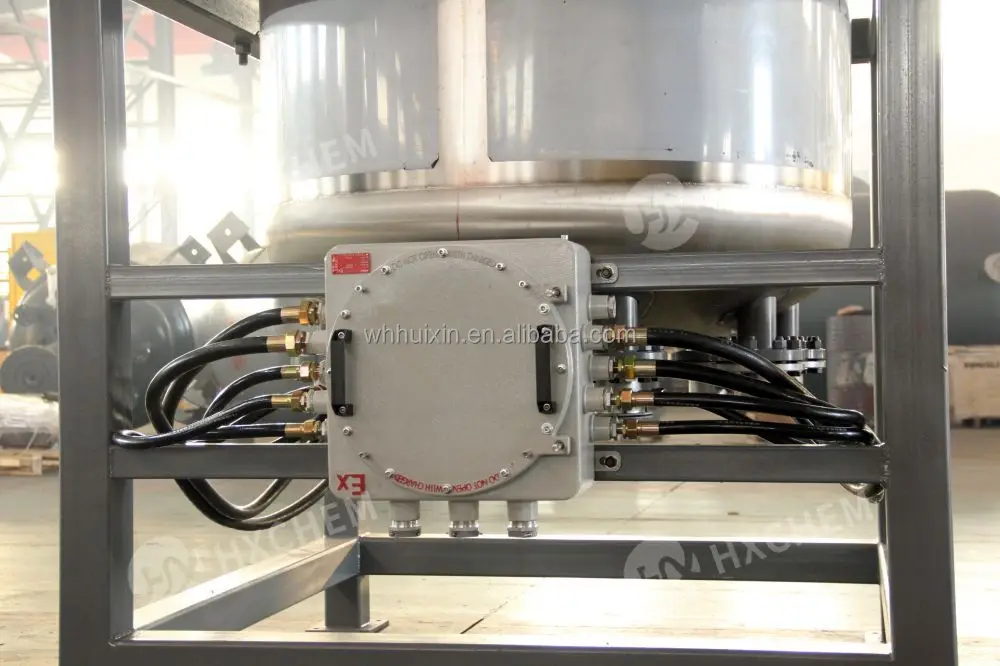

Explosion proof electric heating pilot scale 500l pressure reactor
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1601267640784):
Product Overview
Description
Product Description
500l pressure reactor
Pilot scale pressure reactor
500l pressure autoclave
Pressure reactors

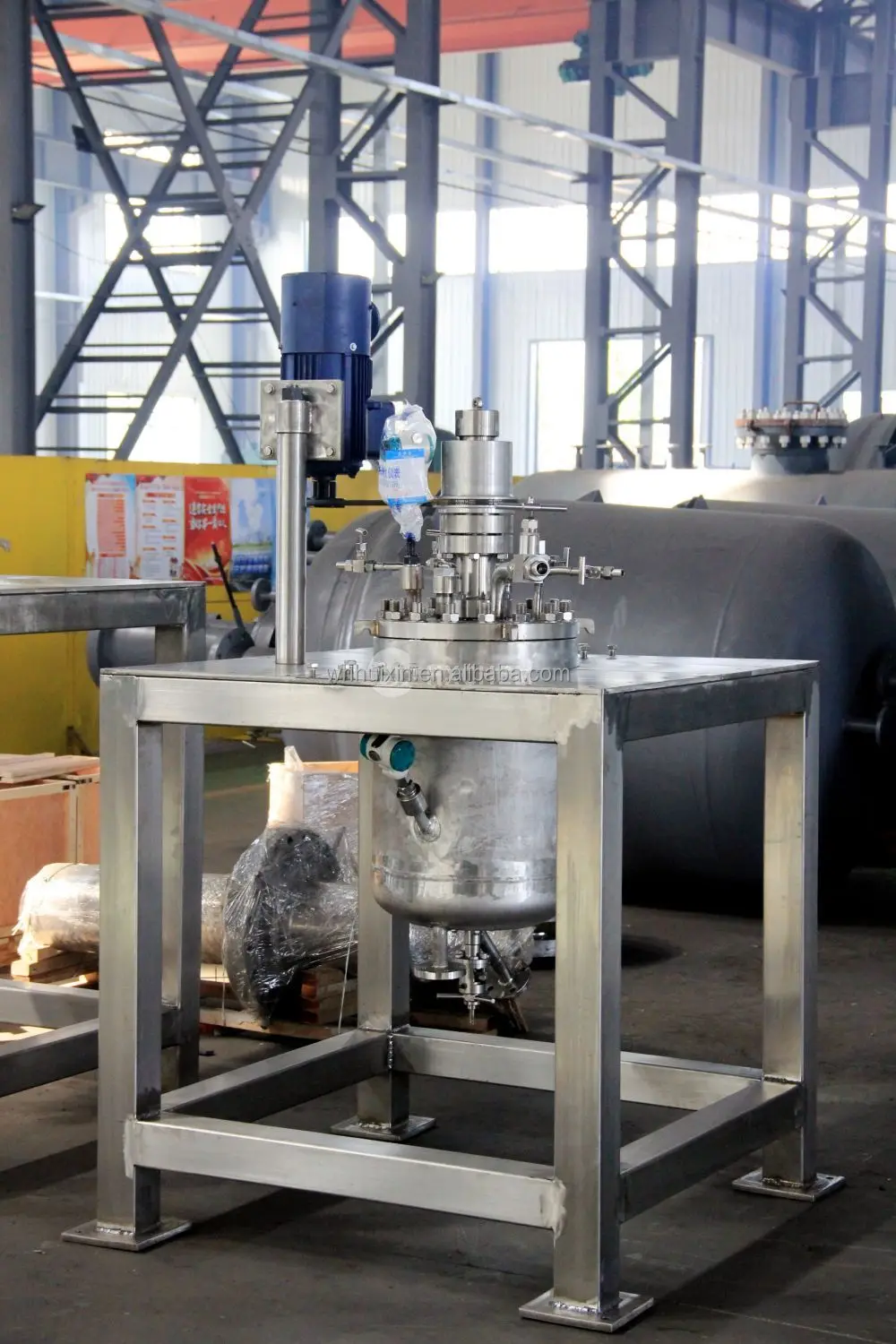

500litres explosion proof jacketed stirred pressure autoclave are used for scale up and smaller productions in Pilot Plants and kilolabs. This series reactor are built for pressure reactions as well as for reactions under full vacuum. Different technologies and materials are used, depending on the requested process and process media.
Applications：Hydrogenation, Gas liquid reaction, Polymerization, Synthesis, Catalytic, Petrochemical, etc.
Volume | 500 Liters | |
Pressure | Max.100bar | |
Temperature | 300 ℃ | |
Material | Hastelloy C276 | |
Heating type | Electric Oil Heating | |
Cooling type | Internal spiral coils | |
Sealing type | Magnetic stirrer or mechanical seal | |
Impeller type | Propeller, Turbine, Anchor type | |
Other materials, pressures & temperatures are available. | ||
Volume： 500L
Operate pressure： 60bar
Operate temperature： 300C
Material： SS304 cladding
Jacket heating with insulation.
Pilot plant; SS304/SS316L pressure reactor； 500liters pressure reactors; Stirred pressure reactors； High pressure reactors; Pilot pressure reactors; Pilot reactors; Jacket pressure reactors; Laboratory pressure reactors.
Product Features
Internal Structure
*Internal spiral coils optional
Quick coolings for material
*Dip tupe device
Used for up discharging
*Gas distributor
Hydrogen emission distribution
*Gas-liquid mixing impeller
Propeller, turbine, gas inducing impeller
Customize for you
Reasonably customize the nozzle port and orientation, including:
*Liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.

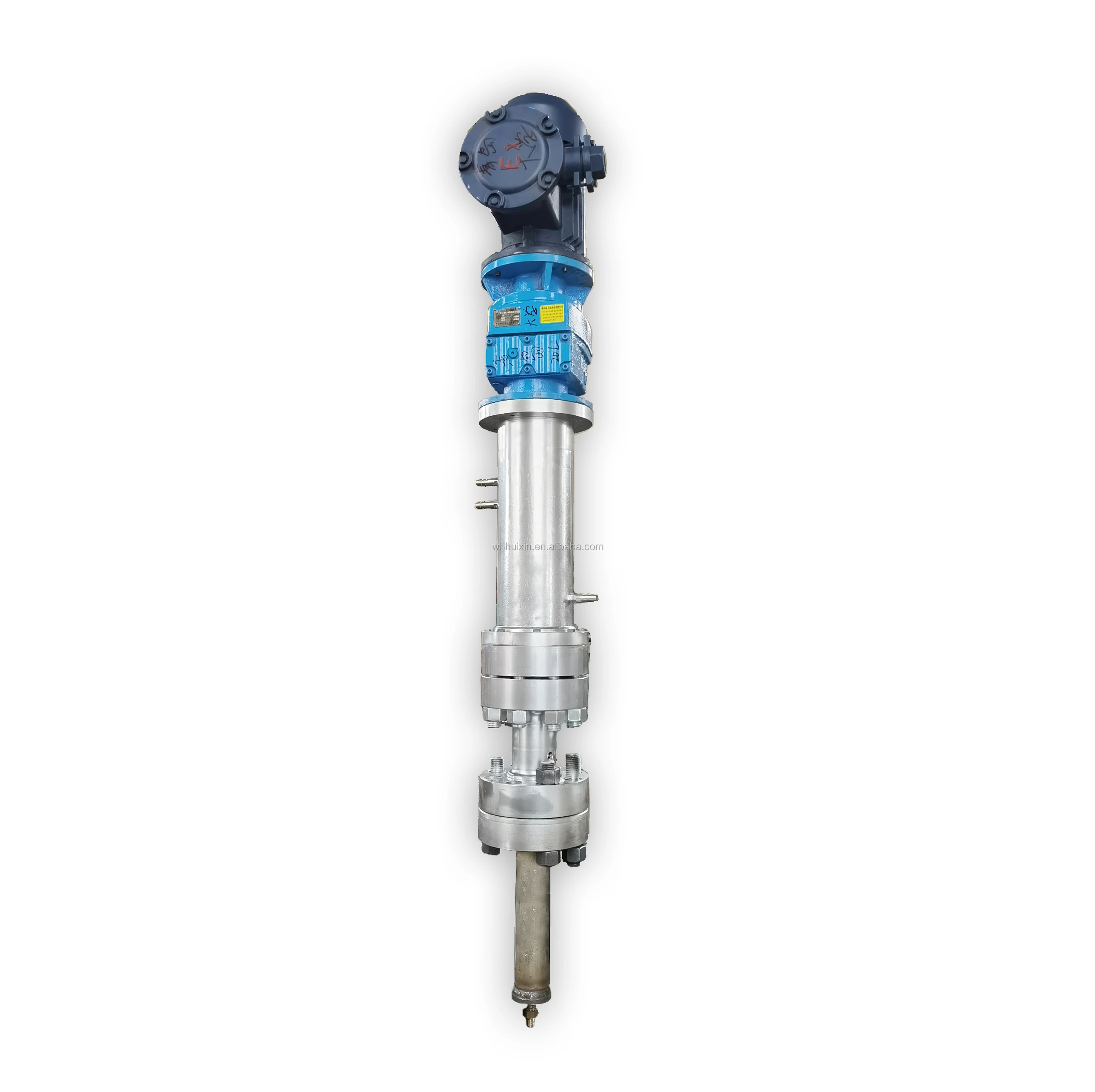

Magnetic Stirrer
* 100% Sealing. Zero leakage.* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
Agitator
*Different impeller type available for specific mixing mission.
*Special impeller design according to process condistions
*Special impeller design according to process condistions
*Propeller, turbine type, gassing stirrer, anchor type , frame type,. etc.
Product Paramenters
Model No. | GSH-100 | GSH-200 | FCH-300 | FCH-500 | |||
Nominal Capacity (L) | 100 | 200 | 300 | 500 | |||
Design Pressure (bar) | -0.1-300 bar customized | ||||||
Material | SS304 or SS316 wetted parts | ||||||
Design Temperature (℃) | 0~350 customized | ||||||
Stirring Speed (r/min) | 0-500 | 0-450 | 0-450 | 0-450 | |||
Motor Power (kW) | 2.2 | 2.2 | 4 | 5.5 | |||
Heating Power (kW) | According to the working temperature | ||||||
Heating Method | Standard electric heating(Thermal oil, steam, far infrared heating available) | ||||||
Head type | Flat cover or elliptical flange type | ||||||
Impeller type (Optional) | Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc | ||||||
Cooling type (Optional) | Spiral cooling cools with cooling water | ||||||
Discharging type (Optional) | Discharging from bottom or above. | ||||||
Control panel | PID temperature display and control, accuracy±1 ℃; Stirring speed display; Operation time display; Heating voltage and current display | ||||||
Opening port of head (Optional) | Pressure gauge, Safety valve port; Temp. measuring port; Gas and liquid port; Dip tube; Vent port; Solid charging port; Cooling coil inlet and outler port; | ||||||
Detailed Images

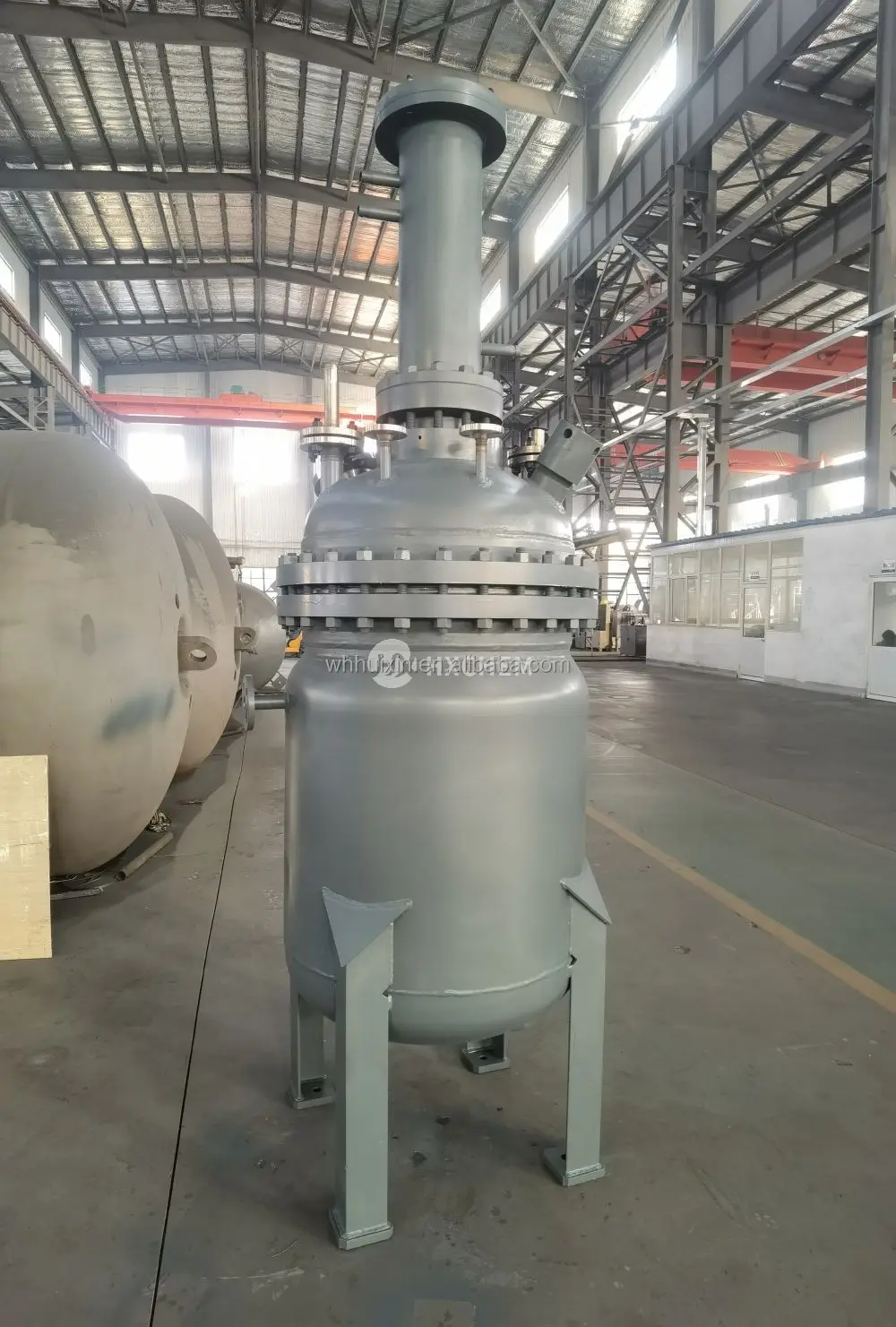

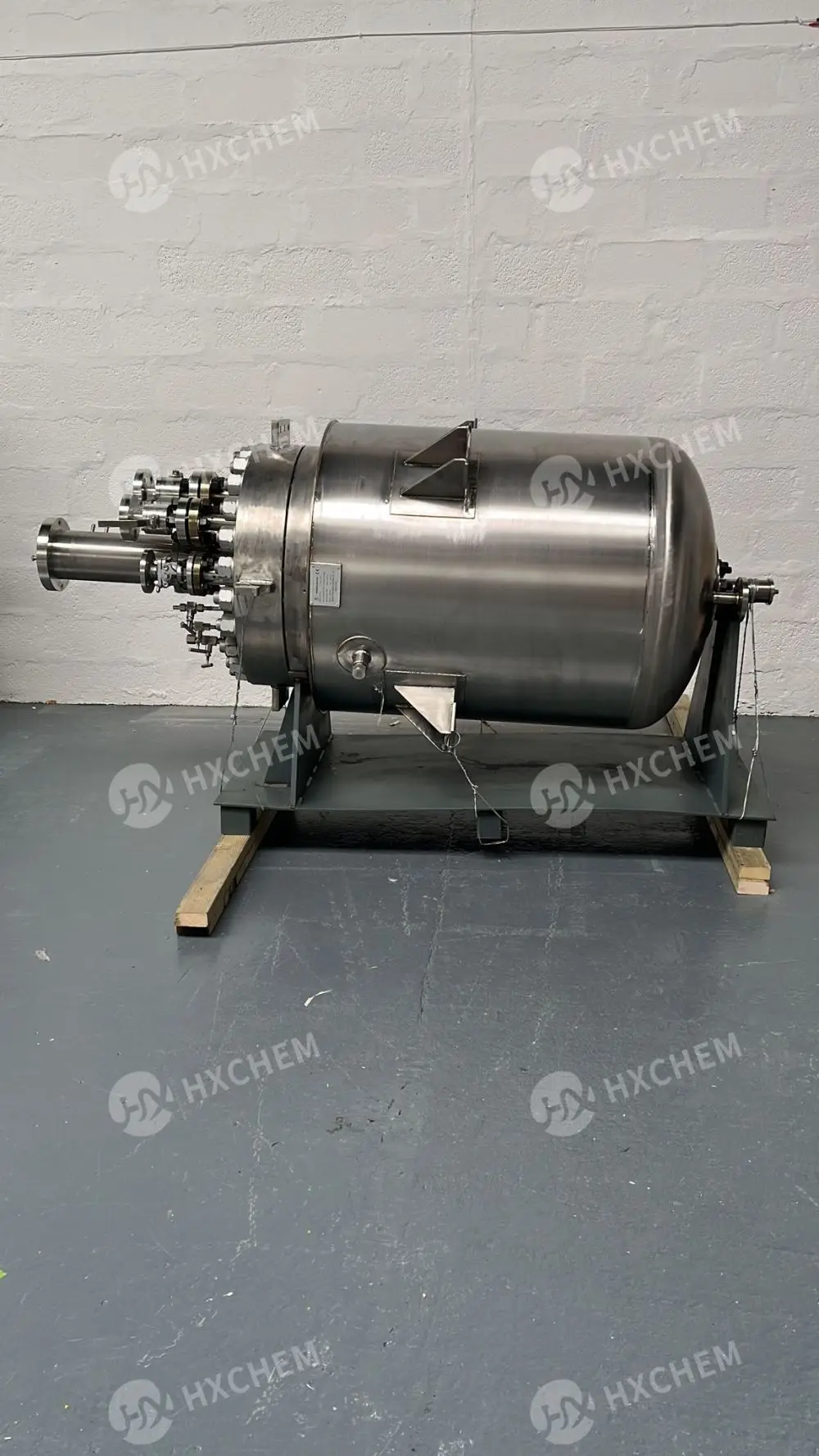

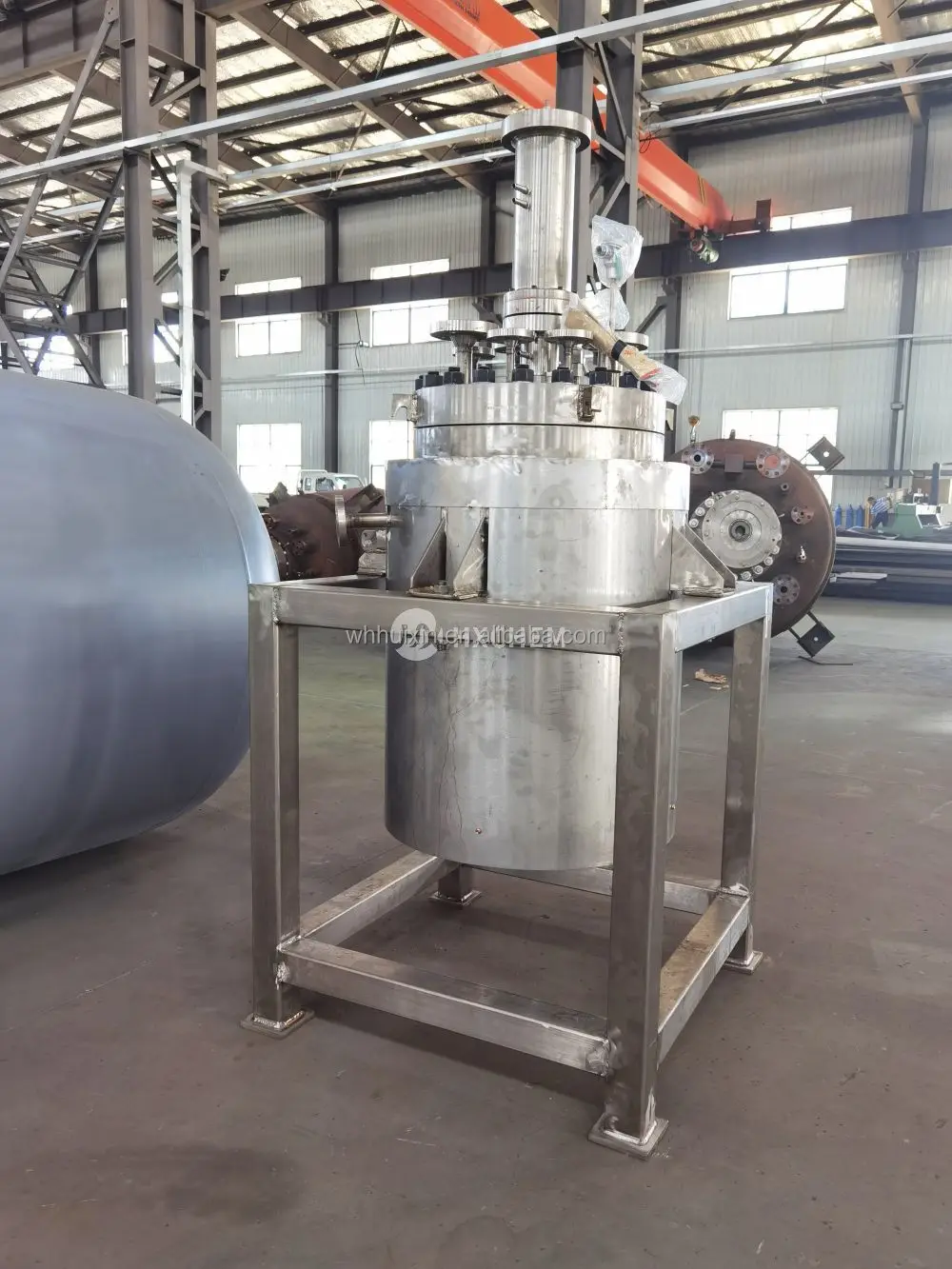

SS304/SS316 Vessel

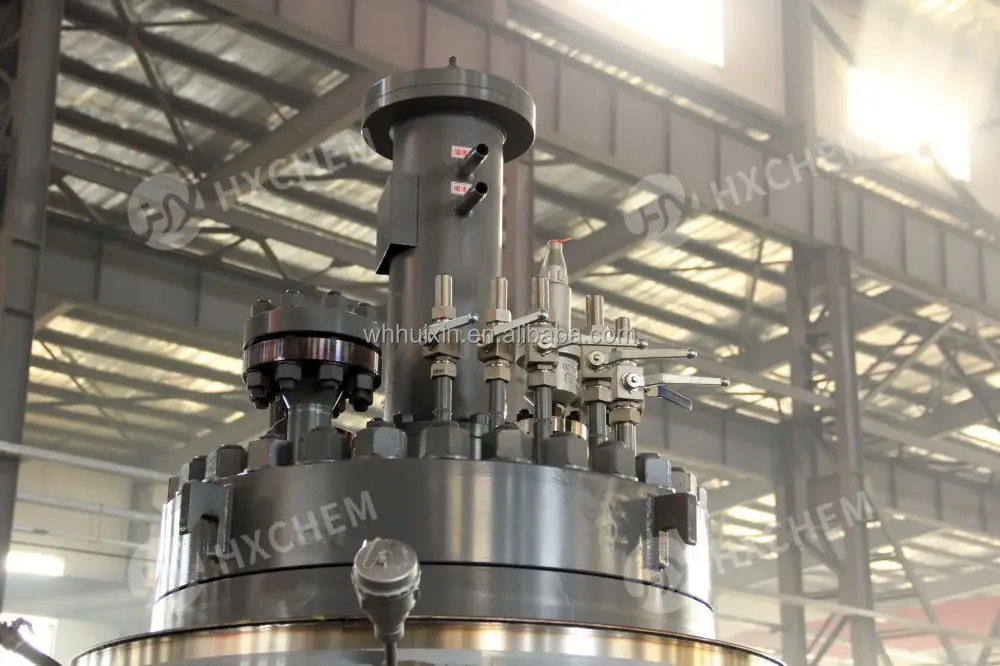

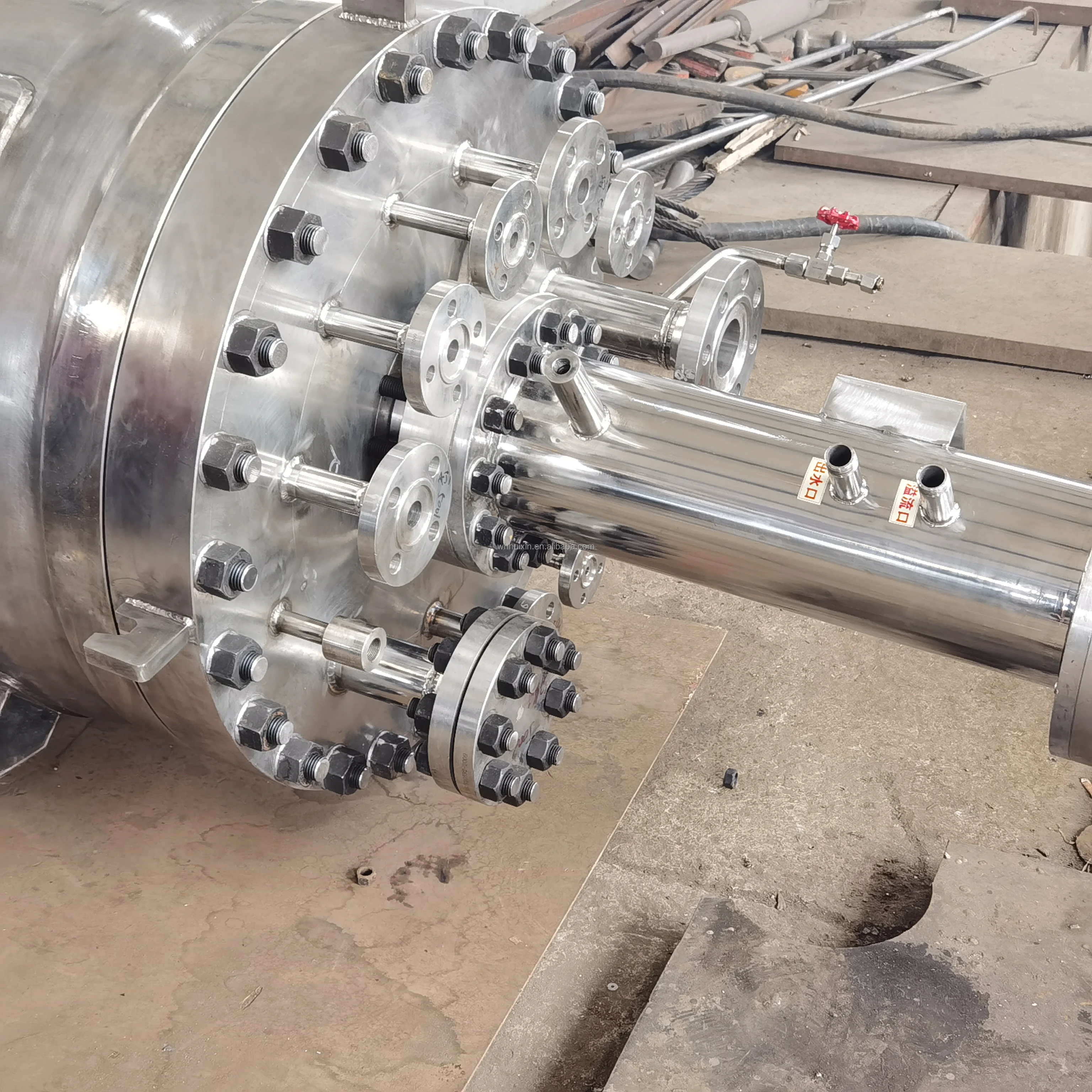

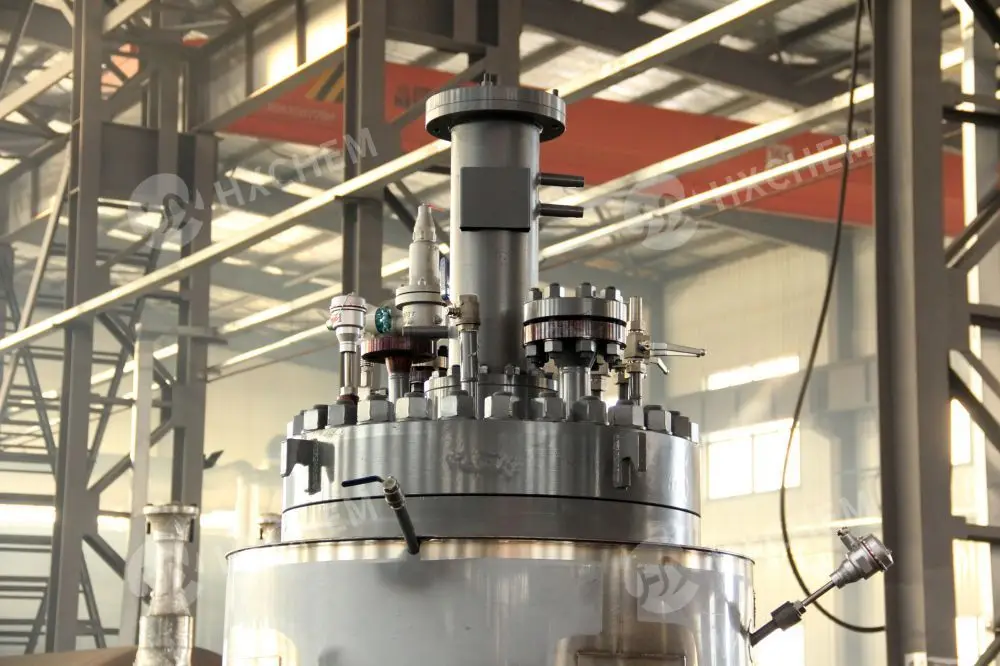

Top Head

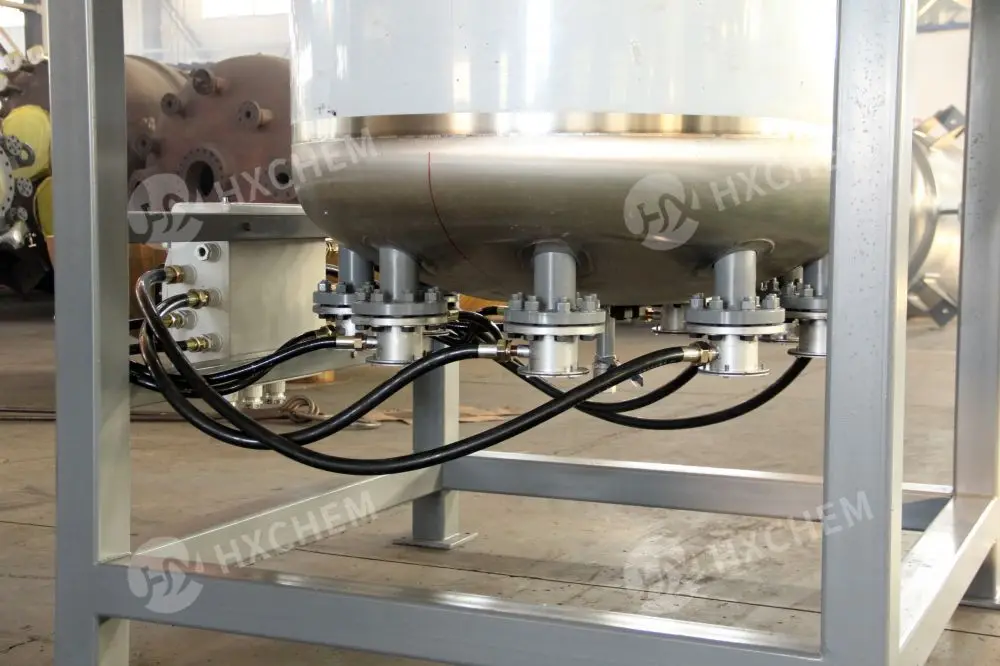

Bttom Head

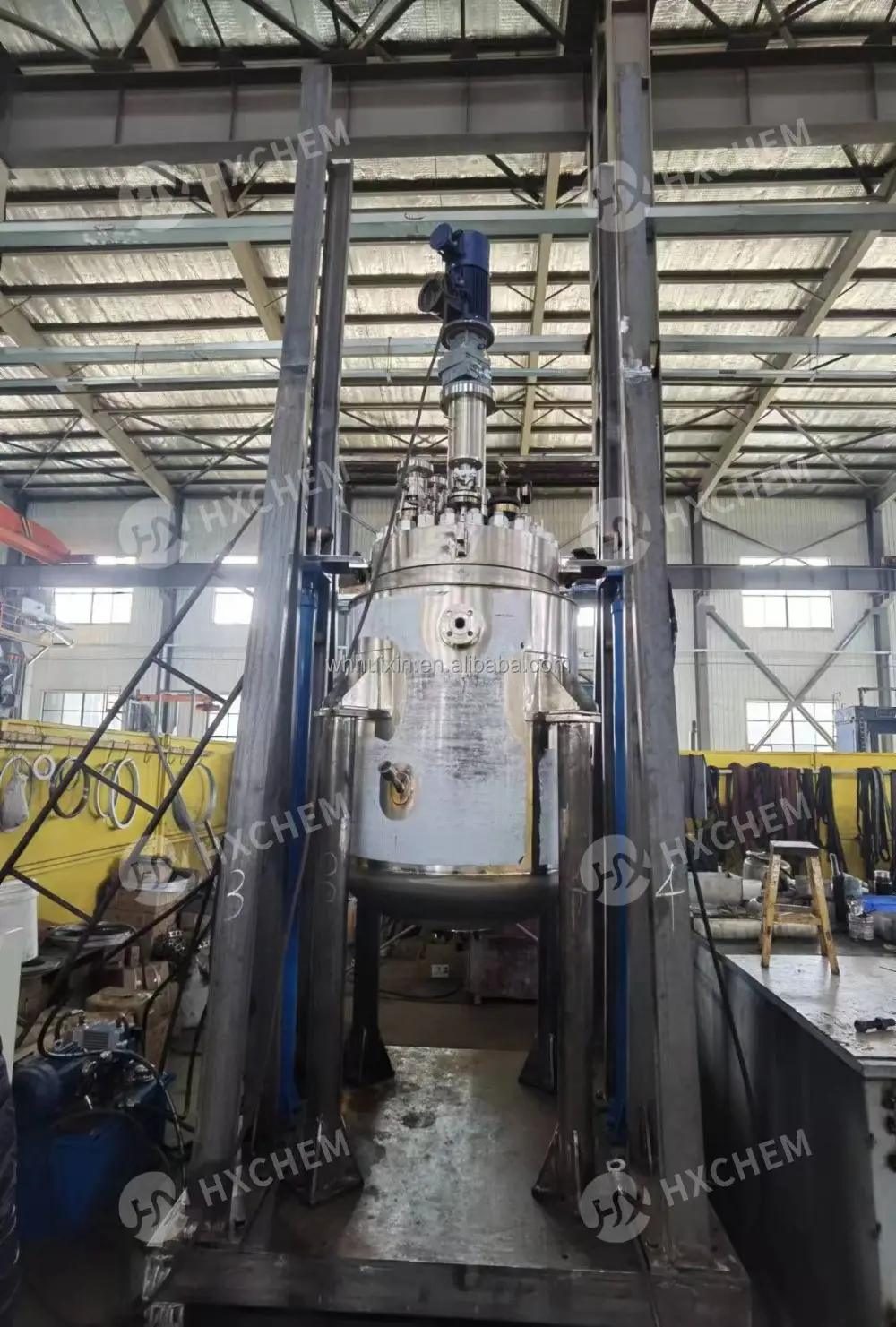

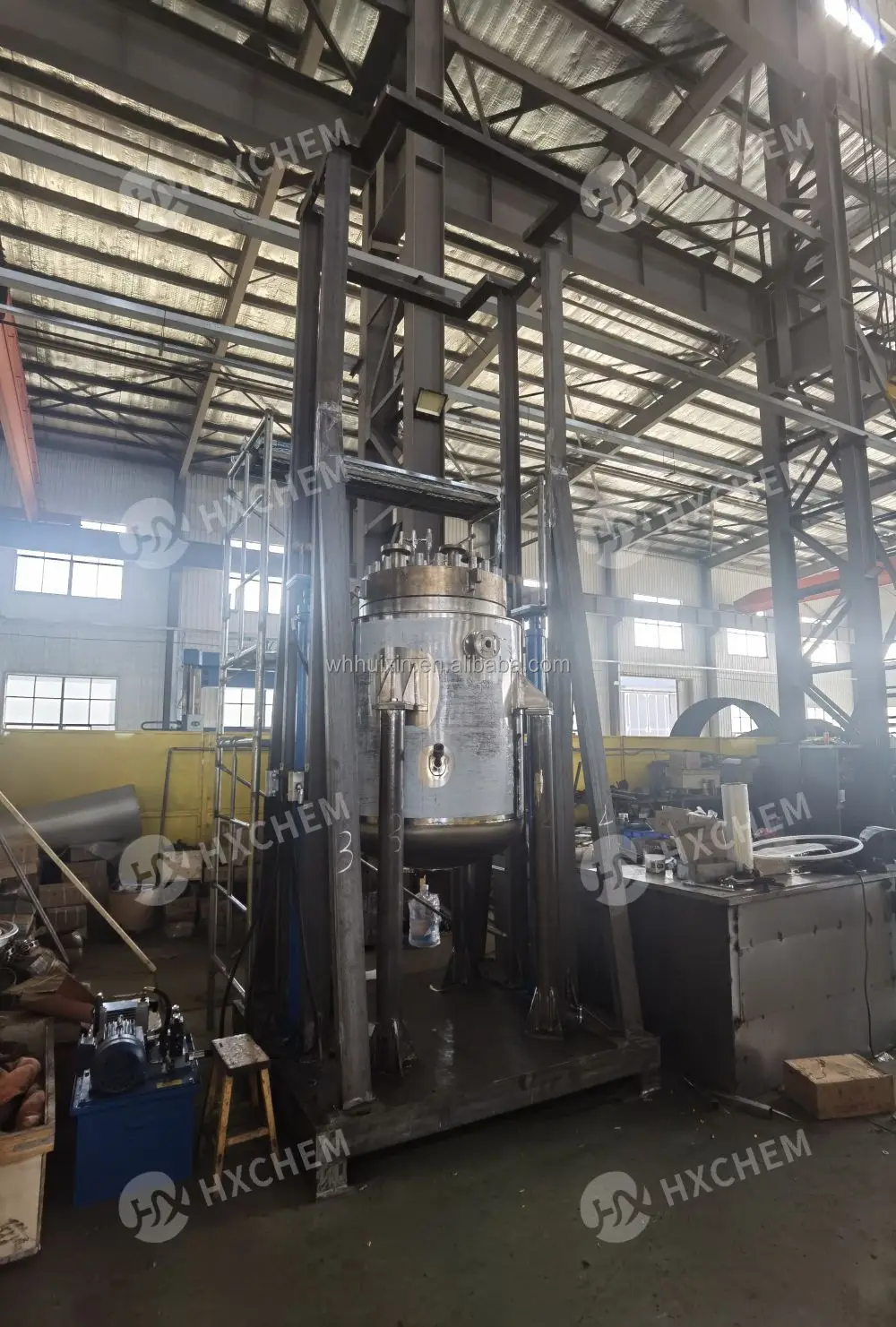

Pressure/ LeakageTest

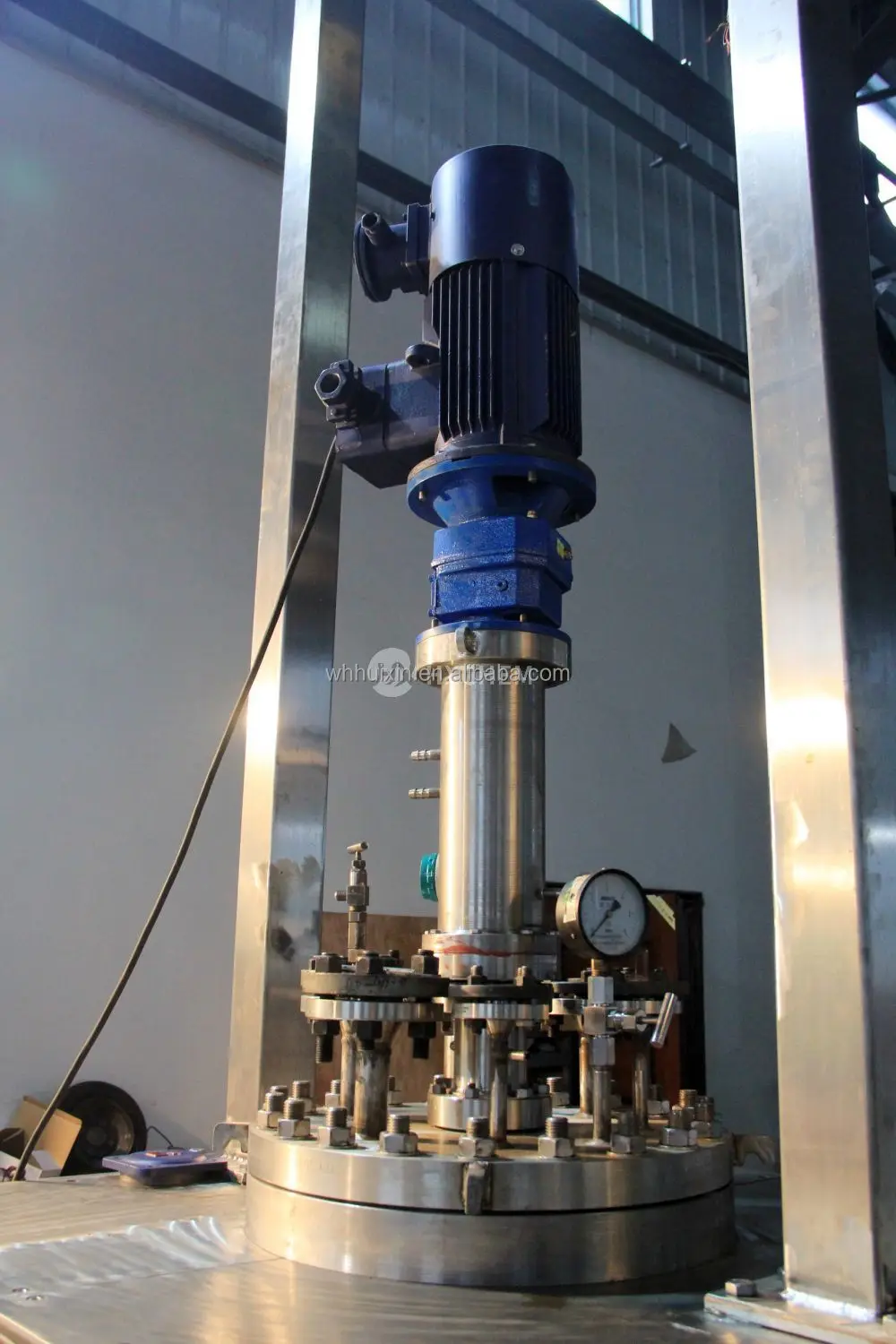

Magnetic stirrer
Axis & Impeller

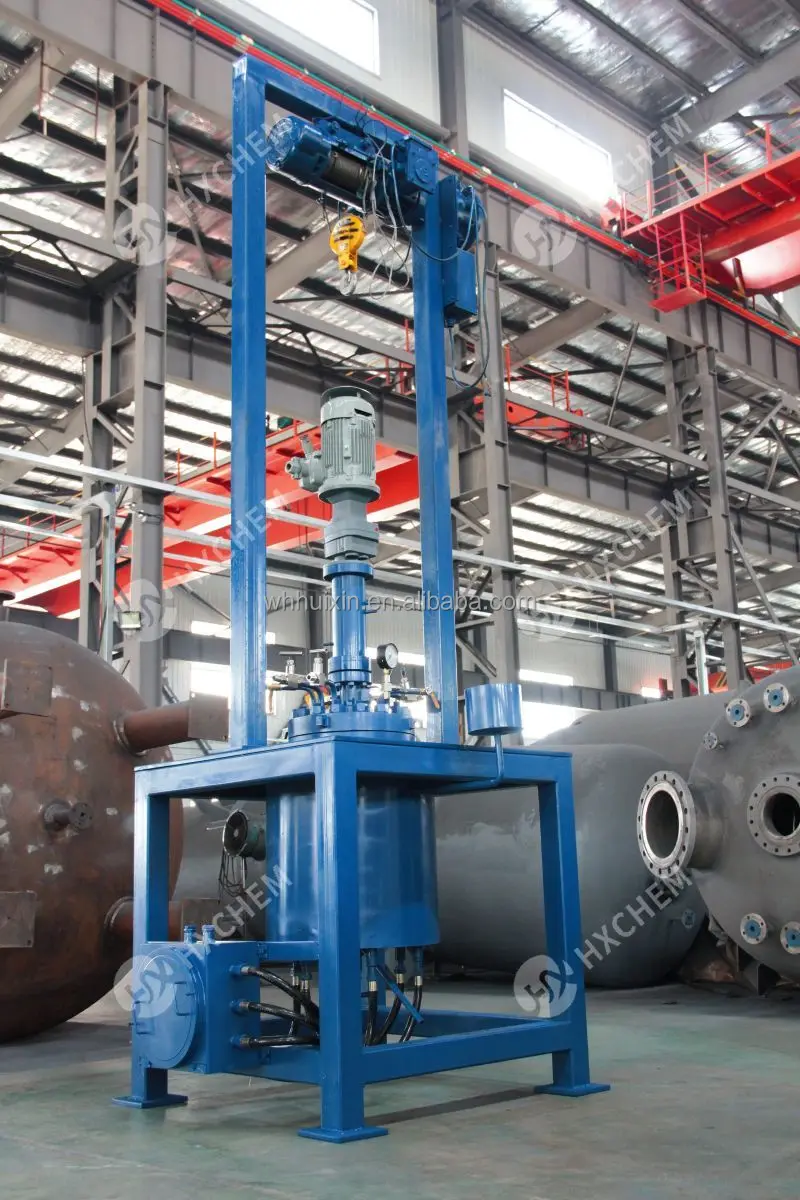

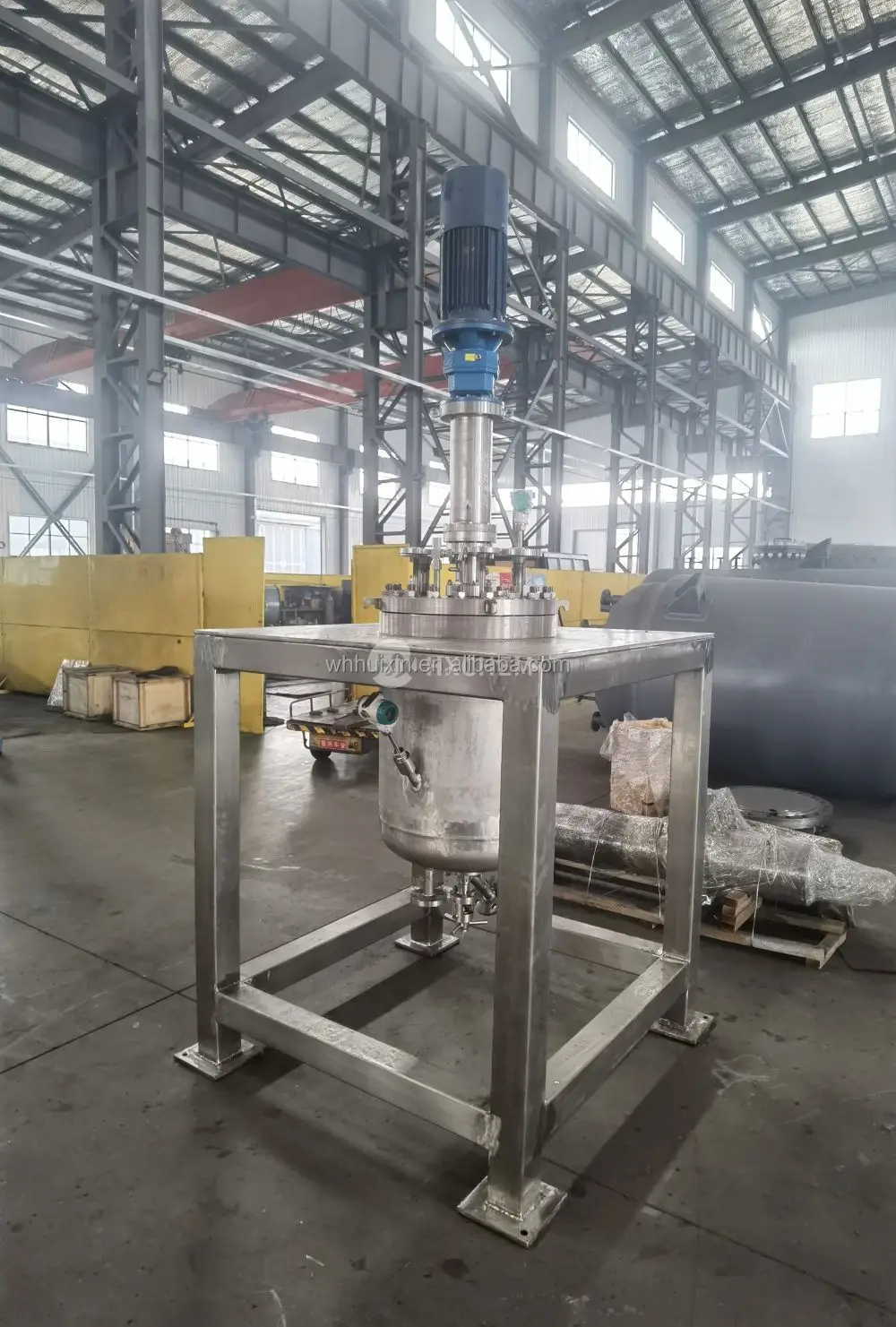

Customized structure

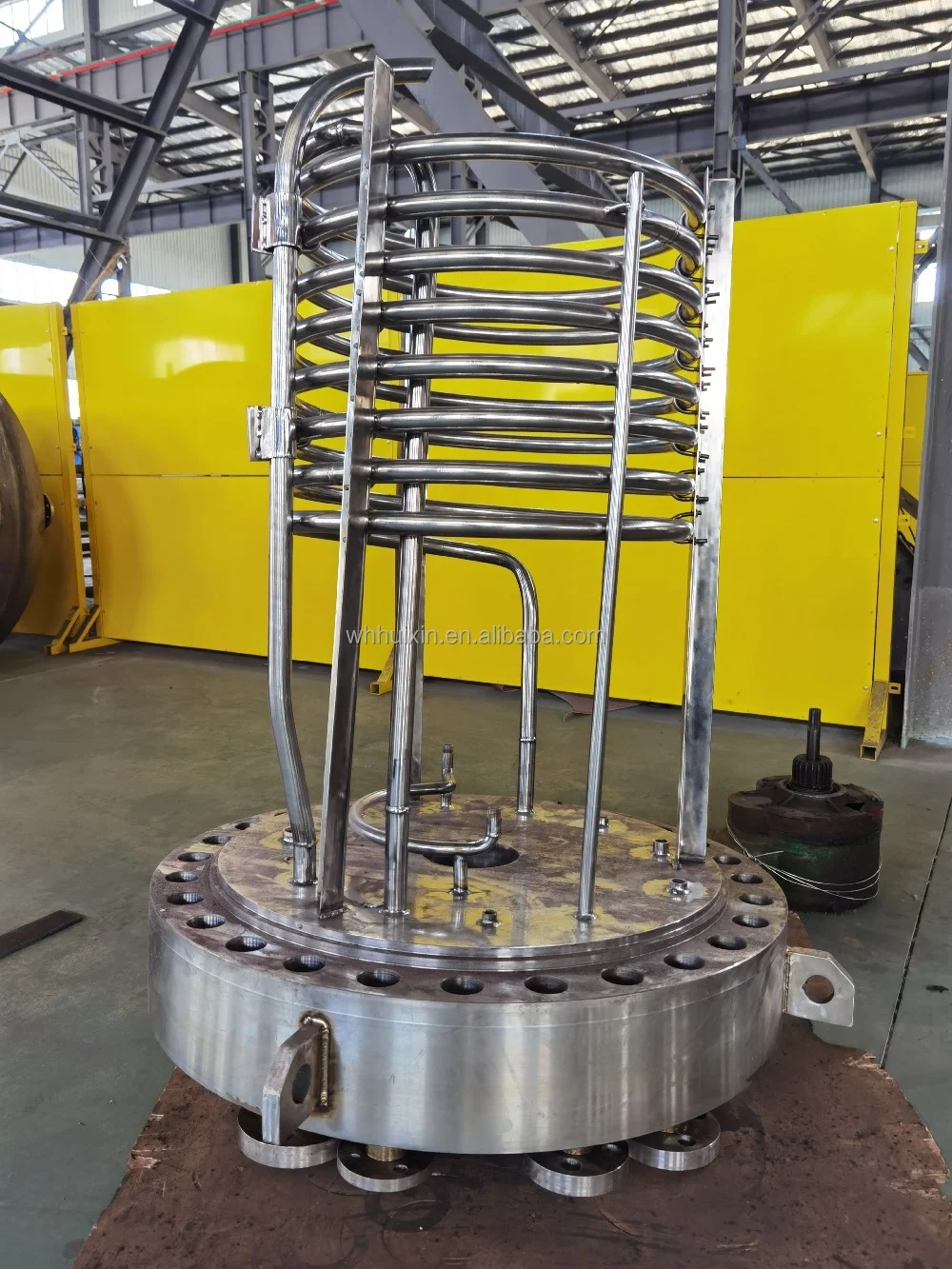

Internal spiral cooling coils
Package
Customization
Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
Certifications
Pressure vessel certificate
ASME "U" Certificate
ISO9001 Certificate
ISO 14001 Certificate
ISO 45001 Certificate
CE Certificate
