Product Overview
Description
Product Description

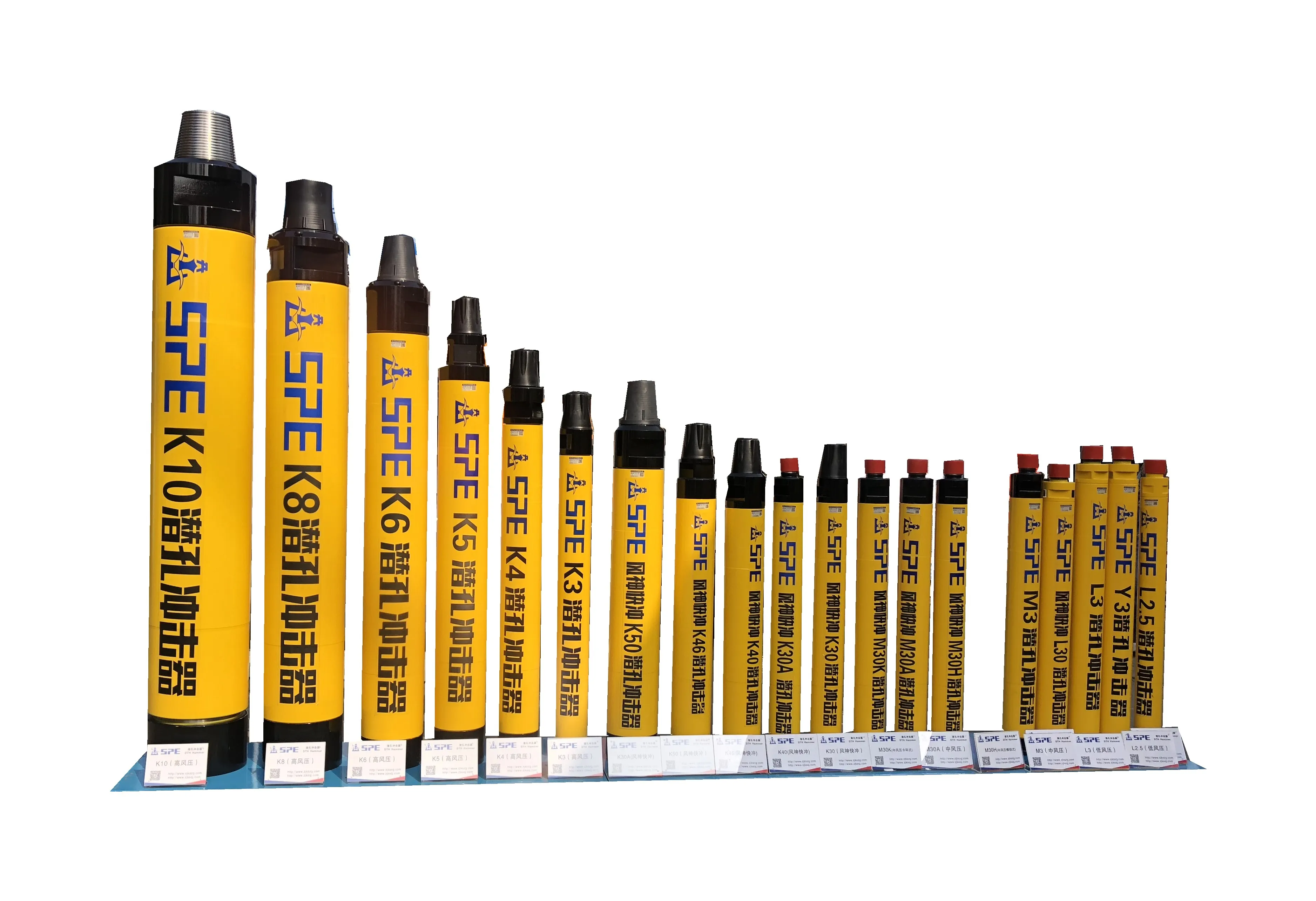

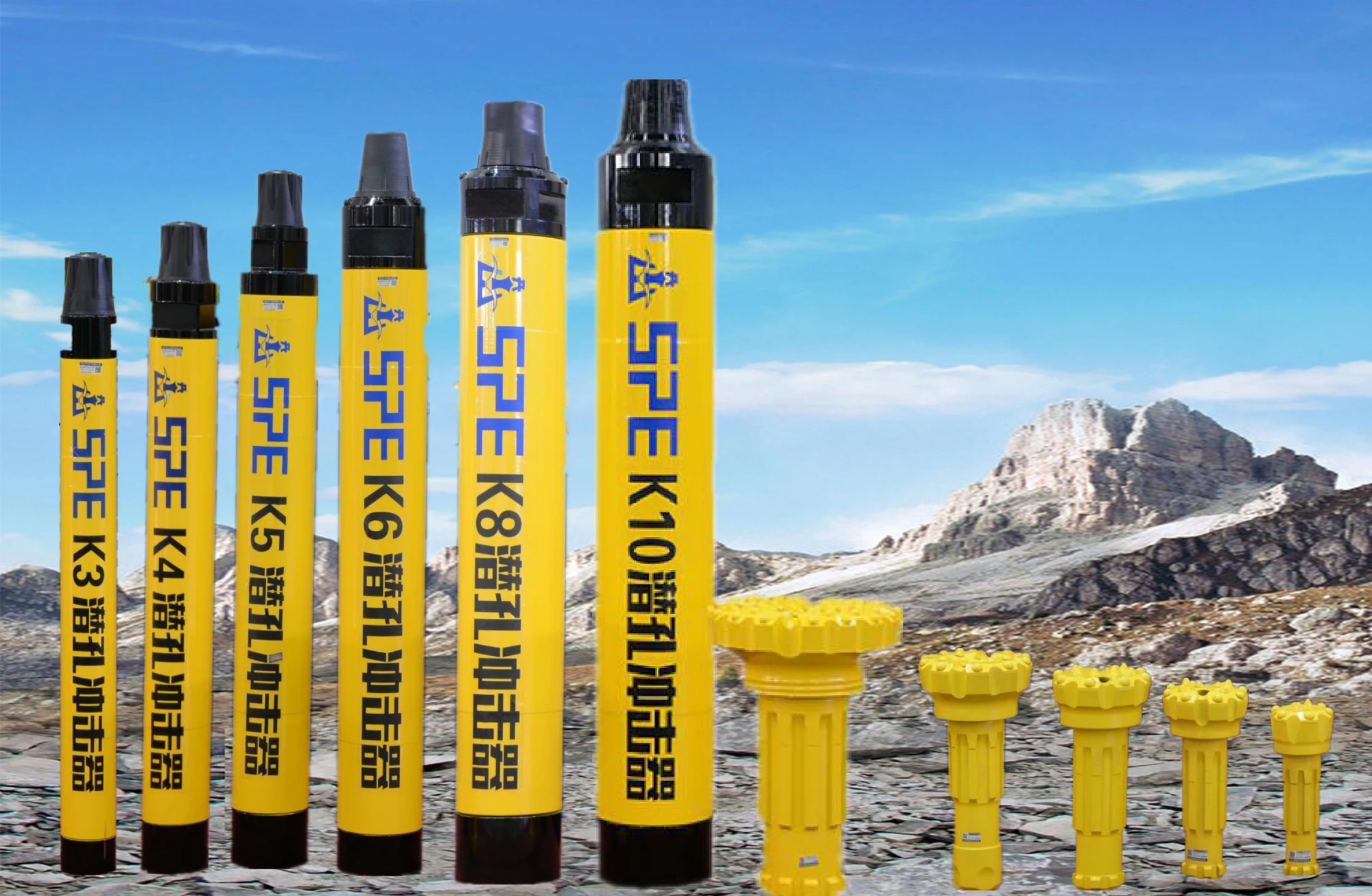

Hight air pressure DTH Hammer
This hammer maximises efficiency and develops greater power for any compressor capacities available.As a result the HD series of Hammers penetrate 15% to 30% faster than competative Hammers available in the market giving you an additional production at a lower unit cost.
» Designed to suit high pressure drilling rigs.
» Water well drilling
» Record breaking penetration
» Bench drilling
» Exploring Civil Engineering Applications
» Lowest cost per foot drilled
» Mining /Mineral Exploration
» Simple & robust design. Exploring Civil Engineering Applications
» Oil well drilling
» Foot Valve not required in the bit
» Longer parts life
This hammer maximises efficiency and develops greater power for any compressor capacities available.As a result the HD series of Hammers penetrate 15% to 30% faster than competative Hammers available in the market giving you an additional production at a lower unit cost.
» Designed to suit high pressure drilling rigs.
» Water well drilling
» Record breaking penetration
» Bench drilling
» Exploring Civil Engineering Applications
» Lowest cost per foot drilled
» Mining /Mineral Exploration
» Simple & robust design. Exploring Civil Engineering Applications
» Oil well drilling
» Foot Valve not required in the bit
» Longer parts life
Low air pressure DTH Hammer

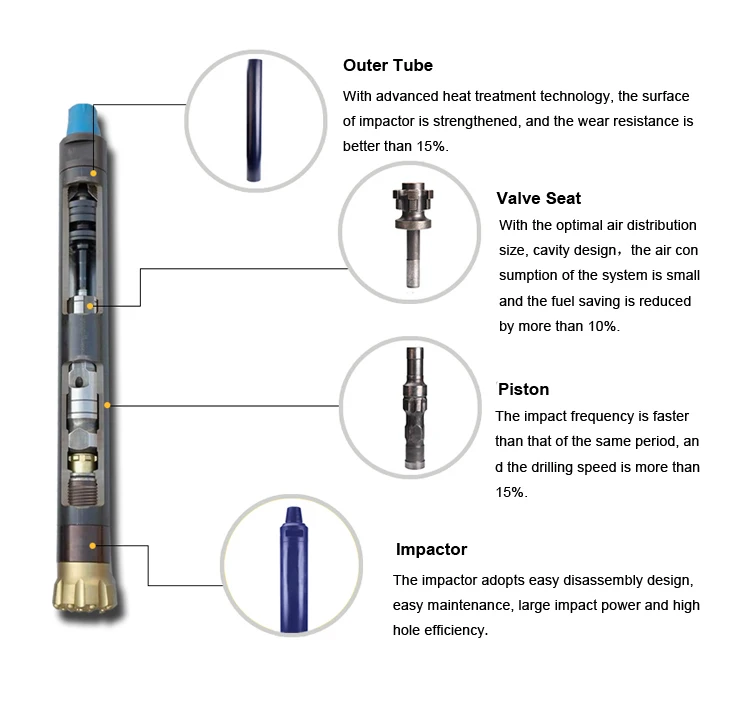

This DTH Hammer a kind of valve-equipped Low Air Pressure hammer with a single piston,a plate valve and a central exhaust structure. The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance，some high-pressure water may be added into the air for wet rock drilling.
It is mainly featured in:
1.The strong energy of single impact and the low energy consumption in rock crushing;
2.The weight ratio of Piston and Bit almost reaches 1:1 to provide long effective acting time,which leads to the improved
efficiency in rock crushing and the extended service life of the drilling tool;
3.A good performance in central ai r exhaust and cuttings discharge,which reduces the repeated crushing of rock;
4.A check vlave device is availabIe to drill ho1es under water. This DTH Hammer,an ideal drilling tool,is widely used in such industries relating to energy,transportation,metallurgy,building etc.
This DTH Hammer a kind of valve-equipped Low Air Pressure hammer with a single piston,a plate valve and a central exhaust structure. The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance，some high-pressure water may be added into the air for wet rock drilling.
It is mainly featured in:
1.The strong energy of single impact and the low energy consumption in rock crushing;
2.The weight ratio of Piston and Bit almost reaches 1:1 to provide long effective acting time,which leads to the improved
efficiency in rock crushing and the extended service life of the drilling tool;
3.A good performance in central ai r exhaust and cuttings discharge,which reduces the repeated crushing of rock;
4.A check vlave device is availabIe to drill ho1es under water. This DTH Hammer,an ideal drilling tool,is widely used in such industries relating to energy,transportation,metallurgy,building etc.
High air pressure DTH Hammer | ||||||||||||
Model | Length | Weight | External diameter | Bit Shank | Hole Range | Connection Thread | ||||||
(mm) | (Kg) | (mm) | (mm) | |||||||||
HD25A | 872 | 16 | 71 | KD25 | 76-90 | T42×10×1.5 | ||||||
HD35A | 888 | 25 | 82 | IR3.5 | 90-115 | API 23/8"Reg | ||||||
HD45A | 1011 | 43.2 | 99 | Cop44/DHD340 | 110-135 | API 23/8"Reg | ||||||
HD45S | 986 | 37 | 92 | Cop44/DHD340 | 105-120 | API 23/8"Reg | ||||||
HD55A | 1110 | 69 | 125 | Cop54/DHD350R | 135-155 | API 23/8"Reg | ||||||
API 31/2"Reg | ||||||||||||
HD55C(A) | 1102 | 68 | 125 | KD55C/DHD350Q | 135-155 | API 23/8"Reg | ||||||
API 31/2"Reg | ||||||||||||
HD55C | 1160 | 72.5 | 125 | KD55C/DHD350Q | 135-155 | API 23/8"Reg | ||||||
API 31/2"Reg | ||||||||||||
HD65A | 1238 | 98 | 142 | Cop64/DHD360 | 155-203 | API 31/2"Reg | ||||||
HD75A | 1258 | 120 | 165 | Cop64/DHD360 | 175-216 | API 31/2"Reg | ||||||
HD85A | 1359 | 175 | 180 | Cop84/DHD380 | 195-254 | API 41/2"Reg | ||||||
HD1120A | 1880 | 474 | 275 | DHD1120 | 305-445 | API 65/8"Reg | ||||||
HQL4A | 1070 | 40 | 99 | QL40 | 110-135 | API 23/8"Reg | ||||||
HQL5A | 1090 | 67 | 125 | QL50 | 135-155 | API 23/8"Reg | ||||||
API 31/2"Reg | ||||||||||||
HQL6A | 1183 | 92 | 146 | QL60 | 155-203 | API 31/2"Reg | ||||||
HQL8A | 1330 | 171 | 180 | QL80 | 195-254 | API 41/2"Reg | ||||||
HQL95A | 1340 | 203 | 203 | QL80 | 216-254 | API 41/2"Reg | ||||||
HSD4A | 1012 | 40 | 99 | SD4 | 110-135 | API 31/2"Reg | ||||||
HSD5A | 1090 | 70 | 125 | SD5 | 135-155 | API 23/8"Reg | ||||||
API 31/2"Reg | ||||||||||||
HSD6A | 1182 | 90 | 146 | SD6 | 155-203 | API 31/2"Reg | ||||||
HSD8A | 1330 | 174 | 180 | SD8 | 195-254 | API 41/2"Reg | ||||||
HSD10A | 1525 | 316 | 226 | SD10 | 254-311 | API 65/8"Reg | ||||||
HSD12A | 1860 | 480 | 275 | SD12 | 305-445 | API 65/8"Reg | ||||||
HM4A | 1005 | 40 | 99 | M4 | 110-135 | API 23/8"Reg | ||||||
HM5A | 1110 | 68.5 | 125 | M5 | 135-155 | API 23/8"Reg | ||||||
API 31/2"Reg | ||||||||||||
HM6A | 1161 | 90 | 146 | M6 | 155-203 | API 31/2"Reg | ||||||
HM8A | 1338 | 176 | 180 | M8 | 195-254 | API 41/2"Reg | ||||||
HN100A | 1545 | 305 | 226 | NUMA100 | 254-311 | API 65/8"Reg | ||||||
HN120A | 1880 | 475 | 275 | NUMA120 | 305-445 | API 65/8"Reg | ||||||
HN125A | 1880 | 470 | 275 | NUMA125 | 305-445 | API 65/8"Reg | ||||||
low air pressure DTH Hammer | ||||||||||||||
Model | Length(mm) | Weight(Kg) | External diameter(mm) | Bit Shank | Hole Range(mm) | Connection Thread | Working Pressure(Mpa) | |||||||
KD70 | 792 | 12 | 65 | CIR70 | 76 | T42×10×1.5 | 0.5-0.7 | |||||||
KD90 | 795 | 20 | 80 | CIR90 | 90-100 | T42×10×1.5 | 0.7-1.3 | |||||||
KD930 | 869 | 22 | 80 | CIR90 | 90-100 | T42×10×1.5 | 0.7-1.5 | |||||||
KD110 | 839 | 32 | 95 | CIR110 | 110-130 | API 2 3/8Reg | 0.7-1.5 | |||||||
KD150 | 908 | 69 | 137 | CIR150 | 150-178 | T75×10×2.5 | 0.7-1.5 | |||||||
