Product Overview
Description
Product Description

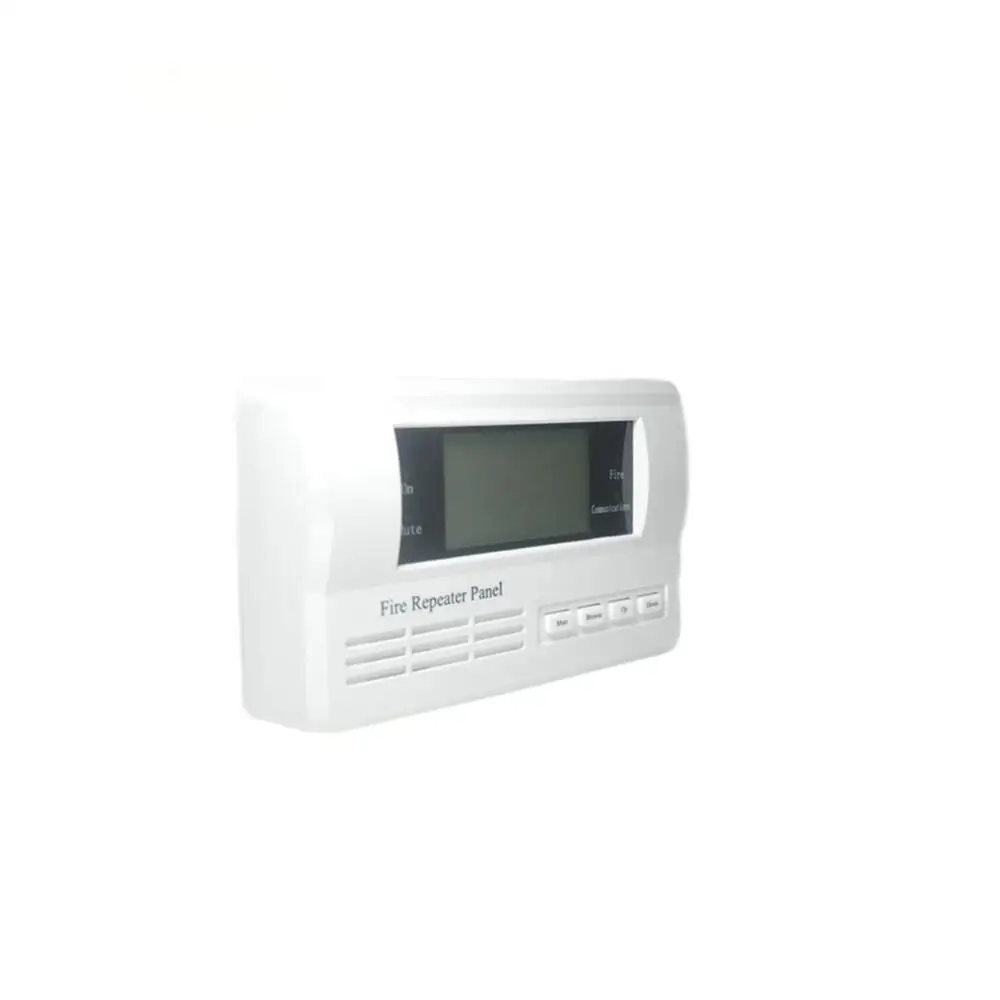

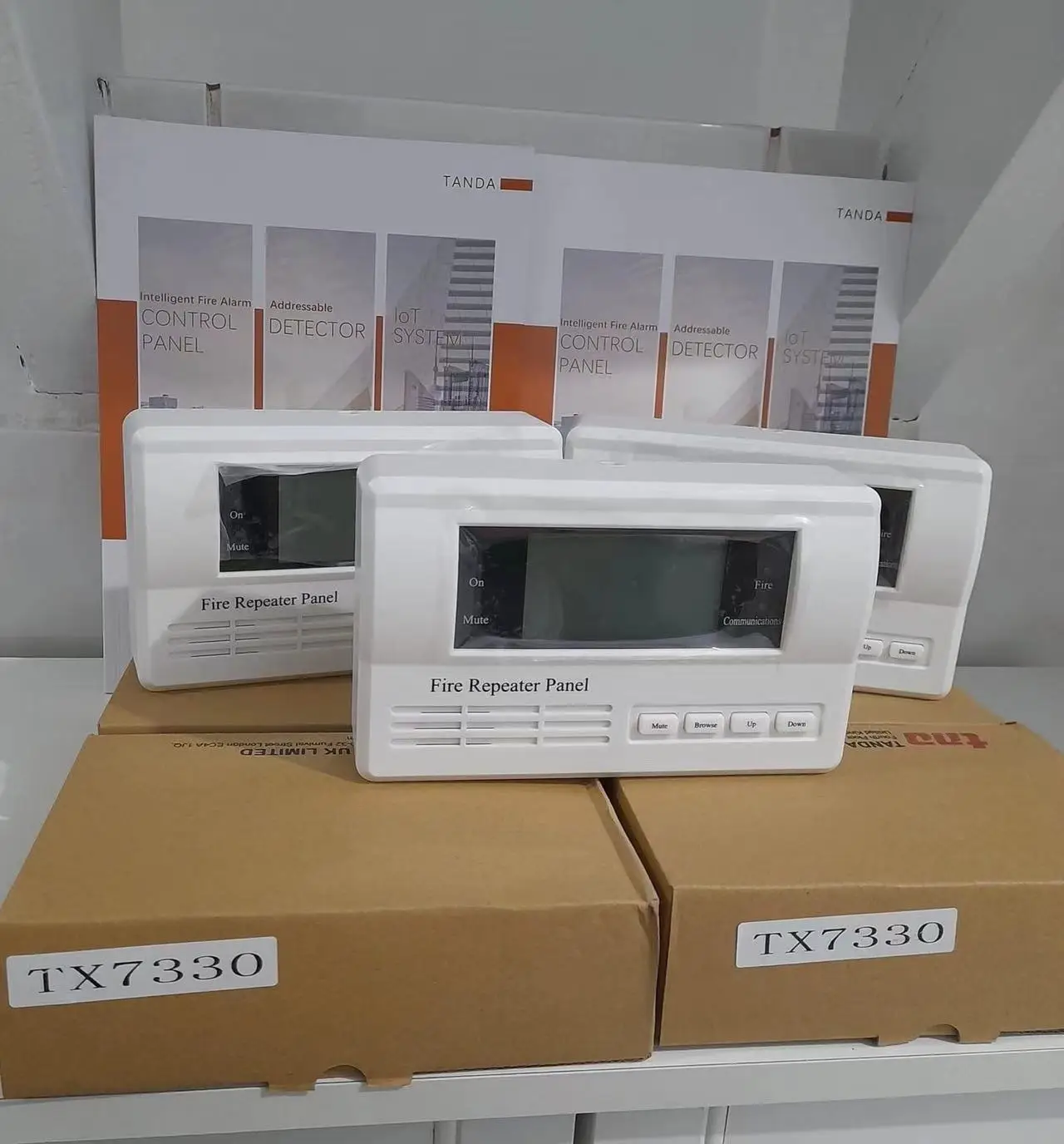

TX7330 LCD Repeater Panel Introduction
TX7330 LCD Repeater Panel is designed with built-in MCU processor to display exact fire event messages from the control panel and fast relay response with simultaneous audible and visual signal output.

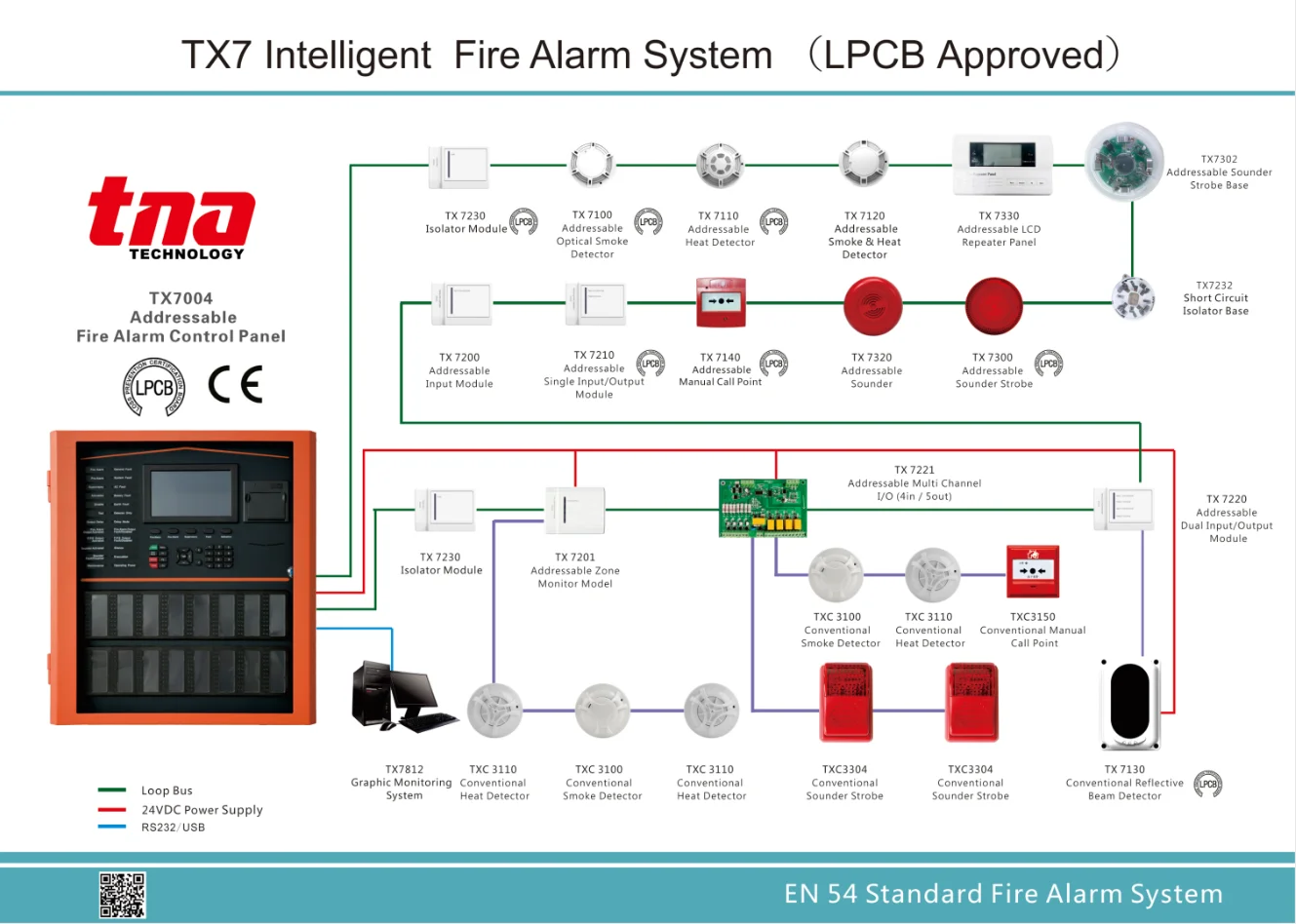

This repeater panel can also program to limit the zone display from All Zones into a particular zone or three adjacent zones through the panel key buttons. The unit is connected through the communication loop of TX7004 Intelligent control panel along with the devices and can install up to 254 units per loop. The repeater panel can be used whenever there is a need to relay information to multipoint informing key personnel.
Product Features
◆EN54-2 Compliance
◆Fire display passive repeater panel
◆Built-in MCU processor and digital addressing
◆Fast response of audible and visible signal from the panel
◆Direct access common keys such as MUTE, UP, DOWN and BROWSE
◆Programmable Zone Display such as All Zone, Single Zone and Three Adjacent Zone
◆LED status indicator
◆Onsite Adjustable Parameter

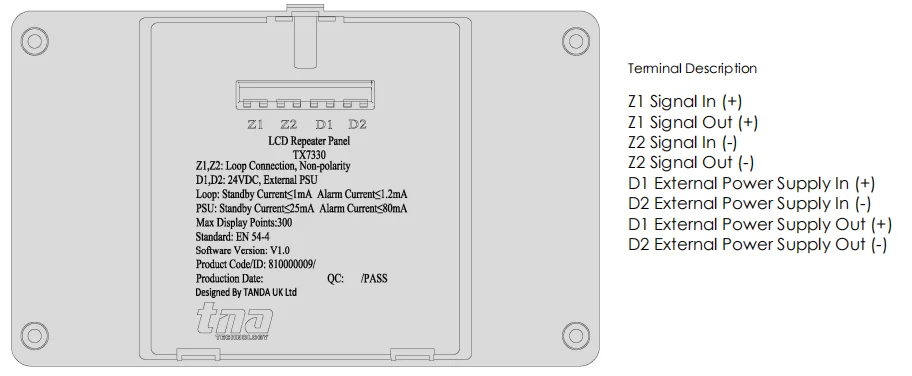

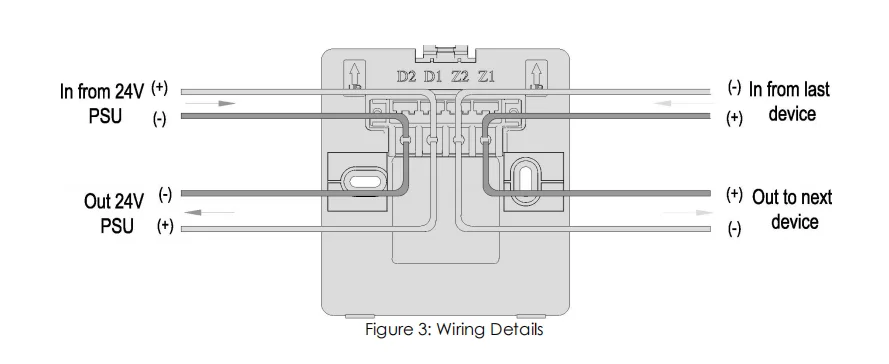

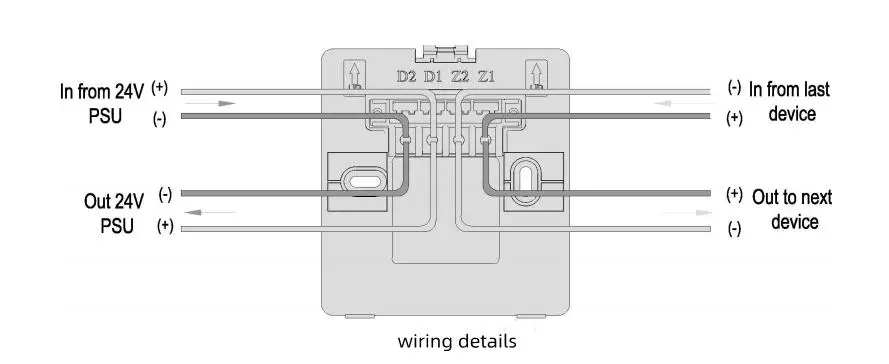

◆Loop sited wiring with external 24V supply
◆Compact size and aesthetically pleasing design

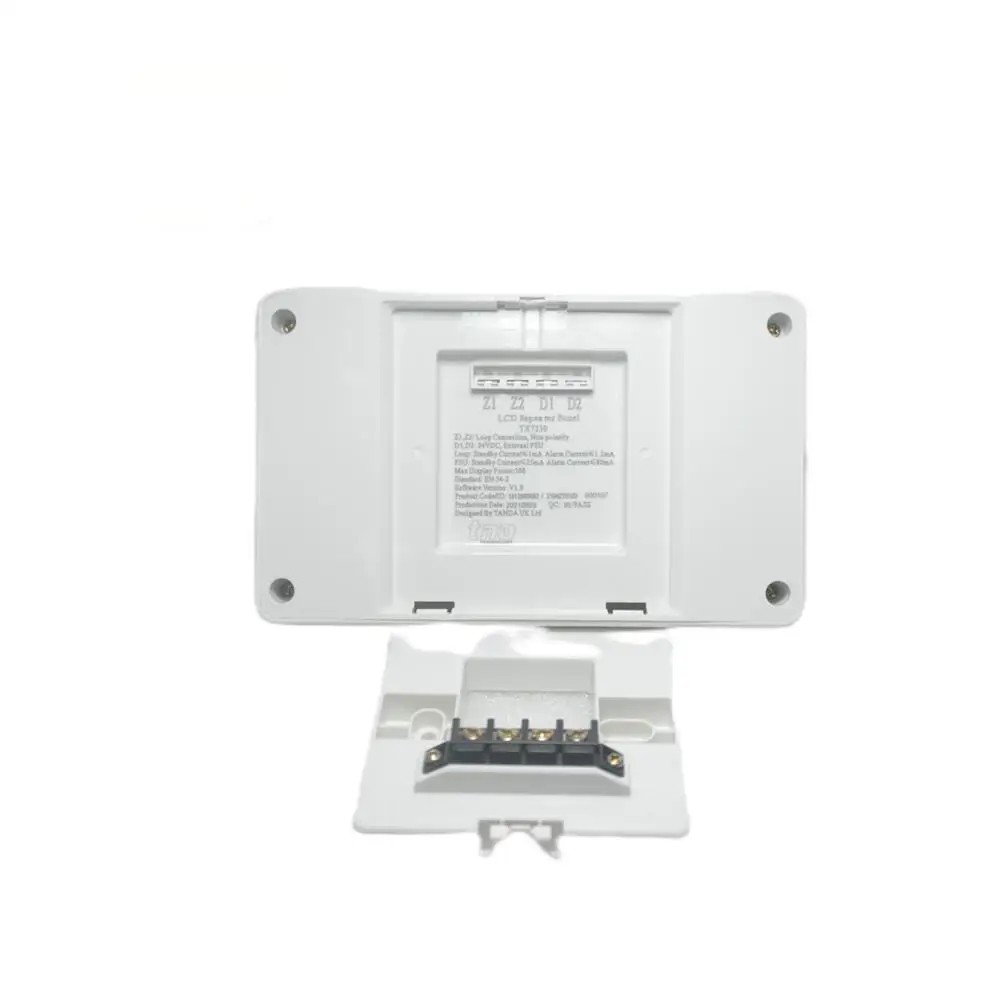

◆Surface mounting with fix base for simple installation
Specification
Place of Origin | Guangdong, China |
Brand Name | Tna |
Model Number | TX7330 |
Listed | LPCB Pending |
Compliance | EN 54-2: 1997+A1: 2006 |
Input Voltage | Loop Power: 24VDC [18V to 27.5V] External PSU: 24 VDC [20V to 27.5V] |
Current Consumption | Loop: Standby: 1mA, Alarm: 1.2mA External PSU: Standby: 25mA, Alarm: 80mA |
Memory Capacity | Up to 300 fire event history |
Number per loop | Up to 254 units (ideal) |
Material / Colour | ABS /White Glossy finishing |

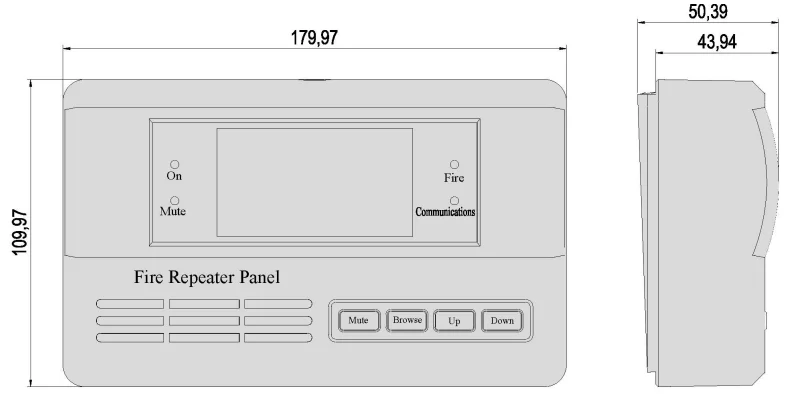

Dimension / LWH | 180mm x 110 mm x44 mm |
Weight | 300g (with Base), 256g (without Base) |
Operating Temperature | 0°C to +40°C |
Humidity | 0 to 95% Relative Humidity, Non condensing |
Packing & Delivery
Packaging Details | Standard carton package |
Single Dimension | 19*12*5.5cm |
Single weight | 300g(with Base) |
Packag Dimension | 57*49*30cm |
Packag Weight | 21.3Kg(120Pcs/box) |
