Embedded Intel i5 1235U i7 1255U Desktop Industrial PC 2 DDR4 MSATA M.2 VGA 2 HD 2 RJ45 LAN 2 RS232 COM Fanless Linux Win10
- Category: >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (1601269291024):
Product Overview
Description
Order information
Products Description

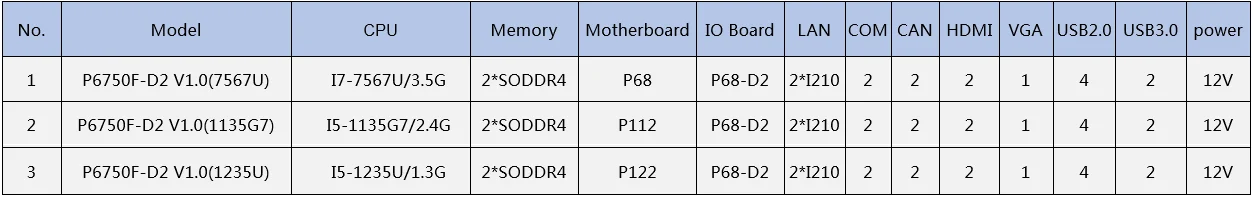

Model | P6750F-D2 V1.0(1235U) | ||
Case | Material/structure | Aluminium alloy + sheet metal, fan cooling | |
Color | Iron grey + sand grain grey | ||
Size (LWH) | 185*164.3*48.5MM | ||
Weight (net) | 1.5KG | ||
installed | Desktop/Wall Mount/DIN Rail | ||
Motherboard | CPU | Intel® i5-1235U/1.30GHz, Turbo 4.4GHz, 10-core, 12-thread processor, TDP 15W | |
Display | Intel Iris Xe Graphics eligible | ||
Memory | 2*SODIMM DDR4 3200MHz, support up to 64GB | ||

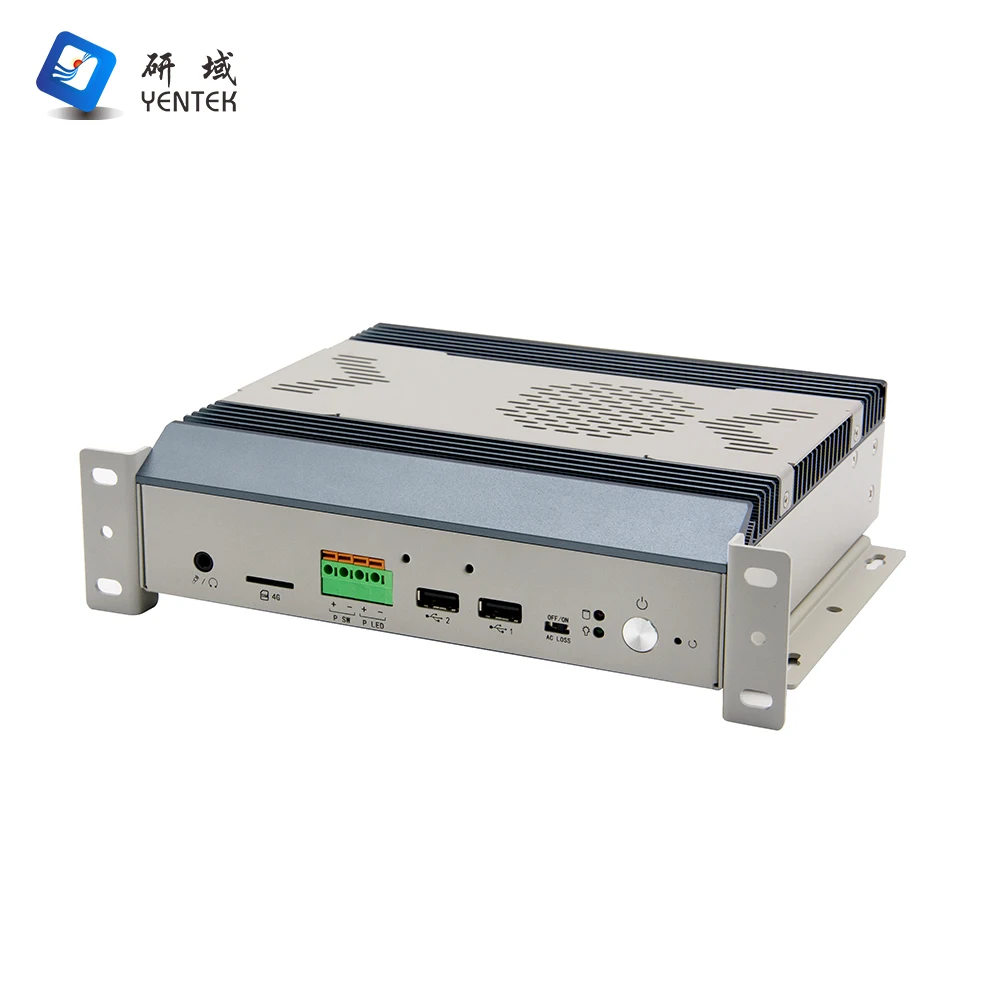

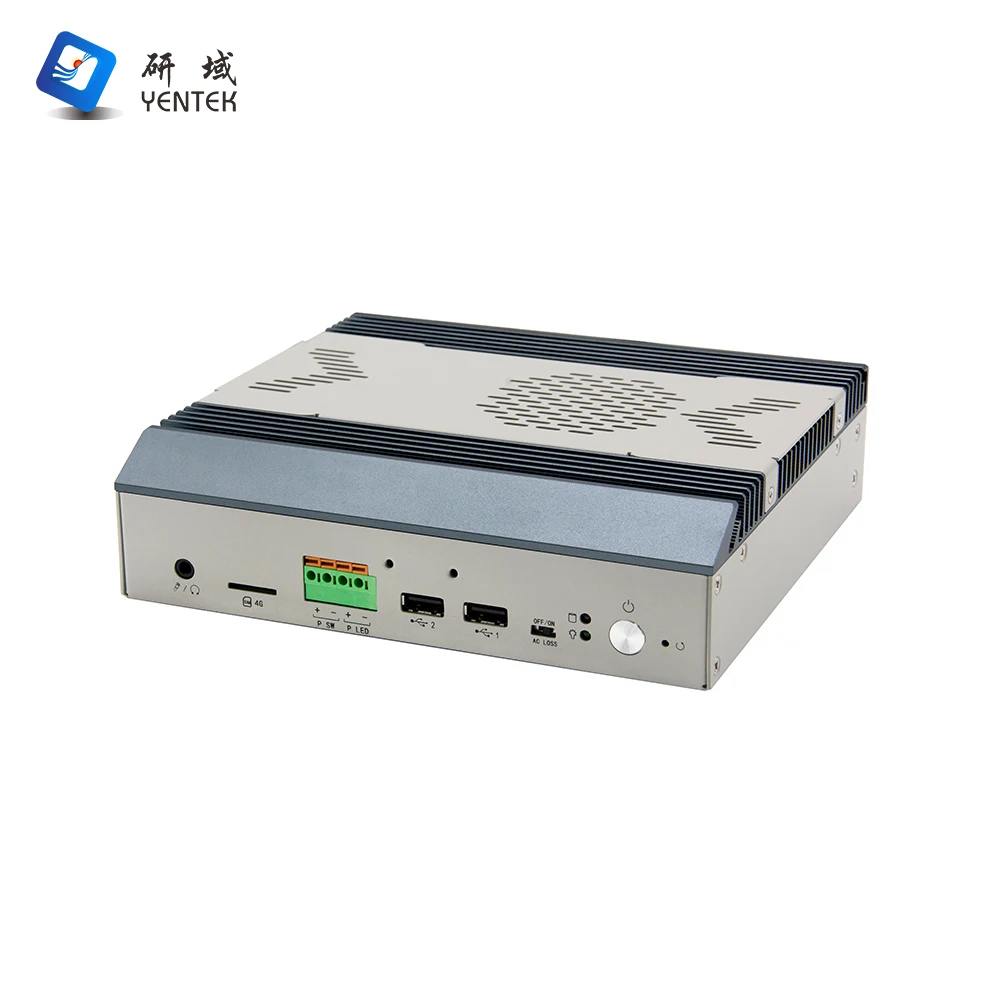

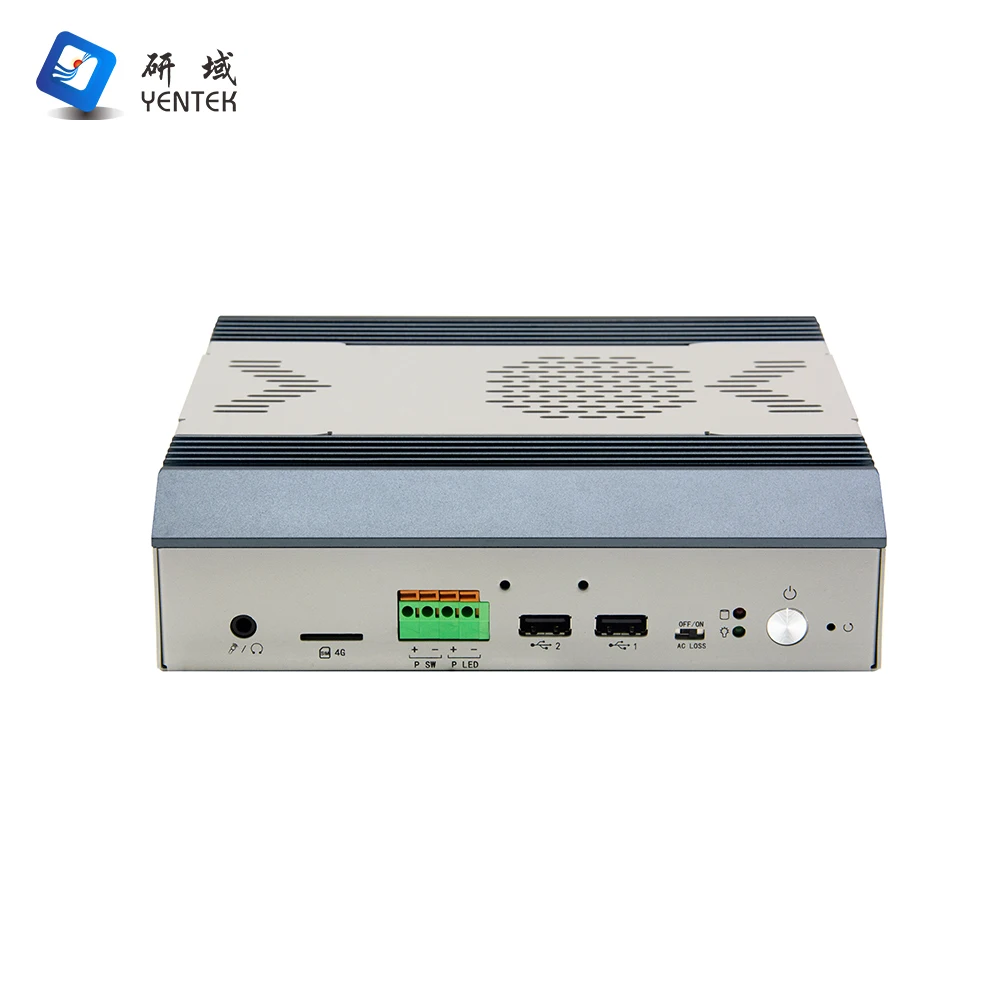

Front Panel Interface | Switch | 1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch) | |
LED | 1*Hard Drive Indicator Light, 1*Hard Drive Indicator Light | ||
USB | 2*USB2.0 | ||
Audio | 1*Audio, Line out&Mic 2-in-1 | ||
Phoenix Terminal | 1*4P (1*power on signal/1*power indicator signal) | ||
SIM | 1*SIM standard card slot | ||

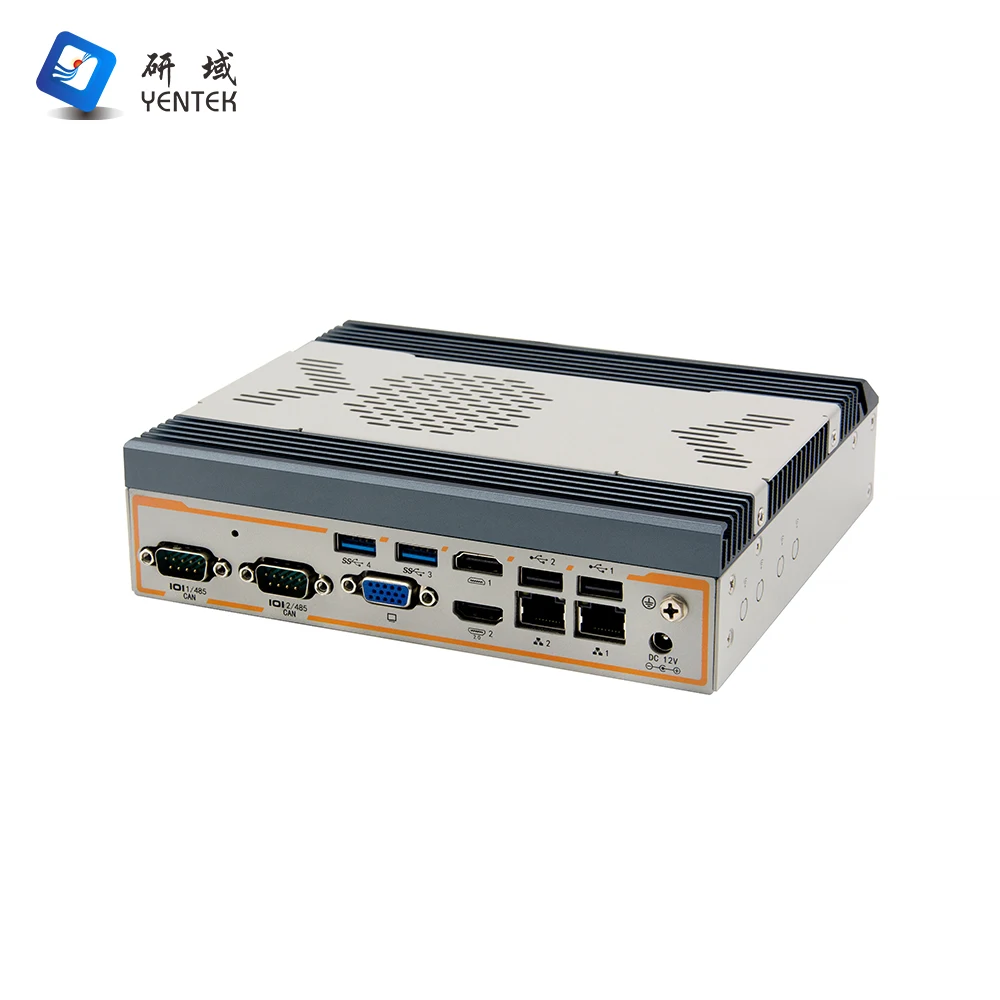

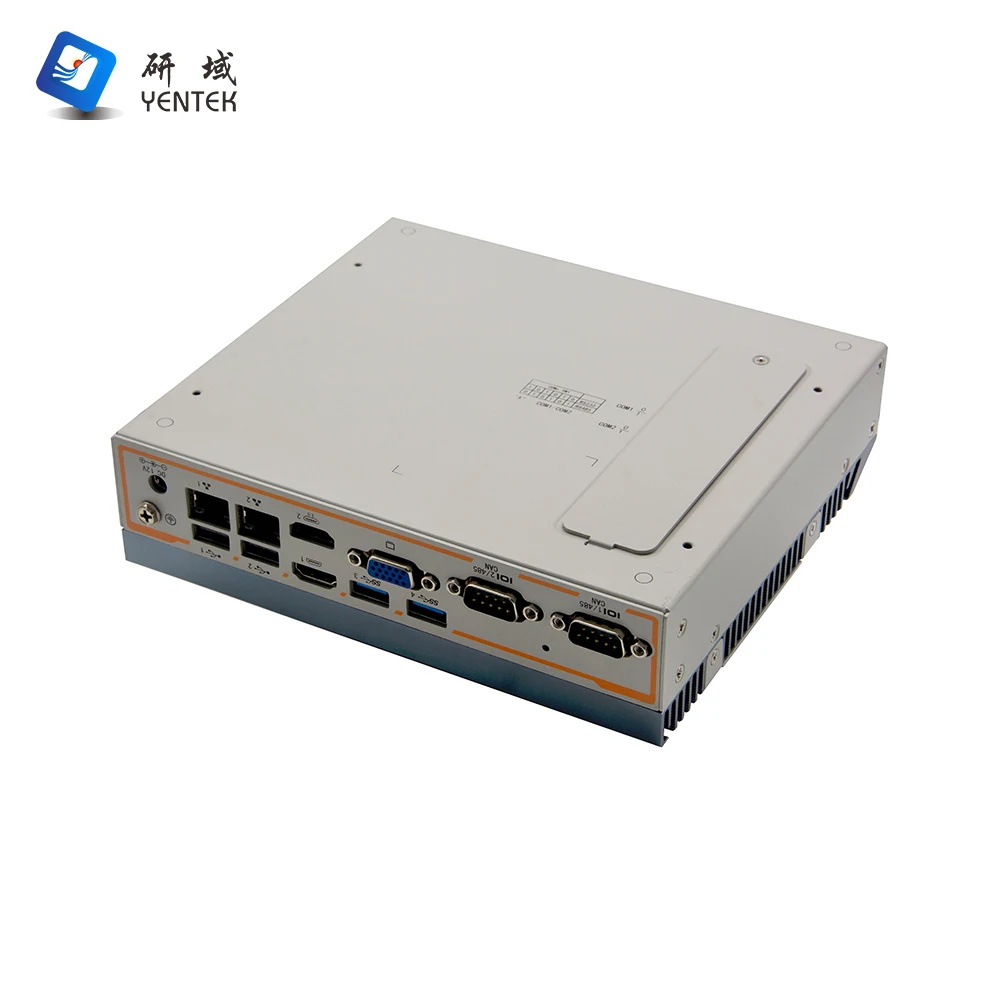

Rear Panel Interface | Switch | 1*CMOS Restore Key | |
Display port | 1*HDMI2.0(4096*2304@60Hz),1*HDMI1.4(4096*2304@60Hz),1*VGA,Support triple display | ||
COM | 2*RS232/485 DB9 serial ports, CAN support (need to load MINIPCIE CAN module) | ||
LAN | 2*Intel I210AT Gigabit power port | ||
USB | 2*USB3.0, 2*USB2.0 | ||
DIP switches | 2 sets of 6-position dip switches, RS232/485 switching use (located in the bottom of the chassis) | ||
Power connector | 1*DC 12V (5.5*2.5) | ||
Storage | MSATA | 1*MSATA | |
M.2 | 1*M.2/SSD，support Key-M，2280，NVME PCIE x4 SSD | ||
Expansion | MINIPCIE | 1*MINIPCIE，support WiFi/4G module | |
Power Type | Power supply type | External power adapter | |
Input | Voltage Input | DC 12V | |
Power output | AC TO DC 60W above（ Depends on specific equipment ） | ||
Environment | Operating temperature | -10℃～50℃ | |
Storage Temperature | -20℃～70℃ | ||
Relative Humidity | 5 to 95 per cent relative humidity, non-condensing | ||
