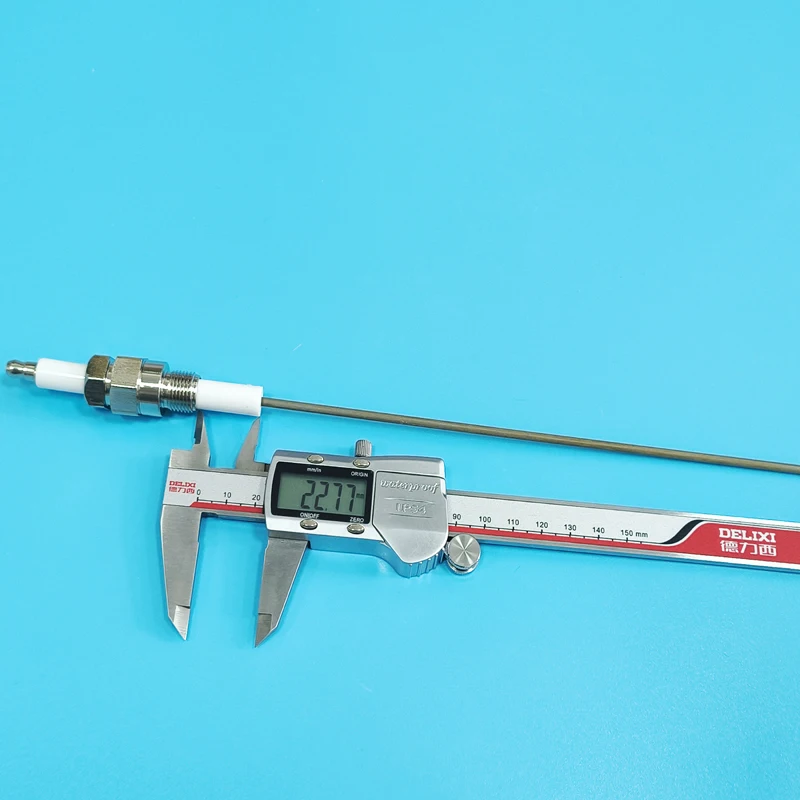

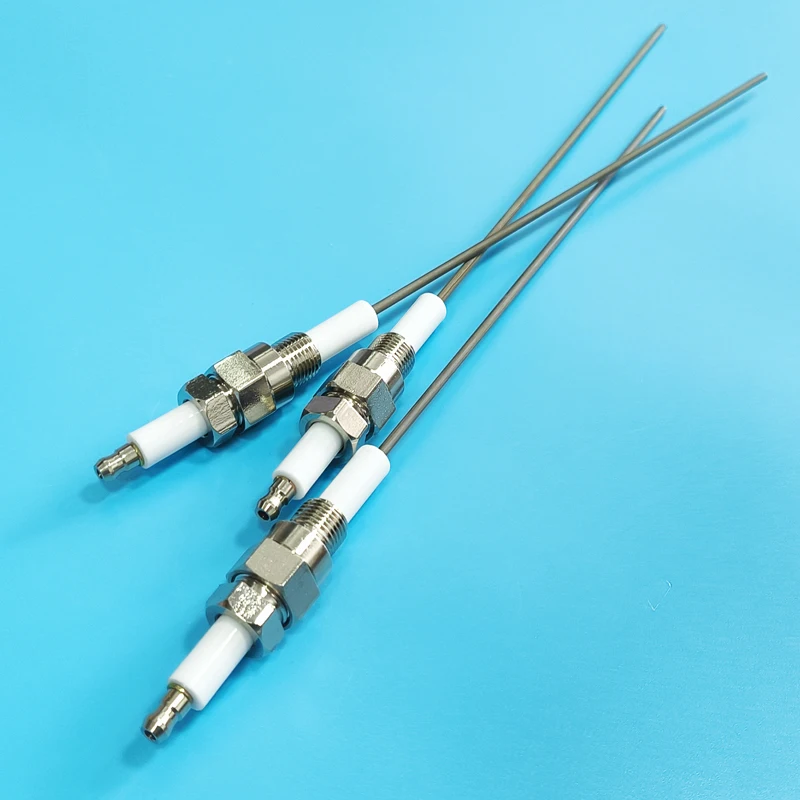

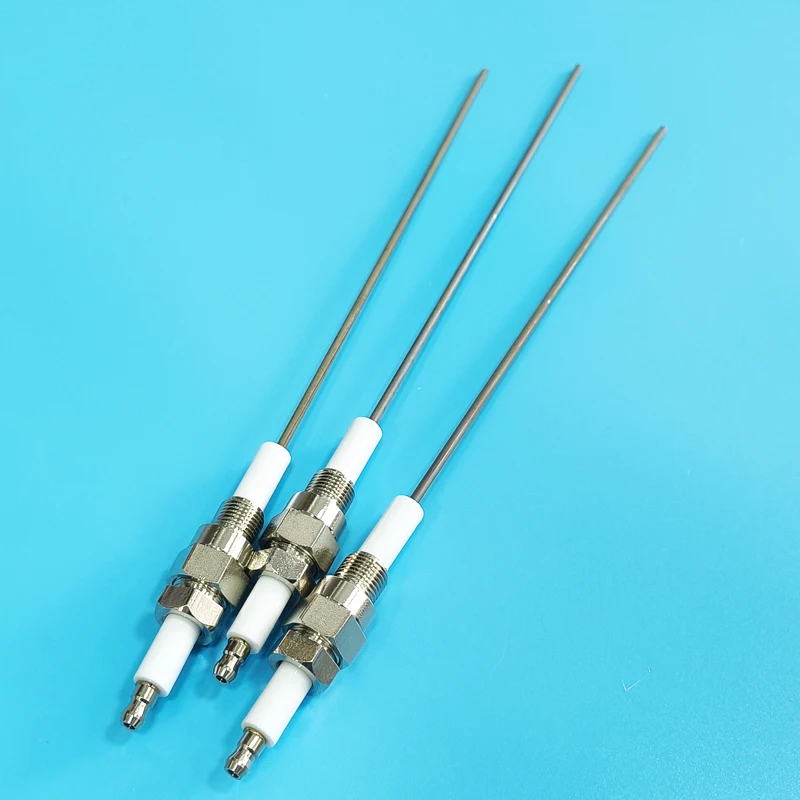

Customized Glazed Ceramic Spark Flame Sensor Ignition For Gas Oven
- Category: >>>
- Supplier: Shanghai Yunnuo Industrial Co. Ltd.
Share on (1601269367707):
Product Overview
Description
Product Description
We produce various ignition electrodes, ignition rods, ignition needles, spark plugs, water level electrodes.
Application: Ignition pin for household stove, Hotel commercial ignition stick, Burner ignition stick, Burner ignition stick,
Water heater ignition pin, Gas stove ignition pin, Boiler and water heater water level electrode, Various industrial burners and
spark plugs.
Product name: Industrial furnace, gas burner, tunnel furnace special ignition pin
Installation thread teeth: M14 * 1.25
Electrode wire material:Ni80Cr20,cr27al7mo2,0Cr25Al5,withstand 1200-1350C. We also have KANTHAL,D KANTHAL,AMP high temperature
resistant electric heating wire.

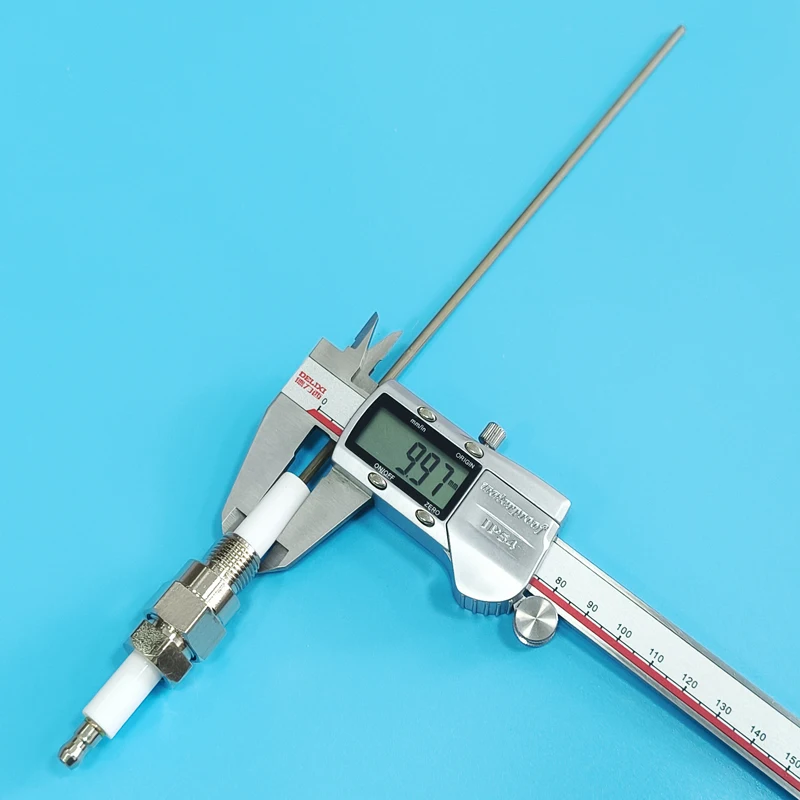

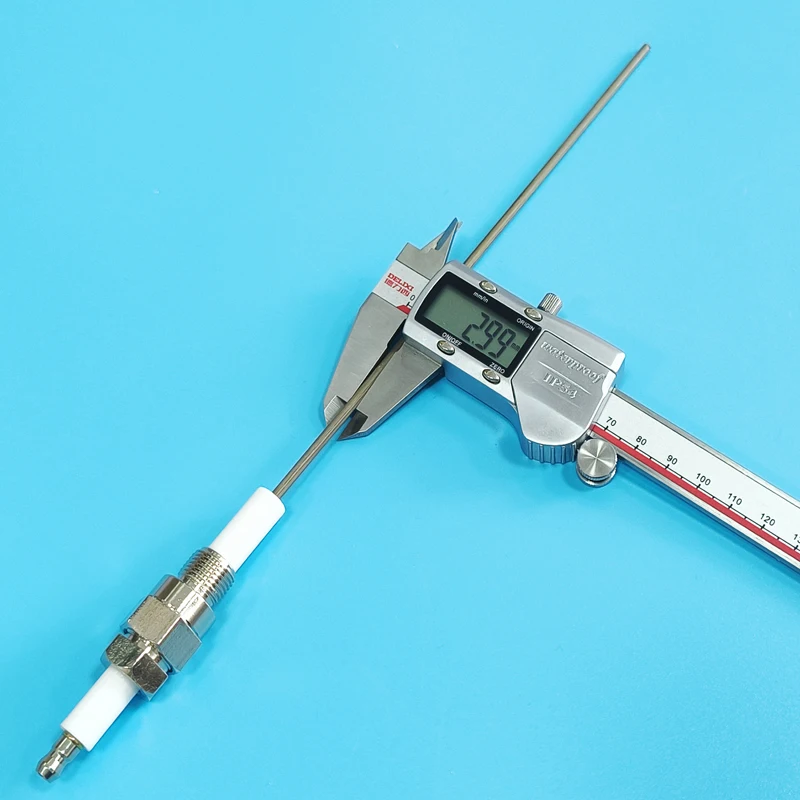

Electrode wire diameter: 3mm,3.5mm,4mm.
We can customize according to requirement.
Features:
A:The ignition is sensitive. The ignition head adopts a plum blossom shape, which can generate multiple points of sparks from thesurrounding area, which enhances the ignition ability. The successful one-time ignition will not cause a flameout phenomenon, andthe service life is long. The electrode wire can be used at a high temperature of about 1300 degrees. Under normal use, no carbondeposition or high-temperature oxidation will occur, thereby increasing the service life of the product. According to thedifferent needs of customers, the electrode wire can be equipped with: ocr25al5 material, the temperature resistance limit isabout 1200 degrees, the use of cr27al7mo2 material will increase the product's life more than 10 times, the temperature resistancelimit is about 1350 degrees.Customers can choose materials according to demand.
B:The ceramic body is made of 95% alumina high temperature resistant ceramic with a breakdown voltage of 20KV / DC. The ceramic
surface is coated with a high temperature glaze. The appearance is exquisite and elegant, and the body is translucent and shiny.
The maximum operating temperature is about 1500 degrees.
C:The plug connector is made of brass, which has the characteristics of sensitive signal transmission and strong thermal
conductivity.
D:The assembly and connection method adopts screw-type connection, which has the characteristics of convenient disassembly and
assembly, and is firm and reliable.
Application: Ignition pin for household stove, Hotel commercial ignition stick, Burner ignition stick, Burner ignition stick,
Water heater ignition pin, Gas stove ignition pin, Boiler and water heater water level electrode, Various industrial burners and
spark plugs.
Product name: Industrial furnace, gas burner, tunnel furnace special ignition pin
Installation thread teeth: M14 * 1.25
Electrode wire material:Ni80Cr20,cr27al7mo2,0Cr25Al5,withstand 1200-1350C. We also have KANTHAL,D KANTHAL,AMP high temperature
resistant electric heating wire.
Electrode wire diameter: 3mm,3.5mm,4mm.
We can customize according to requirement.
Features:
A:The ignition is sensitive. The ignition head adopts a plum blossom shape, which can generate multiple points of sparks from thesurrounding area, which enhances the ignition ability. The successful one-time ignition will not cause a flameout phenomenon, andthe service life is long. The electrode wire can be used at a high temperature of about 1300 degrees. Under normal use, no carbondeposition or high-temperature oxidation will occur, thereby increasing the service life of the product. According to thedifferent needs of customers, the electrode wire can be equipped with: ocr25al5 material, the temperature resistance limit isabout 1200 degrees, the use of cr27al7mo2 material will increase the product's life more than 10 times, the temperature resistancelimit is about 1350 degrees.Customers can choose materials according to demand.
B:The ceramic body is made of 95% alumina high temperature resistant ceramic with a breakdown voltage of 20KV / DC. The ceramic
surface is coated with a high temperature glaze. The appearance is exquisite and elegant, and the body is translucent and shiny.
The maximum operating temperature is about 1500 degrees.
C:The plug connector is made of brass, which has the characteristics of sensitive signal transmission and strong thermal
conductivity.
D:The assembly and connection method adopts screw-type connection, which has the characteristics of convenient disassembly and
assembly, and is firm and reliable.
Product name | Electrode Plug Type Ignition Electrodes |
Electrode wire material | Ni80Cr20,cr27al7mo2,0Cr25Al5,withstand 1200-1350C. We also have KANTHAL,D KANTHAL,AMP high temperature resistant electric heating wire |
Electrode wire diameter | 3mm,3.5mm,4mm. |
Features | sensitive,convenient disassembly and assembly,firm and reliable |
Packing & Delivery
Company Profile
Products Description
Certifications
Way of shipping
Our Advantages
FAQ
Q1: How can know your quality?
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our best to solove.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we
receive payment.
Q5:Payment terms:
We can negotiate.
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our best to solove.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we
receive payment.
Q5:Payment terms:
We can negotiate.
