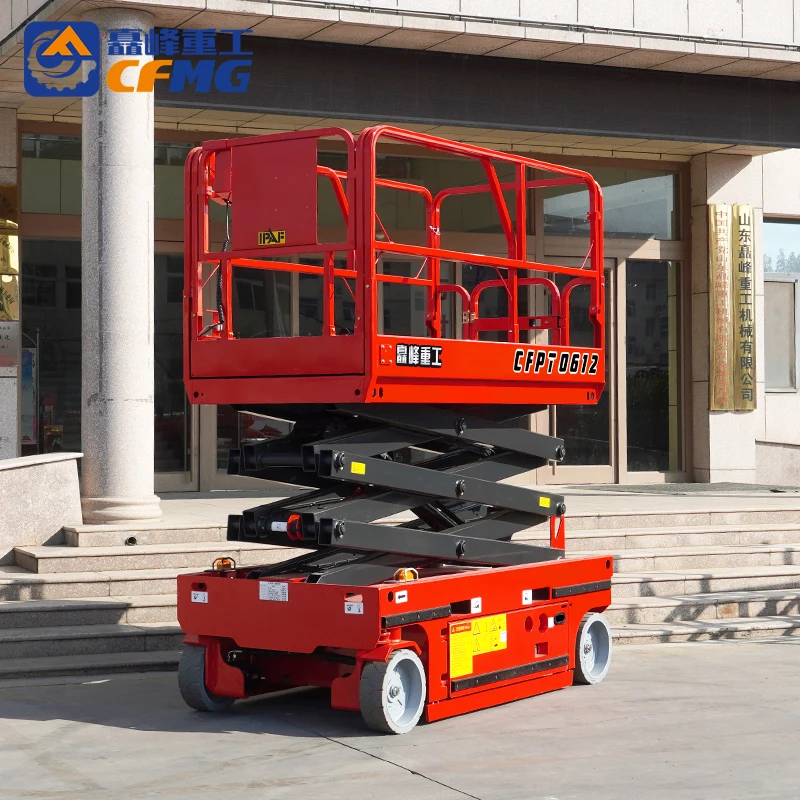

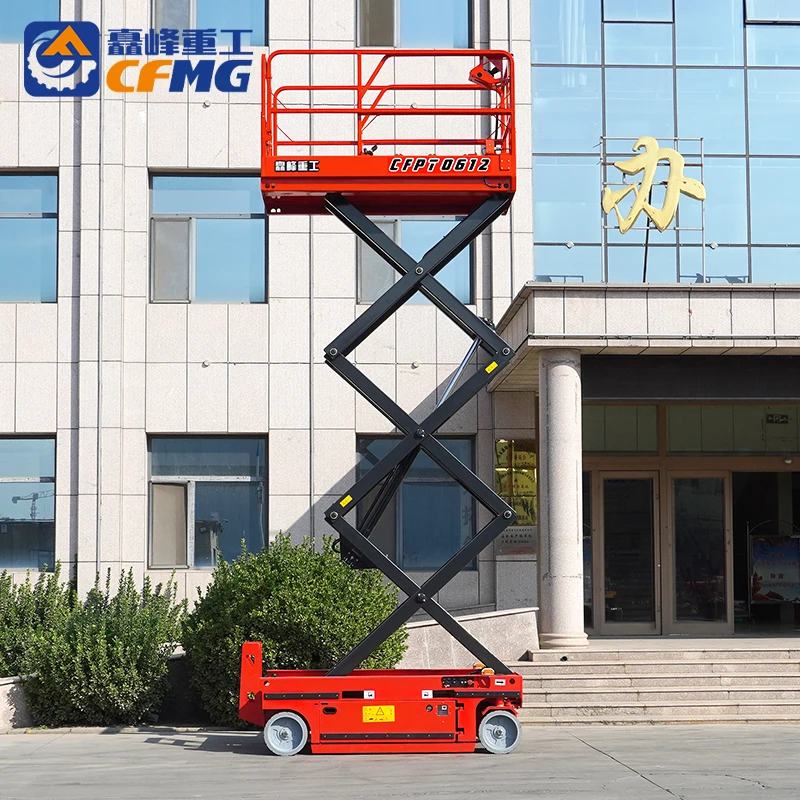

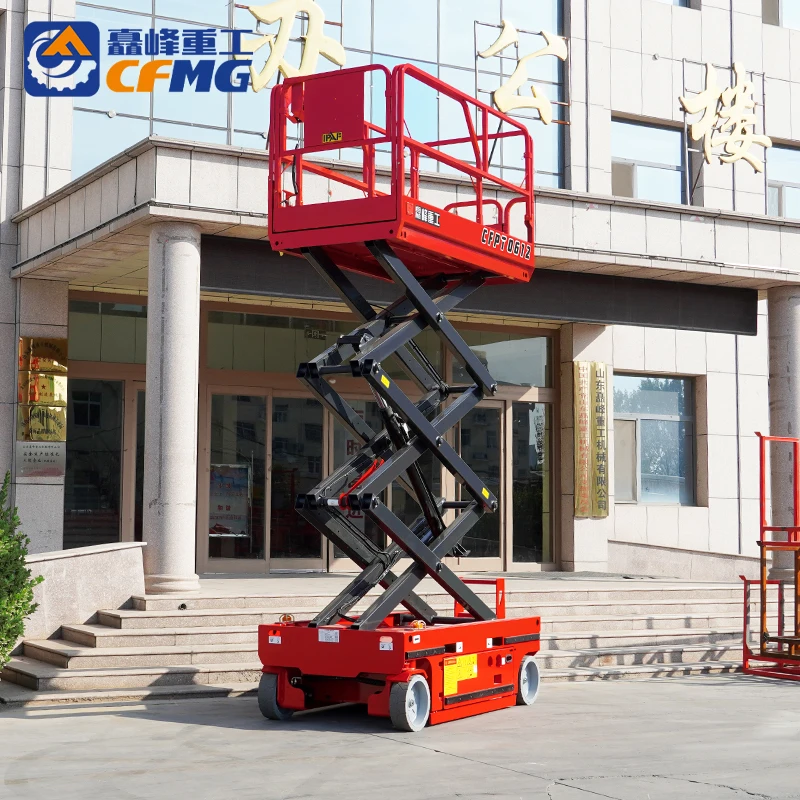

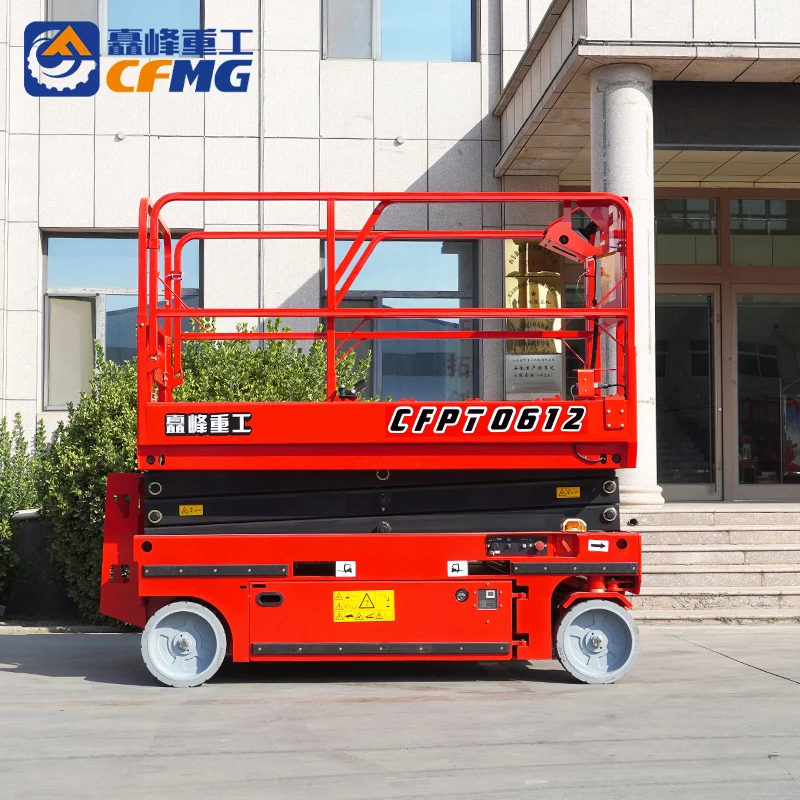

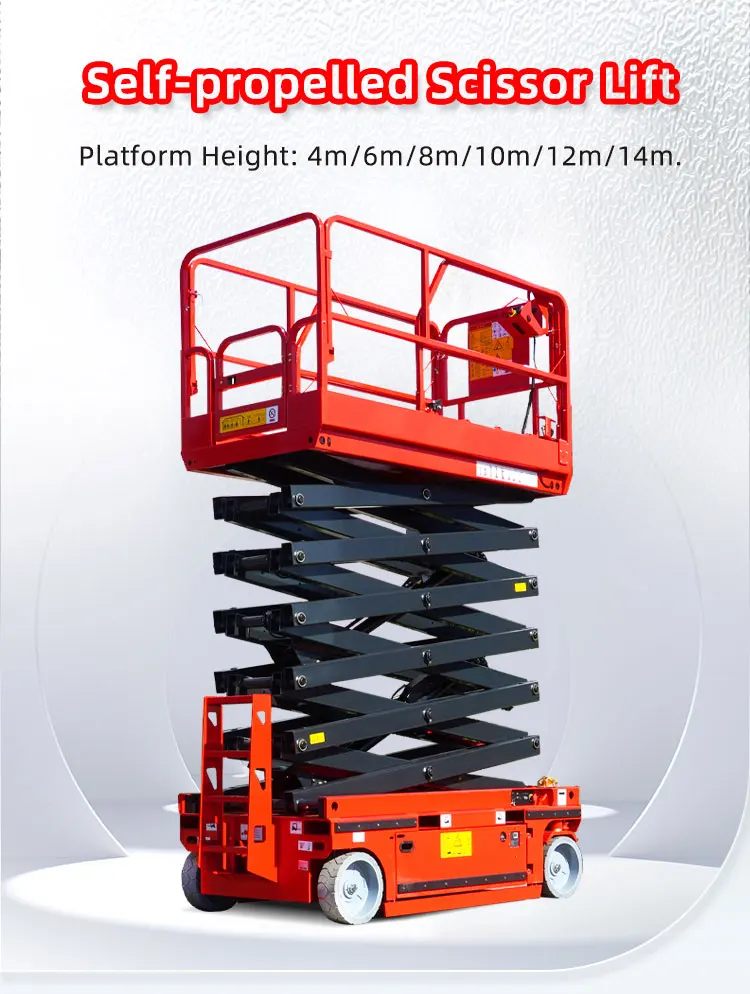

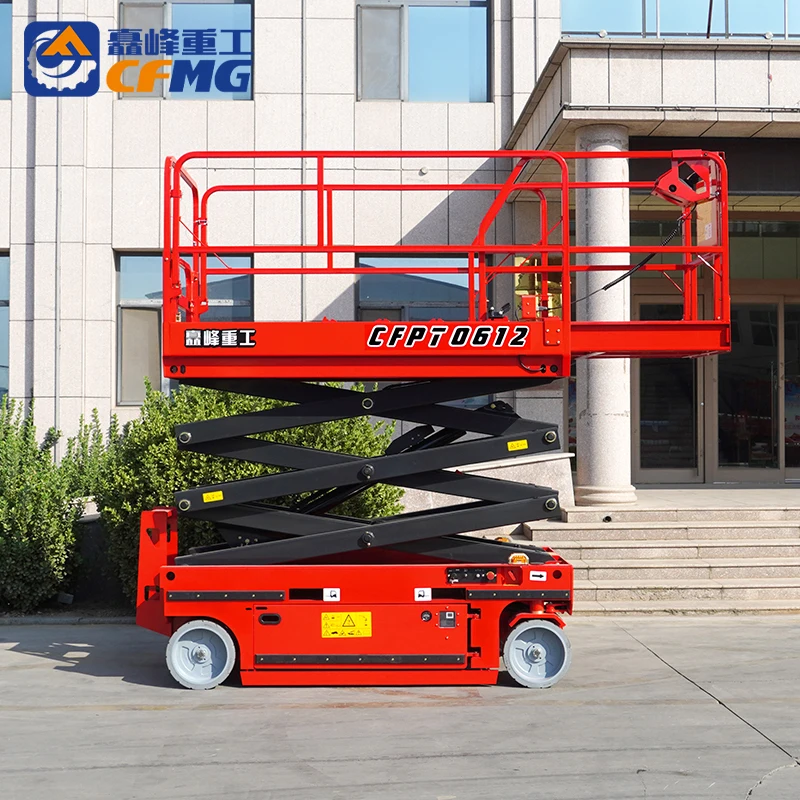

CFMG 6m 8m 10m 12m 14m Electric Scissor Sky Lift Mobile Hydraulic Scaffolding Scissor Lifts For Aerial Work
- Category: >>>
- Supplier: Shandong Chufeng Heavy Industry Machinery Co. Ltd.
Share on (1601269541007):
Product Overview
Description

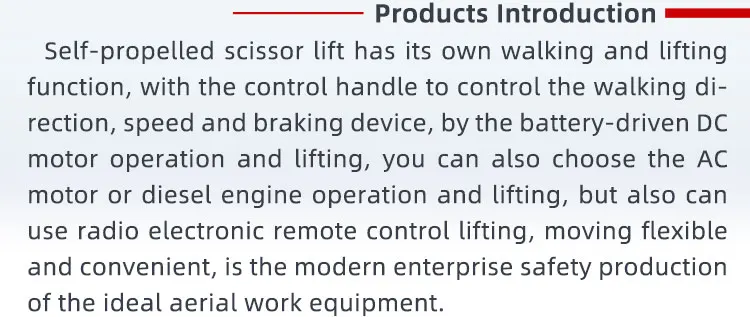

Products Description
Product Parameters
Models | CFPT0612 | CFPT0812 | CFPT1012 | CFPT1212 | CFPT1413 |
Max. Working Height | 8m | 10m | 12m | 13.75mm | 15.75mm |
Max. Platform Height | 6m | 8m | 10m | 11.75mm | 13.75mm |
Max. Load Capacity | 450kg | 450kg | 320kg | 320kg | 320kg |
Load Capacity of extended platform | 113kg | 113kg | 113kg | 113kg | 113kg |
Platform Size | 2270*1110mm | 2270*1110mm | 2270*1110mm | 2270*1110mm | 2640*1110mm |
Platform Extension Size | 900mm | 900mm | 900mm | 900mm | 900mm |
Overall Length | 2485mm | 2485mm | 2485mm | 2485mm | 2839mm |
Overall Width | 1210mm | 1210mm | 1210mm | 1210mm | 1310mm |
Overall Height (Guardrail Unfolded) | 2235mm | 2355mm | 2480mm | 2610mm | 2660mm |
Overall Height (Guardrail Folded) | 1680mm | 1810mm | 1920mm | 2070mm | 2100mm |
Wheelbase | 1865mm | 1865mm | 1865mm | 1865mm | 2235mm |
Lifting Motor | 24V/4.5Kw | 24V/4.5Kw | 24V/4.5Kw | 24V/4.5Kw | 24V/4.5Kw |
Battery | 4×6V/240Ah | 4×6V/240Ah | 4×6V/240Ah | 4×6V/240Ah | 24V/260Ah |
Charger | 24V/36A | 24V/36A | 24V/36A | 24V/36A | 24V/36A |
Gradeability | 25% | 25% | 25% | 25% | 25% |
Max. Working Slope | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Tyre | Ф381x127mm | Ф381x127mm | Ф381x127mm | Ф381x127mm | Ф381x127mm |
Worker（Indoor/Outdoor） | 2/1 | 2/1 | 2/1 | 2/1 | 2/0 |
Overall Weight | 2070kg | 2220kg | 2932kg | 2990kg | 3430kg |

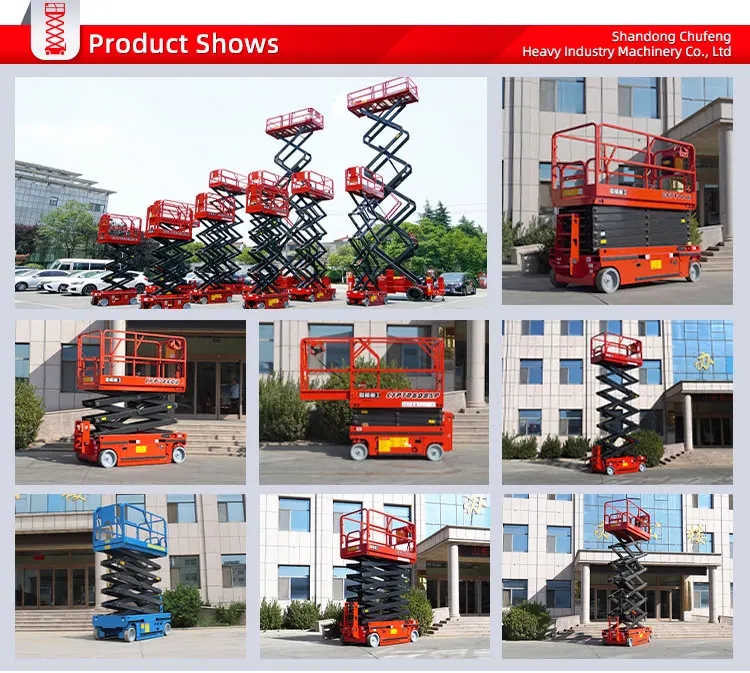

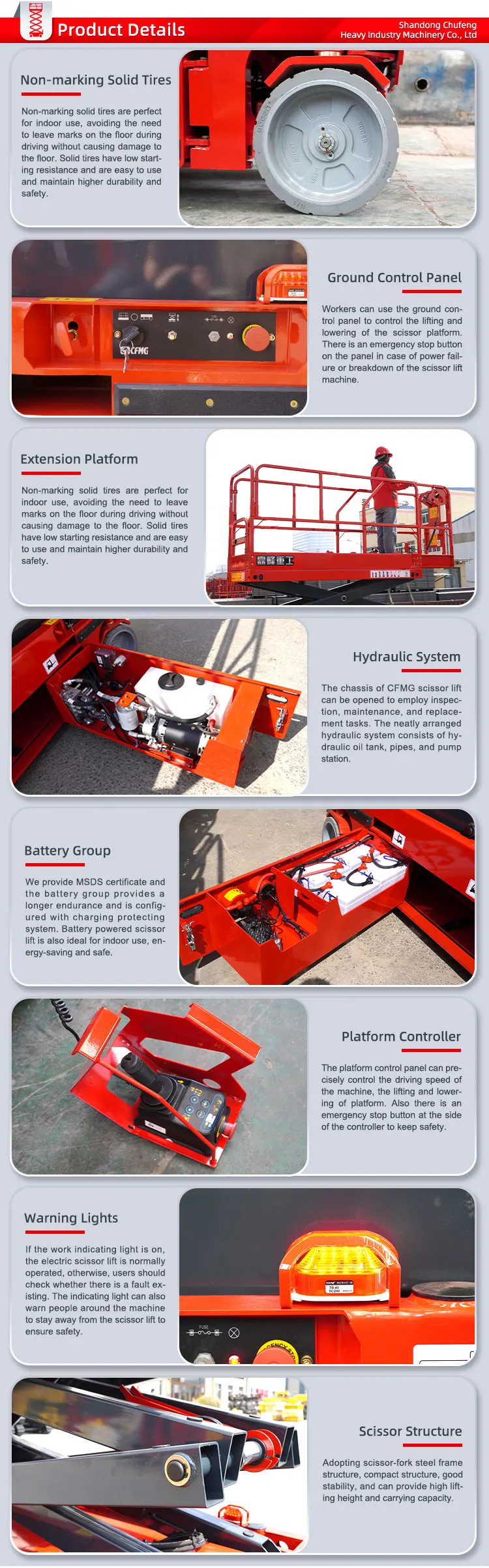

Product Details

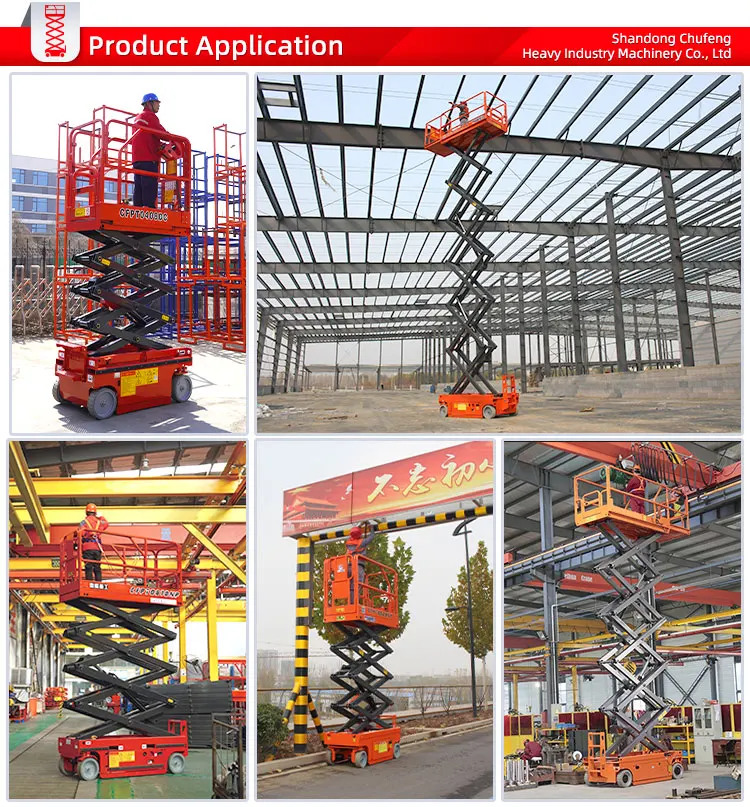

Product Application

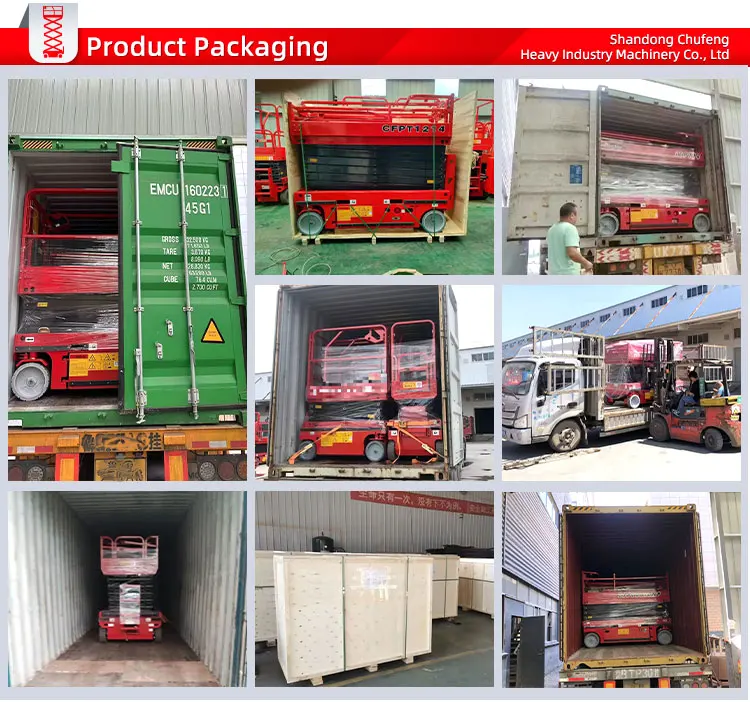

Product Packaging
Recommend Products
Company Profile

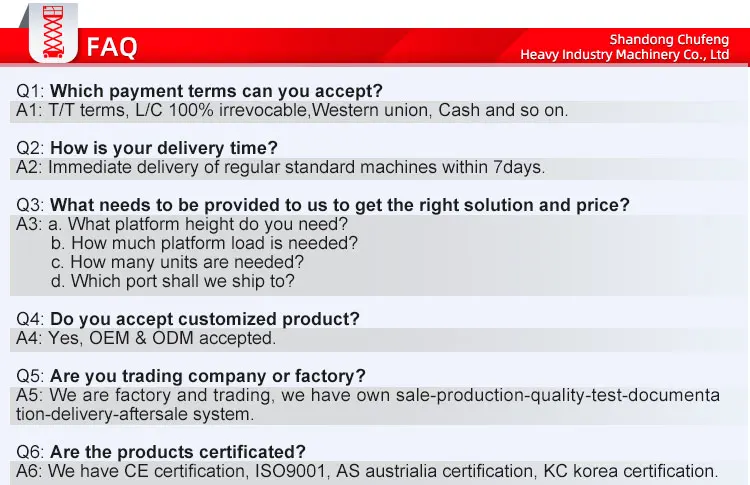

FAQ
