Rubber Mixing Simulate Processing Torque Rheometer For PVC UPVC Mixer Extruder
Product Description
Product Description:
Torque rheometer can be used to study the thermal, shear stability, flow and plasticization behavior of thermoplastic materials. Its biggest feature is that it can continuously and accurately measure the rheological properties of the system during the actual processing, and it can also complete Testing the curing characteristics of thermosetting materials.
Torque Rheometer Main Control
Motor Brand | FUji Servo motor |
Power | 4Kw |
Power source | AC220VNE,14A,E≤4Ω |
Computer | Dell desktop computer |
Temp. control | 6 segments |
Temp. | room temperature to 350℃ |
Temp. control accuracy | ±0.5℃ |
Cooling control | 4 segments of compressed air |
Torque measuring range | 0~300N.m |
Torque check accuracy | 0.5%F.s |
Rotate speed | 2~200rpm(stepless) |
Speed accuracy | 0.5%F.s |
Melt pressure measuring range | 0~100Mpa |
Melt pressure measuring accuracy | 0.5%F.S |
Software:
1. Measuring and control
2. Mixer data processing system
3. Extruder data processing system
4. Polymer melt viscosity measuring data processing system.

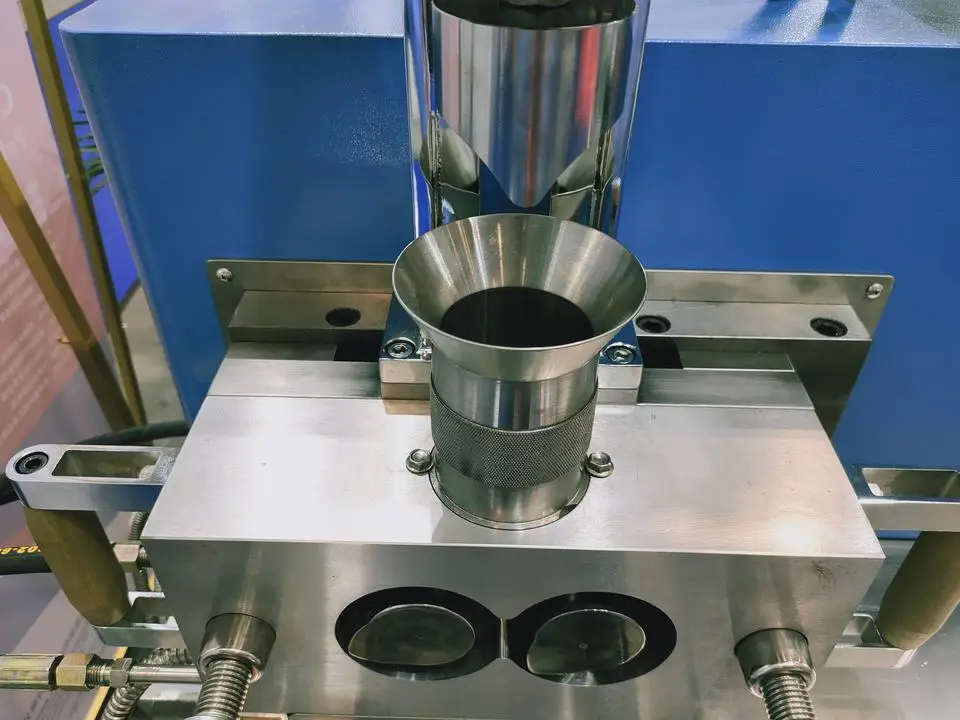

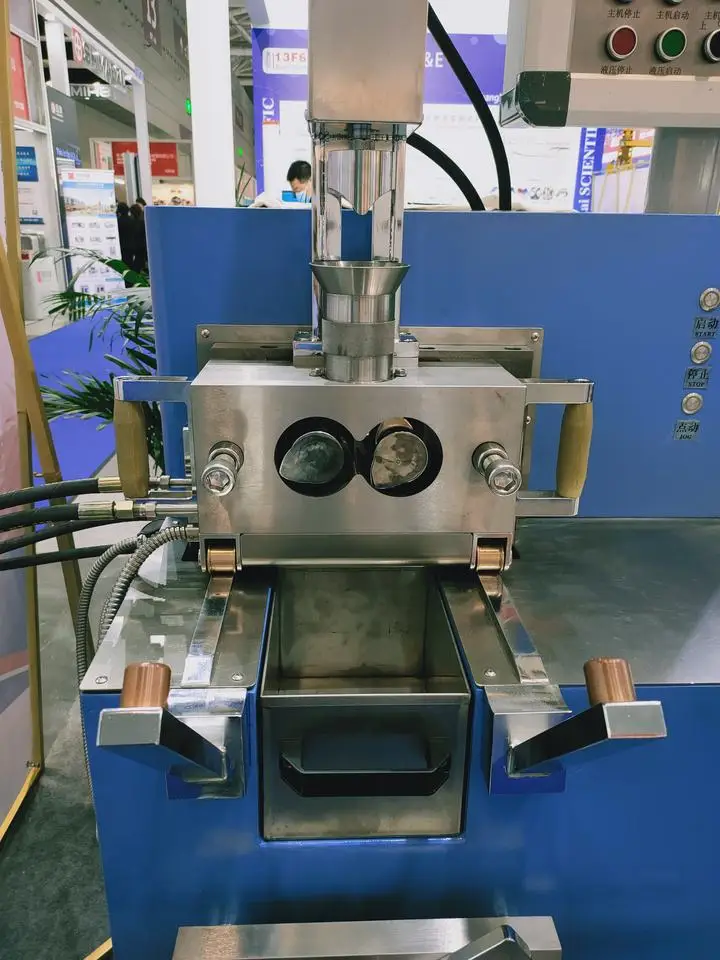

Mixer:
Mixer volume | 60ml |
Material | STAVAX stainless steel imported from Sweden ASSAB |

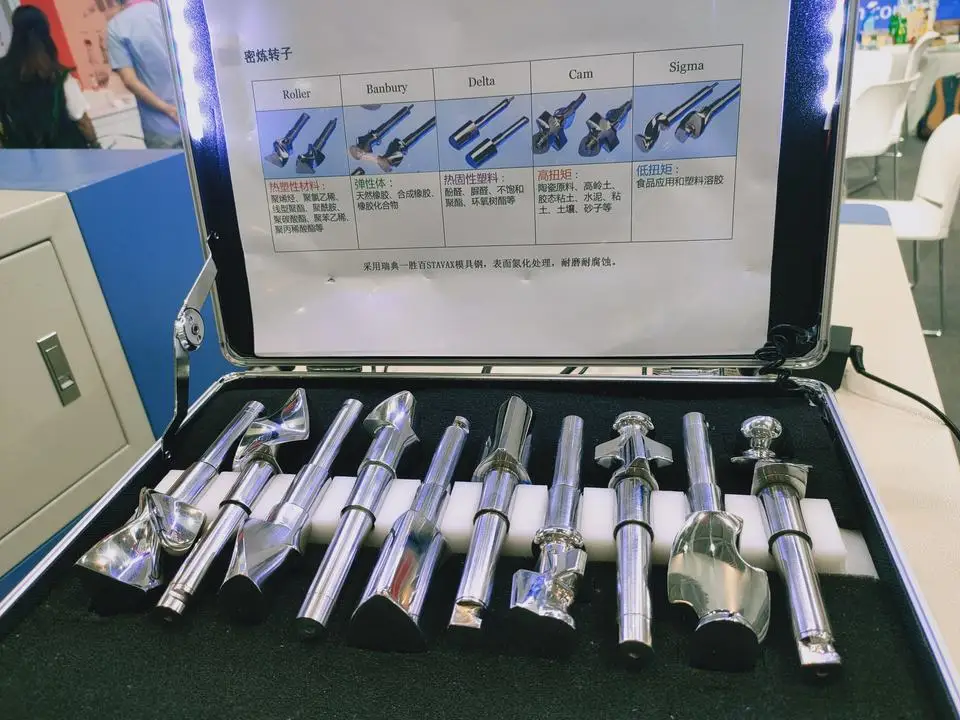

Rotor type | Roller,Banbury,Delta,Cam,Delta,Sigma |
Treatment on the rotors | Nitridation |
Nitridation depth | ≥0.2mm |
Temp. in the mixer cavity | RT-350℃(3 segments of electrical heater) |
Temp. control accuracy | ±0.5℃ |
Heating rate | 200℃/11minutes |
Gear ratio | 3:2 |
Torque range | 0-300Nm |
Temp. sensor | K-shaped thermocouple |
Heating method | electrical heating |
Heater | imported heater |
Heating power | 1700W |
Heating range | 3 segments |
Cooling method | compressed air cooling |
Under the same function as the internal mixer, the mixing platform can measure the relationship between torque and temperature, speed and time, and analyze the data at the same time, use it for formula design and guide the selection of process conditions, saving large-scale actual production test time With experimental materials.
Spare Parts And Tools
No. | Description | Unit | Qty. |
1 | Power cord | /PC | 1 |
2 | Signal cable | /PC | 1 |
3 | Tool box | /PC | 1 |
4 | Hex wrenc | suit | 1 |
5 | “C” wrench | /PC | 1 |
6 | Monkey wrench | /PC | 1 |
7 | Loading hopper | /PC | 1 |
8 | Safety copper pin | /PC | 4 |
9 | 5kg weight | /PC | 1 |
10 | 485 convertor | /PC | 1 |
11 | Copper shovel | /PC | 2 |
12 | Copper brush | /PC | 2 |
13 | Cross junction plate | /PC | 1 |
14 | Screw unlock pin | /PC | 1 |
15 | Cotton gloves | pair | 1 |
Click here >>>> More Factory Prices and Shipping!!!
About us

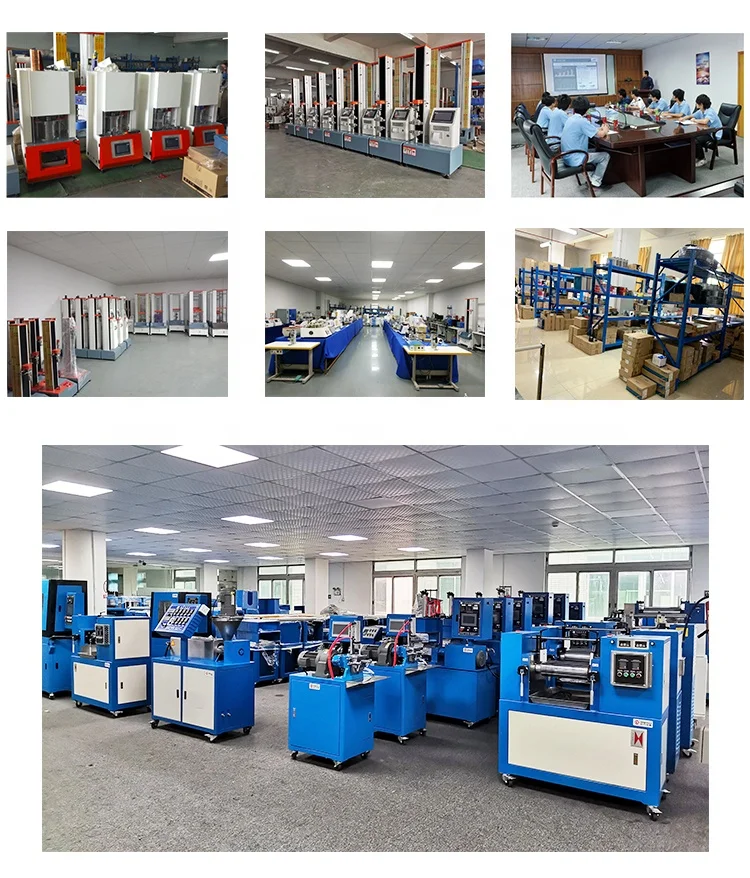

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.
