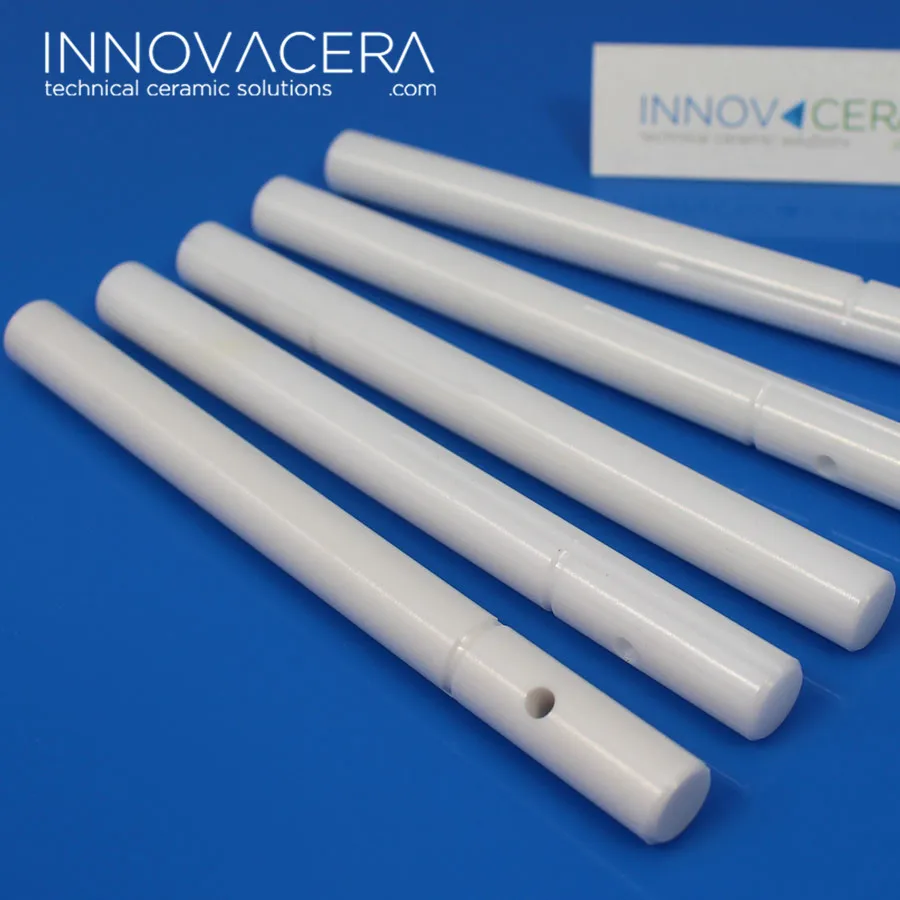

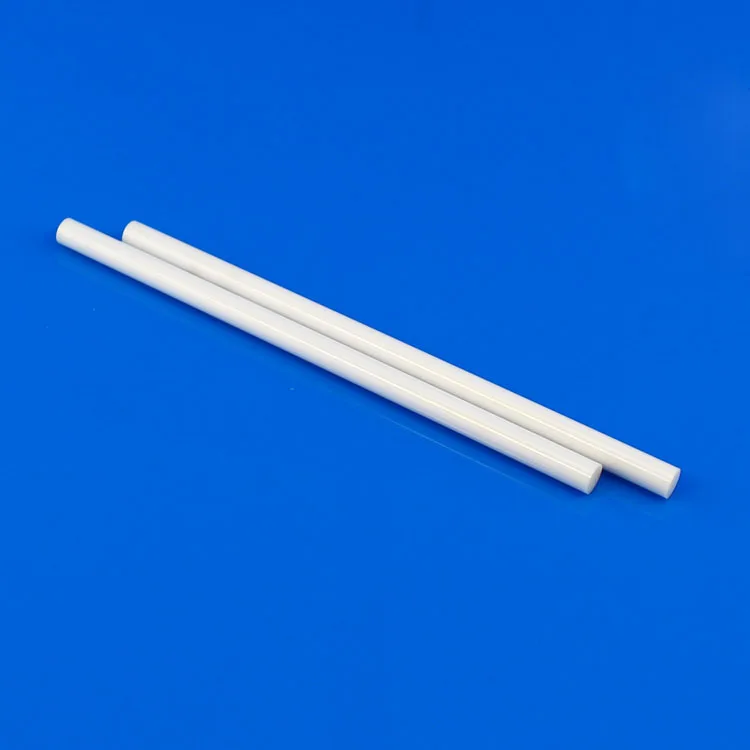

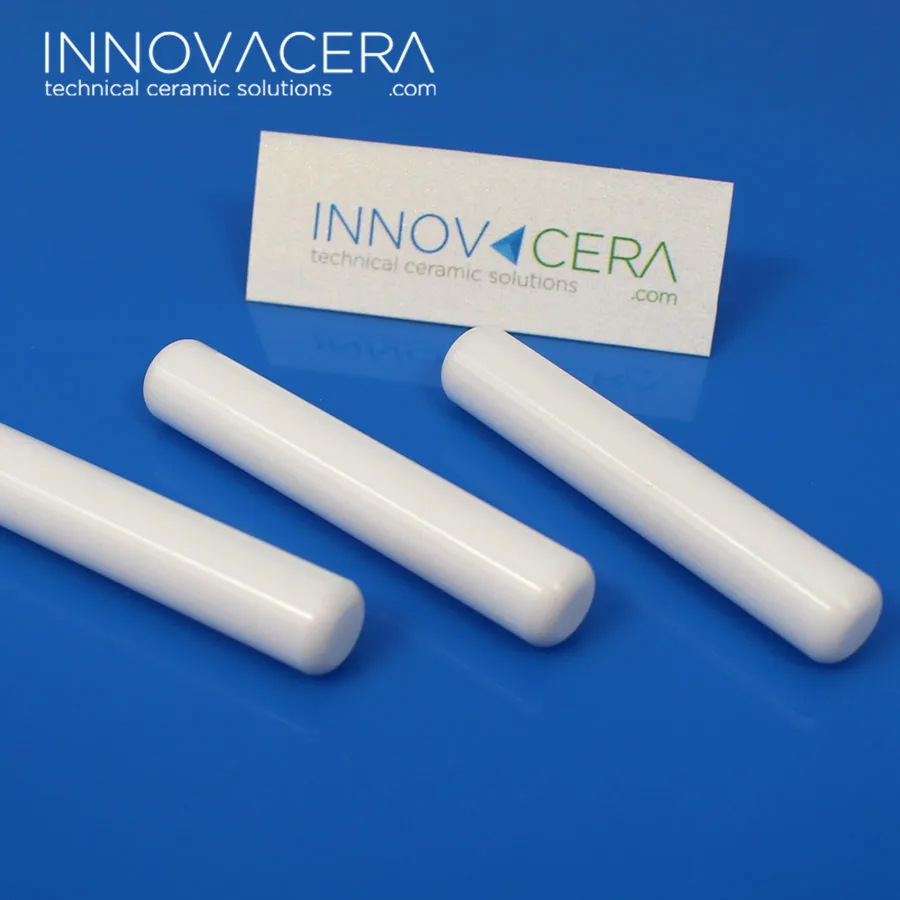

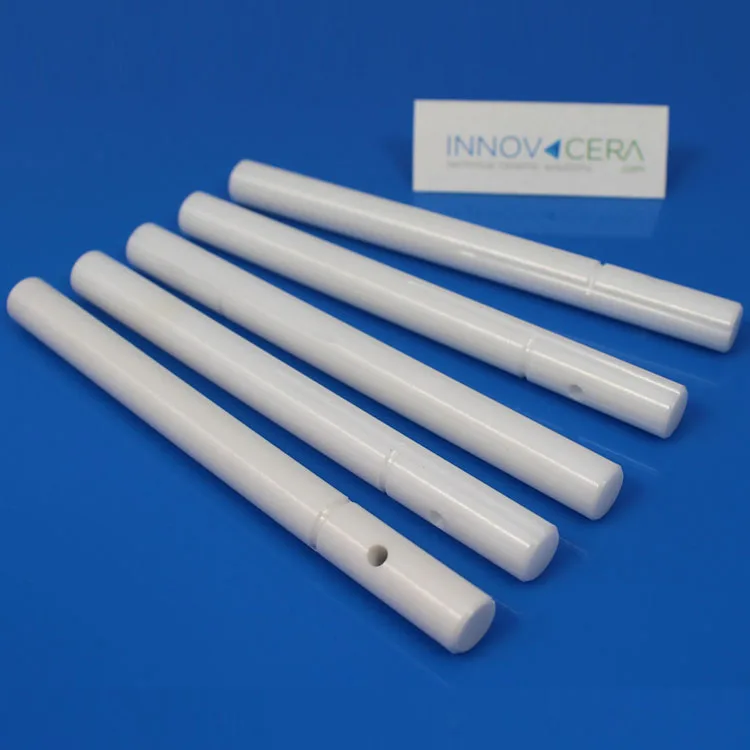

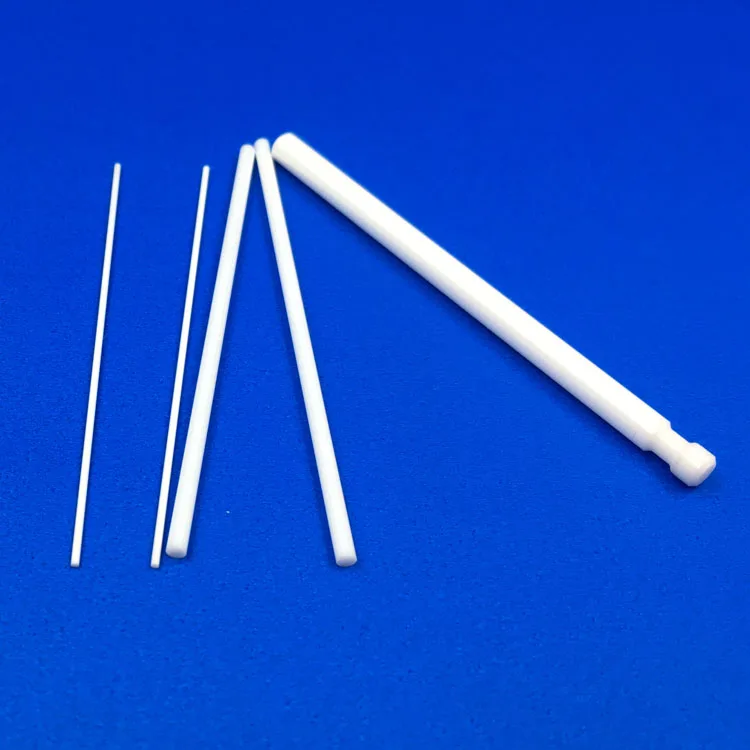

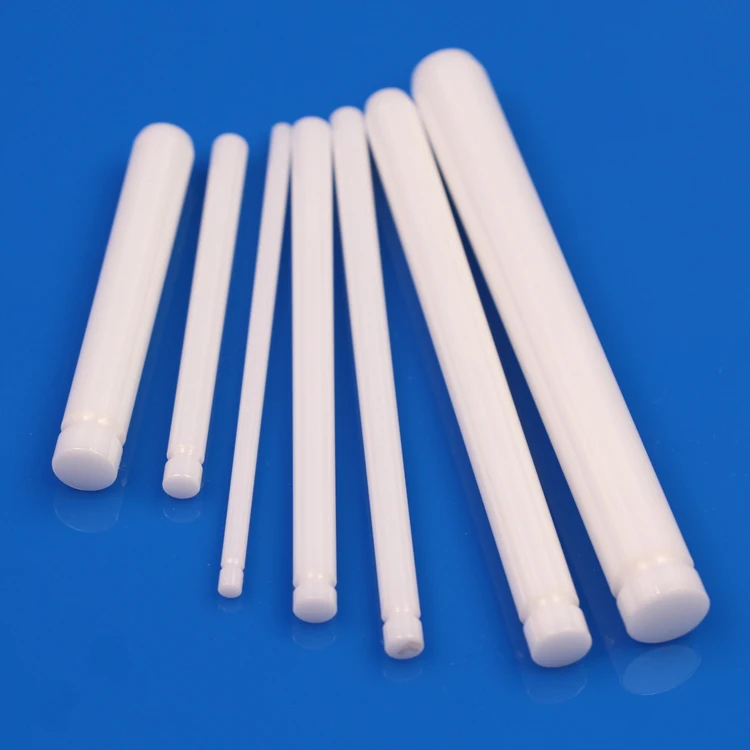

1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod
1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod
1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod
1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod
1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod
1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod
1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod

1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm High Precision Zro2 Zirconia Ceramic Rod

Share on (1601269697449):


Price:

Quantity:


Product Overview

Description







Product Description

INNOVACERA is good at yttria stabilized zirconia. Unlike other ceramic materials, zirconia is a material with very high
resistance to crack propagation. Zirconium oxide ceramics also have very high thermal expansion and are therefore often
the material of choice for joining ceramic and steel.

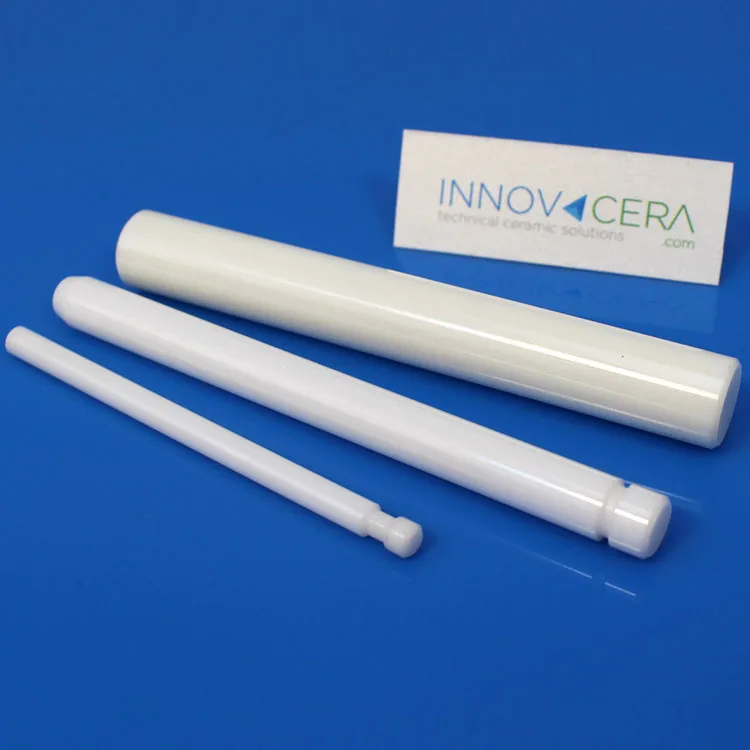

Zirconia Ceramic Rod Features:
> high fracture toughness
> thermal expansion similar to cast iron
> extremely high bending strength and tensile strength
> high resistance to wear and to corrosion
> low thermal conductivity

Ceramic material composition:
. TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)

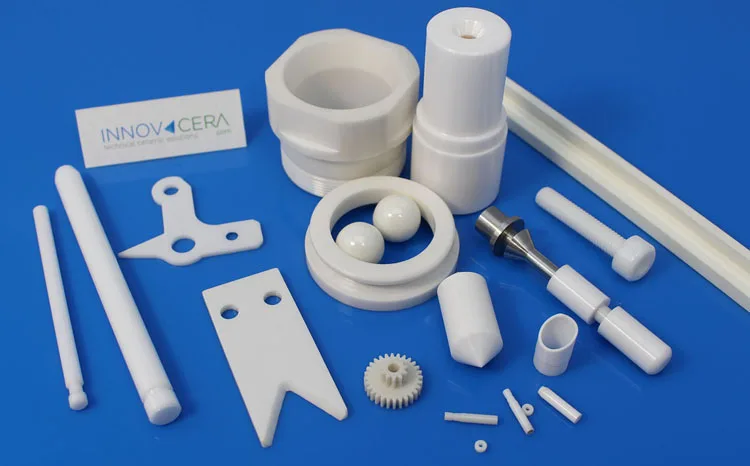

Products made from Zirconia

Products made from Zirconia
> Bearing Technology in Automotive Engineering
> Cutter for textile machines
> Drawing Tools
> Forming Applications
> Seal Rings, Bearings and Sealing
> Wire Drawing, Components for
> Zirconium Oxide-stabilized Substrates
> Zirconia Ball Valves
> Plunger Shaft

Industry

The range of applications for our zirconia ceramic used as nozzles, sleeves, shafts, cutters in Industry as below;
> Textile Industry
> Medical
> Paper Production Machines
> Sand Mill Machines
> Automotive
> Plant Engineering
> Metaworking
> Pump and Fittings
> Electrical and Electronic
> Filling Machines





(3Y-TZP)Zirconia Ceramic Properties
Item
Unit
Typical Values
Physical Properties
Colour
White
Density
g/cm³
>6
Zirconia Content
%
94.80%
Gas Permeability
0
Water Absorption
%
0%
Crystal Size
µm
0.5
Mechanical Properties
Rockwell Hardness(45N)
R45N
90
Vickers Strength(Load 500g)
Gpa(Kg/mm²)
11.5(1175)
Flexural Strength(20℃)
Mpa
1200
Compressive Strength(20℃)
Mpa
2100
Modulus of Elasticity(20℃)
Gpa
>200
Poisson's Ratio(20℃)
0.22-0.23
Fracture Toughness(20℃)
Mpam½
8
Thermal Properties
Thermal Conductivity(20℃-400℃)
W/ (m.K)
2.5
Thermal Expansion Coefficient
10­6 / ℃
10
Thermal Resistance
△T℃
250












FAQ


Q1. Do you offer samples?
A: Yes, we'll offer you samples if we have stock, but some will charge sample fee. Shipping cost will pay by customer.

Q2. What is your terms of payment?
A: T/T in advance, Western Union, Alipay, Paypal.

Q3. How about your delivery time?
A: Depends on the requirement of the producst, according to the materials, dimensions and the manufacture process.

Q4. Do you test all your goods before delivery?
 A: Yes, we have 100% test before delivery

Q5: What else products do you offer?
A: We provide the products of advanced ceramic materials, including Alumina, Zirconia, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials.


Q6:How to contact us ?
You can send the email to sales@innovacera.com
Call to +86 0592-5589730

Q7:More detail company information ?
www.innovacera.com





SEND ME
If you are interested in our products, please click here to send me an inquiry, and I will reply you within 8 hours
