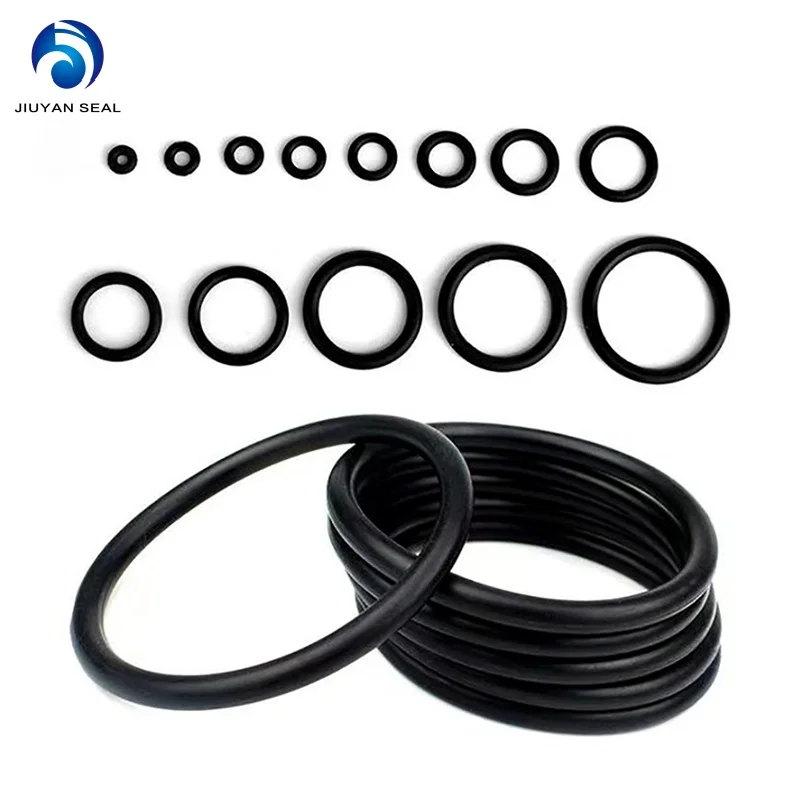

Custom High Precision Fpm Ffkm Hnbr Nbr Fkm Silicone Epdm Rubber Oring Seals O ring O Rings
- Category: >>>
- Supplier: Hengshui Jiuyan Sealing Technology Co. Ltd.
Share on (1601269841124):
Product Overview
Description
Specification
Item | Value | |||||||
Product name | Rubber oring | |||||||
Color | Any color | |||||||
Hardness | 20~90 Shore A | |||||||
Mode of production | Molding | |||||||
OEM / ODM | Available | |||||||
Packing | Plastic bags+carton | |||||||
Quality Acceptance Criteria | According to customer's requirements | |||||||
Shipping & Payment Terms | ||||||||
Port of Loading | Tianjin | |||||||
Payment Terms | T/T/Western Union/MoneyGram/Cash/Credit card | |||||||
Shipping Method | SEA,AIR,Express,etc | |||||||
Please consult customer service for details.

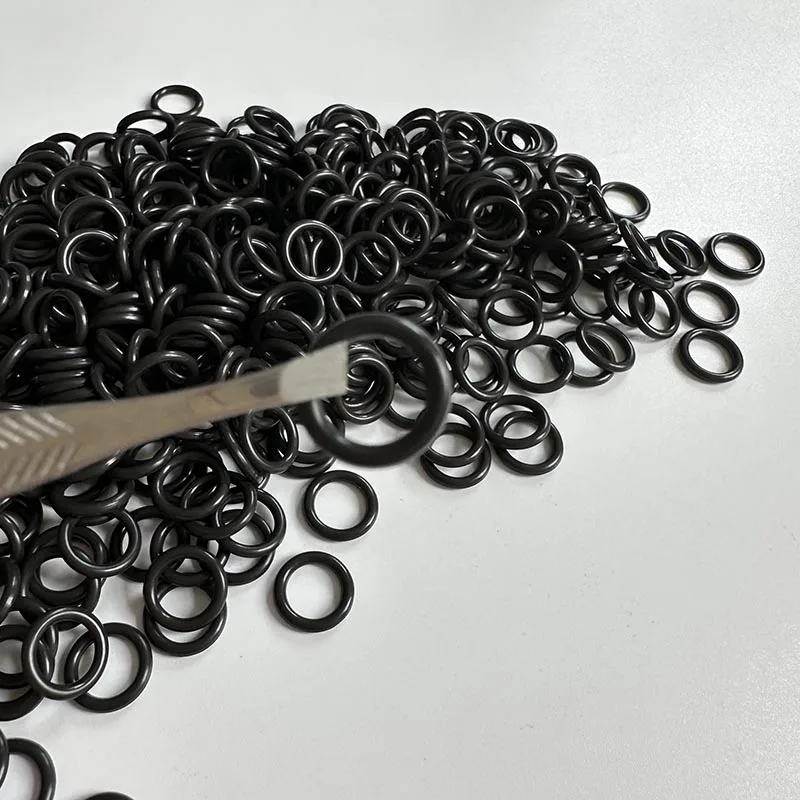

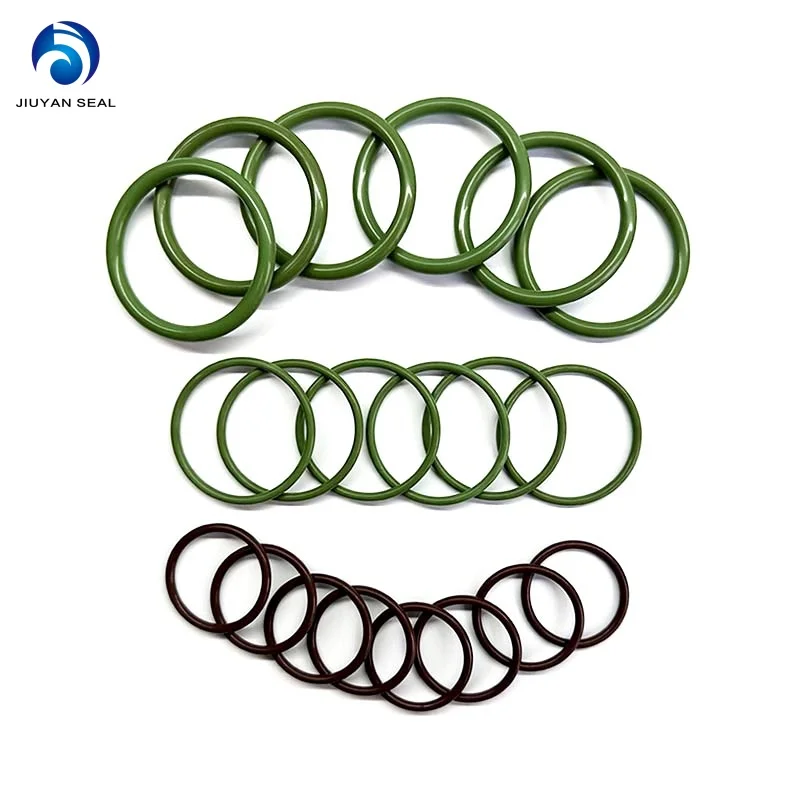

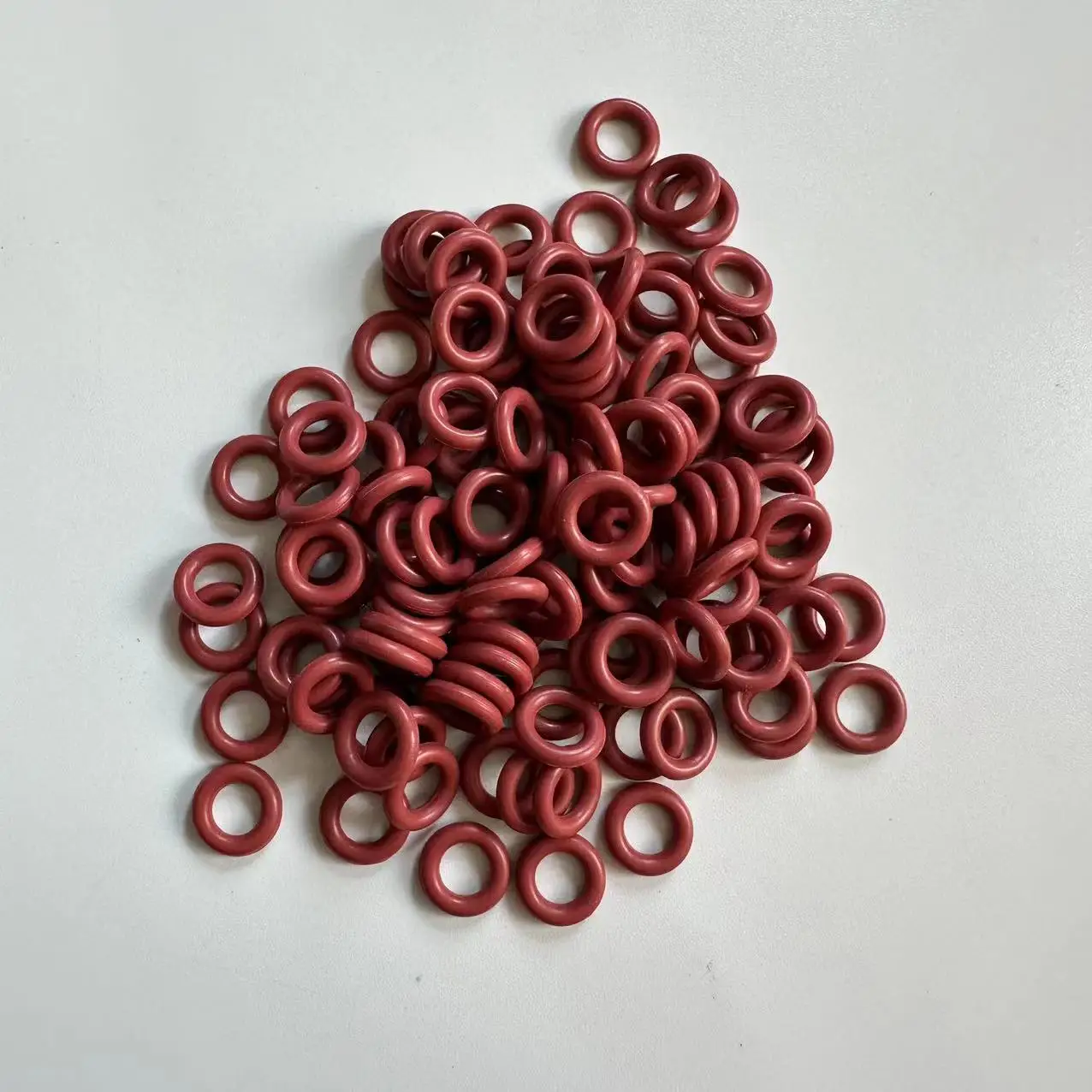

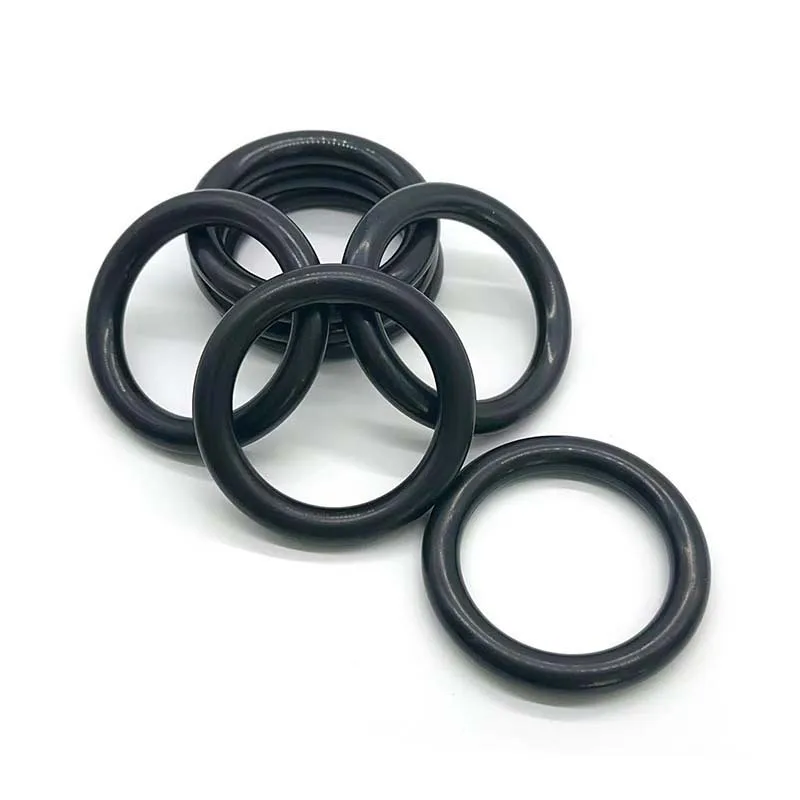

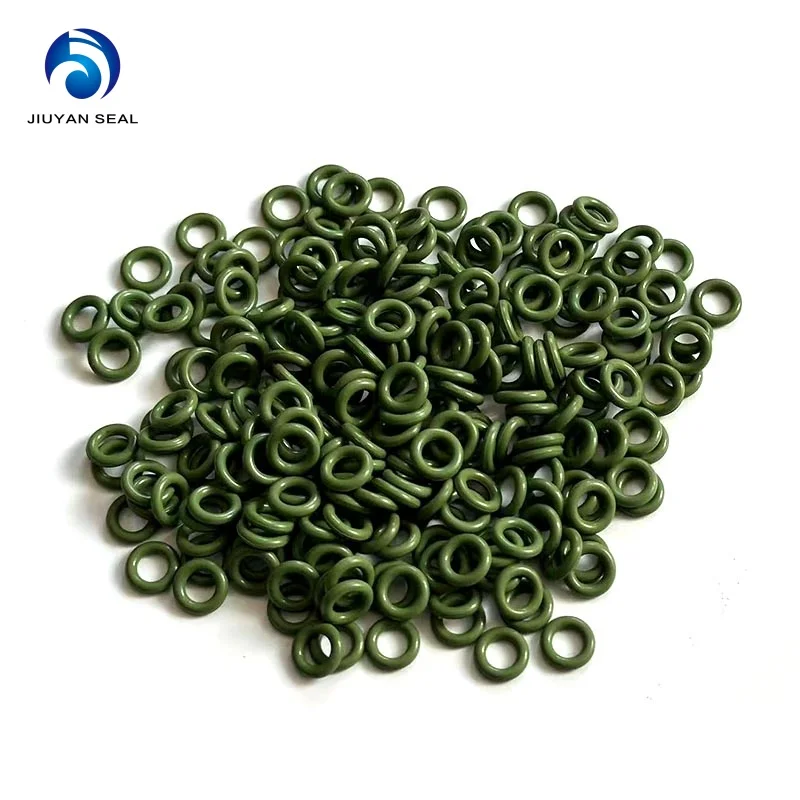

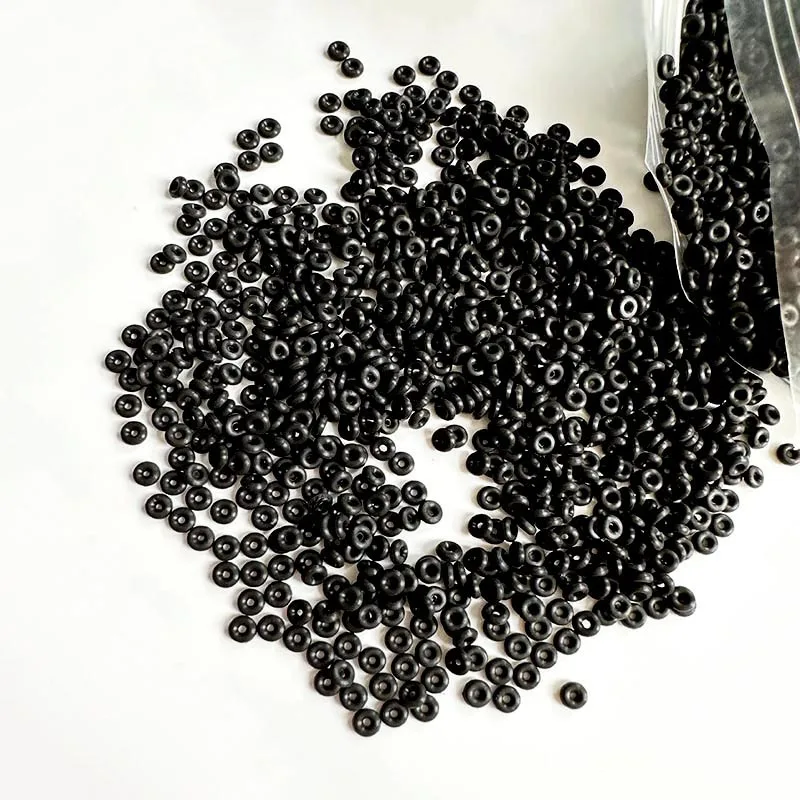

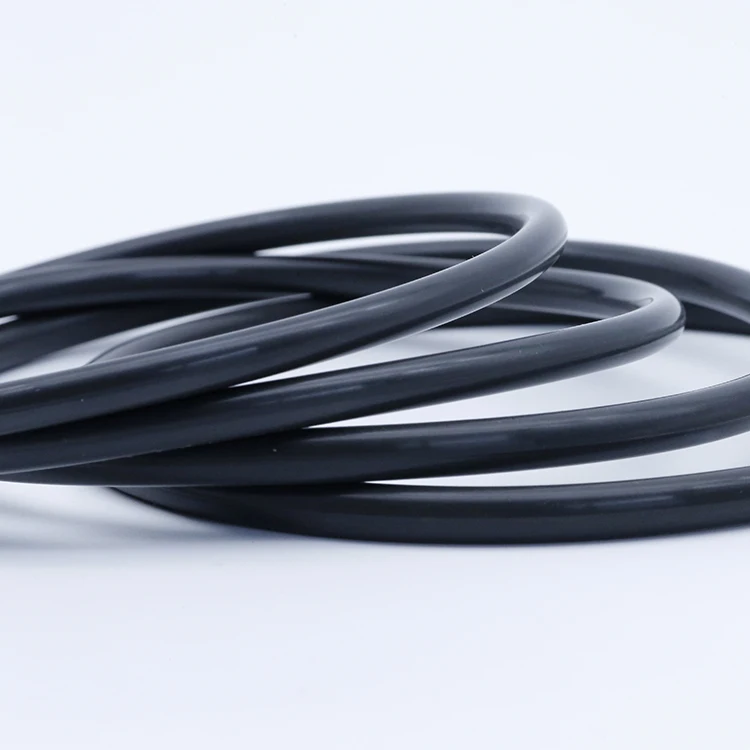

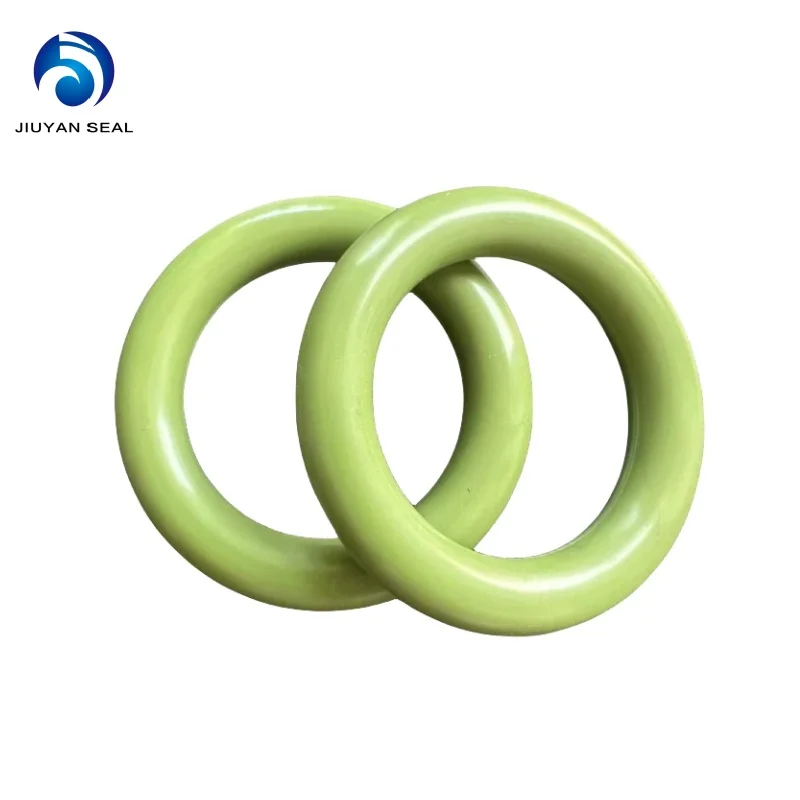

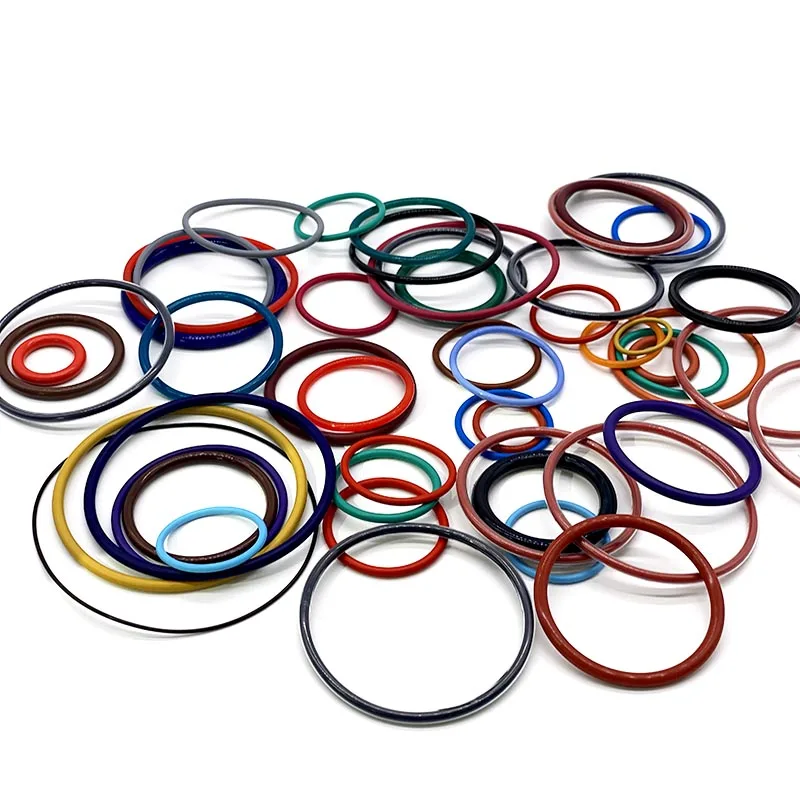

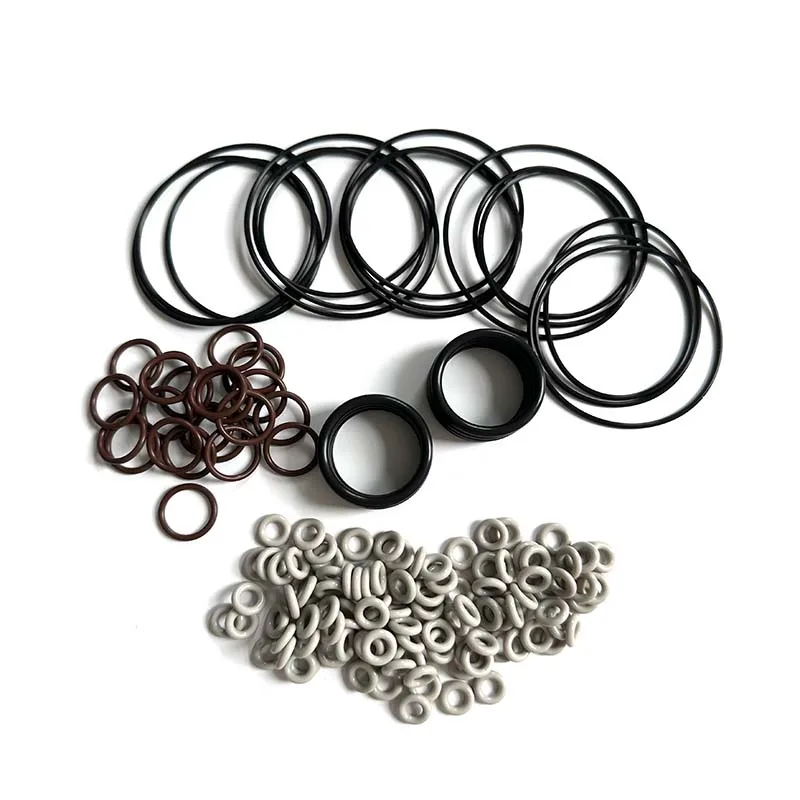

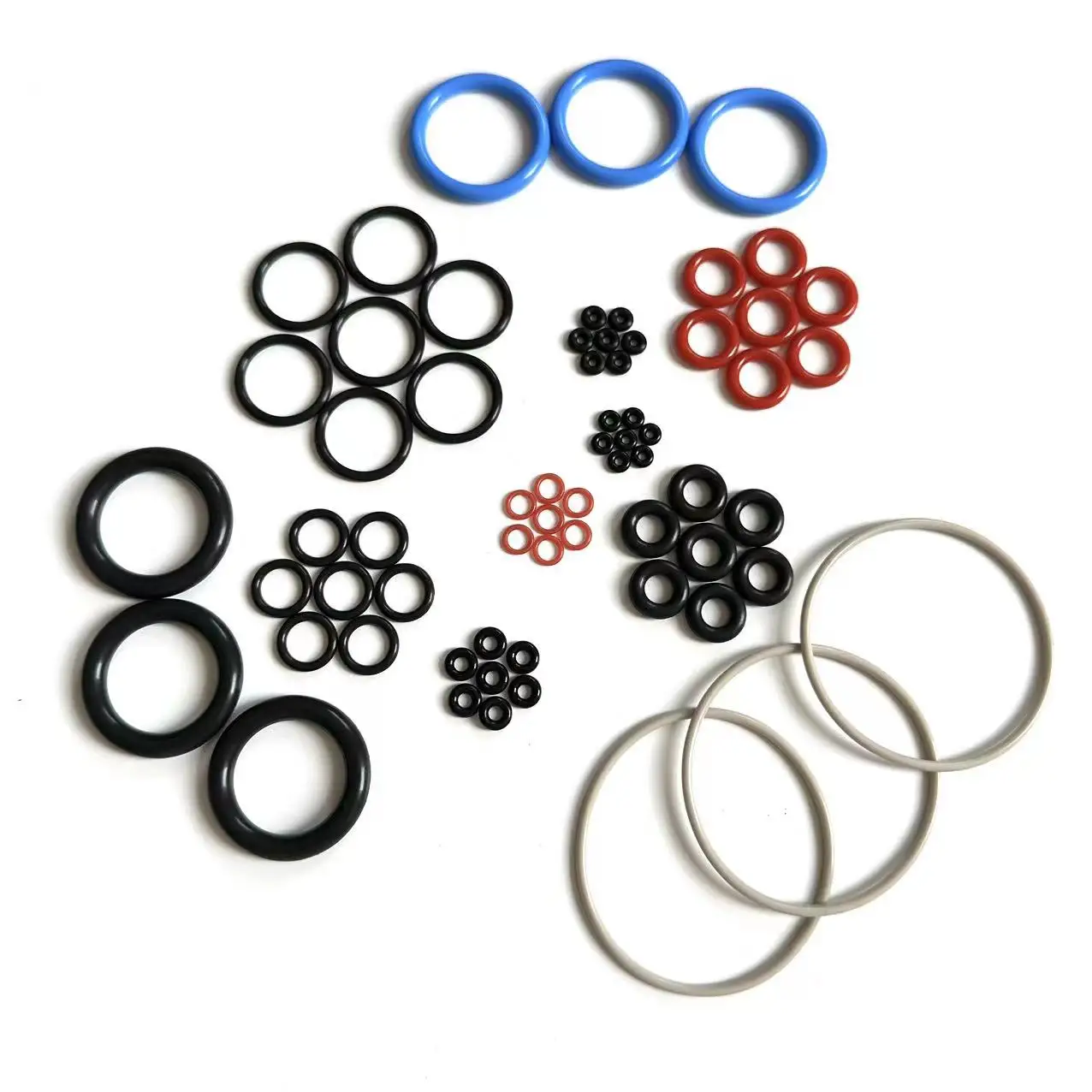

Product pictures
Product Description

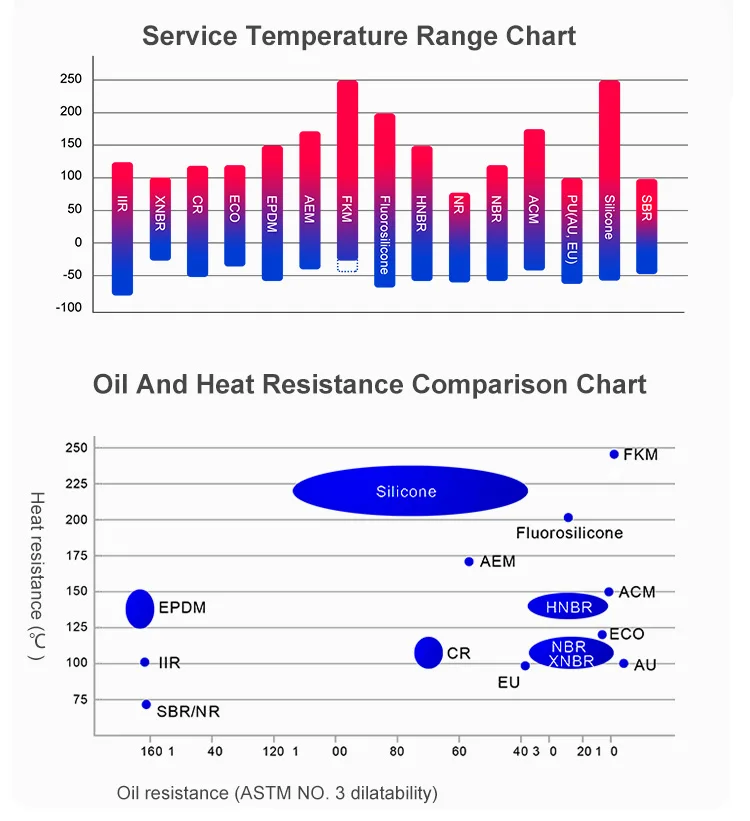

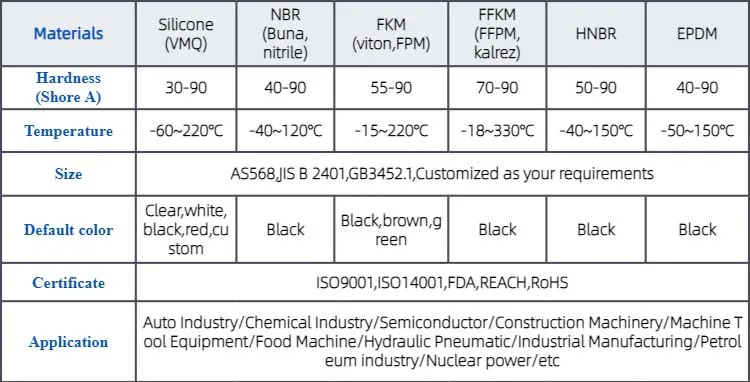

Material Introduction
Fluorocarbon (FKM)
FKM has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels,aromatics and many organic solvents and chemicals.
Low temperature resistance is normally not favorable. Gas permeability is very low and similar to that of butyl rubber.
Low temperature resistance is normally not favorable. Gas permeability is very low and similar to that of butyl rubber.
Heat resistance
• Up to 204℃ (400℉) and higher temperatures with shorter life expectancy.
Cold flexibility
• Down to -26℃ (-15℉) (some to -40℃) (-40℉).
Cold flexibility
• Down to -26℃ (-15℉) (some to -40℃) (-40℉).
Acrylonitrile-Butadiene (NBR)
Nitrile rubber is currently one of the most commonly used rubber materials in O-rings. It is has good mechanical properties, resistance to mineral based lubrication and grease.
As the ACN content continues to increase, the oil resistance of nitrile rubber increases, but at the same time, the low temperature resistance also decreases simultaneously.
As the ACN content continues to increase, the oil resistance of nitrile rubber increases, but at the same time, the low temperature resistance also decreases simultaneously.
Heat resistance
• Up to 100℃ (212℉) with shorter life @ 121℃(250℉).
Cold flexibility
• Depending on individual compound, between -34℃ and -57℃ (-30°F and -70℉).
Cold flexibility
• Depending on individual compound, between -34℃ and -57℃ (-30°F and -70℉).
Ethylene Propylene Rubber (EPM, EPDM)
Ethylenepropylene-diene rubber (EPDM) is produced using a third monomer and is particularly useful when sealing phosphate-ester hydraulic fluids and in brake systems that use fluids having a glycol base.
EPDM has excellent acid and alkali solvent resistance, weather resistance, water vapor resistance, aging resistance, and low temperature resistance. But the oil resistance is very poor.
Heat resistance
• Up to 150℃ (302℉) (max. 204℃ (400℉)) in water and/ or steam).
Cold flexibility
• Down to approximately -57℃ (-70℉).
Cold flexibility
• Down to approximately -57℃ (-70℉).

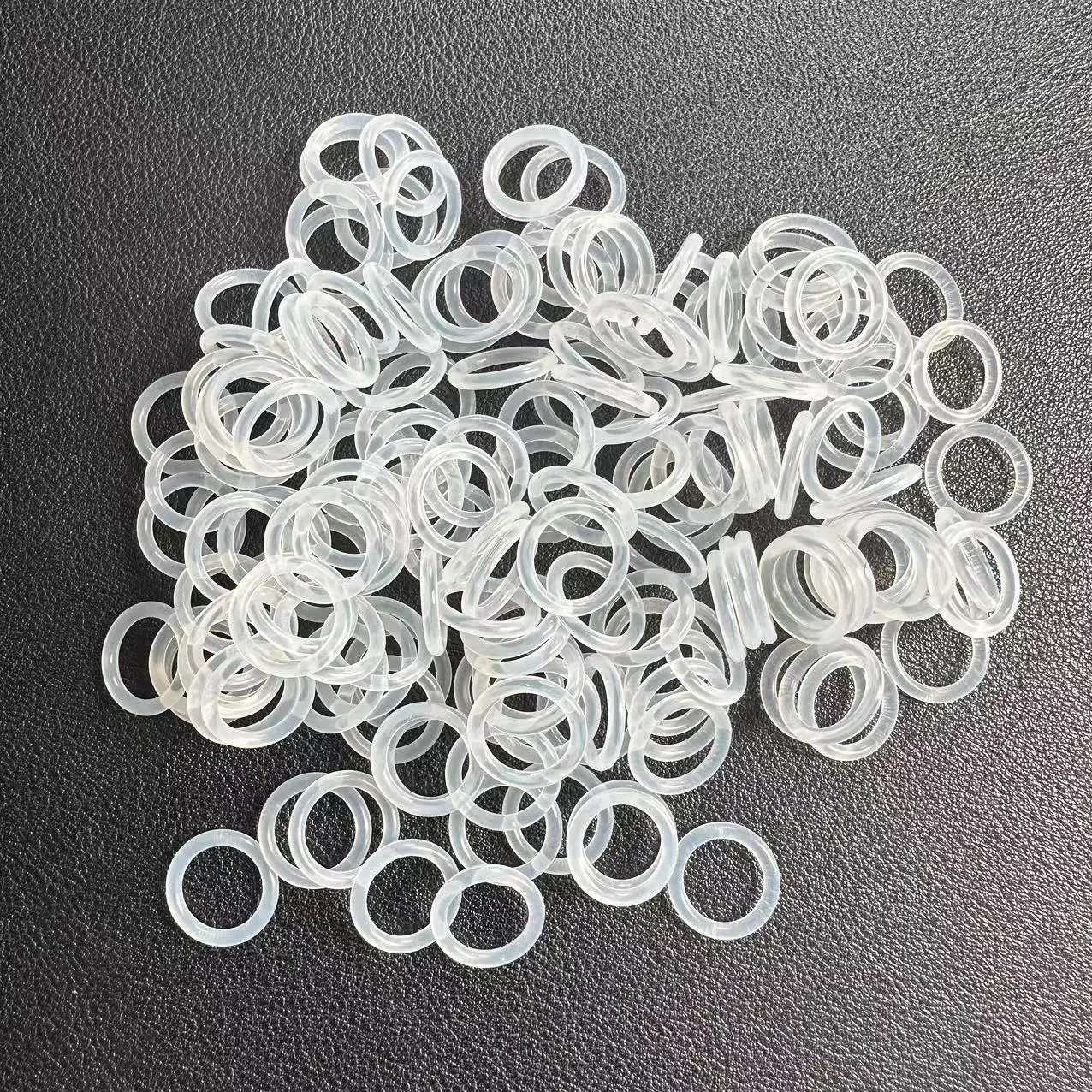

Silicone (VMQ)
1. Rubber Silicone O-Ring is a loop of elastomer with a round cross-section.
2. Rubber Silicone O-Ring is designed to be seated in a groove and compressed during assembly between two or more
parts, creating a seal at the interface.
3. Rubber Silicone O-Ring can be used both in static applications and in dynamic applications.Such as rotating pump shaftsand hydraulic cylinder pistons.
4. Rubber Silicone O-Ring is inexpensive, easy to make, reliable and simple mounting requirements, O ring is most common seals in machine design.
2. Rubber Silicone O-Ring is designed to be seated in a groove and compressed during assembly between two or more
parts, creating a seal at the interface.
3. Rubber Silicone O-Ring can be used both in static applications and in dynamic applications.Such as rotating pump shaftsand hydraulic cylinder pistons.
4. Rubber Silicone O-Ring is inexpensive, easy to make, reliable and simple mounting requirements, O ring is most common seals in machine design.
FFKM (Perfluoroether)
1. FFKM 8480P, It offers the widest range of aggressive media sealing capabilities along with excellent compression set values. It can be used in place of Kalrez® 6375 when temperature are bellow 230°C.
2. FFKM 8580P. It can offer a very broad chemical resistance in a wide variety of media including acids, caustics, ketones, aldehydes, esters, ethers, methanol, solvents, sour gases, hydrocarbons, steam, hot water and mixed process streams along with excellent thermal resistance.
3. FFKM 1075. It can offer outstanding thermal resistance, lower compression set and enhanced sealing force retention at extreme temperatures. Along with excellent thermal resistance, it can offer broad chemical resistance. However, it is not recommended for use in severe aqueous and amine applications. It can be used in place of Kalrez® 4079.
4. FFKM 2175. It has the highest service temperature of FFKM.
2. FFKM 8580P. It can offer a very broad chemical resistance in a wide variety of media including acids, caustics, ketones, aldehydes, esters, ethers, methanol, solvents, sour gases, hydrocarbons, steam, hot water and mixed process streams along with excellent thermal resistance.
3. FFKM 1075. It can offer outstanding thermal resistance, lower compression set and enhanced sealing force retention at extreme temperatures. Along with excellent thermal resistance, it can offer broad chemical resistance. However, it is not recommended for use in severe aqueous and amine applications. It can be used in place of Kalrez® 4079.
4. FFKM 2175. It has the highest service temperature of FFKM.
Product Application
Application areas: petroleum and chemical industry, pharmaceutical and food industry, petroleum and natural gas industry, semiconductor and its manufacturing industry, aerospace industry, paint, printing and coating industry
Packing and Shipping

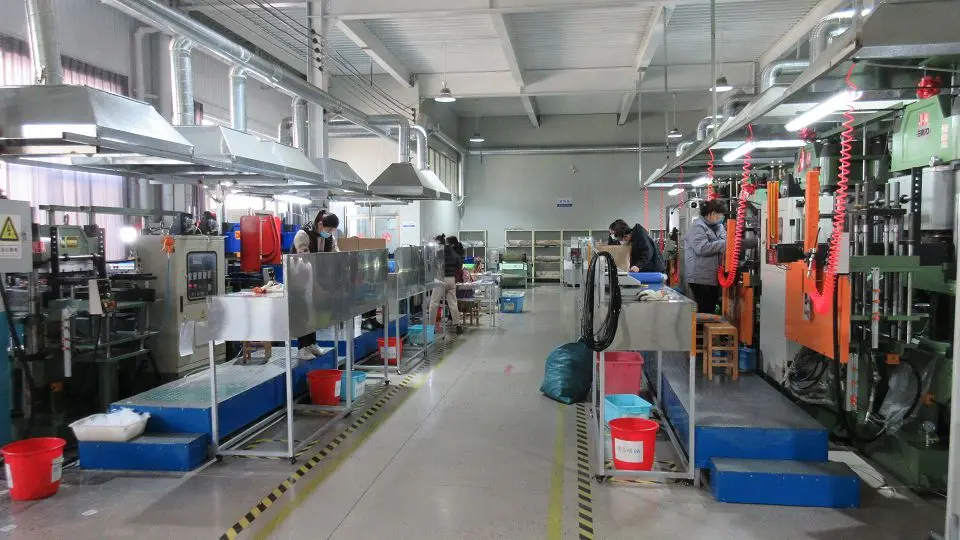

Company Profile

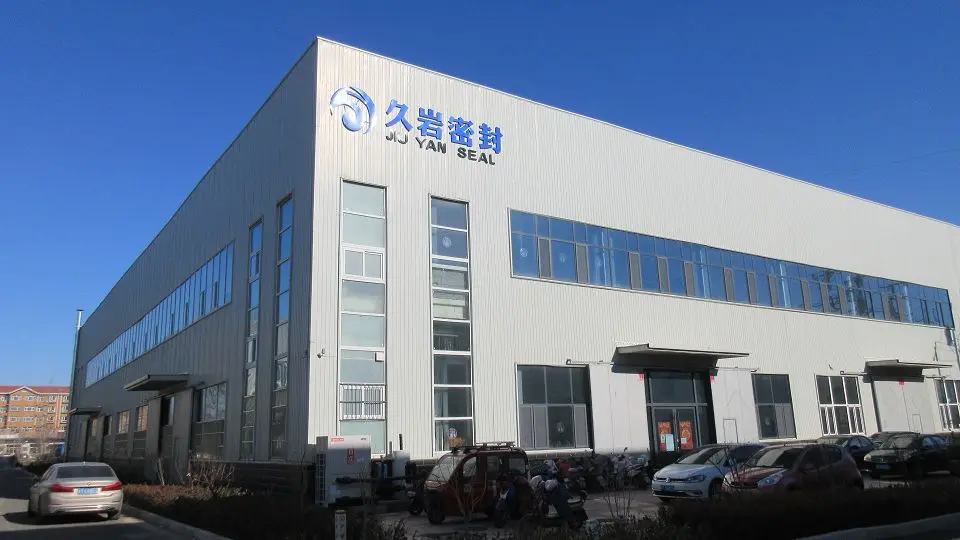

About us
Hengshui Jiuyan Sealing Technology Co., Ltd. is a professional manufacturer engaged in the research and development, production, sales, and service of rubber sealing products.
Materials include FFKM, VITON, AFLAS, HNBR, NBR, EPDM, etc. Our range of products includes 0-rings, gaskets, rubber
core,customized rubber parts,bellow,rubber ball,hydraulic seals, oil seals, static seals, dynamicseals, mechanical seals and more.
Our experienced employees are committed to strict quality control and thoughtful customer service, constantly discussing your requirements and ensuring complete customer satisfaction. We look forward to collaborating with more customers around the world for common development and mutual benefit. The products are widely used in mechanical seals, chemical, steel, power, oil fields, food, semiconductors, electronics and other fields, and are exported to countries such as the United States, France, Russia, and Southeast Asia. We also welcome OEM and ODM orders.
Materials include FFKM, VITON, AFLAS, HNBR, NBR, EPDM, etc. Our range of products includes 0-rings, gaskets, rubber
core,customized rubber parts,bellow,rubber ball,hydraulic seals, oil seals, static seals, dynamicseals, mechanical seals and more.
Our experienced employees are committed to strict quality control and thoughtful customer service, constantly discussing your requirements and ensuring complete customer satisfaction. We look forward to collaborating with more customers around the world for common development and mutual benefit. The products are widely used in mechanical seals, chemical, steel, power, oil fields, food, semiconductors, electronics and other fields, and are exported to countries such as the United States, France, Russia, and Southeast Asia. We also welcome OEM and ODM orders.

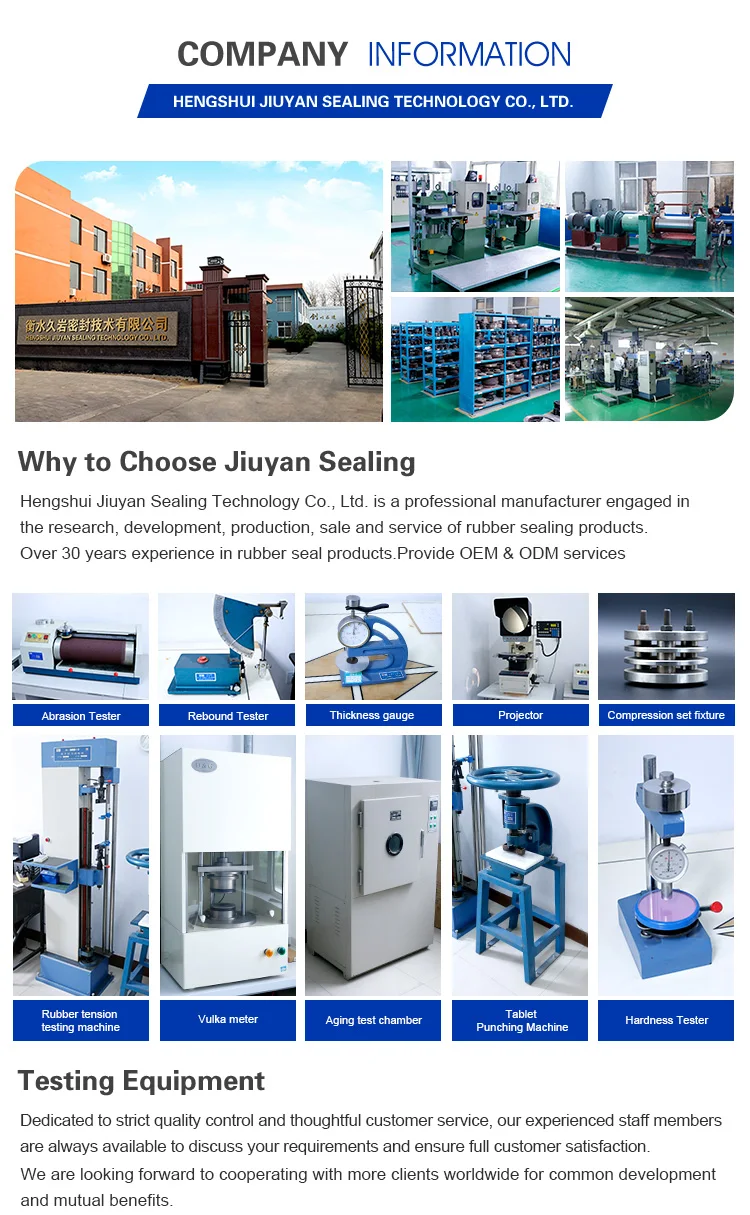

Testing Equipment

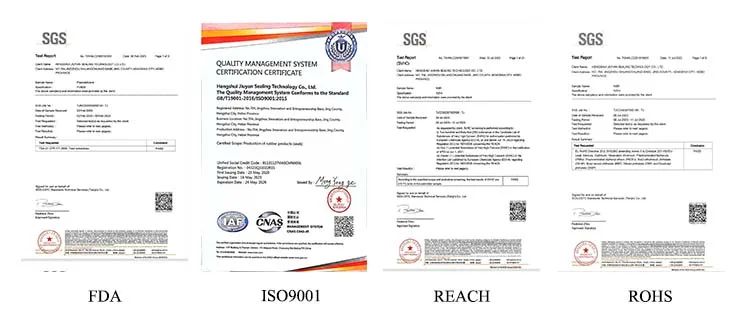

Certificates
More product

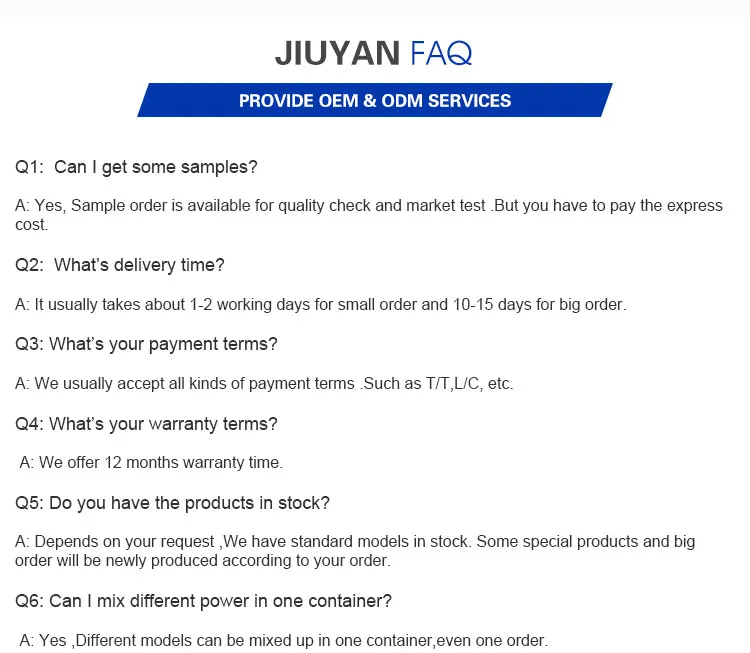

FAQ
