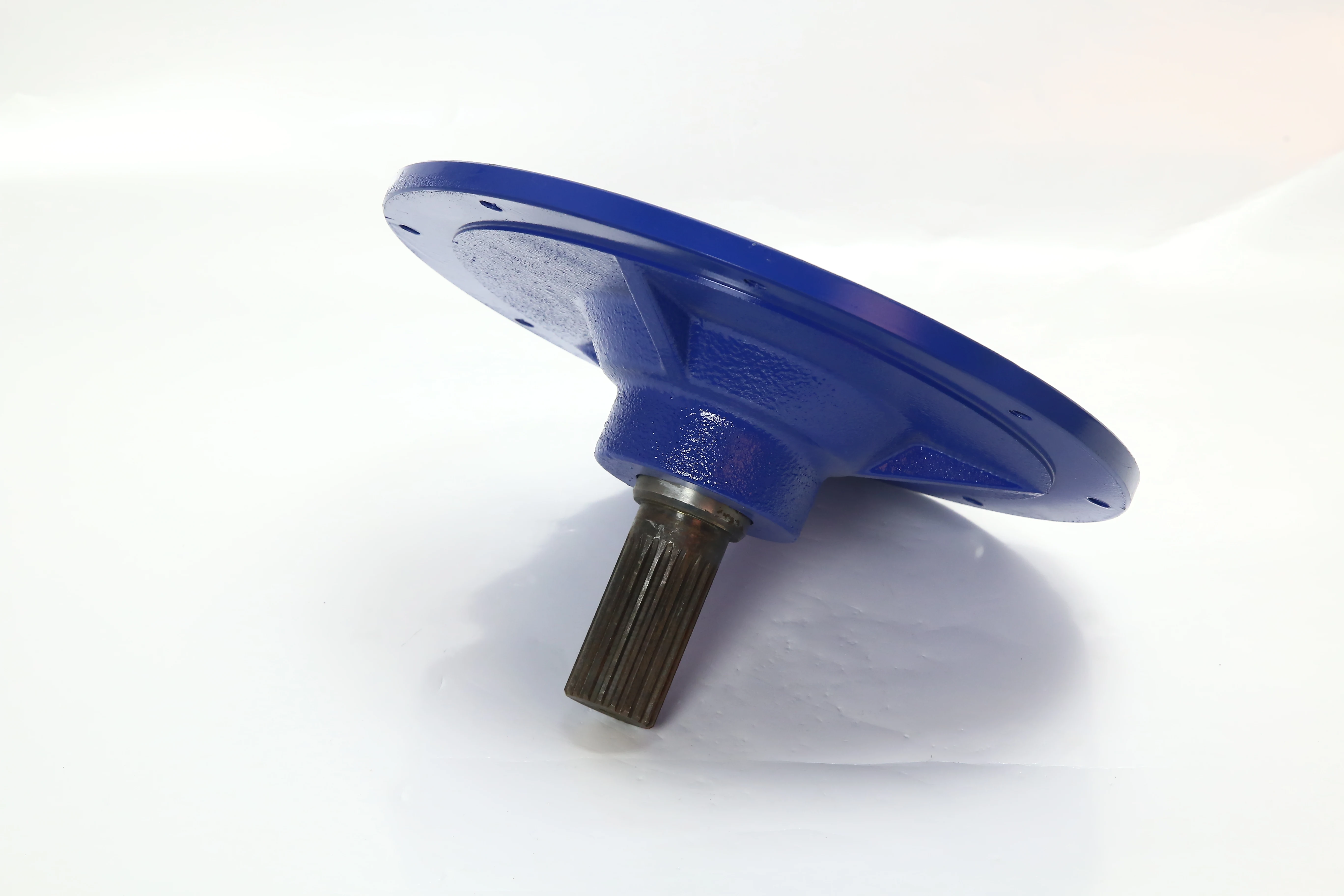

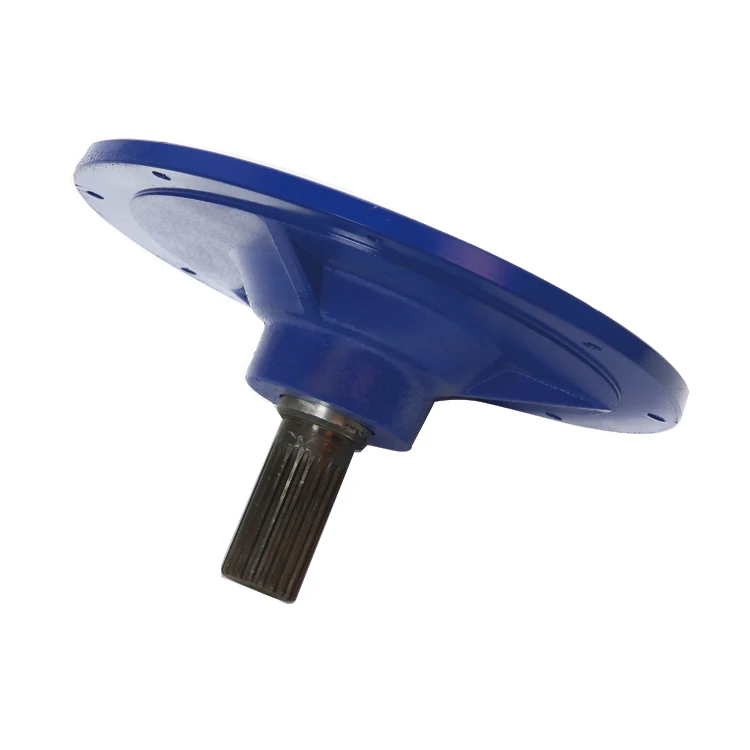

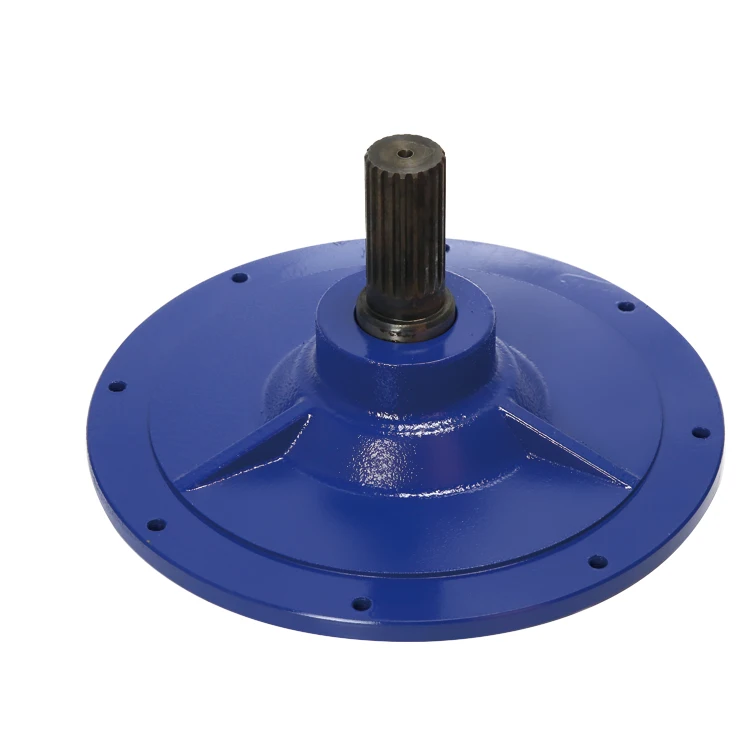

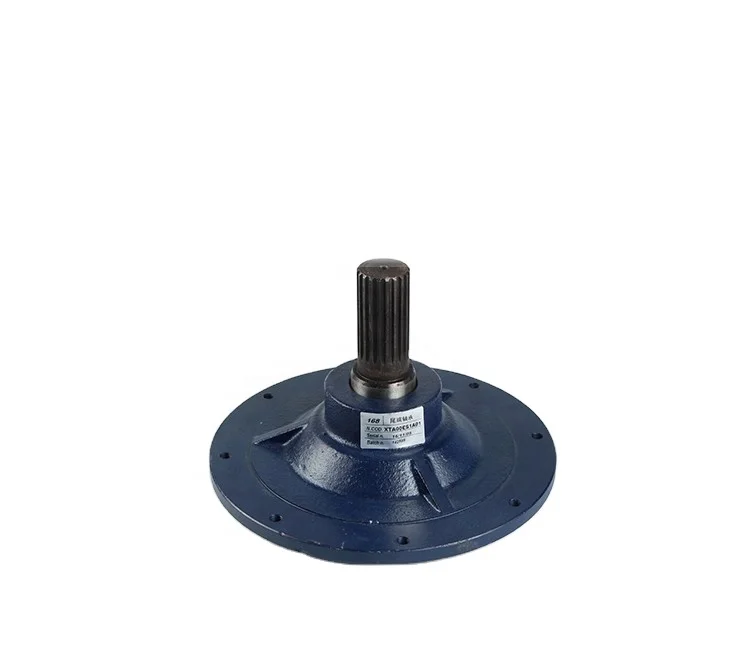

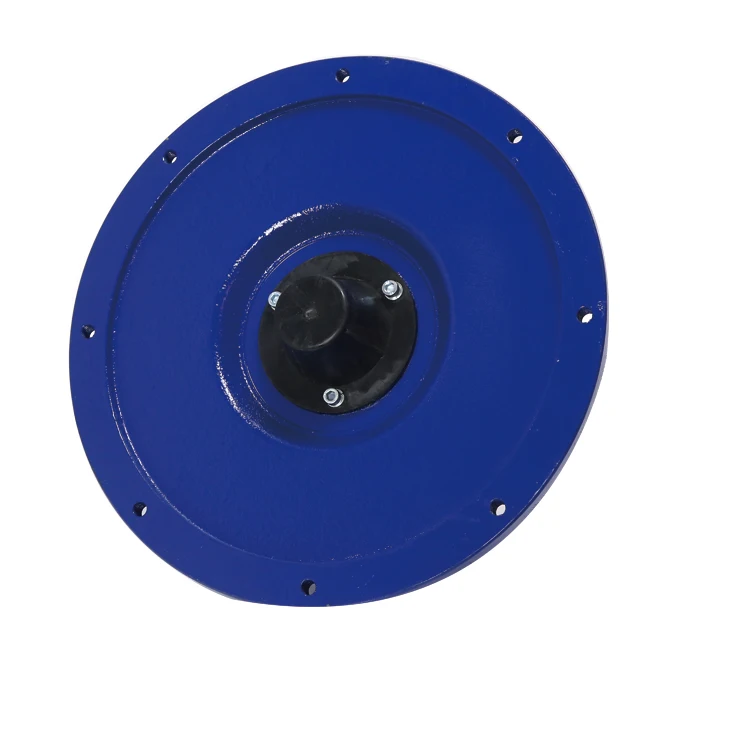

XTA00ES3A01 Outlet End Bearing Assembly for 219mm Cement Screw Conveyors and Feeders

Product Overview

Description

Description

End bearings provide support at one or both ends of a screw conveyor and must be designed to handle radial and thrust loads as well as shaft runout.Radial loads are typically negligible at the screw conveyor end shaft. However, end bearings located at the drive end of a screw conveyor are subject to higher

Function

the feeding end of the fixed screw conveyor is used to support the inner tube

Installation position: at the end of the screw machine discharge port

Acting as a fixed support end end tube

Housing material: ductile iron

Drive shaft material: steel

Features: 20-tooth spline, tooth diameter 40MM, can be customized.

Material processing: high frequency quenching, quenching and tempering treatment,

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location	None
Condition	New
Material	Stainless Steel
Material Feature	Lateral stability
Structure	Inclining Conveyor
Place of Origin	China
	Zhejiang
Voltage	220V/380V
Power	3~5.5 Kw
Dimension(L*W*H)	20X15X20 cm
Warranty	1 Year
Width or Diameter	219mm
Machinery Test Report	Not Available
Video outgoing-inspection	Not Available
Marketing Type	New Product 2020
Warranty of core components	6 months
Core Components	None
Weight (KG)	8kg
Power	3~5.5 Kw
warranty	1year
Screw conveyor size	219mm
Voltage	220V/380V
Dimension(L*W*H)	Based
Width or Diameter	Based
Core Components	Gearbox
Structure	Inclining Conveyor
Product name	End Coupling
After Warranty Service	Spare parts
