Oyster Shell Seaweed Spice Crusher Dried Mustard Seed Herb Moringa Crushing Powder Cinnamon Sugar Salt Grinding machine
- Category: >>>
- Supplier: Henan Carde Machinery Equipment Co. Ltd.
Share on (1601270062901):
Product Overview
Description
Products Description
1- This machine is suitable for food, chemical, metallurgical, geological, agricultural, scientific research and other units, and is used for the crushing and processing of various types of Chinese herbal,ores, and chemical raw materials. | ||||||||
2- Randomly provide 3 sets of data or less for selection at the factory Large pore sieve diameter: 2, 3, 4, 5, 6, 8, 10mm (the larger the number, the finer the sieve) Fine mesh size: 20, 40, 60, 80, 100, 120 (the larger the number, the finer the mesh) | ||||||||

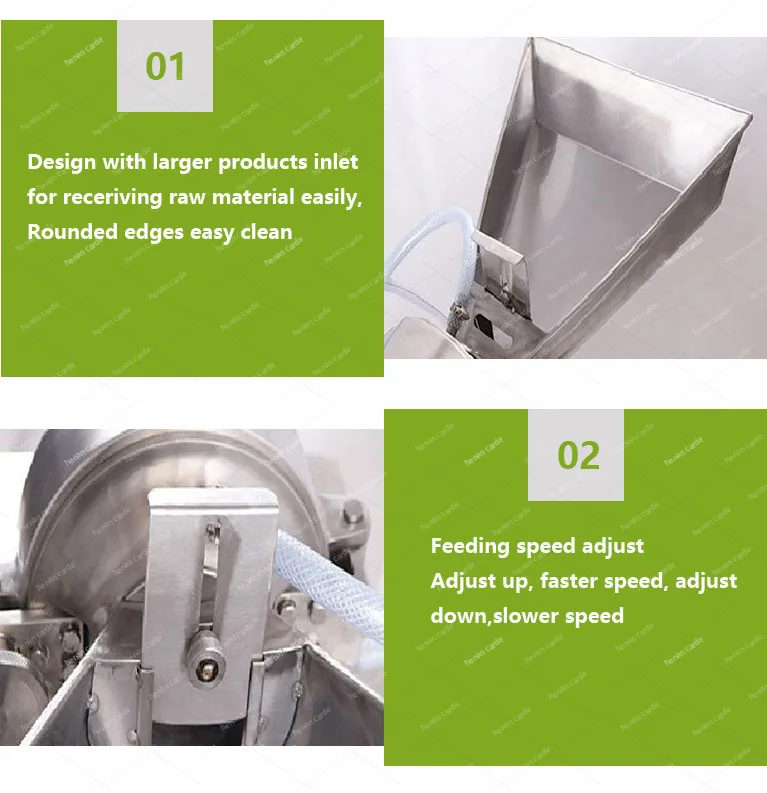

3- Please note that the crusher requires different crushing discs for different materials, and there are options for the feeding hopper, including straight hopper and inclined hopper. Please confirm the specific materials and crushing requirements before confirm suitable model machine. | ||||||||

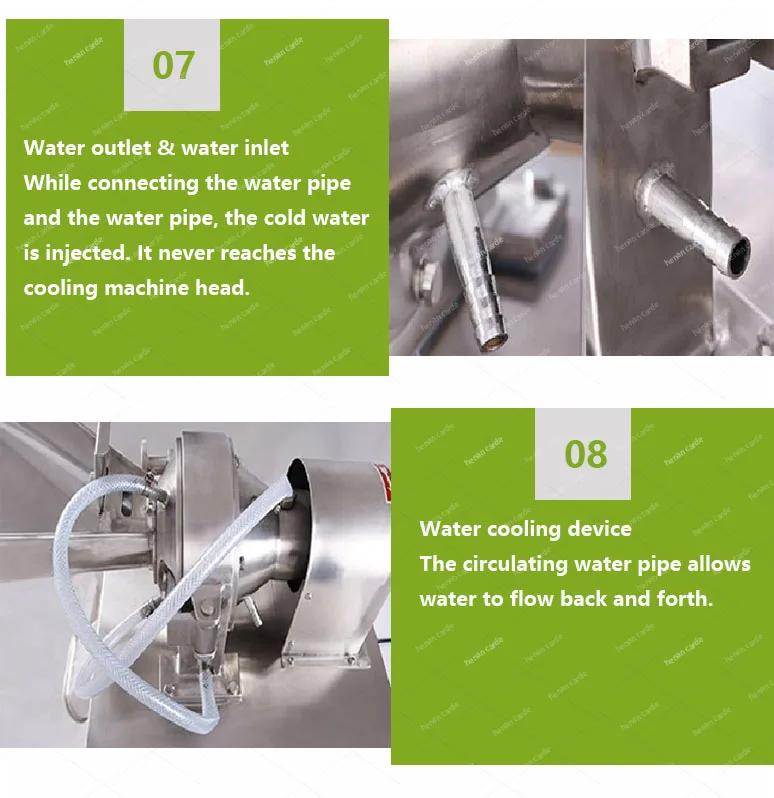

4- Cooling method, adopt the water cooling system for better cooling and running. | ||||||||
Product Paramenters
MODEL | Capacity | Grinding size | Power | Dimensions |
CD-UG-1 | 30-90kg/h | 10-120M | 3Kw | 480*520*1040mm |
CD-UG-2 | 90-250kg/h | 10-120M | 5.5Kw | 750*600*1260mm |
CD-UG-3 | 250-550kg/h | 10-120M | 7.5Kw | 780*700*1350mm |
CD-UG-4 | 300-600kg/h | 10-120M | 11Kw | 800*900*1500mm |
CD-UG-5 | 400-800kg/h | 10-120M | 15Kw | 1200*1000*2000mm |

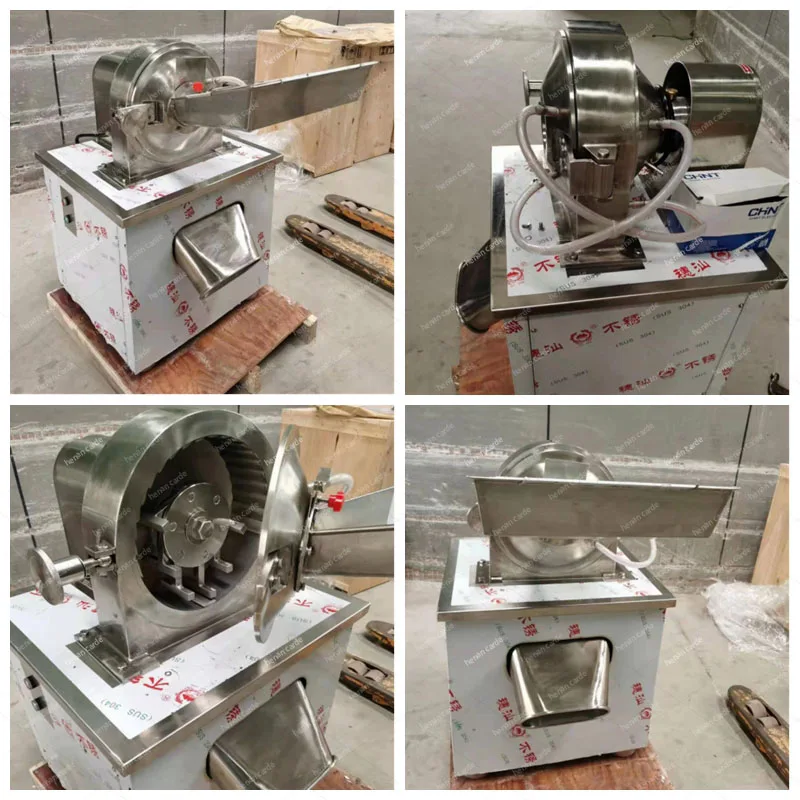

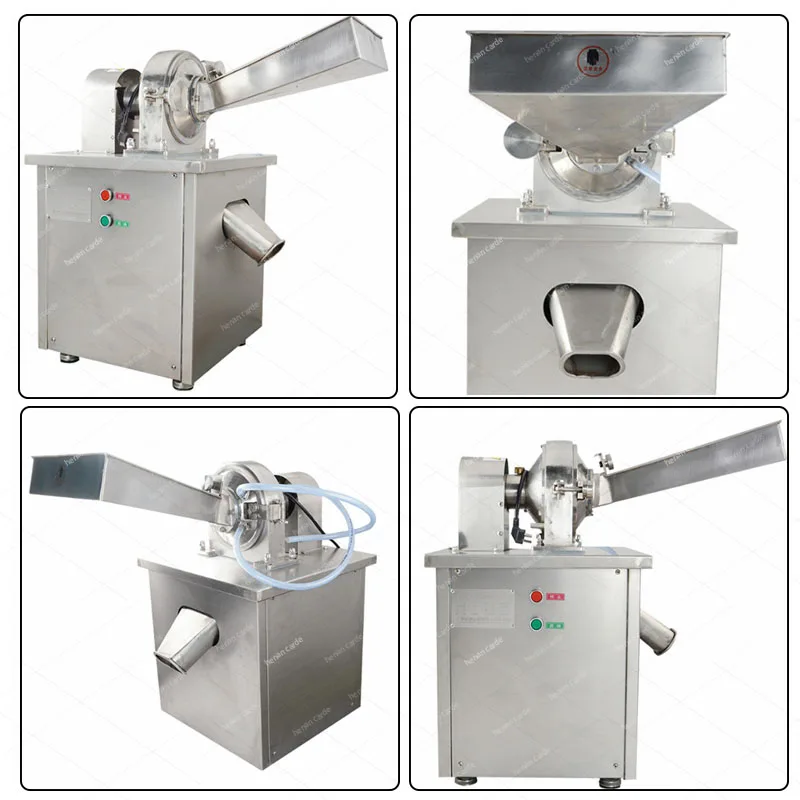

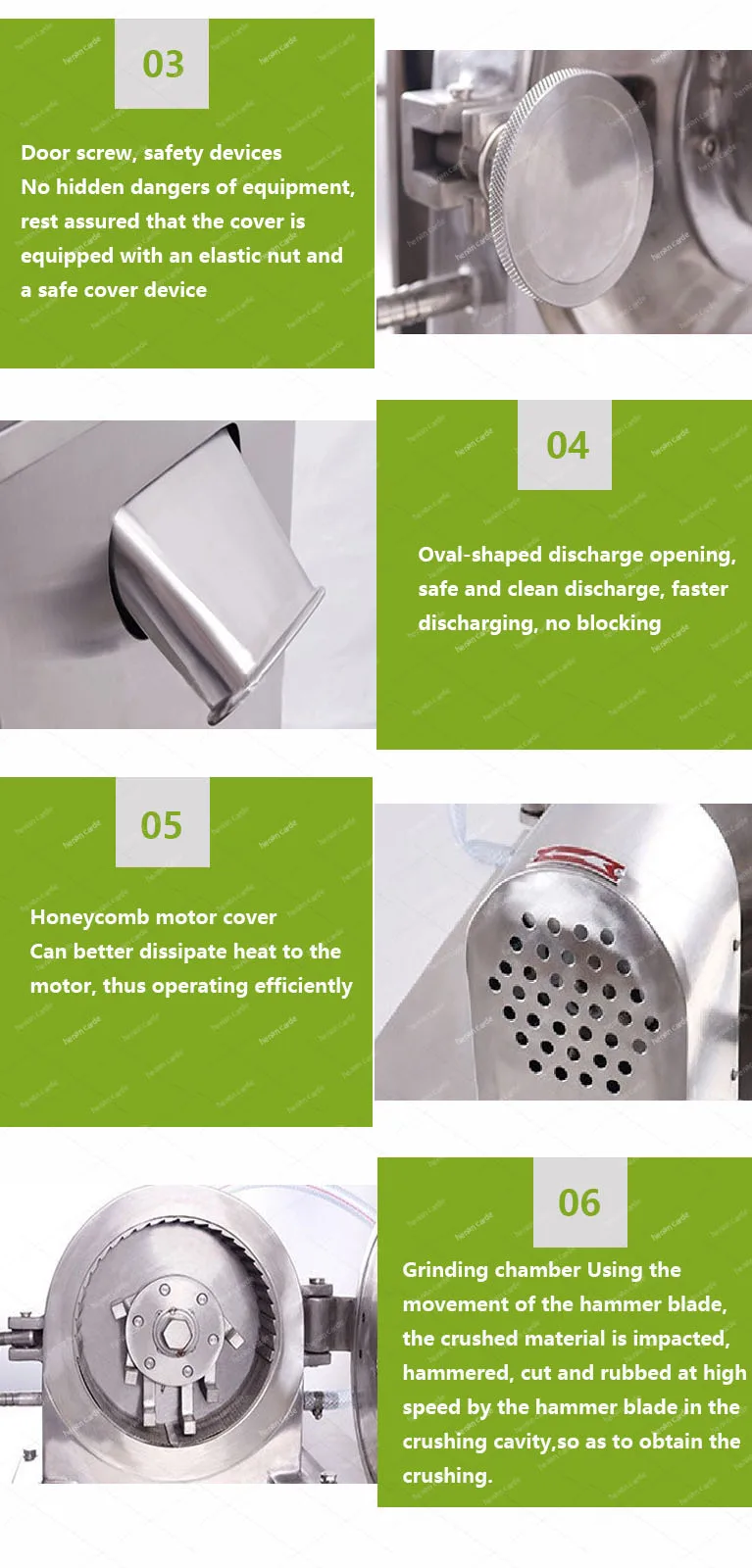

Details Images

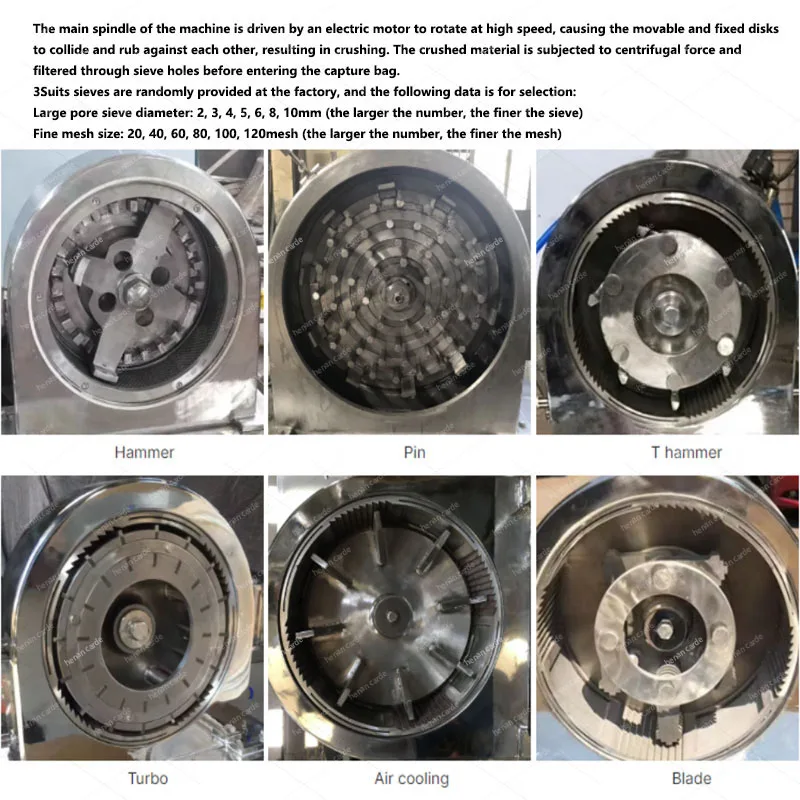

Different Crushing Discs Show
The working principle is that the main spindle of the machine is driven by an electric motor to rotate at high speed, and the movable and fixed disks collide and rub against each other, resulting in crushing. The crushed material is subjected to centrifugal force and filtered through sieve holes before entering the capture bag
Toothed disc/Pin: Suitable for dry materials such as sugar, salt, MSG, chicken essence, pepper (dry), coffee, chemicals and other fragile items. Wet materials, such as fresh fruits, corn, soaked wet rice but filtered water, etc.
Hammer blade: Generally recommended for processing Chinese medicinal materials, dried ginger, leaves and other plants
Hammer: Suitable for grains and cereals
Hammer blade: Generally recommended for processing Chinese medicinal materials, dried ginger, leaves and other plants
Hammer: Suitable for grains and cereals
Product Application
This machine is suitable for the crushing and processing of many kinds of plante products, Chinese herbal,ore, and chemical raw materials in food, chemical, metallurgy, geology, agriculture, scientific research and other units.
Grinding Effect
