16 32mm 20 63mm Rigid PVC water drainage pipe machine plastic conduit tube duct production line PVC pipe plastic machinery
- Category: >>>
- Supplier: Qingdao Fullwin Plastic Machinery Co. Ltd.
Share on (1601270116961):
Product Overview
Description
Production Description
Building conduit pipe water pipes Plastic UPVC CPVC PVC Pipe Making Machine
16-32mm 20-63mm Rigid PVC water drainage pipe machine plastic conduit tube duct production line PVC pipe plastic machinery
Because of its characteristics,CPVC pipe is widely used in oil field crude oil gathering and transportation,chemical corrosion resistant pipe line,hot water supply pipes. etc.
PVC pipe plants are available in one out of one production line, one out of two production lines and one out of four production lines to meet the requirements of different customers for different outputs.

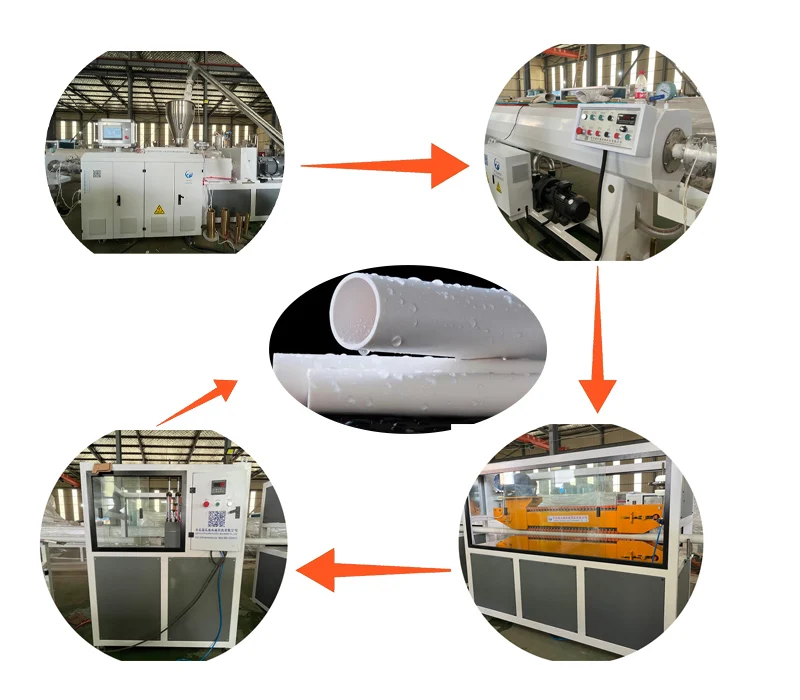

Processing flow of plastic pvc pipe making machine extrusion line:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack
Machine Details
NO. | Name | QTY |
1 | Vacuum feeder with hopper dryer | 1 |
2 | Double screw extruder(conical screw) | 1 |
3 | Die head mould | 1 |
4 | Mouth mould and core bar | 1 |
5 | Vaccum Spraying water tank | 1 |
6 | Haul off | 1 |
7 | Planetary Cutter | 1 |
8 | Staker | 1 |

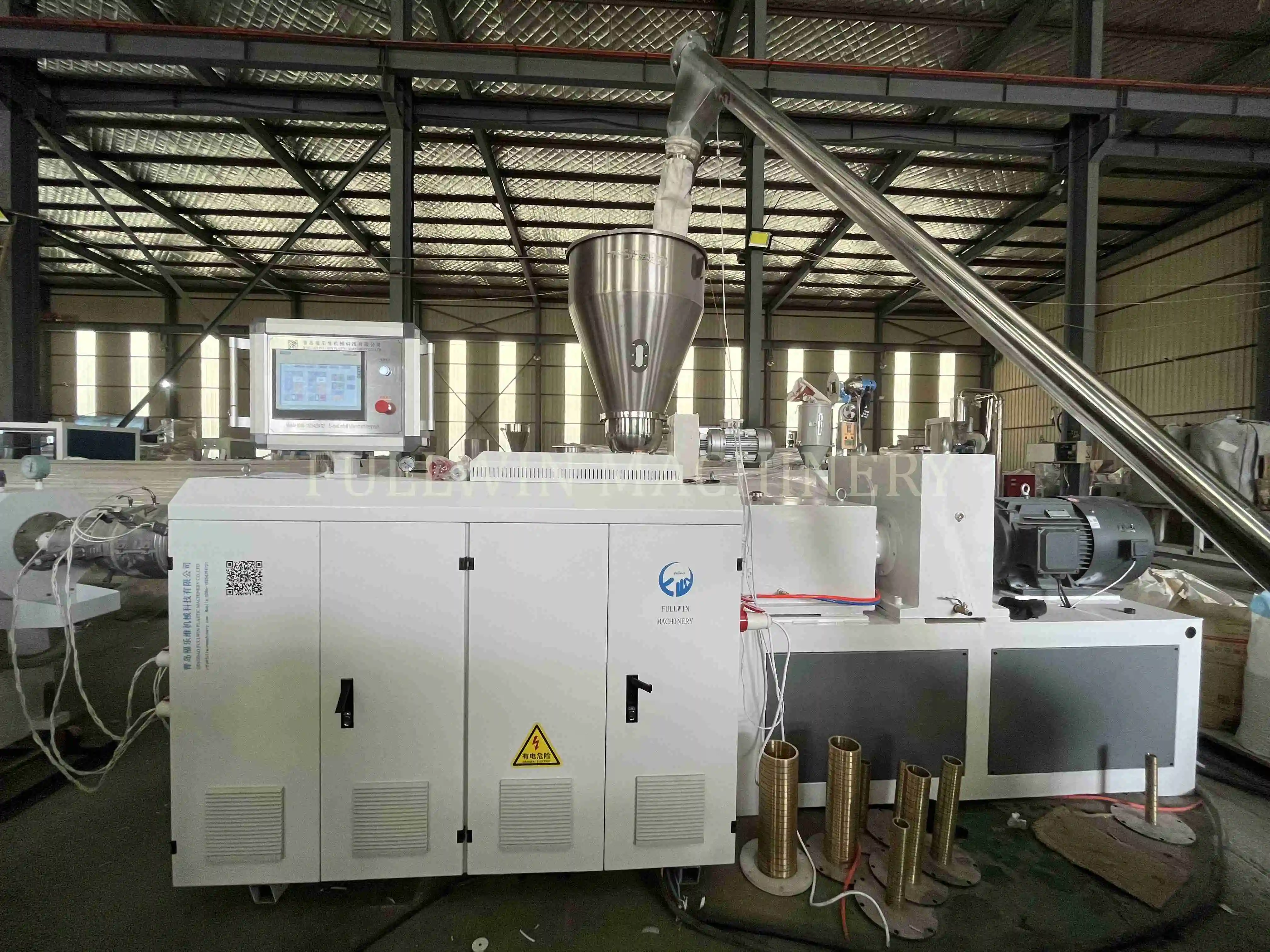

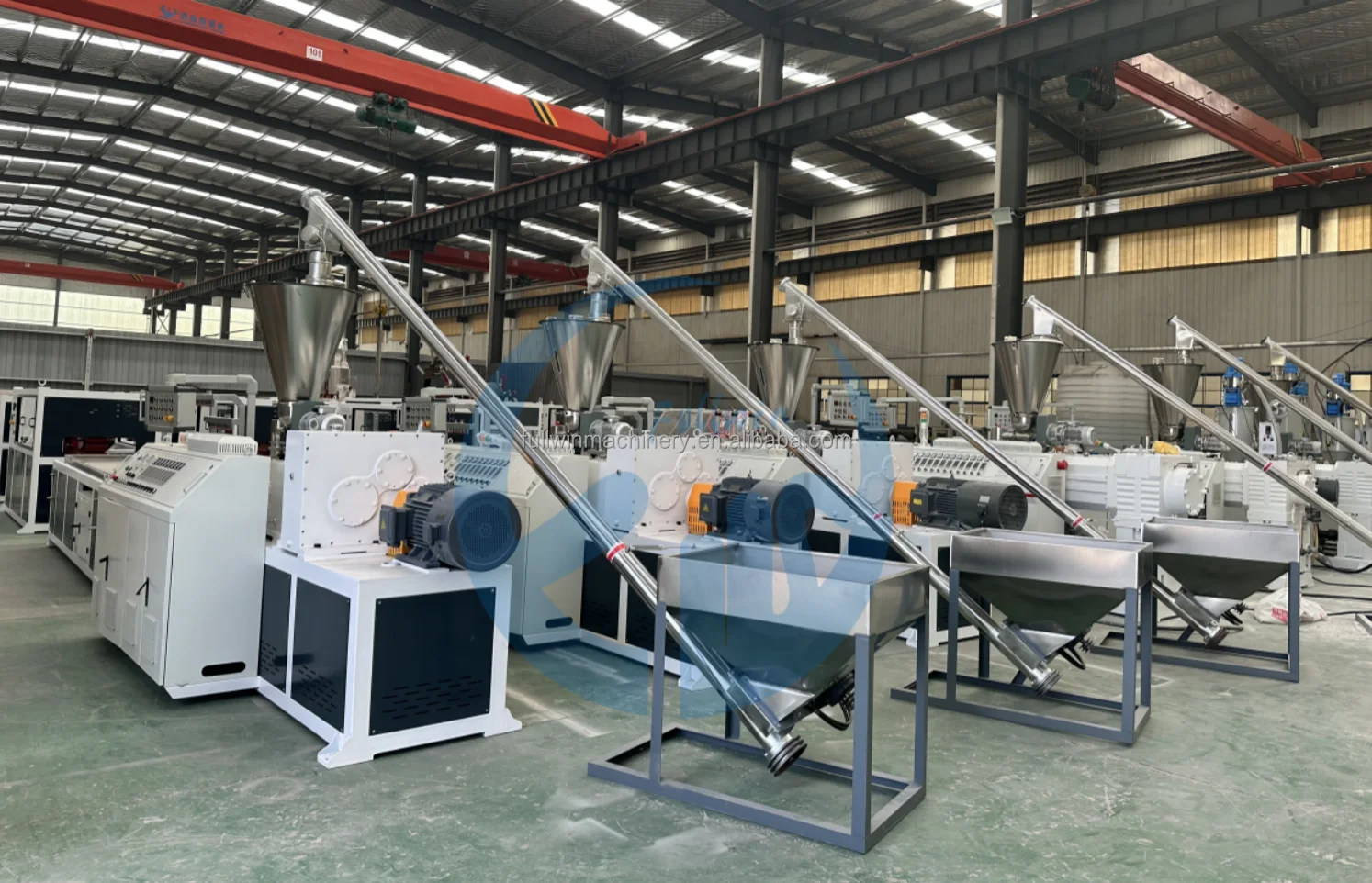

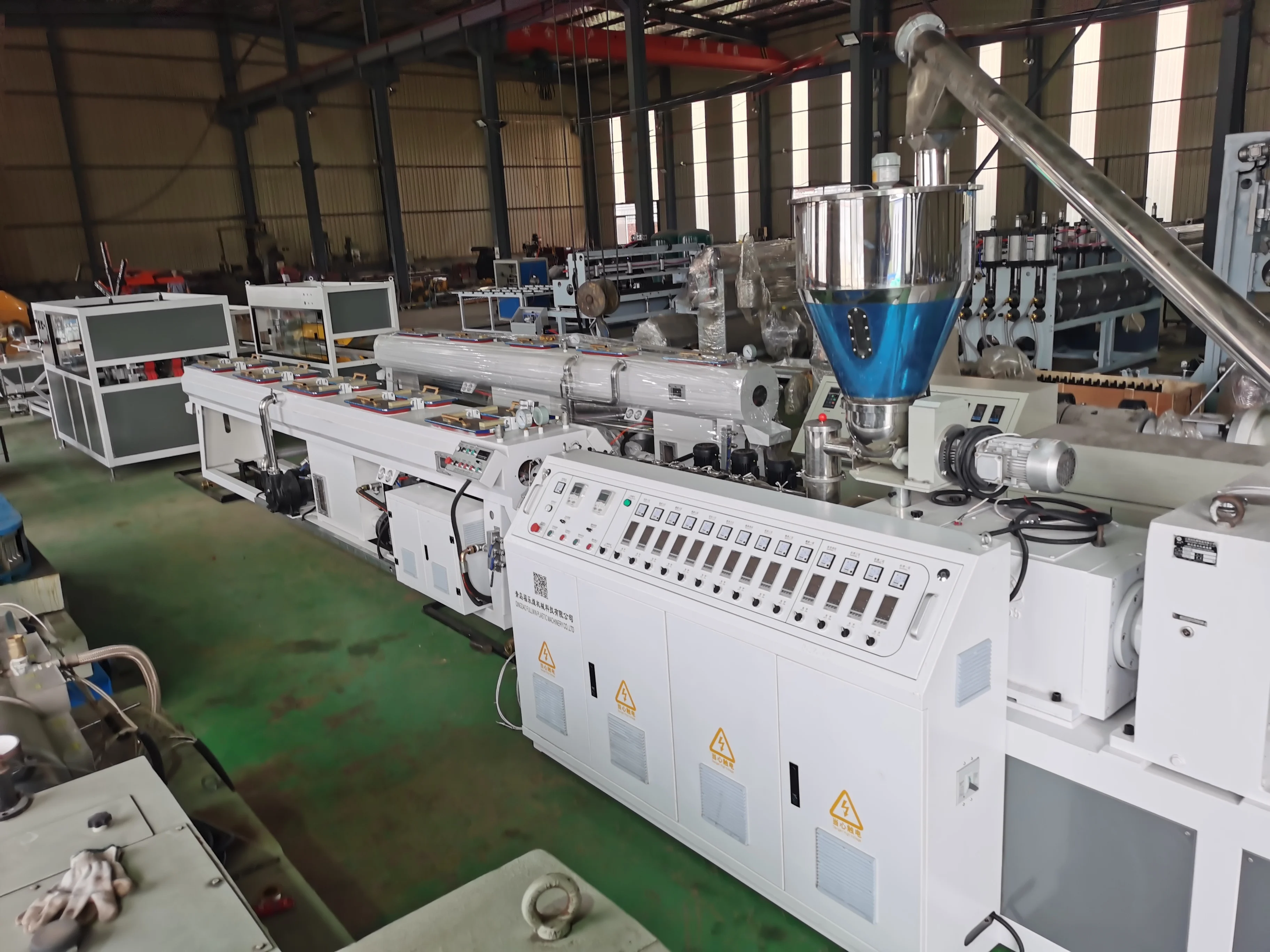

1. Conical double screw extruder 65/132 with Spring feeder
Screw barrel design:Surface nitriding，nitriding thickness 0.4mm-0.7mm, hardneed≥940HV,Nitriding is a chemical heat treatment
process in which nitrogen atoms seep into the working surface at a certain temperature in a medium.
After Nitriding,the product have excellent wear resistance, fatigue resistance, corrosion resistance and hightemperature resistance,and more longer working life.
Barrel heater (new design,save about 30% electric)
process in which nitrogen atoms seep into the working surface at a certain temperature in a medium.
After Nitriding,the product have excellent wear resistance, fatigue resistance, corrosion resistance and hightemperature resistance,and more longer working life.
Barrel heater (new design,save about 30% electric)

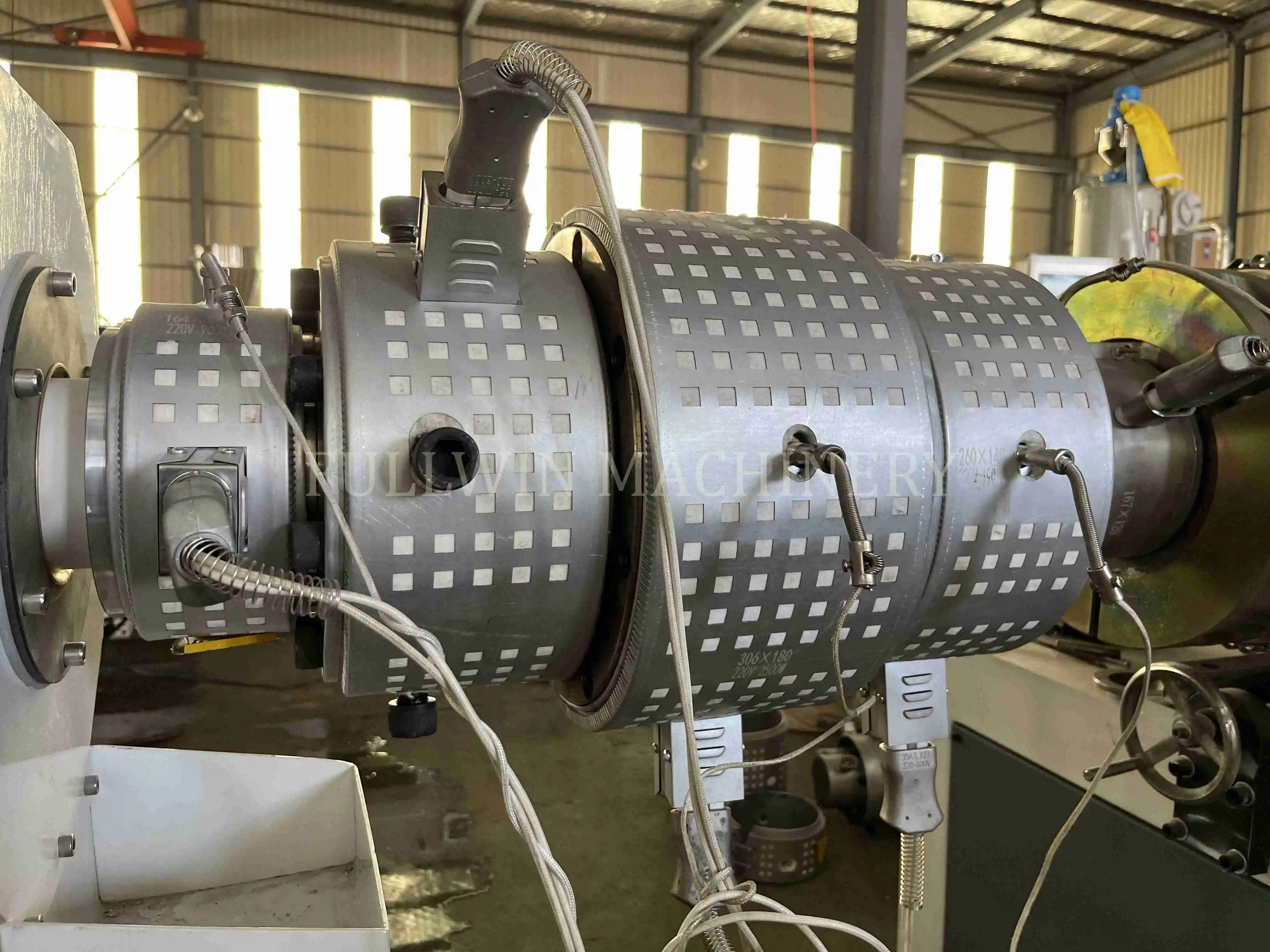

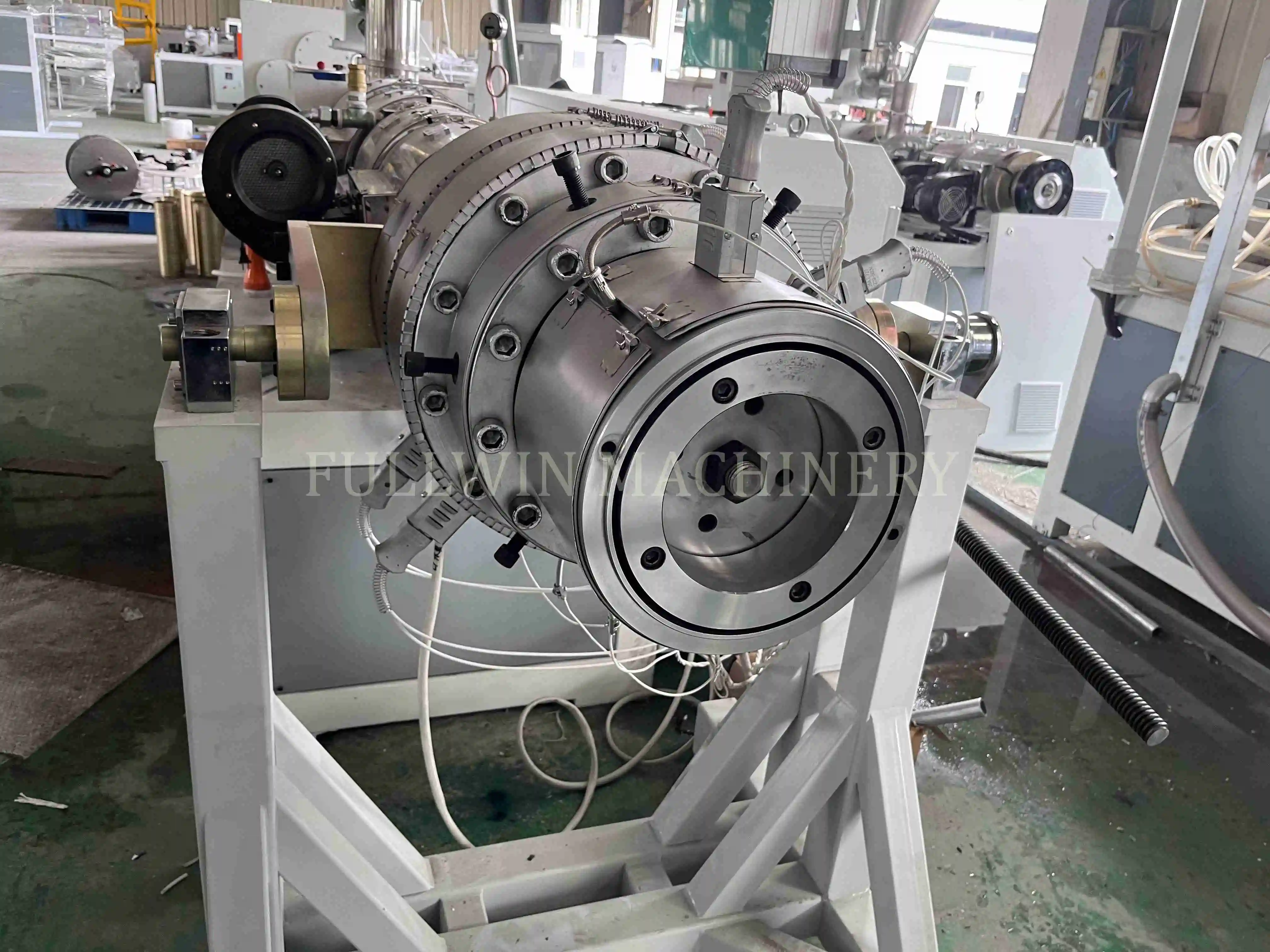

2. New design die head
The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is
wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.
wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.
It can be customized for Double cavity or Four cavity for high output.

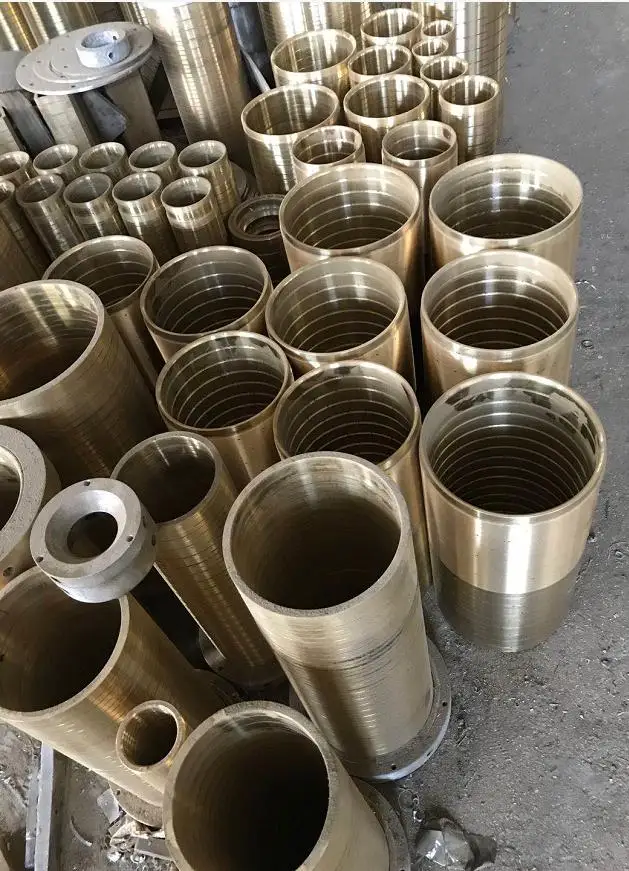

Copper sizing sleeves
According customer requirements to change mould quantity.
The sizing mould is Copper sleeve materials with polishing treatment
The sizing mould is Copper sleeve materials with polishing treatment

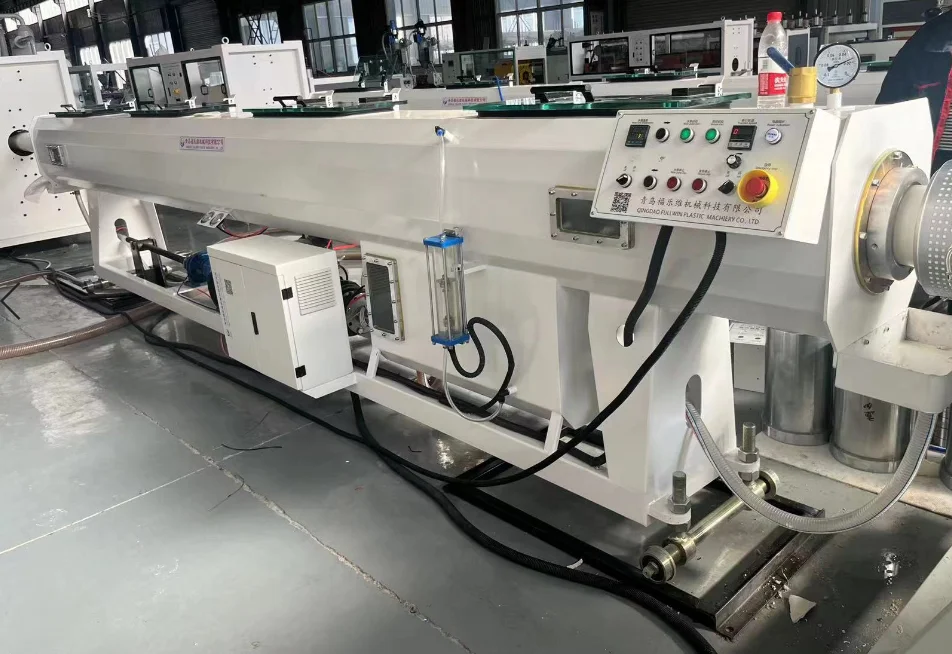

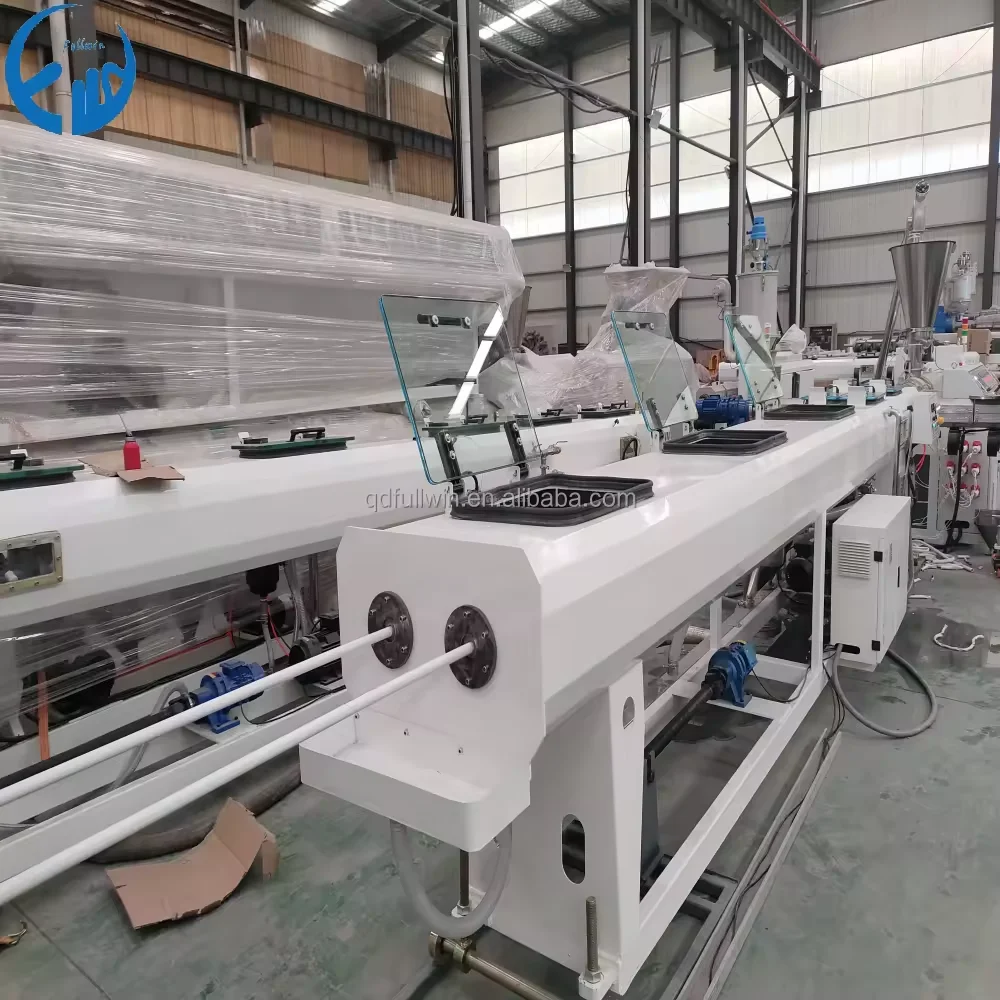

3. Vacuum Spraying cooling water tank
The calibrating and cooling tank can calibrate and cool the pvc pipe from mould

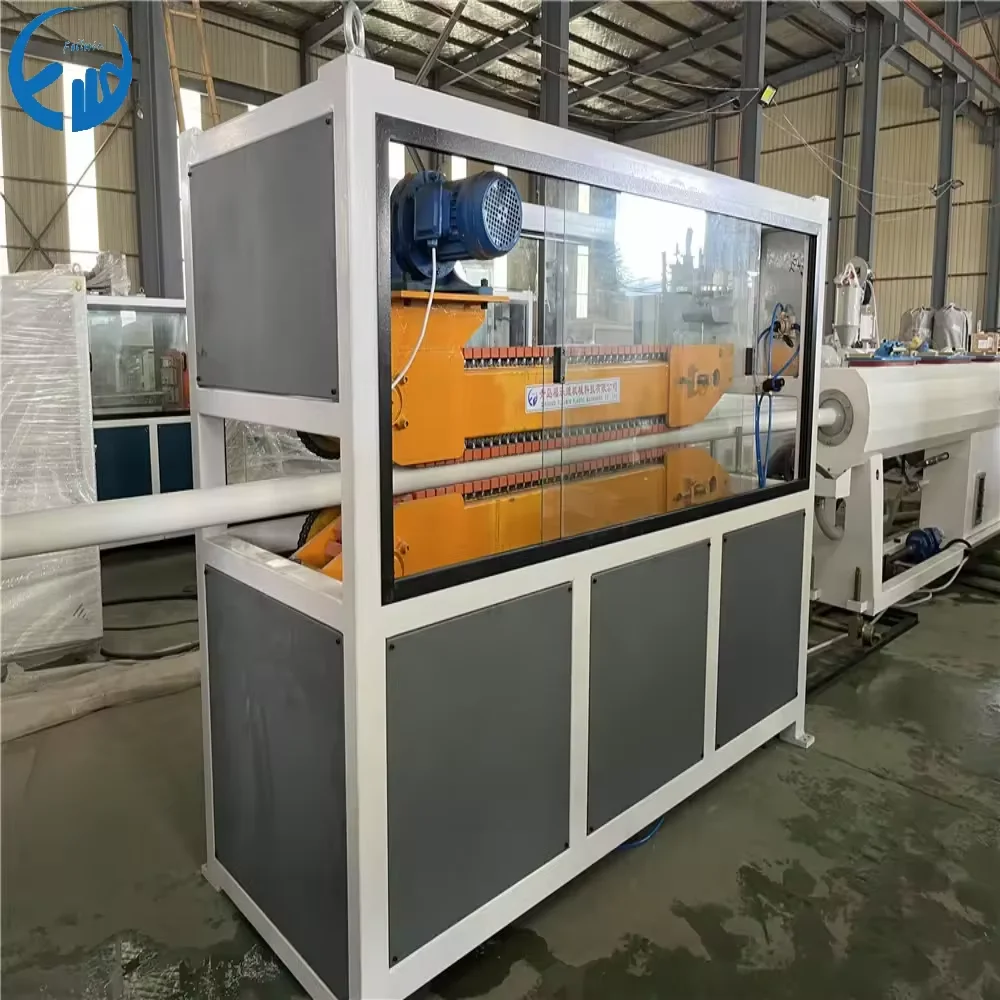

4. Haul off for double PVC pipe manufacture
The length can be set online according to customer requirements.

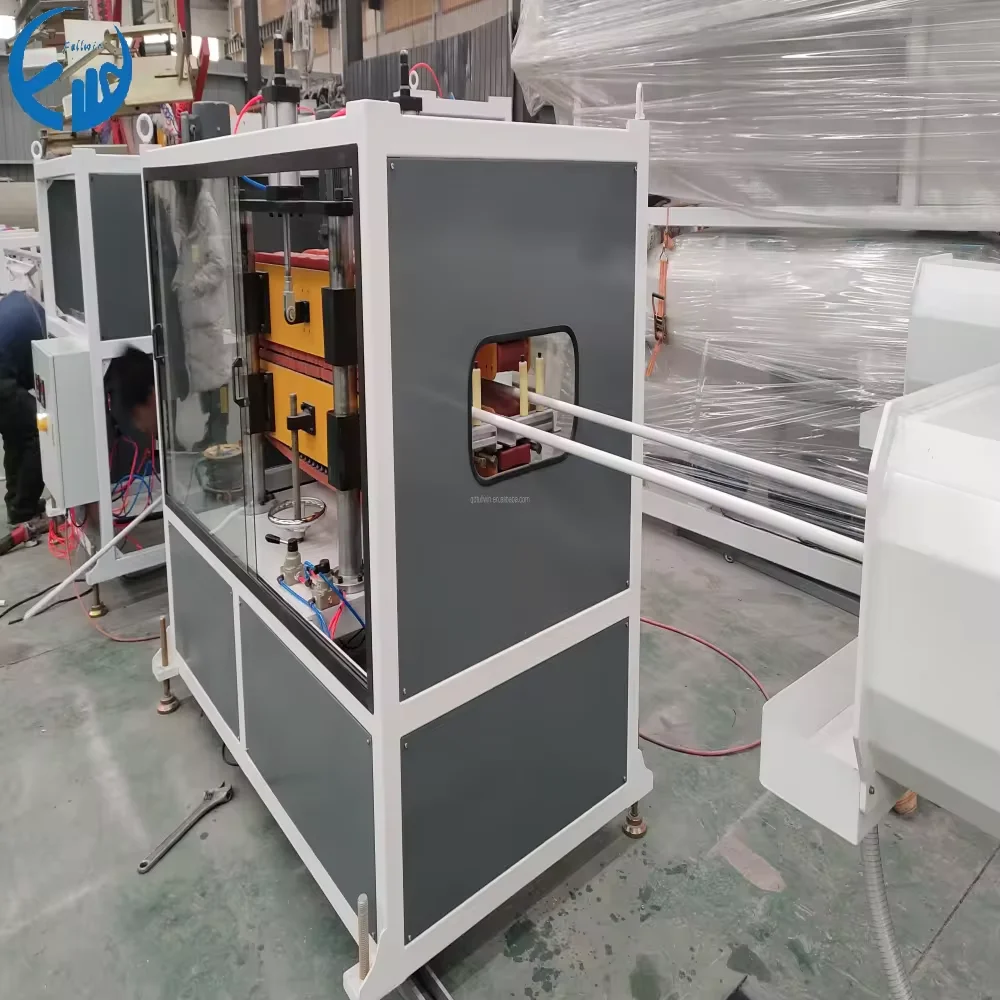

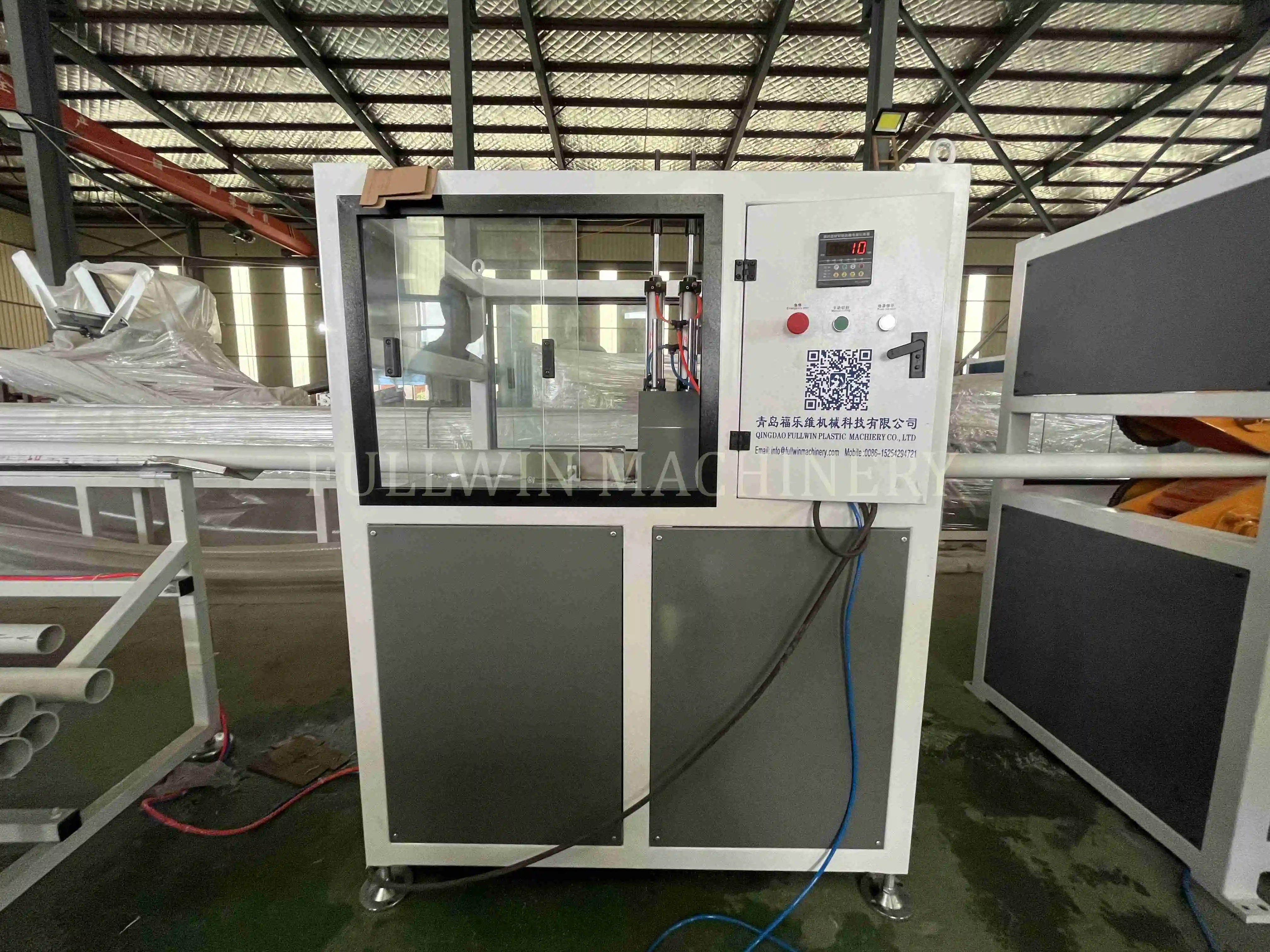

5. Planetary Cutting machine for double pipe
Cutting method:planetary cutting

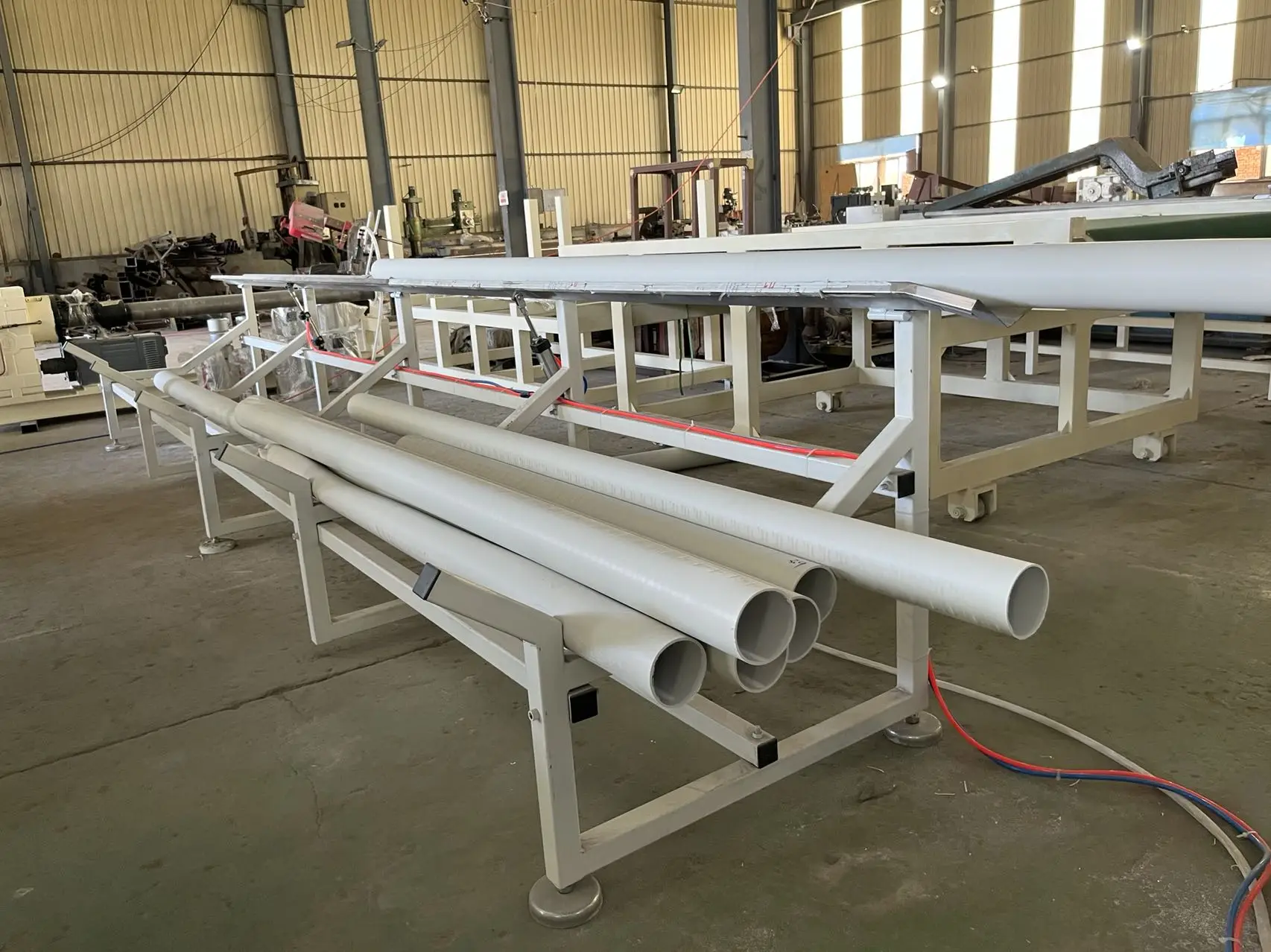

6. Stacker
Mode:Pneumatic （Pneumatic transmission） *Length:6000mm *Adjustable limit switch number:2 pcs

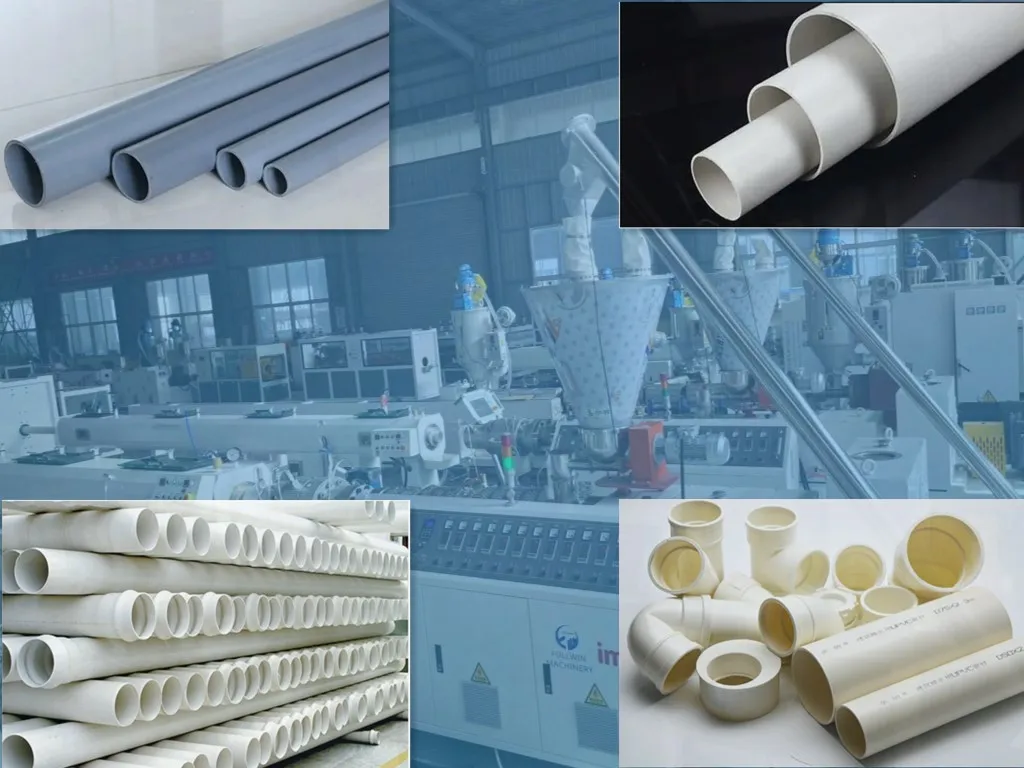

Final products
FULLWIN Main product
Single Wall Corrugated Pipe Machine
Production speed :20-35m/min Pipe Diameter :12-50mm Application :
shisha hookah pipe,electric conduit pipe, construction material etc
shisha hookah pipe,electric conduit pipe, construction material etc
with FULLWIN Unique design and high output
PVC PP PE PPR HDPE Pipe Machine
Diameter : 20-110mm, 125-250mm,315-630mm 630-1200mm
Can be used to produce PPR hot and cold water pipes,PP/PE/HDPE pipes, silicon core tubes.
Can be used to produce PPR hot and cold water pipes,PP/PE/HDPE pipes, silicon core tubes.
Plastic PVC Profile Machine
Mainly used for window profiles, electric trunking, grating panels,wall panel and ceiling panel etc decoration material.Customized
according to different profile sections and molds
according to different profile sections and molds
PE WPC Profiles extrusion machine
The material is the WPC PE, can be molded products have a wood-like look and feel. Widely used in outdoor decking floor,railings,walking trails, outdoor tables
and chairs, benches and pallets.
and chairs, benches and pallets.
PP Hollowness corrugated sheet line
Thickness: 1.6mm-18mm.Width:
915-1800mm.
The size error is small, can nail, can gouge, corrosion resistance, flame retardant strong and many other advantages.
The size error is small, can nail, can gouge, corrosion resistance, flame retardant strong and many other advantages.
PVC marble sheet production machine
With the conical twin screw extruder, with the PVC power material feeding.
The PVC marble sheet widely used for the interior decorate like the home TV walls,hotels,hall decoration, etc
Packing and delivery

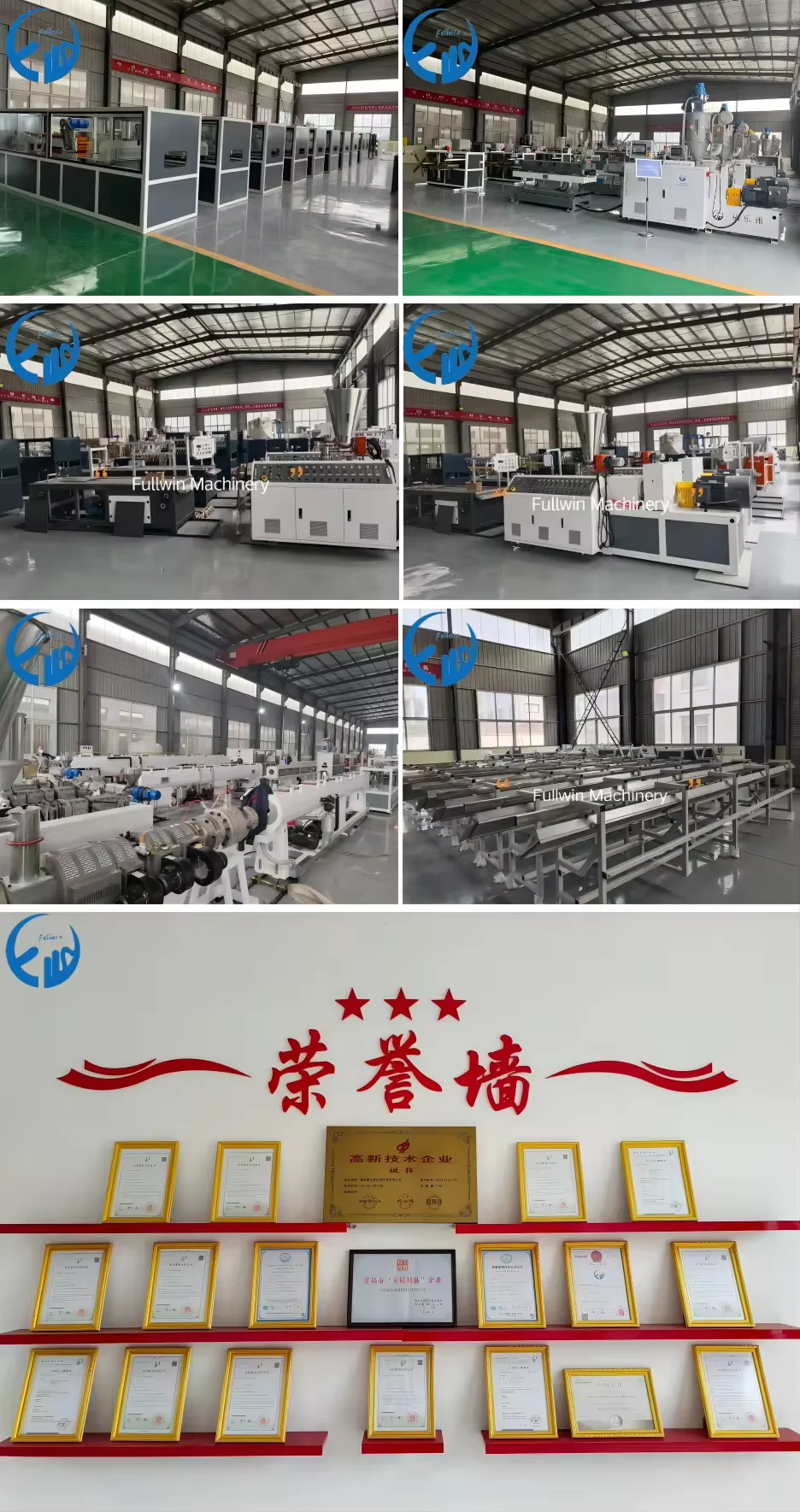

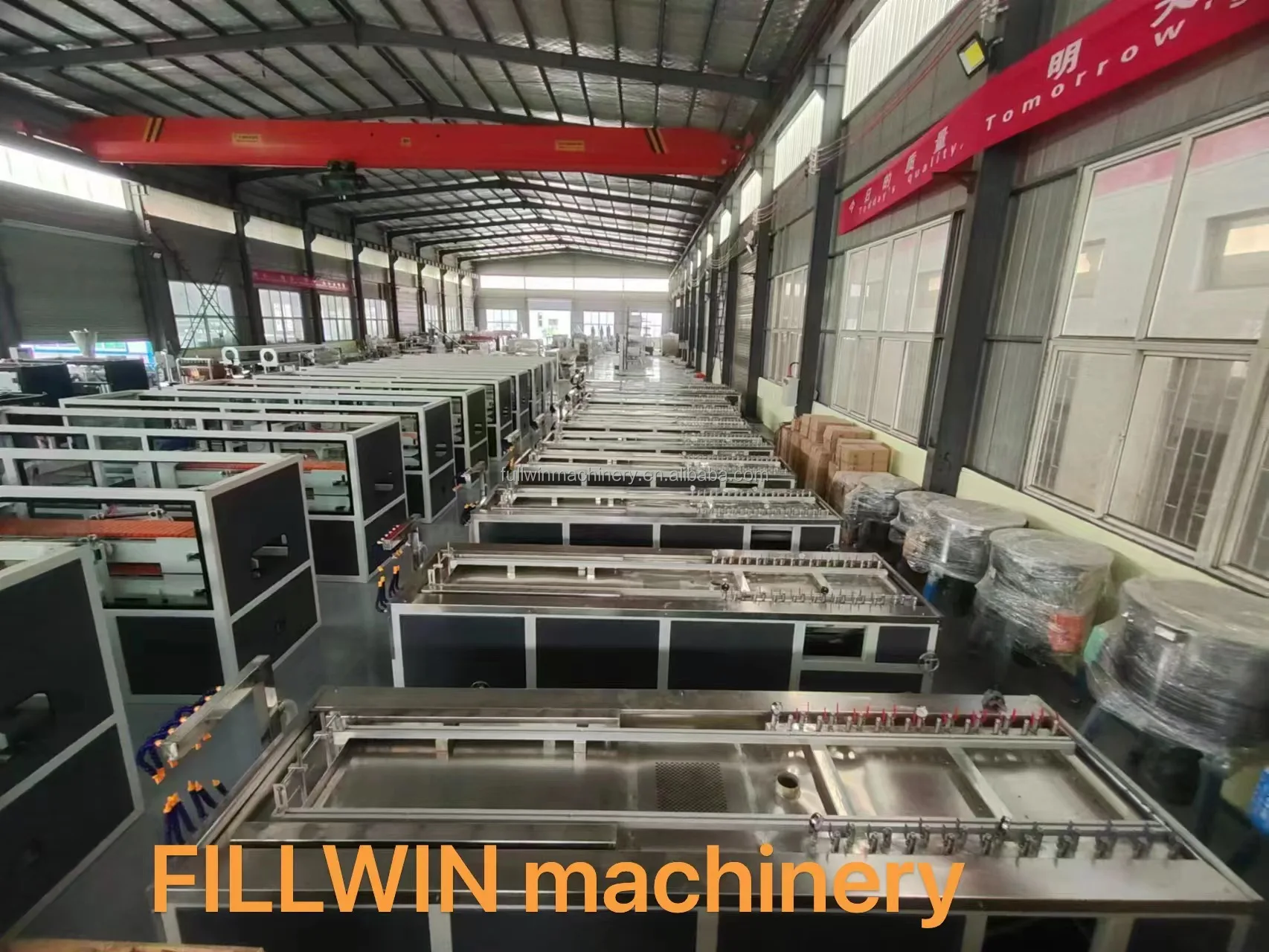

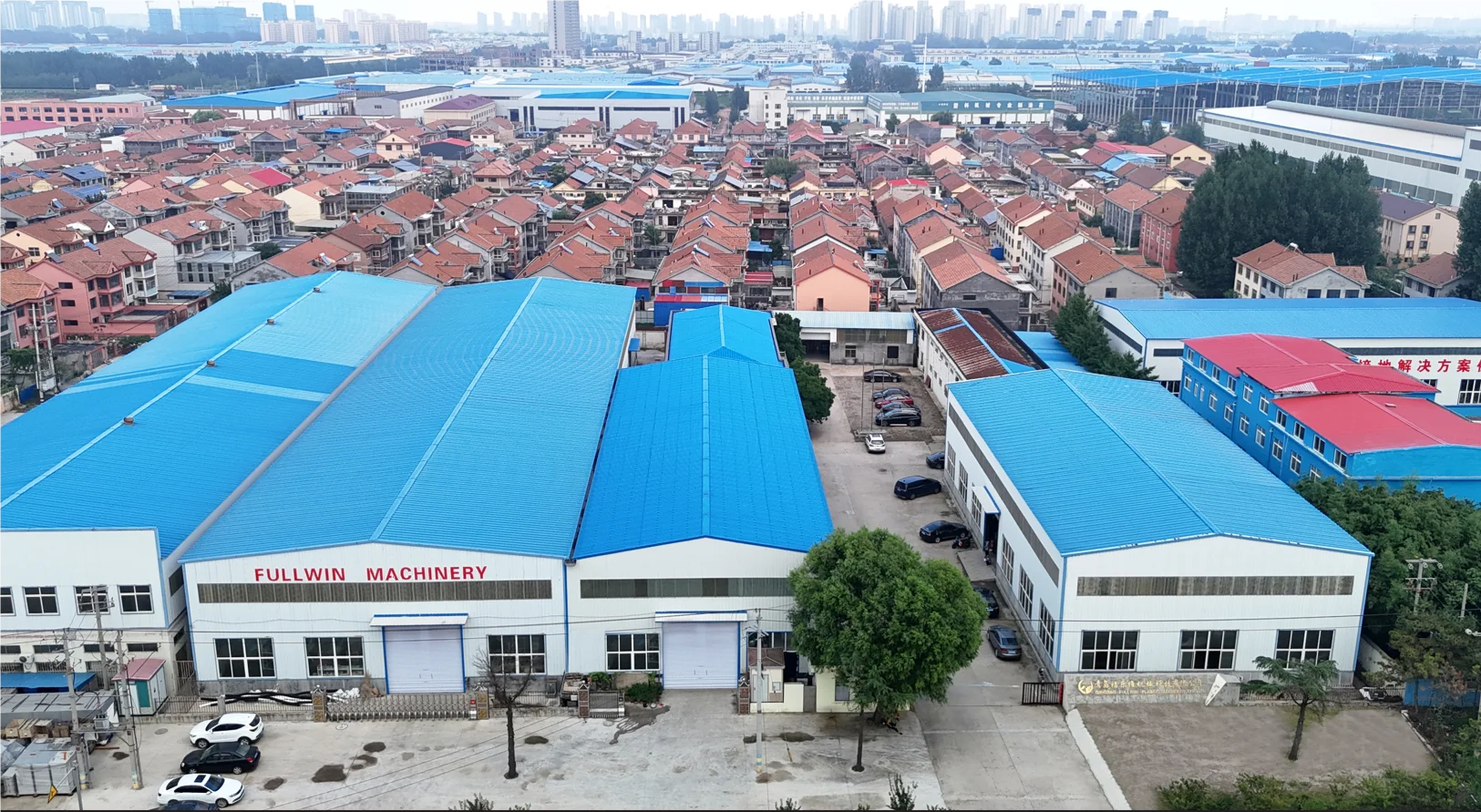

FULLWIN Factory
FULLWIN Customers Vist And Exhibitions
Contact us
Bella wechat/wahtsapp: 0086 15712706927
Email: sales7@qdfullwin.com
Qingdao Fullwin Plastic machinery Co.,Ltd
www.fullwinmachinery.com
