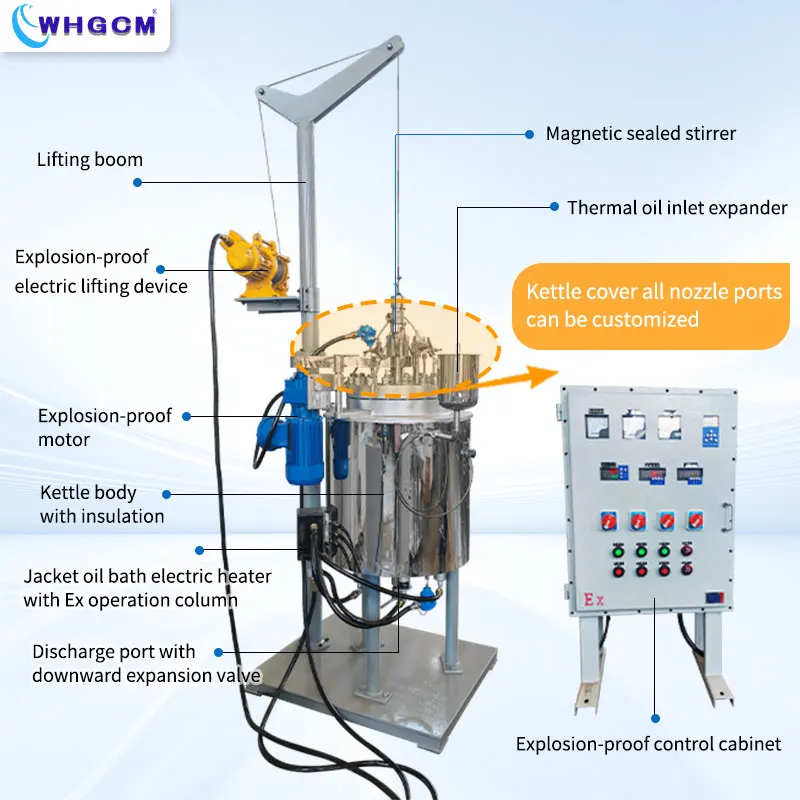

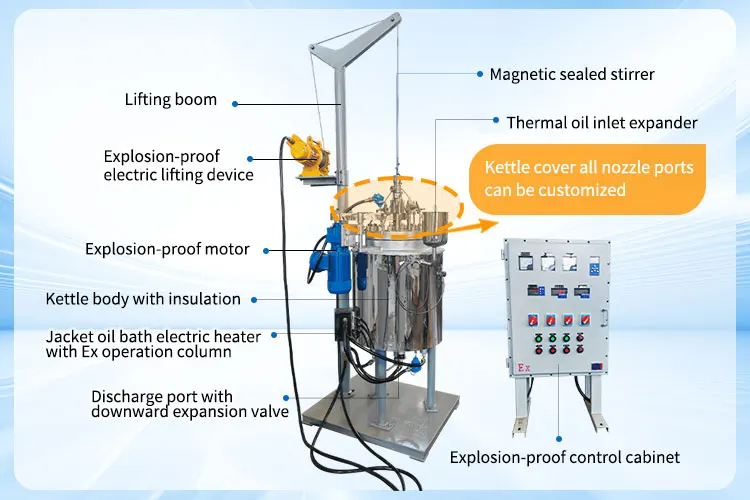

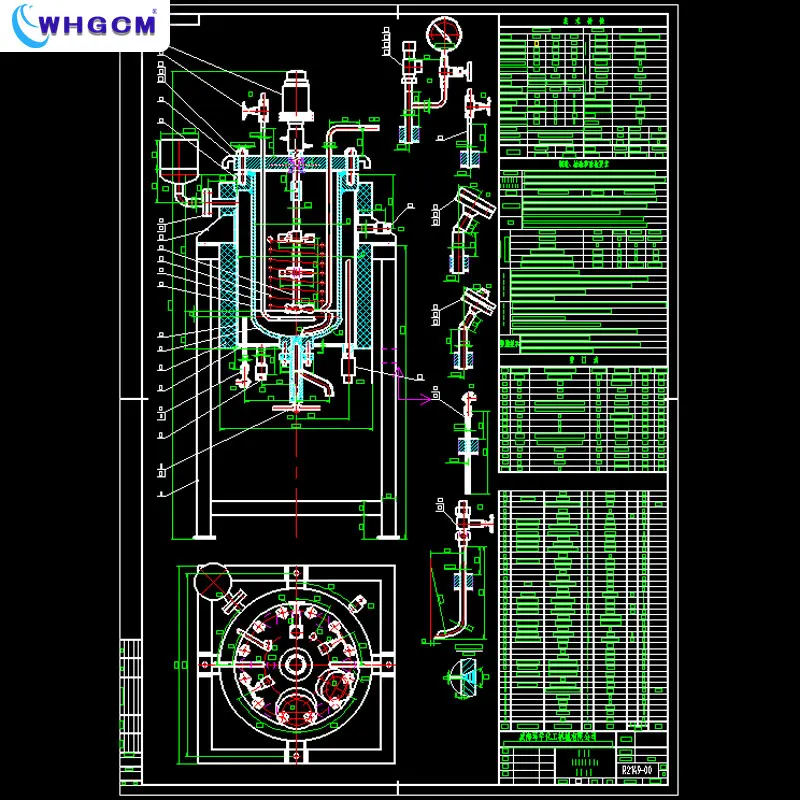

PRODUCT STRUCTURE





PRODUCT SPECIFICATION



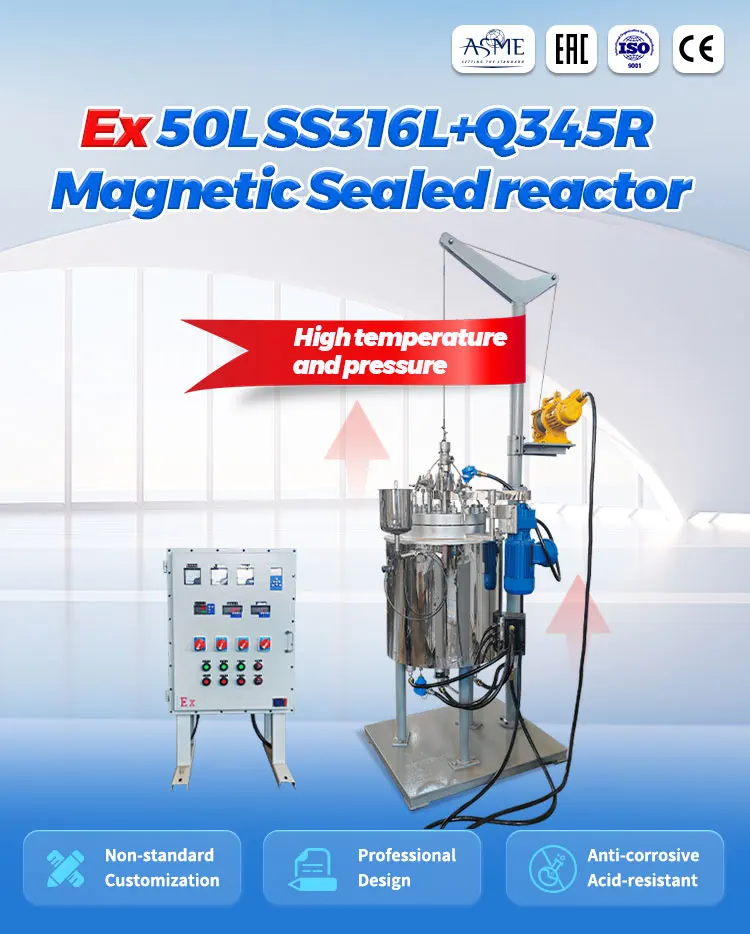

50L Explosion-proof Jacketed Heating Stainless Steel Reactor
Model
GSH-50L
Working volume
50L
Design Pressure
11.5Mpa
Design
temperature ℃
300℃
Motor power/Grade
1.5KW（dIIBT4）
Stirring speed（r/min）
0~200
Sealing type
Magnetic seal
Tank inner & head cover material
SS316L+Q345R Cladding plate
Note
Above all parameters are customizable



PRODUCT STIRRERS









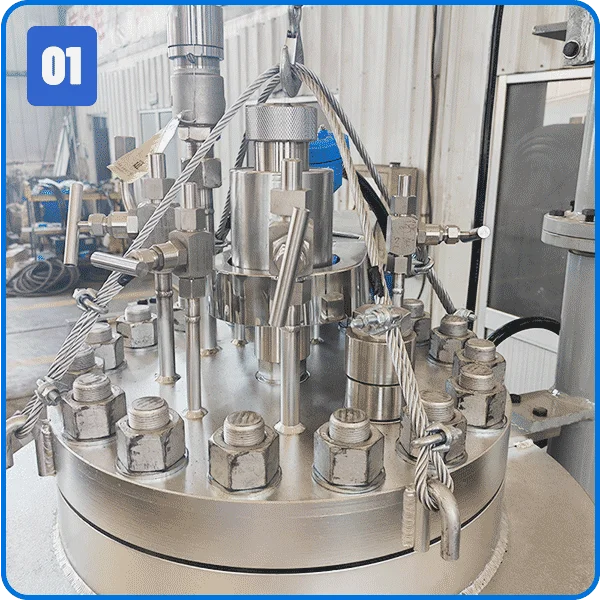

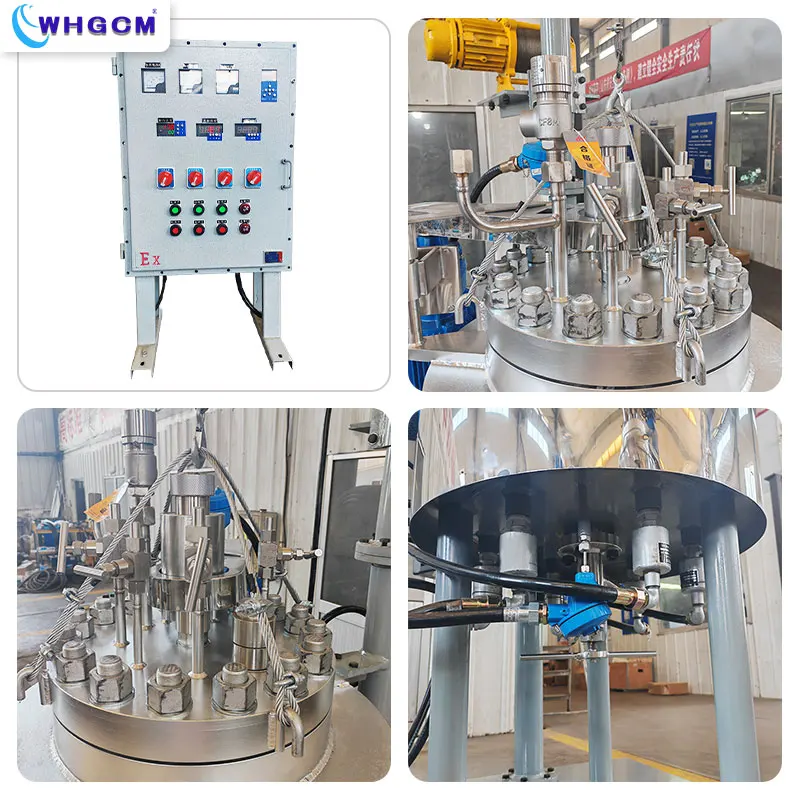

Kettle cover nozzle ports

Reactor cover opening need all nozzle ports are as customized ,such as pressure gauge & thermometer,
Solid-gas-liquid phases feeding port, and vent port etc.













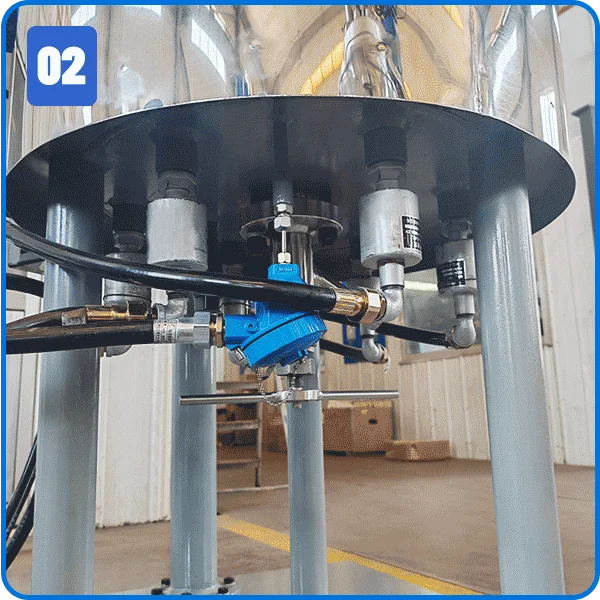

Tank bottom

-Discharge port with downward expansion valve
-Feeding port with blind
-Jacket temperature measuring
-Jacket drain port


Heating type

Ex-proof jacket thermal oil electric heating

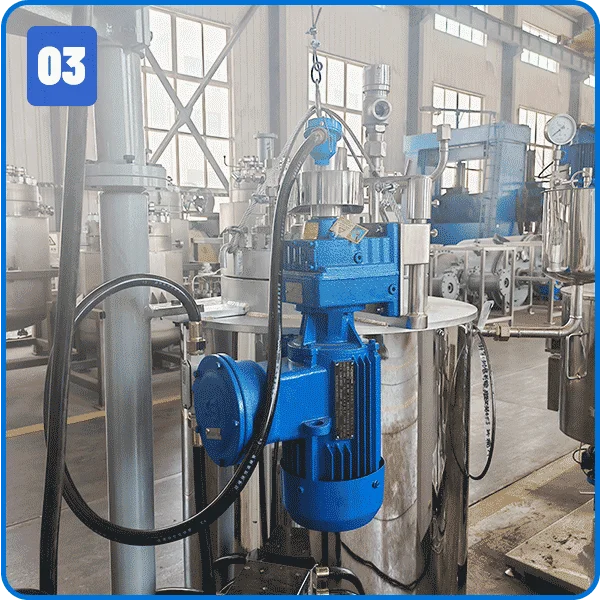

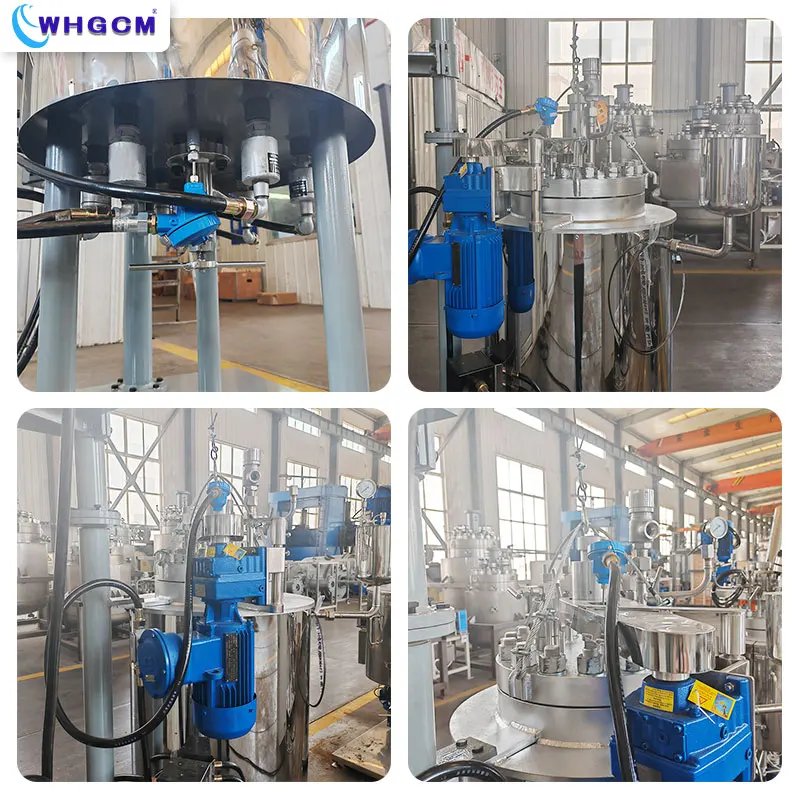

Ex Stirrer motor

-Side-pull mounted
-Explosion-proof dIIBT4 grade
-With belt guard cover
-The quality is stable and reliable





Pilot Reactor Technical Parameters
Working Volume (L)
50
100
200
300
500
Structure Type
Open Style
Connect Kettle Lid and Kettle Body by Bolts and Nuts on Flange






Working pressure
Negative pressure -0.1~20.0 (MPa)
Working temperature
-196-500°C
Motor power (W)
1.1
1.5
2.2
3
4
Heating power (KW)
9
15
18
18
36
Heating type
Direct Electric Heating Fumace, Electric Heater with Thermal Oil Bath, Jacket Circulation with Thermal oil/steam/melt salt
Discharging type
Discharging from bottom, sampling from kettle lid
Mixing Shaft
Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed.
Stirring type
Impeller, Paddle, Anchor, Turbine, Self-suction, Frame, Screw, Belt, or as per customer's request.
Seal type
Magnetic Seal, Mechanical Seal, Packing Seal.
Motor
Ordinary AC motor, or Explosion-Proof motor as per customer request.
Reactor material
Contacting material inside kettle mainly use SUS304, SUS316L,SUS321, SUS310, as well as titanium, nickel. zirconium, hastelloy.etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium.
Kettle lid open port
Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc(safety valve) port, Cooling water inlet/outlet port(or Visual Glass Port and other port according to working pressure).
Controller Device
Equipped with auto PlD or PLC controller,Display & control Mixing Speed and Heating Temperature, self-adjustment function,temperature control accuracy +1°C;
Control other instruments, like flow meter, level meter, valves according to reaction
process.




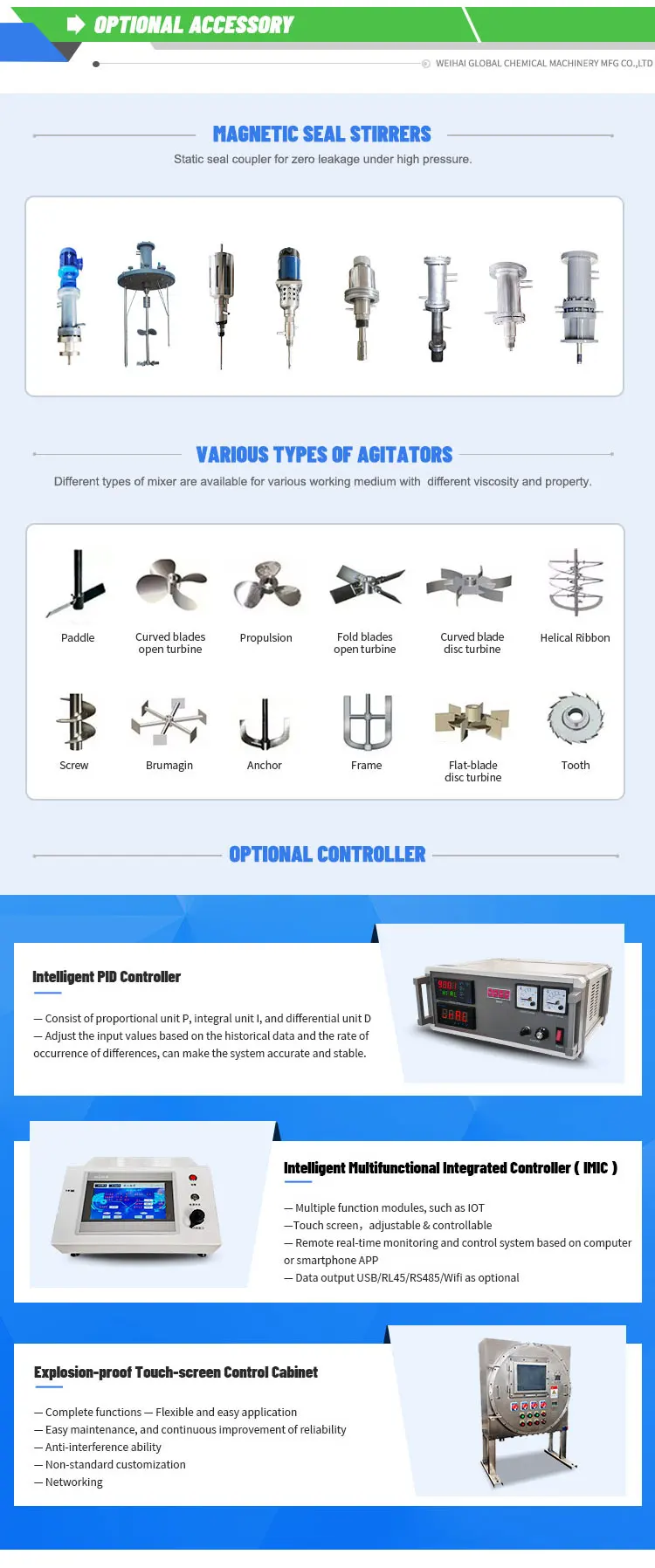

MAGNETIC SEAL STIRRERS
Static seal coupler for zero leakage under high pressure.

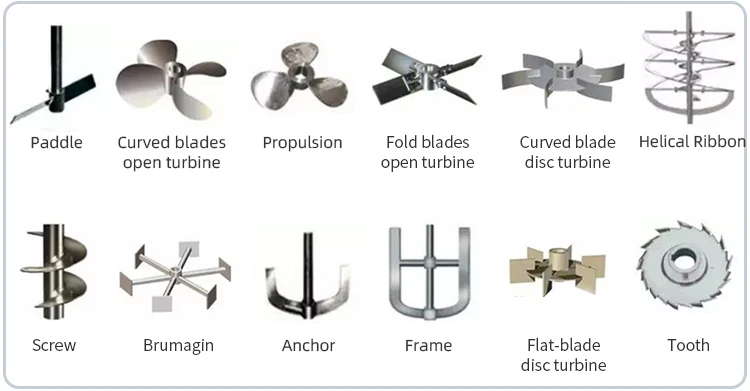

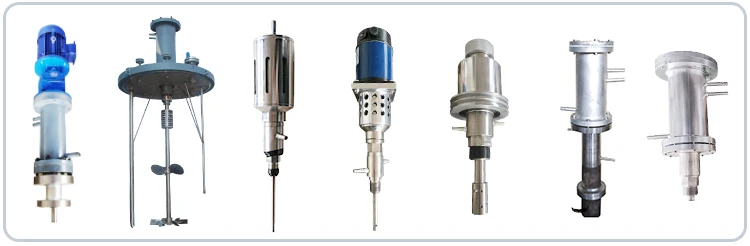

VARIOUS TYPES OF AGITATORS
Different types of mixer are available for various working medium with different viscosity and property.

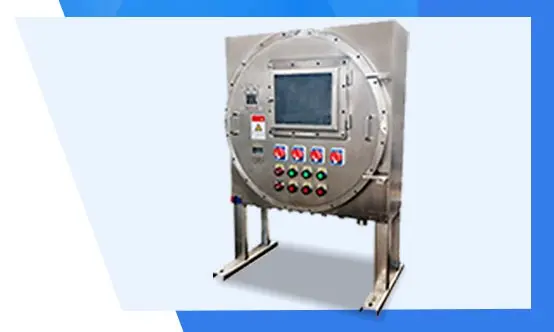

OPTIONAL CONTROLLER

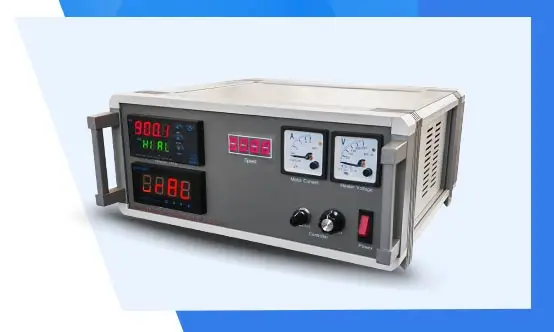

Intelligent PID Controller
— Consist of proportional unit P, integral unit I, and differential unit D
— Adjust the input values based on the historical data and the rate of
occurrence of differences, can make the system accurate and stable.

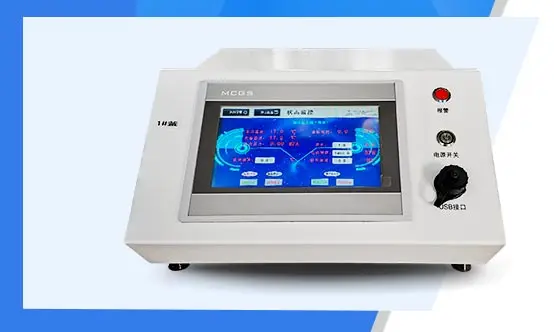

2. Intelligent Multifunctional Integrated Controller ( IMIC )
-Multiple function modules, such as IOT —Touch screen，adjustable & controllable
— Remote real-time monitoring and control system based on computer or smartphone APP
— Data output USB/RL45/RS485/Wifi as optional



3. PLC Controller
— Complete functions — Flexible and easy application
— Easy maintenance, and continuous
improvement of reliability
— Anti-interference ability
— Non-standard customization
— Networking





COMPANY PROFILE





WEIHAI GLOBAL CHEMICAL MACHINERY MFG CO., LTD
+Professional design team led by experts with 40 years experience, and Qualified manufacturer in Chemical Machinery Industry:Reactor & Pressure Vessel etc.
+ASME-U CE EAC ISO EPR Certificates & Special Equipment Licenses: Reactor & Pressure vessel Designing & Manufacture.
+Stronger Professional Technical Engineers Team,with Pre-sales providing design drawing and solution by free, and after-sales tracking service.
+R&D Center, Products & Process Center, Marketing & Promotion Center, Customers service Center,Planning Center
+According to your requirements and specifications, manufacturing customized various reactors and pressure vessels is our specialty, especially new processes such as high temperature & high pressure, magnetic sealing with zero leakage, hydrogenation, stirring systems, the application of various non-ferrous metals and other special materials, integrated automatic control of single and kettles group with IoT remote control and real-time monitoring systems.
+Please send us your inquiry or requirements, we will offer you the solution with design drawing & quotation, until products' lifetime service is our vision.
