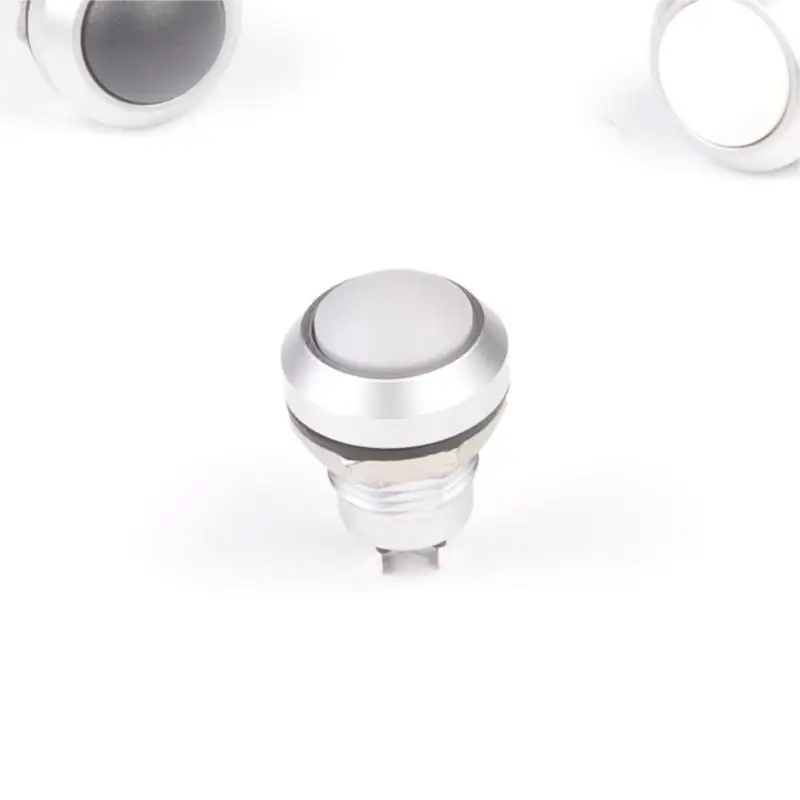

Toowei mini micro lamp less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat
Toowei mini micro lamp-less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat
Toowei mini micro lamp-less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat
Toowei mini micro lamp-less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat
Toowei mini micro lamp-less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat
Toowei mini micro lamp-less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat
Toowei mini micro lamp-less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat

Toowei mini micro lamp less momentary push button switch white round metal 12mm 3a 220 volt ip67 for boat

Share on (1601270577958):


Price:$1.90 - $2.24

Quantity:


Product Overview

Description





Products Description


A4126 series waterproof push button switch, protection degree reach IP67, installation size is 12mm. According to the material, it has metal push button switch and plastic push button switch. All the switches has self-locking and momentary two differentkinds. If equip with LED light, colour can be customised based on the customer's request. It widely used in beauty equipment, small yacht, lamps, medical equipment, military communication intelligent network equipment and the other instruments.


Part number
4127.8111.18
Function
latching
Dimension
12MM
Button Color
Red
Light color
Red
Shell material
Black plastic


Details Images








Product Paramenters



Technical Parameter

1. Operating force ≤6Nf, best range is 5Nf~6Nf, Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A, rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10. Base Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
12. Self-locking, with red light
