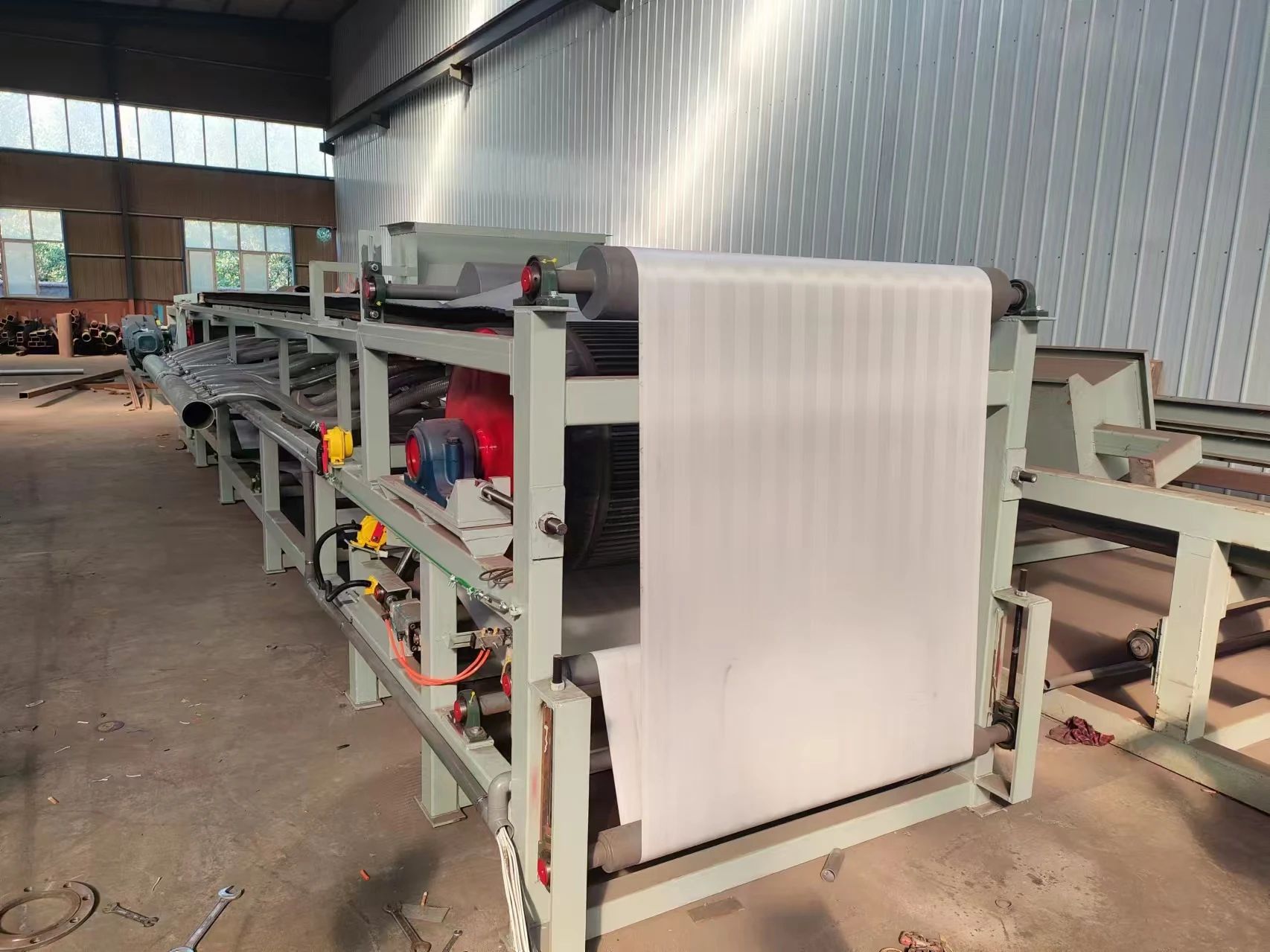

Vacuum Belt Filter Press Wastewater Sewage Treatment Sludge Dehydration Machine Automatic Efficient Continuous Cheap price
- Category: >>>
- Supplier: Shandong Kangtailong Intelligent Equipment Co. Ltd.
Share on (1601270645860):
Product Overview
Description
Product introduction

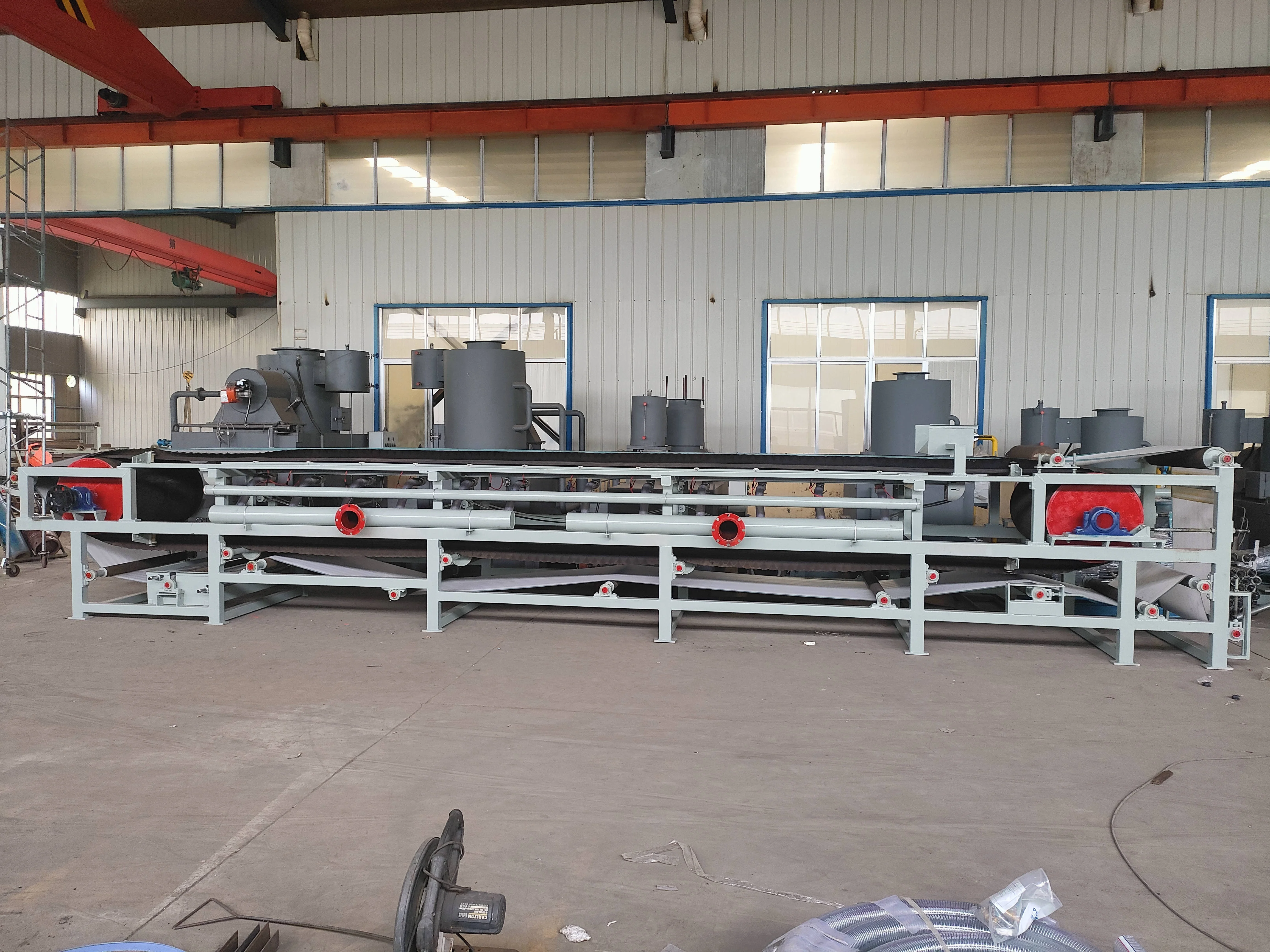

The vacuum belt filter is the equipment which realizes solid-liquid separation with vacuum negative pressure as the driving force.
In terms of structure, the filter section is arranged along the horizontal length direction, which can continuously complete the filtration, washing, suction, filter cloth regeneration and other operations. It has the advantages of high filtration efficiency, large production capacity, good washing effect, low moisture content of filter cake, flexible operation and low maintenance cost.
It can be widely used in metallurgy, mining, chemical industry, paper making, food, pharmaceutical, environmental protection and other fields of solid-liquid separation, especially in flue gas desulfurization (FGD) gypsum dehydration has a good application
It can be widely used in metallurgy, mining, chemical industry, paper making, food, pharmaceutical, environmental protection and other fields of solid-liquid separation, especially in flue gas desulfurization (FGD) gypsum dehydration has a good application
Product characteristics
1.Simple and easy to operate and maintain.
2.Drier filter cake and low moisture content of filter cakes: it makes full use of gravity and vacuum suction to separate the liquid from the solid, especially for taillings processing. 3. Horizontal surface:this design assures regular cake thickness which provides flexibility of operation.
4.The bearing way of the tape: this machine equipped with rollers, which can reduce the friction when rubber belt works, long service life of belt.
5,.Modular frame structure of vacuum belt filter: it ensure that rubber belt can be installed easily,dismantled easily, and
maintained easily.
maintained easily.
6.Using a fixed vacuum box:rubber belt moves on the box and form the moving seal together with box, the sealing water can be functioned as the lubricant as well as the coolant.
7.24 hours continuous filtration of vacuum belt filter: it can work without break, large processing capacity, saving labor.

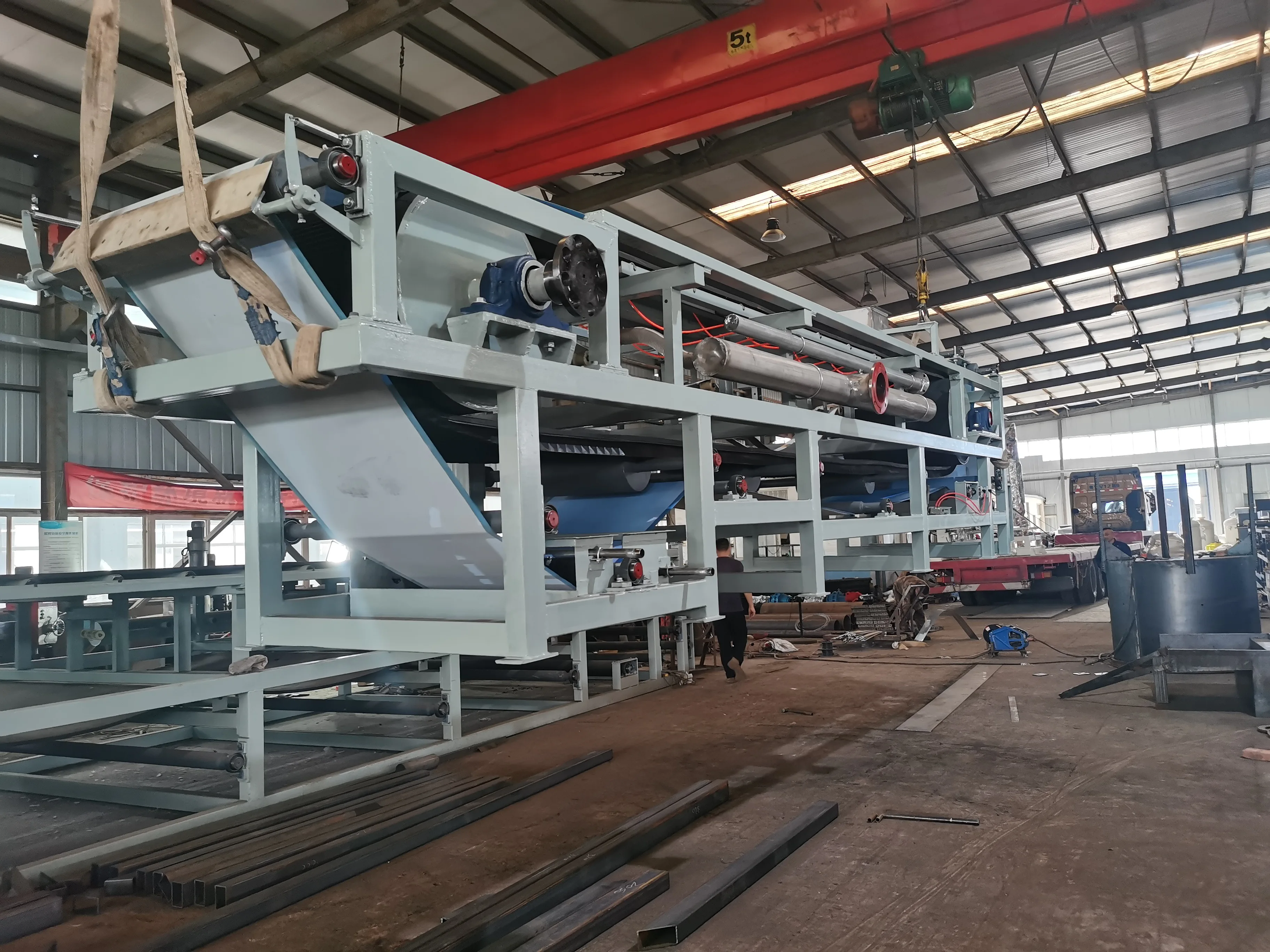

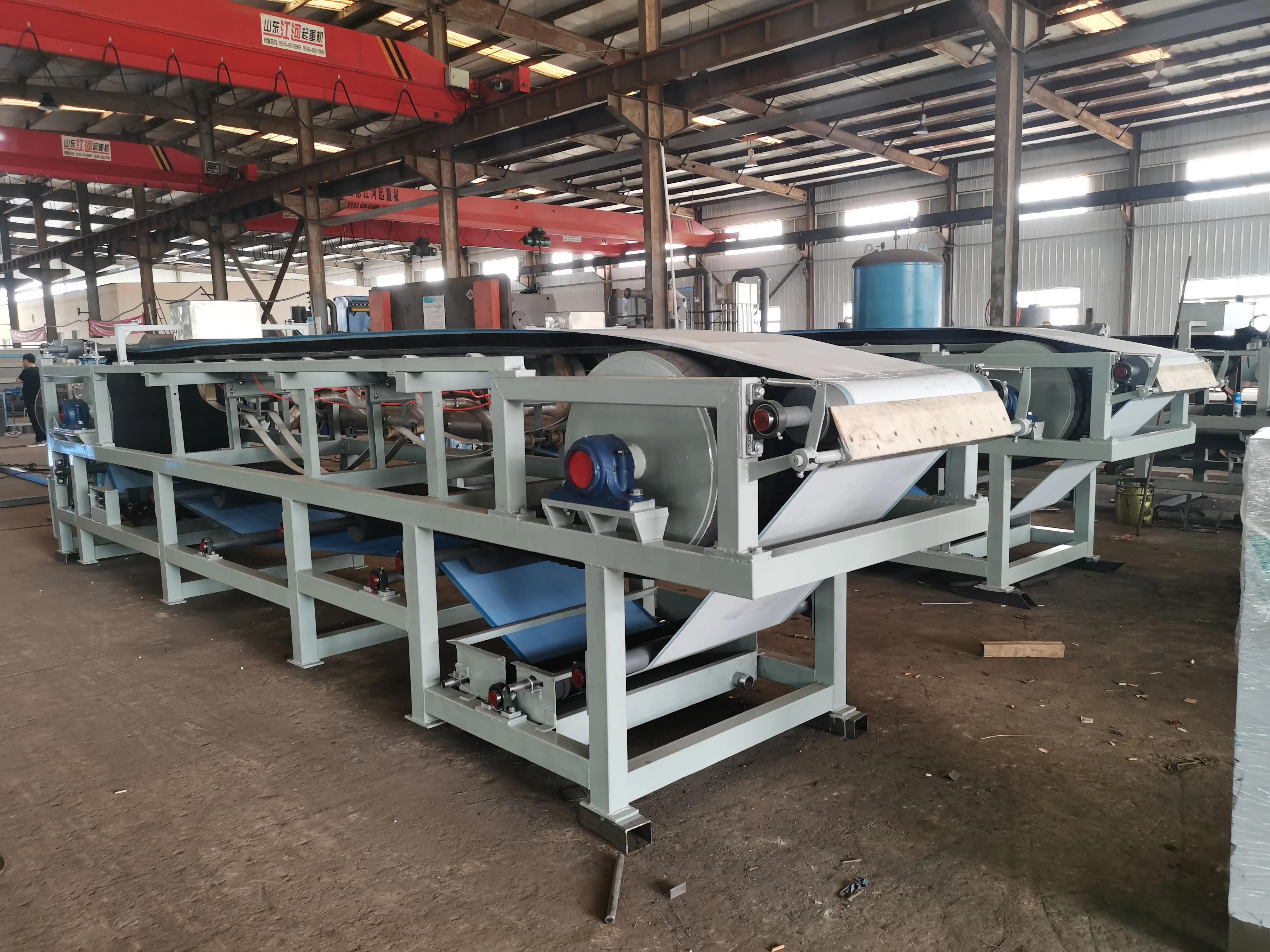

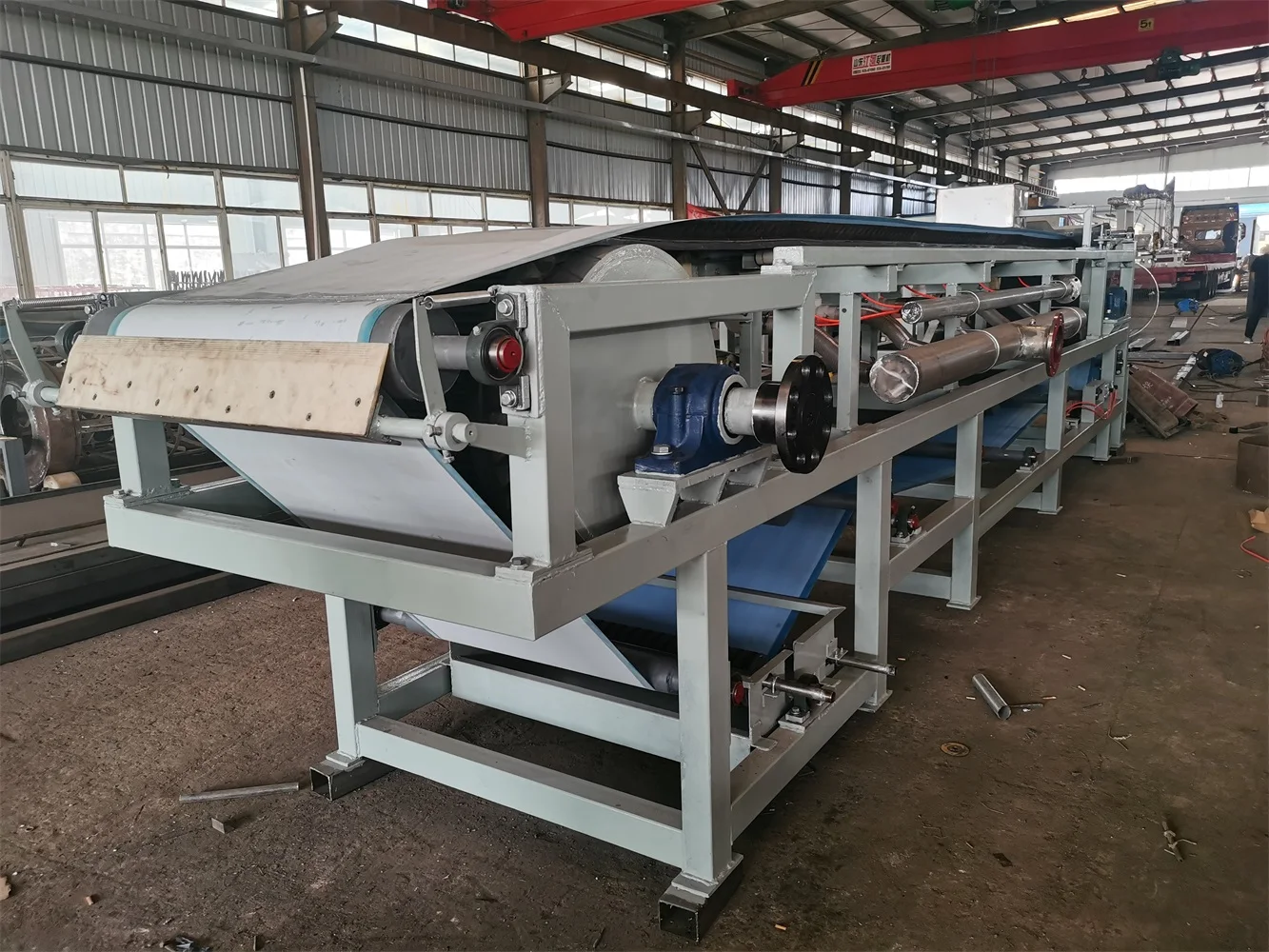

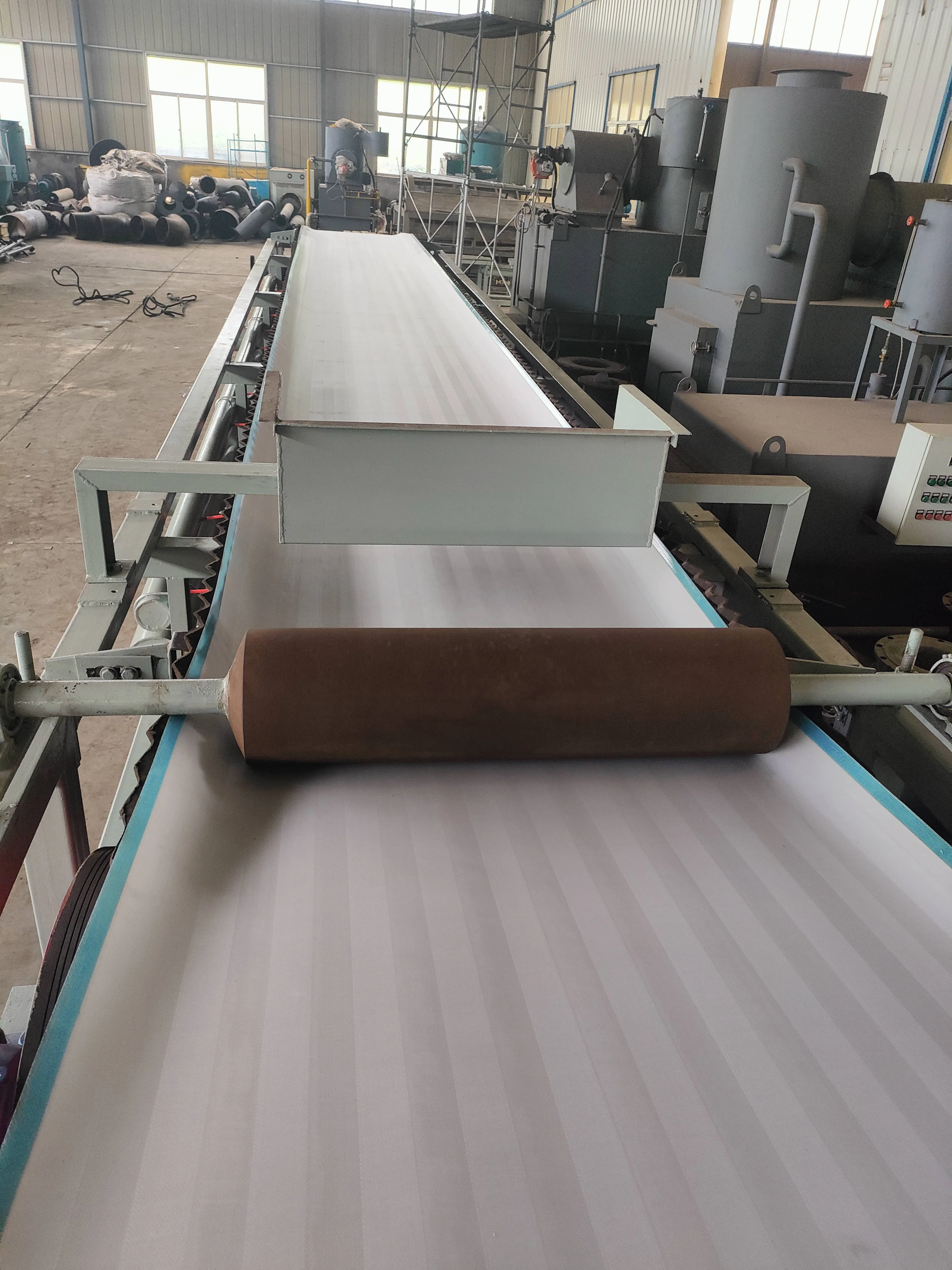

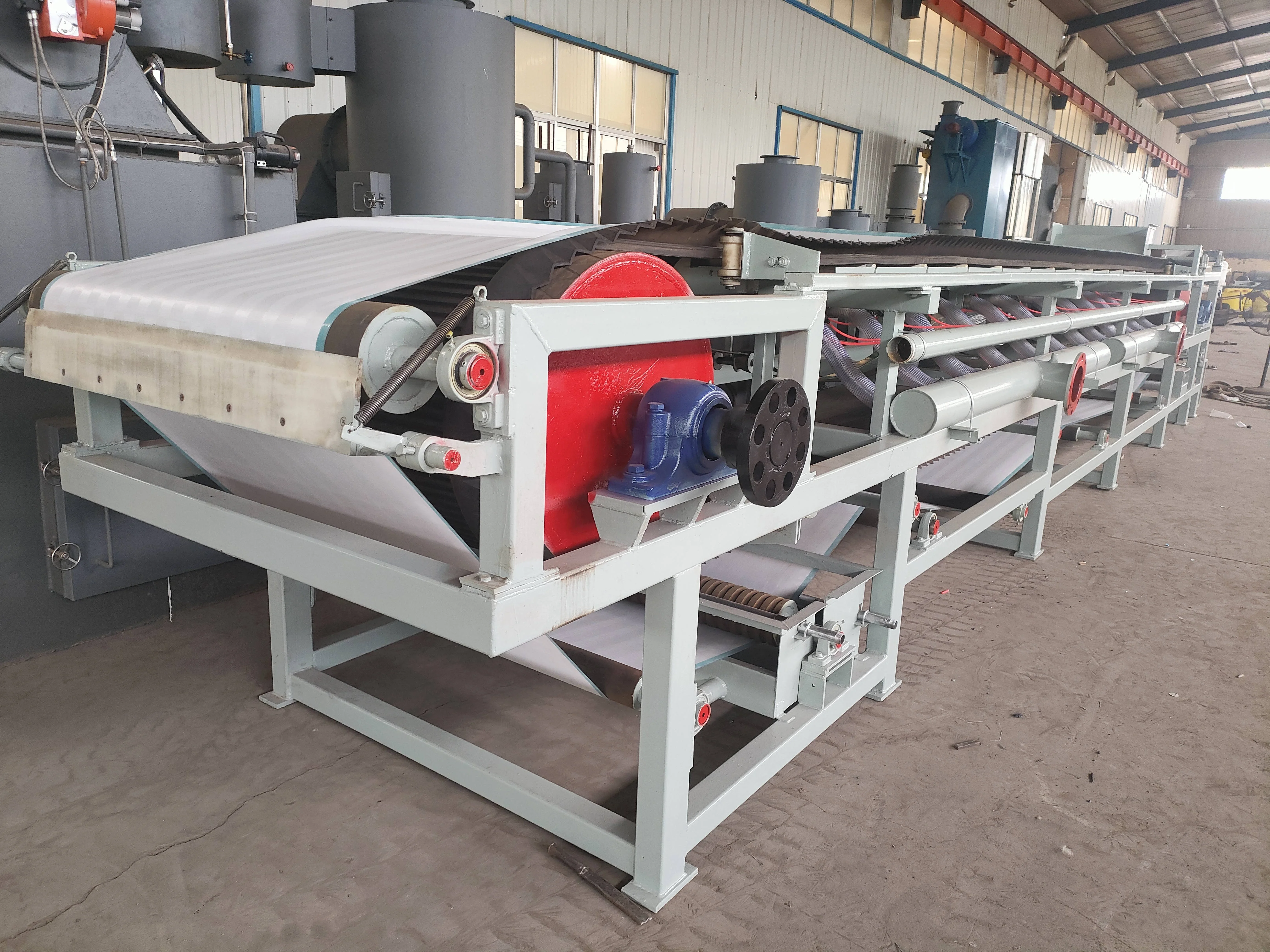

Equipment Details
Technical parameter
Model | Filter area(㎡) | Filter the effective width(mm) | Filter length(mm) | The total length of the machine(mm) | Width of the machine(mm) | The fuselage height(mm) | Vacuum consumption(m³/min) |
ZG-400 | 1.0 | 400 | 2500 | 4500 | 1800 | 2060 | 2 |
ZG-1300 | 7.3 | 1300 | 5600 | 9800 | 14 | ||
9.1 | 7000 | 11200 | 18 | ||||
10.9 | 8400 | 12600 | 22 | ||||
14.6 | 11200 | 15400 | 25 | ||||
18.2 | 14000 | 18200 | 28 | ||||
20.0 | 15400 | 20000 | 30 | ||||
ZG-1800 | 20.0 | 1800 | 11200 | 15100 | ~2430 | ~2180 | 30 |
25.0 | 14000 | 17900 | 36 | ||||
30.0 | 16800 | 20000 | 40 | ||||
ZG-2000 | 20.0 | 2000 | 10000 | 14200 | ~2700 | ~2180 | 30 |
25.0 | 12500 | 16700 | 36 | ||||
29.0 | 14000 | 19500 | 38 | ||||
33.6 | 16800 | 22300 | 42 | ||||
39.2 | 19600 | 25100 | 55 |

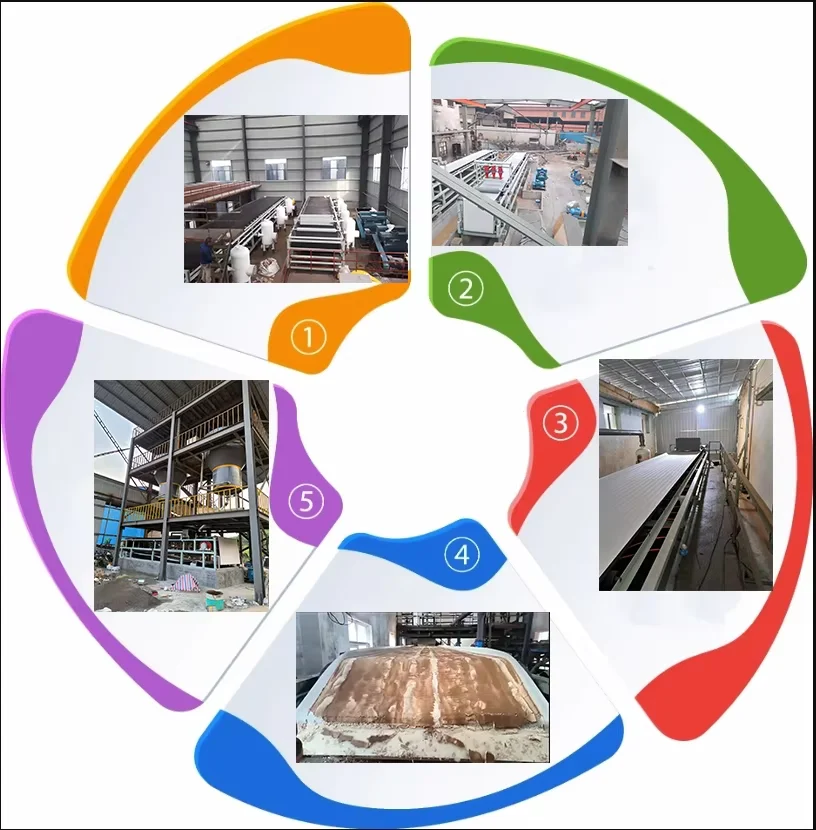

Equipment application
Customer site visit

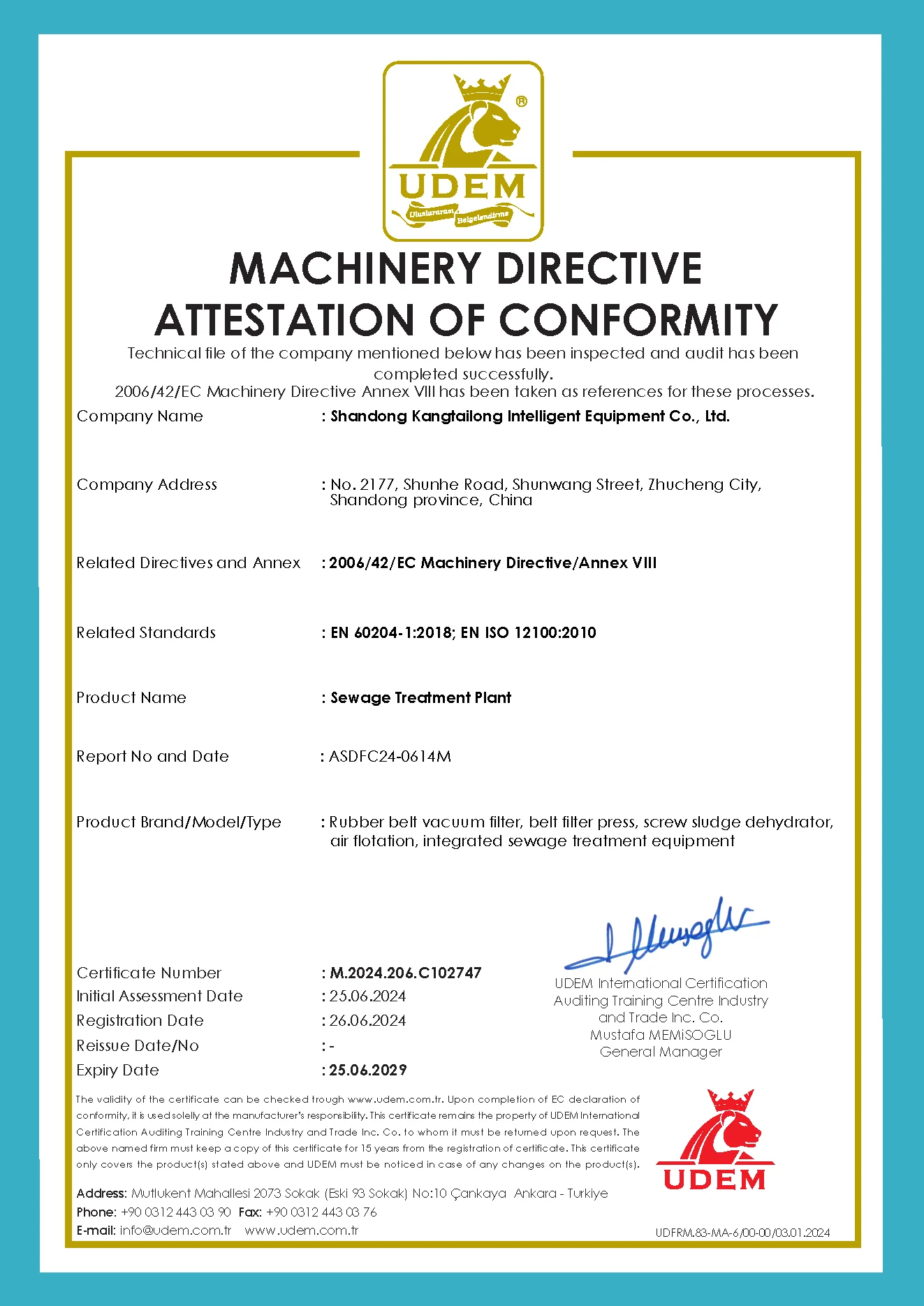

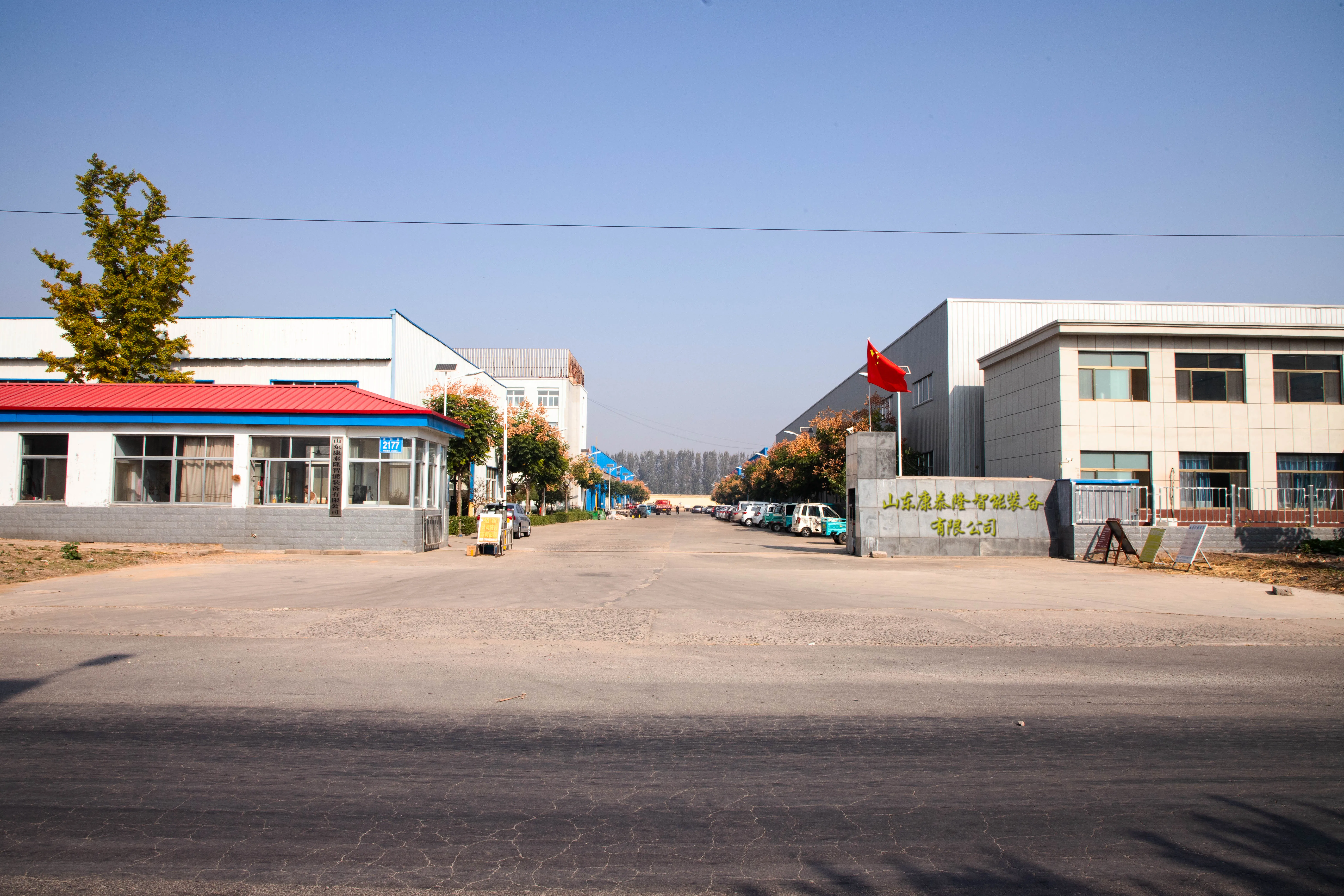

About us

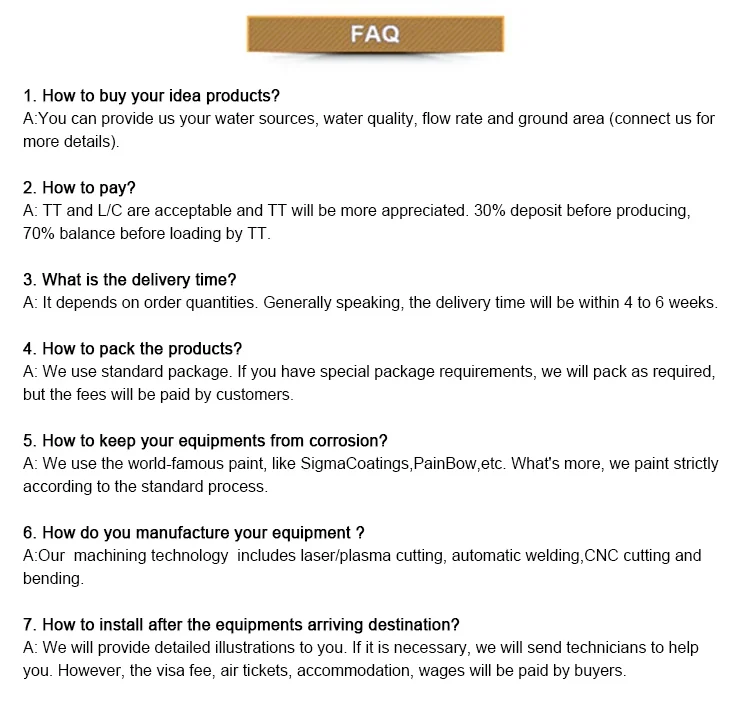

FAQ
