Silicone sealant mixer making machine production line
US $600.00-$650.00
Pilot Double Planetary Dispersing Mixer High Viscosity Liquid Mixer Double Planetary Mixer For Manufacturing Paint
- Category: >>>
- Supplier: Qinhuangdao Yushun Intelligent Technology Co. Ltd.
Share on (1601271020529):
Product Overview
Description

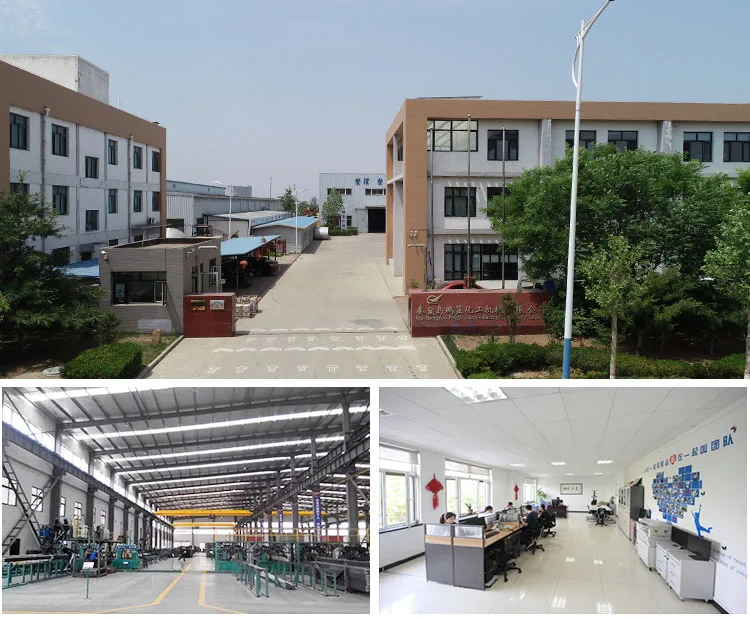

Our Company
Qinhuangdao Yushun Intelligent Technology Co., LTD
Yushun Intelligent Co., Ltd., established in 1995, is a leading supplier of nano grinding and high-speed mixing equipment. With nearly 30 years of experience, we specialize in wet grinding, dispersion, stirring, and mixing equipment, offering intelligent systems and one-stop services.
Our headquarters are in Qinhuangdao, Hebei Province, a key transportation hub in China’s Bohai Sea Economic Zone. This location facilitates our connections with both domestic and international markets.
Recently, we’ve expanded into new materials and energy sectors, providing advanced equipment for lithium batteries and ceramic diaphragms. We meet the high standards for intelligent and eco-friendly manufacturing in these industries.
We have a dedicated international trading team and strategic partners in Russia, Egypt, Singapore, and more. Our products are well-received in the USA, India, Australia, and other countries.
Committed to quality, reliable service, and customer satisfaction, we focus on innovation and market responsiveness. Yushun Intelligent Co., Ltd. looks forward to partnering with you!
Our headquarters are in Qinhuangdao, Hebei Province, a key transportation hub in China’s Bohai Sea Economic Zone. This location facilitates our connections with both domestic and international markets.
Recently, we’ve expanded into new materials and energy sectors, providing advanced equipment for lithium batteries and ceramic diaphragms. We meet the high standards for intelligent and eco-friendly manufacturing in these industries.
We have a dedicated international trading team and strategic partners in Russia, Egypt, Singapore, and more. Our products are well-received in the USA, India, Australia, and other countries.
Committed to quality, reliable service, and customer satisfaction, we focus on innovation and market responsiveness. Yushun Intelligent Co., Ltd. looks forward to partnering with you!
Application Fields
Yushun intelligent Co., Ltd. ---- Grinding、Dispersing、Mixing Equipment Specialist
Material viscosity | ≤ 1,000,000 cps |
Production capacity | 2-3000L (working volume) |
Application industry | It is suitable for dispersing and mixing materials in high viscosity slurry, like Engineering Adhesives, New Energy, Electric Slurry Paste, Chemical Paste. |
Applicable materials | All kinds of paste with viscosity less than 1,000,000 cps, solid content under 90%, such as lithium battery paste, solder paste, ceramic paste, silicone ink, sealant, structural adhesive, ointment, Composite filling material, Phase Change Material, Dental Paste, etc. |
Feature | Various types of blades can be selected according to the viscosity and characteristics of the material; It is equipped with pressing equipment for discharging and can be equipped with vacuum systems and heating systems. |
Product Description

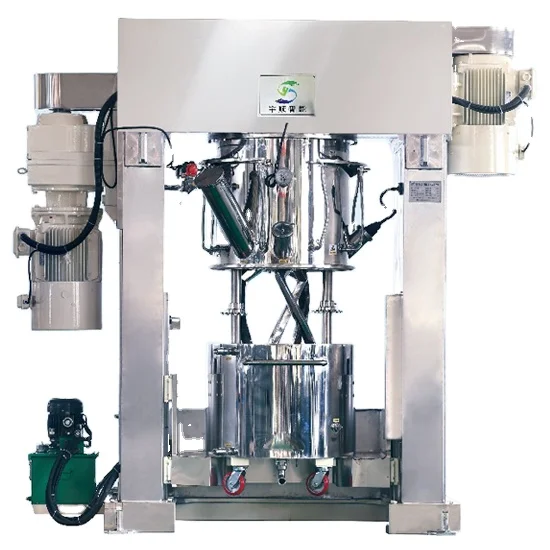

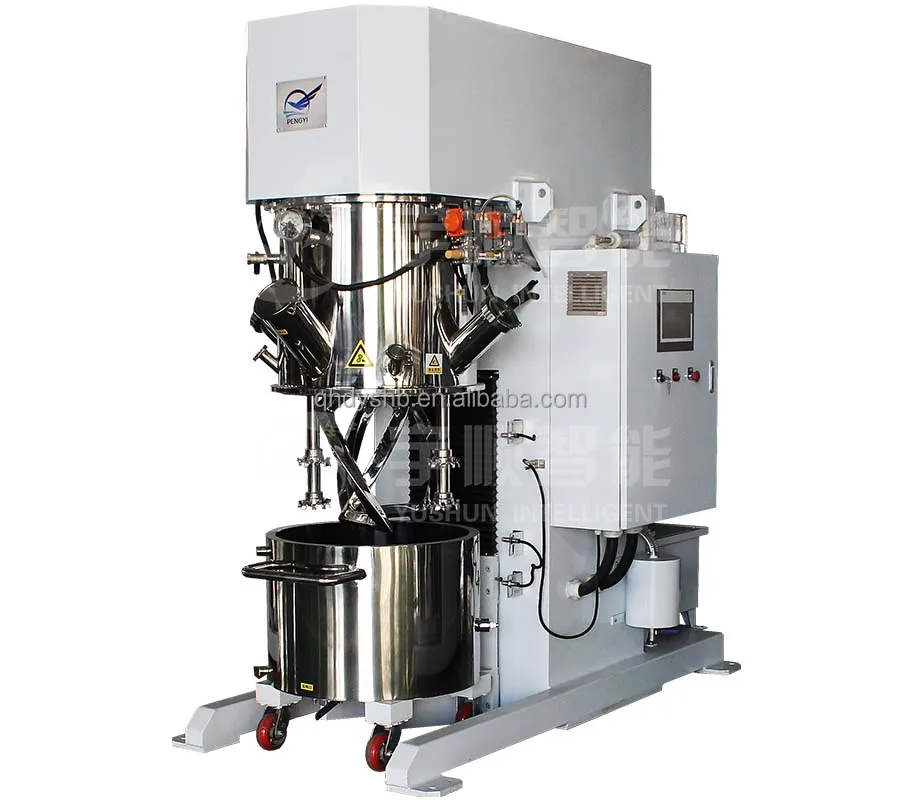

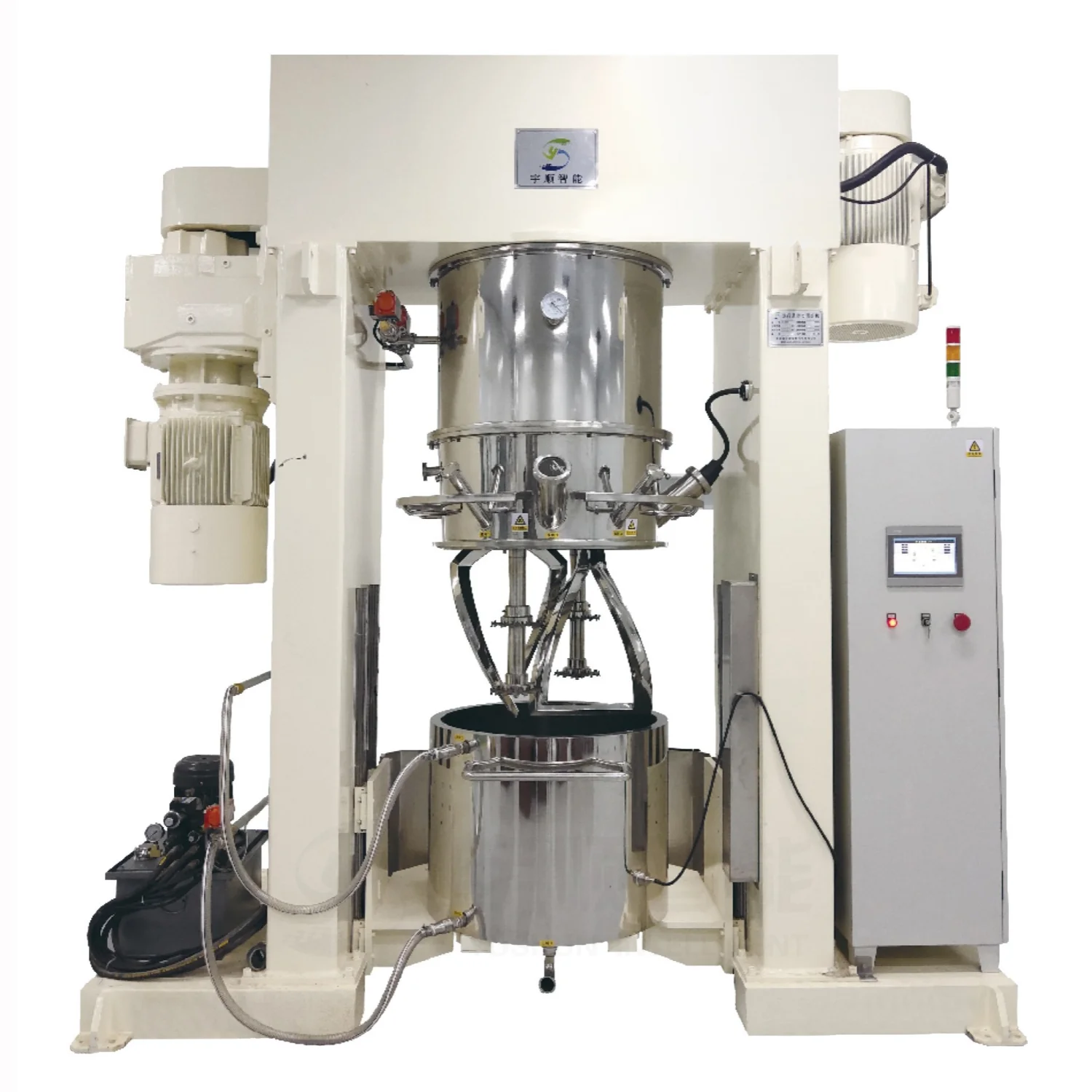

Double planetary mixer
►Line speed of 25 m/s shortens dispersing time
►SKF Sweden angular contact ball bearings offer high load capacity, fast speeds, and over 3 years of 24/7 operation at 21 m/s
►0 - 0 assembly ensures precision under 30 µm, stable operation, and noise below 70 dB(A)
►Dual seals and a sealed transmission box ensure leak-free operation and maintain a vacuum above -0.092 inHg for 24 hours.
►<0.2 mm gap precision with scraper ensures high roundness and effective mixing
►SS316 stainless steel paddles resist deformation and handle high-viscosity lithium battery slurries.
◆◆◆♢ Double Planetary Mixer - Product Type ♢◆◆◆
(100000-1000000CPS Slurry)
2L-20L
30L-200L
300L-2000L
◆◆◆♢ Double Planetary Mixer - Blades ♢◆◆◆
(line speed can reach to 25m/s)
Frame Paddle
Multi-layer Blade
Twist Blade
Frame Paddle+One High Speed Shaft+Scraper
Multi-layer Blade+One High Speed Shaft+Scraper
Twist Blade+One High Speed Shaft+Scrapei
Frame Paddle+Scrape
Multi-layer Blade+Scraper
Twist Blade+Scraper
Frame Paddle+Two High Speed Shafts
Multi-layer Blade+Two High Speed Shaft
Twist Blade+Two High Speed Shafts
Frame Paddle+Two High Speed Shafts+Scraper
Multi-layer Blade+Two High SpeedShaft+Scraper
Twist Blade+Two High Speed Shafts+Scraper
◆◆◆♢ Double Planetary Mixer - Control Panel ♢◆◆◆
(multiple style options)
Button control panel
Touchscreen control panel

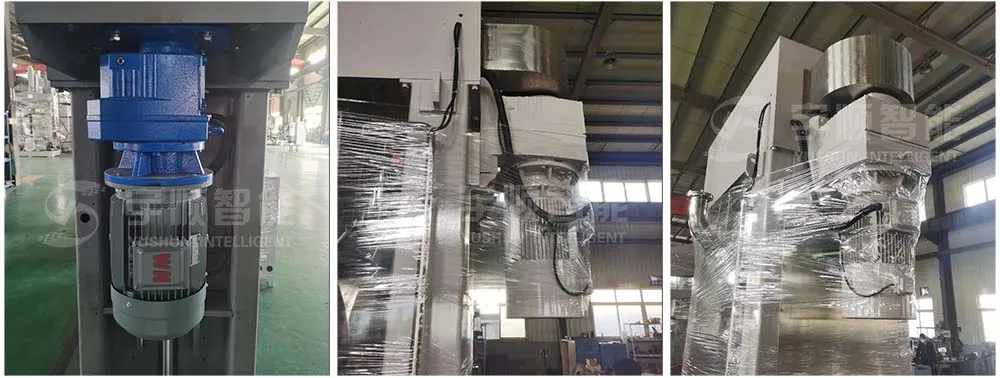

◆◆◆♢ Double Planetary Mixer - Motor ♢◆◆◆
(customizable explosion-proof motor)
◆◆◆♢ Double Planetary Mixer - Cross-section Diagram ♢◆◆◆
Single Arm

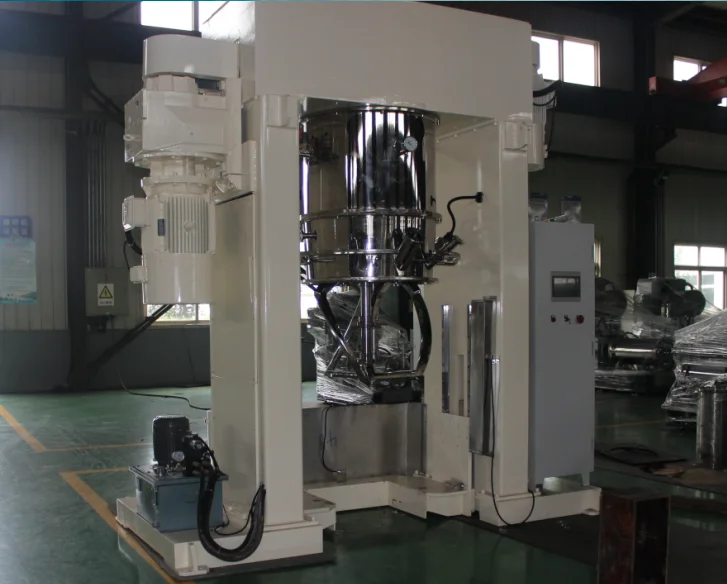

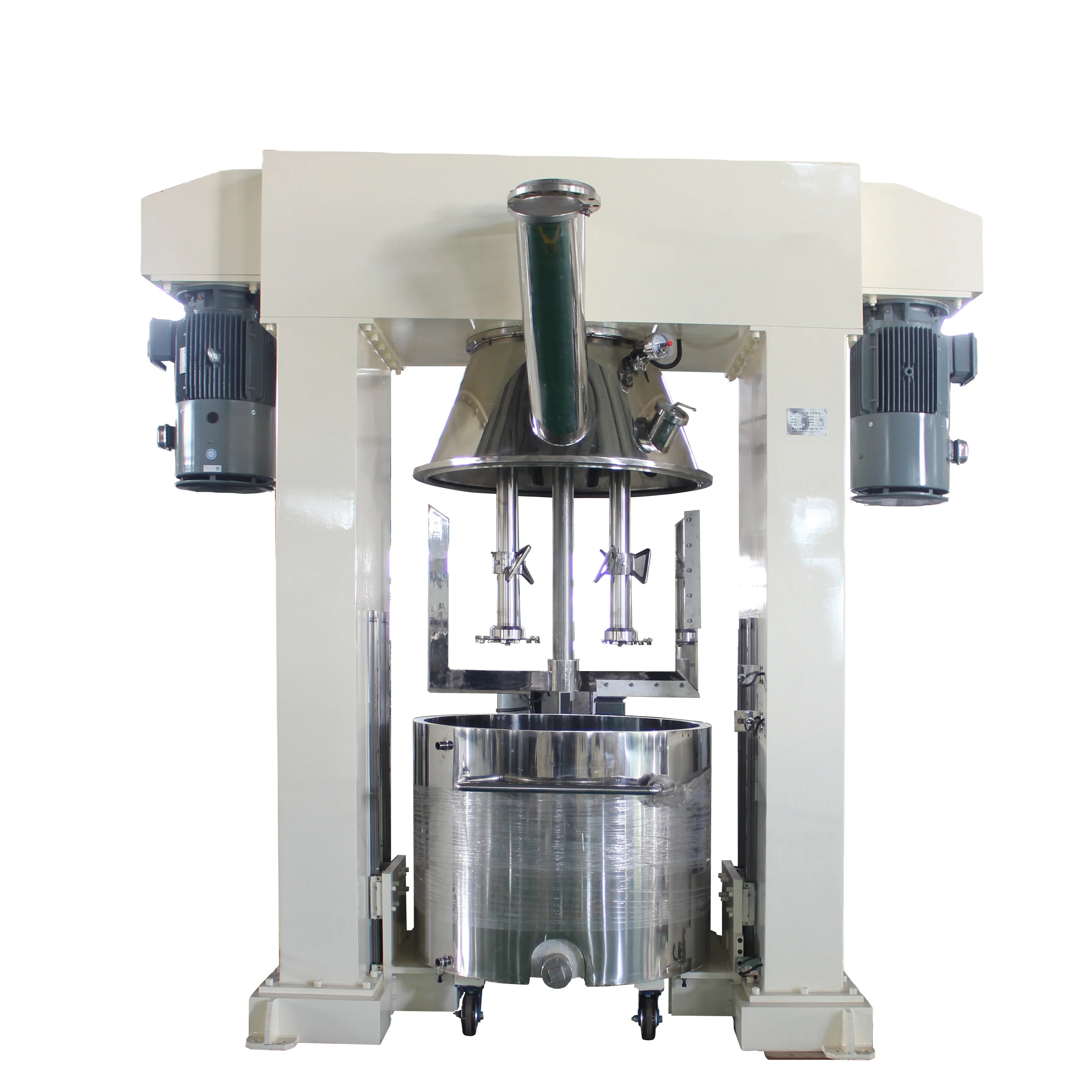

Gantry Planetary Mixer
Product Paramenters
Model | Tank work size(L) | Tank Design Size(L) | Revolution Motor(KW) | Mix Speed(rpm) | Disperse Motom(KW) | Disperse Speed(rpm) |
DPM-2L | 2L | 3L | 0.75 | 0-112 | 0.75 | 0-7500 |
DPM-5L | 5L | 7.4L | 1.5 | 0-104 | 1.5 | 0-6800 |
DPM-10L | 10L | 14L | 2.2 | 0-100 | 2.2 | 0-5200 |
DPM-20L | 20L | 29L | 2.2 | 0-84 | 2.2 | 0-4600 |
DPM-30L | 30L | 44L | 3 | 0-84 | 5.5 | 0-5500 |
DPM-60L | 60L | 88L | 7.5 | 0-53 | 11 | 0-4500 |
DPM-100L | 100L | 149L | 11 | 0-46 | 15.5 | 0-3700 |
DPM-200L | 200L | 287L | 22 | 0-39 | 30 | 0-2800 |
DPM-300L | 300L | 368L | 22 | 0-39 | 37 | 0-2200 |
DPM-500L | 500L | 670L | 37 | 0-35 | 45 | 0-2000 |
DPM-650L | 650L | 807L | 45 | 0-35 | 55 | 0-2000 |
DPM-1000L | 1000L | 1327L | 55 | 0-36 | 75 | 0-1800 |
DPM-1500L | 1500L | 1846L | 75 | 0-35 | 90 | 0-1500 |
DPM-2000L | 2000L | 2300L | 90 | 0-35 | 110 | 0-1500 |
DPM-3000L | 3000L | 3400L | 110 | 0-24 | 132 | 0-1000 |
Product Details
Main frame
The main frame is composed of three parts: the base, the vertical columns, and the cross beams, which are welded together. Each part is processed independently. All connecting surfaces are mechanically processed to ensure the accuracy of each working surface of the frame.

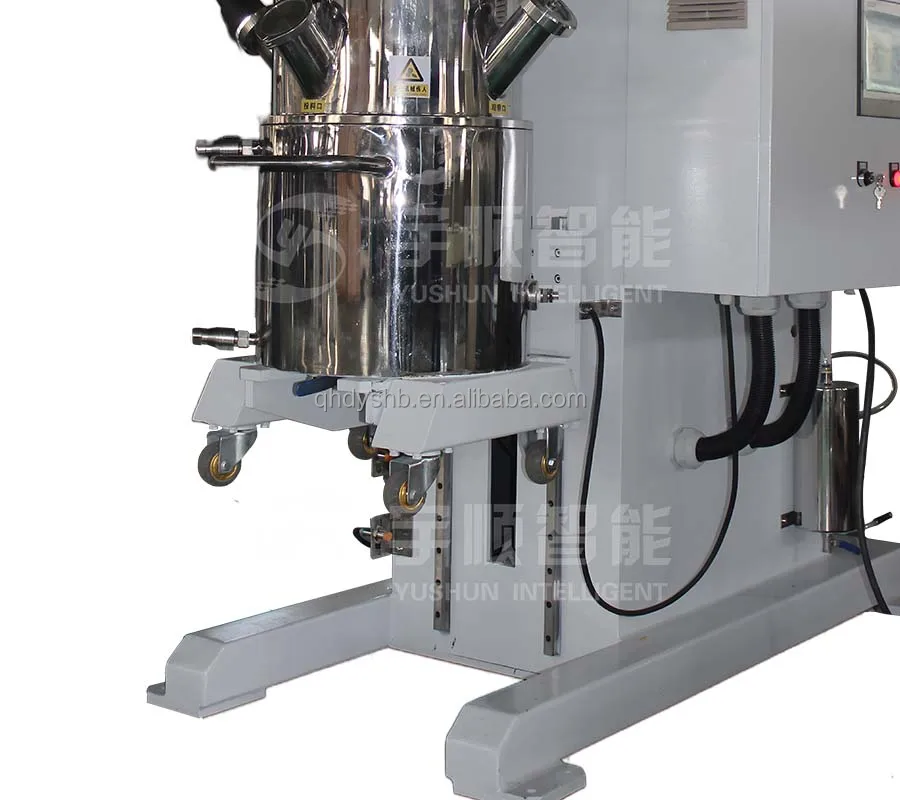

Barrel lifting mechanism
The lifting mechanism uses an electric screw rod or hydraulic cylinder for vertical movement, with linear guide rails for smooth guidance. The lifting components are machined as a whole to ensure precise positioning of the barrel.

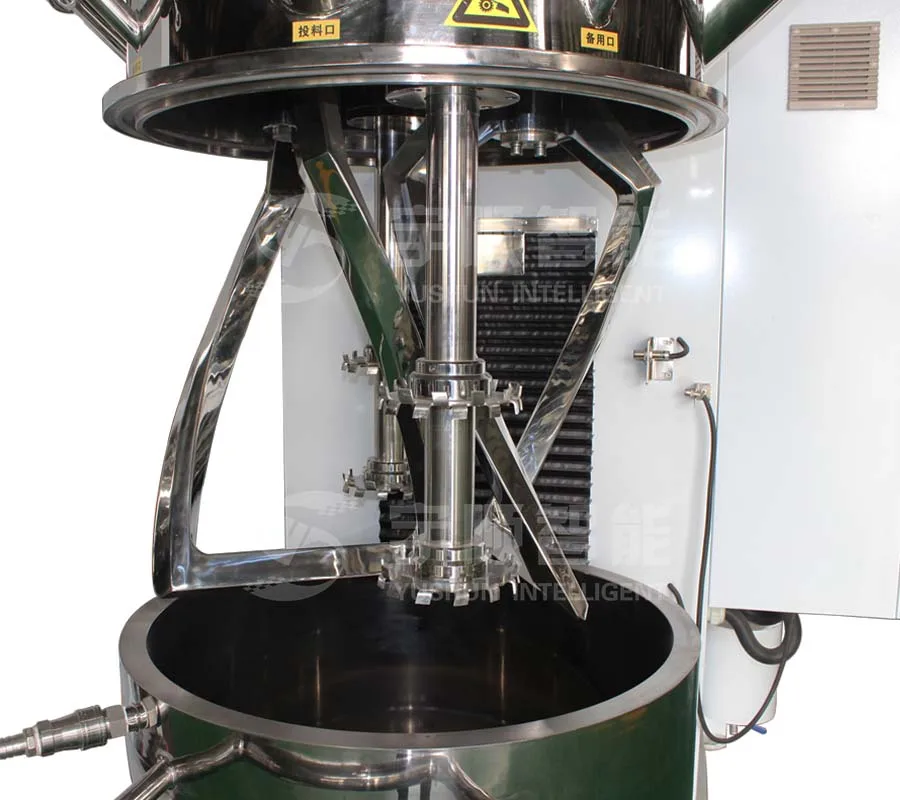

Planetary mixing system
The planetary gearbox is made of stainless steel 304, with a mirror-polished exterior. All mounting holes are machined using high-precision equipment to ensure dimensional and tolerance accuracy. The internal gears are ground for smooth operation and low noise.

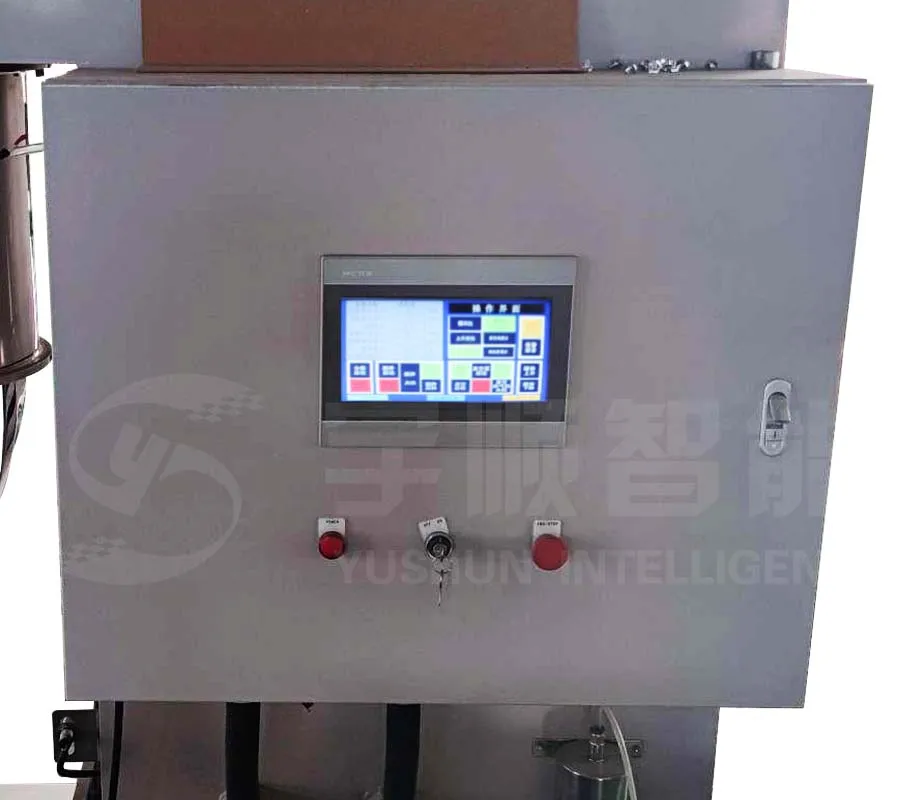

Control and safety system
The control panel operates using either a touchscreen or button interface, with brand PLC, touchscreen, and frequency converter selected.

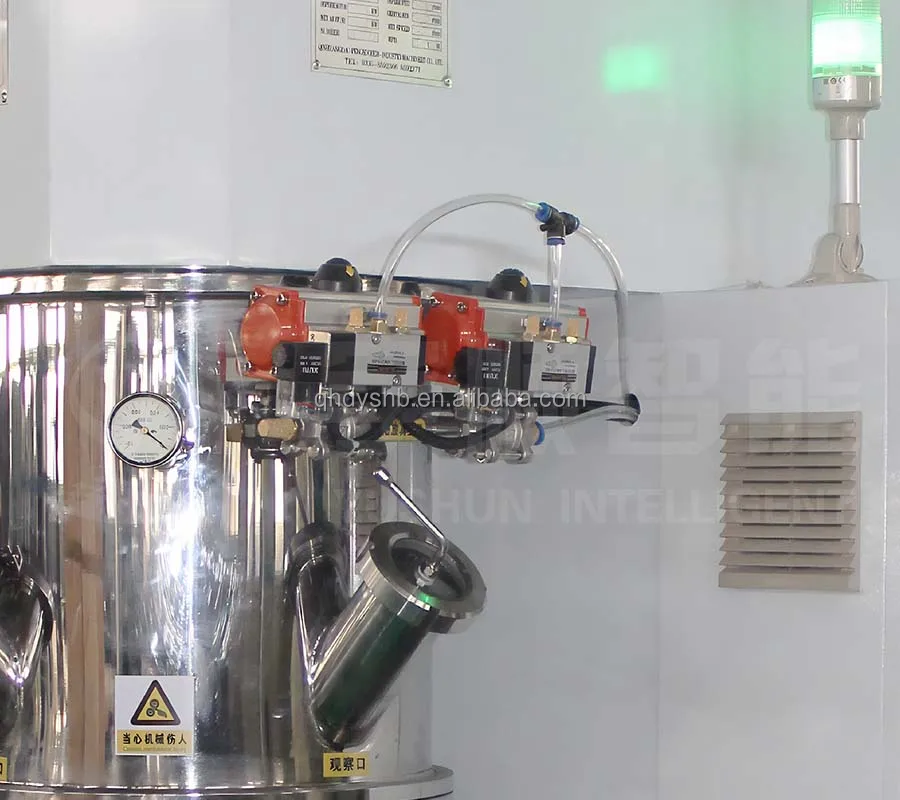

Vacuum valve system
Vacuum buffer tank, vacuum control valve, exhaust valve, pneumatic or manual valves.
Laboratory Feedback
dental composite filling paste
cemented carbide
sealant
solid battery slurry
solder paste
lithium battery slurry
Certifications
FAQ
What is Foreign Trade-Express?
Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.
There are many kinds of devices on the website. What are they used for?
1) Dispersion mixing equipment for solid and liquid high viscosity slurry, suitable for coating, adhesive, new energy (lithium
battery slurry), rocket propellant and other industries;
2) Equipment for ultrafine dispersion grinding and crushing of materials, used for grinding new materials such as coatings,paints,inks, pharmaceutical preparations, lithium battery anode and cathode materials, ceramic materials, etc.
3) Other related equipment for coating, adhesive, lithium battery slurry production line.
battery slurry), rocket propellant and other industries;
2) Equipment for ultrafine dispersion grinding and crushing of materials, used for grinding new materials such as coatings,paints,inks, pharmaceutical preparations, lithium battery anode and cathode materials, ceramic materials, etc.
3) Other related equipment for coating, adhesive, lithium battery slurry production line.
How to choose the right mixing machine for your material?
Please describe the information of your material, including the name, viscosity, solid content, additives, the purpose to be
achieved and the state of the material. Our technicians will recommend the suitable mixer based on this information.
achieved and the state of the material. Our technicians will recommend the suitable mixer based on this information.
Your product details page does not have the type of paddle I want?
We have a strong technical team that can customize the mixing paddle you want according to your requirements.
Do double planets have vacuum pumps?
The double planet experimental mixer (2L-30L) will be equipped with a vacuum pump, and the production mixer larger than 30L will not be equipped with a vacuum pump, because we default that the production workshop will have a vacuum source, if we need to bring a vacuum pump, please inform us in advance.
Can double planets heat/cool materials?
The barrel of the double-planet mixer is jacketed, and water or oil can be added to heat or cool the material.
How to choose the right type of grinding machine for your material?
Please tell us the material you need to make, feed fineness, discharge fineness, temperature requirements, capacity requirements,we will help you recommend the matching model and the size of the grinding medium.
Do our materials contain flammable and explosive substances?
We can do motor explosion-proof (electrical cabinet remote control non-explosion-proof) and the whole machine explosion-proof, to ensure safe production.
How to install and debug the equipment when it arrives at our factory?
Most of our equipment is the whole machine directly transported, with the opportunity to come with the manual and the circuit manual, as long as the circuit manual is connected to the power can be turned on, and then according to the manual can be operated and used, if special treatment is required, our engineers will be able to provide remote video guidance.
