123 Lcd Display Ad Display Screen Computer Display 12.3Inch 1280X480 Stretched Bar Lcd Screen With Hd Mi Vga 2Av Driver Board

Share on (1601271068786):


Price:$96.00 - $110.00

Quantity:


Product Overview

Description











Product Description


Product Name:
123 Lcd Display Ad Display Screen Computer Display 12.3Inch 1280X480 Stretched Bar Lcd Screen With Hd-Mi Vga 2Av Driver Board
Details:
Display Mode TN, Normally White, Transmissive
Resolution 1280(RGB)×480
Outline Size:312.4 ×130.4×8 (H×V×D)mm
Display Area:291.84 × 109.44 (H×V)mm
Brightness:330 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Viewing Angle :65/65/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface :20 pins LVDS (1 ch, 8-bit) , Connector
Backlight: WLED
Input Voltage :3.3V (Typ.)


Compatible Work With:

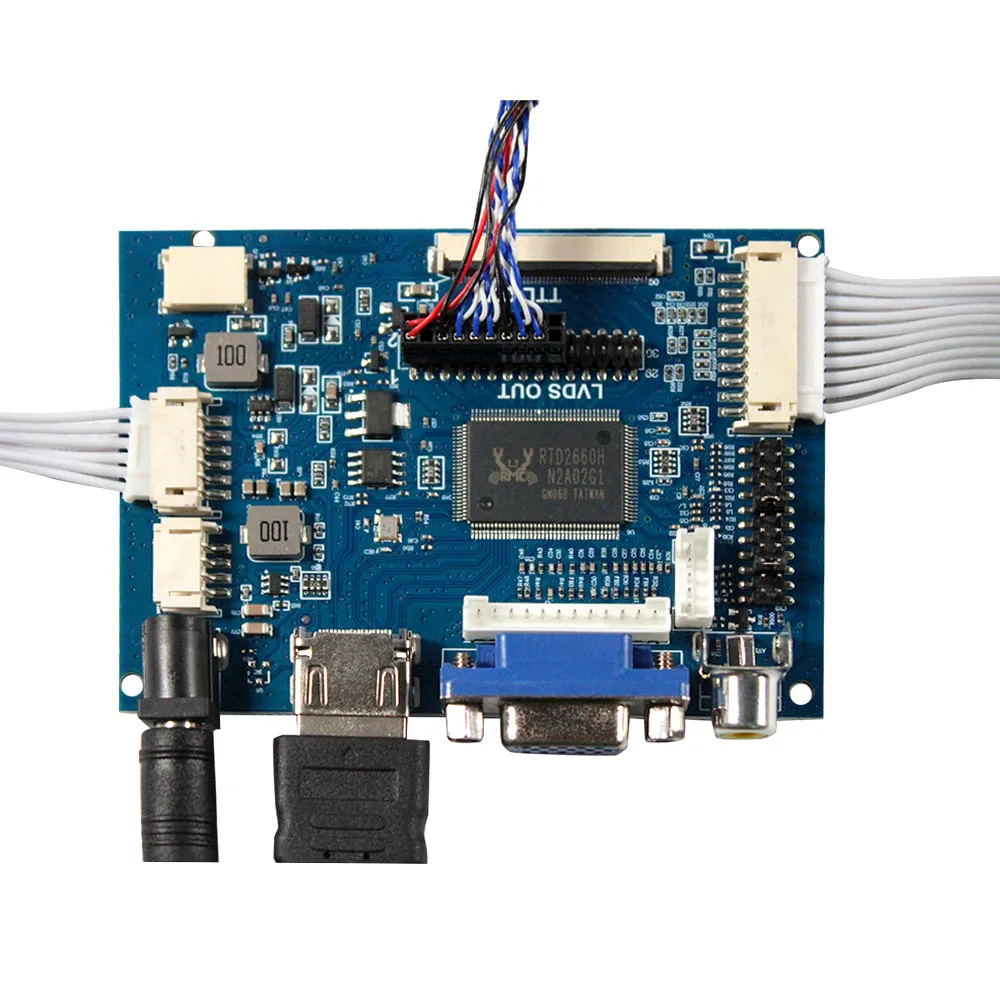

LCD Controller Board
Details:
HD-MI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm

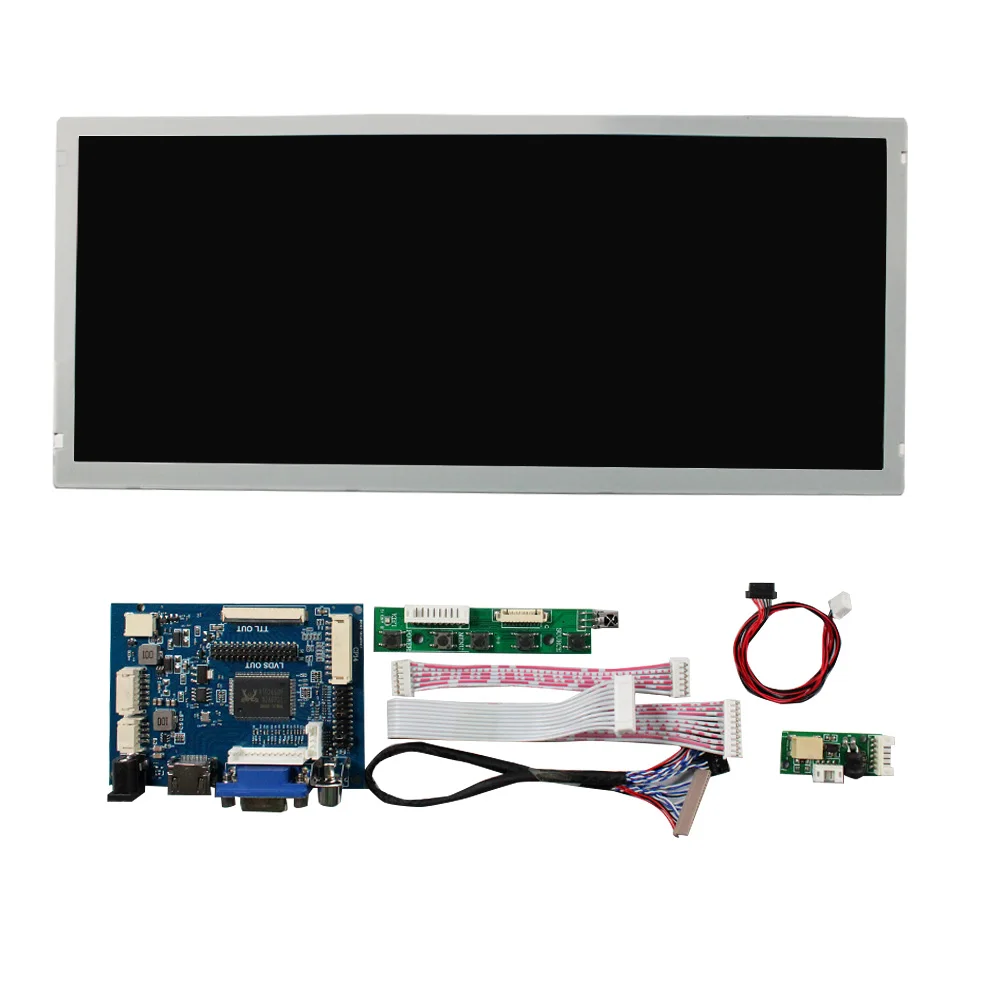

Packing list:
1× HD-MI VGA+2AV LCD Controller Board VS-TY2662-V1
1×12.3" LQ123K3LG01 1280X480 LCD Screen
1× Power Supply Cable
1× Keyboard With Cable


Details Images
