Factory Low Price 4 Band Phone Signal Booster Mobile Network Repeater 850 1900 1700 2600Mhz For North America And South America
- Category: >>>
- Supplier: Shenzhen Jiangxin Communication Technology Co. Ltd.
Share on (1601271685288):
Product Overview
Description
Products Description

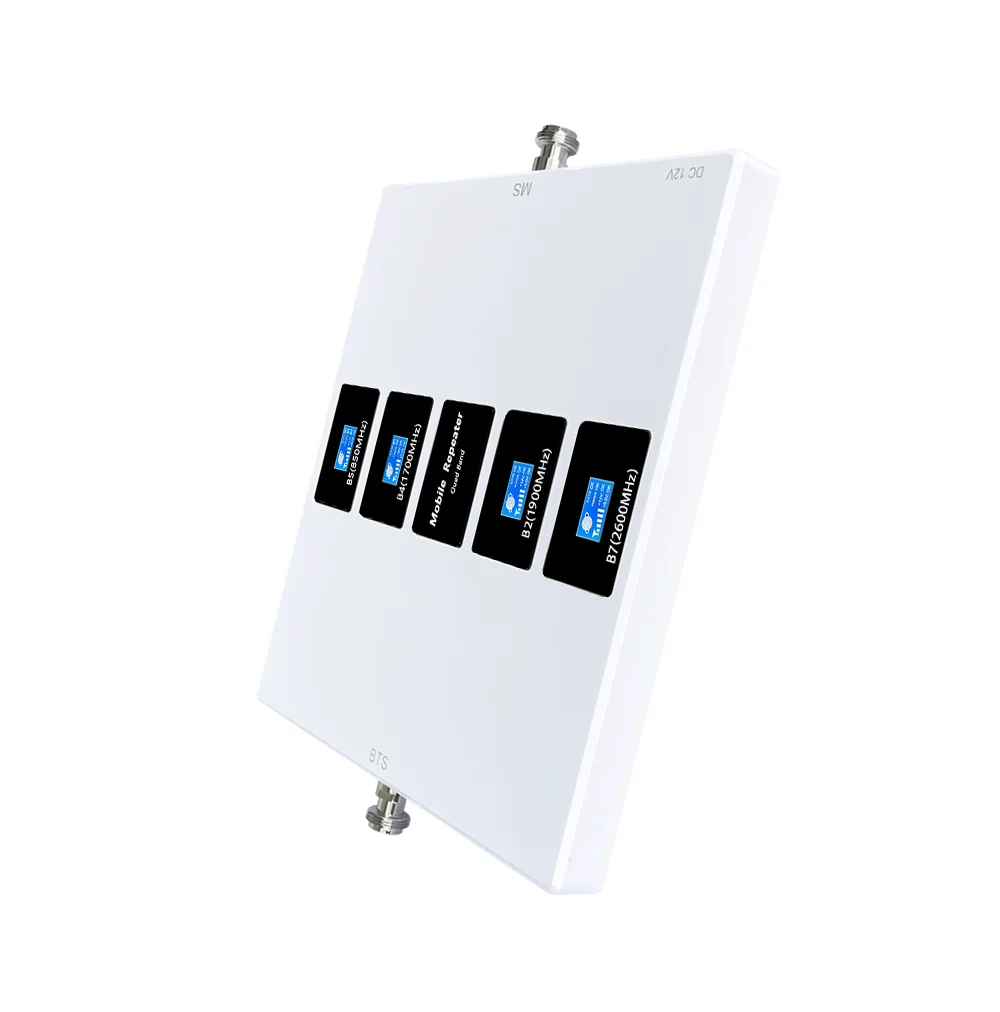

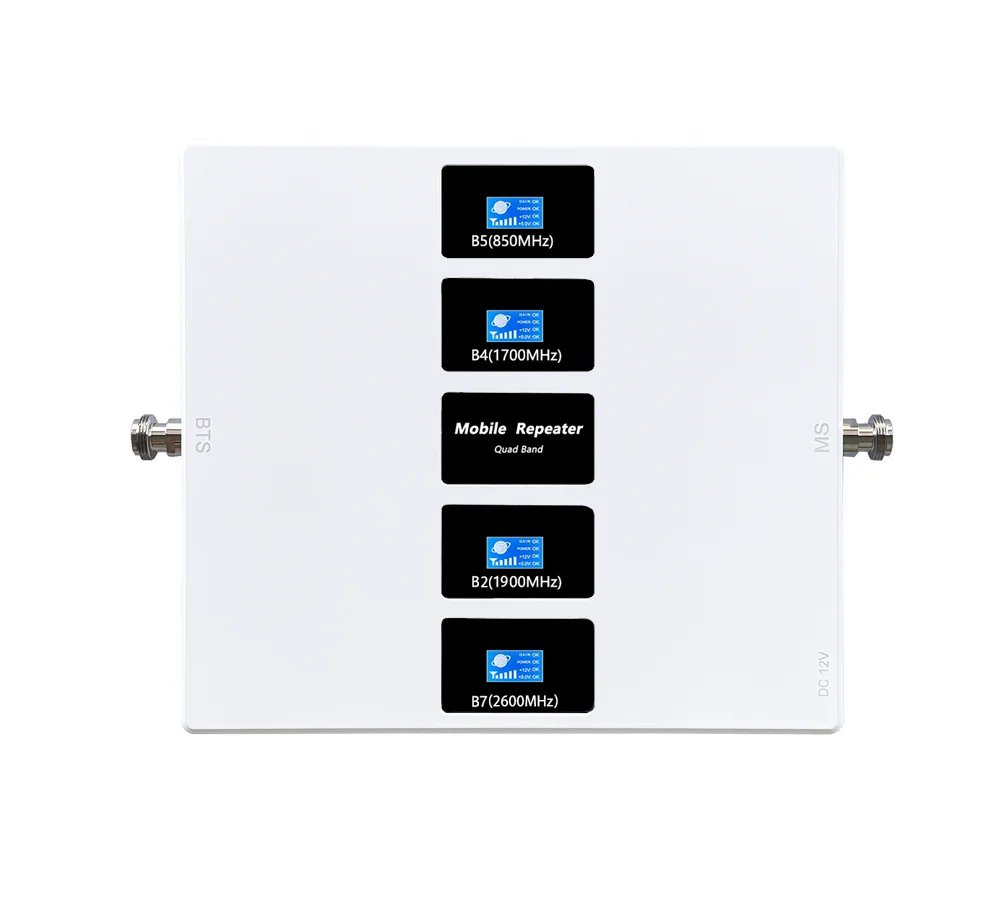

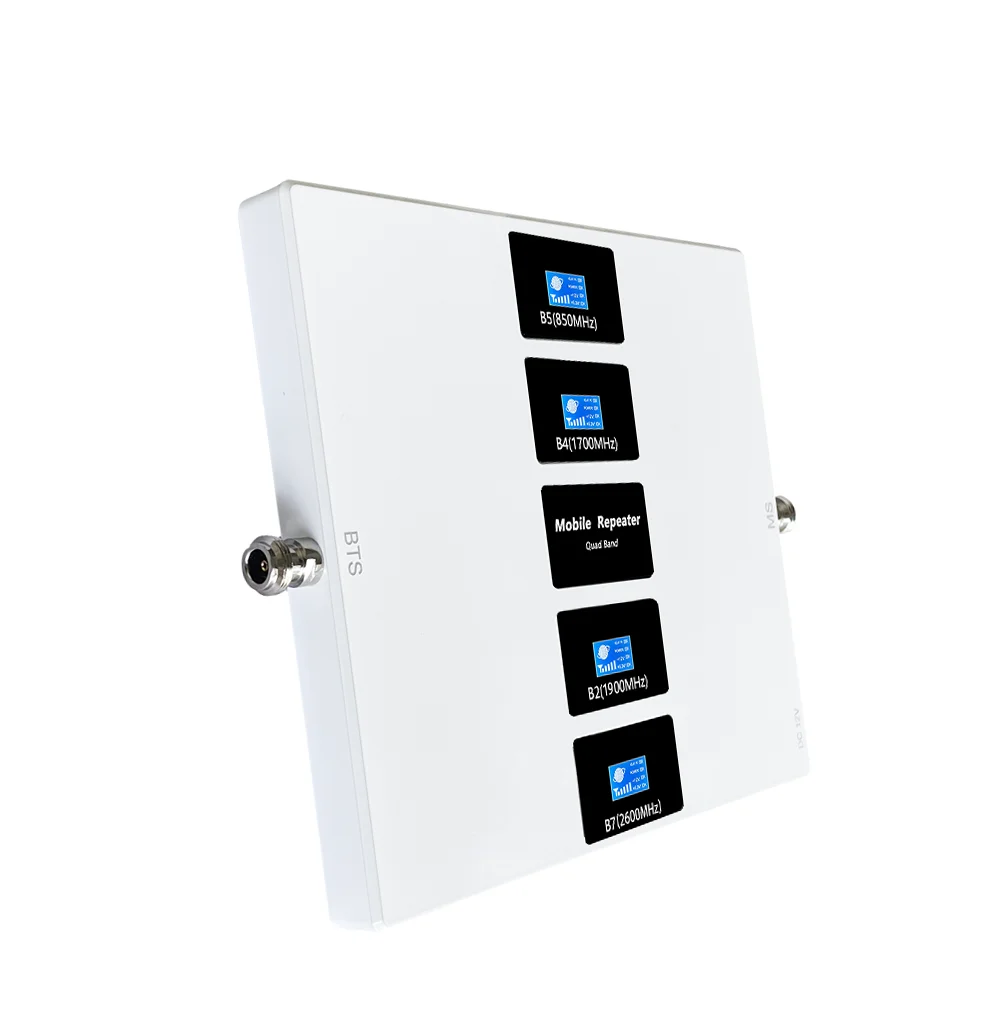

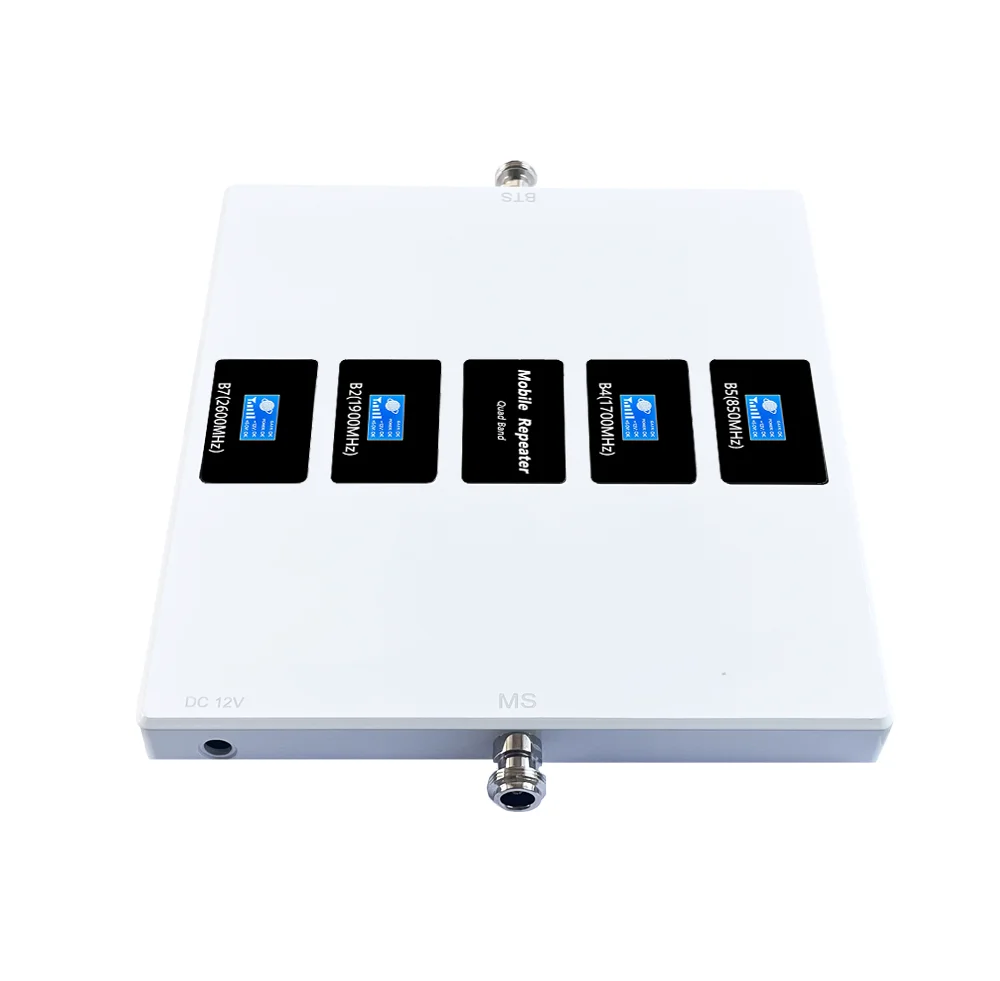

Quad band mobile signal booster
SS13-CPAL-B7
Wide coverage, support for multiple frequency bands (such as CDMA/PCS/AWS/LTE, etc.), enhance and extend the coverage of wireless signals. Covering an area of up to 500m², it is suitable for hotels, homes, basements, shopping centers, offices and other places. It can be compatible with a variety of wireless devices, such as smart phones, tablets, smart home devices, etc., to meet the diversified needs of users.
Product Paramenters
Technique Specification | ||||||
Model No | SS13-CPAL-B7 | |||||
Parameter data | Uplink | Downlink | ||||
Frequency Rang | B2 | 1850~1910 MHz | 1930~1990 MHz | |||
B4 | 1710~1715 MHz | 2110~2155 MHz | ||||
B5 | 824~849 MHz | 869~894 MHz | ||||
B7 | 2500~2570 MHz | 2620~2690 MHz | ||||
Output Power | 18 ±2dBm | 18 ±2dBm | 20 ±2dBm | |||
Gain | 65±2 dB | 65±2dB | ||||
Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 4A | |||||
Power Comsumption | < 48W | |||||
Mechanical Specification | ||||||
RF Connector | N-Female | |||||
Dimensions (D x W xH ) | 340*225*60mm | |||||
Weight | 1.7kg | |||||
Operating Temperature | -10℃ ~ 55℃ | |||||
Product Introduction of mobile phone signal amplifier:
The product can be used in mountain areas, urban areas, towns, villages in the city,underground warehouse, basement, underground parking lot without signal area.The function is to draw (absorb) the stable signals outside to the room and then amplify and diffuse the signals to cover the whole effective area, so as to provide stable and high-quality signals to the equipment in need of signals.
Please note before purchasing
（1）.Please confim that the operator base station frequency band of your SlM card is suitable for the effectiverequency of this device
（2）.Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB-90dB is captured).Otherwise. the signal amplifier will not improve your signal
（2）.Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB-90dB is captured).Otherwise. the signal amplifier will not improve your signal
Attention!

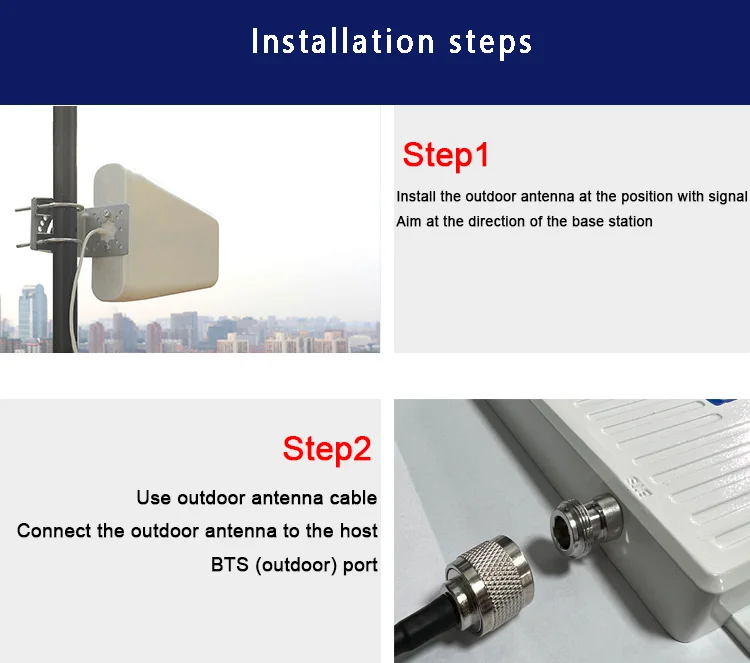

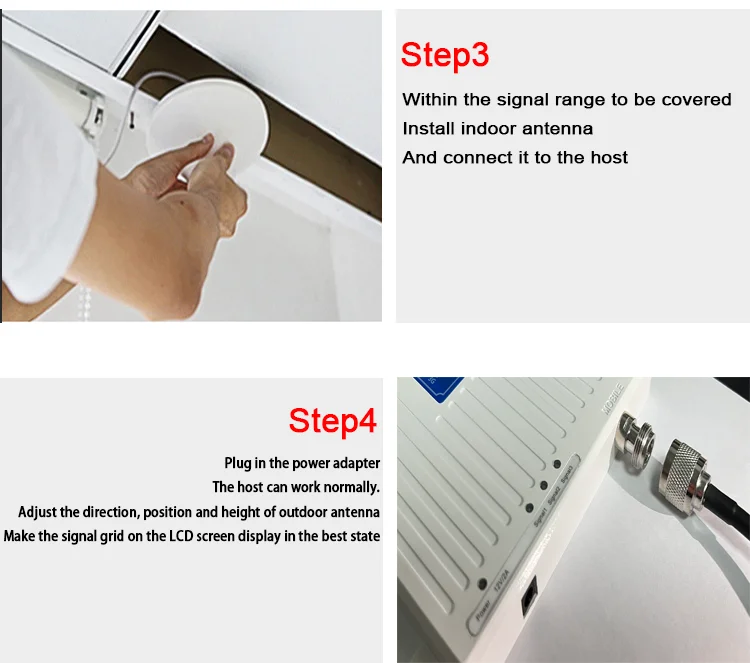

The indoor and outdoor antennas and other accessories involved in the installation method are only for installation instructions and are not included in the product. The product only contains the signal repeater host and power adapter.If you need other accessories, you can contact us or enter other links in the store to purchase.

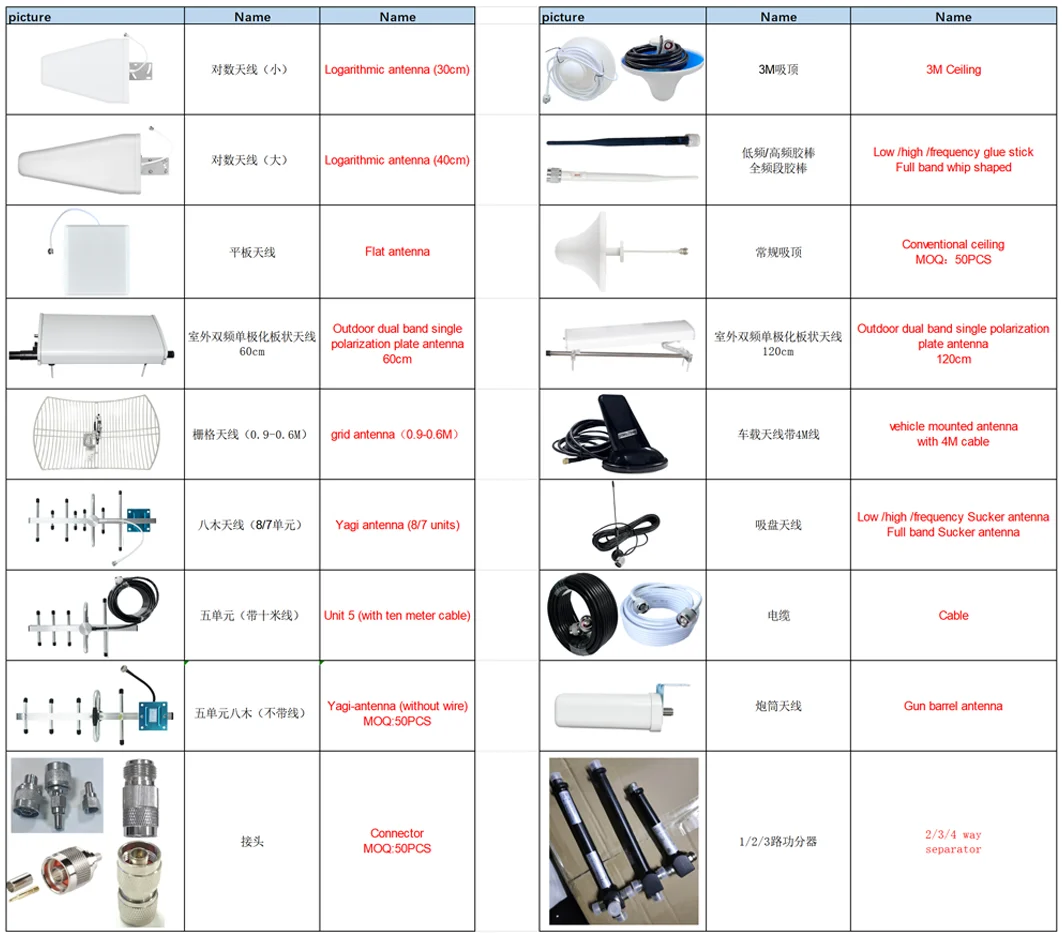

Other accessories
This link does not include any accessories shown in the above figure. If necessary, you can contact us to purchase
Packing&Shipping
After order confirmation and payment, we will send your package as soon as possible. Please provide your contact information correctly.

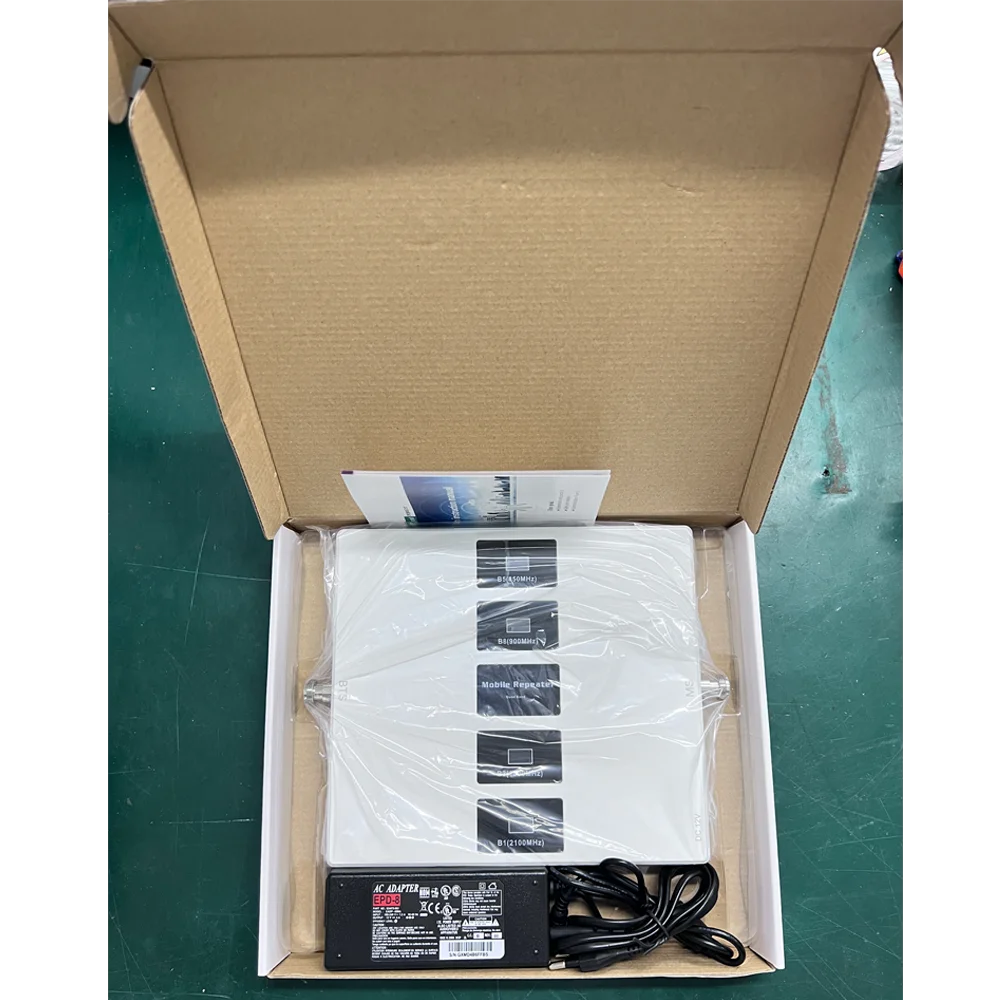

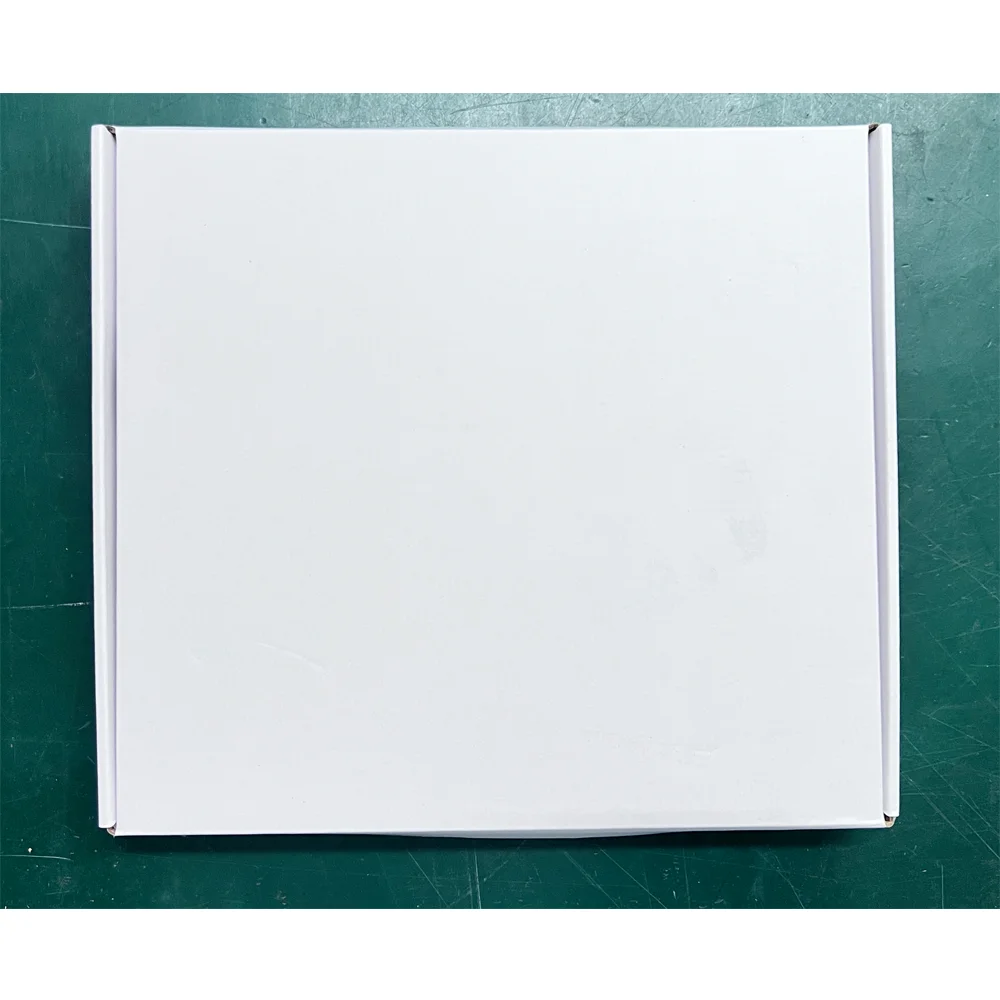

Packing description: Each signal booster is packaged separately, using neutral carton to completely protect the product from damage, the box size is 34 * 33 * 8cm,The weight is 1.7kg.
Delivery details: Delivery within 7 working days after full confirmation.
Mode of transport: air, land, sea or express.
Packing description: Each signal booster is packaged separately, using neutral carton to completely protect the product from damage, the box size is 34 * 33 * 8cm,The weight is 1.7kg.
Delivery details: Delivery within 7 working days after full confirmation.
Mode of transport: air, land, sea or express.

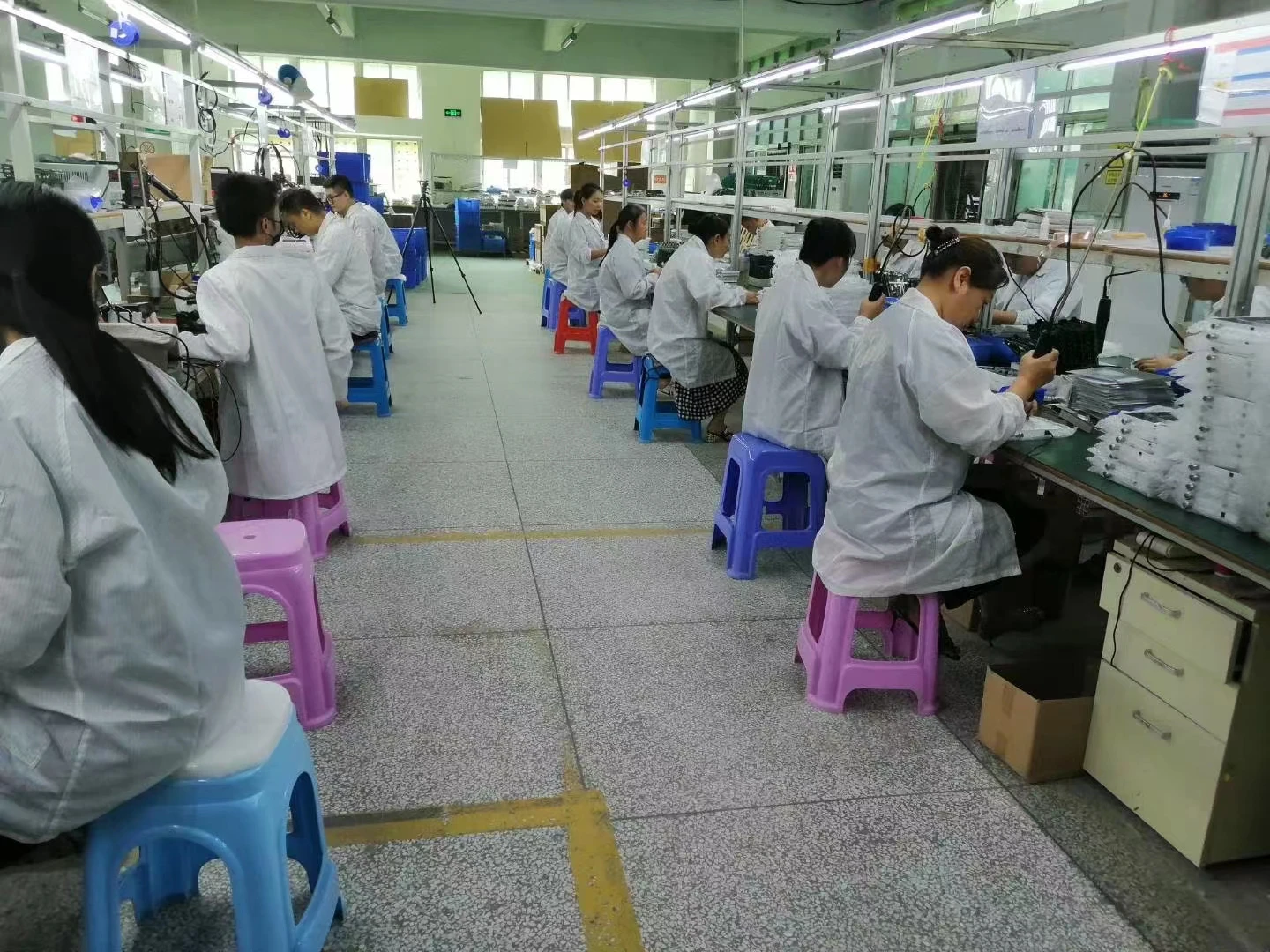

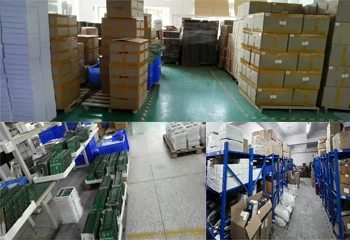

Company Introduction
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.
We are sincerely willing to cooperate with you. let’s win the future together!
